EXT-UHD600A-MVSL-41

4K Ultra HD 600 MHz 4×1 Multiview Seamless Switcher w/ Audio De-Embedder

Seamless switcher scales and sizes picture from four Hi-Def sources, and outputs them individually or as windows on a single 4K 600 MHz display

Description

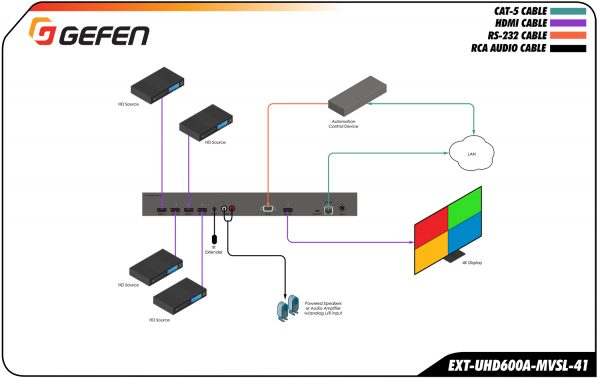

Gefen’s 4K 600 MHz 4×1 Multiview Seamless Switcher is the perfect solution for displaying content from four Hi-Def sources on one 4K Ultra HD display. Each of the windows can be displayed one at a time, or individually scaled and positioned on the screen as desired. Seamless switching ensures no frame loss during window and picture transitions.

This product is HDCP compliant. Input resolutions up to 1080p Full HD (60 Hz) and output resolutions up to 4K 60 Hz 4:4:4 (18 Gbps, 600 MHz TMDS clock) are supported. Audio from any of the four HDMI sources can be selected via IR, RS-232, or IP, for playback through the HDMI output and the L/R analog audio output. The analog audio is de-embedded from the HDMI output and can be routed to an outboard sound-reinforcement system, adding presence and impact to AV presentations. Factory presets provide most commonly used arrangements of windows on a display, including single window output. Additional programmable presets allow the user to store and recall custom-configured window arrangements. Presets are accessible via the front panel buttons, On Screen interface, or the web server interface. The 4K 600 MHz 4×1 Multiview Seamless Switcher is controllable via front panel, a handheld IR remote control, RS-232, and IP (web server interface, (more…)

Features

  • Controllable via front panel controls, IR, IP (web server interface, Telnet, and UDP), and RS-232
  • Input resolutions up to 1080p Full HD (60 Hz), with HDCP 1.4

  • Output resolutions up to 4K 60 Hz 4:4:4

  • User-selectable playback of HDMI audio content from any of the four inputs

  • Analog L/R Audio Breakout for use with outboard amplification systems

  • Easy to use on-screen Graphical User Interface (GUI) and web server interface

  • Handheld IR remote control and IR Extender input on back panel

  • Seamless switching ensures no switching delay and no picture
    loss during transitions

  • Field-upgradable firmware using the Gefen Syner-G software

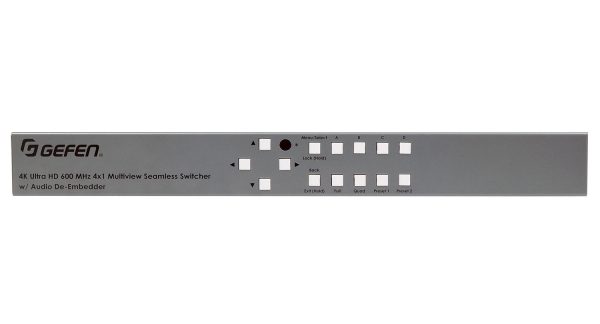

  • Default pre-configured Multiview window arrangements can be accessed via two front panel preset push-buttons

  • Custom user-configurable Multiview window layouts can be accessed via two front panel preset push-buttons and via OSD

  • Locking power supply connector

  • 1U tall rack-mountable enclosure, rack ears included

* Features and specifications are subject to change without notice.

Specifications

Video Input connectors: (4) HDMI Type A, 19-pin, female, locking

Video Output connector: (1) HDMI Type A, 19-pin, female, locking

Analog Audio Output connectors: (2) RCA jacks

RS-232 connector: (1) DB-9, female

IP Control connector: (1) RJ-45, shielded

USB Connector: (1) Mini-B

IR In/Ext Connector: (1) 3.5mm stereo mini-phone jack

IR Extender type: EXT-RMT-EXTIRN

Factory Default Preset selector buttons: (2) tact-type

Custom User Preset selector buttons: (2) tact-type

Input/Window selector buttons: (4) tact-type

Menu Navigation buttons: (6) tact-type

Power Supply Connector: 3-pin locking plug

Power Supply: 12V DC

Power Consumption: 15W maximum

Operating Temperature: +32 to +122  °F (0 to +50  °C)

Operating Humidity: 5% to 90% RH, non-condensing

Storage Temperature: -4 to +185  °F (-20 to +85  °C)


Storage Humidity: 0% to 95% RH, non-condensing

MTBF: 50000 hours

Dimensions (W x H x D, not including connectors):

Without Rack Ears: 15.3� x 1.7� x 8.9� (389mm x 43mm x 226mm)

: With Rack Ears: 18.9� x 1.7� x 8.9� (480mm x 43mm x 226mm)

Unit Weight: 5.4 lbs (2.5 kg)

Shipping Weight: 10 lbs (4.6 kg)

Other Specifications

Shipping Info
  • Length21 (Inches)
  • Width12.6 (Inches)
  • Height6.3 (Inches)
  • Weight9.95 (Lbs)
  • Unit of MeasurePackage
  • UPC888814999860
Other Specifications
  • Video Input connectors (4) HDMI Type A, 19-pin, female, locking
  • Video Output connector (1) HDMI Type A, 19-pin, female, locking
  • Analog Audio Output connectors (2) RCA jacks
  • RS-232 connector (1) DB-9, female
  • IP Control connector (1) RJ-45, shielded
  • USB Connector (1) Mini-B
  • IR In/Ext Connector (1) 3.5mm stereo mini-phone jack
  • IR Extender type EXT-RMT-EXTIRN
  • Factory Default Preset selector buttons (2) tact-type
  • Custom User Preset selector buttons (2) tact-type
  • Input/Window selector buttons (4) tact-type
  • Menu Navigation buttons (6) tact-type
  • Power Supply Connector 3-pin locking plug
  • Power Supply 12V DC
  • Power Consumption 15W maximum
  • Operating Temperature +32 to +122  °F (0 to +50  °C)
  • Operating Humidity 5% to 90% RH, non-condensing
  • Storage Temperature -4 to +185  °F (-20 to +85  °C)
  • Storage Humidity 0% to 95% RH, non-condensing
  • MTBF 50000 hours
  • Dimensions (W x H x D, not including connectors) Without Rack Ears: 15.3″ x 1.7″ x 8.9″ (389mm x 43mm x 226mm)
  • With Rack Ears: 18.9″ x 1.7″ x 8.9″ (480mm x 43mm x 226mm)
  • Unit Weight 5.4 lbs (2.5 kg)
  • Shipping Weight 10 lbs (4.6 kg)
  • * Features and specifications are subject to change without notice.
In The Box
  • 4K 600 MHz Multiview Seamless Switcher1
  • 6 ft. Locking HDMI Cables4
  • 6 ft. DB-9 Cable1
  • EXT-RMT-EXTIRN IR Extender Module1
  • Rack Ears2
  • Rack Ear Screws4
  • Handheld IR Remote1
  • EXT-PS121.5AIP-3P-6 12V DC Locking Power Supply with US/EU/UK/AU plugs 1
  • Quick-Start Guide1

Warranty

3 year product warranty


Please see the Gefen warranty page for more details
