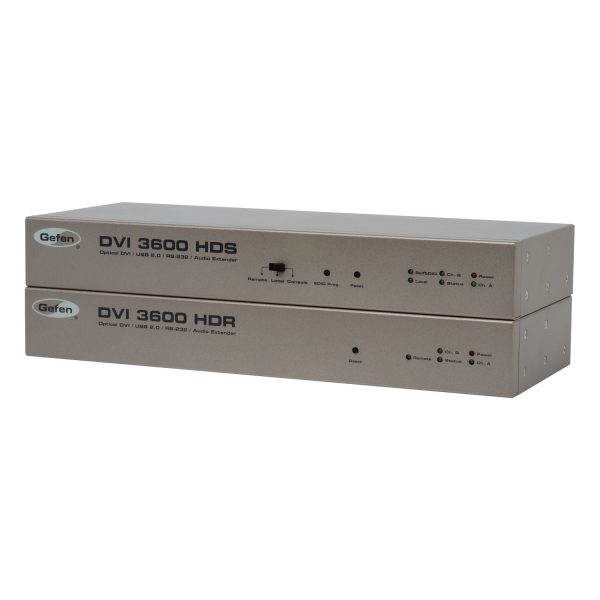

EXT-DVI-3600HD-SW

DVI 3600HD Optical DVI/ USB 2.0 / RS-232/ Audio Extender – with Power Cords for Swiss territories

Extend DVI, USB 2.0, RS-232 and Analog Audio up to 6,600 feet (2000 meters)

Description

The Gefen EXT-DVI-3600HD DVI Extender with Audio and USB allows you to operate a single DVI-compliant computer from two workstations, by extending DVI, USB 2.0, analog audio, and RS-232 from the computer to the remote workstation. USB peripherals can be placed at either of the two locations, by the Sender or Receiver unit.

Video Support

Supports resolutions up to  1920 x 1200 (WUXGA)

Audio Support

Supports stereo analog audio

Features



  • Extends DVI, USB2.0, RS-232, and analog audio up to 6,600 feet (2000 meters) with single-mode fiber, and up to 1,650 feet (500 meters) with multi-mode fiber

    •

  • Supports video resolutions up to 1920 x 1200

    •

  • Uses four-strand single-mode or multi-mode LC-terminated fiber cables

    •

  • Supports Virtual DDC1 and DDC2B protocols

    •

  • Supports Local and Virtual EDIDs

    •

  • Supports USB 2.0 and USB 1.1

    •

  • Configurable to allow access of USB devices located at Sender Side or Receiver Side

    •

  • Rack-mountable (rack ears included)

Specifications

Maximum Pixel Clock: 165MHz

Video Input Connector (Sender): (1) DVI-D (24 pin), female (digital only)

Video Monitor Output Connector (Sender): (1) DVI-D (24 pin), female (digital only)

Audio Input Connector (Sender) (1) 3.5 mm mini-stereo jack

Audio Output Connector (Receiver) (1) 3.5 mm mini-stereo jack

USB Host Connector (Sender): (1) USB Type B

USB Local Device Connectors (Sender): (2) USB Type A, female

USB Device Connectors (Receiver): (4) USB Type A, female

RS-232 Port (Sender): (1) DB-9, female

RS-232 Port (Receiver): (1) DB-9, male

Link Connectors (Sender / Receiver): (4) Type LC fiber connectors (2 x LC Duplex)

Fiber Cable: CAB-LC-XXX (62.5? multi-mode)

Console Connector (Sender / Receiver): (1) RJ-45 jack (for future use)

Power Supply (Sender / Receiver): 12V DC

Power Consumption: 36W (max.) each

Dimensions (Sender / Receiver)(W x H x D): 12.4" x 1.6" x 5" (315mm x 40mm x 127mm)

Shipping Weight: 8 lbs. (3.6 kg)

Other Specifications

Shipping Info
  • Length0 (Inches)
  • Width0 (Inches)
  • Height0 (Inches)
  • Weight0 (Lbs)
  • UPC845344077574
Other Specifications
  • Maximum Pixel Clock: 165MHz
  • Video Input Connector (Sender): (1) DVI-D (24 pin), female (digital only)
  • Video Monitor Output Connector (Sender): (1) DVI-D (24 pin), female (digital only)
  • Audio Input Connector (Sender) (1) 3.5 mm mini-stereo jack
  • Audio Output Connector (Receiver) (1) 3.5 mm mini-stereo jack
  • USB Host Connector (Sender): (1) USB Type B
  • USB Local Device Connectors (Sender): (2) USB Type A, female
  • USB Device Connectors (Receiver): (4) USB Type A, female
  • RS-232 Port (Sender): (1) DB-9, female
  • RS-232 Port (Receiver): (1) DB-9, male
  • Link Connectors (Sender / Receiver): (4) Type LC fiber connectors (2 x LC Duplex)
  • Fiber Cable: CAB-LC-XXX (62.5° multi-mode)
  • Console Connector (Sender / Receiver): (1) RJ-45 jack (for future use)
  • Power Supply (Sender / Receiver): 12V DC
  • Power Consumption: 36W (max.) each
  • Dimensions (Sender / Receiver)(W x H x D): 12.4" x 1.6" x 5" (315mm x 40mm x 127mm)
  • Shipping Weight: 8 lbs. (3.6 kg)

Warranty

2 year product warranty


Please see the Gefen warranty page for more details
