GTB-USB2.0-4LR-BLK-SW

USB 2.0 LR 4-Port Extender (Black) – with Power Cords for Swiss territories

Extend USB 2.0 over CAT5 up to 330 feet (100 meters)

Description

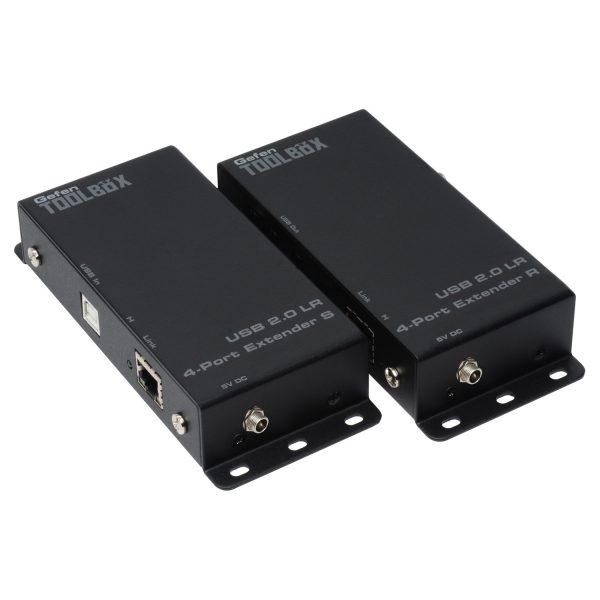

The GefenToolBox USB 2.0 4-Port Extender extends a USB source up to 330 feet (100 meters) using a single CAT5 cable. This product supports USB 2.0 with data rates up to 480 Mbps in addition to backward-compatibility with USB 1.1. The Receiver Unit allows the connections of up to four (4) USB devices, providing access to printers, scanners, cameras, external storage media, digital signage, and automated control systems.

Features

  • Extends USB 2.0 up to 330 feet (100 meters)
  • Supports 480 Mbps using USB 2.0
  • Backward-compatible with USB 1.1 devices
  • Receiver supports up to four (4) USB devices
  • Uses industry-standard CAT-5, CAT-5e, or CAT-6 cable
  • Plug-and-Play
  • Works with PC and Mac computers
  • Locking Power Connectors

Specifications

USB 2.0 Speed: 480 Mbps

USB Connector (Sender Unit): Type B

USB Connectors (Receiver Unit): (4) Type A

Link Connectors (Sender Unit / Receiver Unit): RJ-45

Power Supply: 5V DC locking type (20W max)

Operating Temperature: +32°F to +122°F (0°C to +50°C)

Storage Temperature: -4°F to 158°F (-20°C to 70°C)

Operating Humidity: 20% to 80% relative humidity, non-condensing

Storage Humidity: 10% to 90% relative humidity, non-condensing

Dimensions (Sender Unit / Receiver Unit): 5.75″ W x 1.25″ H x 2.5″ D

Shipping Weight: 3 lbs.

Other Specifications

Shipping Info
  • Length0 (Inches)
  • Width0 (Inches)
  • Height0 (Inches)
  • Weight0 (Lbs)
  • UPC845344090139
Other Specifications
  • USB 2.0 Speed: 480 Mbps
  • USB Connector (Sender Unit): Type B
  • USB Connectors (Receiver Unit): (4) Type A
  • Link Connectors (Sender Unit / Receiver Unit): RJ-45
  • Power Supply: 5V DC locking type (20W max)
  • Operating Temperature: +32°F to +122°F (0°C to +50°C)
  • Storage Temperature: -4°F to 158°F (-20°C to 70°C)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing
  • Dimensions (Sender Unit / Receiver Unit): 5.75″ W x 1.25″ H x 2.5″ D
  • Shipping Weight: 3 lbs.

Warranty

2 year product warranty
