Extend USB 2.0 over CAT5 up to 330 feet (100 meters)

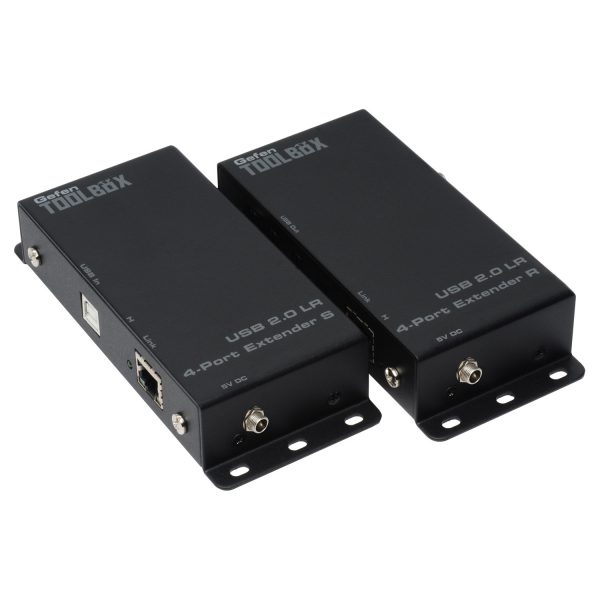

The GefenToolBox USB 2.0 4-Port Extender extends a USB source up to 330 feet (100 meters) using a single CAT5 cable. This product supports USB 2.0 with data rates up to 480 Mbps in addition to backward-compatibility with USB 1.1. The Receiver Unit allows the connections of up to four (4) USB devices, providing access to printers, scanners, cameras, external storage media, digital signage, and automated control systems.
USB 2.0 Speed: 480 Mbps
USB Connector (Sender Unit): Type B
USB Connectors (Receiver Unit): (4) Type A
Link Connectors (Sender Unit / Receiver Unit): RJ-45
Power Supply: 5V DC locking type (20W max)
Operating Temperature: +32 °F to +122 °F (0 °C to +50 °C)
Storage Temperature: -4 °F to 158 °F (-20 °C to 70 °C)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing
Dimensions (Sender Unit / Receiver Unit): 5.75″ W x 1.25″ H x 2.5″ D
Shipping Weight: 3 lbs.
