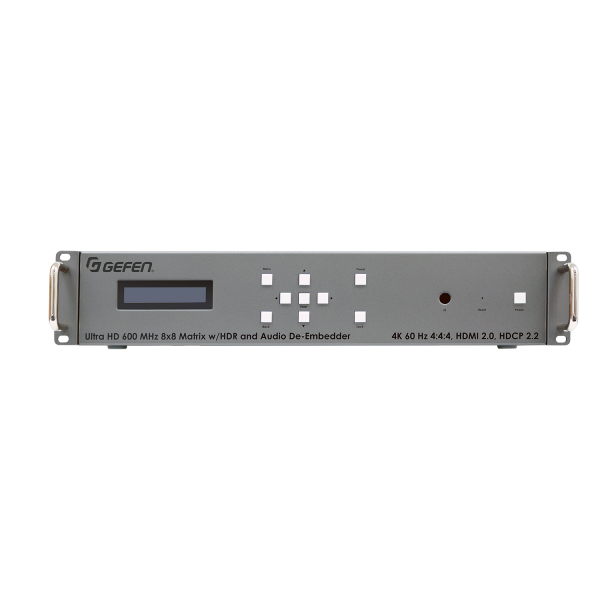

EXT-UHD600A-88-EU

4K Ultra HD 600 MHz 8×8 Matrix with Power Cord for EU territories

Route eight 4K 60 Hz 4:4:4 sources to any combination of up to eight 4K 60 Hz 4:4:4 displays

Description

Reinforcing its commitment to provide commercial integrators with cutting-edge audio/video signal processing solutions, Gefen’s 4K Ultra HD 600 MHz 8×8 Matrix for HDMI supports 18.2 Gbps of bandwidth and 600 MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard.

Full bandwidth support allows the EXT-UHD600A-88 to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz 4:4:4), and 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) along with HDR (High Dynamic Range). HDCP 2.2 and the legacy HDCP 1.4 content protection algorithms are supported. The Gefen 8×8 Matrix also supports 1080p Full HD, 1920 x 1200 (WUXGA), 3DTV, and Deep Color (up to 1080p resolution).

In addition to its full HDMI 2.0 and HDR compliance, this product incorporates new features that enhance the commercial integrator’s experience. Recognizing that audio is just as important as video, it features analog and digital audio outputs that break out the audio stream (2 channel analog, 2 channel PCM, and up to 5.1 channel Bitstream) from each HDMI source, allowing the de-embedded audio content to be sent to external amplifiers and music distribution systems for added impact in bars, restaurants, clubs, venues, and corporate offices. In addition, highest performance mult(more…)

Features

FEATURES

  • Routes eight 4K sources to eight 4K displays
  • Supports resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) with HDR, 1080p Full HD, and WUXGA (1920×1200)
  • Supports HDCP 2.2 and 1.4
  • Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
  • Supports 12-bit Deep Color at 1080p Full HD (60 Hz 4:4:4)
  • 3DTV pass-through
  • Lip Sync pass-through
  • EDID Management for rapid integration of source and displays
  • Supports uncompressed LPCM digital audio up to 7.1 channels
  • Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio
  • Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920×1200), with Gefen CAB-DVI2-HDMI-LCK DVI-to-HDMI cables (not included)
  • Built-in Audio De-Embedders break out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream digital audio from each HDMI output, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact.
  • Enhanced API facilitates added functionality with third-party control systems.<(more...)

Specifications

Maximum TMDS Clock: 600 MHz

Total Signal Bandwidth/Data Rate: 18 Gbps

HDMI Input Connectors: (8) Type A 19-pin female, locking

HDMI Output Connectors: (8) Type A 19-pin female, locking

Digital Audio Output Connectors: (8) TOSLINK ® Optical. (8) RCA Coaxial

Analog L/R Audio Output Connectors: (8) 3.5mm mini-stereo jack

RS-232 serial port: (1) DB-9, female

Ethernet (IP Control) Port: (1) RJ-45

Display: OLED, 2 rows, 20 characters per row

Power Button/Indicator: (1) tact-type, bi-color blue/orange backlight

Control Buttons/Indicators: (9) tact-type

Reset Button: (1) tact-type, recessed

IR Sensor: (1), located on front panel

IR In/Ext Port: (1) 3.5mm mini-stereo jack

IR Extender type: EXT-RMT-EXTIRN (not included)

DC Power Connector: (1) 4-pin, locking

Power Supply: 24V DC

Power Consumption: TBD

Operating Temperature: +32 to +122  °F (0 to +50  °C)

Operating Humidity: 5% to 90% RH, non-condensing

Storage Temperature: -4 to +185  °F (-20 to +85  °C)

Storage Humidity: 0% to 95% RH, non-condensing

MTBF: TBD

Rack mounting requirements: Standard 19� rack, 2U high

Dimensions (excluding rack ears and connectors, W x H x D): 17.25â€? x 3.5“ x 15.75â€? (440mm (more…)

Other Specifications

Shipping Info
  • Length0 (Inches)
  • Width0 (Inches)
  • Height0 (Inches)
  • Weight0 (Lbs)
  • UPC888814980752
Other Specifications
  • Maximum TMDS Clock 600 MHz
  • Total Signal Bandwidth/Data Rate 18 Gbps
  • HDMI Input Connectors (8) Type A 19-pin female, locking
  • HDMI Output Connectors (8) Type A 19-pin female, locking
  • Digital Audio Output Connectors (8) TOSLINK ® Optical. (8) RCA Coaxial
  • Analog L/R Audio Output Connectors (8) 3.5mm mini-stereo jack
  • RS-232 serial port (1) DB-9, female
  • Ethernet (IP Control) Port (1) RJ-45
  • Display OLED, 2 rows, 20 characters per row
  • Power Button/Indicator (1) tact-type, bi-color blue/orange backlight
  • Control Buttons/Indicators (9) tact-type
  • Reset Button (1) tact-type, recessed
  • IR Sensor (1), located on front panel
  • IR In/Ext Port (1) 3.5mm mini-stereo jack
  • IR Extender type EXT-RMT-EXTIRN (not included)
  • DC Power Connector (1) 4-pin, locking
  • Power Supply 24V DC
  • Power Consumption TBD
  • Operating Temperature +32 to +122  °F (0 to +50  °C)
  • Operating Humidity 5% to 90% RH, non-condensing
  • Storage Temperature -4 to +185  °F (-20 to +85  °C)
  • Storage Humidity 0% to 95% RH, non-condensing
  • MTBF TBD
  • Rack mounting requirements Standard 19″ rack, 2U high
  • Dimensions (excluding rack ears and connectors, W x H x D)17.25″ x 3.5“ x 15.75″ (440mm x 89mm x 400mm)
  • Net Unit Weight 21 lbs. (9.6 kg)
  • Shipping Weight 29 lbs. (13.25 kg)
In The Box
  • 4K Ultra HD 600 MHz 8×8 Matrix(1)
  • 24V DC Power Supply (EXT-PS24U-O or EXT-PS24U-O-6)(1)
  • AC Power Cord(1)
  • Rack Ears (pre-installed)(2)
  • Self-Adhesive Rubber-Feet(4)
  • IR Extender (EXT-RMT-EXTIRN)(1)
  • IR Remote (RMT-88A)(1)
  • Quick-Start Guide(1)

Warranty

3 year product warranty

Please see the Gefen warranty page for more details
