EXT-UHD-CAT5-ELRPOL

4K Ultra HD ELR-POL Extender

Extend HDMI, RS-232, Ethernet and Bi-Directional IR over a signle CAT-5 up to 495/150m

Description

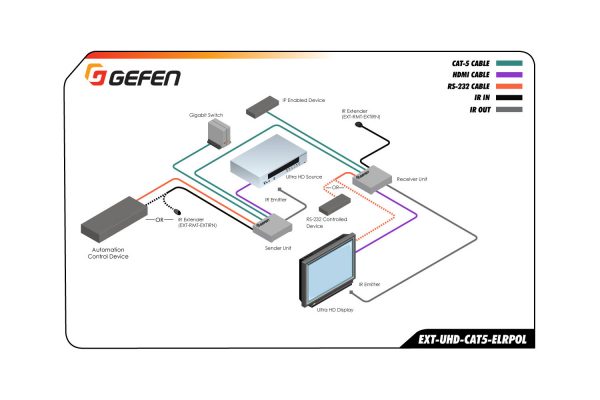

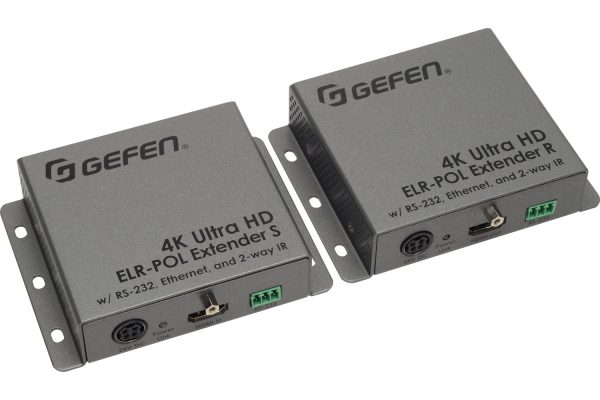

The Gefen 4K Ultra HD ELR-POL Extender uses the Gefen implementation of the HDBaseT technology to extend HDMI up to 495 feet (150 meters) using one CAT-5e cable.

Video Support

Resolutions up to 4K Cinema-DCI (4096 x 2160 at 24 or 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 or 30Hz 4:4:4) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.

Audio Support

The EXT-UHD-CAT5-ELRPOL supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio.

IP & Serial Extension

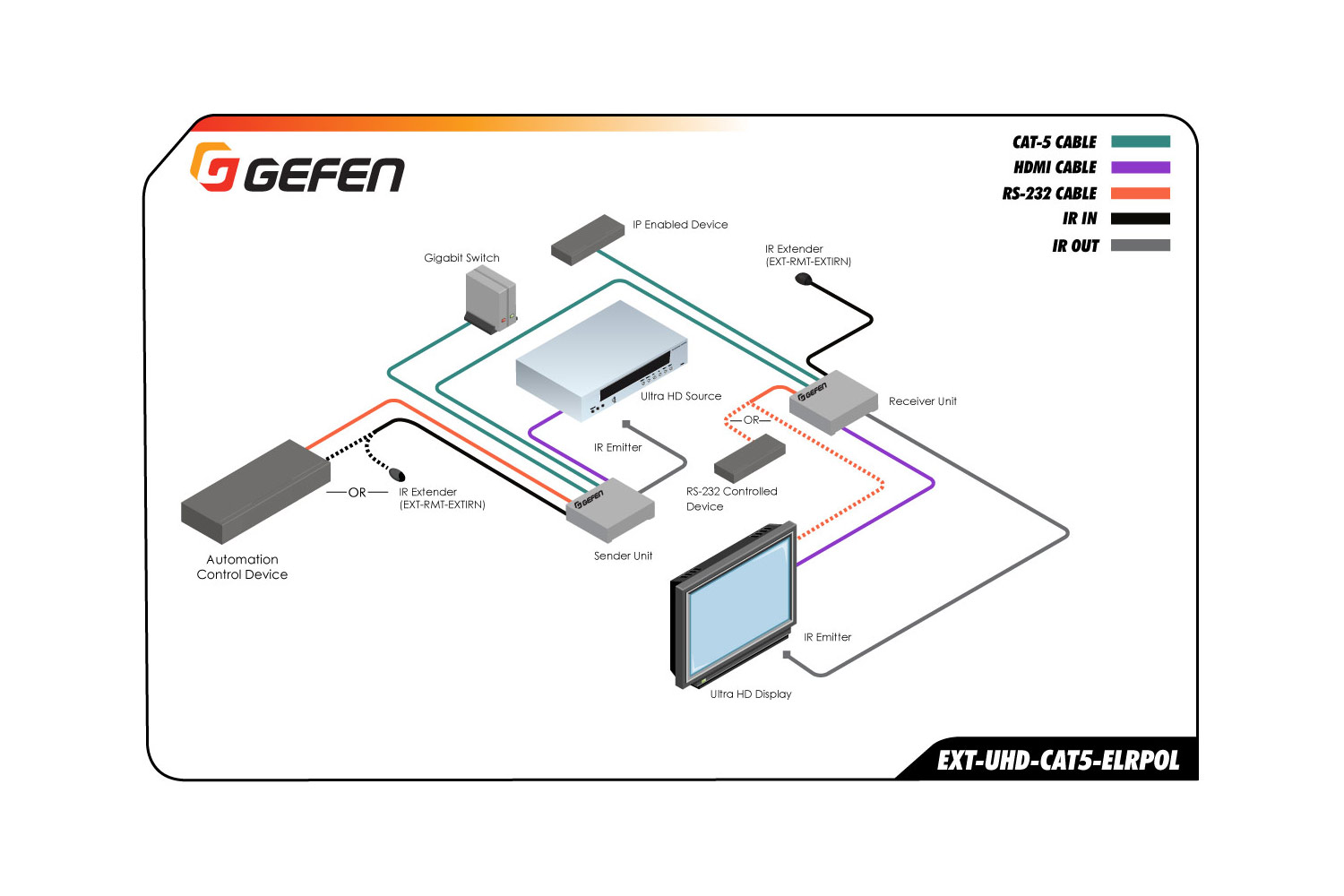

This product provides Ethernet, RS-232 and 2-way IR extension between the Sender and the Receiver units, making 10/100BaseT wired Ethernet connection available at the remote location without the need to run a separate cable. It also allows the transfer of IR commands and RS-232 communications between two remote locations. RS-232 and Bi-Directional IR can be used to control A/V sources placed near the Sender unit and to send automation commands to the display or another device placed near the Receiver unit.

Bi-Direction(more…)

Features

  • Extends 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0 or @ 30Hz, 4:4:4), Ethernet, RS-232, and Bi-Directional IR over a single CAT-5e cable up to 330 feet/100 meters (8-bit color)
  • Extends 4K Cinema (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4), Ethernet, RS-232, and Bi-Directional IR over a single CAT-5e cable up to 330 feet/100 meters (8-bit color)
  • Extends HDMI at 1080p Full HD, Ethernet, RS-232, and Bi-Directional IR over a single CAT-5e cable up to 330 feet/100 meters (up to 12-bit Deep Color)
  • Extends HDMI at 1080p Full HD, Ethernet, RS-232, and Bi-Directional IR over a single CAT-5e cable up to 495 feet/150 meters (8-bit color)
  • HDMI Features Supported:
    • HDMI 2.0
    • HDCP 2.2 and 1.4
    • 12-bit Deep Color
    • LPCM 7.1 audio, Dolby® TrueHD, and DTS-HD Master Audio pass-through
    • 3DTV pass-through
    • CEC pass-through
    • Lip Sync pass-through
  • RS-232 Extension
  • IR (more…)

Specifications

Maximum Pixel Clock: 300 MHz

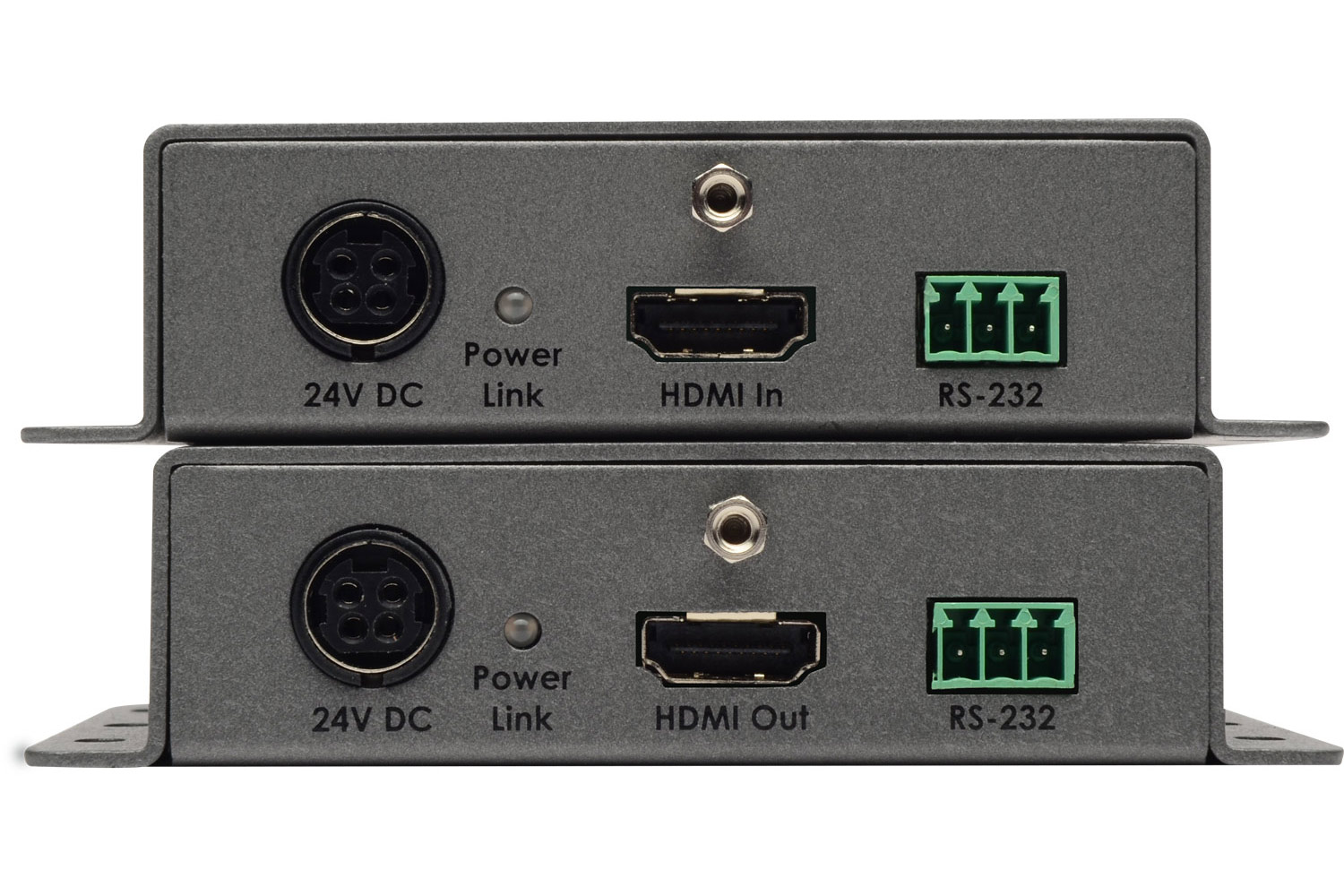

Video Input Connector (Sender): : (1) HDMI Type A 19-pin, female, locking

Video Output Connector (Receiver): (1) HDMI Type A 19-pin, female, locking

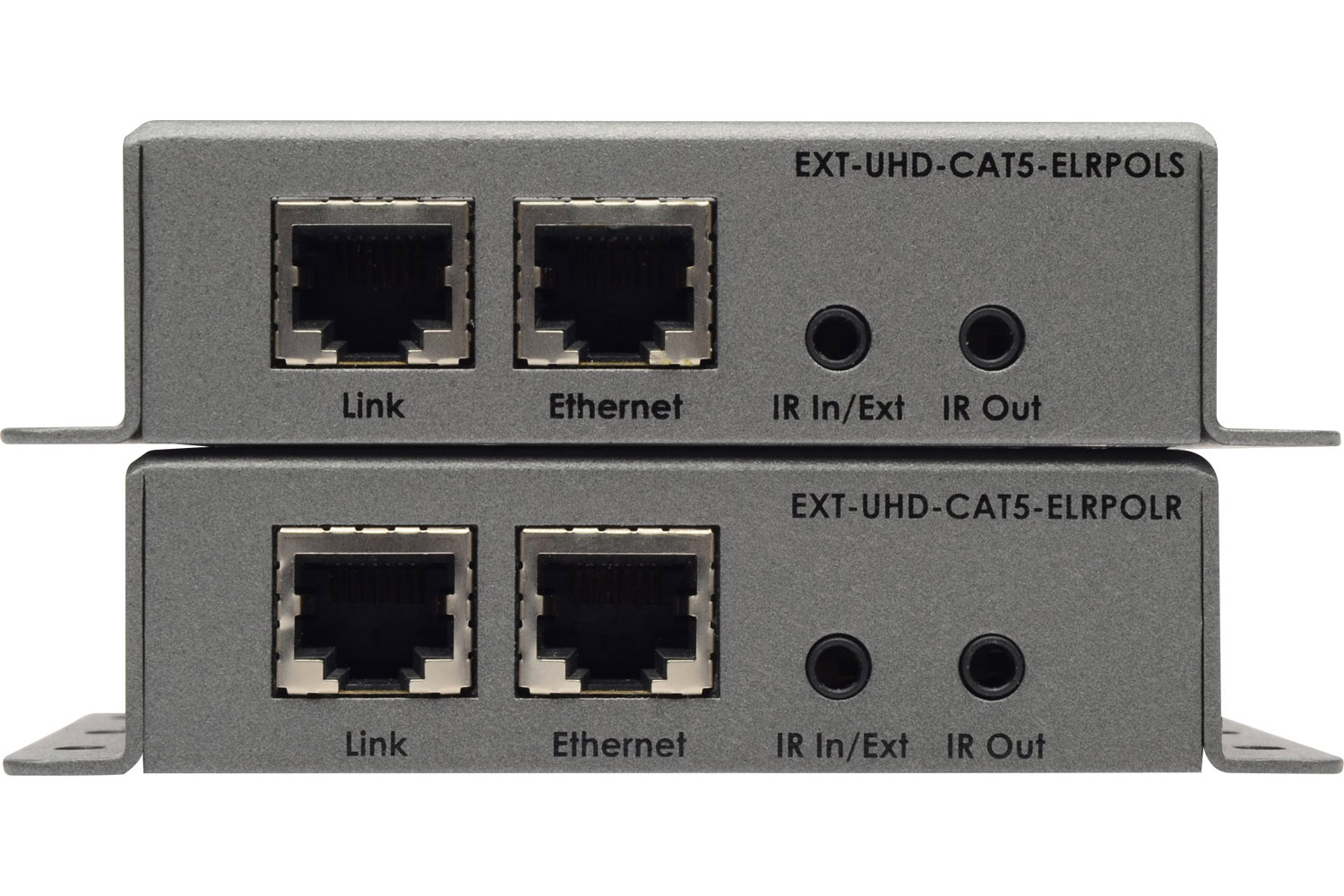

Link Connector (Sender/Receiver): : (1) RJ-45, shielded

RS-232 port (Sender): (1) 3-pin Phoenix – DB-9 adaptor cable included

RS-232 port (Receiver): (1) 3-pin Phoenix – DB-9 adaptor cable included

IR Ext/In port (Sender/Receiver): (1) 3.5mm mini-stereo jack

IR Extender type: EXT-RMT-EXTIRN

IR Out port (Sender/Receiver): (1) 3.5mm mini-mono jack

Power/Link LED (Sender/Receiver): (1) Bi-color: Blue/Green

Power Supply: (1) 24V DC, locking

Power Consumption (Sender and Receiver combined): 12W maximum

Operating Temperature: : +32 to +113  °F (0 to +45  °C)

Operating Humidity: 5% to 90% RH, non-condensing

Storage Temperature: -4 to +185  °F (-20 to +85  °C)

Storage Humidity: 0% to 95% RH, non-condensing

MTBF: 50000 hours

Dimensions (W x H x D, Sender / Receiver): : 4.3″ x 1″ x 3.2″ (110mm x 26mm x 85mm)

Net Weight (Sender/Re(more…)

Other Specifications

Shipping Info
  • Length1 (Inches)
  • Width1 (Inches)
  • Height1 (Inches)
  • Weight3 (Lbs)
  • UPC845344079417
Other Specifications
  • Maximum Pixel Clock: 300 MHz
  • Video Input Connector (Sender): (1) HDMI Type A 19-pin, female, locking
  • Video Output Connector (Receiver): (1) HDMI Type A 19-pin, female, locking
  • Link Connector (Sender/Receiver): (1) RJ-45, shielded
  • RS-232 port (Sender): (1) 3-pin Phoenix – DB-9 adaptor cable included
  • RS-232 port (Receiver): (1) 3-pin Phoenix – DB-9 adaptor cable included
  • IR Ext/In port (Sender/Receiver): (1) 3.5mm mini-stereo jack
  • IR Extender type: EXT-RMT-EXTIRN
  • IR Out port (Sender/Receiver): (1) 3.5mm mini-mono jack
  • Power/Link LED (Sender/Receiver):(1) Bi-color: Blue/Green
  • Power Supply:(1) 24V DC, locking
  • Power Consumption (Sender and Receiver combined):12W maximum
  • Operating Temperature: +32 to +113  °F (0 to +45  °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185  °F (-20 to +85  °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 50000 hours
  • Dimensions (W x H x D, Sender / Receiver): 4.3″ x 1″ x 3.2″ (110mm x 26mm x 85mm)
  • Net Weight (Sender/Receiver): 0.4 lbs (0.2 kg) each
In The Box
  • Sender Unit (EXT-UHDCAT5-ELRPOLS)(1)
  • Receiver Unit (EXT-UHD-CAT5-ELRPOLR)(1)
  • 6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM)(1)
  • 3-pin Phoenix-to-DB-9 cable adapter (M-M) (ADA-PH-2-DB9-MM-AA)(1)
  • 3-pin Phoneix-to-DB-9 cable adapter (M-F) (ADA-PH-2-DB9-MF-AA)(1)
  • IR Emitter (EXT-IREMIT)(1)
  • IR Extender (EXT-RMT-EXTIRN)(1)
  • 24V DC Power Supply (EXT-PS24U1AIP-6)(1)
  • Quick-Start Guide (QSG-EXT-UHD-CAT5-ELRPOL)(1)

Warranty

3 year product warranty

If the product was purchased before March 29, 2017, the warranty duration is 2 years.

Please see the Gefen warranty page for more details
