1x8 HDMI Splitter for 4K HDR (GTB-UHD600-18S-RT)

Name: 1x8 HDMI Splitter for 4K HDR (GTB-UHD600-18S-RT)
Brand: Gefen
SKU: GTB-UHD600-18S-RT
Price: 786.45 USD
Availability: InStock

GTB-UHD600-18S-RT

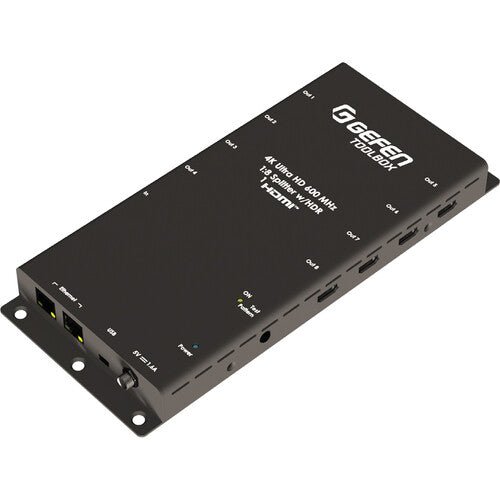

The Gefen GTB-UHD600-18S-RT is a powerful 1x8 HDMI splitter designed to route a full-bandwidth 4K Ultra HD 600 MHz source to up to eight 4K displays. Ideal for large-scale remote workstation access and digital signage applications, this splitter supports resolutions up to 4K DCI-Cinema (4096x2160 at 60 Hz) and HDR for stunning visual quality. With independent scalers for each output, it offers a flexible and scalable solution for professional AV and IT needs.

$786.45

1x8 HDMI Splitter for 4K HDR (GTB - UHD600 - 18S - RT) - GTB - UHD600 - 18S - RT - Gefen

Key Features

High-Resolution Video: Supports resolutions up to 4K DCI-Cinema (4096x2160 at 60 Hz, 4:4:4 color space), 4K Ultra HD (3860x2160 at 60Hz, 4:4:4 color space), 1080p Full HD, and 1920x1200 (WUXGA), ensuring crystal-clear video quality.

HDR Support: Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4 for a wider range of colors and greater contrast.

Seamless Integration: Features IP control via Telnet and UDP, along with Smart CEC control, for easy integration into any professional AV system.

Audio Support: Supports LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ for immersive sound.

How It Works

The Gefen GTB-UHD600-18S-RT HDMI splitter operates by taking a single 4K source and distributing it to eight Ultra HD displays simultaneously. First, connect your source device, such as a Blu-ray player or computer, to the HDMI input. Then, connect up to eight displays to the HDMI outputs. The splitter automatically manages the signal, ensuring each display receives a high-quality image. With independent scalers for each output, it can even downscale the signal for 1080p displays, making it a versatile solution for any setup.

Additional Information

Specifications

Resolutions: Up to 4K DCI-Cinema (4096x2160 at 60 Hz, 4:4:4 color space), 4K Ultra HD (3860x2160 at 60Hz, 4:4:4 color space), 1080p Full HD, and 1920x1200 WUXGA

HDR: 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4

Audio: LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™

Inputs: 1x HDMI

Outputs: 8x HDMI

Control: IP (Telnet, UDP), USB

Power Supply: 5V DC

Dimensions (W x H x D): 4.49" x 10.35" x 0.984" (114mm x 263mm x 25mm)

Weight: 2.5 lbs (1.2 kg)

What's in the Box

(1) 4K Ultra HD 600 MHz 1:8 Splitter w/HDR and Scaling
(1) 5v/2.6A Power Supply (EXT-PS526AIP-LP-6)
(1) Quick-Start Guide

Resources

Gefen GTB-UHD600-18S-RT Manual
