How far can the Gefen GF-EXT-DP5-SC extend a DisplayPort signal?

The GF-EXT-DP5-SC can extend DisplayPort 2.1 video and audio signals up to 200 meters over a single OM3 or OM4 multimode fiber optic cable with SC termination.

What type of cable does the Gefen GF-EXT-DP5-SC require?

This extender uses a single-core, SC-terminated OM3 or OM4 multimode fiber optic cable between the sender and receiver modules.

Does the Gefen GF-EXT-DP5-SC support HDCP and DPCD?

Yes, the GF-EXT-DP5-SC is fully DPCD and HDCP compliant, enabling secure, standards-based operation with compatible GPUs, displays, and signal management systems.

Does the Gefen GF-EXT-DP5-SC transmit both video and audio?

Yes, the extender delivers uncompressed DisplayPort 2.1 video and audio up to 8K@60Hz over optical fiber.

Does the Gefen GF-EXT-DP5-SC add latency or compression to the signal?

No, the GF-EXT-DP5-SC uses optical transmission to deliver 8K@60Hz video and audio with zero compression and no latency for pixel-perfect reproduction.

Which applications is the Gefen GF-EXT-DP5-SC designed for?

The GF-EXT-DP5-SC is optimized for professional environments such as broadcast control rooms, medical imaging suites, and high-resolution visualization and production applications.

The Wait is Almost Over. Preorder Today!

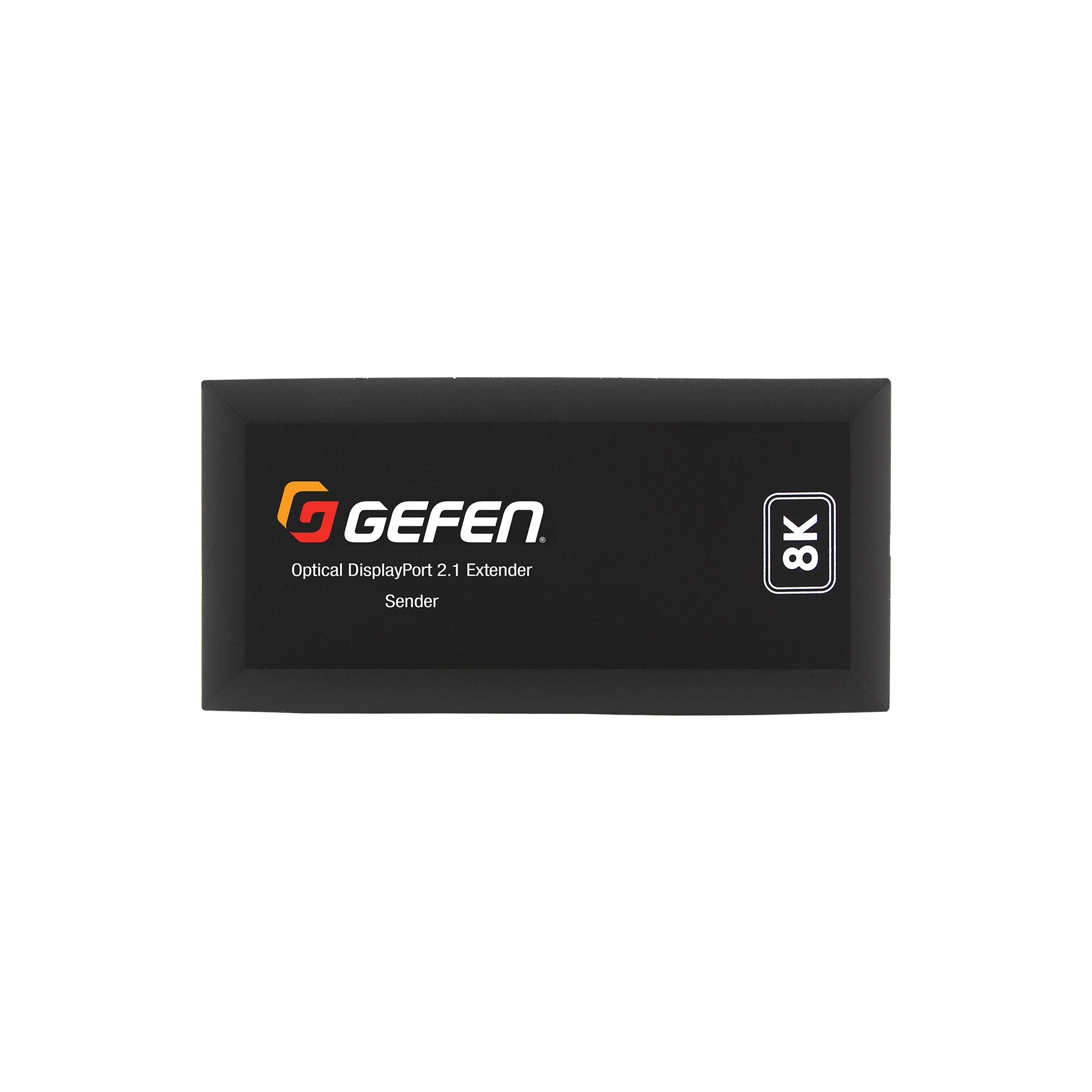

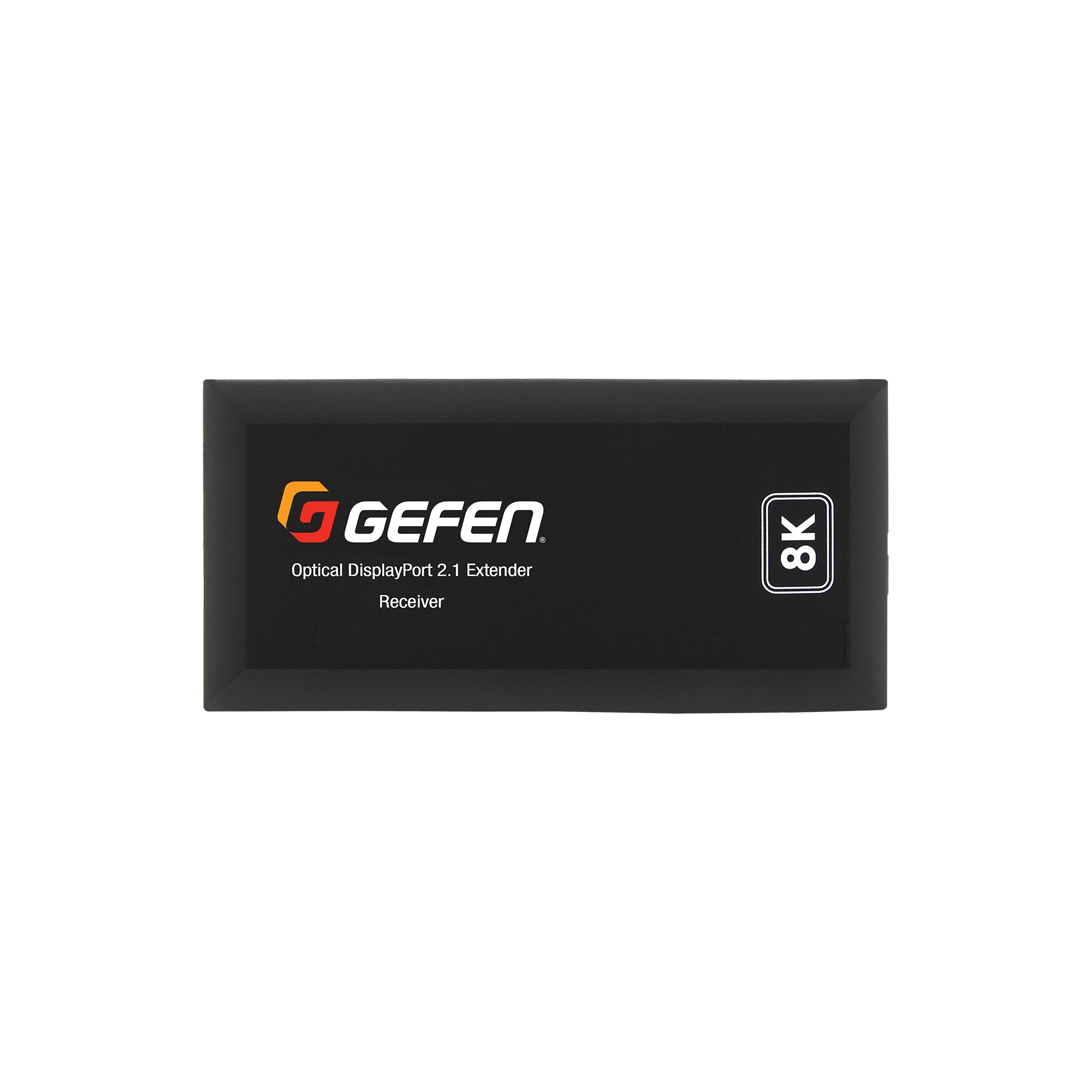

DisplayPort Extender with Fiber Optic & 8K/60Hz Support (GF-EXT-DP5-SC)

GF-EXT-DP5-SC

The Gefen GF-EXT-DP5-SC Optical DisplayPort 2.1 Extender delivers flawless 8K@60Hz video and audio signals up to 200 meters over a single OM3/OM4 fiber optic cable. With 40 Gbps bandwidth and zero latency, it’s ideal for broadcast, medical imaging, and high-resolution visualization. Its compact metal housing ensures noise-immune, reliable connectivity, supporting DPCD and HDCP compliance for secure AV workflows. Includes all necessary cables for easy setup.

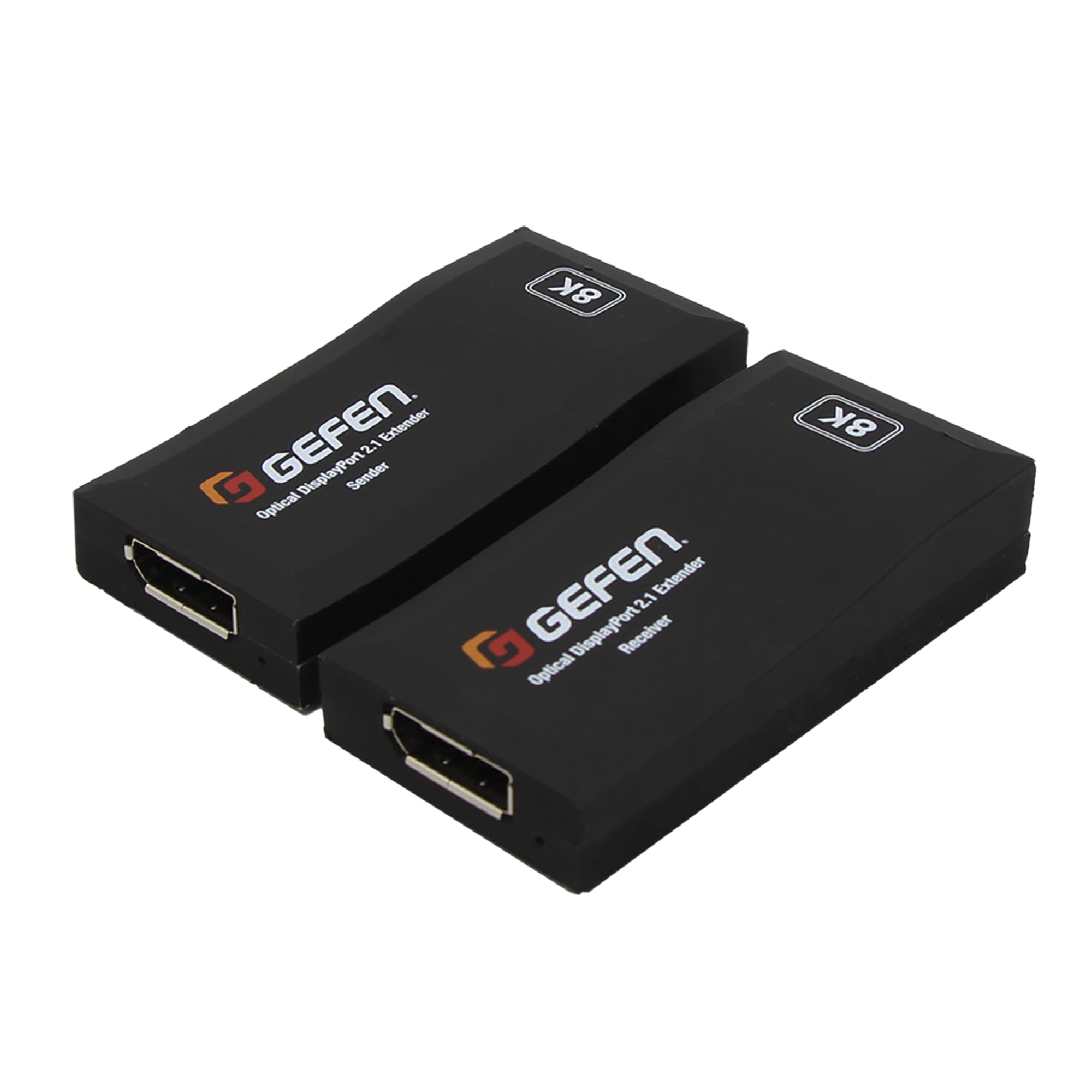

❗Comes with both Sender and Receiver

$2,966.94

DisplayPort Extender with Fiber Optic & 8K/60Hz Support (GF - EXT - DP5 - SC) - GF-EXT-DP5-SC - Gefen

Key Features

Ultra-High Bandwidth Support
Delivers 40 Gbps bandwidth for flawless 8K@60Hz video and audio transmission, enabling zero compression and no latency for pixel-perfect image reproduction.

Long-Distance Optical Transmission
Extends DisplayPort 2.1 signals up to 200 meters using a single OM3/OM4 multimode fiber optic cable, ensuring stable and noise-immune connectivity in professional settings.

Robust Metal Housing
Compact and durable build provides reliability in demanding environments, protecting against interference and physical damage.

Compliance with Standards
Supports DPCD (DisplayPort Configuration Data) and HDCP (High-bandwidth Digital Content Protection) for secure, standards-based operation compatible with modern AV workflows.

Plug-and-Play Installation
Includes all necessary cables, enabling quick and straightforward deployment with SC-terminated single-core optical cables for fast setup.

How It Works

The Gefen GF-EXT-DP5-SC converts high-definition DisplayPort 2.1 video and audio signals into optical signals transmitted via fiber optic cables. This method allows signals to travel long distances (up to 200 meters) without degradation, maintaining the highest fidelity required for 8K resolution at 60Hz.

Upon reaching the receiver unit, the optical signals are converted back into high-bandwidth DisplayPort signals with zero compression or latency, ensuring critical visual data remains intact for applications such as medical imaging and broadcast control.

The compact, noise-immune design with metal housing protects the signal integrity from interference. Compliance with HDCP and DPCD ensures security and compatibility with the latest content protection and display protocols, making it ideal for professional audiovisual environments.

Additional Information

Specifications

Resolution Support: Up to 8K@60Hz (7680x4320 at 60Hz)

Bandwidth: 40 Gbps

Transmission Distance: Up to 200 meters (656 feet) using OM3/OM4 multimode fiber optic cable

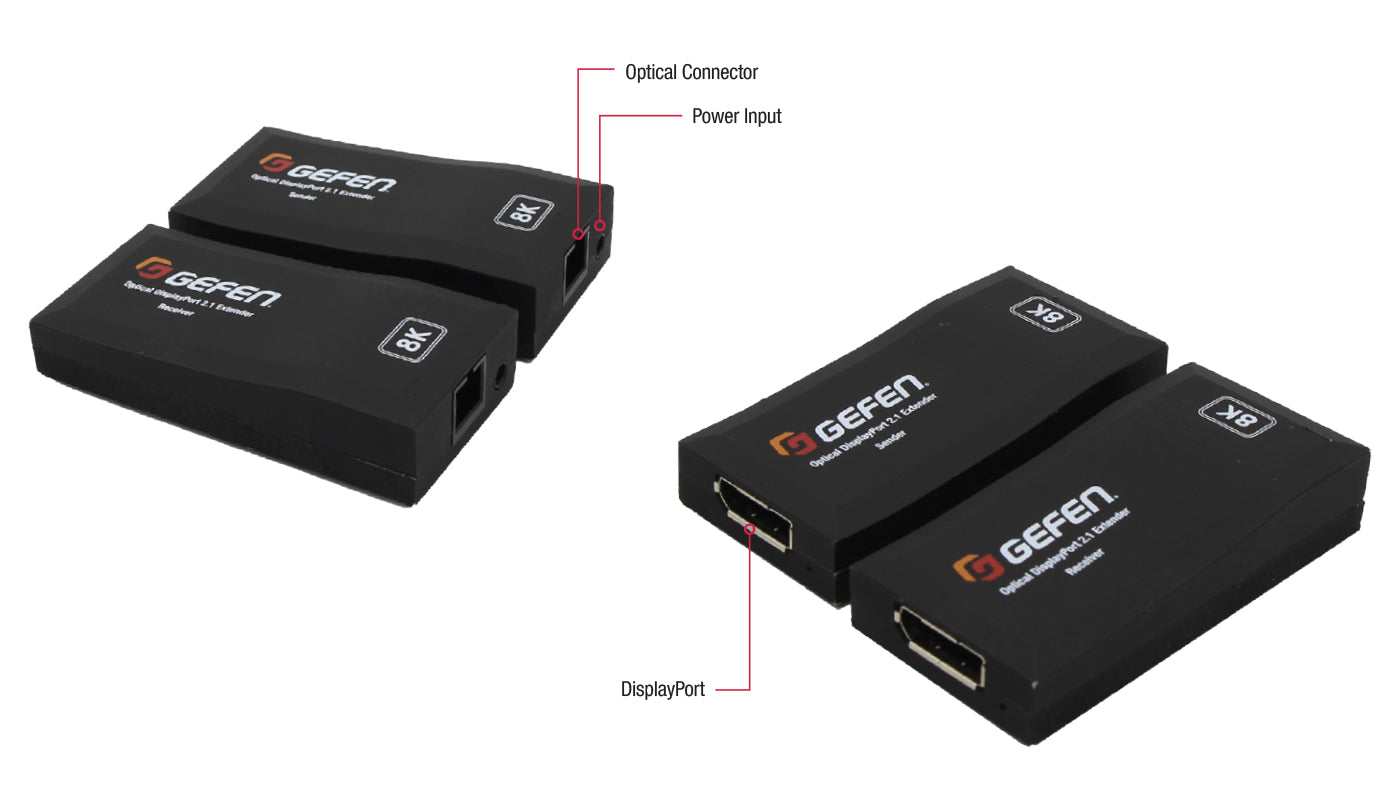

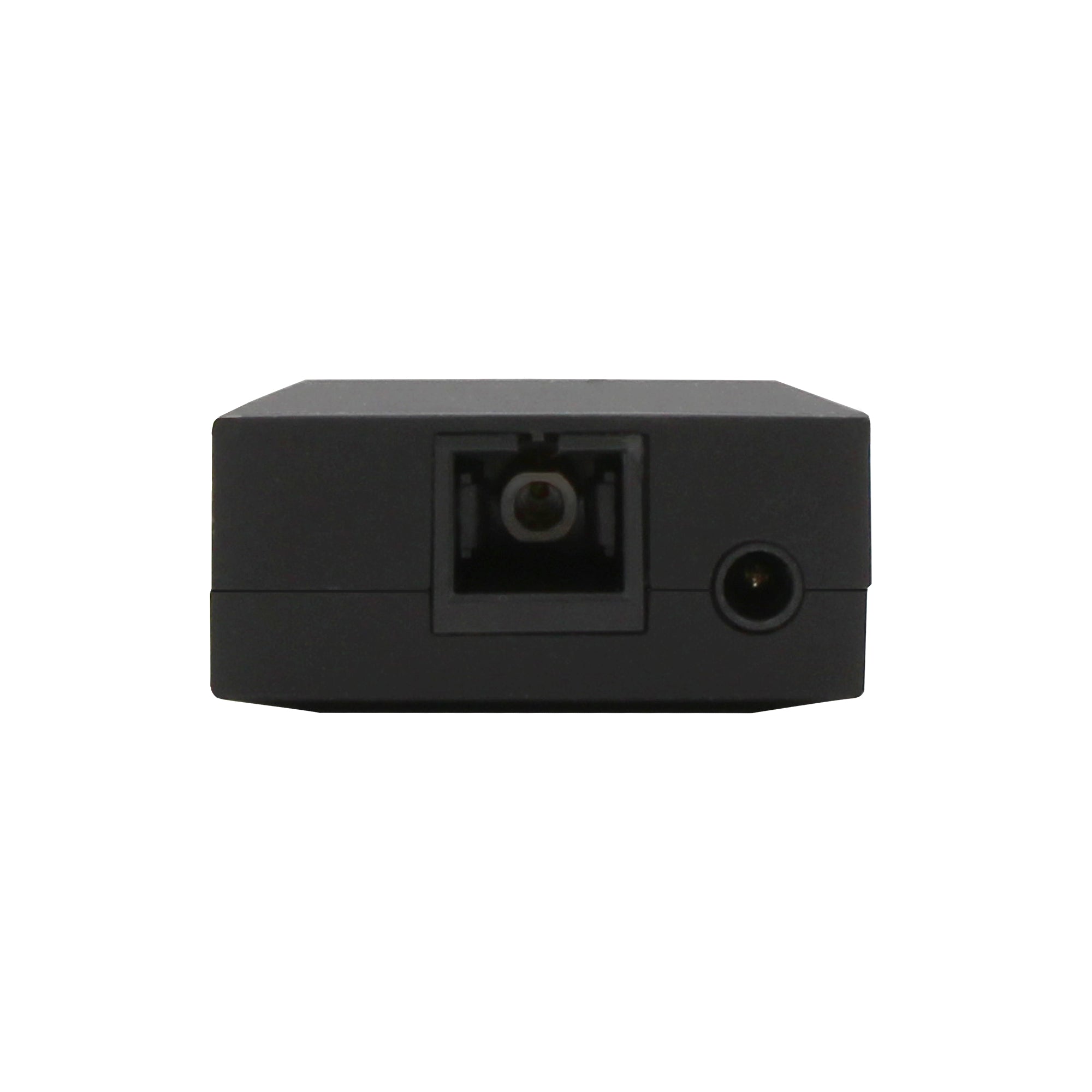

Connector Type: Single-core SC-terminated optical cable

Compliance: DPCD 2.1, HDCP 2.3 compliant

Power Consumption: Approximately 2 watts

Operating Temperature: 0°C to 50°C (32°F to 122°F)

Operating Humidity: 10% to 80% non-condensing

Housing: Robust metal enclosure for noise immunity and durability

Dimensions (Sender/Receiver): 37 x 77 x 19 mm (1.46 x 3.03 x 0.75 inches) (W x D x H)

Included Accessories: Power supply, optical cables, mounting hardware

Ideal for...

Broadcast & Media Production: Enables flawless, long-distance transmission of 8K video signals ideal for broadcast control rooms and other real-time production environments, ensuring no-latency video for real-time decision-making.

Medical Imaging: Delivering high‑resolution, latency‑free imaging in surgical or procedural environments that rely on precise visuals.

Corporate & Commercial AV: Provides reliable video extension suitable for conference rooms, command centers, and digital signage with noise-immune fiber optic connectivity.

Simulation & Visualization: Ideal for visualization‑intensive workflows such as simulation or CAD/CAM systems requiring pixel-perfect clarity.

Industrial Automation: Supports secure and long-distance data transmission in environments like manufacturing and research labs where high video fidelity is essential.

Specific Use Case Examples:

Extending 8K DisplayPort signals over fiber between server racks and video walls up to 200 meters apart.
Delivering high-resolution, supports latency-free imaging in surgical or procedural environments that rely on precise visuals.
Providing stable AV connectivity in broadcast truck setups during live sports or news events.
Enabling corporate boardrooms to display ultra-high-definition presentations from multiple source rooms.

Problems It Solves

Avoids degradation associated with long copper cable runs by using uncompressed optical transport
Overcomes electromagnetic interference (EMI) and noise issues common in commercial environments.
Ensures compliance with HDCP for secure content protection.
Simplifies installation via a compact metal enclosure and a single SC‑terminated OM3/OM4 fiber run; includes DP cables and power adapters.
Supports up to 8K@60Hz resolution, aligning with modern ultra‑high‑definition workflows.

System Requirements

Host Device Compatibility: Designed for host devices that provide a standards‑compliant DisplayPort 2.1 output.
Operating Systems: Platform‑neutral hardware; works with systems such as Windows, macOS, Linux, and professional AV equipment with DisplayPort outputs.
Cables: Requires OM3 or OM4 multimode fiber optic cable for transmission (single‑core SC‑terminated).
Power Supply: 5V DC power input; includes AC power adapters for both transmitter and receiver.
Video Source: Supports sources that provide uncompressed DisplayPort 2.1 video and audio signals.
Display Output: Compatible with monitors or display devices capable of 8K@60Hz resolution via DisplayPort.

Resources

Gefen GF-EXT-DP5-SC Datasheet

Frequently Asked Questions

What is the maximum resolution supported by the Gefen GF-EXT-DP5-SC?

The Gefen GF-EXT-DP5-SC supports up to 8K resolution at 60Hz (7680×4320), ensuring ultra-high-definition video quality for professional applications.

How far can the DisplayPort signal be extended using this product?

It can extend DisplayPort 2.1 video and audio signals up to 200 meters over OM3 or OM4 multimode fiber optic cable with uncompressed transmission and no latency.

Is the extender compatible with HDCP and secure content?

Yes, it is HDCP compliant, enabling secure and protected transmission of high-definition content.

What type of cable is required for this DisplayPort extender?

The extender uses single-core SC-terminated multimode OM3 or OM4 fiber optic cables for transmission.

Can this product be used in medical or broadcast environments?

Absolutely, the GF-EXT-DP5-SC is ideal for medical imaging, broadcast control rooms, and any environment requiring flawless, zero-latency 8K video transmission.

Does this extender support both video and audio signals?

Yes, it extends both video and audio signals uncompressed, maintaining the highest fidelity across the transmission distance.

What are the power requirements for the Gefen GF-EXT-DP5-SC?

It operates with a 5V DC power supply and consumes approximately 2 watts, making it energy efficient for continuous use.

Why Choose Gefen?

Gefen solutions are known worldwide and are ideal for broadcast control rooms, medical imaging suites, and other professional visualization and commercial AV environments where reliability is essential.

Advanced Optical Transmission Technology: Gefen GF-EXT-DP5-SC fiber optic extenders provide transmission distances up to 200 meters with zero compression and latency, ensuring pixel-perfect 8K@60Hz signal integrity.
Standards Compliance: Full support for DisplayPort 2.1, DPCD, and HDCP compliance ensures compatibility with current digital content protection and display protocols.
Robust Build Quality: Engineered with a rugged metal housing and optical transmission that eliminates EMI/RFI interference, the GF-EXT-DP5-SC is optimized for demanding professional environments.

Gefen’s designs prioritize ease of installation, compactness, and reliable field operation, supporting 24/7 use in mission-critical settings.

Build Your Next DisplayPort Extender Solution with Confidence

Partner with Gefen to future-proof your video distribution needs with durable, tested solutions that prioritize performance and reliability. Start building with Gefen today for uncompromising signal integrity and peace of mind.
