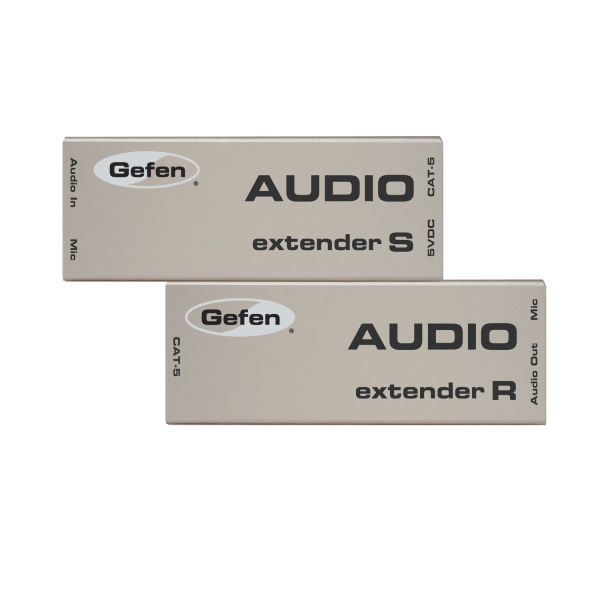

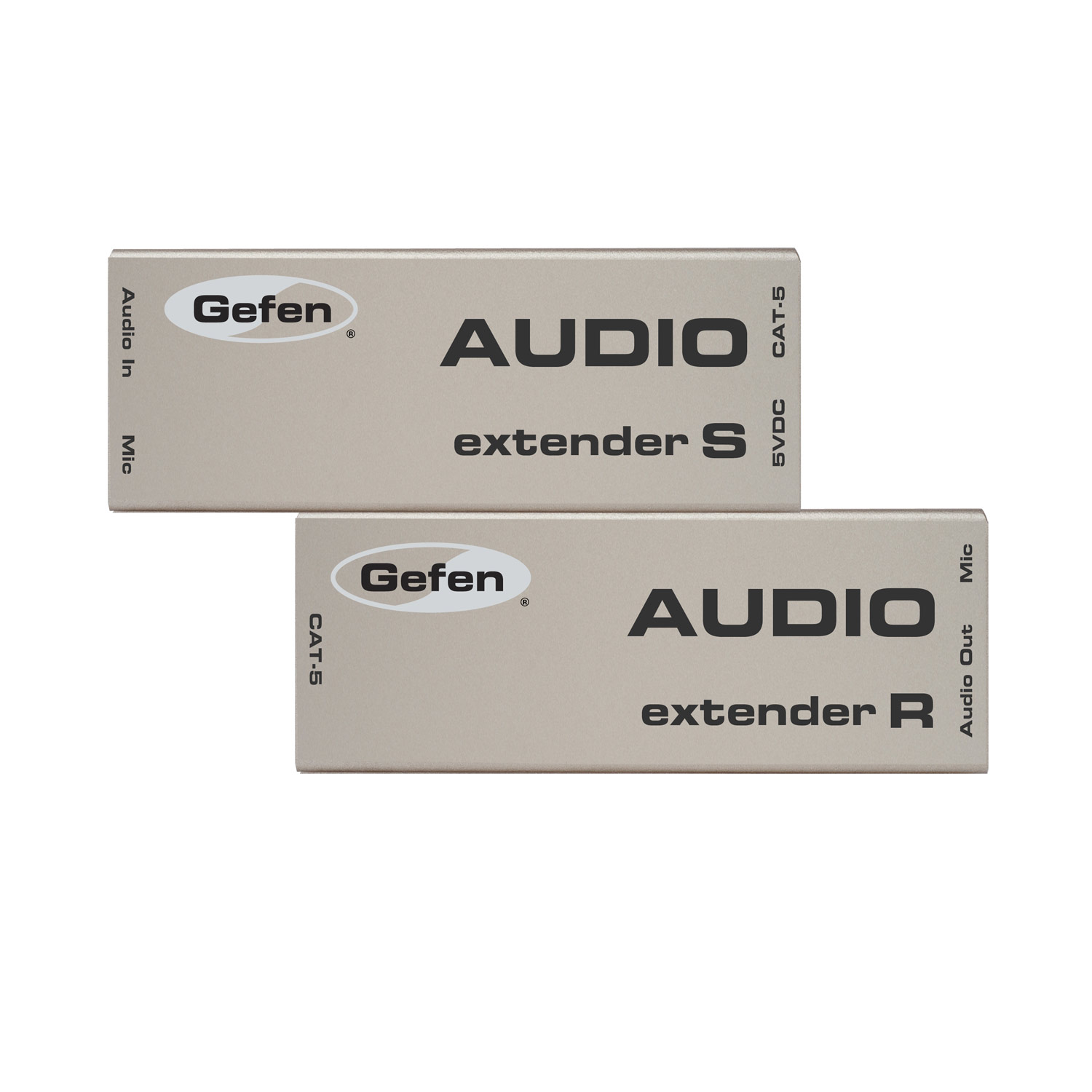

EXT-AUD-1000

2-way Audio Extender over one CAT-5

Extends Mic and Headphones to/from computer and workstation

Description

The Gefen EXT-AUD-1000 Audio Extender is capable of extending microphone and stereo analog audio up to 1000 feet. The sender unit sits next to your audio source. Stereo cables supplied with the Audio Extender package connects your audio source to the sender. The receiver unit connects to your speakers or audio output device. One CAT-5 cable connects the sender and the receiver.

Audio Support

The EXT-AUD-1000 supports stereo analog audio.

Features

  • Extends any unbalanced analog audio device up to 1000 feet (300 meters) from the source
  • One CAT-5e cable used for extension
  • Bidirectional transmission for speaker and mic

Specifications

Frequency Response: 20Hz – 20kHz

Input impedance: 1K Ohm

Output impedance: 0.1 Ohm

Audio Connectors: Mini-phone Stereo 3.5mm

Link Connector: RJ-45 Shielded

Power Supply: 5V DC

Power Consumption: 5W (max)

Dimensions: 1.3″ W x 0.8″ H x 3.7″ D

Shipping Weight: 1.05 lbs.

Other Specifications

Shipping Info
  • Length9.1 (Inches)
  • Width5.8 (Inches)
  • Height3 (Inches)
  • Weight1.05 (Lbs)
  • UPC845344000022
Other Specifications
  • Frequency Response: 20Hz – 20kHz
  • Input impedance: 1K Ohm
  • Output impedance: 0.1 Ohm
  • Audio Connectors: Mini-phone Stereo 3.5mm
  • Link Connector: RJ-45 Shielded
  • Power Supply: 5V DC
  • Power Consumption: 5W (max)
  • Dimensions: 1.3" W x 0.8" H x 3.7" D
  • Shipping Weight: 3 lbs.

In The Box
  • Audio Extender S Sender Unit(1)
  • Audio Extender R Receive Unit (1)
  • 6 foot audio cable (1)
  • 5V DC power supply (EXT-PS51AIP or EXT-PS51AIP-6)(1)

Warranty

2 year product warranty


Please see the Gefen warranty page for more details
