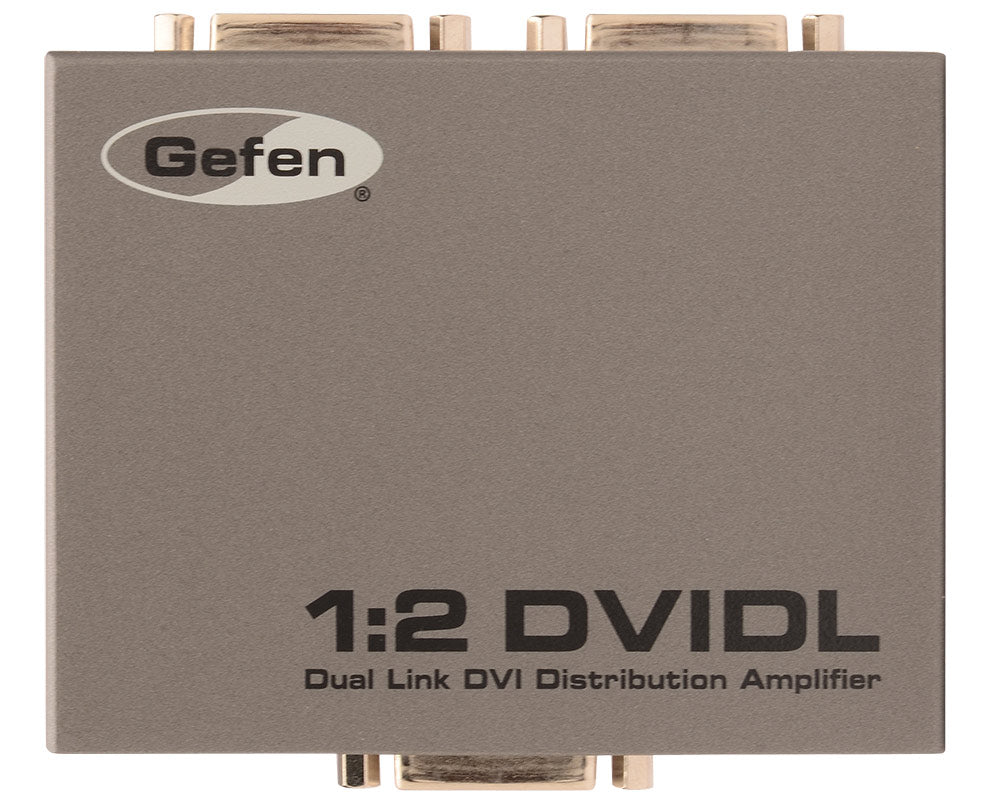

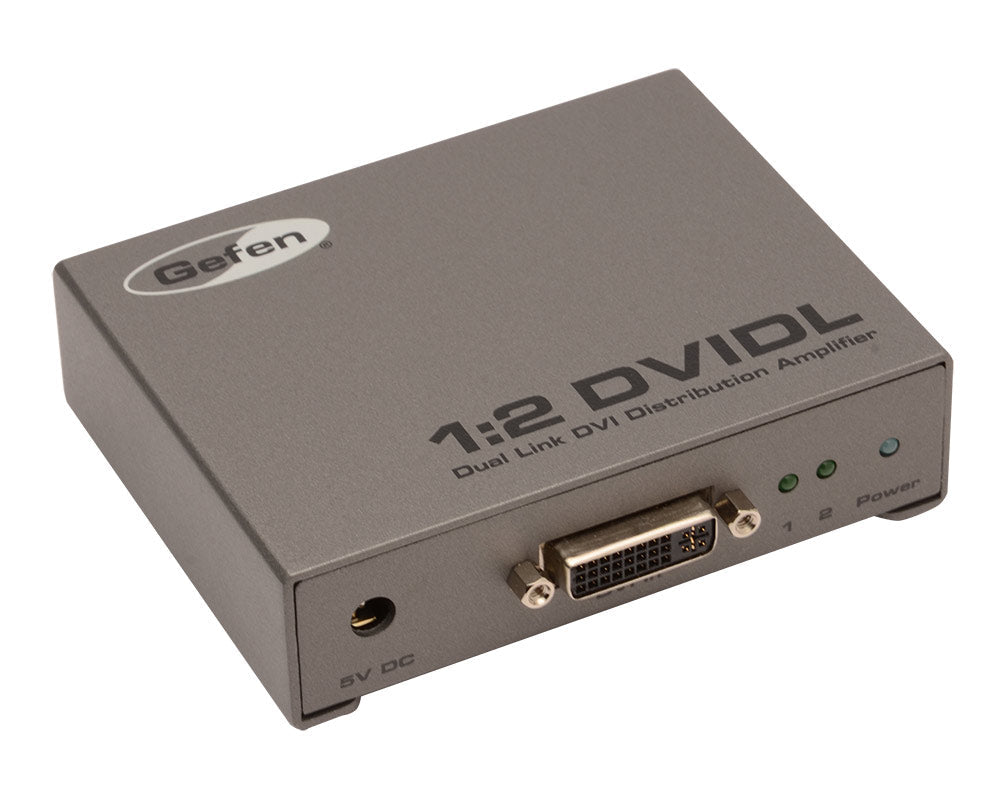

1:2 Dual Link DVI Distribution Amplifier (EXT-DVI-142DLN)

EXT-DVI-142DLN

The Gefen 1:2 DVI Dual Link Distribution Amplifier provides a reliable solution for splitting a single dual link DVI source to two dual link DVI outputs without losing picture quality. This powerful amplifier allows for the simultaneous display of video on two screens and supports high-resolution video, including single-link resolutions up to 1920×1200 and dual-link up to 3840×2400. For larger applications, multiple units can be cascaded to create a flexible and scalable distribution system, making it the perfect choice for connecting multiple displays in a professional environment.
$494.55
1:2 Dual Link DVI Distribution Amplifier (EXT - DVI - 142DLN) - EXT - DVI - 142DLN - Gefen
1:2 Dual Link DVI Distribution Amplifier (EXT - DVI - 142DLN) - EXT - DVI - 142DLN - Gefen
1:2 Dual Link DVI Distribution Amplifier (EXT - DVI - 142DLN) - EXT - DVI - 142DLN - Gefen
1:2 Dual Link DVI Distribution Amplifier (EXT - DVI - 142DLN) - EXT - DVI - 142DLN - Gefen
1:2 Dual Link DVI Distribution Amplifier (EXT - DVI - 142DLN) - EXT - DVI - 142DLN - Gefen
1:2 Dual Link DVI Distribution Amplifier (EXT - DVI - 142DLN) - EXT - DVI - 142DLN - Gefen
1:2 Dual Link DVI Distribution Amplifier (EXT - DVI - 142DLN) - EXT - DVI - 142DLN - Gefen
1:2 Dual Link DVI Distribution Amplifier (EXT - DVI - 142DLN) - EXT - DVI - 142DLN - Gefen

Key Features

Dual DVI Distribution: Splits one dual link DVI signal to two separate dual link DVI outputs for simultaneous display on two screens.



High-Resolution Video: Supports single-link DVI resolutions up to 1920×1200 and dual-link resolutions up to 3840×2400.



Automatic Equalization: Auto EQ compensates for any imperfections in the image to ensure signal integrity.



HDCP Compliant: Features HDCP pass-through on output #1, allowing for the display of protected content.



DVI Standard Compliance: Supports the DDWG (Digital Display Working Group) standard for DVI compliant monitors.



Status Indicators: Includes LED indicators for power status and for each DVI link, providing visual confirmation of active connections.

How It Works

The Gefen 1:2 DVI Dual Link Distribution Amplifier operates by taking a single DVI source and splitting the signal to two separate displays. The setup is straightforward. First, connect your computer or other dual link DVI source to the DVI input port on the distribution amplifier using the included 6 ft. dual link DVI cable. Next, connect your two DVI displays to the DVI Out 1 and DVI Out 2 ports on the amplifier. Finally, connect the included 5V DC power supply to the unit and plug it into an available electrical outlet to provide power. For larger installations, multiple units can be cascaded from one to the next to create a flexible distribution system that can connect to many displays from a single source.

Additional Information

Specifications

Video

  • Maximum Single-Link Resolution: 1920×1200 (WUXGA)
  • Maximum Dual-Link Resolution: 3840×2400 (WQUXGA)
  • Maximum Pixel Clock: 2×165 MHz
  • Input Video Signal: 1.2V p-p
  • Input DDC Signal: 5V p-p (TTL)

Connectors

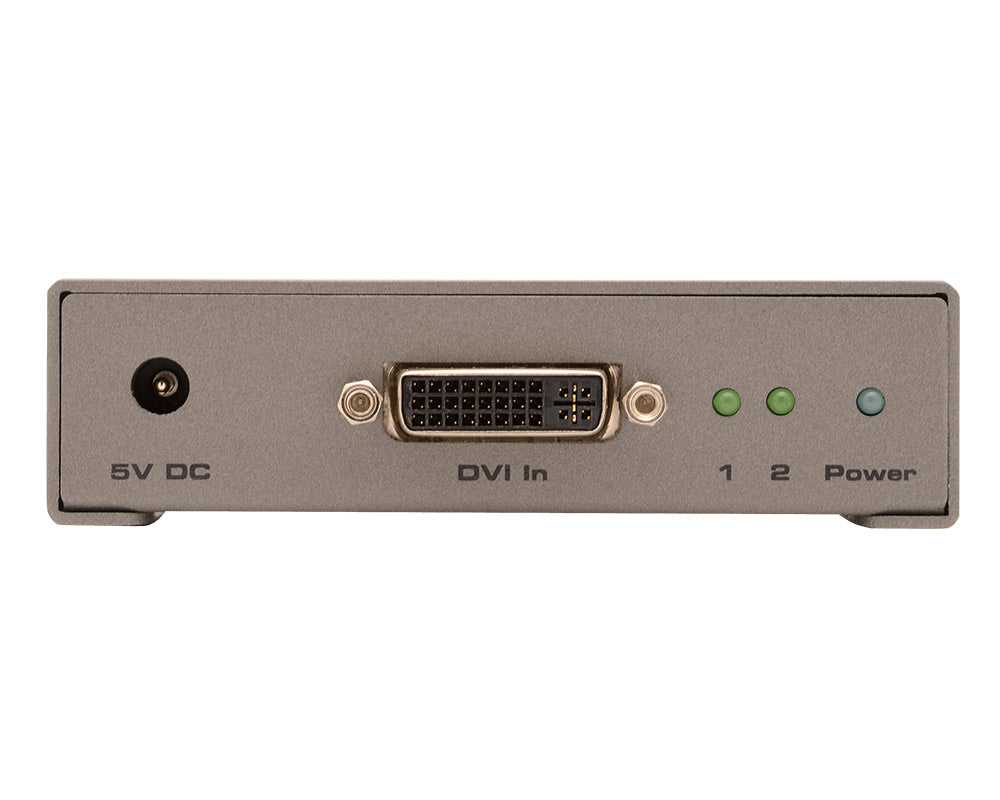

  • Video Input: 1 x DVI-D, 29-pin female

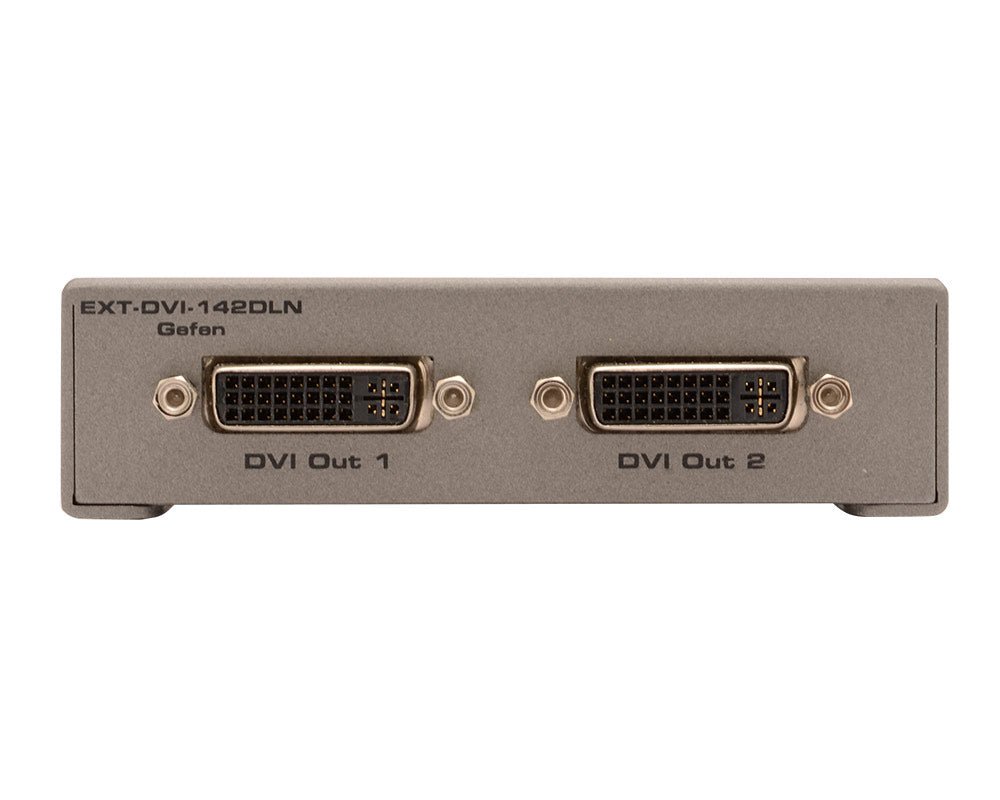

  • Video Outputs: 2 x DVI-D, 29-pin, female
  • Power Input: 1 x 5V DC

Operational

  • Power Consumption: 5W (maximum)
  • MTBF (Mean Time Between Failures): 50000 hours
  • Operating Temperature: +32° to +104° F (0° to +40° C)
  • Operating Humidity: 20% to 80% RH, non-condensing
  • Storage Temperature: -4° to +140° F (-20° to +60° C)
  • Storage Humidity: 20% to 90% RH, non-condensing

Physical

  • Dimensions (W x H x D): 4"×3.25"×1.25" (102mm x 83mm x 32mm)
  • Unit Weight: 0.2 lbs (0.09 kg)
  • Shipping Weight: 2 lbs (0.9 kg)

UPC: 845344085678

System Requirements

Display Compatibility



All monitors connected to the amplifier must be able to display the output resolution of the source device. The amplifier does not have an internal scaler to change the video resolution.

What's in the Box

  • 1 x 1:2 DVI Dual Link Distribution Amplifier
  • 1 x 6 ft. dual link DVI cable (M-M)
  • 1 x 5V DC power supply
  • 1 x Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-DVI-142DLN Datasheet
Gefen EXT-DVI-142DLN Manual
Gefen EXT-DVI-142DLN Declaration of Conformity
