16x16 DVI Matrix Switcher with IP Control, RS-232 & 1920x1200 WUXGA Support (EXT-DVI-16416)

Name: 16x16 DVI Matrix Switcher with IP Control, RS-232 & 1920x1200 WUXGA Support (EXT-DVI-16416)
Brand: Gefen
SKU: EXT-DVI-16416
Price: 8308.65 USD
Availability: InStock

EXT-DVI-16416

The Gefen EXT-DVI-16416 16x16 DVI Matrix offers a high-performance solution for routing video from sixteen DVI sources to any of sixteen DVI displays. This professional-grade DVI matrix switcher provides flawless, high-resolution video routing, supporting single-link DVI resolutions up to 1920x1200 (WUXGA) without any loss in picture quality. Designed for maximum flexibility in complex AV systems, the unit features multiple control options including front-panel buttons, IR remote, RS-232, and IP control via a built-in web server, Telnet, or UDP. With advanced EDID management for rapid integration of sources and displays and a convenient rack-mountable design, the EXT-DVI-16416 is the ideal DVI router for commercial installations, command and control centers, and other demanding professional environments.

$8,308.65

16x16 DVI Matrix Switcher with IP Control, RS - 232 & 1920x1200 WUXGA Support (EXT - DVI - 16416) - EXT - DVI - 16416 - Gefen

Key Features

16x16 DVI Routing: Routes any of sixteen single-link DVI sources to any of sixteen DVI displays, creating a highly flexible distribution system.

High-Resolution Video: Supports resolutions up to 1920x1200 (WUXGA), delivering pristine and detailed image quality.

Multiple Control Methods: Offers versatile control through front-panel buttons, IR remote, RS-232 serial commands, and IP control via a built-in web server, Telnet, or UDP.

Advanced EDID Management: Features intelligent EDID management for rapid and reliable integration of sources and displays, ensuring compatibility and a smooth setup process.

Routing Presets: Allows users to save and recall up to 10 custom routing configurations, enabling quick changes for common setups.

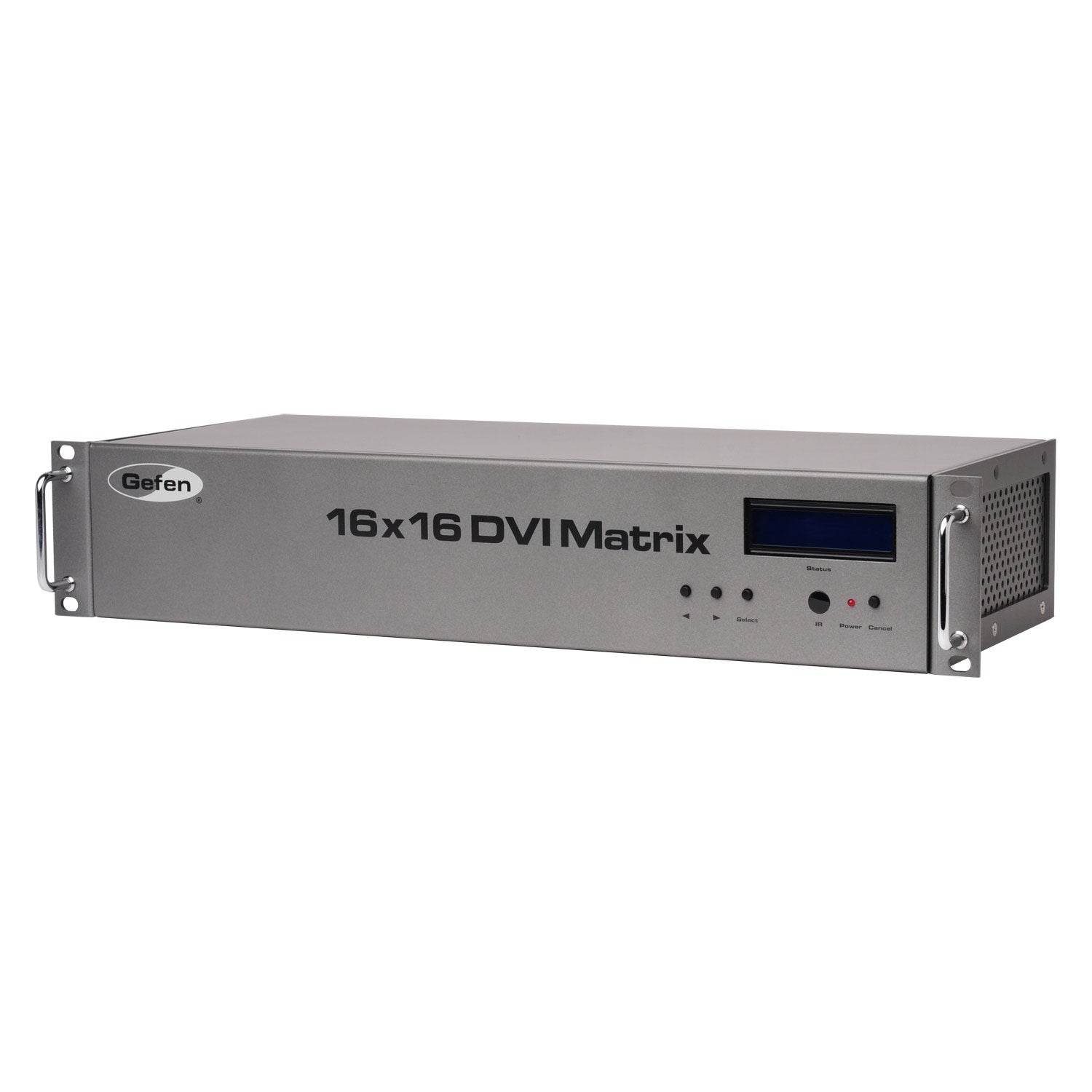

Rack-Mountable Enclosure: Comes in a standard 2U rack-mountable enclosure for seamless integration into professional AV racks.

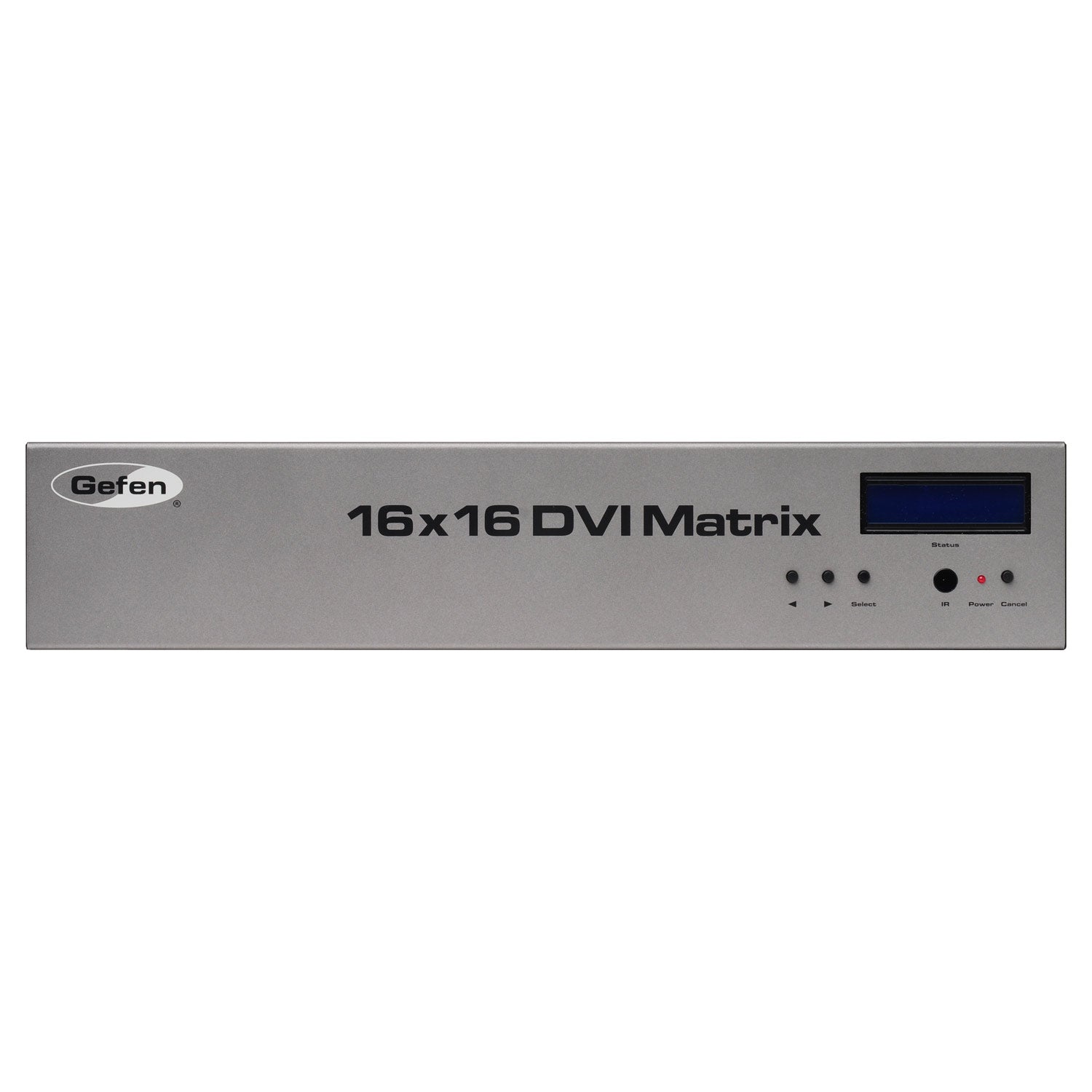

Status Indicators: Includes front-panel LEDs that clearly indicate the power status and the presence of active source and display connections.

How It Works

The Gefen 16x16 DVI Matrix acts as a central hub for managing your DVI video signals. Simply connect up to sixteen DVI source devices, such as computers or media players, to the matrix inputs. Then, connect up to sixteen DVI displays, projectors, or other destination devices to the matrix outputs. Once connected, you can use the front-panel controls, the included IR remote, an RS-232 serial controller, or any IP-connected device to instantly route any source to any display. This allows for dynamic and on-the-fly configuration of your video distribution, making it easy to direct content exactly where it's needed within your professional AV installation.

Additional Information

Specifications

Video Amplifier Bandwidth: 165 MHz

Input Video Signal: 1.2 Volts p-p

Input DDC Signal: 5 Volts p-p (TTL)

Maximum Video Resolution: 1920x1200 (WUXGA)

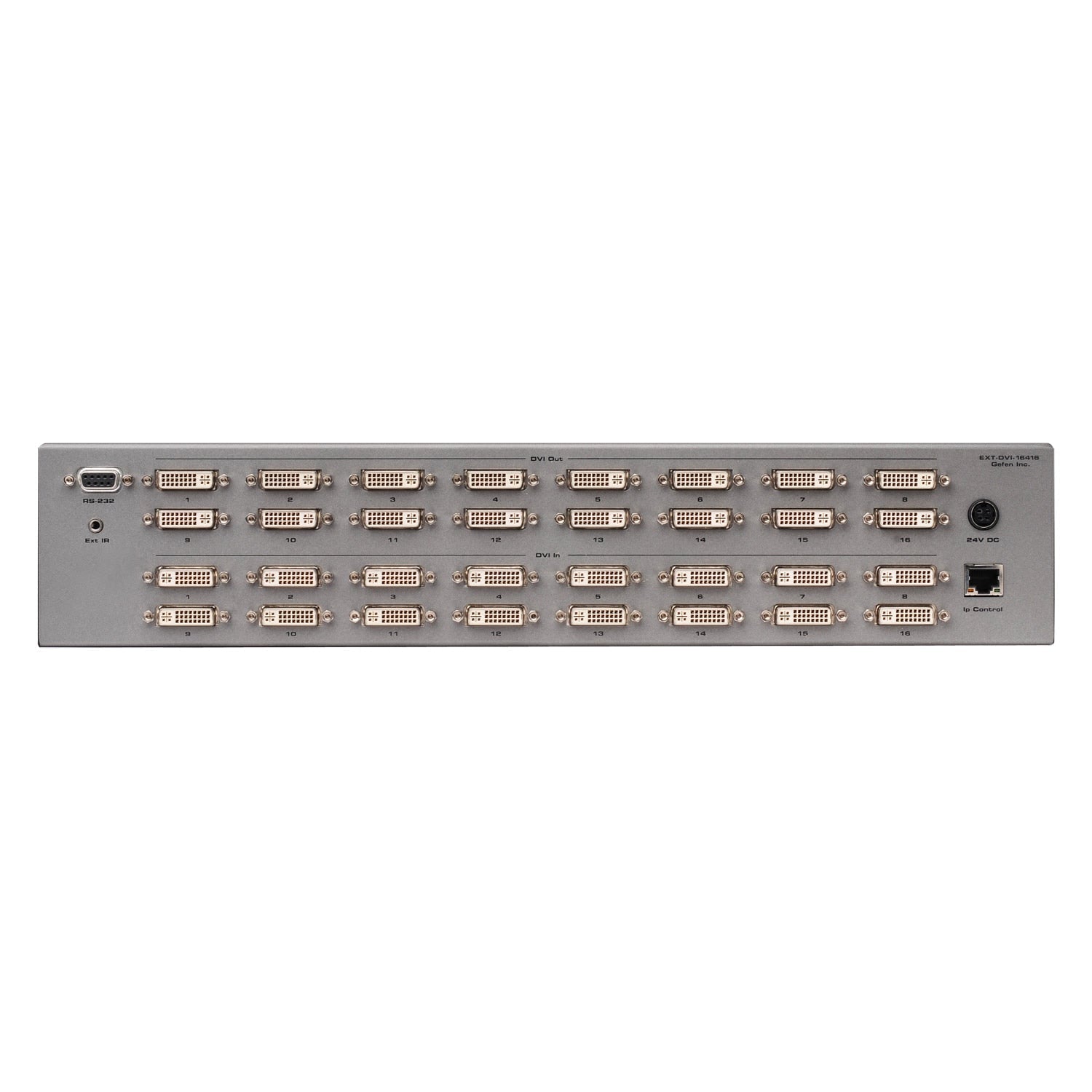

DVI Input Connectors: (16) DVI-I 29-pin, female (digital only)

DVI Output Connectors: (16) DVI-I 29-pin, female (digital only)

RS-232 Port: (1) DB-9, female

IP Control Port: (1) RJ-45

IR Extender Port: (1) 3.5mm mini-stereo jack

Power Supply: 24V DC

Power Consumption: 60W (max)

Dimensions (W x H x D): 17.25" x 3.5" x 4.6" (438mm x 89mm x 117mm)

Rack Unit Size: 2U

Shipping Weight: 9 lbs (4.1 kg)

UPC: 845344053066

System Requirements

To operate the Gefen 16x16 DVI Matrix, the following are required:

DVI sources with DVI-D output connectors
DVI displays with DVI-D input connectors

What's in the Box

(1) 16x16 DVI Matrix (EXT-DVI-16416)
(1) 6 ft. DVI Cable (M-M) (CAB-DVIC-DLN-06MM)
(1) IR Remote Control (RMT-16416)
(1) 24V DC Power Supply (EXT-PS24U1AIP)
(1) Set of Rack Ears
(1) Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-DVI-16416 Datasheet
Gefen EXT-DVI-16416 Manual
