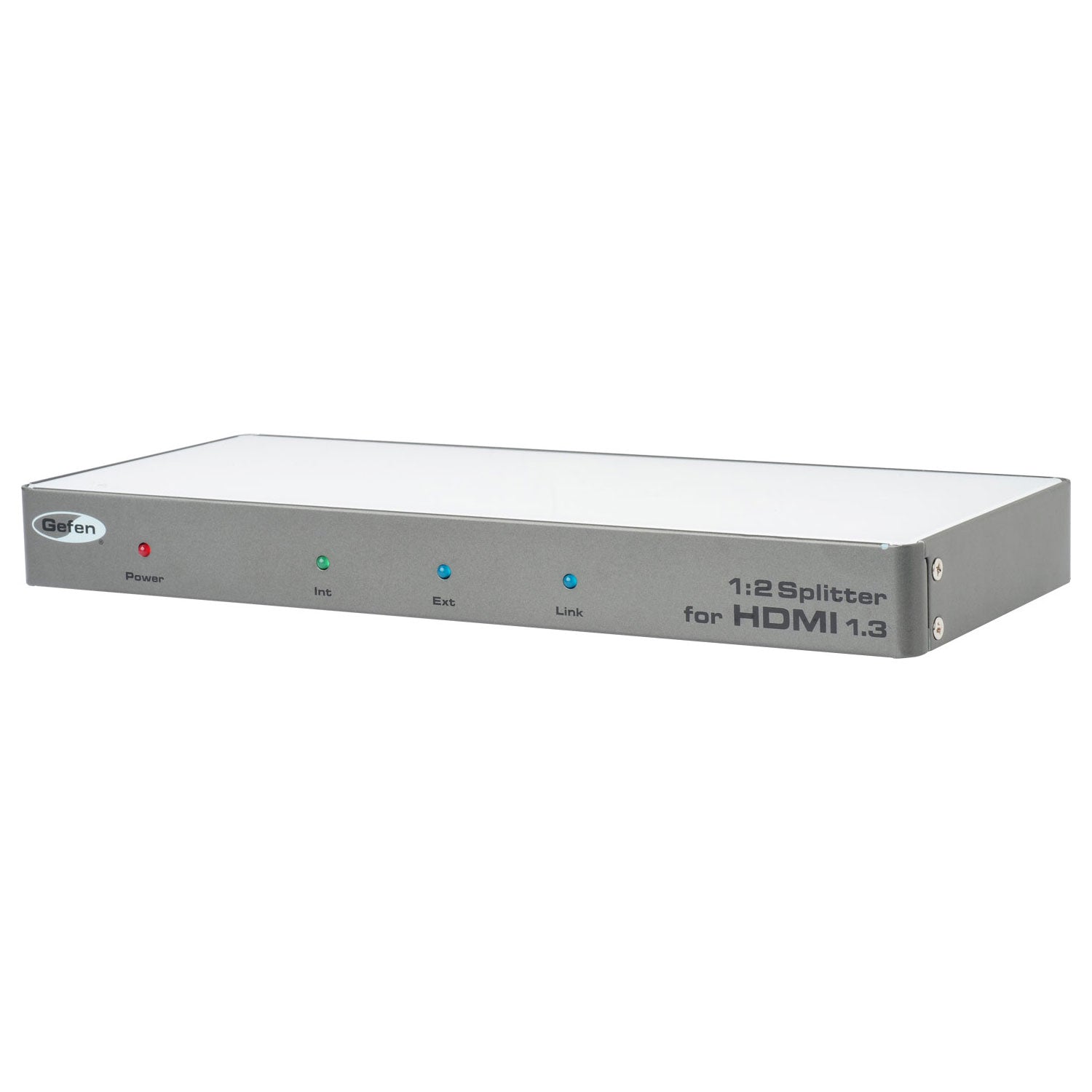

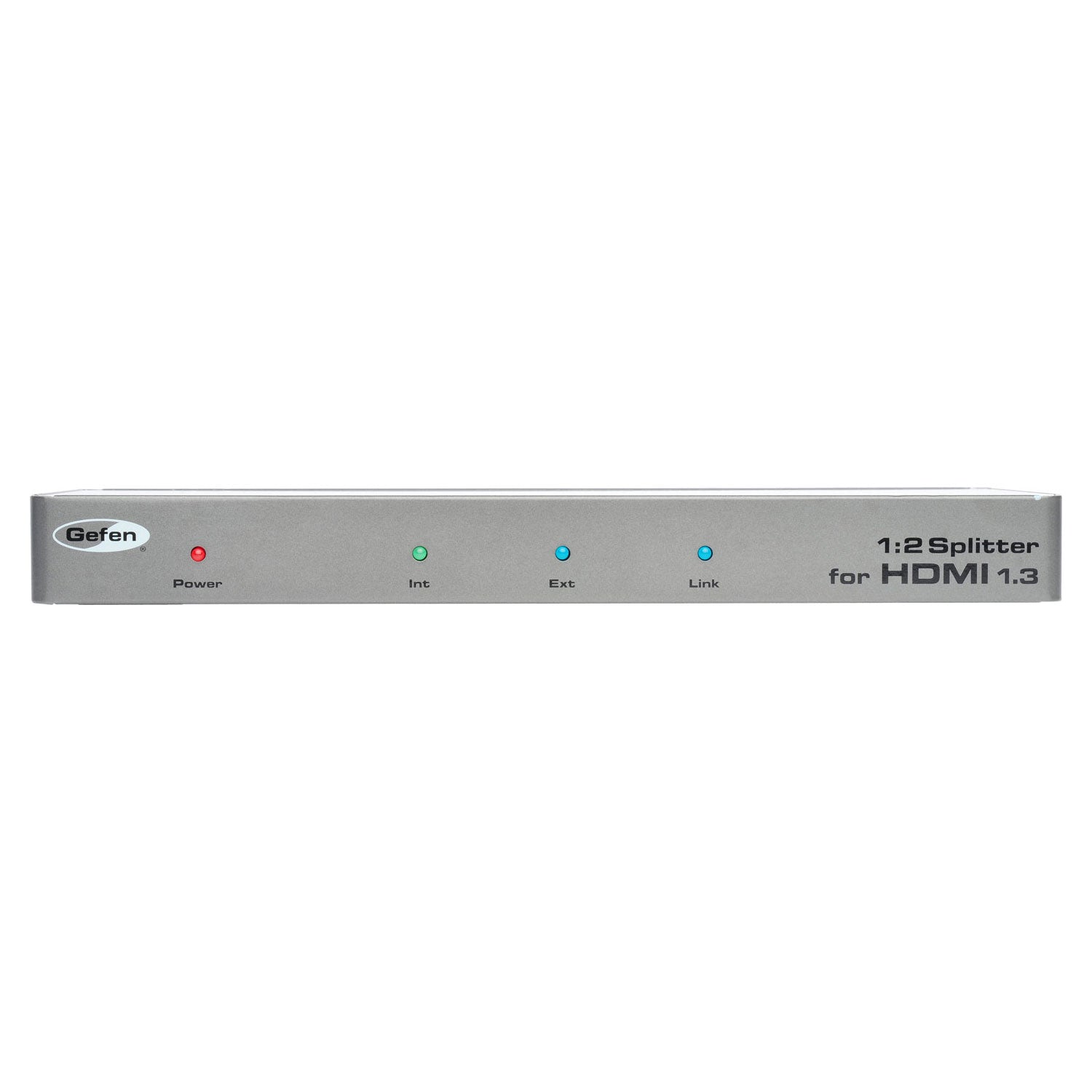

1x2 HDMI Splitter with Digital TOSLINK Audio Output (EXT-HDMI1.3-142D)

EXT-HDMI1.3-142D

The Gefen 1x2 HDMI Splitter is the perfect solution for sending a single high-definition video and audio source to two separate displays. This versatile 1x2 HDMI splitter allows you to duplicate your content flawlessly, making it ideal for retail displays, trade shows, and home theater systems where you need to drive two screens simultaneously. A standout feature of this device is its integrated HDMI audio extractor, which provides a separate TOSLINK audio output. This allows you to route high-quality digital audio to your AV receiver or soundbar, creating an immersive audio experience that your display's built-in speakers can't match. It’s a reliable and efficient way to manage your AV distribution needs.
$410.55
1x2 HDMI Splitter with Digital TOSLINK Audio Output (EXT - HDMI1.3 - 142D) - EXT - HDMI1.3 - 142D - Gefen
1x2 HDMI Splitter with Digital TOSLINK Audio Output (EXT - HDMI1.3 - 142D) - EXT - HDMI1.3 - 142D - Gefen
1x2 HDMI Splitter with Digital TOSLINK Audio Output (EXT - HDMI1.3 - 142D) - EXT - HDMI1.3 - 142D - Gefen
1x2 HDMI Splitter with Digital TOSLINK Audio Output (EXT - HDMI1.3 - 142D) - EXT - HDMI1.3 - 142D - Gefen
1x2 HDMI Splitter with Digital TOSLINK Audio Output (EXT - HDMI1.3 - 142D) - EXT - HDMI1.3 - 142D - Gefen
1x2 HDMI Splitter with Digital TOSLINK Audio Output (EXT - HDMI1.3 - 142D) - EXT - HDMI1.3 - 142D - Gefen
1x2 HDMI Splitter with Digital TOSLINK Audio Output (EXT - HDMI1.3 - 142D) - EXT - HDMI1.3 - 142D - Gefen
1x2 HDMI Splitter with Digital TOSLINK Audio Output (EXT - HDMI1.3 - 142D) - EXT - HDMI1.3 - 142D - Gefen

Key Features

Simultaneous Display Simultaneously displays a single Hi-Def source on up to two (2) HDTV displays without signal loss



High-Resolution Video: Maintains sharp HDTV resolutions up to 1080p Full HD and 2K



3DTV Pass-Through: Full 3DTV pass-through capability



Digital Audio Output: A built-in TOSLINK® connector provides a separate digital audio output for use with an external amplifier or receiver



EDID Management: Features EDID management for rapid integration of sources and display devices



Locking HDMI Connectors: Features locking HDMI connectors for secure connections



DVI Compatibility: Supports the use of DVI sources and DVI displays with an HDMI-to-DVI converter cable or adapter



HDMI and HDCP Compliant: The splitter is fully compliant with HDMI and HDCP standards

How It Works

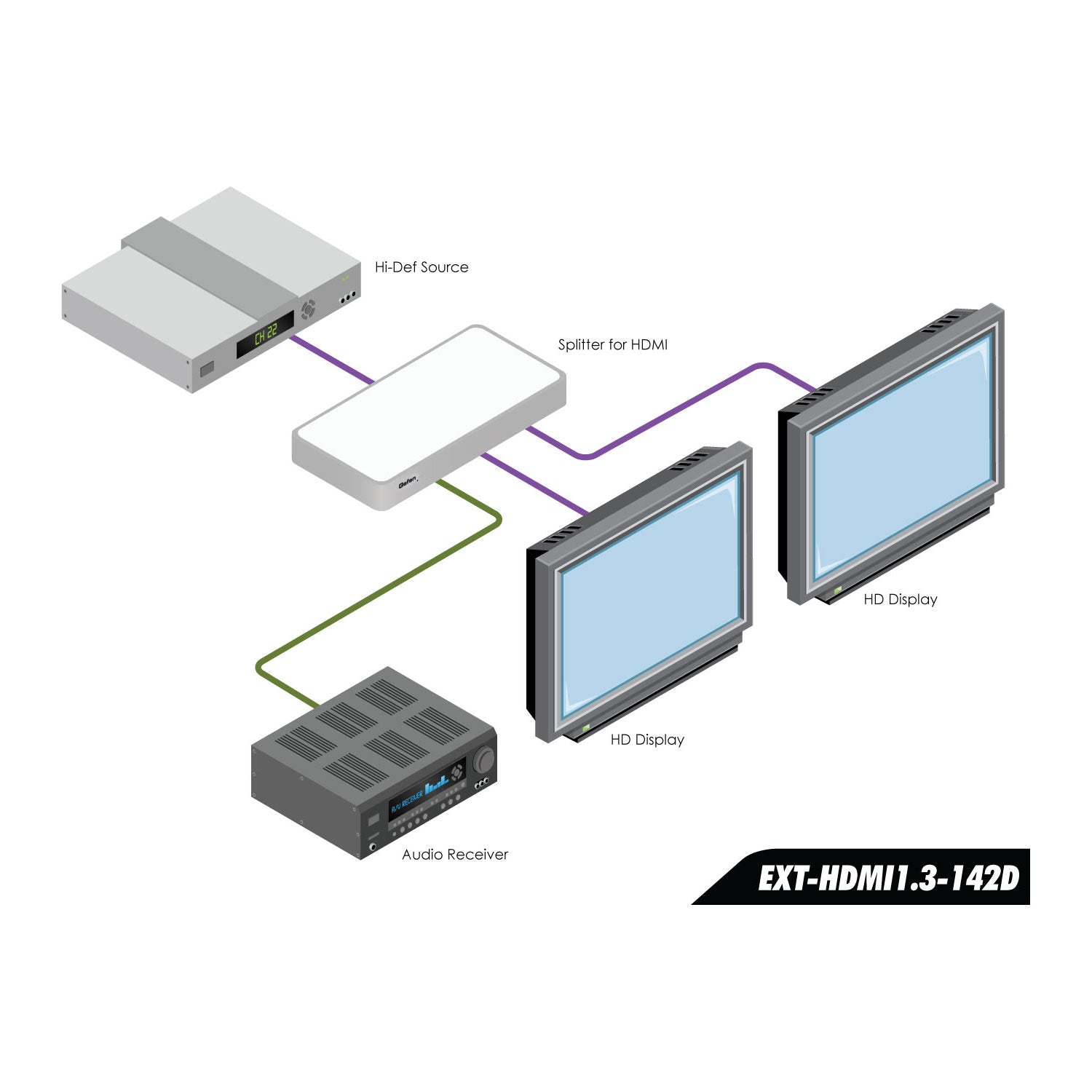

To use the Gefen 1x2 HDMI Splitter, first connect your high-definition source, such as a Blu-ray player or gaming console, to the splitter's HDMI input port using the supplied HDMI cable. Next, connect up to two HDTV displays to the two HDMI output ports on the unit. For an enhanced audio experience, you have the option to connect a TOSLINK audio cable from the splitter's optical output to an external A/V receiver or amplifier. Finally, plug in the 5V DC power supply to the splitter and an electrical outlet. Once you power on your source and displays, the video and audio signal will be distributed to both screens simultaneously, providing a perfect duplicate of your content.

Additional Information

Specifications

Video Specifications

  • Maximum Resolutions: 1080p Full HD and 1920x1200 (WUXGA)
  • Video Amplifier Bandwidth: 225 MHz
  • Maximum Pixel Clock: 225 MHz
  • Input Video Signal: 1.2 Volts p-p
  • Input DDC Signal: 5 Volts p-p (TTL)
  • HDMI Features: Supports Deep Color, Dolby TrueHD, DTS-HD Master Audio, 3DTV Pass-Through, and Lip-Sync

Audio Specifications

  • HDMI Audio Pass-Through: Supports Dolby TrueHD and DTS-HD Master Audio
  • Optical Audio Output: 1 x TOSLINK®, female
  • TOSLINK Supported Formats: LPCM 2-channel, Dolby Digital up to 5.1, and DTS Digital Surround™ up to 5.1

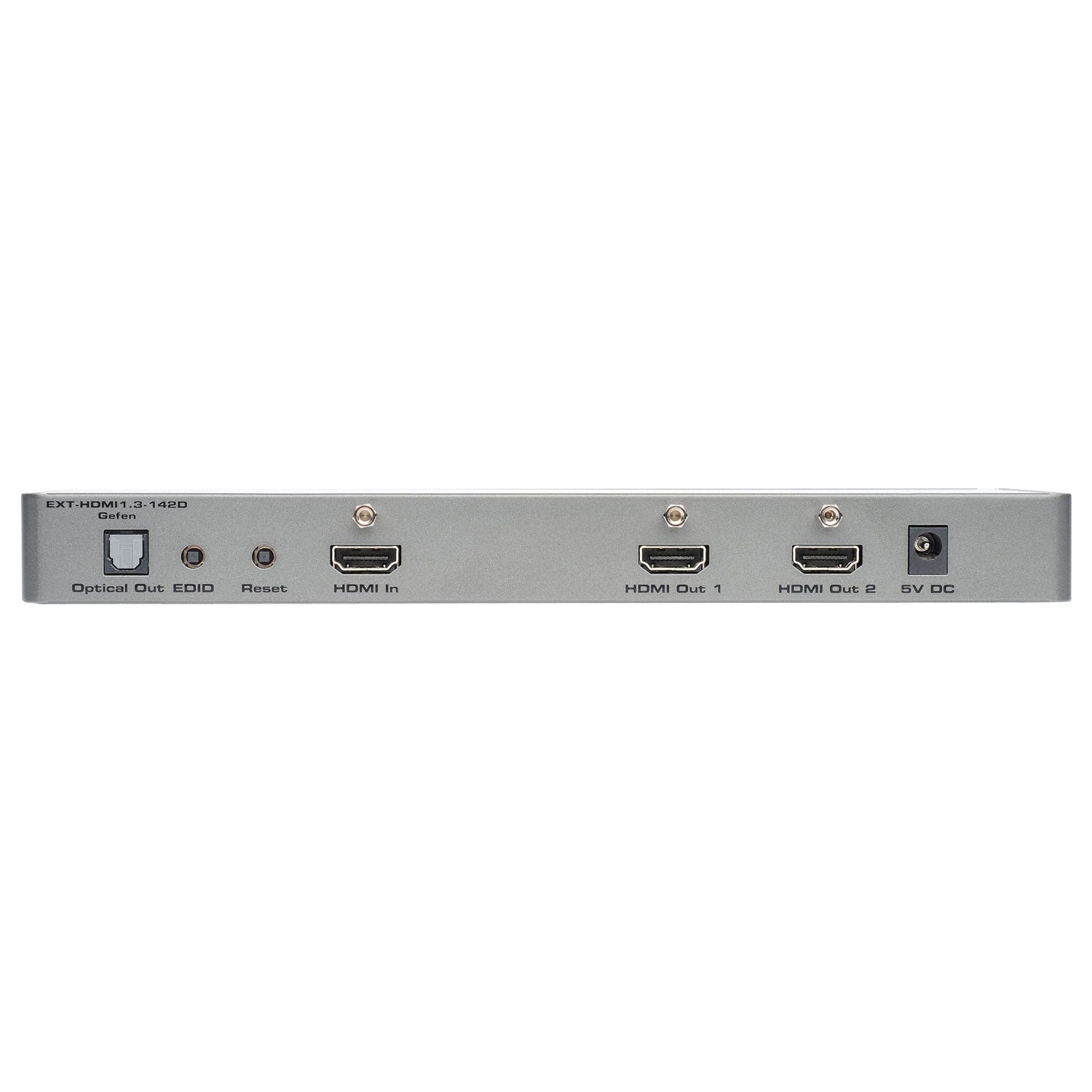

Connections

  • HDMI Input Connector: 1 x Type A, 19-pin female, with locking connector
  • HDMI Output Connectors: 2 x Type A, 19-pin female, with locking connectors

General

  • Power Supply: 5V DC
  • Power Consumption: 13 Watts (max.)
  • Operating Temperature: +32 to +104 °F (0 to +40°C)
  • Dimensions (W x H x D): 10.5" x 1.0" x 4.25" (266mm x 25mm x 108mm)
  • Unit Weight: 1.2 lb (0.5 kg)
  • Shipping Weight: 4 lbs.

UPC: 845344059266

System Requirements

A high-definition source with an HDMI output.



Up to two high-definition displays with HDMI inputs.



HDMI cables for connecting the source and displays.



An available electrical outlet for the included 5V DC power supply.



Optional: For separate audio, an A/V receiver or amplifier and an optical audio cable are required.



Optional: For connecting DVI devices, an HDMI-to-DVI converter cable or adapter is necessary.

What's in the Box

  • 1 × 1:2 Splitter for HDMI 1.3 with Digital Audio
  • 1 × 6 ft HDMI cable (M-M)
  • 1 × 5V DC Power Supply
  • 1 × Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-HDMI1.3-142D Datasheet
Gefen EXT-HDMI1.3-142D Manual
Gefen EXT-HDMI1.3-142D Declaration of Conformity
