4K Ultra HD 600 MHz 1x4 Video Wall Controller with Audio De-Embedder (EXT-UHD600A-VWC-14)

EXT-UHD600A-VWC-14

The Gefen 4K Ultra HD 600 MHz 1x4 Video Wall Controller is a high-performance solution designed to create captivating video walls from a single high-bandwidth source. This unit accepts an HDMI input with resolutions up to 4K UHD 60 Hz 4:4:4 and HDCP 2.2 compliance, and expertly divides the signal into four separate sections to be scaled for up to four 1080p Full HD displays. For enhanced audio integration, it features an analog L/R audio breakout to connect with external amplification systems. Offering versatile management through front panel controls, IR, RS-232, and IP (Telnet/Web GUI), this controller provides both pre-configured and custom layout options, making it a flexible and powerful tool for professional digital signage and AV installations.
$2,337.30
4K Ultra HD 600 MHz 1x4 Video Wall Controller with Audio De - Embedder (EXT - UHD600A - VWC - 14) - EXT - UHD600A - VWC - 14 - Gefen
4K Ultra HD 600 MHz 1x4 Video Wall Controller with Audio De - Embedder (EXT - UHD600A - VWC - 14) - EXT - UHD600A - VWC - 14 - Gefen
4K Ultra HD 600 MHz 1x4 Video Wall Controller with Audio De - Embedder (EXT - UHD600A - VWC - 14) - EXT - UHD600A - VWC - 14 - Gefen
4K Ultra HD 600 MHz 1x4 Video Wall Controller with Audio De - Embedder (EXT - UHD600A - VWC - 14) - EXT - UHD600A - VWC - 14 - Gefen
4K Ultra HD 600 MHz 1x4 Video Wall Controller with Audio De - Embedder (EXT - UHD600A - VWC - 14) - EXT - UHD600A - VWC - 14 - Gefen
4K Ultra HD 600 MHz 1x4 Video Wall Controller with Audio De - Embedder (EXT - UHD600A - VWC - 14) - EXT - UHD600A - VWC - 14 - Gefen
4K Ultra HD 600 MHz 1x4 Video Wall Controller with Audio De - Embedder (EXT - UHD600A - VWC - 14) - EXT - UHD600A - VWC - 14 - Gefen
4K Ultra HD 600 MHz 1x4 Video Wall Controller with Audio De - Embedder (EXT - UHD600A - VWC - 14) - EXT - UHD600A - VWC - 14 - Gefen

Key Features

High-Resolution Video Support: Accepts input resolutions up to 4K UHD 60 Hz 4:4:4 with HDCP 2.2 compliance , and scales the source to four outputs with resolutions up to 1080p 60 Hz.



Intelligent Video Wall Scaling: Divides a single HDMI input into four separate sections to be sized and scaled for each of the four display outputs.

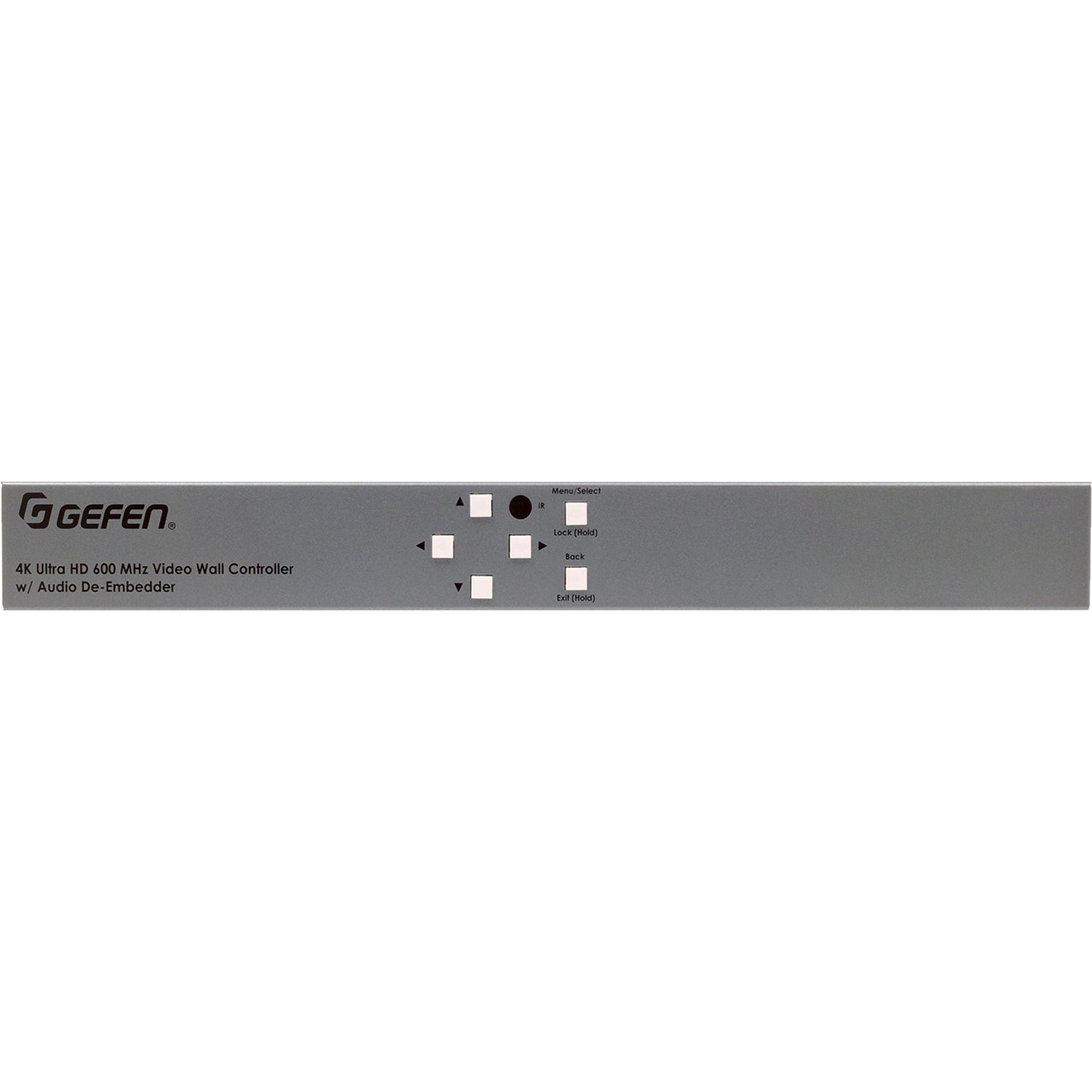

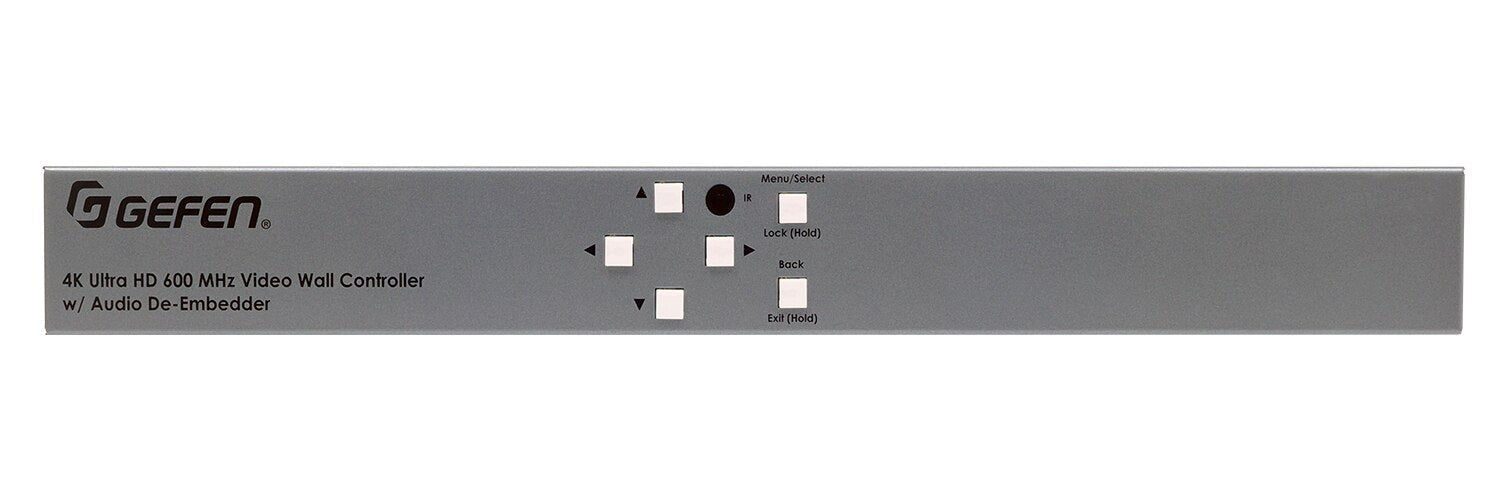

Versatile Control Options: Offers comprehensive control through front panel buttons, IR, IP (via a web server interface or Telnet), and RS-232.



Flexible Layout Configuration: Choose from default pre-configured layouts for quick setup or create custom layouts for unique monitor arrangements by defining specific crop areas.



Advanced Bezel Compensation: Enables precise pixel adjustments on the top, bottom, left, and right of each output to compensate for display bezels, ensuring a seamless image across the entire video wall.



Audio De-Embedding: Includes an analog L/R Audio Breakout to easily connect the source audio to outboard amplification systems.

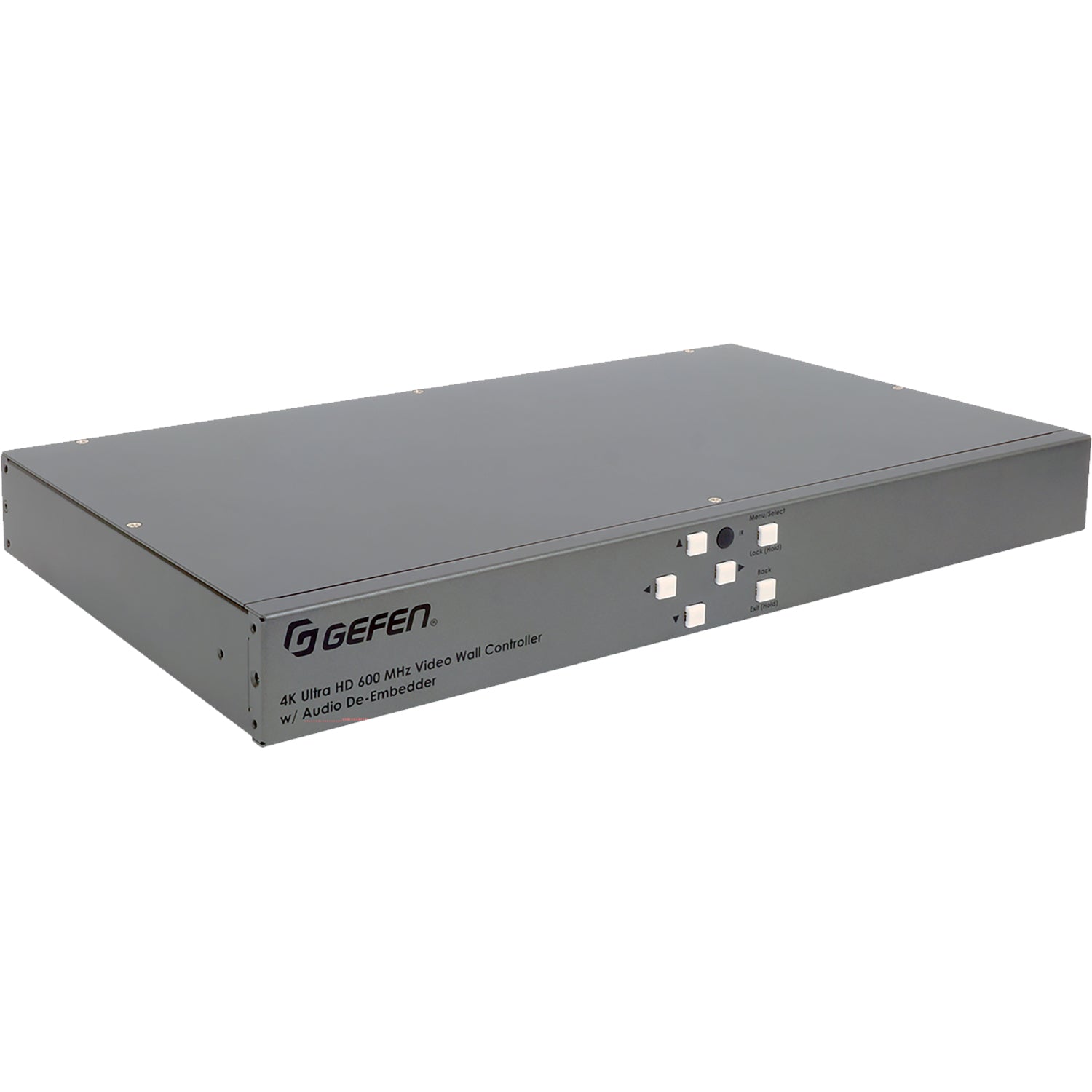

Professional Installation Features: Equipped with a locking power supply connector for a secure connection and a 1U tall, rack-mountable enclosure with included rack ears.



Field-Upgradable Firmware: Allows for firmware updates in the field using the Gefen Syner-G™ software.

How It Works

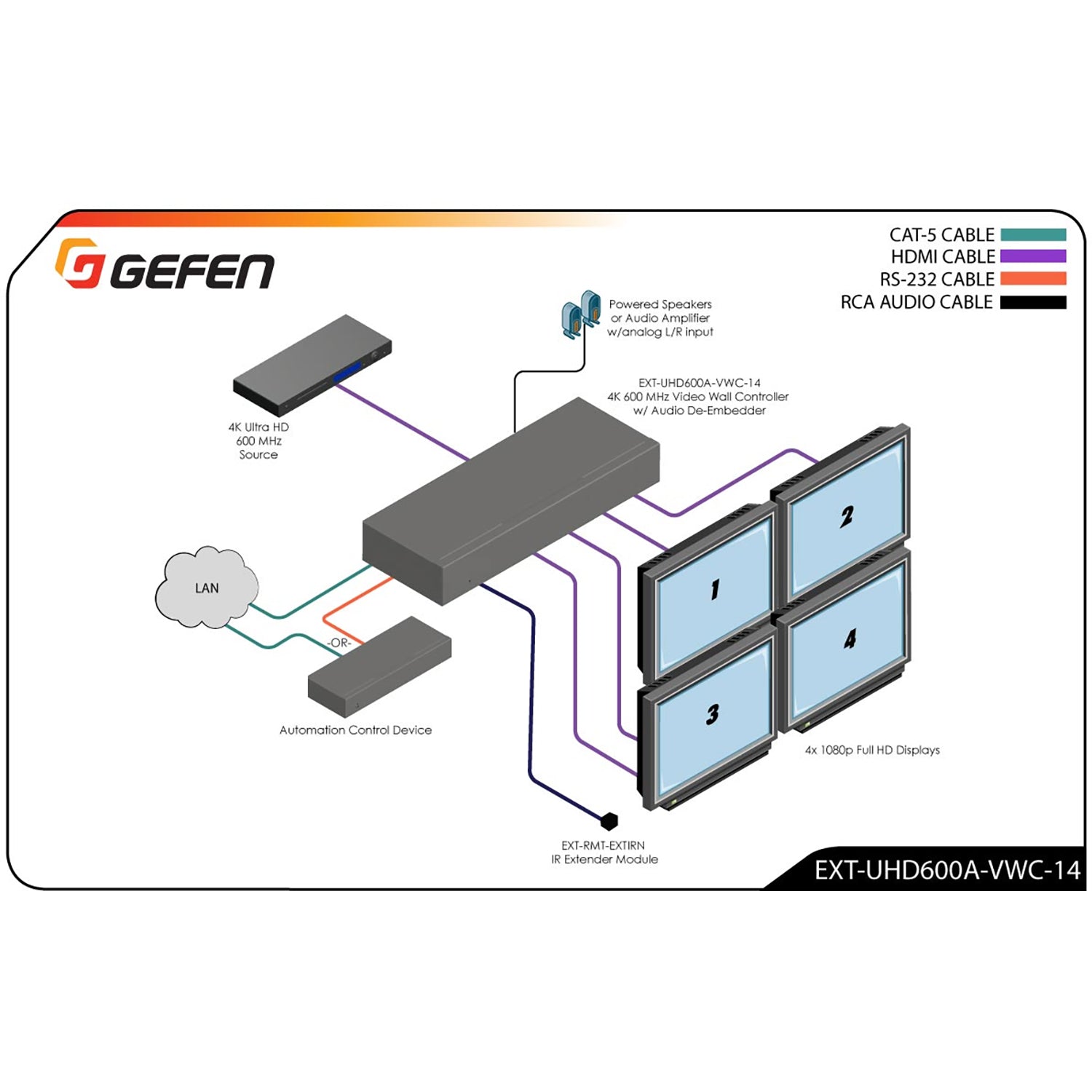

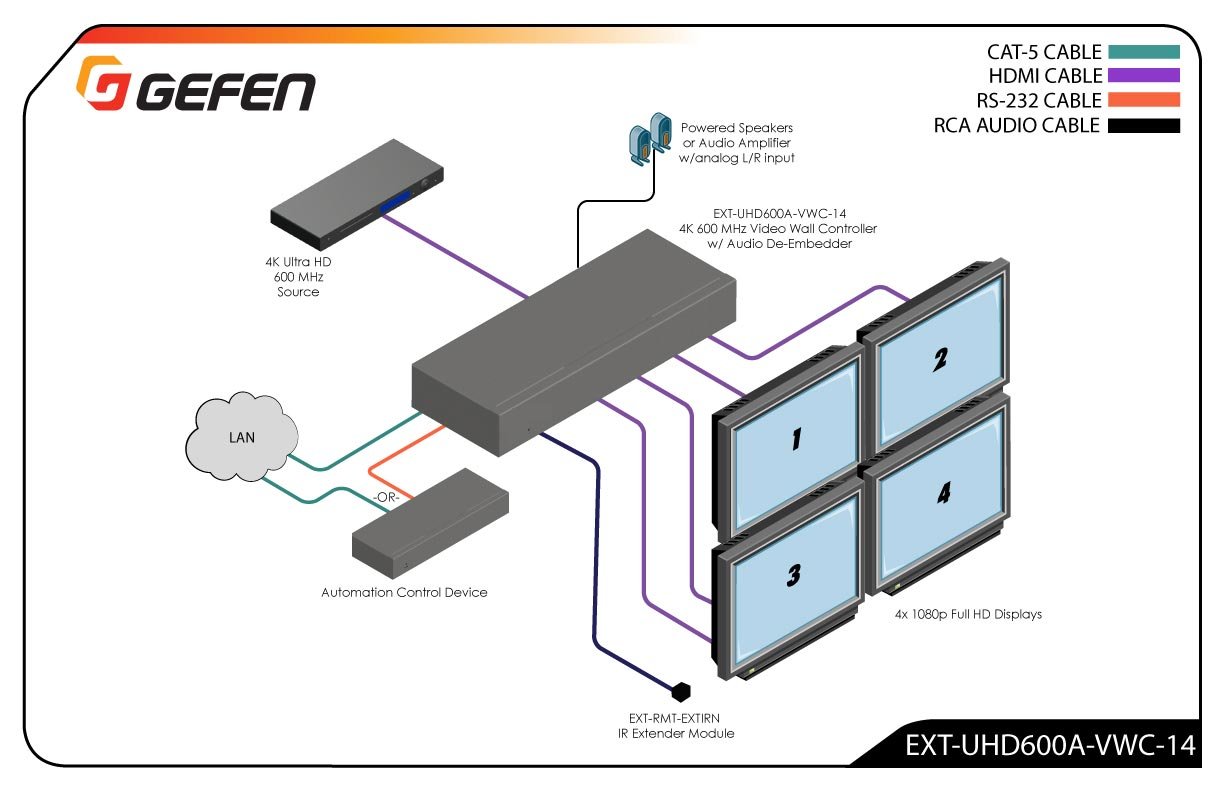

To operate the Gefen 1x4 Video Wall Controller, connect a single Ultra HD or Full HD source to the HDMI input port. Then, connect up to four Full HD displays to the corresponding HDMI outputs on the unit. Once powered on, the controller processes the incoming video signal, dividing it into four separate sections that are scaled specifically for each connected display. Using the on-screen display, built-in web interface, or commands via IP or RS-232, you can easily configure the video wall by selecting a preset layout (such as a 2x2 grid) or creating a custom layout. For a professional finish, apply bezel compensation to adjust the image and hide the physical borders of the displays, creating one large, seamless picture. The controller also de-embeds audio from the HDMI source, making it available through the L/R analog audio outputs for use with an external amplification system.

Additional Information

Specifications

Maximum Resolutions

  • Input: 4K Ultra HD (3840 x 2160) 60 Hz, 4:4:4
  • Outputs: 1080p Full HD (1920 x 1080, 60 Hz), WUXGA (1920 x 1200, 60 Hz)

Electrical

  • Maximum TMDS Clock/Data Rate: 600 MHz/18 Gbps
  • Menu Navigation buttons: 6x Tact-type, blue backlight

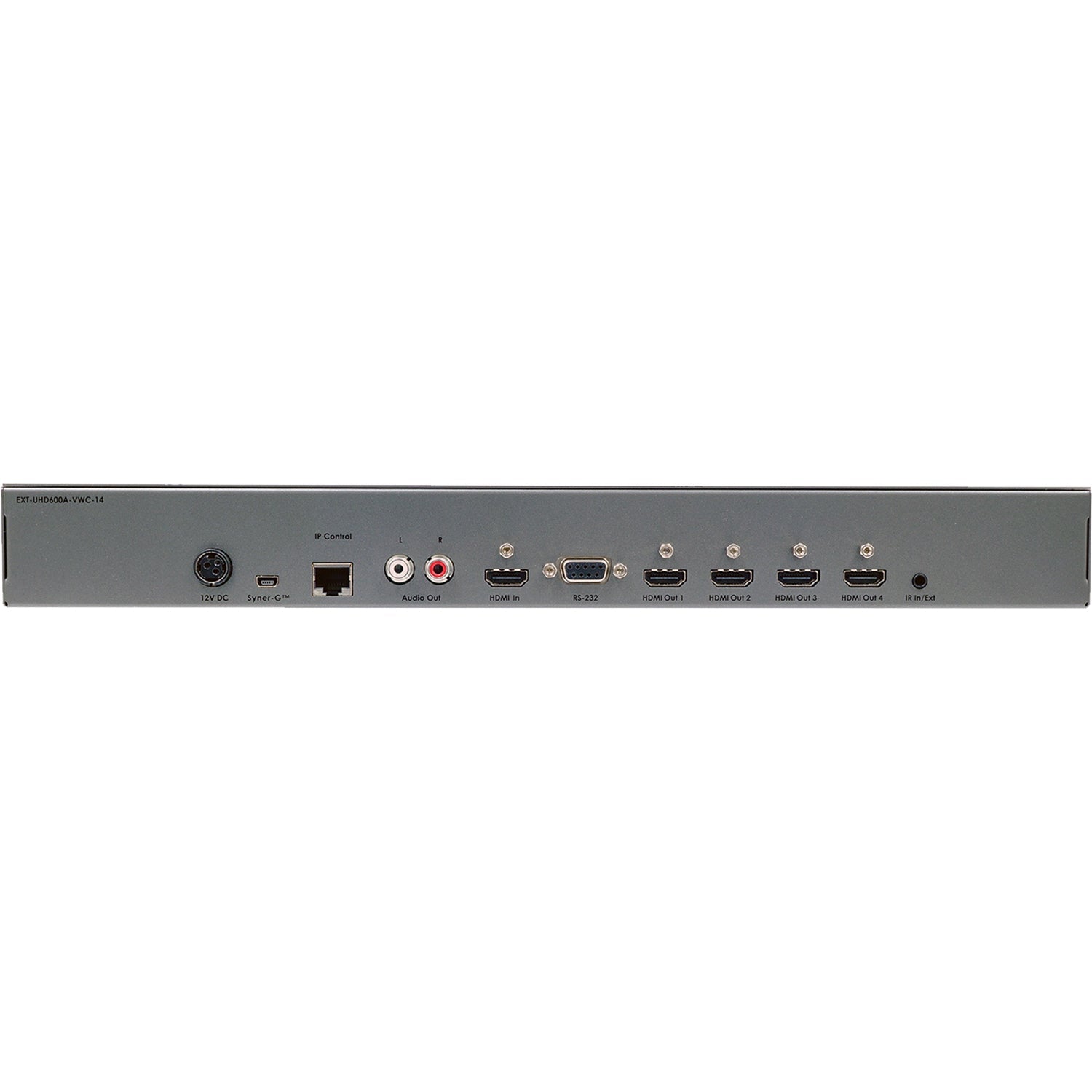

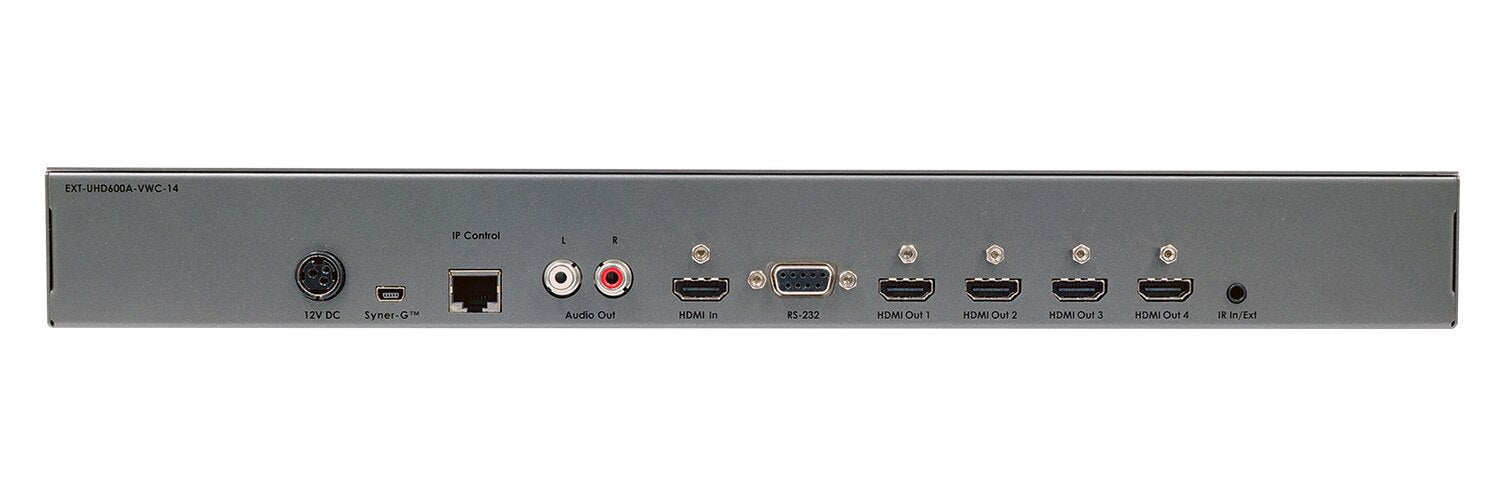

Connectors

  • Video Inputs: 1 x HDMI Type A 19-pin, female, locking
  • Video Outputs: 4 x HDMI Type A 19-pin, female, locking
  • RS-232: 1 x DB-9, female
  • IP Control: 1 x RJ-45
  • USB: 1 x Mini-B
  • IR In/Ext: 1 x 3.5mm mini-stereo phone jack
  • Analog Audio Outputs: 2 x RCA, female
  • Power: 1 x 3-pin Locking-type

Operational

  • Power Supply: 12V DC
  • Power Consumption: 12W

Physical

  • Dimensions (W x H x D):
    • Without rack ears: 15.3" x 1.7" x 8.9" (389mm x 43mm x 226mm)
    • With rack ears: 18.9" x 1.7" x 8.9" (480mm x 43mm x 226mm)
  • Unit Weight: 5.4 lbs (2.5 kg)

UPC: 888814999877

System Requirements

When using a 4K (2160p) input resolution, the following limitations and requirements apply:

  • The output resolution is limited to 1080p.
  • The rotation effect cannot be used.
  • Only the horizontal 2x2 layout mode is available.

For IP control:

  • A CAT-5 (or better) cable must be connected from the IP Control port to a Local Area Network (LAN).

For RS-232 Control:

  • The RS-232 port must be configured with the following settings: 115200 baud rate, 8 data bits, no parity, and 1 stop bit.

For Firmware Updates:

  • Firmware upgrades must be managed using the Gefen Syner-G™ software.

What's in the Box

  • (1) 1x4 Video Wall Controller
  • (1) 6 ft. Locking HDMI Cable
  • (1) 6 ft. DB-9 Cable
  • (1) EXT-RMT-EXTIRN IR Extender Module
  • (2) Rack Ears
  • (1) Handheld IR Remote with CR2025 battery included
  • (1) 12V DC Locking Power Supply with US/EU/UK/AU plugs
  • (1) Quick-Start Guide

Warranty

3 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

  • Gefen EXT-UHD600A-VWC-14 Manual
