4K Ultra HD 600 MHz Extender for HDMI over one Fiber-Optic Cable (EXT-UHD600-1SC)

Name: 4K Ultra HD 600 MHz Extender for HDMI over one Fiber-Optic Cable (EXT-UHD600-1SC)
Brand: Gefen
SKU: EXT-UHD600-1SC
Price: 3109.05 USD
Availability: InStock

EXT-UHD600-1SC

The Gefen EXT-UHD600-1SC is a compact and high-performance solution for extending uncompressed, full-bandwidth HDMI 2.0 audio/video with HDR up to 200 meters (660 feet) over a single strand of SC-terminated OM3 or better multi-mode fiber-optic cable. It supports the highest specified bandwidth under the HDMI 2.0 standard at 18.2 Gbps and a 600 MHz TMDS Clock frequency, allowing it to accommodate resolutions up to 4K Cinema-DCI (4096×2160 at 60 Hz, 4:4:4) with High Dynamic Range (HDR). HDCP 2.2 and legacy HDCP 1.4 are both supported, alongside HBR (High Bit Rate) digital audio formats like Dolby Atmos®, Dolby® TrueHD, and DTS:X™. Designed for critical applications, the extender provides full electrical isolation between the Sender and Receiver units, ensuring stringent safety and EMC requirements are met in environments such as medical imaging, military command rooms, and digital signage.

⚠️Comes with both Sender and Receiver.

$3,109.05

4K Ultra HD 600 MHz Extender for HDMI over one Fiber - Optic Cable (EXT - UHD600 - 1SC) - EXT - UHD600 - 1SC - Gefen

Key Features

Long-Distance Extension: Extends HDMI signals up to 200m (660 feet) over a single SC-terminated multi-mode OM3 or better (50/125um) fiber-optic cable.

Full HDMI 2.0 Bandwidth: Supports 18.2 Gbps bandwidth and a 600 MHz TMDS clock, accommodating the full specification of HDMI 2.0.

High-Resolution Video: Supports resolutions up to 4K Cinema-DCI (4096×2160 at 60 Hz, 4:4:4), 4K Ultra HD (3860×2160 at 60 Hz, 4:4:4), 1080p Full HD, and WUXGA (1920x1200).

High Dynamic Range (HDR): Supports 10-bit HDR at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4 , including Dolby Vision™.

HDCP Compliance: Compliant with both the modern HDCP 2.2 standard and legacy HDCP 1.4.

Immersive Audio Passthrough: Supports up to 7.1 channels of uncompressed LPCM digital audio and HBR (High Bit Rate) formats such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™.

Professional and Compact Design: Features sturdy metal enclosures for immunity against EMI and RFI , with a compact, plug-and-play design that is easy to install and can be hidden away.

DVI Compatibility: Supports the use of DVI sources and displays up to 1080p Full HD and WUXGA (1920x1200) with the use of DVI-to-HDMI cables.

How It Works

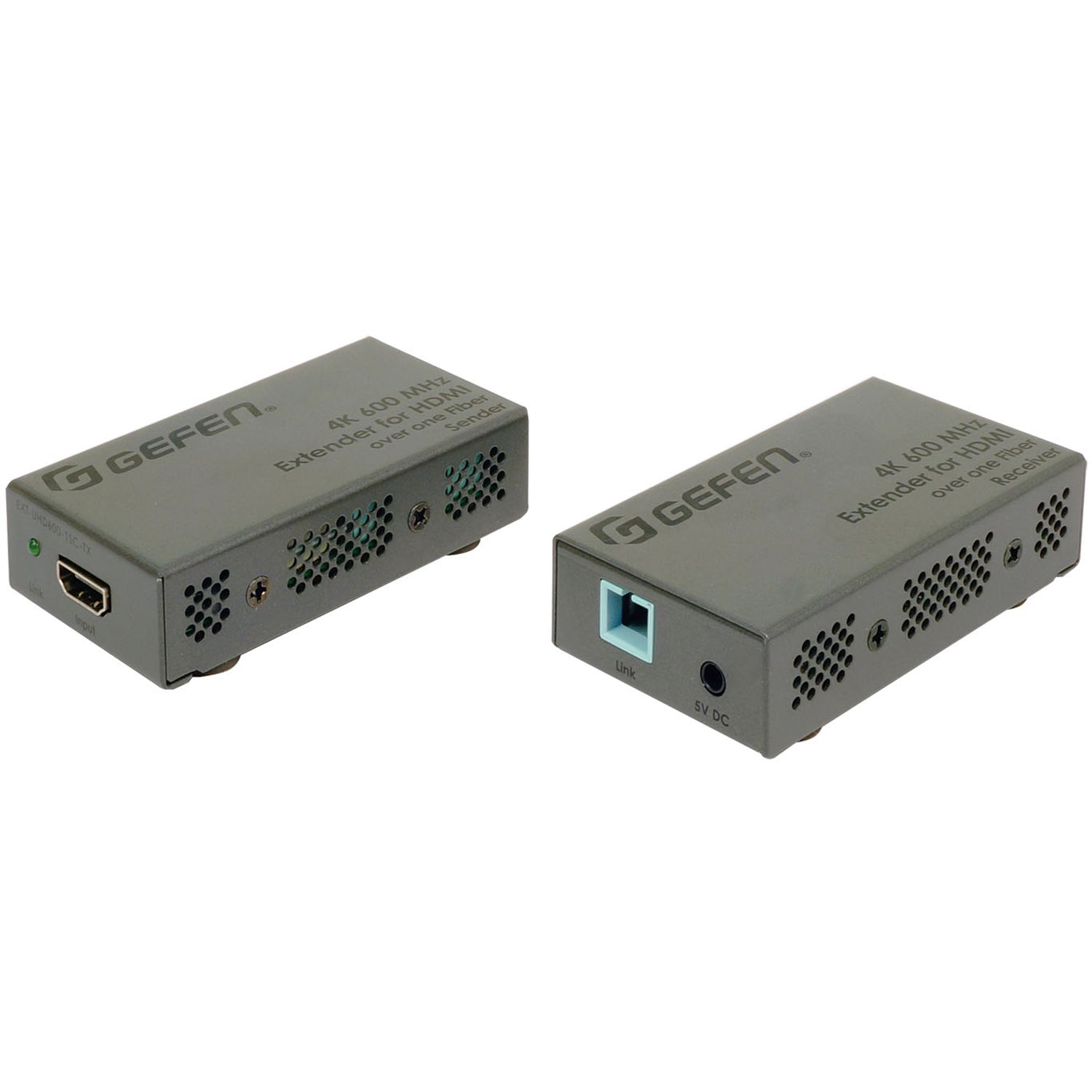

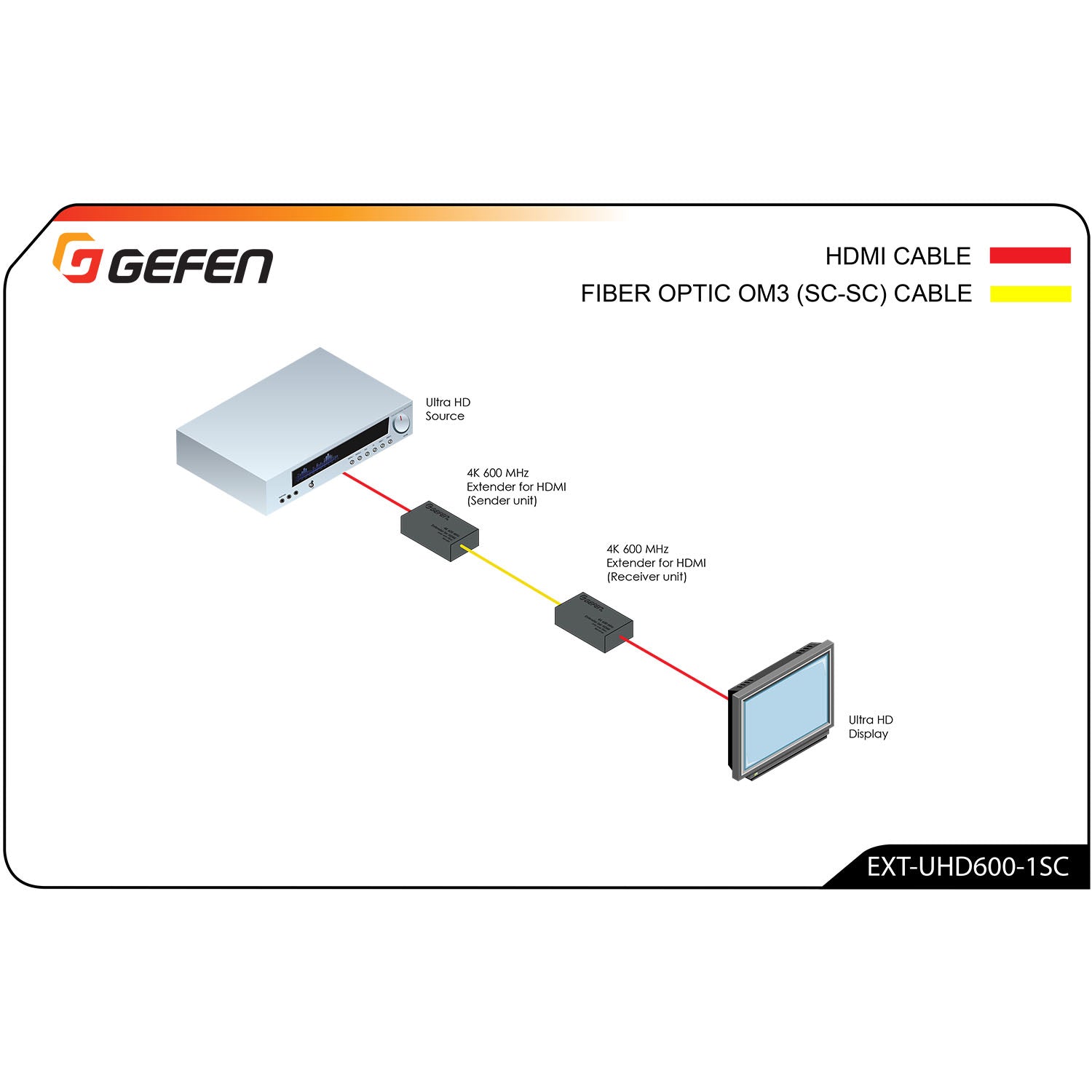

The Gefen EXT-UHD600-1SC system extends HDMI using a Sender and a Receiver unit to transmit the signal over a long distance. To set it up, connect an HDMI source to the Sender unit's Input port and an HDMI display to the Receiver unit's Output port with HDMI cables. The two units are then linked together with a single strand of SC-terminated OM3 or better multi-mode fiber optic cable, which can span up to 200 meters (660 feet). Both units must be connected to power, using either the included 5V DC power supplies or the provided USB-to-DC power cables. The system is entirely plug-and-play, requiring no configuration. The Sender converts the HDMI signal to an optical signal for transmission, and the Receiver converts it back to HDMI for the connected display, with Link indicator LEDs on both units glowing green to confirm an active connection.

Additional Information

Specifications

Supported Video Formats

4K Cinema-DCI: 4096 x 2160 up to 60 Hz, 4:4:4
4K Ultra HD: 3860 x 2160 up to 60 Hz, 4:4:4
HDR: HDR-10 and Dolby Vision™
1080p Full HD: 1920 x 1080 up to 60 Hz, 4:4:4, 12-bit
WUXGA: 1920 x 1200 up to 60 Hz

Connectors & Indicators

Input Connector (Sender): 1 x HDMI Type A 19-pin, female
Output Connector (Receiver): 1 x HDMI Type A 19-pin, female

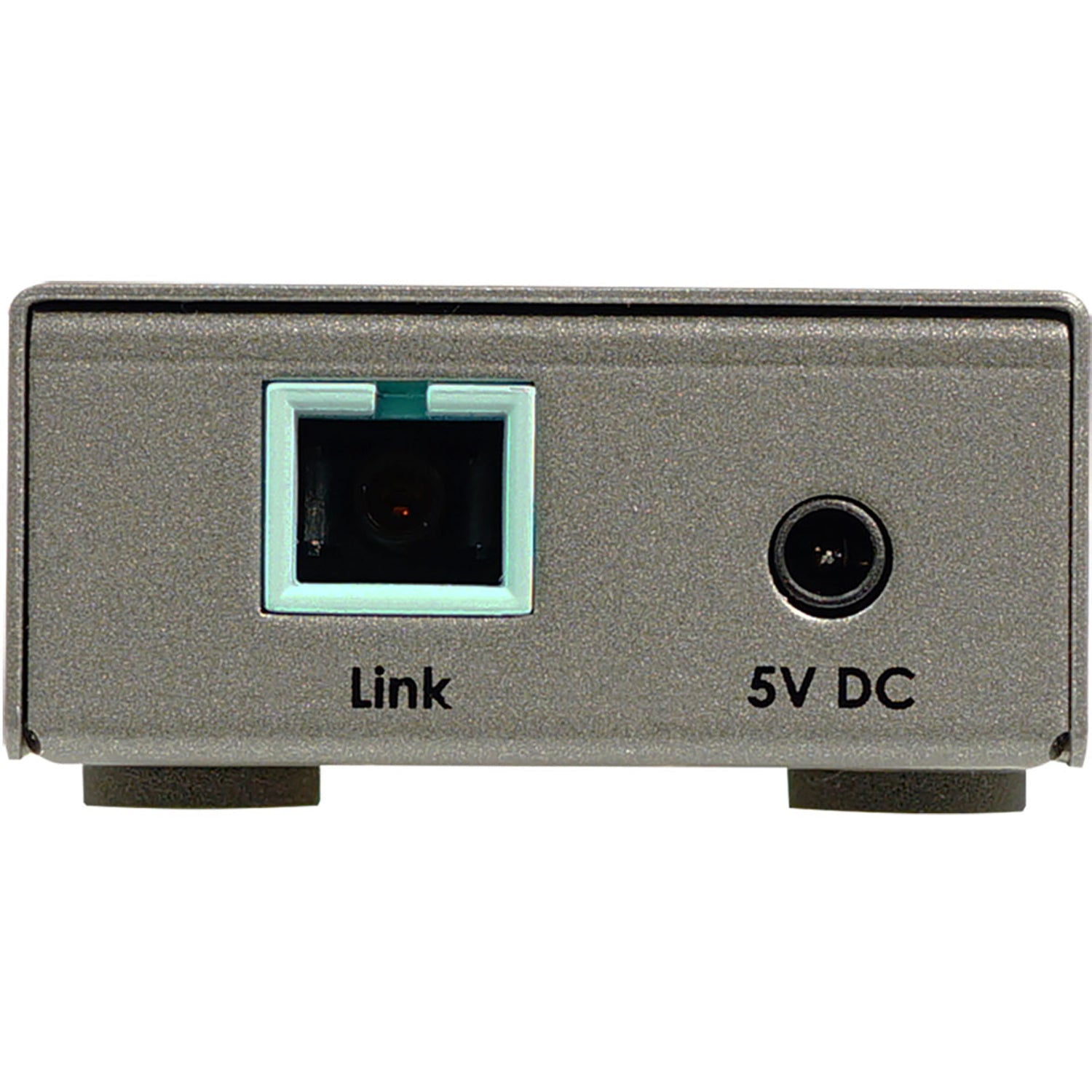

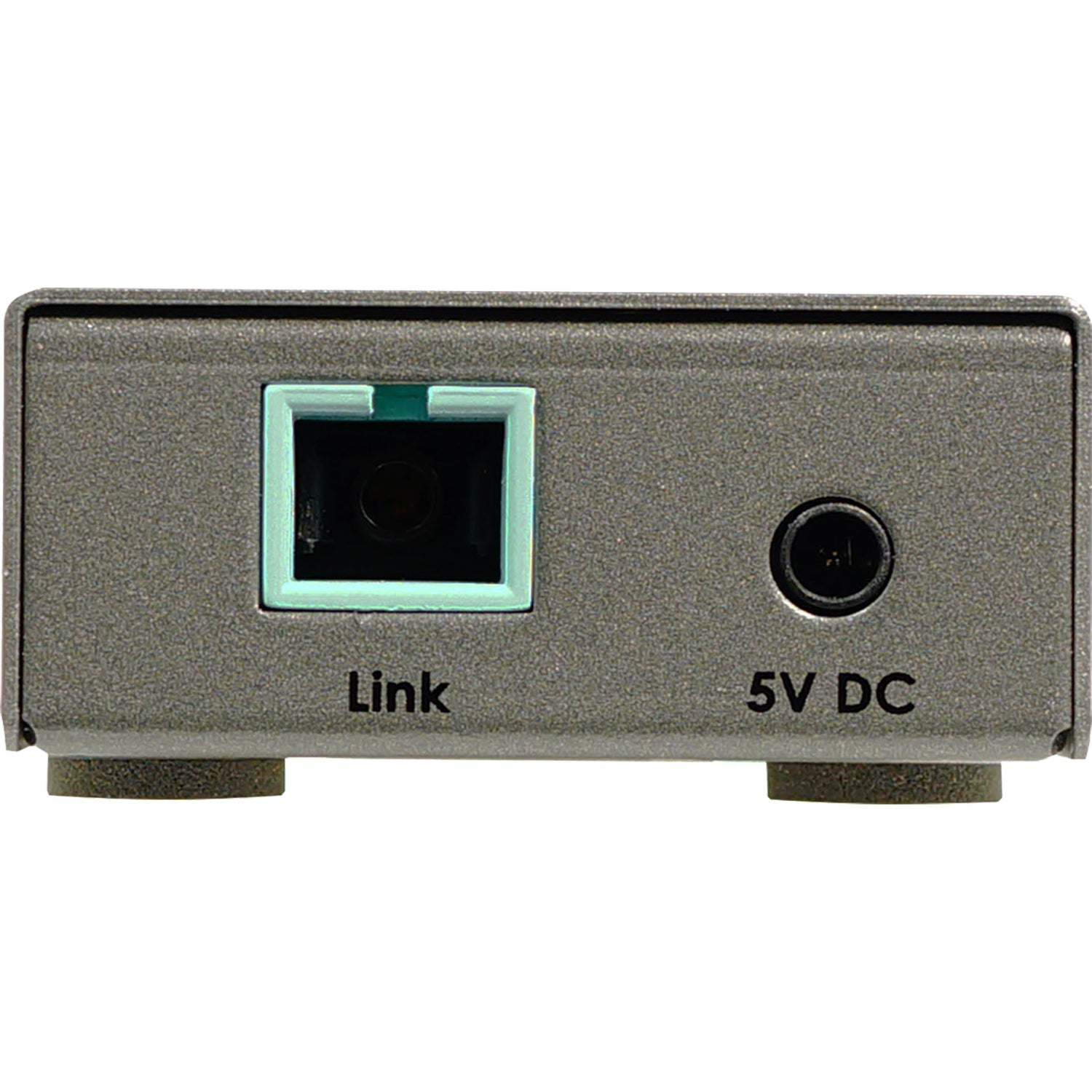

Link Connector (Sender/Receiver): 1 x SC-type, female
Power Connector (Sender/Receiver): 1 x DC jack, 3.5mm barrel/1.3mm pin

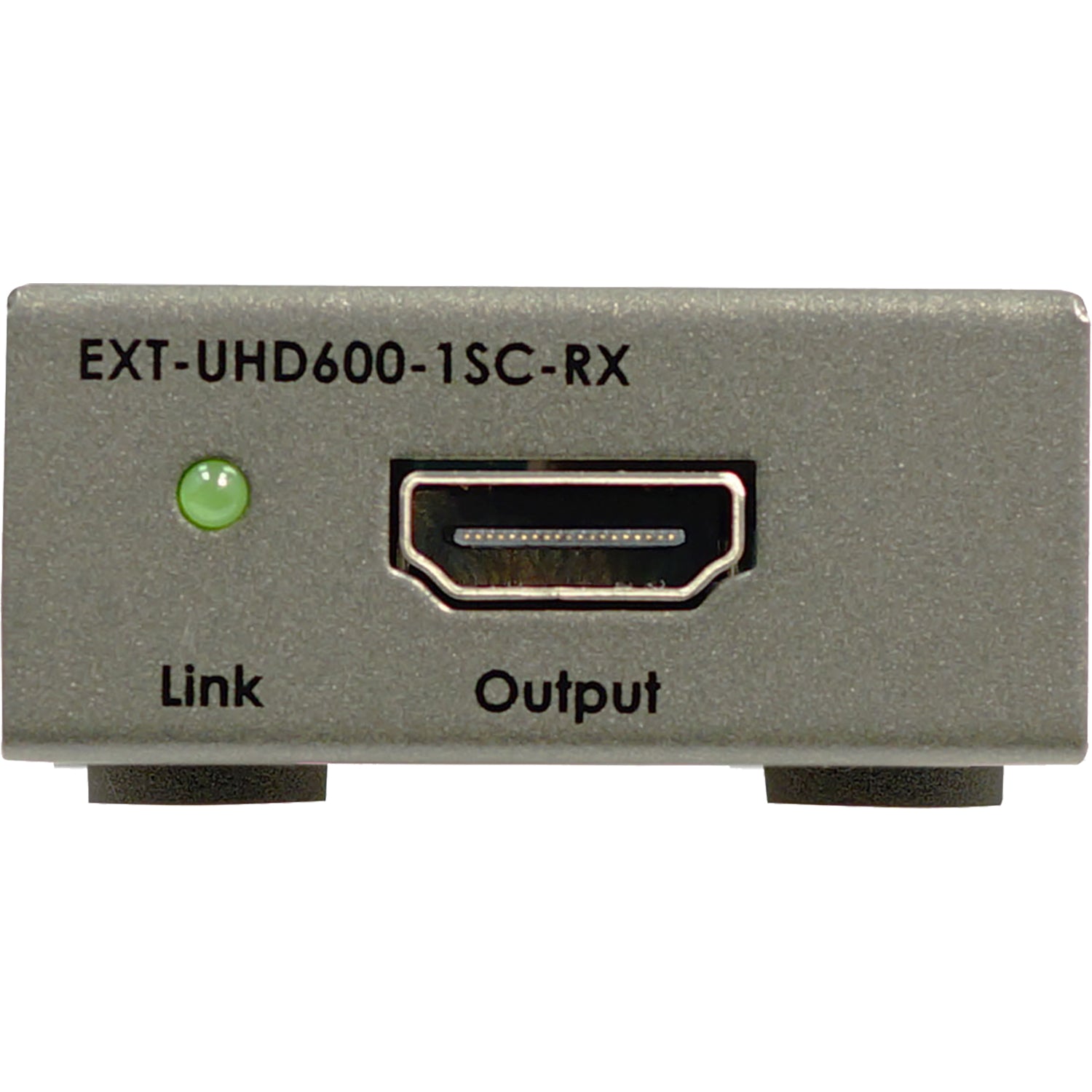

Link Indicator (Sender/Receiver): 1 x LED, green

Operational

Maximum TMDS Clock: 600 MHz
Total Signal Bandwidth / Data Rate: 18.2 Gbps
Power Consumption (Sender): 3.2 W
Power Consumption (Receiver): 2.8 W
Optical Power Budget: 6.5 dB
Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 10% to 85% RH, non-condensing
Storage Temperature: -4 to +158 °F (-20 to +70 °C)
Storage Humidity: 10% to 85% RH, non-condensing
MTBF: 50000 hours

Physical

Dimensions (W x H x D, not including connectors): 1-3/4" x 7/8" x 3-1/8" (45mm x 22mm x 79mm)
Net Weight (Sender/Receiver): 3.2 oz. (0.1 kg) each
Shipping Weight: 2.5 lbs (1.2 kg)

UPC: 888814999945

System Requirements

Fiber-Optic Cable: The product requires a single strand of SC-terminated OM3 or OM4 (50/125 µm) multimode fiber optic cable. Single mode fiber is not supported.

HDMI Cables: For reliable performance at 600 MHz and 18.2 Gbps, it is highly recommended to use high-quality HDMI cables that are 10 feet or shorter.

USB Power: If using the included USB-to-DC cables for power, the connected USB port must be able to supply 5V DC at 2A.

What's in the Box

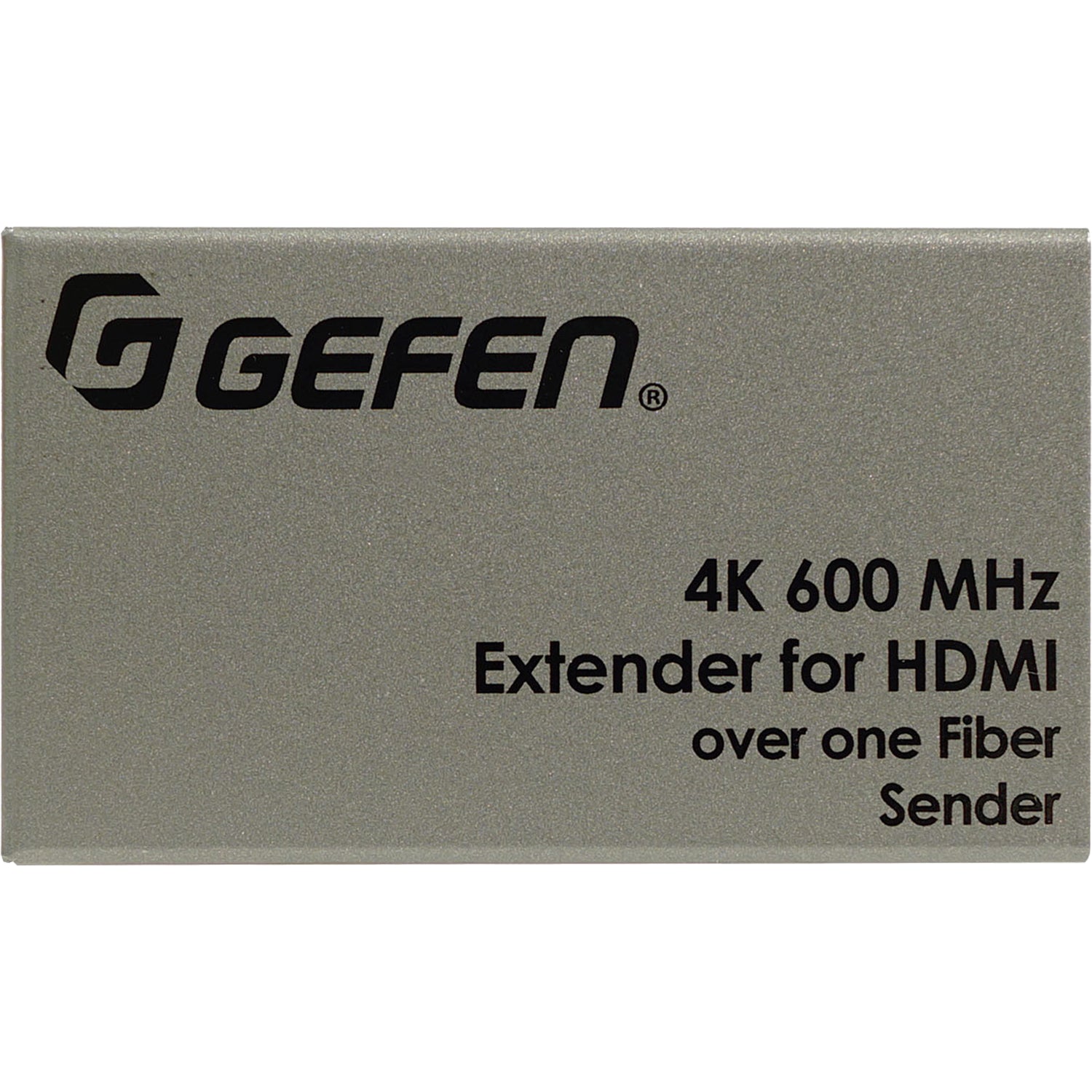

(1) EXT-UHD600-1SC-TX (Sender unit)

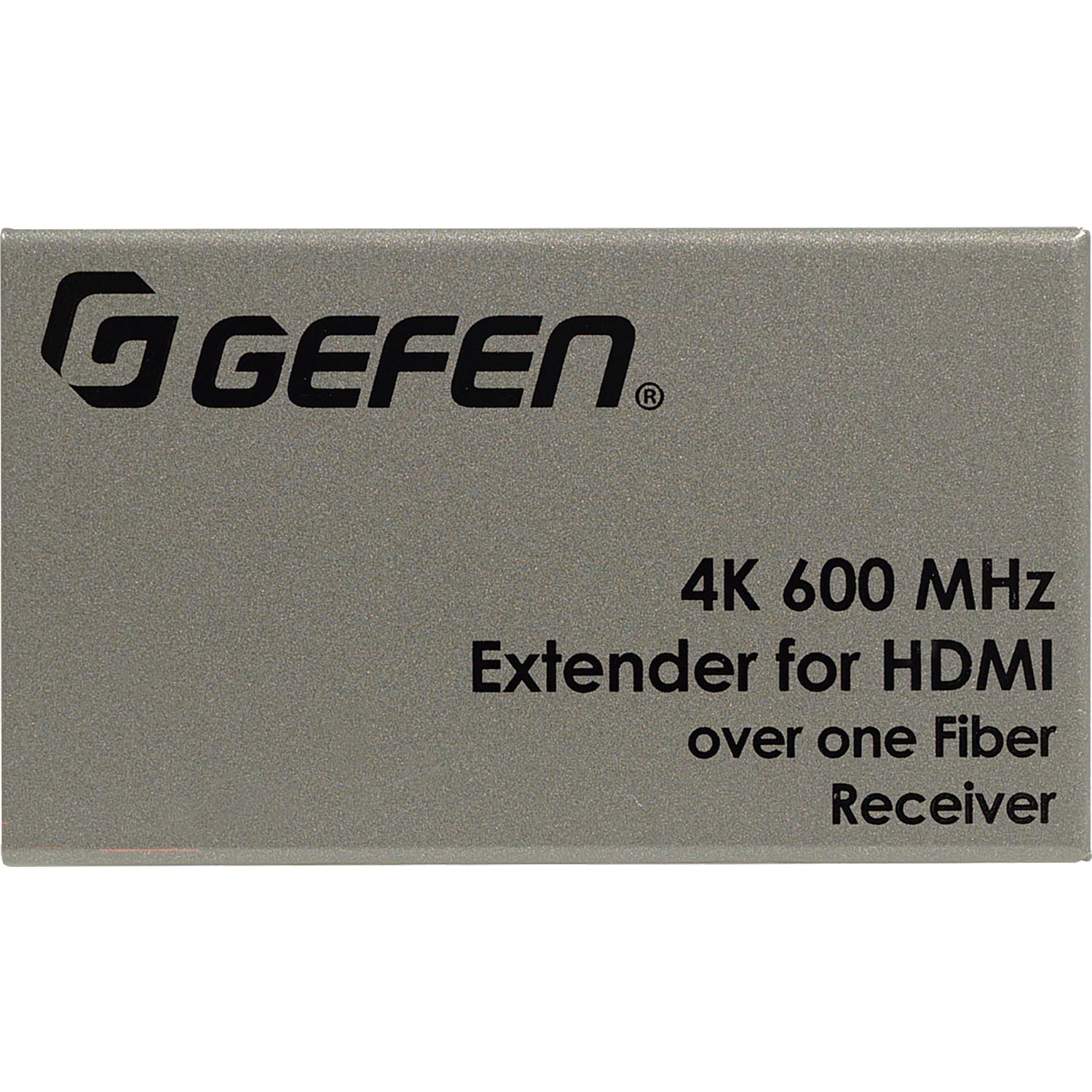

(1) EXT-UHD600-1SC-RX (Receiver unit)
(2) HDMI-to-HDMI Male-to-Male cables, 3.3 feet
(2) USB Type-A-to-DC cables, 2.3 ft
(2) EXT-PS52AIP-1.3-6-AL 5V DC power supplies & 2 sets of regional AC plugs (US, UK, EU, & AU)
(1) Quick Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-UHD600-1SC Manual
Gefen EXT-UHD600-SC Data Sheet
Gefen EXT-UHD600-1SC Declaration of Conformity
