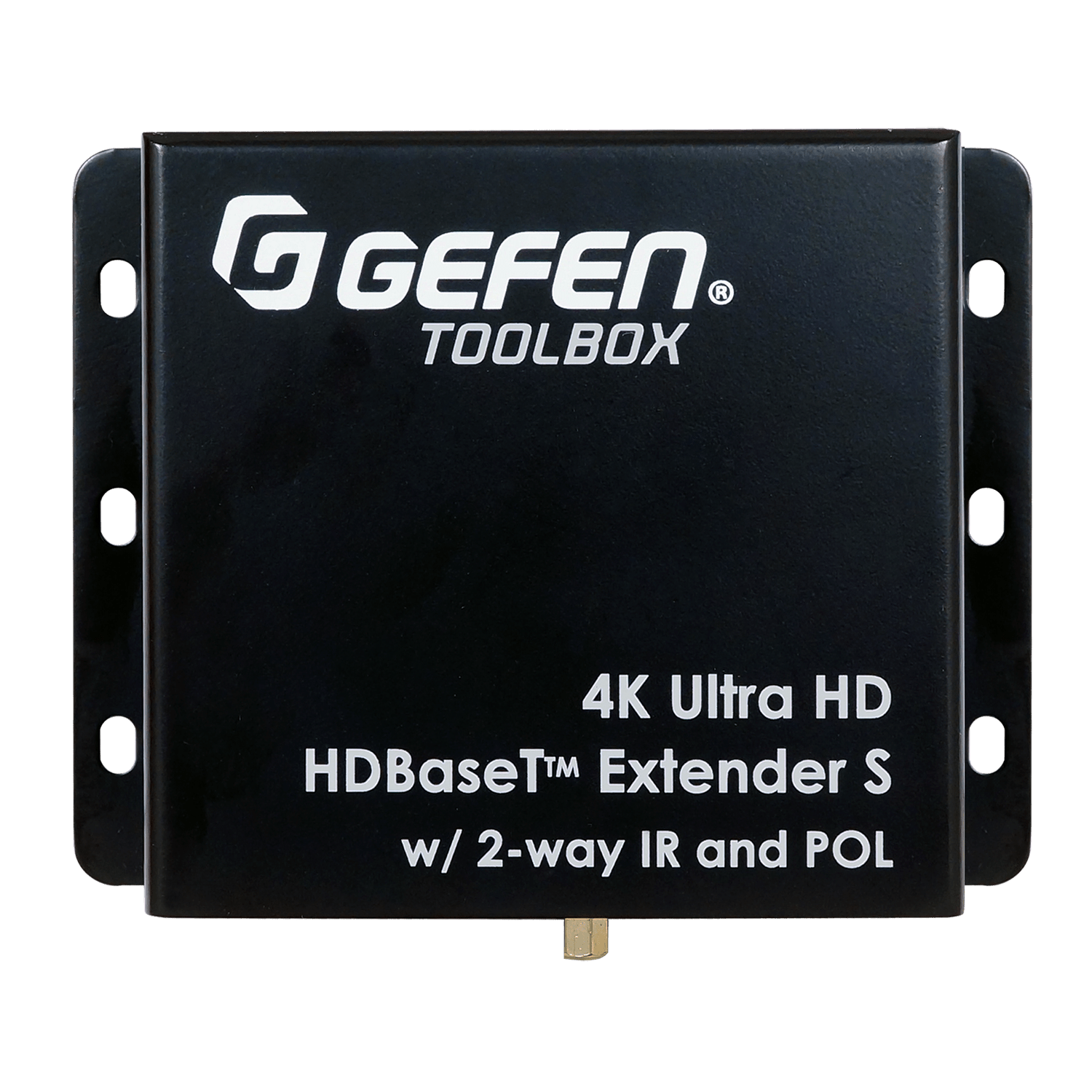

4K Ultra HD HDBaseT Extender with 2-way IR and POH (GTB-UHD-HBTL)

GTB-UHD-HBTL

The Gefen GTB-UHD-HBTL 4K Ultra HD HDBaseT™ Extender provides a robust and reliable solution for sending high-resolution HDMI and bi-directional IR over long distances using a single CAT-5e cable. This professional-grade system extends 4K Ultra HD (3840×2160 @ 60Hz, 4:2:0) signals up to 130 feet (40 meters) and 1080p Full HD video up to 230 feet (70 meters). With support for HDCP 2.2, advanced EDID management, and Gefen's proprietary Power Over Line (POL) technology, only a single power supply is needed to power both the Sender and Receiver units, simplifying installation significantly. Ideal for any installation requiring seamless long-distance transmission and control, this extender kit ensures pristine signal integrity for both video and IR commands.

⚠️Set comes with both Sender and Receiver
$566.69
4K Ultra HD HDBaseT Extender with 2 - way IR and POH (GTB - UHD - HBTL) - GTB - UHD - HBTL - Gefen
4K Ultra HD HDBaseT Extender with 2 - way IR and POH (GTB - UHD - HBTL) - GTB - UHD - HBTL - Gefen
4K Ultra HD HDBaseT Extender with 2 - way IR and POH (GTB - UHD - HBTL) - GTB - UHD - HBTL - Gefen
4K Ultra HD HDBaseT Extender with 2 - way IR and POH (GTB - UHD - HBTL) - GTB - UHD - HBTL - Gefen
4K Ultra HD HDBaseT Extender with 2 - way IR and POH (GTB - UHD - HBTL) - GTB - UHD - HBTL - Gefen
4K Ultra HD HDBaseT Extender with 2 - way IR and POH (GTB - UHD - HBTL) - GTB - UHD - HBTL - Gefen
4K Ultra HD HDBaseT Extender with 2 - way IR and POH (GTB - UHD - HBTL) - GTB - UHD - HBTL - Gefen
4K Ultra HD HDBaseT Extender with 2 - way IR and POH (GTB - UHD - HBTL) - GTB - UHD - HBTL - Gefen
4K Ultra HD HDBaseT Extender with 2 - way IR and POH (GTB - UHD - HBTL) - GTB - UHD - HBTL - Gefen
4K Ultra HD HDBaseT Extender with 2 - way IR and POH (GTB - UHD - HBTL) - GTB - UHD - HBTL - Gefen

Key Features

4K Ultra HD Extension: Extends 4K Ultra HD (3840×2160 @ 60Hz, 4:2:0 or @ 30Hz, 4:4:4) video signals up to 130 feet (40 meters) over a single CAT-5e cable.



1080p Full HD Extension: Extends HDMI at 1080p Full HD with up to 12-bit Deep Color up to 230 feet (70 meters) over a single CAT-5e cable.



Power Over Line (POL): Gefen's bi-directional POL feature provides power to either the Sender or Receiver unit over the link cable, requiring only one power supply for the entire system.



Bi-Directional IR: Extends IR control signals from the Sender to the Receiver and from the Receiver back to the Sender, allowing two-way control of source and display devices.



Comprehensive HDMI Support: Compliant with HDMI 2.0 , supports HDCP 2.2 and 1.4 , and passes through 12-bit Deep Color , LPCM 7.1 audio, Dolby® TrueHD, DTS-HD Master Audio™, 3DTV , CEC , and Lip Sync.



Advanced EDID Management: Provides settings for managing the EDID information passed to the source device, ensuring optimal compatibility.



Professional Installation Features: Equipped with a locking power connector for a secure connection and a surface-mountable enclosure for versatile installation.

How It Works

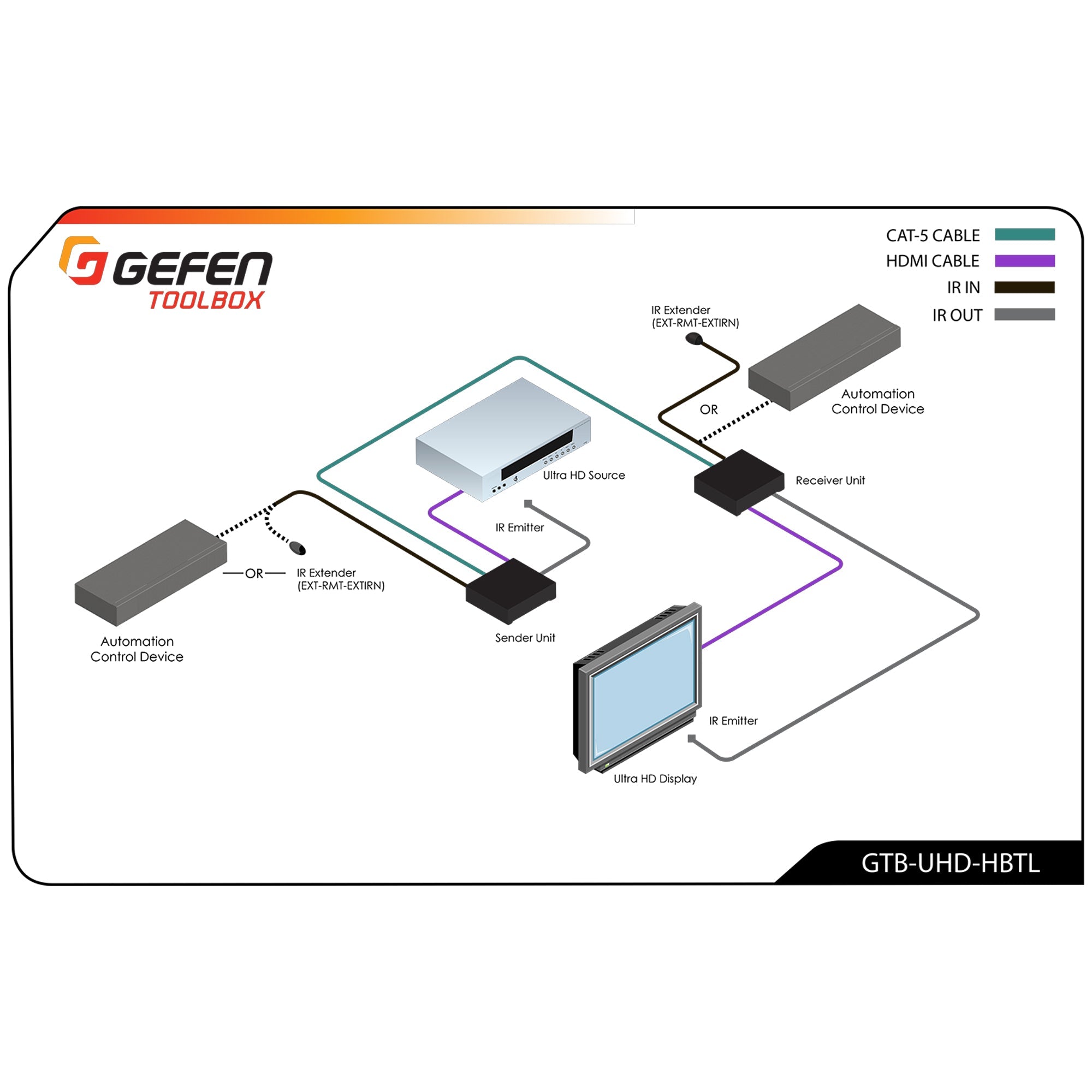

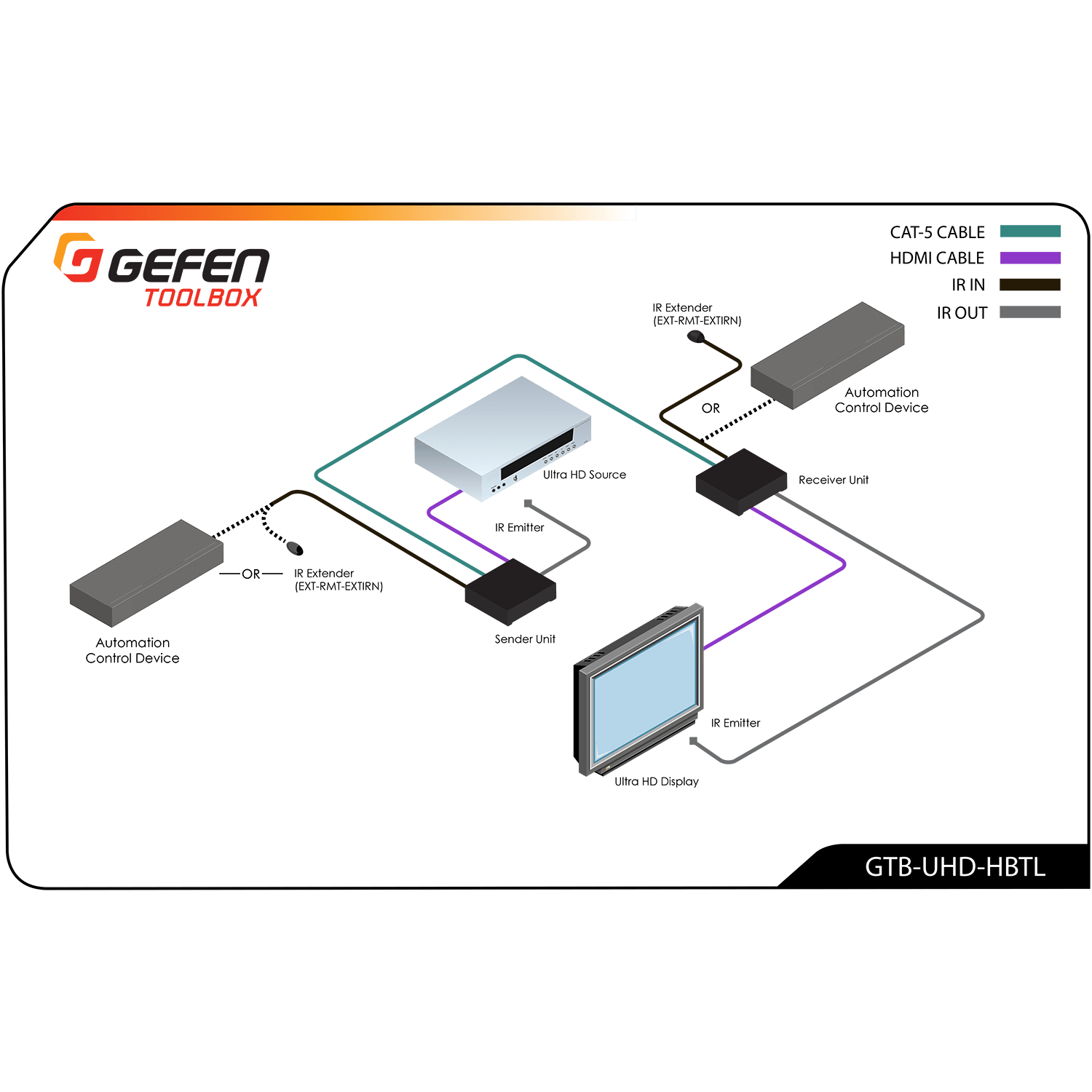

The Gefen GTB-UHD-HBTL extender system uses a Sender and Receiver set to transmit high-definition signals over a single cable. First, connect your HDMI source to the Sender unit's HDMI In port. Next, connect your Ultra HD display to the Receiver unit's HDMI Out port. The Sender and Receiver units are then connected to each other via one CAT-5e or better cable, which carries the 4K video and bi-directional IR control signals. Thanks to Gefen’s Power Over Line (POL) technology, only one 24V DC power supply is needed; connect it to either the Sender or the Receiver, and the other unit will be powered over the link cable. This allows you to remotely control your source from the display's location or control the display from the source's location seamlessly.

Additional Information

Specifications

Supported Formats

  • Video: 4096×2160, 3840×2160, 1920×1200 (WUXGA), 1080p Full HD
  • Audio: Linear PCM (7.1 channels), Dolby Atmos® and Dolby® TrueHD, DTS:X™ and DTS-HD Master Audio™

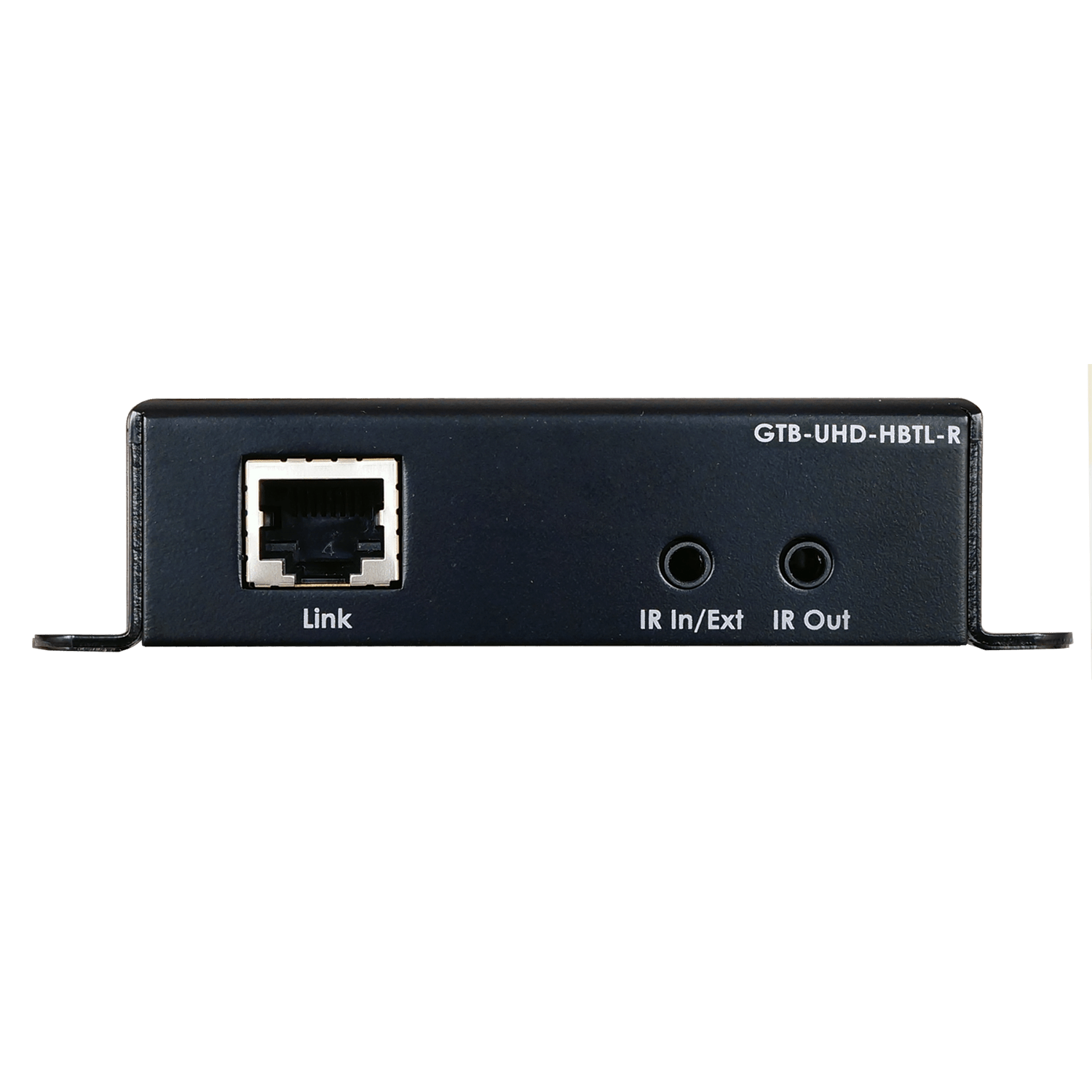

Connectors & Indicators

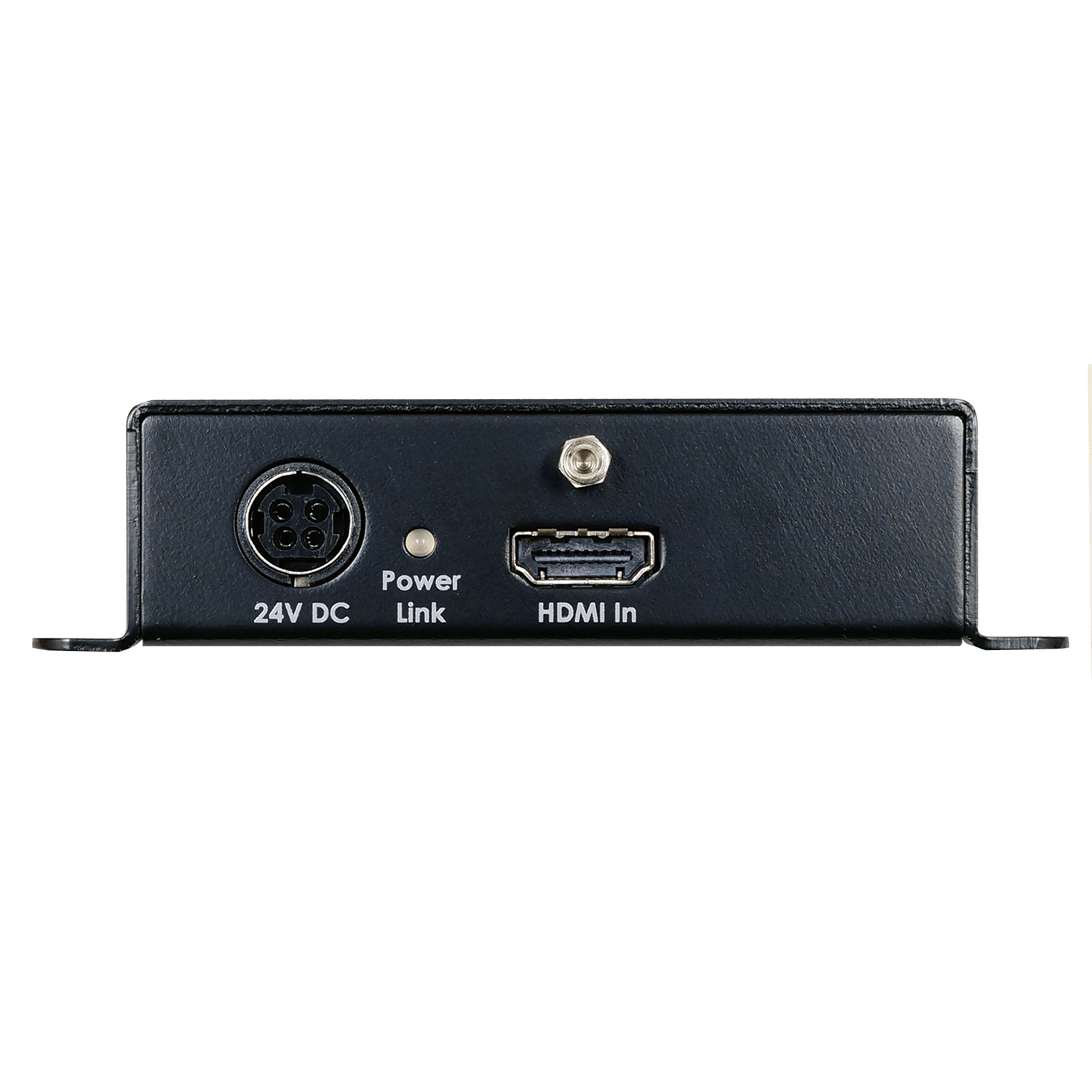

  • HDMI In (Sender): 1 x HDMI Type A, 19-pin, female

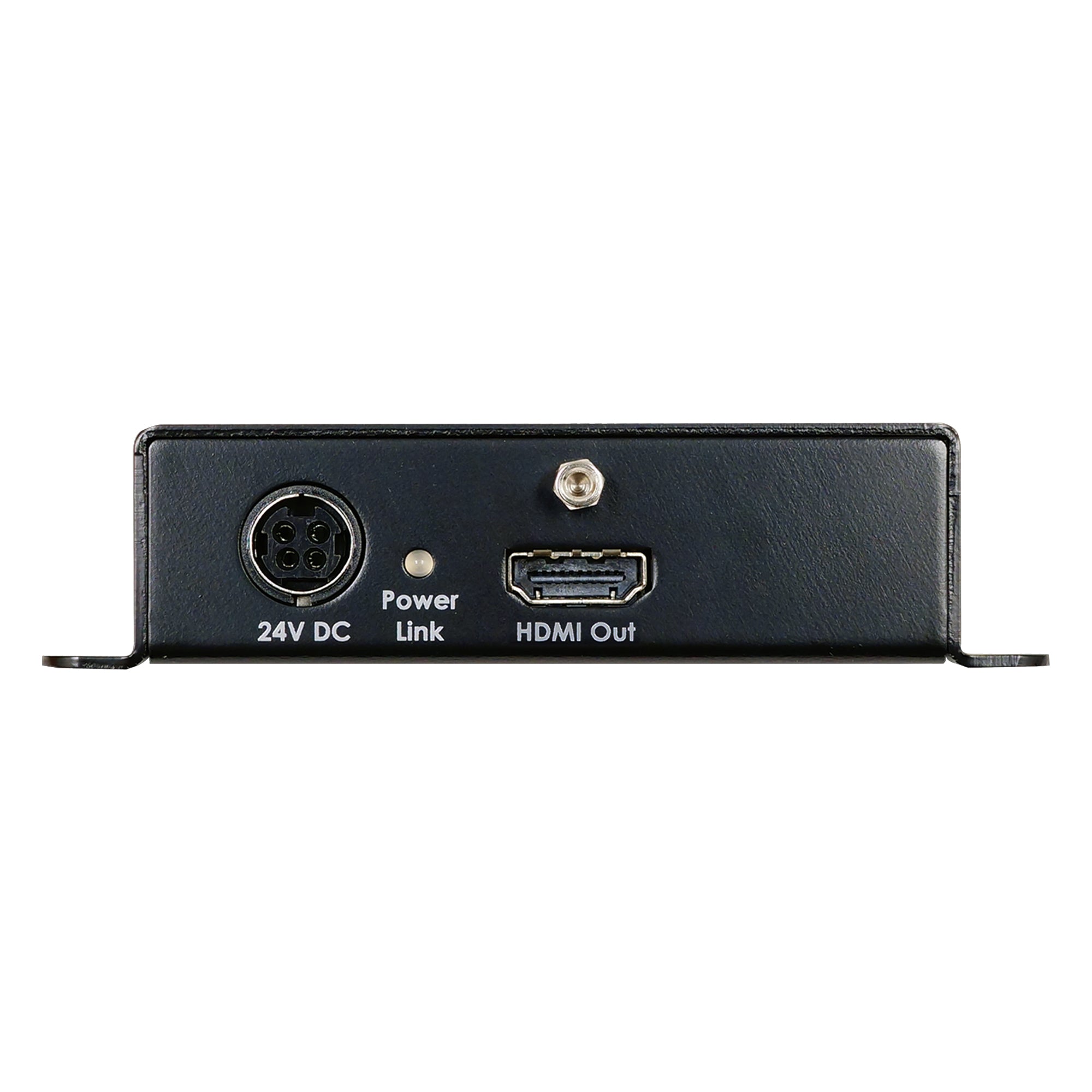

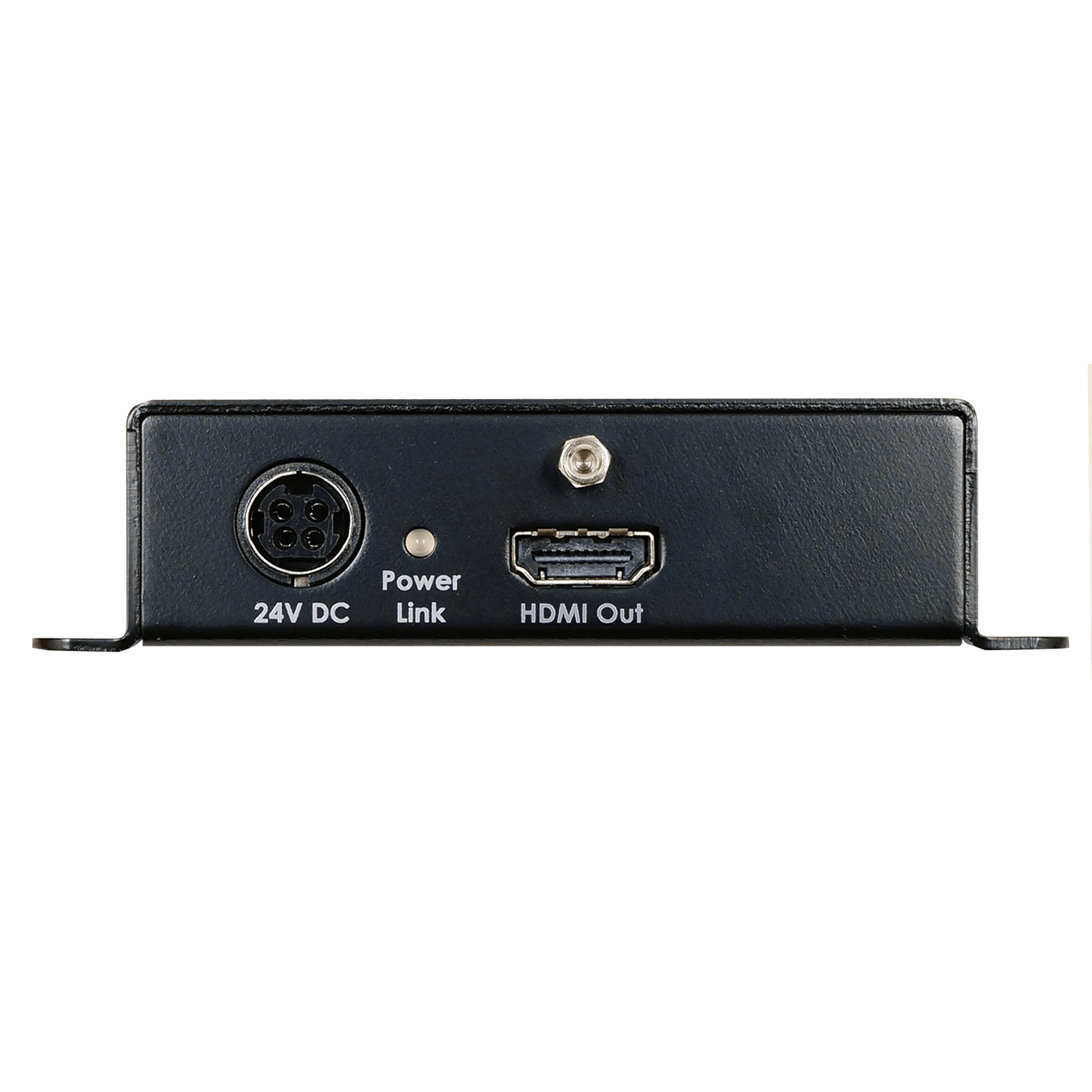

  • HDMI Out (Receiver): 1 x HDMI Type A, 19-pin, female

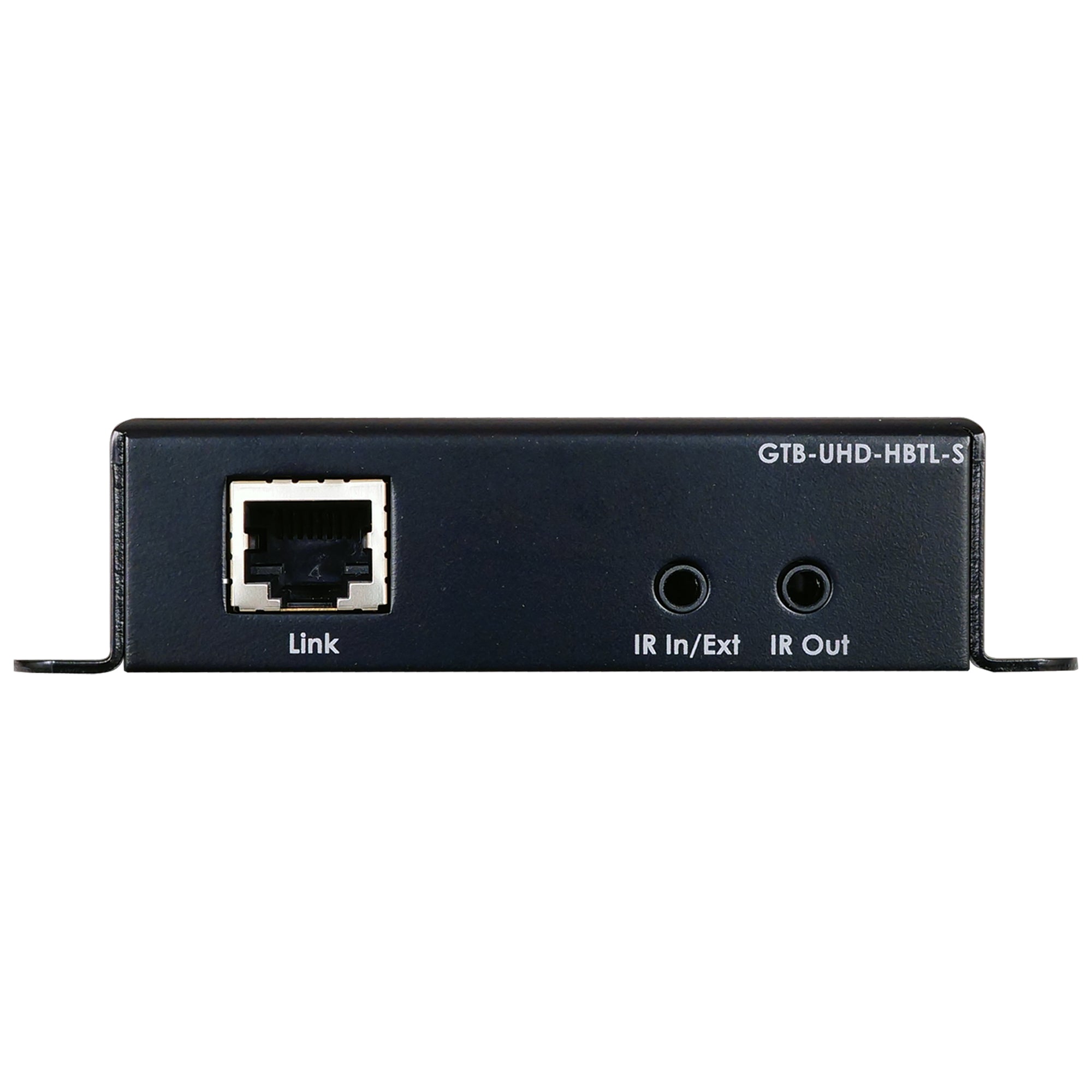

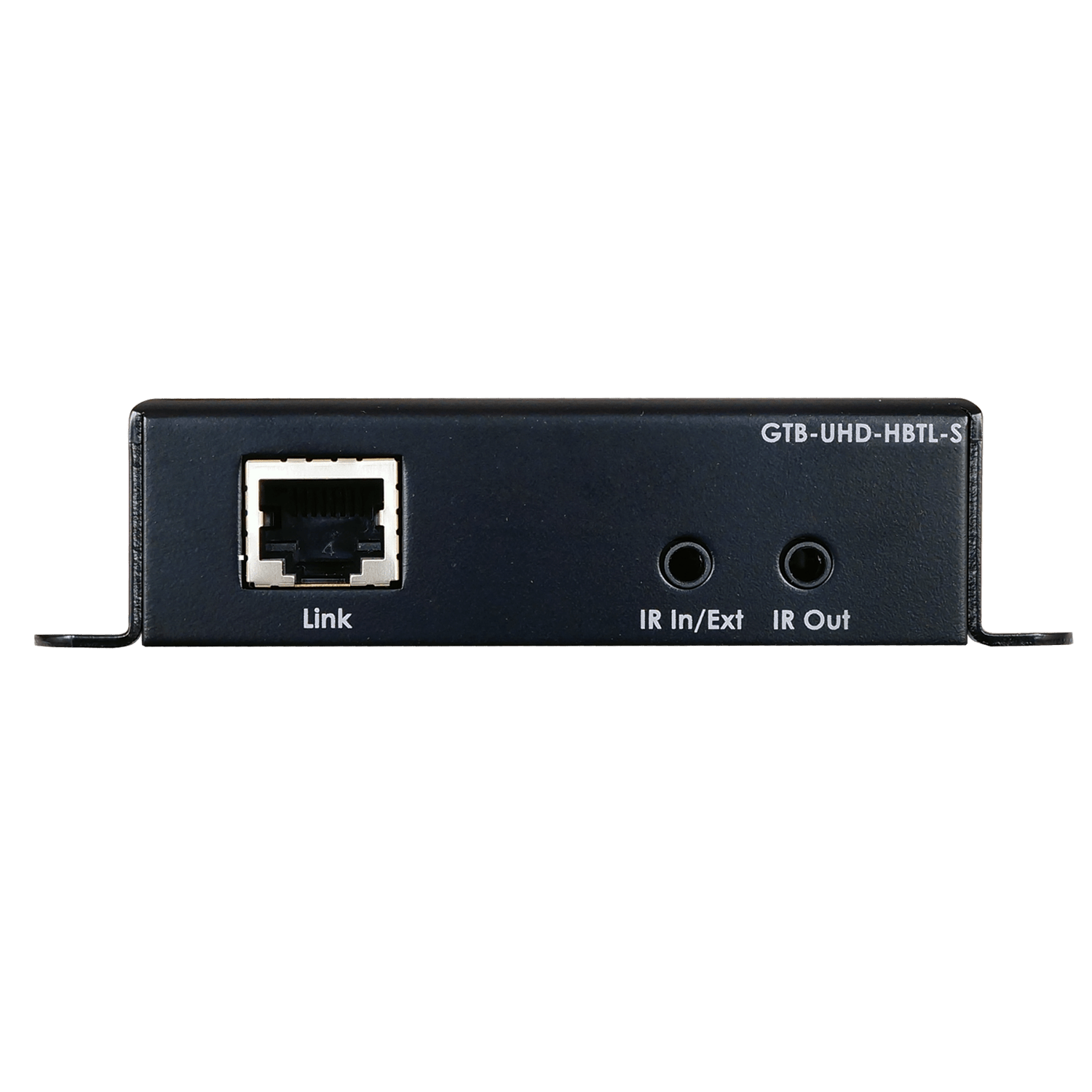

  • Link (Sender / Receiver): 1 x RJ-45, shielded, female
  • IR In/Ext (Sender / Receiver): 1 x 3.5mm, female
  • IR Out (Sender / Receiver): 1 x 3.5mm, female
  • Power (Sender / Receiver): 1 x 4-pin, locking, female
  • Power Link (Sender / Receiver): 1 x LED, bi-color, blue / green

Operational

  • Maximum Pixel Clock: 300 MHz
  • Power Input: 24V DC
  • Power Consumption: 12 Watts (max.)
  • Operating Temperature: +32 to +113 °F (0 to +45 °C)
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Operating Humidity (RH): 5% to 90%, non-condensing
  • Storage Humidity (RH): 0% to 90%, non-condensing
  • MTBF: 50,000 Hours

Physical

  • Dimensions (W x H x D) (Sender / Receiver): 4.3" x 1" x 3.2" (110mm x 26mm x 85mm)
  • Unit Weight (ea.): 0.4 lb (0.2 kg)

UPC: 888814999532

System Requirements

Cabling: A single, continuous run of solid core CAT-5e or better cable is recommended. While shielded (STP) cable is recommended, unshielded (UTP) is acceptable. Patch cables are not recommended.



Source Device: An Ultra Hi-Def source with an HDMI output is required. The source must not be capable of HDR or 4K 600 MHz (60 Hz 4:4:4). If using 4K resolutions with a display that accepts Deep Color, the source must be manually configured to output 8-bit color.



Display Device: An Ultra-HD display with an HDMI input is required.



Power: An available electrical outlet is needed for the 24V DC power supply.

What's in the Box

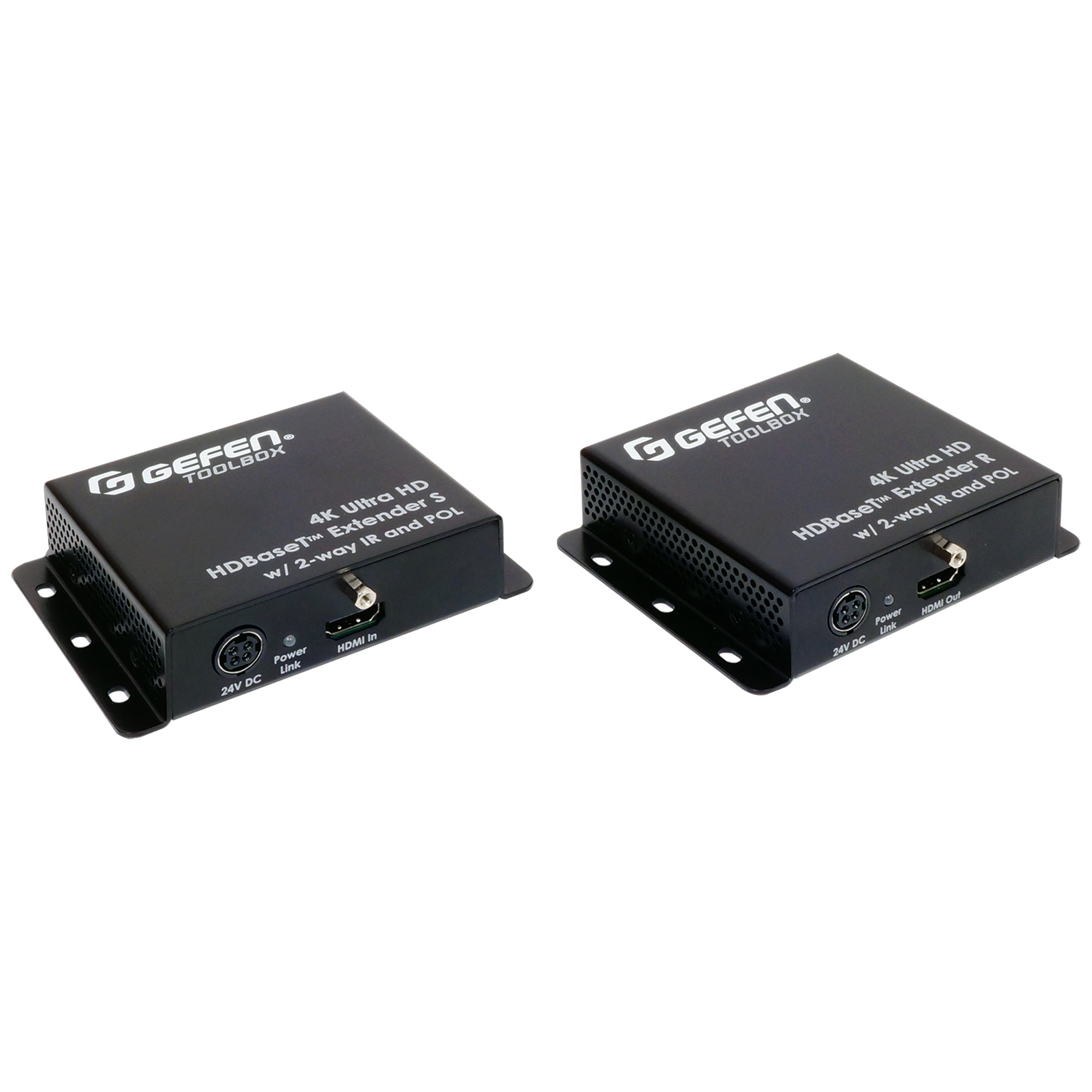

  • 1 x 4K Ultra HD HDBaseT™ Extender w/ 2-way IR and POL - Sender unit (GTB-UHD-HBTL-S)

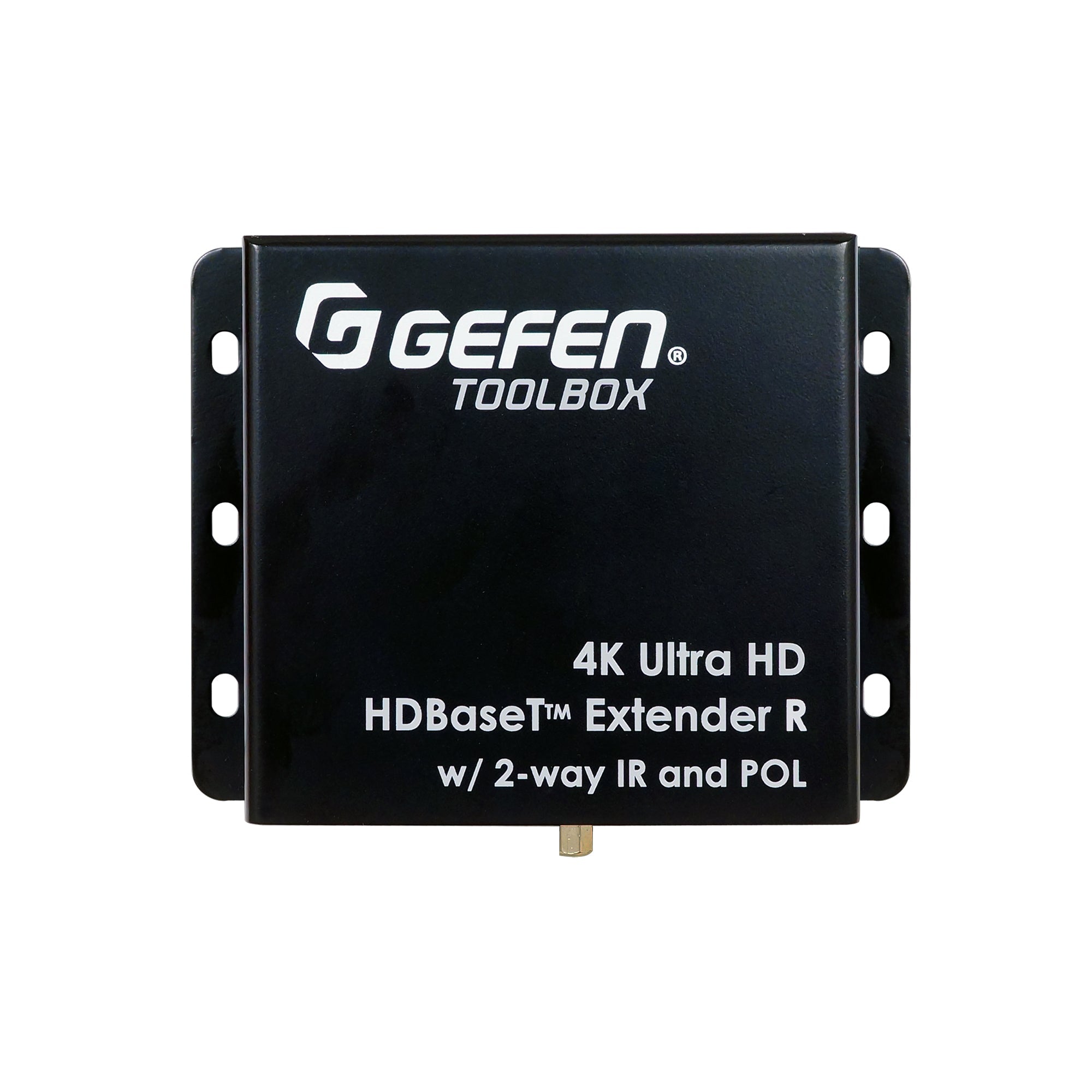

  • 1 x 4K Ultra HD HDBaseT™ Extender w/ 2-way IR and POL - Receiver unit (GTB-UHD-HBTL-R)
  • 1 x 6 ft. locking HDMI cable, M-M (CAB-HD-LCK-06MM)
  • 1 x IR extender (EXT-RMT-EXTIRN)
  • 1 x IR emitter (EXT-IREMIT)
  • 1 x 24V DC locking power supply (EXT-PS24U1AIP-6)
  • 1 x Quick-Start Guide (QSG-GTB-UHD-HBT)

Warranty

3 Year Product Warranty

Please see the Gefen Warranty Page for more details.
