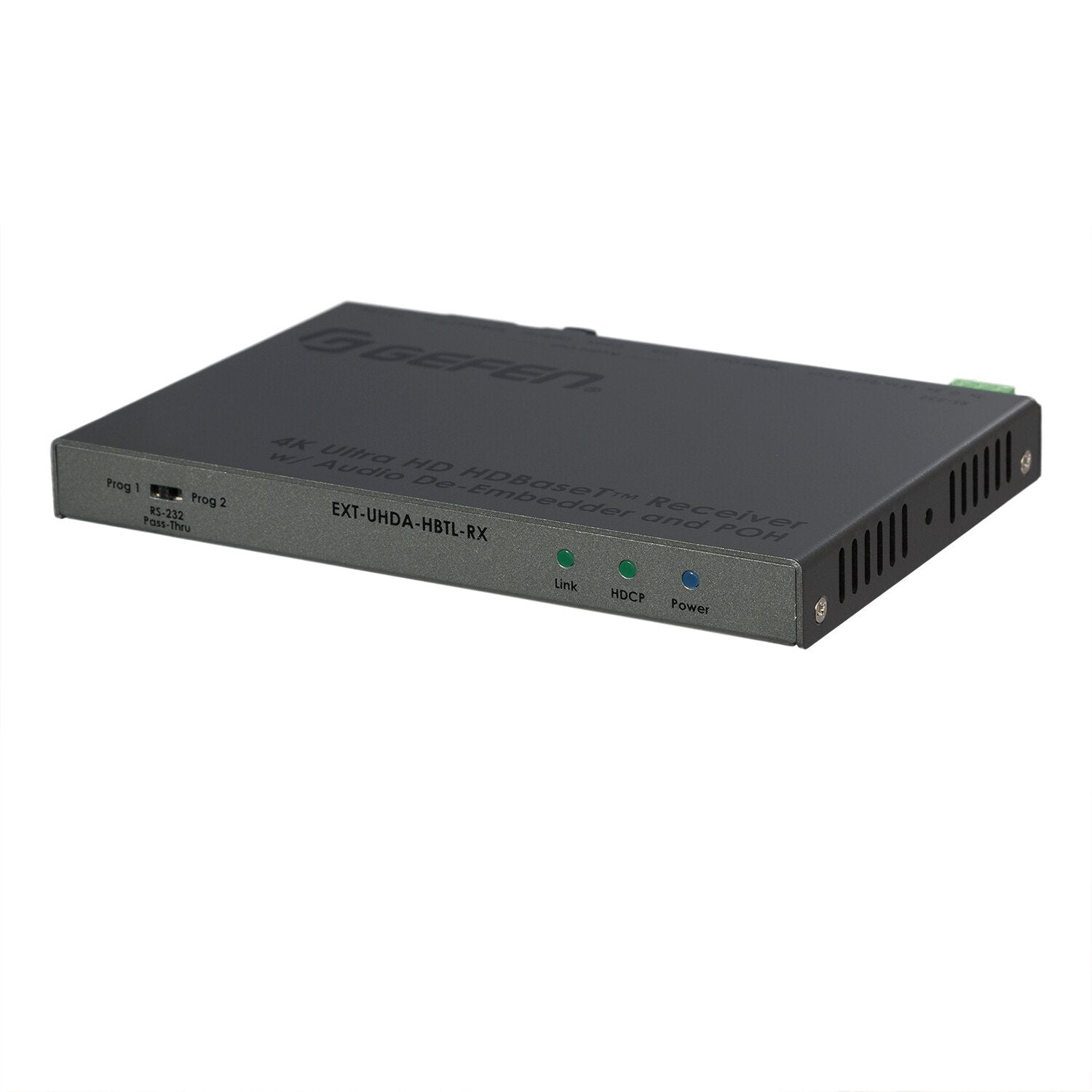

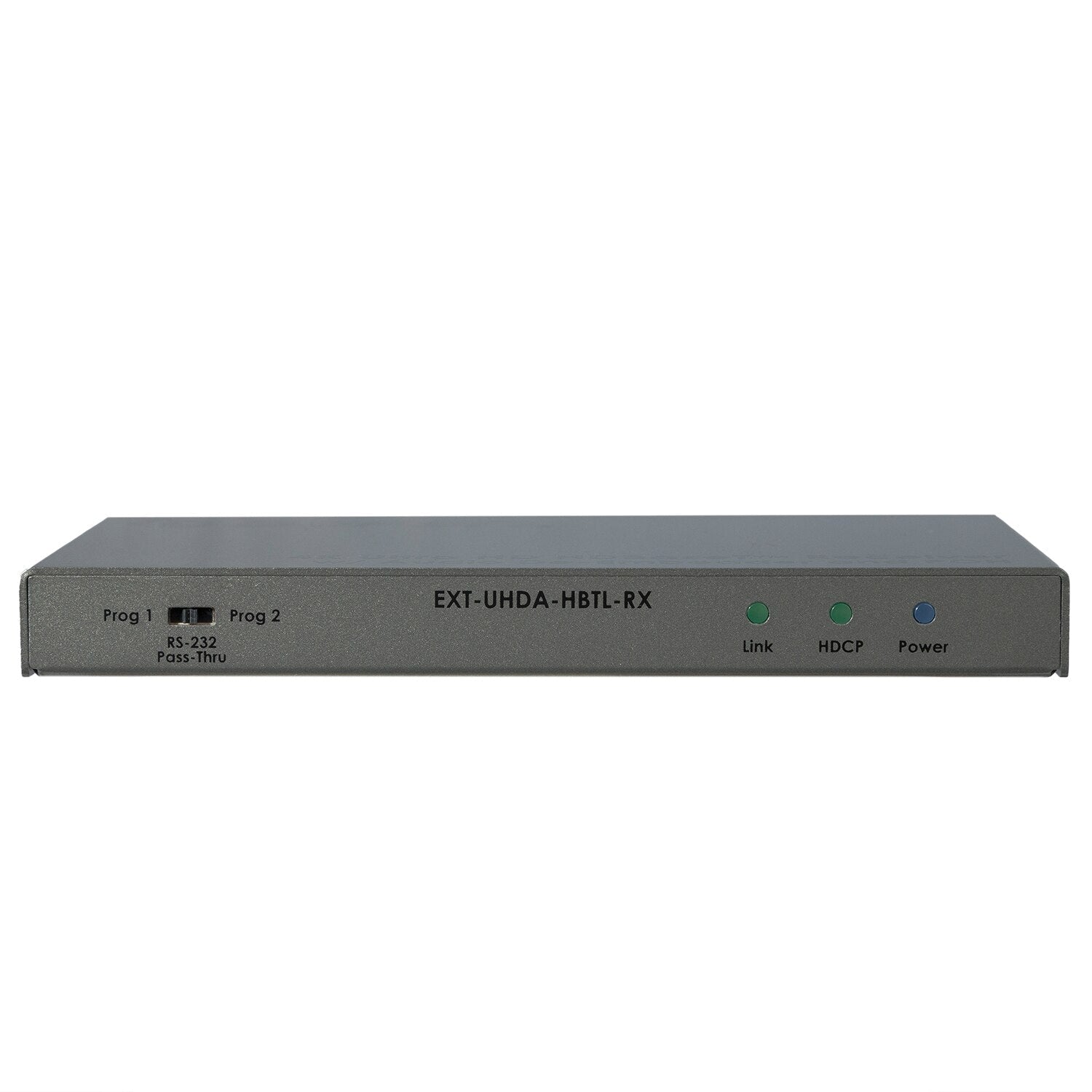

4K Ultra HD HDBaseT Receiver with Audio De-Embedder and POH (EXT-UHDA-HBTL-RX)

Name: 4K Ultra HD HDBaseT Receiver with Audio De-Embedder and POH (EXT-UHDA-HBTL-RX)
Brand: Gefen
SKU: EXT-UHDA-HBTL-RX
Price: 388.5 USD
Availability: InStock

EXT-UHDA-HBTL-RX

Gefen EXT-UHDA-HBTL-RX is a high-performance HDBaseT™ Receiver that extends HDMI signals over a single CAT-5e cable, supporting distances up to 70 meters (230 feet) for 1080p and 40 meters (130 feet) for 4K resolutions. Designed for professional AV systems, this receiver enhances presentations by de-embedding audio from the video stream, providing separate analog L/R, TOSLINK® optical digital, and coaxial digital audio outputs for use with an external audio system. In conjunction with a compatible sender, it also extends bi-directional RS-232 and IR, allowing for comprehensive control of source devices from the display location or vice-versa. Installation is significantly simplified by Bi-Directional Power over HDBaseT™ (POH), which allows either the sender or the receiver to be powered remotely over the link cable, eliminating the need for a power supply at both ends.

⚠️Sender is required. Part number: EXT-UHDV-HBTLS-TX (Recommended), EXT-UHDV-WP-HBTLS-TX, EXT-4K300A-MF-41-HBTLS

$388.50

4K Ultra HD HDBaseT Receiver with Audio De - Embedder and POH (EXT - UHDA - HBTL - RX) - EXT - UHDA - HBTL - RX - Gefen

Key Features

Long-Distance HDBaseT™ Extension: Extends HDMI, 2-way IR, and RS-232 over a single CAT-5e cable. It supports 4K Ultra HD (3840 x 2160) up to 130 feet (40 meters) and 1080p Full HD up to 230 feet (70 meters).

Versatile Audio Breakout: De-embeds audio from the HDMI signal to provide separate analog L/R, TOSLINK® optical digital, and coaxial digital audio outputs, allowing for integration with a separate audio system.

Simplified Powering with POH: Features Bi-Directional Power over HDBaseT™ (POH) technology, which allows the receiver to power a compatible sender unit or be powered by it over the same CAT-5 cable, requiring only one power supply for the pair.

Comprehensive HDMI 2.0 Support: Accommodates a 10.2 Gbps data throughput and is compliant with HDMI 2.0 , supporting HDCP 2.2 and 1.4 , 12-bit Deep Color (at 1080p) , and 3DTV pass-through.

High-End Audio Pass-Through: Passes through highest performance multichannel digital audio, including 7.1 channels of LPCM and HBR (High Bit Rate) formats such as Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™.

Bi-Directional Control Extension: When used with a compatible sender, it extends RS-232 and 2-way IR to facilitate control of A/V sources from the viewing location or to send commands to the display from the head end.

Professional and Secure Installation: The compact, ultra-low-profile enclosure is surface-mountable and can be conveniently hidden. It also features a locking power connector for a secure connection.

Field-Updateable Firmware: Allows for firmware updates via the RS-232 port using the Gefen Syner-G™ software.

How It Works

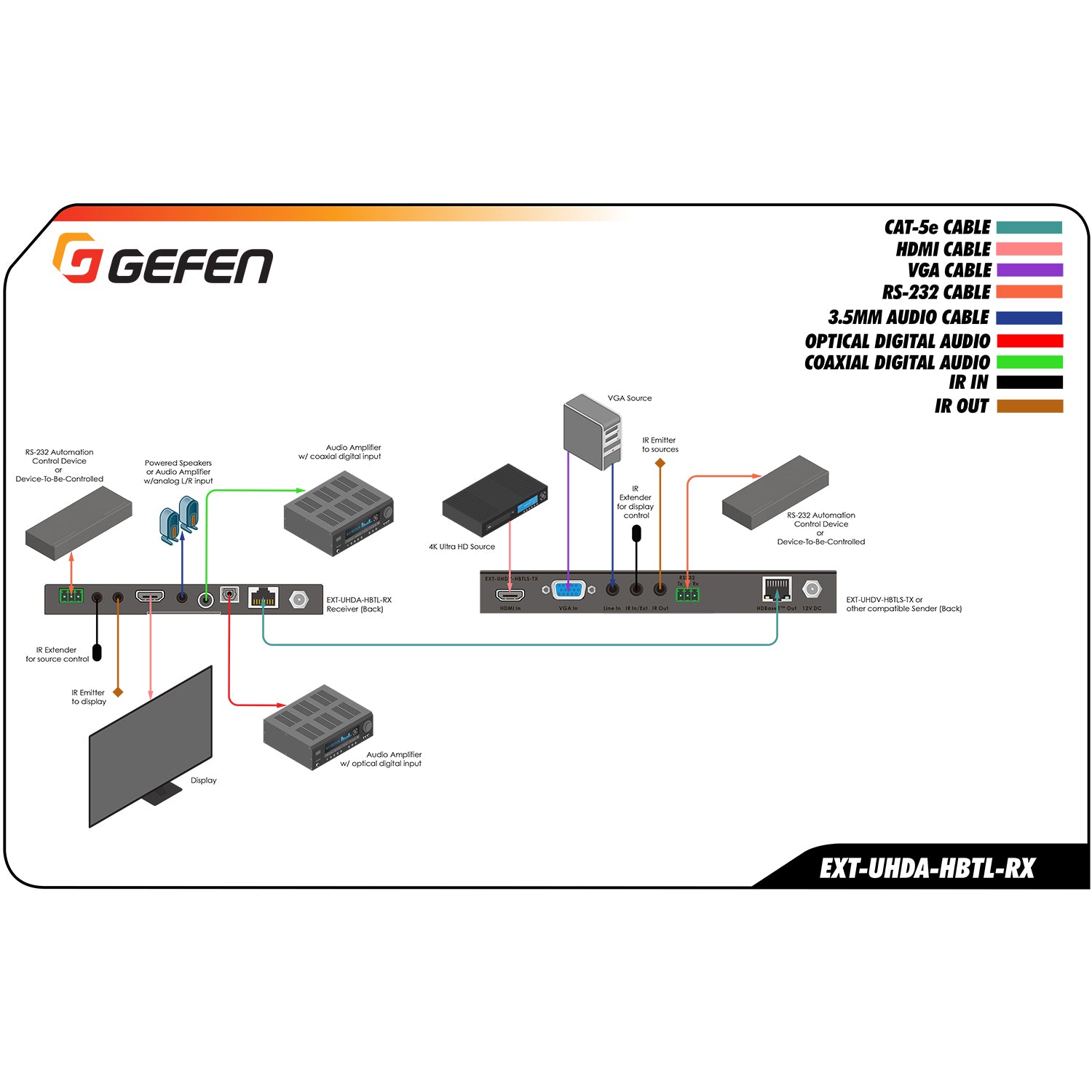

Gefen EXT-UHDA-HBTL-RX operates as the receiving endpoint in a point-to-point extension system, working in tandem with a compatible Gefen Sender unit (sold separately). The system is straightforward to set up: connect your HDMI source to the Sender unit, then link the Sender to the EXT-UHDA-HBTL-RX Receiver using a single CAT-5e cable. At the display location, connect the Receiver's HDMI output to a monitor or projector. The Receiver automatically de-embeds audio from the video stream, making it available on its analog L/R, TOSLINK® optical, and coaxial digital outputs for connection to a separate audio system. Installation is simplified by Bi-Directional Power over HDBaseT™ (POH), which allows a single 12V DC power supply to power both the Sender and Receiver over the link cable; only one unit needs to be connected to external power. This setup extends not only video and audio but also bi-directional IR and RS-232 for comprehensive control over your AV equipment.

Additional Information

Specifications

Maximum TMDS Clock: 300 MHz

Total Signal Bandwidth/Data Rate: 10.2 Gbps

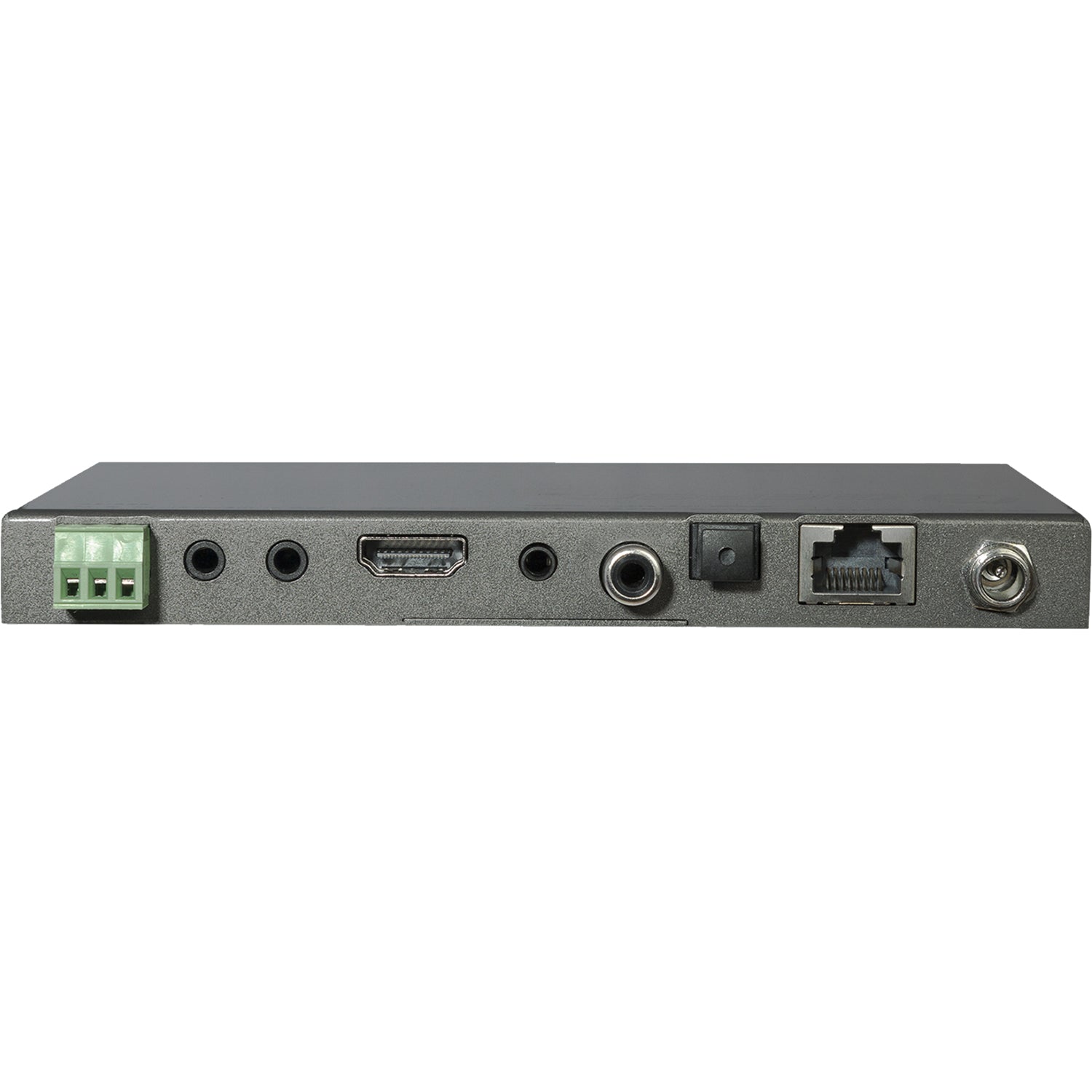

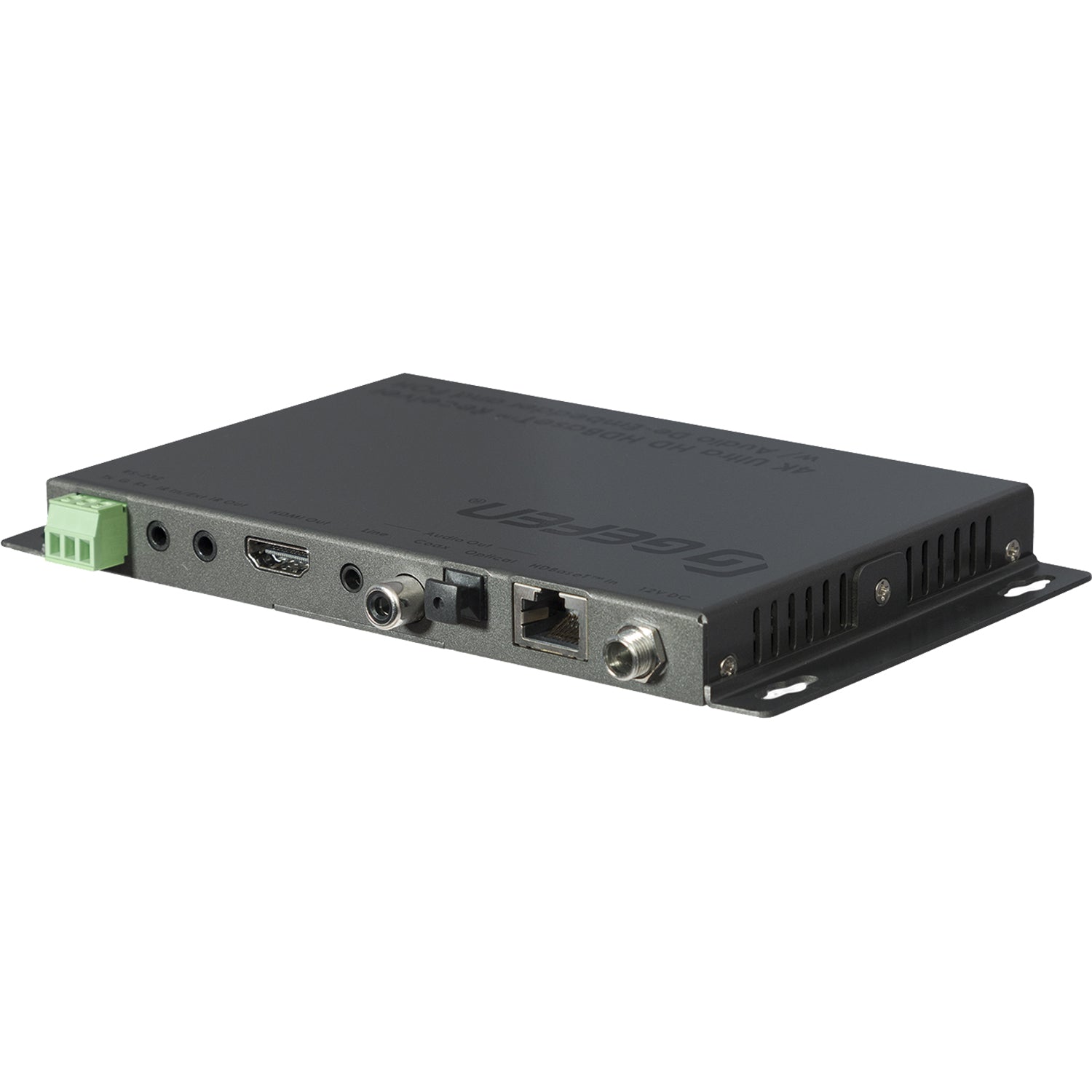

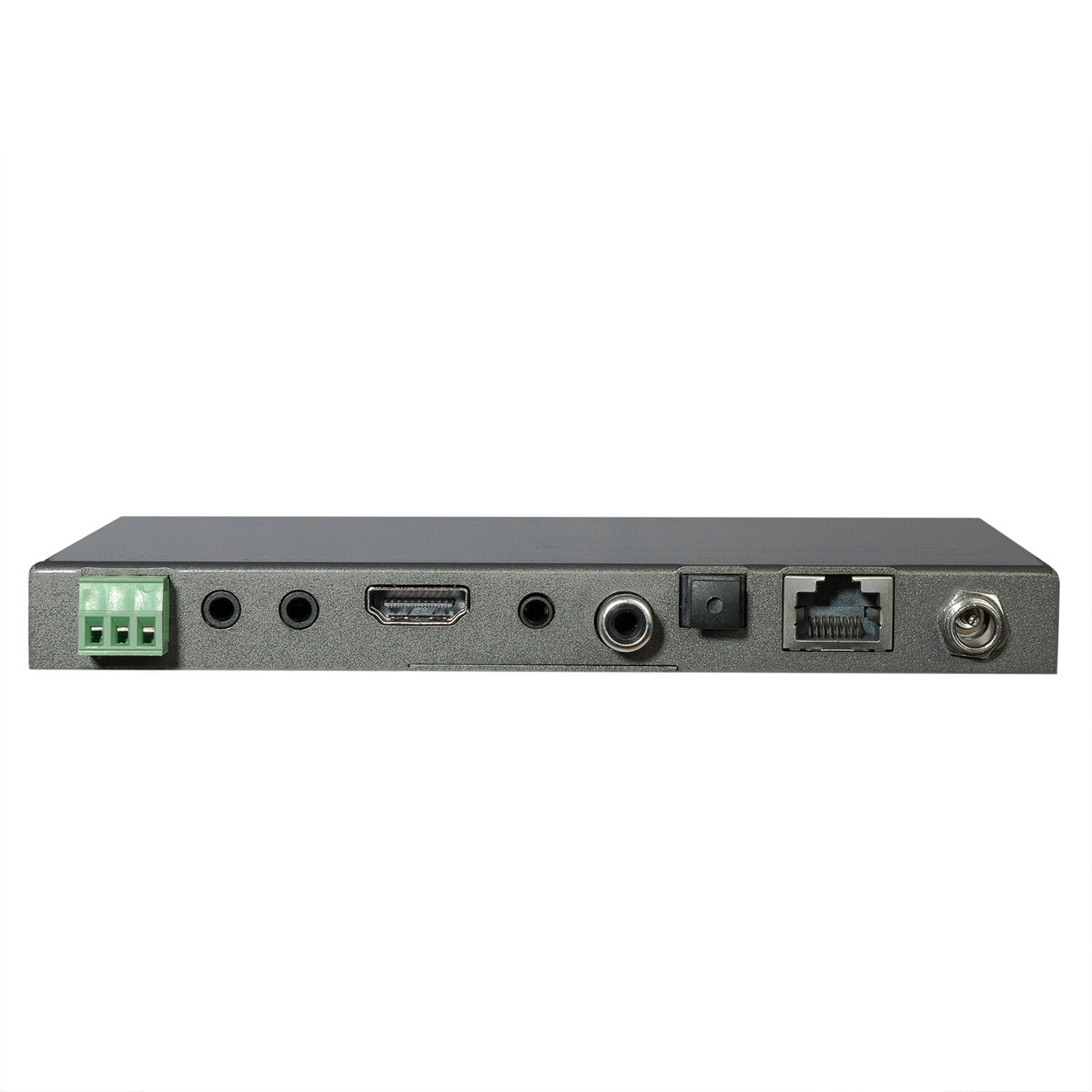

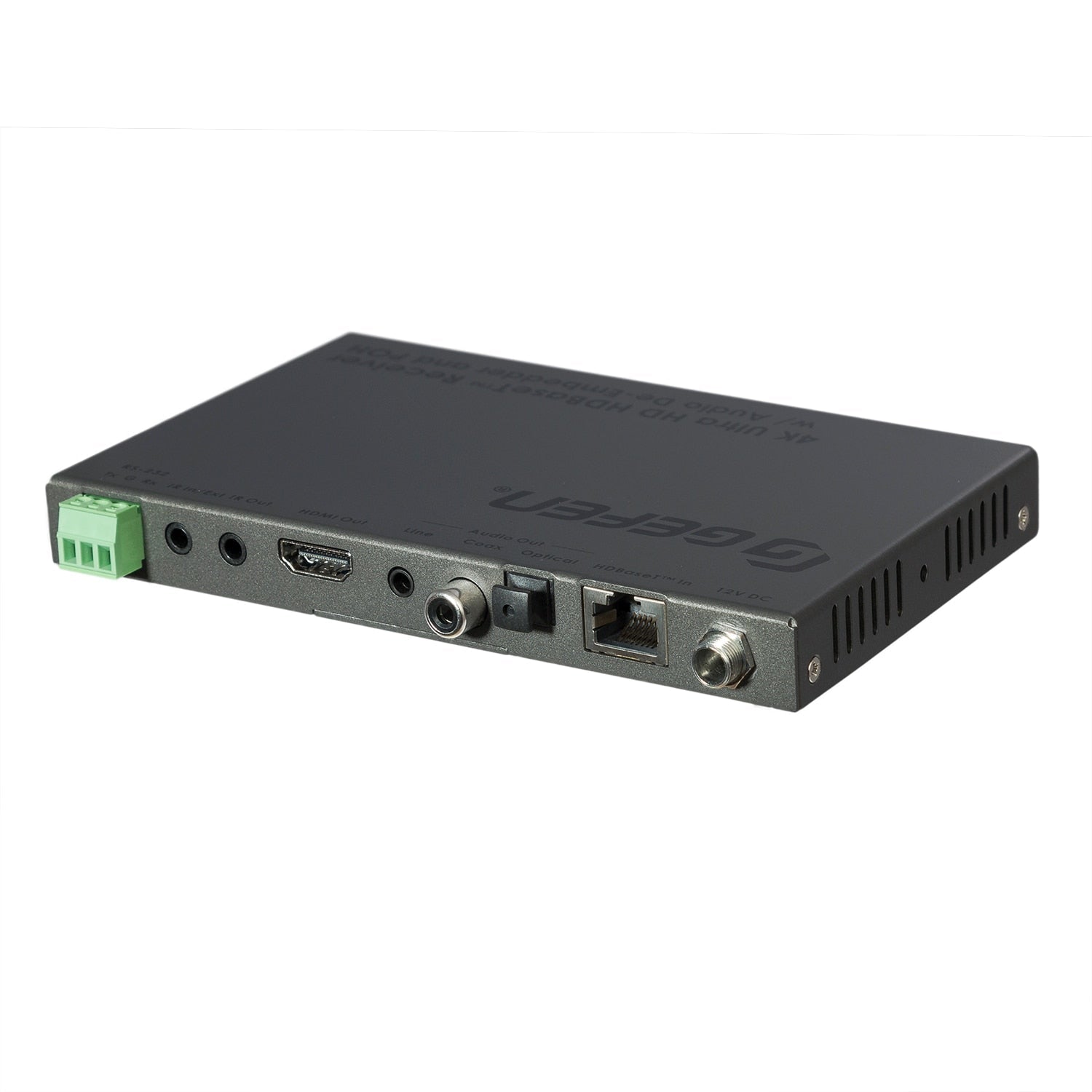

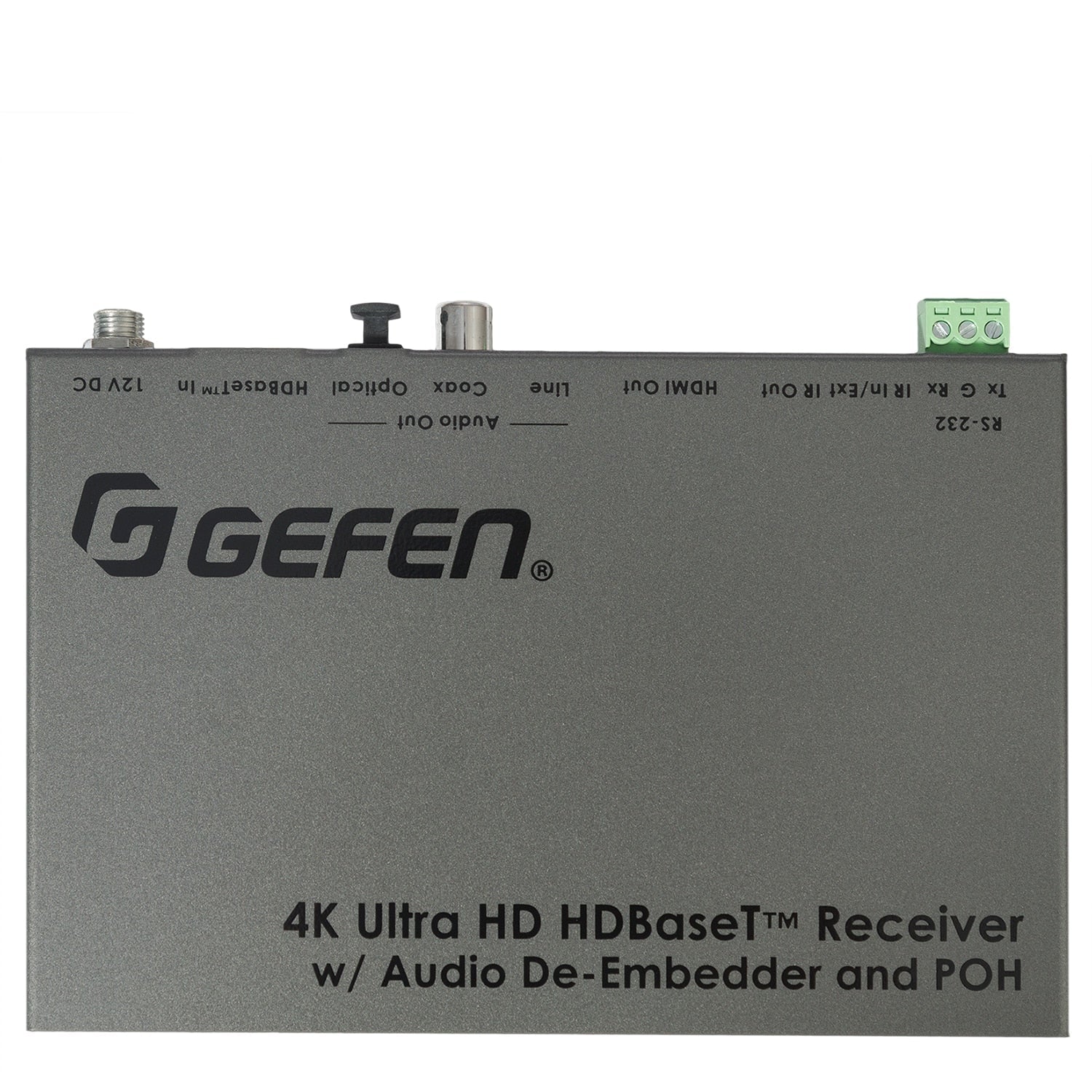

Connectors:

Video Output: (1) HDMI Type A 19-pin, female
Link: (1) RJ-45, shielded
L/R Analog Audio Output: (1) 3.5mm mini-stereo jack
Optical Digital Audio Output: (1) TOSLINK®
Coaxial Digital Audio Output: (1) RCA, female
RS-232: (1) 3-pin Phoenix
IR In/Ext: (1) 3.5mm mini-stereo jack
IR Out: (1) 3.5mm mini-mono jack

Power:

Power Supply: (1) 12V DC, locking
Power Consumption (Not powering a Sender): 9W maximum
Power Consumption (Powering a Sender): 22W maximum

Environmental:

Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing

Physical:

Overall Dimensions (W x H x D, not including brackets): 6" x 0.65" x 4" (152mm x 17mm x 100mm)
Overall Dimensions (W x H x D, including brackets): 7" x 0.65" x 4" (178mm x 17mm x 100mm)
Net Weight: 0.6 lbs. (0.27 kg)

Other:

MTBF: 50000 hours
UPC: 888814999907

System Requirements

Cabling: A single CAT-5e or better cable is required for the HDBaseT™ link. Shielded (STP) cable is recommended, though high-quality Unshielded (UTP) cable may be acceptable. Care should be taken to keep the cable away from power lines and other sources of electromagnetic interference.

Sender Unit: The EXT-UHDA-HBTL-RX is a receiver and requires a compatible Gefen Sender unit to function.

What's in the Box

(1) 4K Ultra HD HDBaseT™ Receiver w/ POH (EXT-UHDA-HBTL-RX)

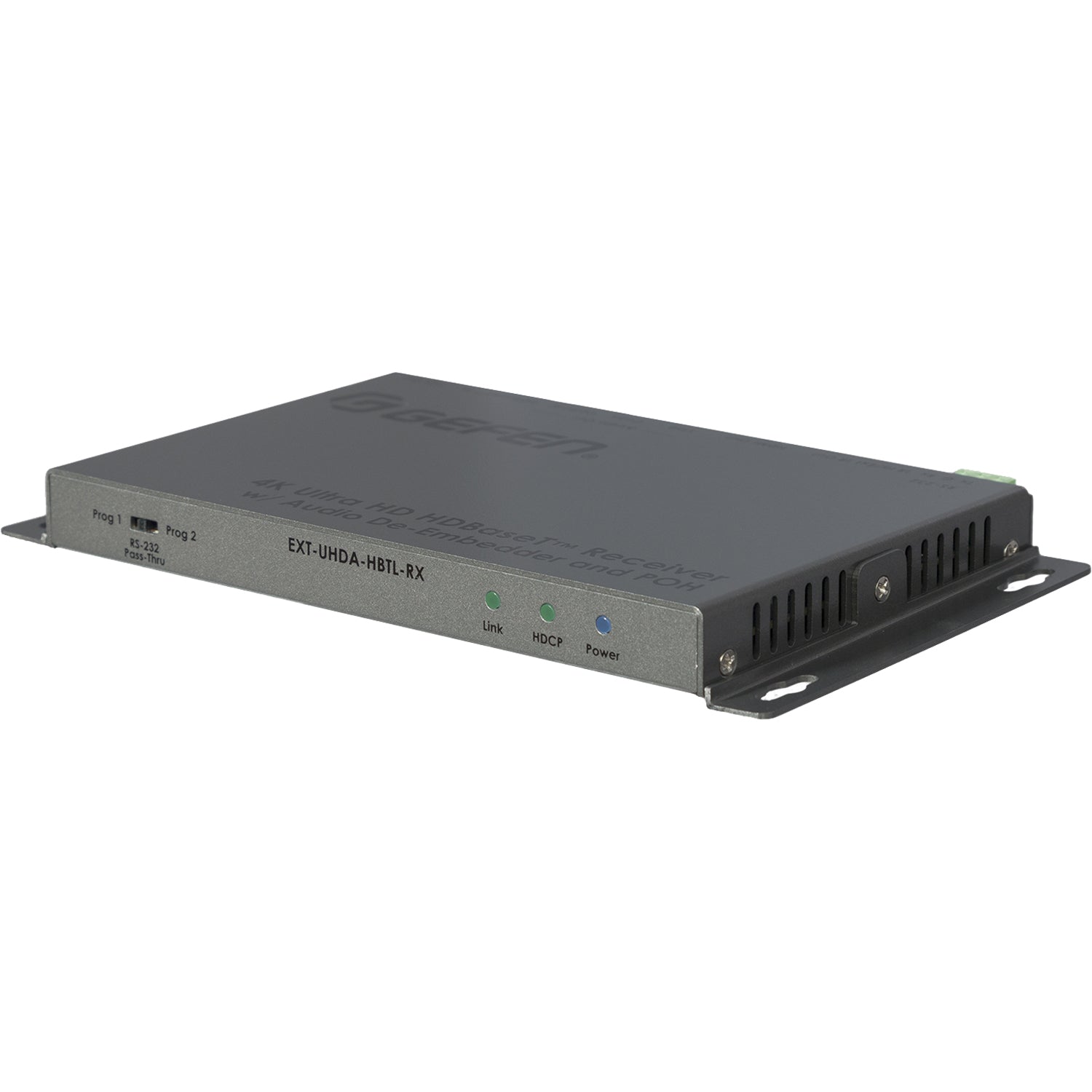

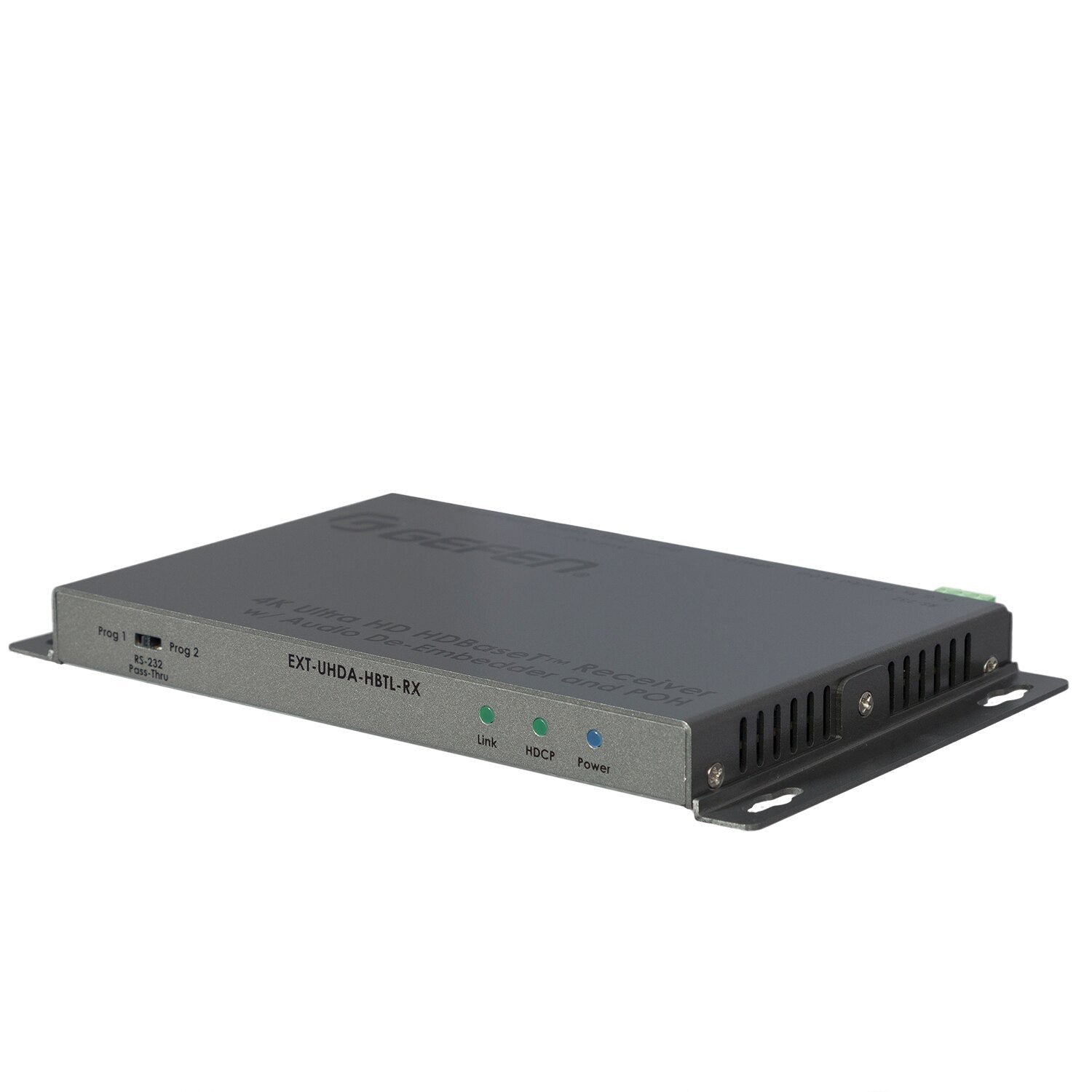

(2) Mounting Brackets for EXT-UHDA-HBTL-RX
(4) 4mm Slotted Flat Head Countersunk Screws
(4) Wall Anchors
(1) 3-pin Phoenix Plug (pre-installed on unit)
(1) 12V DC Power Supply with international power blades
(1) IR Emitter
(1) IR Extender
(1) Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-UHDV-WP-HBTLS-TX and EXT-UHDA-HBTL-RX Manual
Gefen EXT-4K300A-MF-41-HBTLS and EXT-UHDA-HBTL-RX Manual
Gefen EXT-UHDV-HBTLS-TX and EXT-UHDA-HBTL-RX Manual
Gefen EXT-UHDA-HBTL-RX Datasheet
