4K Ultra HD Multi-Format 2x1 HDBaseT Sender with Scaler, Auto-Switching, and POH (EXT-UHDV-HBTLS-TX)

Name: 4K Ultra HD Multi-Format 2x1 HDBaseT Sender with Scaler, Auto-Switching, and POH (EXT-UHDV-HBTLS-TX)
Brand: Gefen
SKU: EXT-UHDV-HBTLS-TX
Price: 635.25 USD
Availability: InStock

EXT-UHDV-HBTLS-TX

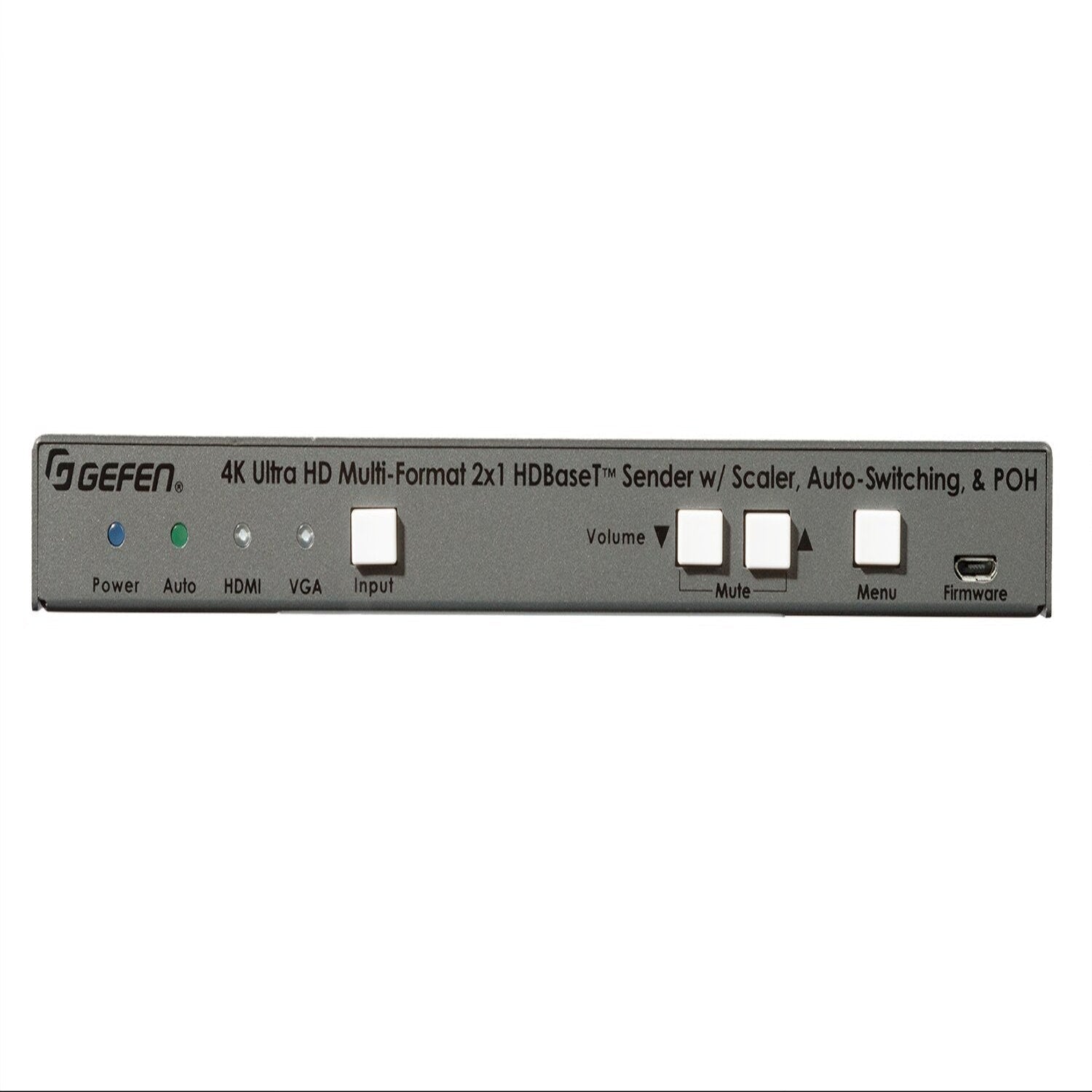

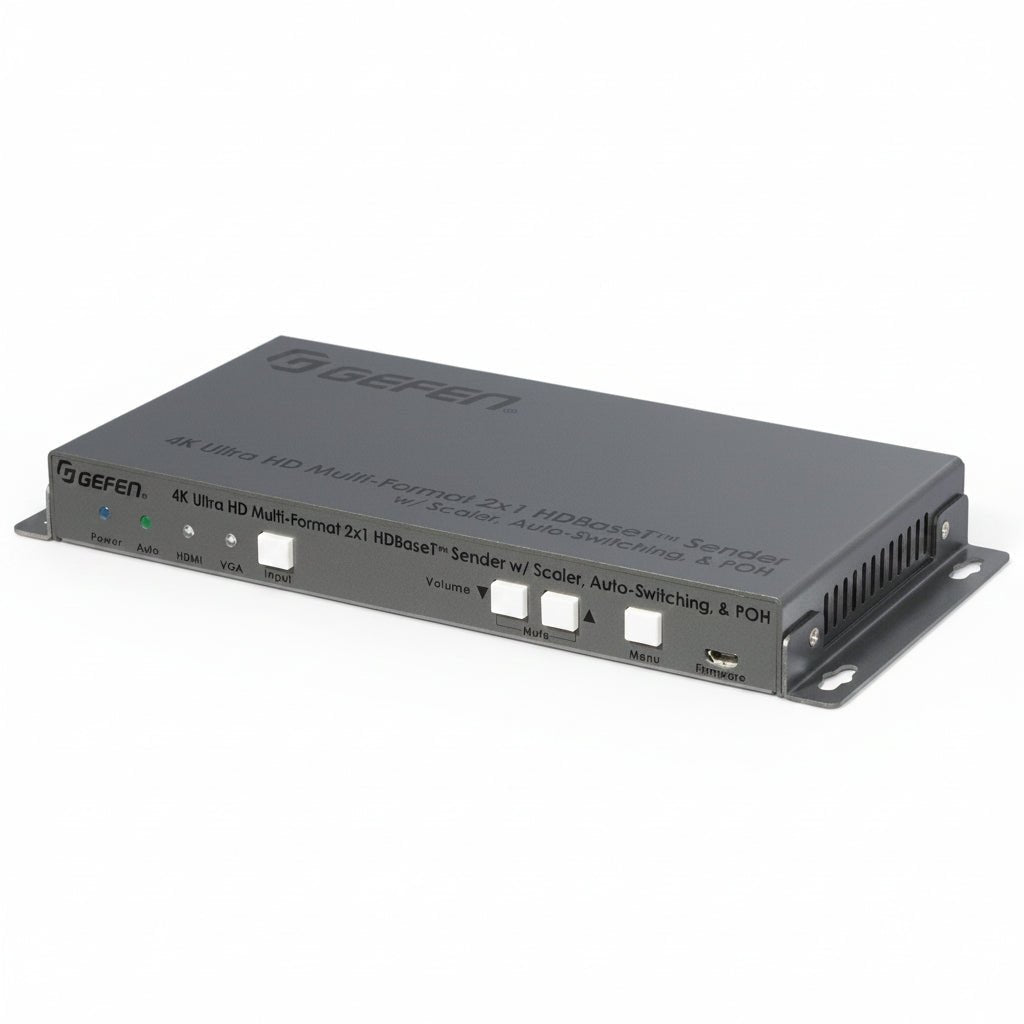

The Gefen EXT-UHDV-HBTLS-TX is a high-performance solution in a compact enclosure, designed for switching between 4K Ultra HD HDMI and VGA inputs and extending them over a single CAT-5e cable. This sender unit transmits signals up to 70 meters (230 feet) at 1080p and 40 meters (130 feet) at 4K resolutions. It features both automatic and manual switching options, along with a powerful built-in scaler that can upscale VGA signals to ensure stunning presentations and smooth transitions between sources. In addition to video with analog audio, the EXT-UHDV-HBTLS-TX extends RS-232 and 2-way IR when used with a compatible receiver. For simplified installation, Bi-Directional Power over HDBaseT™ (POH) technology allows the sender to power a compatible receiver, or be powered by it, eliminating the need for a power supply at one end of the installation.

⚠️Receiver is required. Part number: EXT-UHDA-HBTL-RX

$635.25

4K Ultra HD Multi - Format 2x1 HDBaseT Sender with Scaler, Auto - Switching, and POH (EXT - UHDV - HBTLS - TX) - EXT - UHDV - HBTLS - TX - Gefen

Key Features

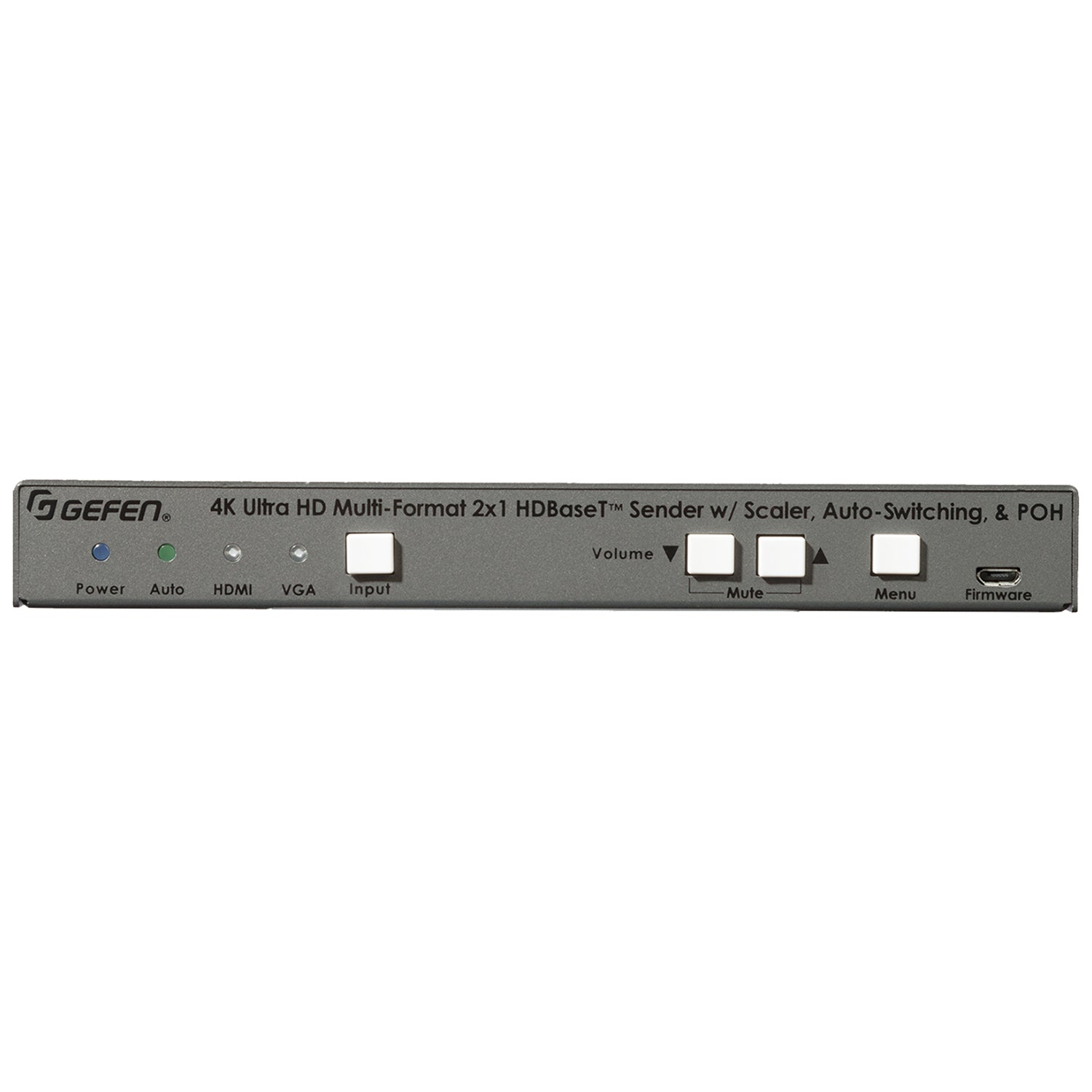

Flexible Input Switching: Automatically or manually switch between one 4K HDMI and one VGA input via the front-panel button or RS-232.

High-Resolution HDBaseT™ Extension: Transmit video over a single CAT-5e cable up to 40 meters (130 feet) for 4K Ultra HD (at 30 Hz, 4:4:4) and up to 70 meters (230 feet) for 1080p Full HD.

Powerful On-Board Scaling: A built-in scaler ensures optimal image quality by upscaling lower-resolution VGA signals to widescreen WUXGA (1920×1200).

4K HDMI 2.0 and HDCP 2.2 Support: The HDMI input supports data rates up to 18 Gbps for resolutions up to 4K Ultra HD at 60 Hz (4:4:4), and is compliant with both HDCP 2.2 and 1.4.

High-Fidelity Audio Pass-Through: Supports pass-through of up to 7.1 channels of LPCM and High Bit Rate (HBR) digital audio formats from the HDMI input, including Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™.

Bi-Directional Power over HDBaseT™ (POH): Simplifies installation by allowing the Sender to power a compatible Receiver, or be powered by it, over the same link cable, requiring only one power supply for both units.

Expanded Control Extension: Extends 2-way IR and bi-directional RS-232 alongside the video signal when used with a compatible receiver.

Advanced EDID Management: Utilizes Gefen's Advanced EDID Management for rapid and reliable integration of video sources and displays.

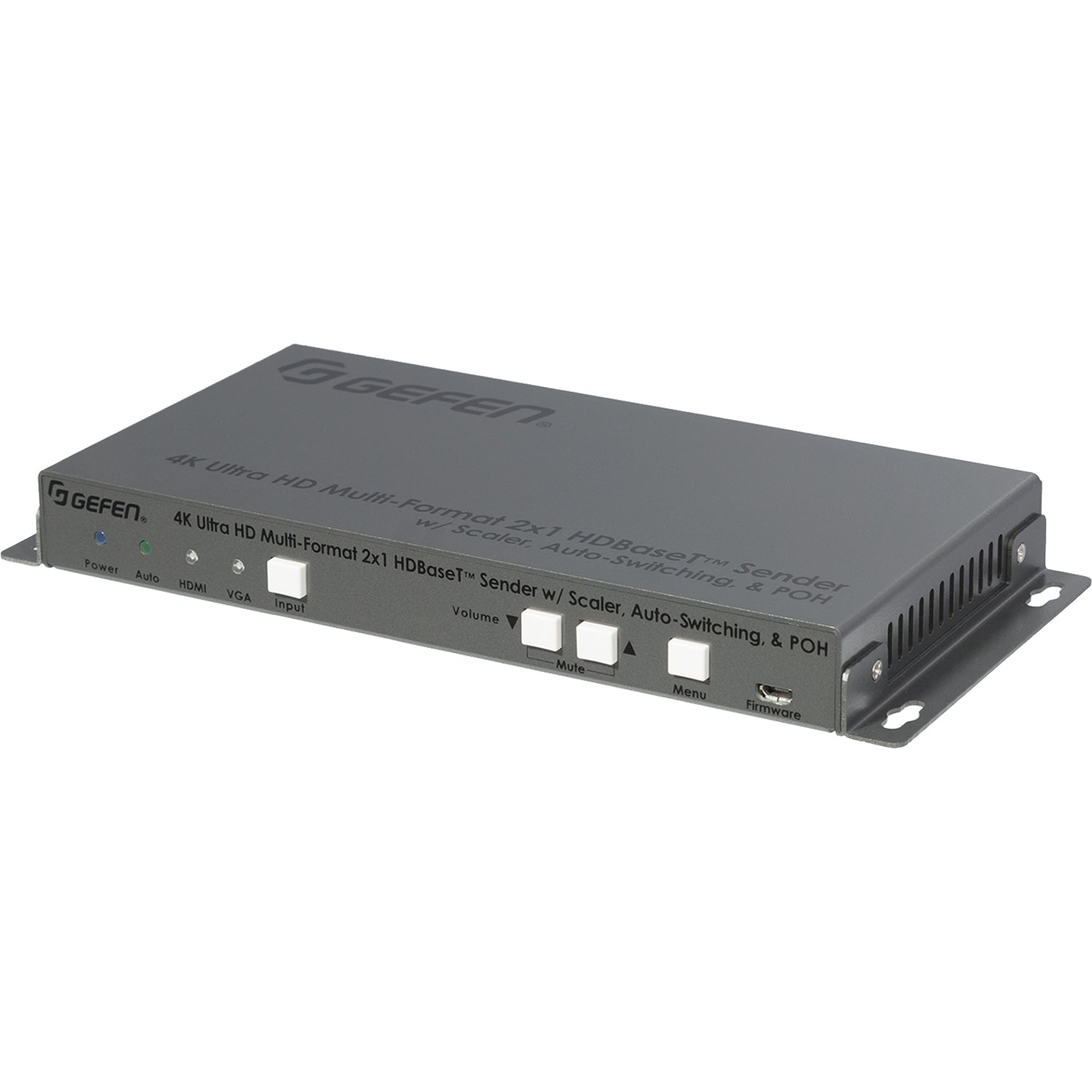

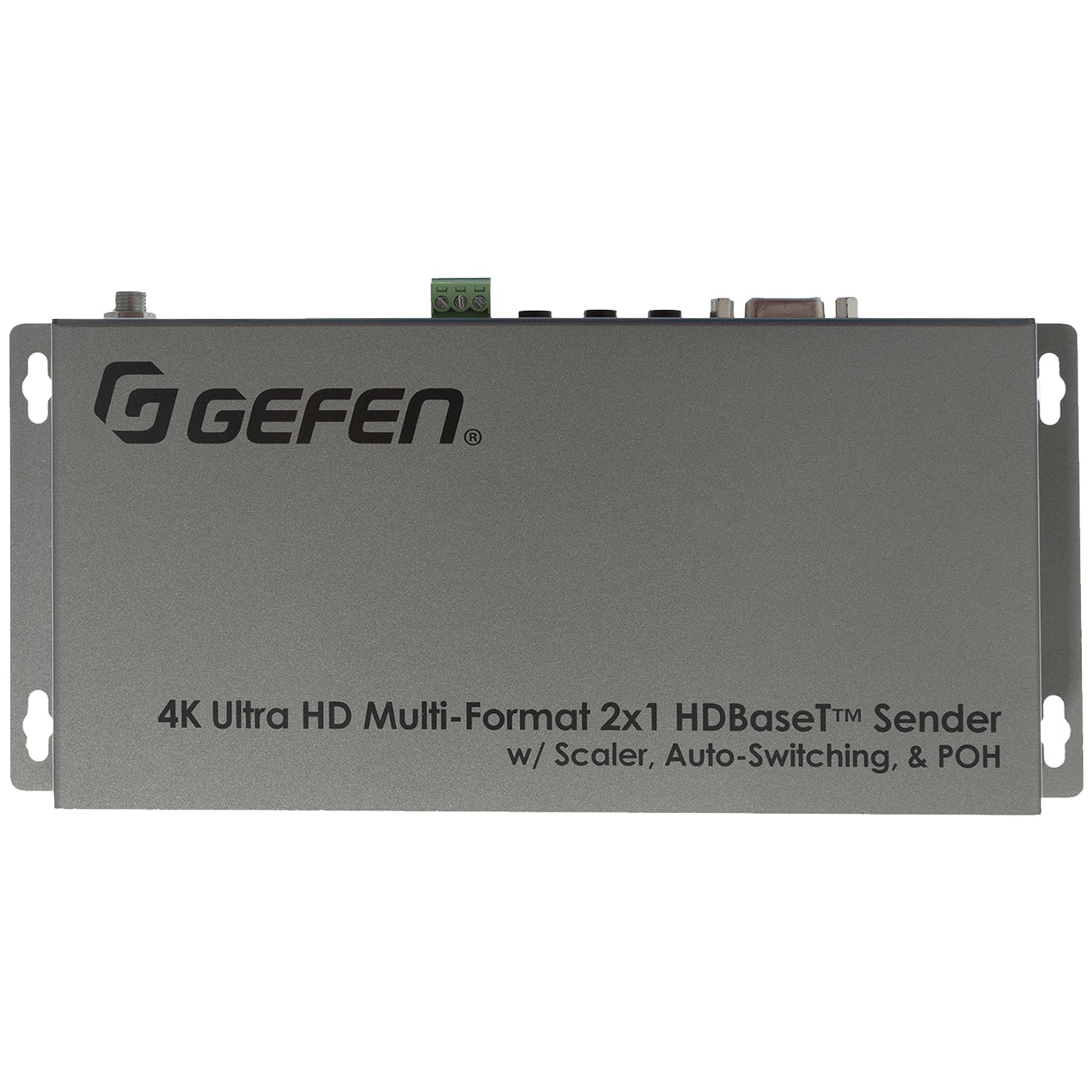

Professional Installation Features: Features a compact, ultra-low-profile, surface-mountable enclosure with a secure locking power connector, suitable for discreet placement.

How It Works

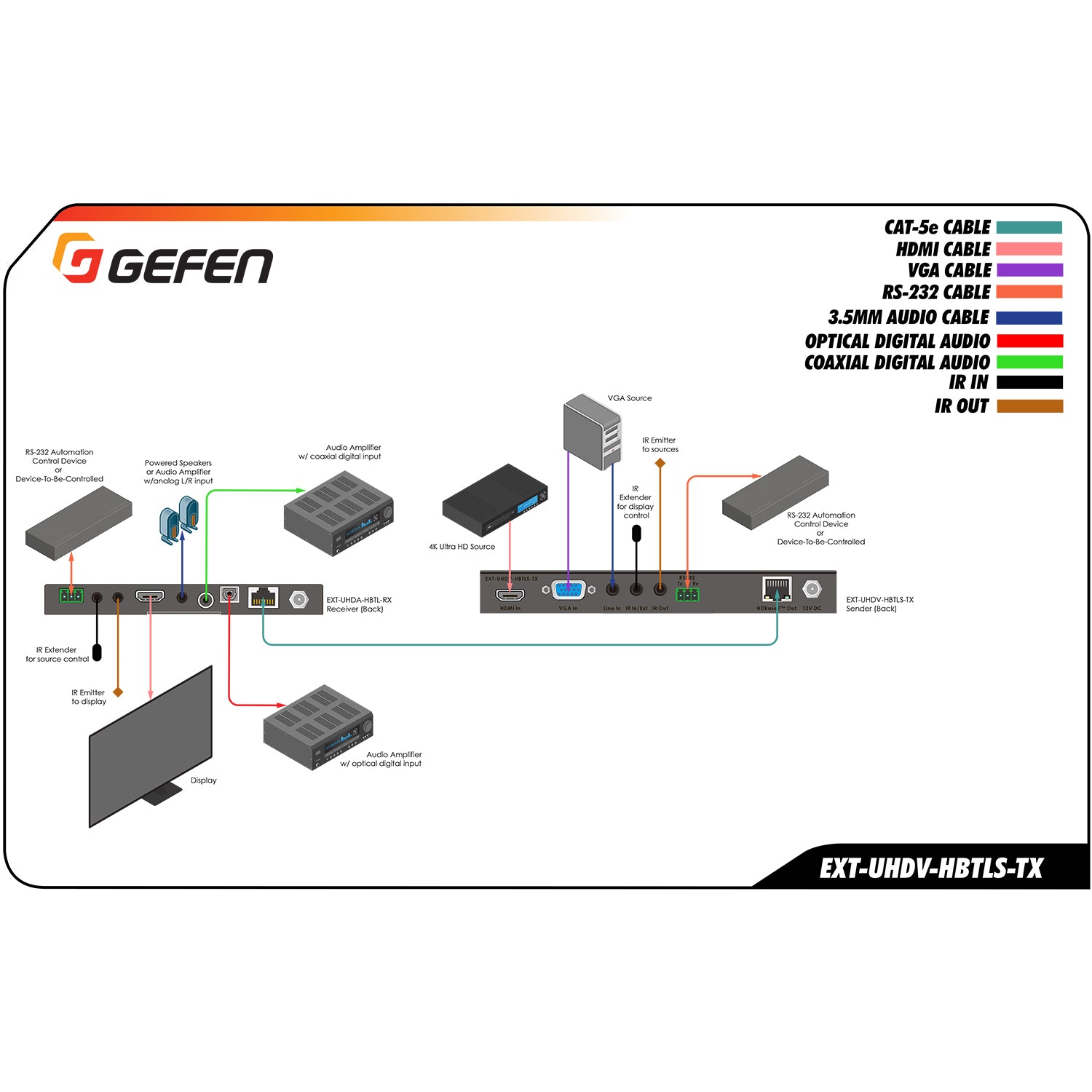

The Gefen EXT-UHDV-HBTLS-TX Sender works in tandem with a compatible HDBaseT™ Receiver to switch and extend AV signals from two sources to a remote display location. First, connect a high-definition HDMI source and/or a VGA source with its companion L/R analog audio to the Sender's inputs. The unit can be set to automatically switch to a live source or be manually toggled using the front panel button or RS-232 commands. Its powerful internal scaler can up-convert VGA signals to WUXGA resolution to ensure a high-quality image on modern displays. The selected audio/video stream, along with bi-directional RS-232 and 2-way IR signals, is then transmitted over a single CAT-5e cable to a compatible receiver. The system is powered using Bi-Directional Power over HDBaseT™ (POH), which allows a single 12V power supply connected to either the Sender or the Receiver to power both units, simplifying installation significantly.

Additional Information

Specifications

Video & Audio

Maximum Video Resolution (HDMI Input): 4K Cinema - DCI (4096 x 2160 to 60Hz, 4:4:4), 4K Ultra HD (3840 x 2160 to 60Hz, 4:4:4)
Maximum Video Resolution (VGA Input): WUXGA (1920x1200 to 60 Hz 4:4:4)
Maximum Video Resolution (HDBaseT™ Extension): 4K Ultra HD (3840 x 2160 at 30Hz, 4:4:4)
HDMI Compliance: HDMI 2.0
HDCP Compliance: HDCP 2.2 and 1.4
HDMI Input Bandwidth/Data Rate: 18 Gbps / 600 MHz TMDS Clock
HDBaseT™ Extension Bandwidth/Data Rate: 10.2 Gbps / 340 MHz TMDS Clock
Audio (HDMI Pass-Thru): Up to 8 channels of HBR, Bitstream, & LPCM , including formats like Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™

Connectors

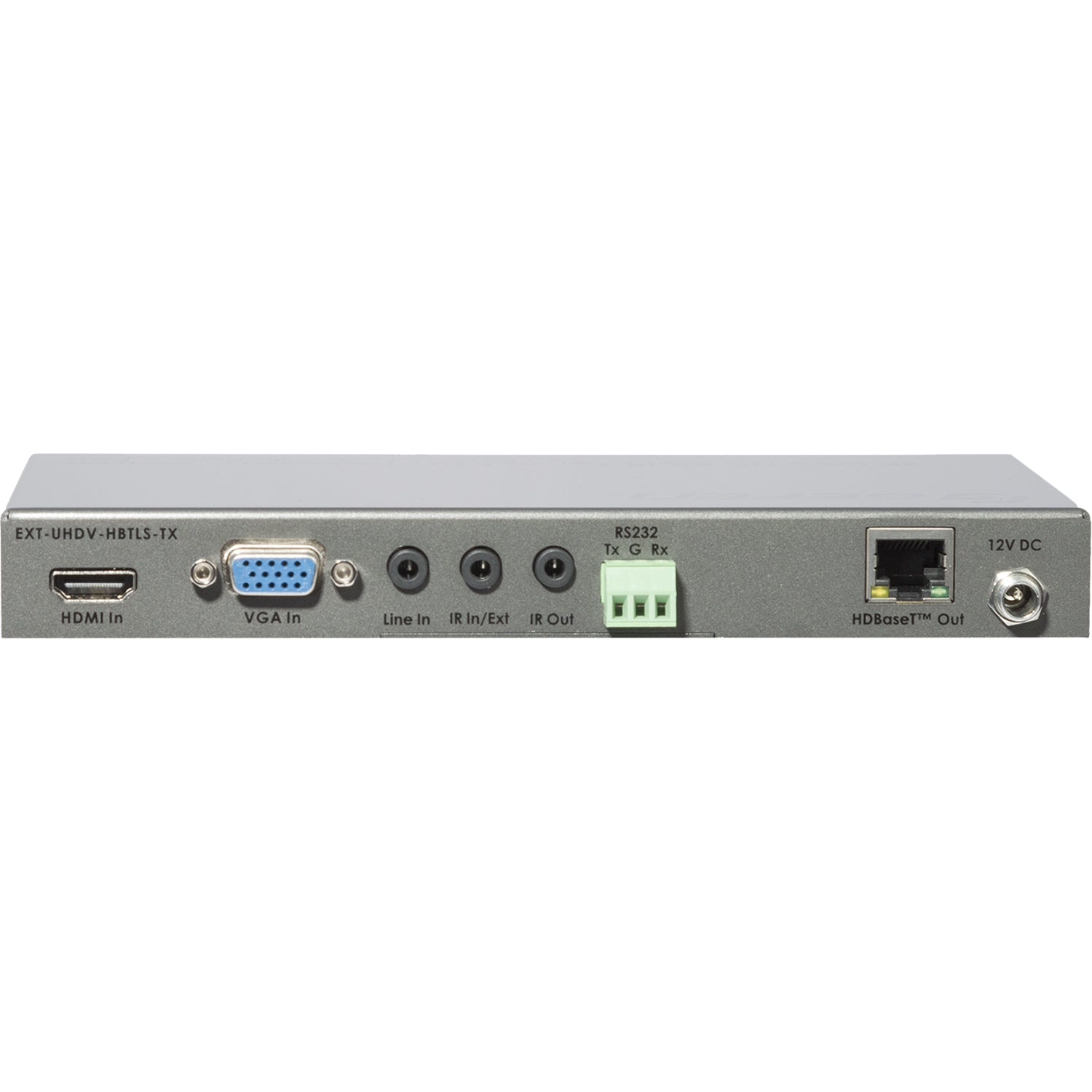

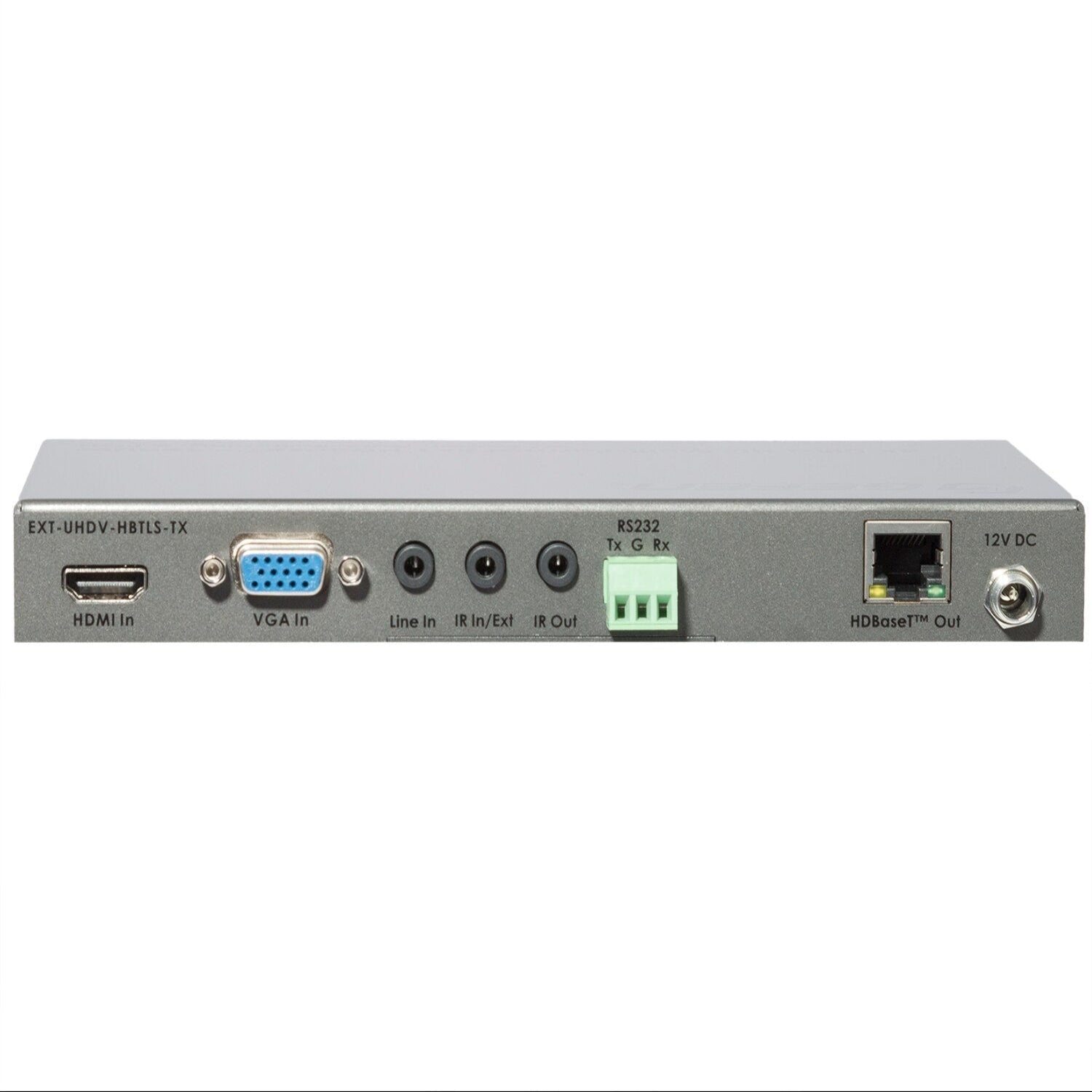

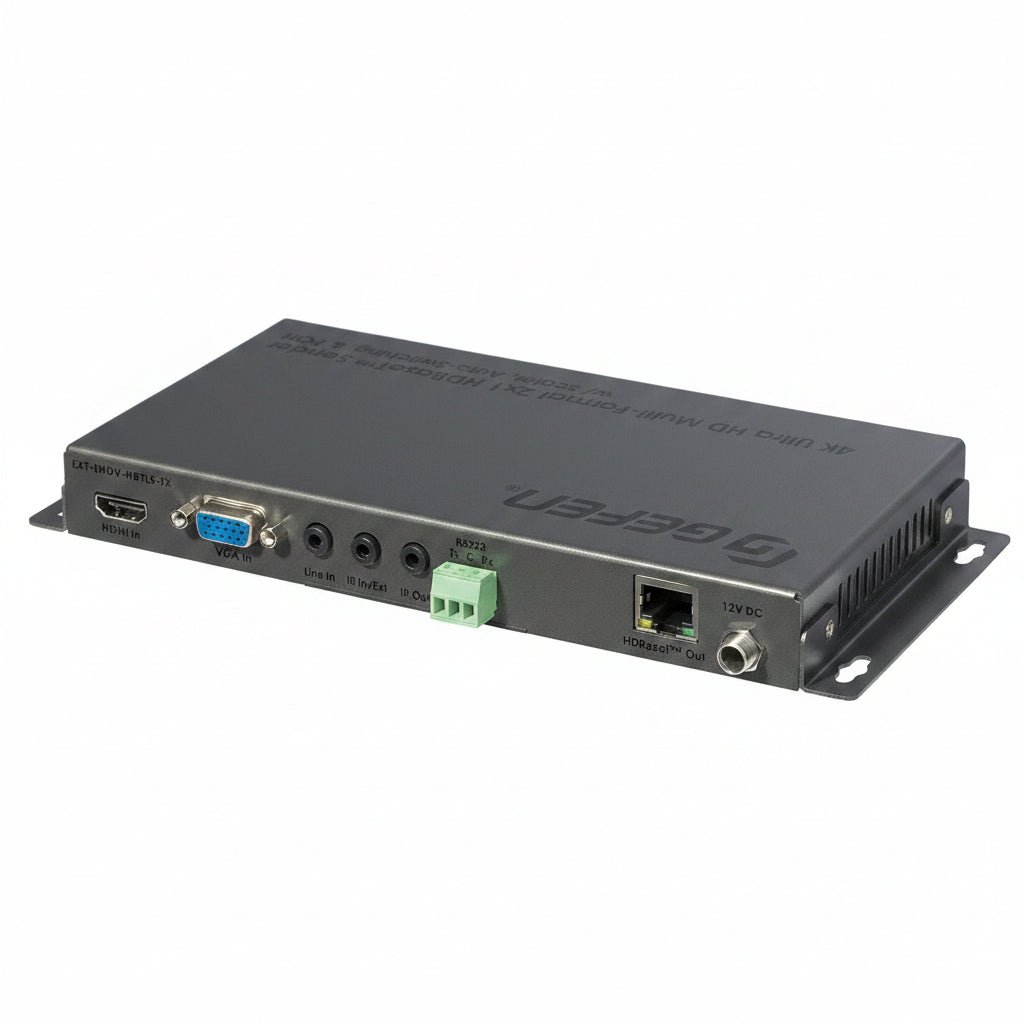

Video Input Connectors: (1) HDMI Type A 19-pin, female , (1) VGA HD-15, female
L/R Analog Audio Input port: (1) 3.5mm mini-stereo jack
Link Connector: (1) RJ-45, shielded
RS-232 port: (1) 3-pin Phoenix
IR In/Ext port: (1) 3.5mm mini-stereo jack
IR Out port: (1) 3.5mm mini-mono jack
Firmware Update port: (1) USB Micro-B, female
Power Supply Connector: (1) 12V DC, locking, 5.5mm barrel/2.1mm pin

Operational

Power Consumption (Not powering a Receiver): 9W maximum
Power Consumption (Powering a Receiver): 22W maximum
Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours

Physical

Dimensions (W x H x D, not including the connectors or brackets): 7.7" x 0.93" x 4" (195mm x 24 x 100mm)
Dimensions (W x H x D, including the mounting brackets): 8.7" x 0.93" x 4" (221mm x 24 x 100mm)
Net Weight: 0.8 lbs (0.35 kg)

UPC: 888814999884

System Requirements

Cabling: Shielded (STP) CAT-5e or better cable is recommended. Shielded (STP) CAT-6A is also recommended. Unshielded (UTP) CAT-5e or better cable may be acceptable depending on quality but is not the preferred choice. It is recommended to keep cables away from power lines and other sources of electromagnetic interference.

Receiver Unit: A compatible HDBaseT™ Receiver unit is required for operation. The recommended receiver is the EXT-UHDA-HBTL-RX.

For Firmware Updates: A firmware update requires a Windows PC running the Gefen Syner-G™ software. The PC must be connected to the Sender's RS-232 port via a direct connection or a USB-to-RS-232 adapter. A USB thumb drive and a USB Micro-B to Type-A adapter/cable are also required to load the firmware onto the unit.

What's in the Box

(1) 4K Ultra HD Multi-Format 2x1 HDBaseT™ Sender unit
(1) 12V DC power supply with locking connector
(1) 3-pin Phoenix plug (attached to unit)
(2) Mounting Brackets
(4) Self-adhesive rubber feet
(1) Quick Start Guide

Warranty

3 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-UHDV-HBTLS-TX Manual
Gefen EXT-UHDV-HBTLS-TX Datasheet
