Increased Productivity: Increases your productivity by letting you view any four Dual Link DVI video sources on any four Dual Link DVI displays.
High-Resolution Video Support: Supports 1080p Full HD at 120Hz and dual-link resolutions up to 3840×2400 , while maintaining the highest resolution digital video with no loss of quality.
DVI Standard Compliance: Supports DDWG standards for DVI monitors.
Flexible Control Options: Can be controlled via the included discrete IR remote or through an RS-232 serial control interface.
Rack Mountable: Includes rack ears for installation into a 1U rack space.
How It Works

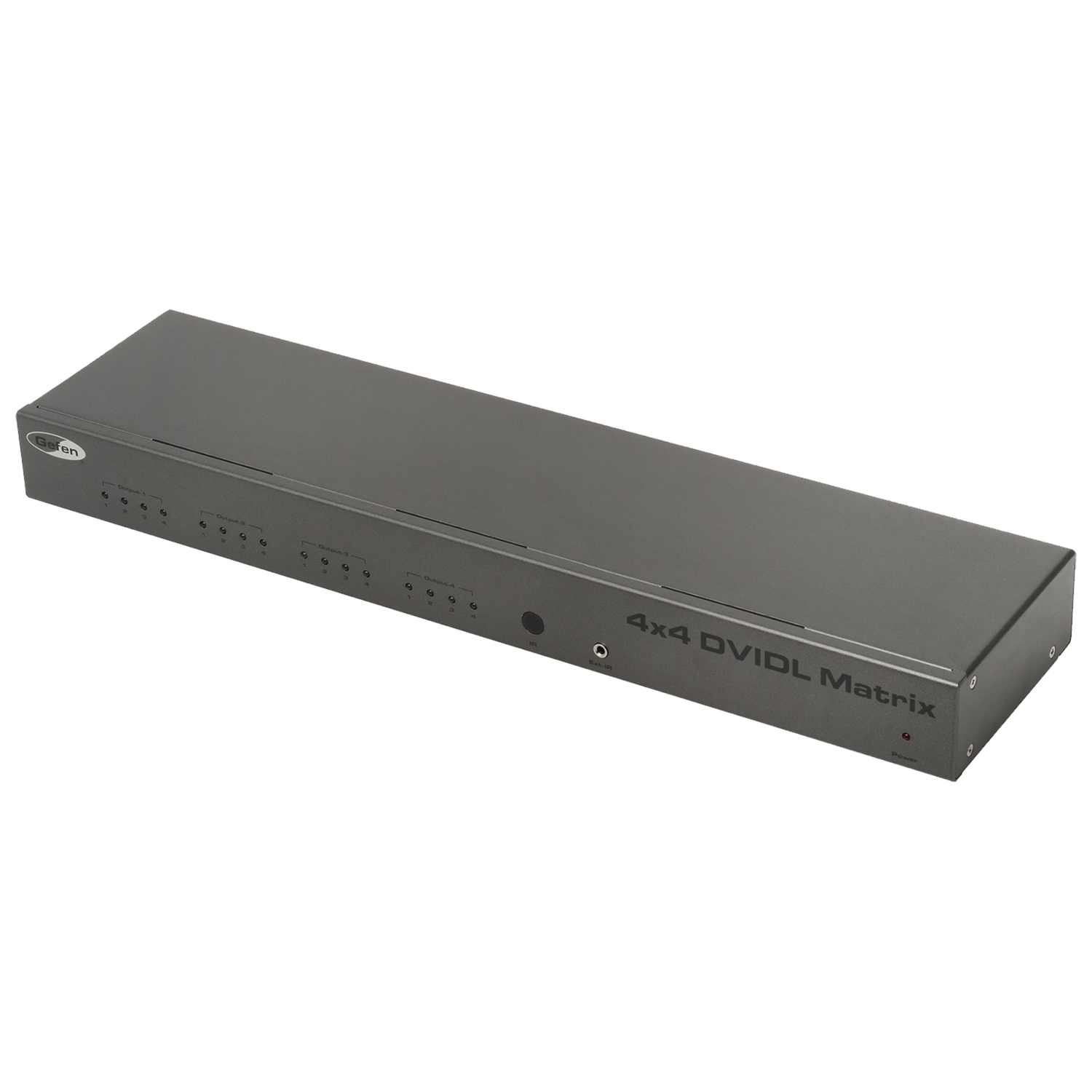

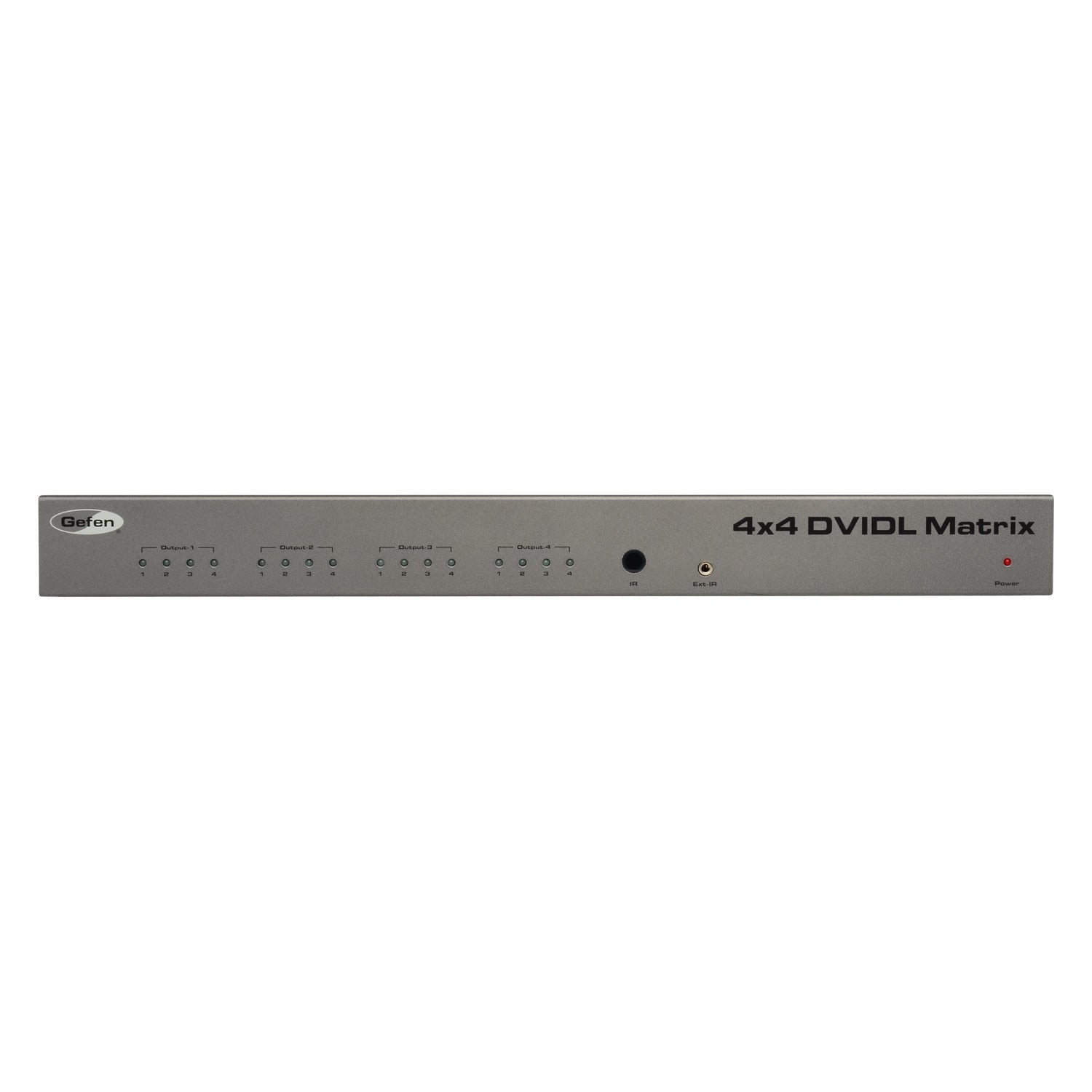

The 4x4 DVI Dual Link Matrix has four Dual Link DVI inputs and four Dual Link DVI outputs. You simply connect your four Dual Link DVI video sources to the Switcher's inputs, then connect your four Dual Link DVI displays to the Switcher's outputs. This provides a simple and reliable method of creating multiple Dual Link DVI display consoles, with each console capable of accessing any one of the video sources at any time by remote control. You also have the option of setting up the four displays locally or extending them with a Gefen extender.
Additional Information
Specifications
Video Amplifier Bandwidth: 2 x 165 MHz
Input Video Signal: 1.2 Volts p-p
Input DDC Signal: 5 Volts p-p (TTL)
Dual Link Maximum Video Range: 3840×2400

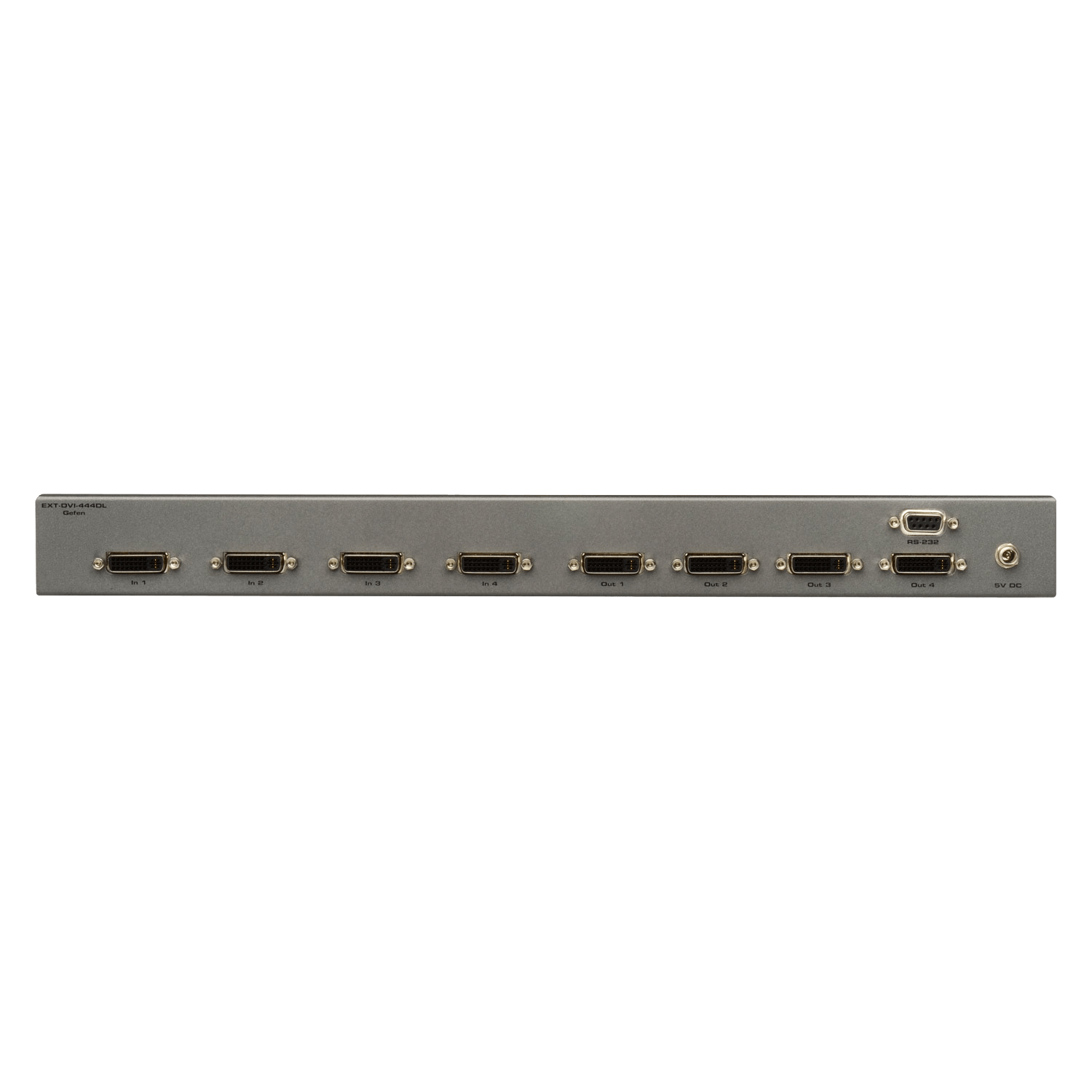

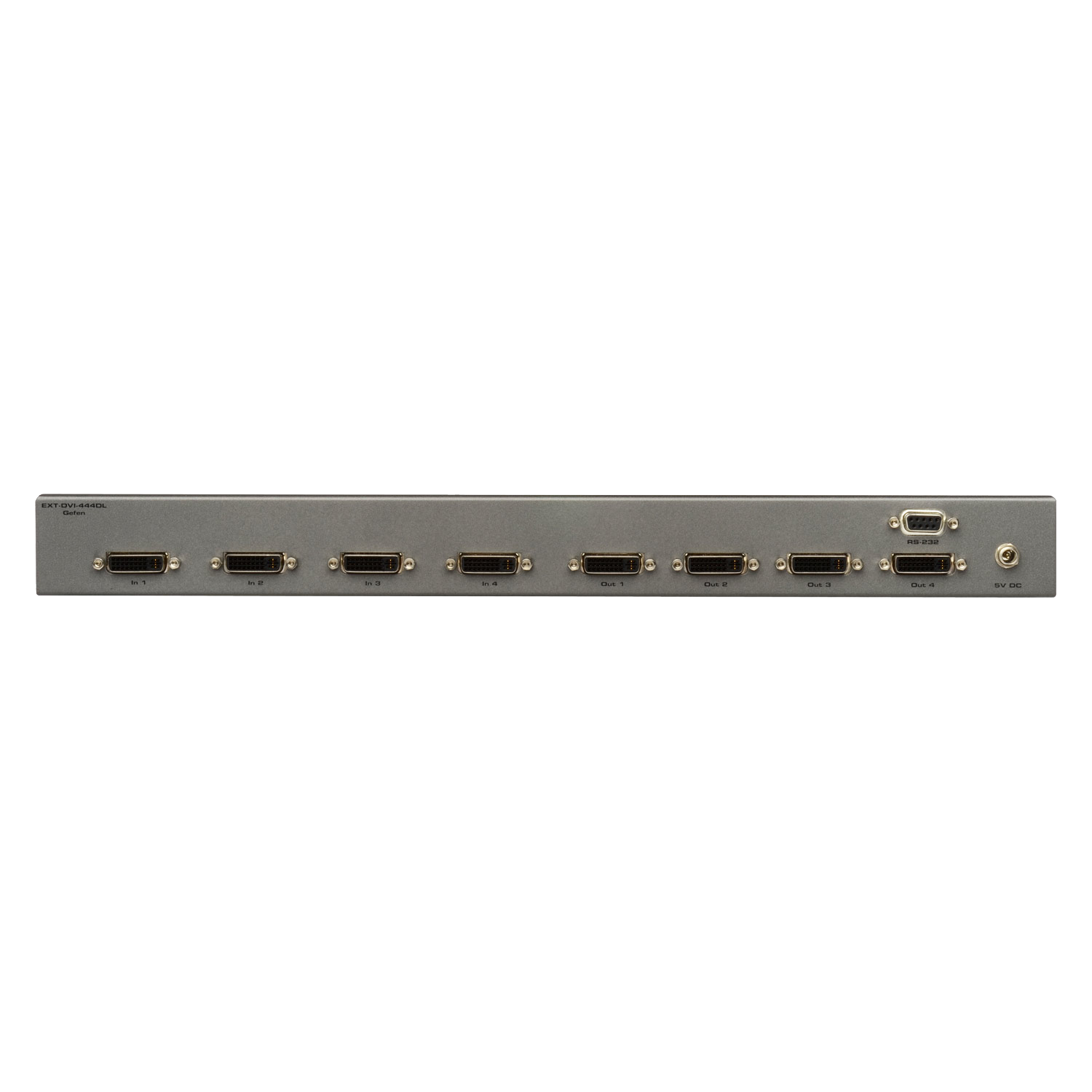

DVI Connector: DVI-I 29 pin female (digital only)
Power Supply: 5V DC @ 6A
Power Consumption: 30 Watts (max)
Dimensions: 17.1"W×1.7"H×4.25"D
Rack Mountable: 1U Rack Space
Shipping Weight: 7 Lbs UPC: 845344053240
System Requirements
Resolution Compatibility: All attached monitors are required to support the resolution of the video sources. The 4x4 DVI DL Matrix does not perform scaling. For optimal compatibility, it is recommended that a single, common resolution be used by all sources and displays.
Power-On Sequence: When powering on a source device, a display must be selected and pointing to that source's input. This is a firm requirement for most sources, particularly computers, as they need to receive display information (EDID) to begin outputting video.
