8K 48Gbps HDMI 2.1 Optical Fiber Extender Over a Single MPO/MTP Cable (100m/330ft) (GF-HD48G-1MPO)

GF-HD48G-1MPO

The Gefen GF-HD48G-1MPO is a high-performance, compact solution for extending full-bandwidth, uncompressed HDMI 2.1 audio and video with HDR up to 100 meters (330 feet) over a single MPO/MTP multi-mode fiber optic cable. Supporting up to 48Gbps of bandwidth, this extender is designed to deliver pristine 8K (7680x4320 @ 60Hz) and 4K (3840x2160 @ 120Hz) resolutions without signal loss, making it the ideal choice for professional AV installations, high-end home theaters, and any application requiring flawless long-distance HDMI transmission. It is fully compliant with HDCP 2.3 for maximum content protection.

⚠️Comes with both Sender and Receiver units
$1,417.50
8K 48Gbps HDMI 2.1 Optical Fiber Extender Over a Single MPO/MTP Cable (100m/330ft) (GF - HD48G - 1MPO) - GF - HD48G - 1MPO - Gefen
8K 48Gbps HDMI 2.1 Optical Fiber Extender Over a Single MPO/MTP Cable (100m/330ft) (GF - HD48G - 1MPO) - GF - HD48G - 1MPO - Gefen
8K 48Gbps HDMI 2.1 Optical Fiber Extender Over a Single MPO/MTP Cable (100m/330ft) (GF - HD48G - 1MPO) - GF - HD48G - 1MPO - Gefen
8K 48Gbps HDMI 2.1 Optical Fiber Extender Over a Single MPO/MTP Cable (100m/330ft) (GF - HD48G - 1MPO) - GF - HD48G - 1MPO - Gefen

Key Features

Uncompressed 8K/4K HDMI 2.1: Supports resolutions up to 8K (7680x4320 @ 60 Hz) and 4K (3840x2160 @ 120 Hz) for crystal-clear, high-definition video.



48Gbps Bandwidth: Provides the highest bandwidth specified under the HDMI 2.1 standard, ensuring maximum performance and signal fidelity.



Long-Distance Optical Transmission: Extends HDMI signals up to 100 meters (330 feet) over a single 8-core (or 12-core) MPO/MTP OM3 multi-mode fiber optic cable.



High Dynamic Range (HDR) Support: Supports both static and dynamic HDR, including Dolby Vision™, for enhanced contrast and a wider color gamut.



HDCP 2.3 Compliant: Fully compliant with the latest content protection standards, as well as legacy HDCP 2.2/1.4.



Variable Refresh Rate (VRR) Support: Delivers a smoother and more detailed gaming experience.



High-Speed Transmission: Transmits high-speed signals via optical fiber with no signal loss.

How It Works

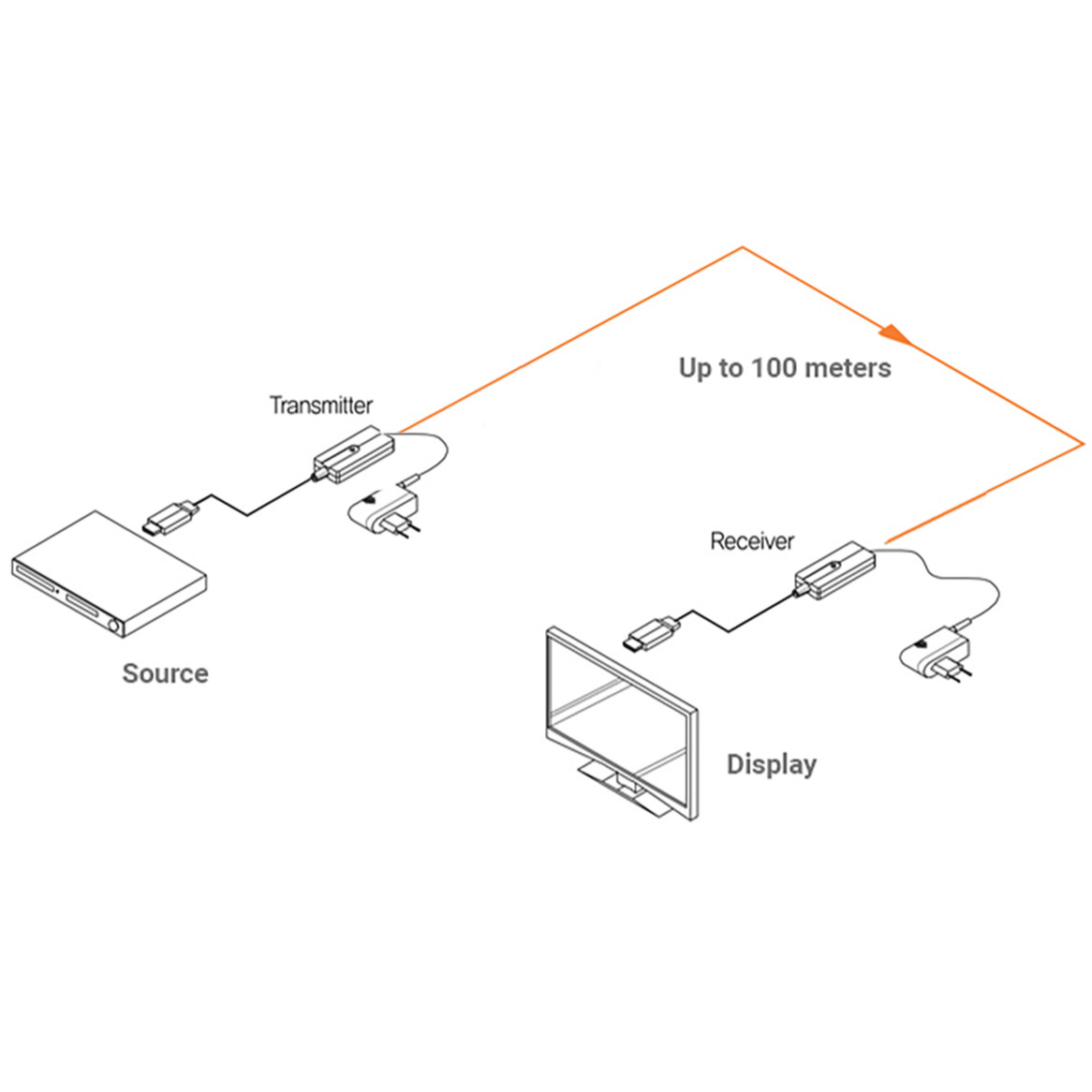

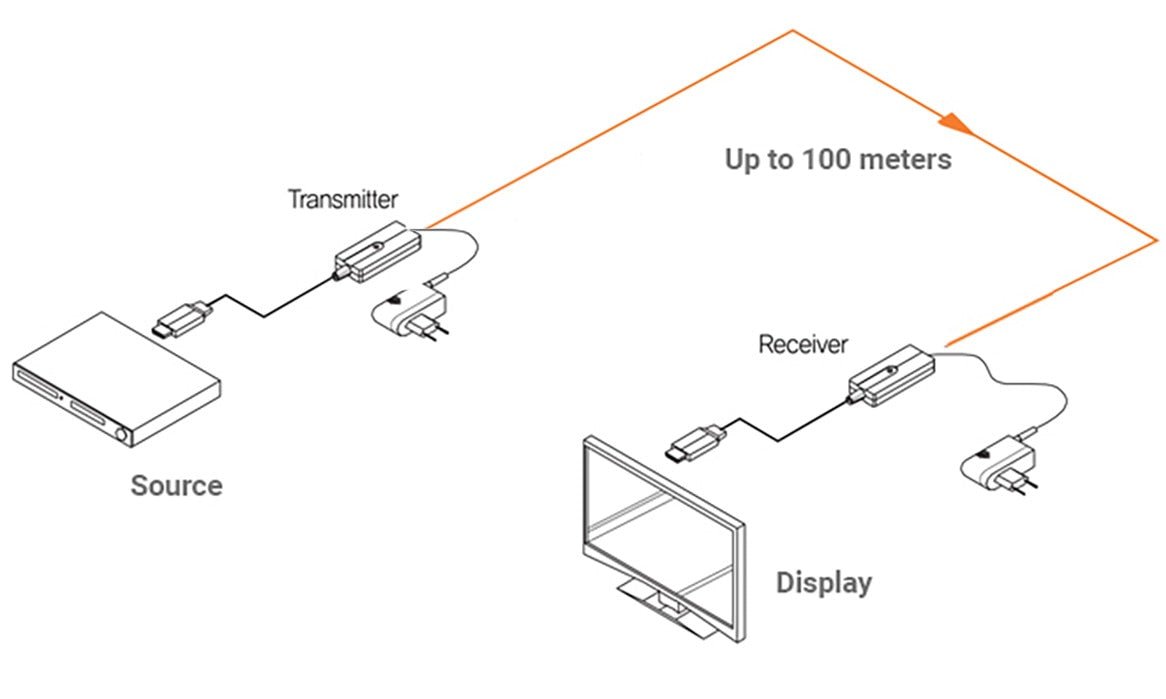

The Gefen GF-HD48G-1MPO HDMI 2.1 Extender system simplifies the extension of high-bandwidth HDMI signals over long distances. The system consists of a compact Transmitter and Receiver pair. First, connect the Transmitter to your HDMI source device (e.g., a media player or computer). Then, connect the Receiver to your HDMI display. Finally, link the Transmitter and Receiver units with a single 8-core (or 12-core) MPO/MTP multi-mode fiber optic cable up to 100 meters in length. The system requires no external power supply and transmits uncompressed audio and video with zero latency, providing a true plug-and-play solution for extending 8K and 4K signals.

Additional Information

Specifications

Signal Support: HDMI v2.1
Video Bandwidth: 48.0 Gbps
TMDS Clock: 5940 Mhz
Supporting Resolution: 8K/4K UHD (Up to 7680x4320)
Distance: Up to 100 meters (330ft)
Connector/Fiber: HDMI 19 Pin (male) / MPO/MTP
Audio Support: Up to 8 Channel PCM, DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
Power Consumption: 0.75W (typ) ~ 0.95W (typ)
Dimension: 300 x 16 x 31 (mm)
Temperature Range: Operating: 0°C to 50°C, Storage: -20°C to 70°C
Optical Source: VCSEL Laser
O/E Converter: PIN Photo Diode
Fiber Type: 8-core (or 12-core) MPO/MTP fiber optical cable (OM3, 50/125 µm, Polarity type A)

UPC: 888814007473

System Requirements

An HDMI source and display

8-core (or 12-core) MPO/MTP, ΟΜ3 50/125 µm Multi-mode fiber cable

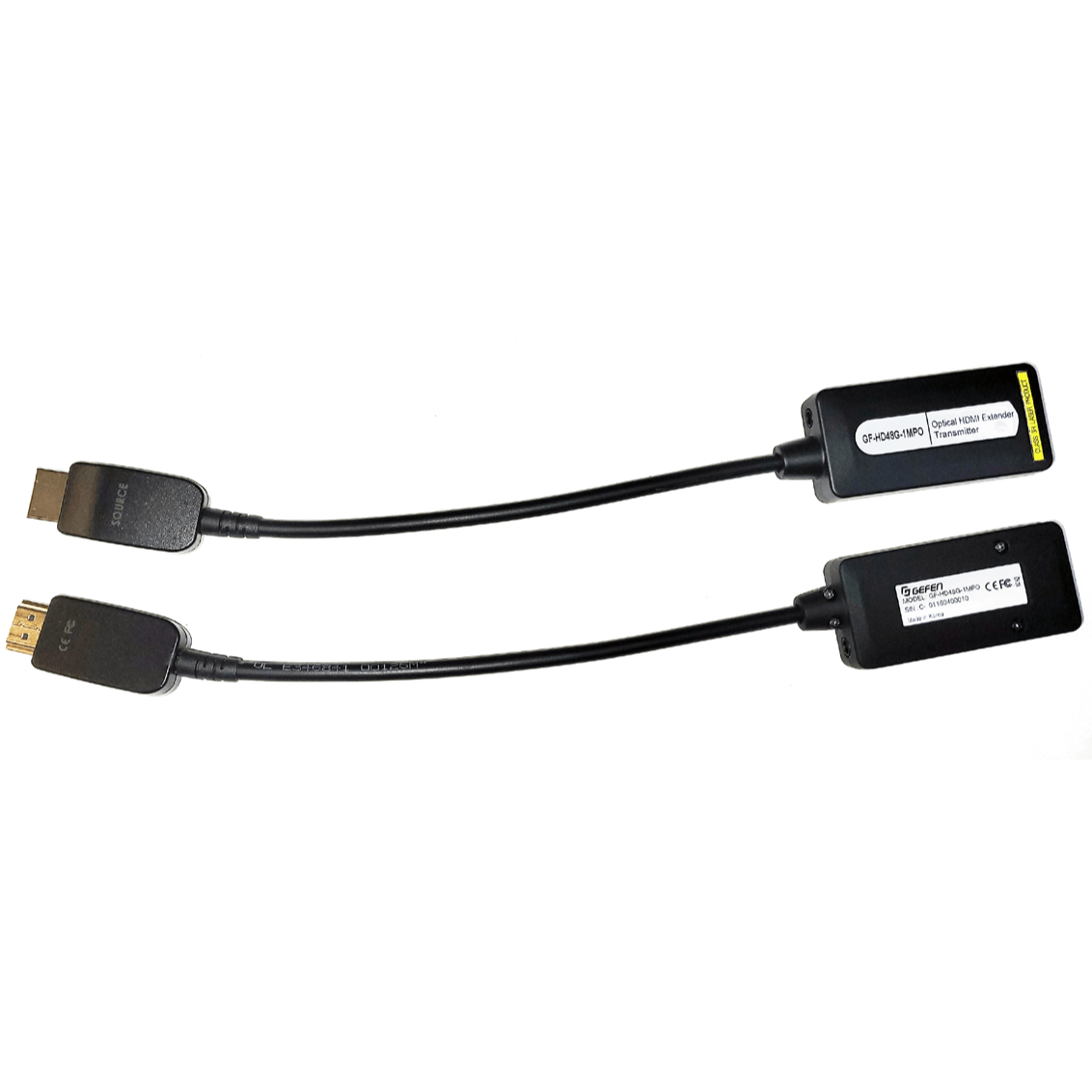

What's in the Box

(1) Gefen Optical HDMI 2.1 Extender (Transmitter)

(1) Gefen Optical HDMI 2.1 Extender (Receiver)

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen GF-HD48G-1MPO Quick Start Guide
Gefen GF-HD48G-1MPO Datasheet
