Analog Audio Extender over CAT-5, up to 1000 ft (EXT-AUD-1000)

EXT-AUD-1000

The Gefen EXT-AUD-1000 Audio Extender provides a robust solution for sending line-level analog audio signals over long distances. This system consists of a Sender and Receiver unit, allowing you to extend stereo or mono audio up to 1000 feet (300 meters) using a single, standard CAT-5 cable while maintaining pristine, high-quality sound. Ideal for professional AV installations, the EXT-AUD-1000 ensures a clean and reliable audio transmission, overcoming the limitations of standard audio cables.
$202.65

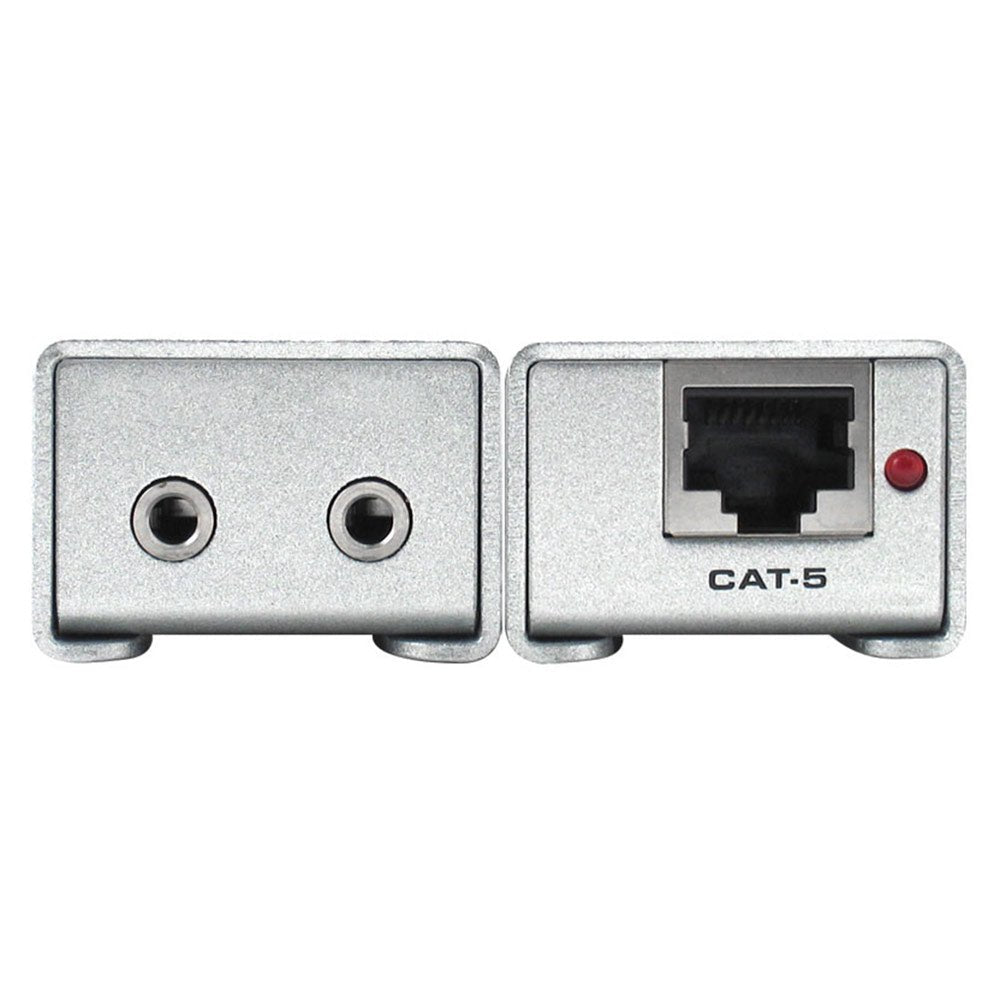

Analog Audio Extender over CAT - 5, up to 1000 ft (EXT - AUD - 1000) - EXT - AUD - 1000 - Gefen

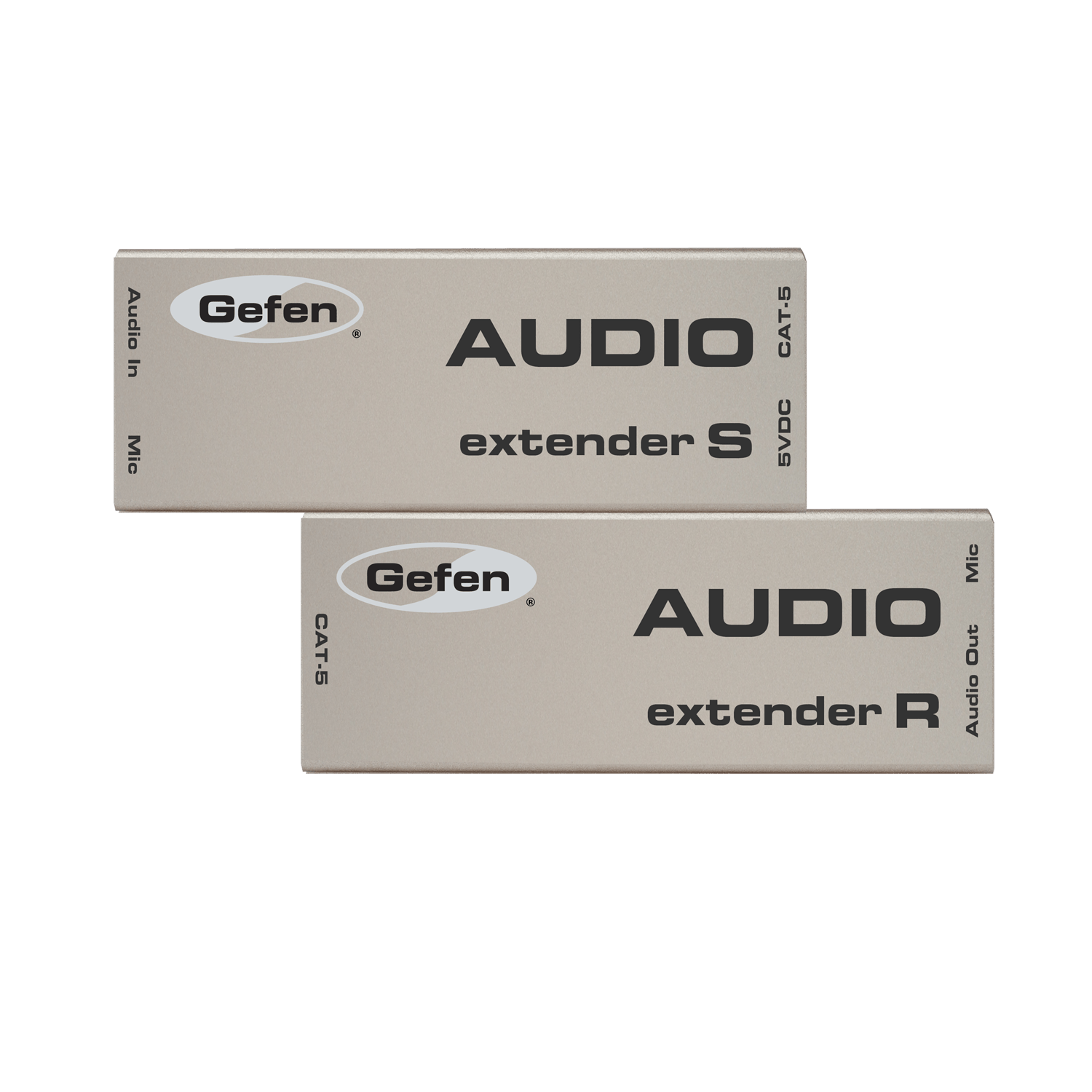

Analog Audio Extender over CAT - 5, up to 1000 ft (EXT - AUD - 1000) - EXT - AUD - 1000 - Gefen

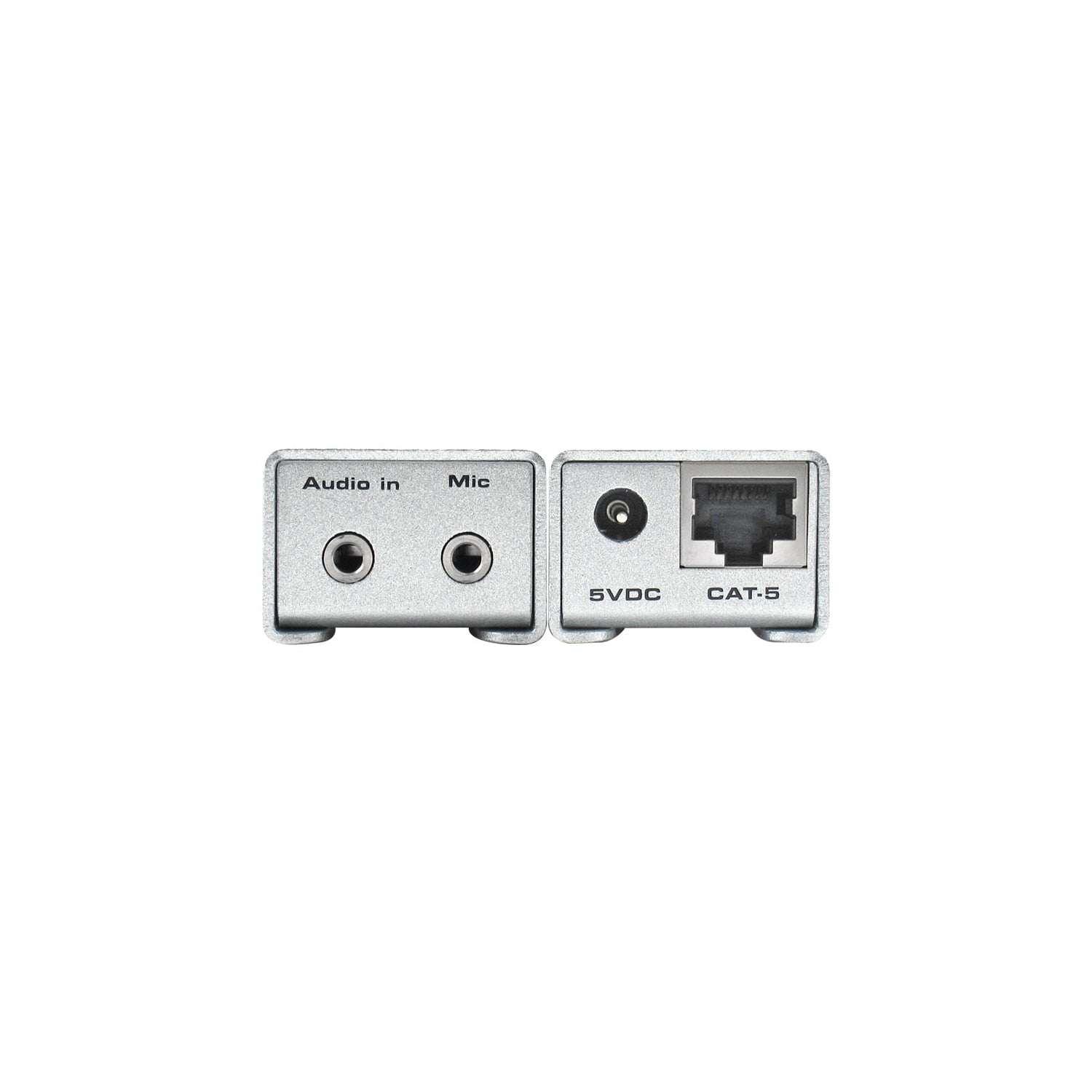

Analog Audio Extender over CAT - 5, up to 1000 ft (EXT - AUD - 1000) - EXT - AUD - 1000 - Gefen
Analog Audio Extender over CAT - 5, up to 1000 ft (EXT - AUD - 1000) - EXT - AUD - 1000 - Gefen

Key Features

Long-Distance Extension: Extends analog audio signals up to 1000 feet (300 meters) using a single CAT-5 cable, ensuring reliable performance over extended distances.



Superior Audio Quality: Maintains pristine, high-quality audio for both stereo and mono signals, delivering a clean and unaltered sound experience.



Flexible Signal Support: Supports both speaker-level and mic-level analog audio, providing versatility for a wide range of professional audio applications.



Simple Installation: Installs in minutes with its straightforward Sender and Receiver setup, allowing for quick and efficient system integration.



Rack-Mountable Design: The extender units are rack-mountable, offering a secure and organized installation within professional AV racks.

How It Works

The Gefen EXT-AUD-1000 system operates with two main components: a Sender unit and a Receiver unit. First, connect your analog audio source, such as a mixer or microphone, to the Sender unit's input jacks using the supplied audio cables. Then, connect the Sender unit to the Receiver unit using a single standard CAT-5 cable up to 1000 feet (300 meters) in length. Finally, connect your audio destination, like an amplifier or powered speakers, to the Receiver unit's output jacks. The system automatically transmits the audio signal over the CAT-5 cable, delivering clear and reliable sound at the remote location without any need for software or complex configuration.

Additional Information

Specifications

Frequency Response: 20Hz to 20 kHz

Input/Output Impedance: 600 ohms

Recommended Cable: CAT-5

Connectors: 3.5mm mini-stereo audio jacks, RJ-45 Shielded

Power Supply: 5V DC (External)

Power Consumption: 5 Watts (max)

Dimensions: 3.8" W x 1.2" H x 1.4" D

Shipping Weight: 2 lbs.

System Requirements

Audio Source: An analog audio source device (e.g., mixer, CD player, computer).



Audio Destination: An audio playback device (e.g., amplifier, powered speakers, recording interface).



Cabling: One standard CAT-5 cable to link the Sender and Receiver units.

What's in the Box

  • (1) AUD-1000S Sender unit
  • (1) AUD-1000R Receiver unit
  • (2) 6-foot audio cables (3.5mm mini-stereo)
  • (2) 5V DC Power Supplies
  • (1) User's Manual
  • (1) Set of rack ears

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.
