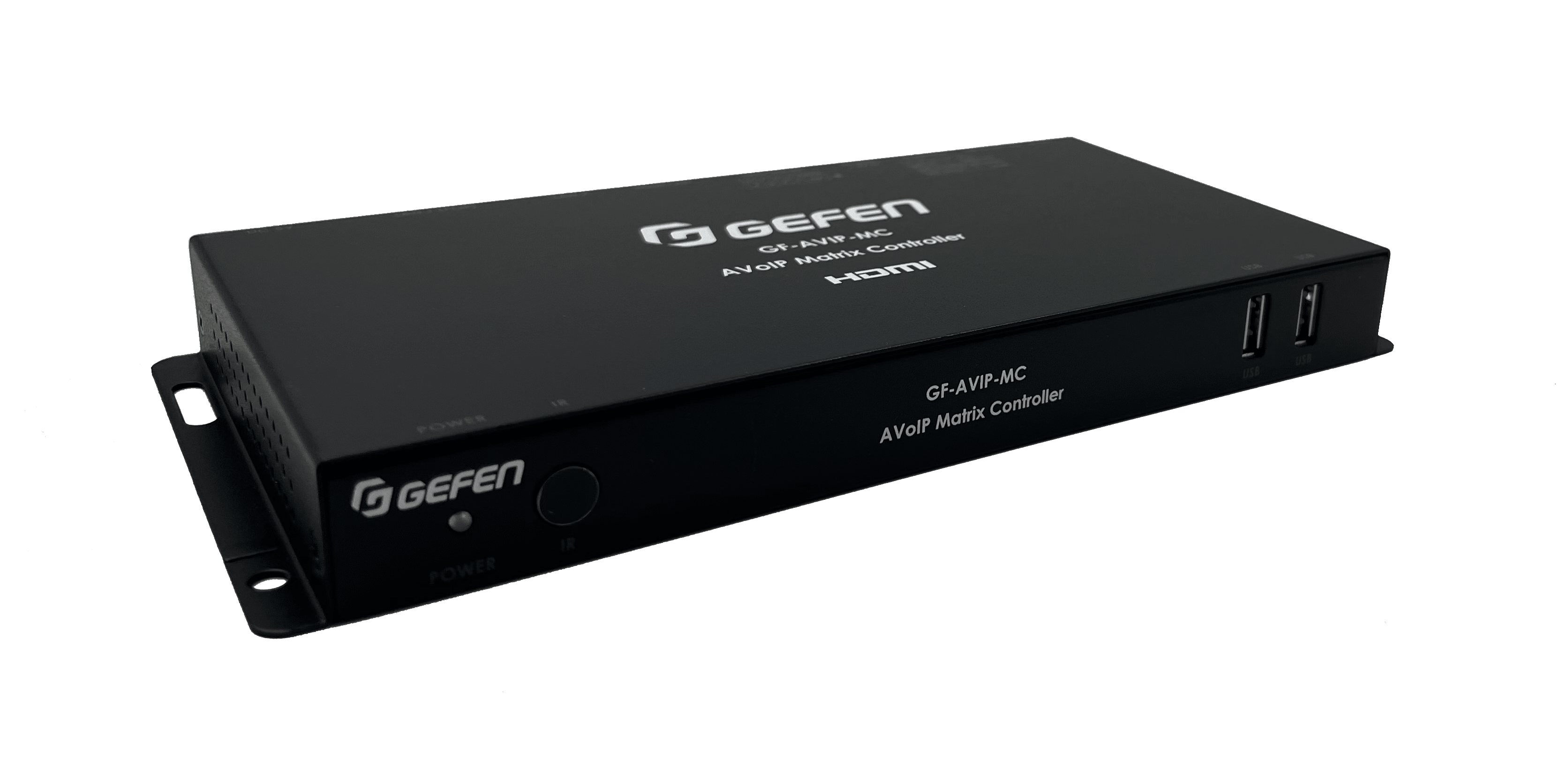

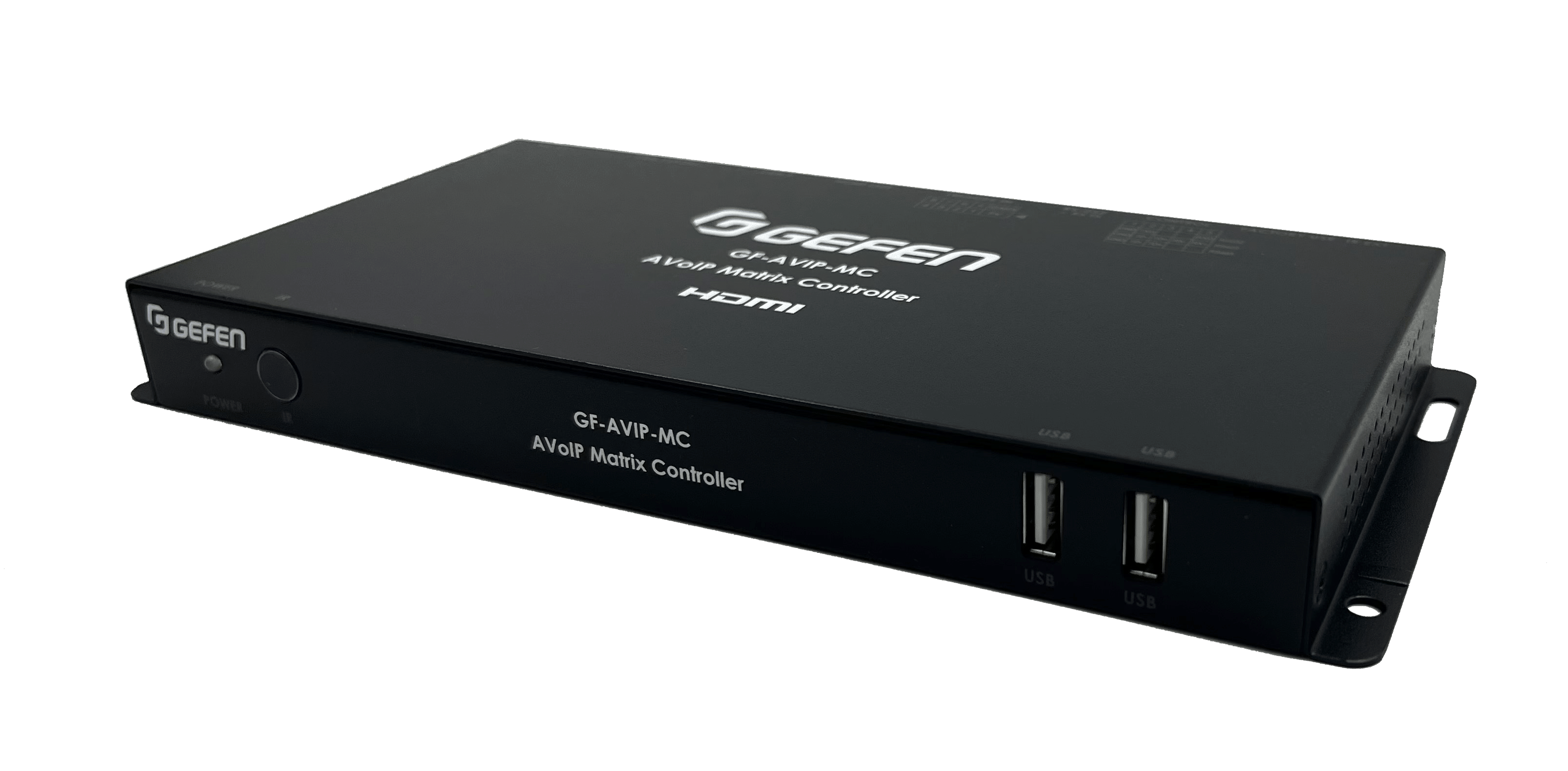

AV over IP Matrix Controller with KVM & Video Wall Control (GF-AVIP-MC)

Name: AV over IP Matrix Controller with KVM & Video Wall Control (GF-AVIP-MC)
Brand: Gefen
SKU: GF-AVIP-MC
Price: 1650.0 USD
Availability: InStock

GF-AVIP-MC

The Gefen GF-AVIP-MC AVoIP Matrix Controller provides a powerful, centralized solution for managing your entire Gefen AV over IP system through a single, intuitive web interface. This robust controller simplifies complex setups by enabling comprehensive management of routing selections, matrix switching, and video wall configurations for all connected transmitters and receivers on the network. Ideal for large-scale commercial installations, security surveillance systems, and video wall displays, the GF-AVIP-MC eliminates the need to configure each extender individually, offering a streamlined, scalable, and efficient management platform for your professional AV/IT infrastructure.

$1,650.00

AV over IP Matrix Controller with KVM & Video Wall Control (GF - AVIP - MC) - GF - AVIP - MC - Gefen

Key Features

Centralized System Management: Enables the management and full configuration of multiple Gefen AVoIP extenders from a single WebGUI, eliminating the need to access each unit individually.

Matrix and Video Wall Control: Natively supports the creation and control of complex matrix switching and video wall modes using simple presets within the WebGUI.

Flexible Routing: Supports both point-to-point (unicast) and multi-to-multi (multicast) routing selections for maximum system design flexibility.

Multiple Control Interfaces: Offers versatile system integration with support for control via WebGUI (remote or local), RS-232, Telnet, UDP, and an included IR remote.

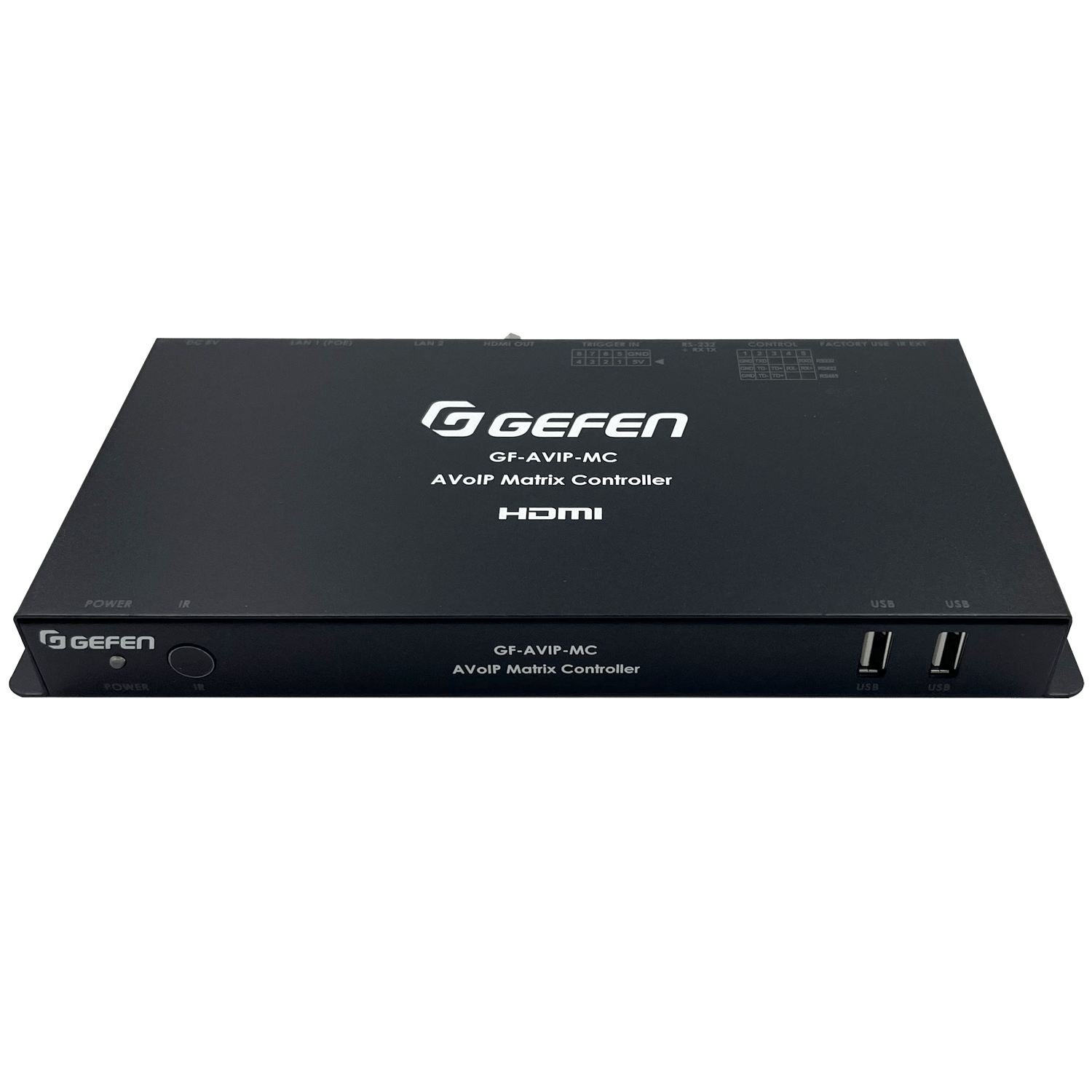

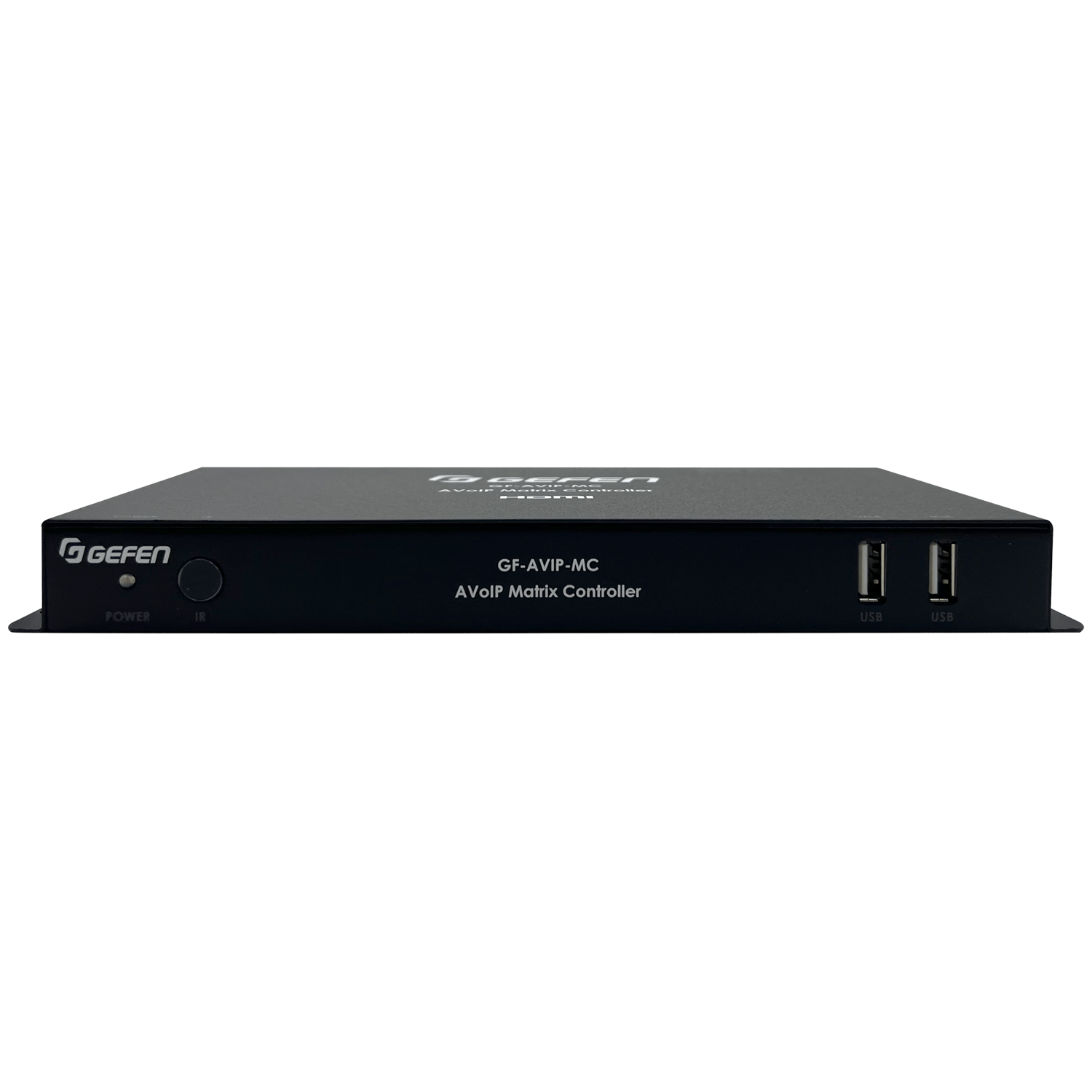

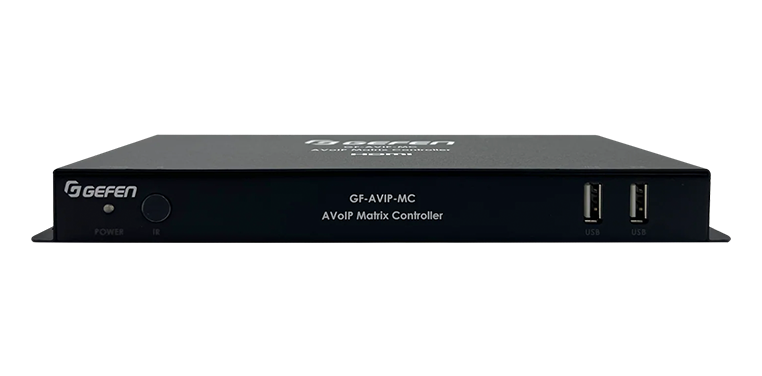

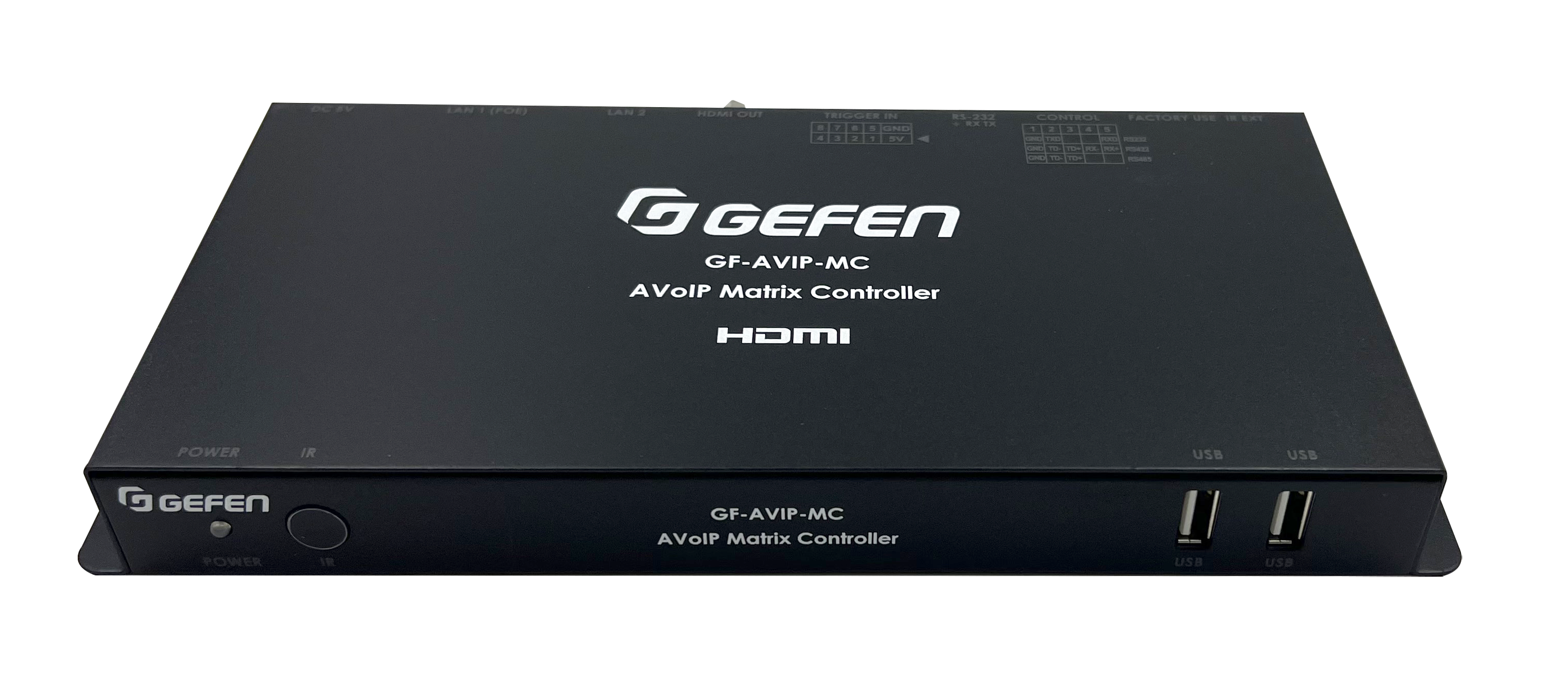

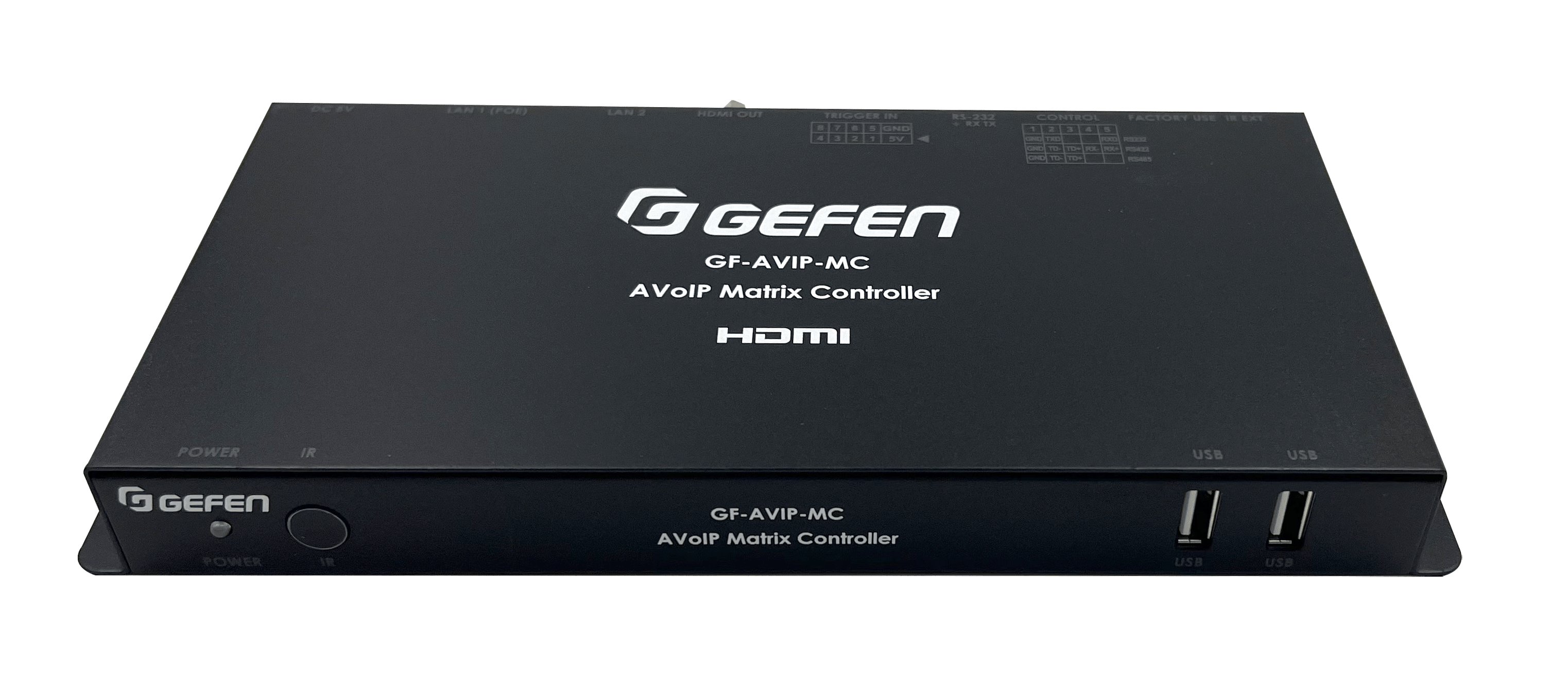

Direct System Access: Features an HDMI output and USB ports for connecting a local monitor, keyboard, and mouse for direct access and control of the management interface without a separate PC.

Preset Triggering: Includes a dedicated trigger input interface that allows for the simple recall of stored configuration presets from a remote keypad or other trigger-based control device.

Dual LAN Ports: Equipped with two LAN ports to manage AVoIP devices on a physically or logically separate network, enhancing security and isolating high-bandwidth video traffic.

Syner-G™ Software Support: Fully compatible with Gefen Syner-G™ software for easy device discovery and initial IP configuration on the network.

How It Works

The Gefen EXT-UHD600-1SC system extends HDMI using a Sender and a Receiver unit to transmit the signal over a long distance. To set it up, connect an HDMI source to the Sender unit's Input port and an HDMI display to the Receiver unit's Output port with HDMI cables. The two units are then linked together with a single strand of SC-terminated OM3 or better multi-mode fiber optic cable, which can span up to 200 meters (660 feet). Both units must be connected to power, using either the included 5V DC power supplies or the provided USB-to-DC power cables. The system is entirely plug-and-play, requiring no configuration. The Sender converts the HDMI signal to an optical signal for transmission, and the Receiver converts it back to HDMI for the connected display, with Link indicator LEDs on both units glowing green to confirm an active connection.

Additional Information

Specifications

Video

HDMI Output Resolution: 1920×1080@60Hz
HDMI Compliance: 1.4

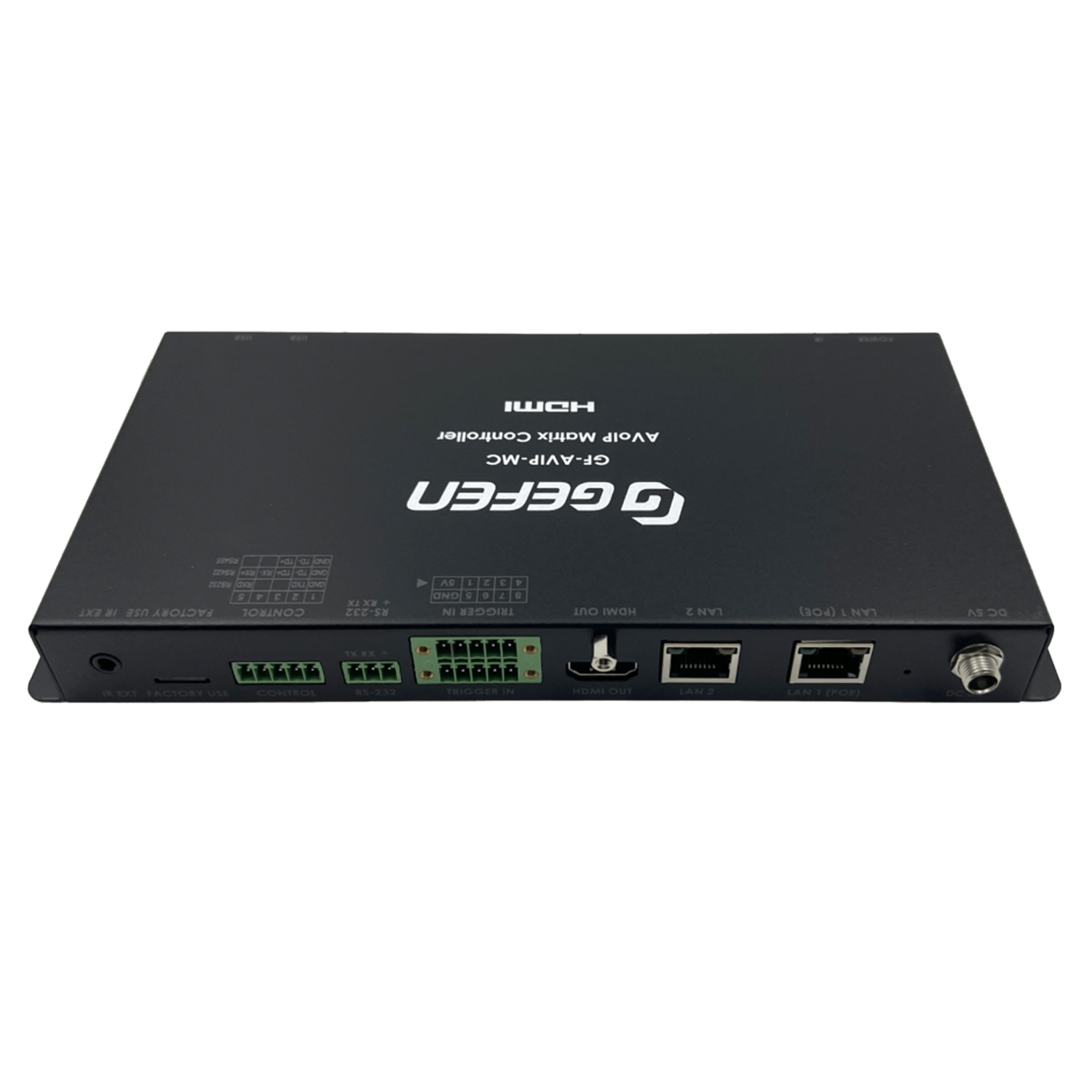

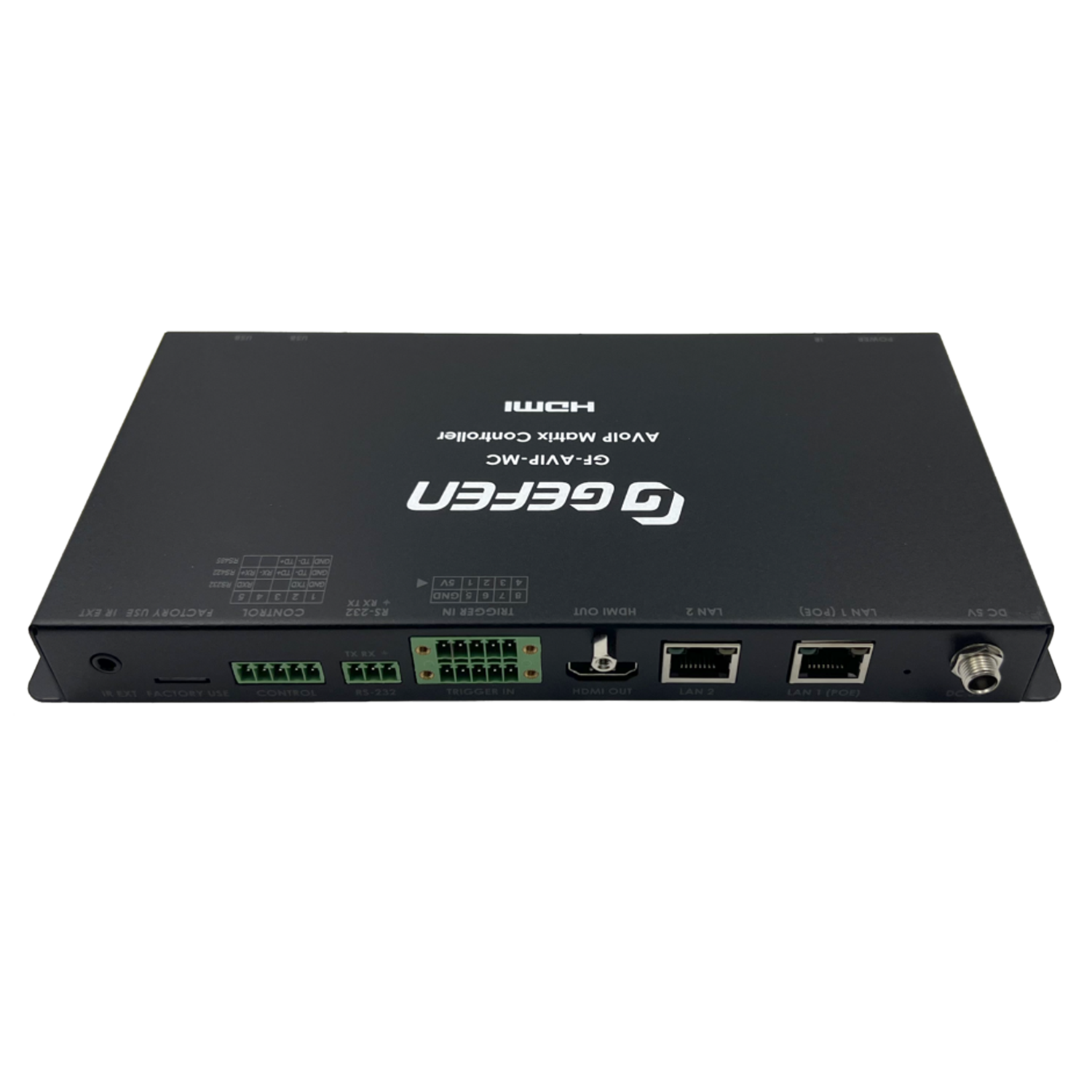

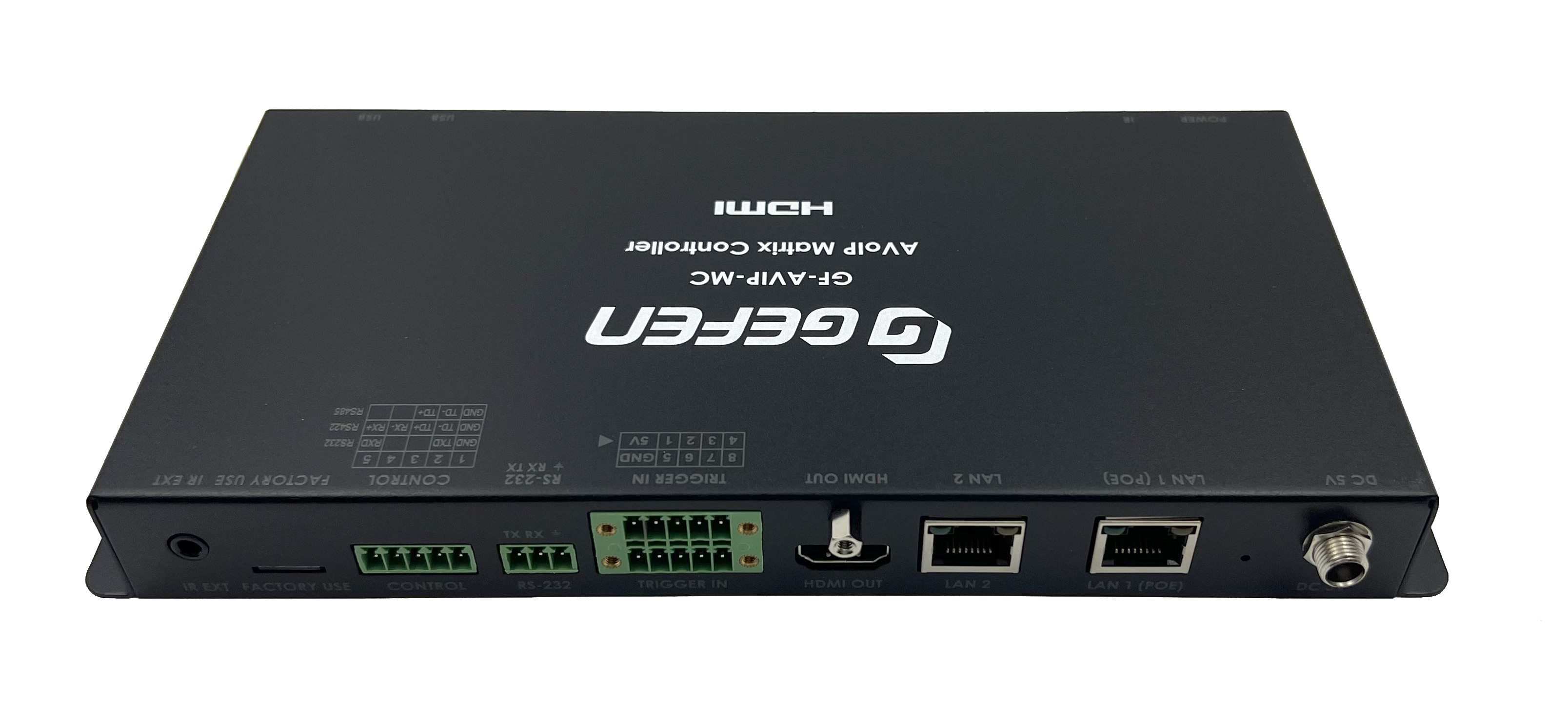

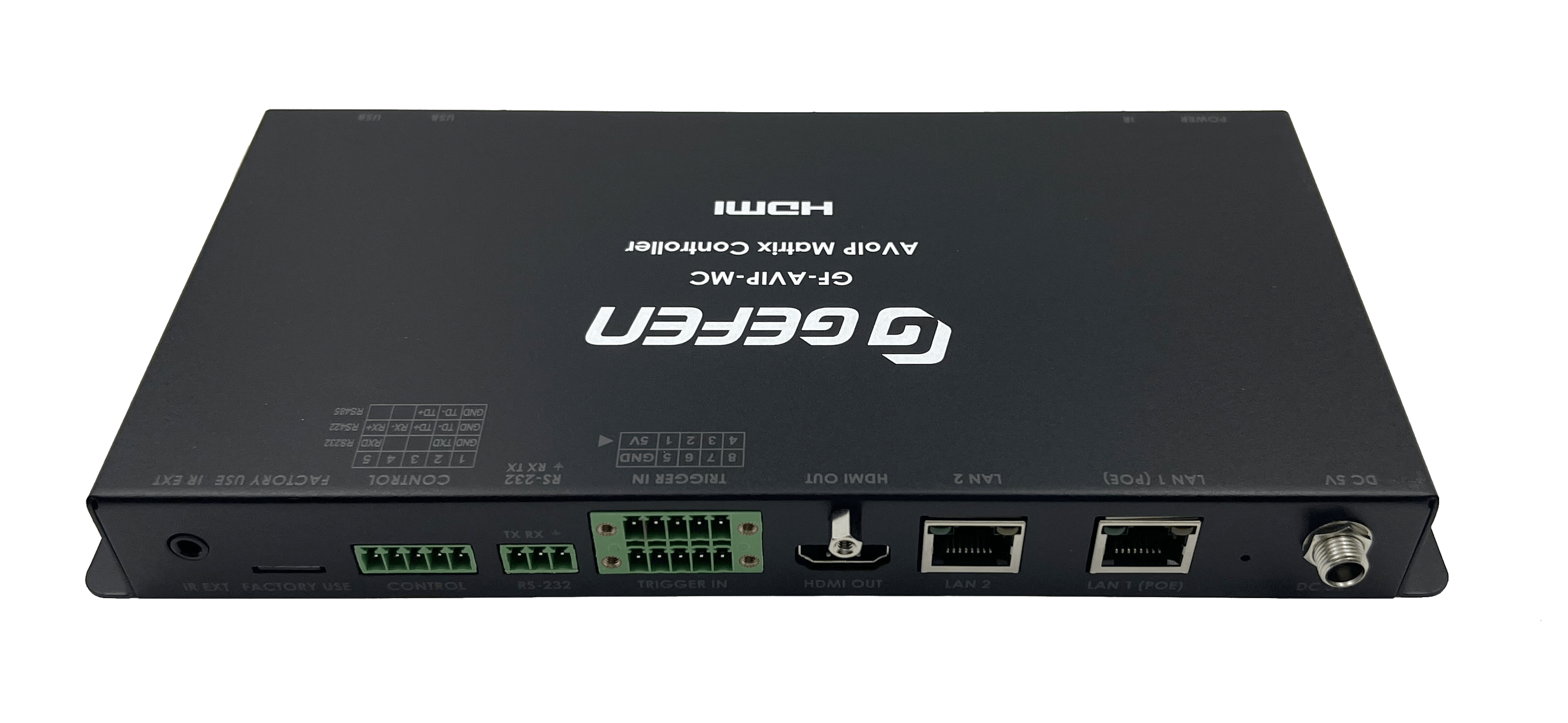

Ports & Interfaces

Output Port: 1x HDMI (Type-A)
Control Ports:
- 1x IR Extender (3.5mm)
- 1x RS-232 (3-pin Terminal Block)
- 8x Trigger (10-pin Terminal Block)
- 2x LAN (RJ-45)
- 2x USB 2.0 (Type A)
Service Port: 1x MicroSD Slot
Reserved Port: 1x RS-232 (5-pin Terminal Block)

Control

IR Frequency: 38kHz
Baud Rate: 115200

Power

Power Supply: 5V/2.6A DC (Locking)
Power Consumption: 14W
ESD Protection (HBM): ±8kV (Air Discharge), ±4kV (Contact Discharge)

Physical

Dimensions (W x H x D):
- 231.5mm×25mm×108mm (Case Only)
- 231.5mm×25mm×117mm (All Inclusive)
Weight: 648g
Chassis Material: Metal (Steel)
Chassis Color: Black

Environmental

Operating Temperature: 0°C - 40°C / 32°F - 104°F
Storage Temperature: -20°C - 60°C / -4°F - 140°F
Relative Humidity: 20-90% RH (Non-condensing)

UPC: 888814007541

System Requirements

An active network connection from a switch or router for control of compatible AV over IP devices.

What's in the Box

1x AVoIP Matrix Controller
1x 5V/2.6A DC Power Adapter (EXT-PS52AIP-LP-6)
1x Terminal Block (3-pin)
3x Terminal Block (5-pin)
1x 3.5mm to IR Extender Cable (EXT-RMT-EXTIRN)
1x 8 Button Remote Control
1x Shockproof Feet (Set of 4)
1x Quick Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.
