Digital Audio Decoder - Dolby Digital 5.1 to Analog Converter with S/PDIF and TOSLINK Inputs (GTV-DD-2-AA)

GTV-DD-2-AA

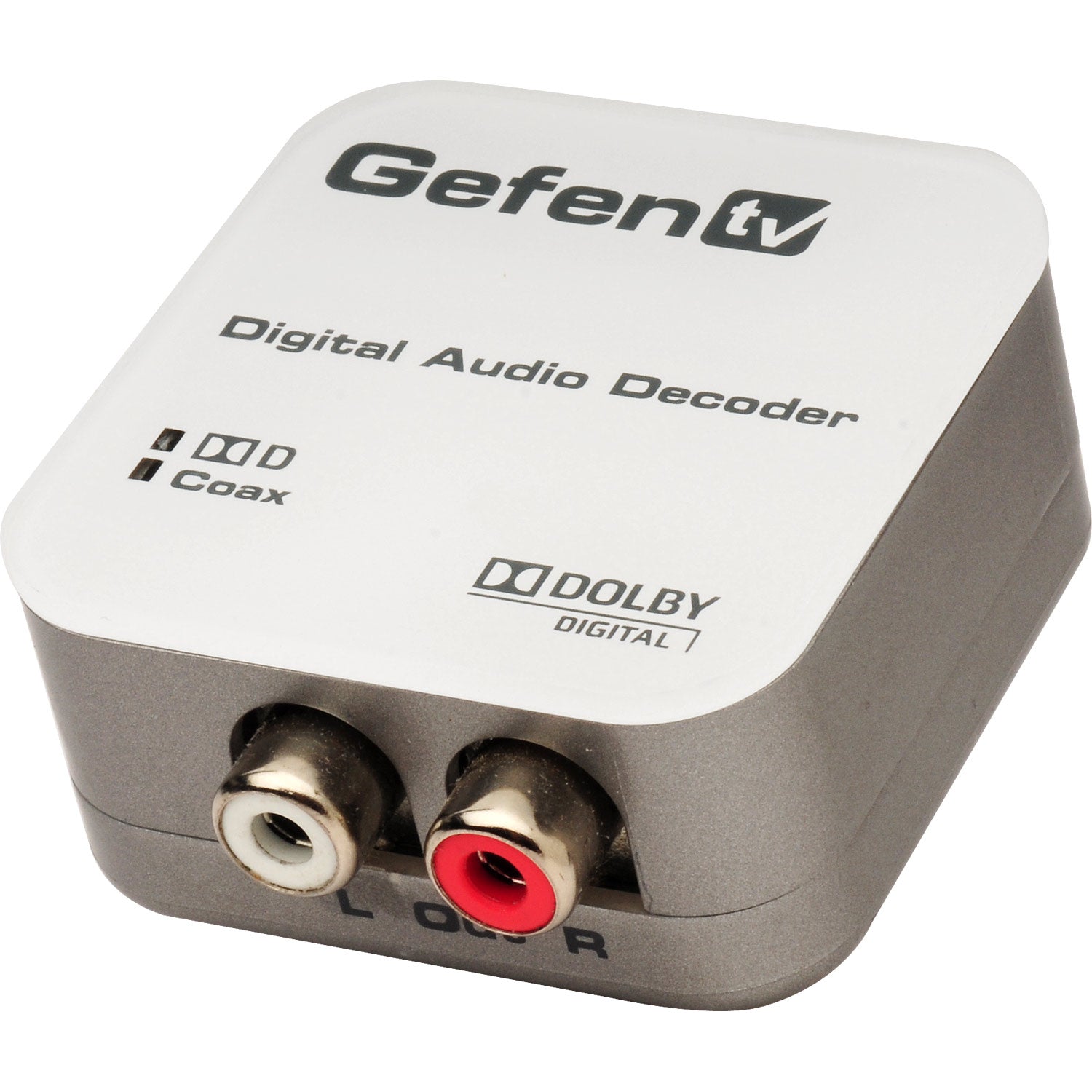

The GefenTV Digital Audio Decoder provides seamless conversion of Dolby Digital multichannel audio (up to 5.1 channels) from S/PDIF or TOSLINK digital audio sources to L/R analog audio output. This professional-grade digital to analog audio converter eliminates the need for additional costly equipment, allowing you to connect digital audio sources such as DVD players, CD players, and digital computer audio directly to your legacy analog sound system. With built-in digital interpolation filtering and high-quality DAC conversion, this compact decoder preserves your current audio investment while delivering crystal-clear analog audio output.
$191.10
Digital Audio Decoder - Dolby Digital 5.1 to Analog Converter with S/PDIF and TOSLINK Inputs (GTV - DD - 2 - AA) - GTV - DD - 2 - AA - Gefen
Digital Audio Decoder - Dolby Digital 5.1 to Analog Converter with S/PDIF and TOSLINK Inputs (GTV - DD - 2 - AA) - GTV - DD - 2 - AA - Gefen
Digital Audio Decoder - Dolby Digital 5.1 to Analog Converter with S/PDIF and TOSLINK Inputs (GTV - DD - 2 - AA) - GTV - DD - 2 - AA - Gefen
Digital Audio Decoder - Dolby Digital 5.1 to Analog Converter with S/PDIF and TOSLINK Inputs (GTV - DD - 2 - AA) - GTV - DD - 2 - AA - Gefen
Digital Audio Decoder - Dolby Digital 5.1 to Analog Converter with S/PDIF and TOSLINK Inputs (GTV - DD - 2 - AA) - GTV - DD - 2 - AA - Gefen
Digital Audio Decoder - Dolby Digital 5.1 to Analog Converter with S/PDIF and TOSLINK Inputs (GTV - DD - 2 - AA) - GTV - DD - 2 - AA - Gefen
Digital Audio Decoder - Dolby Digital 5.1 to Analog Converter with S/PDIF and TOSLINK Inputs (GTV - DD - 2 - AA) - GTV - DD - 2 - AA - Gefen
Digital Audio Decoder - Dolby Digital 5.1 to Analog Converter with S/PDIF and TOSLINK Inputs (GTV - DD - 2 - AA) - GTV - DD - 2 - AA - Gefen
Digital Audio Decoder - Dolby Digital 5.1 to Analog Converter with S/PDIF and TOSLINK Inputs (GTV - DD - 2 - AA) - GTV - DD - 2 - AA - Gefen
Digital Audio Decoder - Dolby Digital 5.1 to Analog Converter with S/PDIF and TOSLINK Inputs (GTV - DD - 2 - AA) - GTV - DD - 2 - AA - Gefen

Key Features

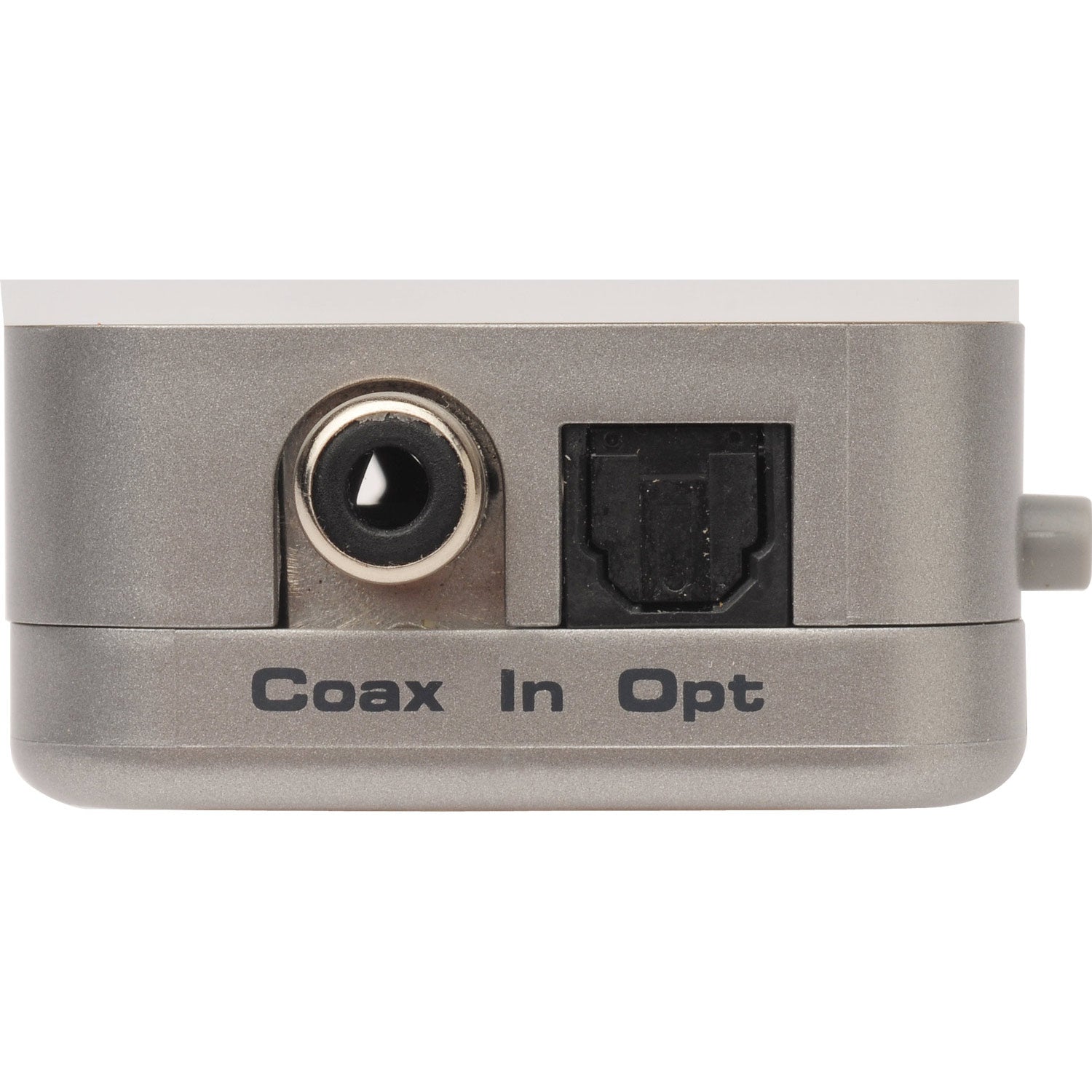

Dual Digital Input Support: Converts S/PDIF coaxial and TOSLINK optical digital audio signals to L/R analog audio output for maximum connectivity flexibility.



High-Quality Audio Processing: Features digital interpolation filter and precision digital-to-analog converter (DAC) for superior audio quality and clarity.



Multichannel Dolby Digital Support: Handles up to 6 channels (5.1 Surround) of Dolby Digital encoded audio with automatic sampling at 32, 44.1, and 48 kHz frequencies.



Professional Audio Specifications: Delivers 24-bit incoming bitstream processing on left and right channels with 1.8V RMS maximum output voltage.



Exceptional Performance Metrics: Provides >90dB signal-to-noise ratio (20Hz-20kHz A-weighting) and <+/-0.5dB frequency response for audiophile-quality output.



Legacy System Integration: Enables connection of modern digital audio sources to existing analog sound systems without requiring additional amplification equipment.



Compact Professional Design: Ultra-compact form factor (1.8" W x 1.8" H x 0.9" D) with 500-ohm output impedance for professional audio applications.

How It Works

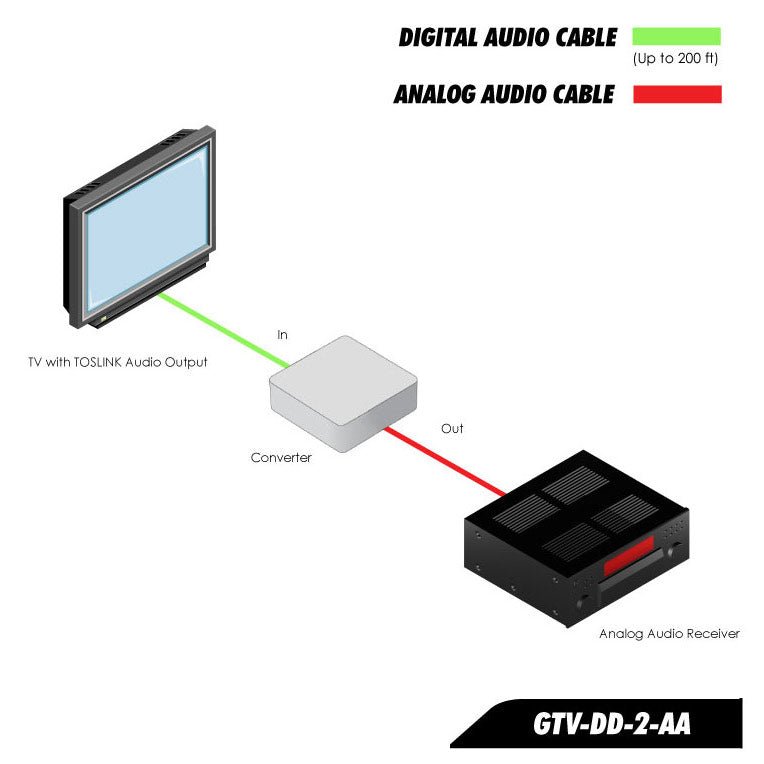

The GefenTV Digital Audio Decoder operates through a simple three-step process for seamless audio conversion. First, connect your digital audio source's coaxial or optical audio output to the corresponding S/PDIF or TOSLINK input on the decoder unit. Next, use the front-panel selector button to choose between coaxial and optical inputs based on your source connection. Finally, connect the decoder's RCA L/R analog audio outputs to your amplified speakers or audio system while powering the unit with the included 5V DC power supply. The decoder automatically detects and converts incoming Dolby Digital or Linear PCM signals, with LED indicators showing the active input (green for coaxial) and signal type (red for Dolby Digital), ensuring optimal audio performance from your digital sources to your analog sound system.

Additional Information

Specifications

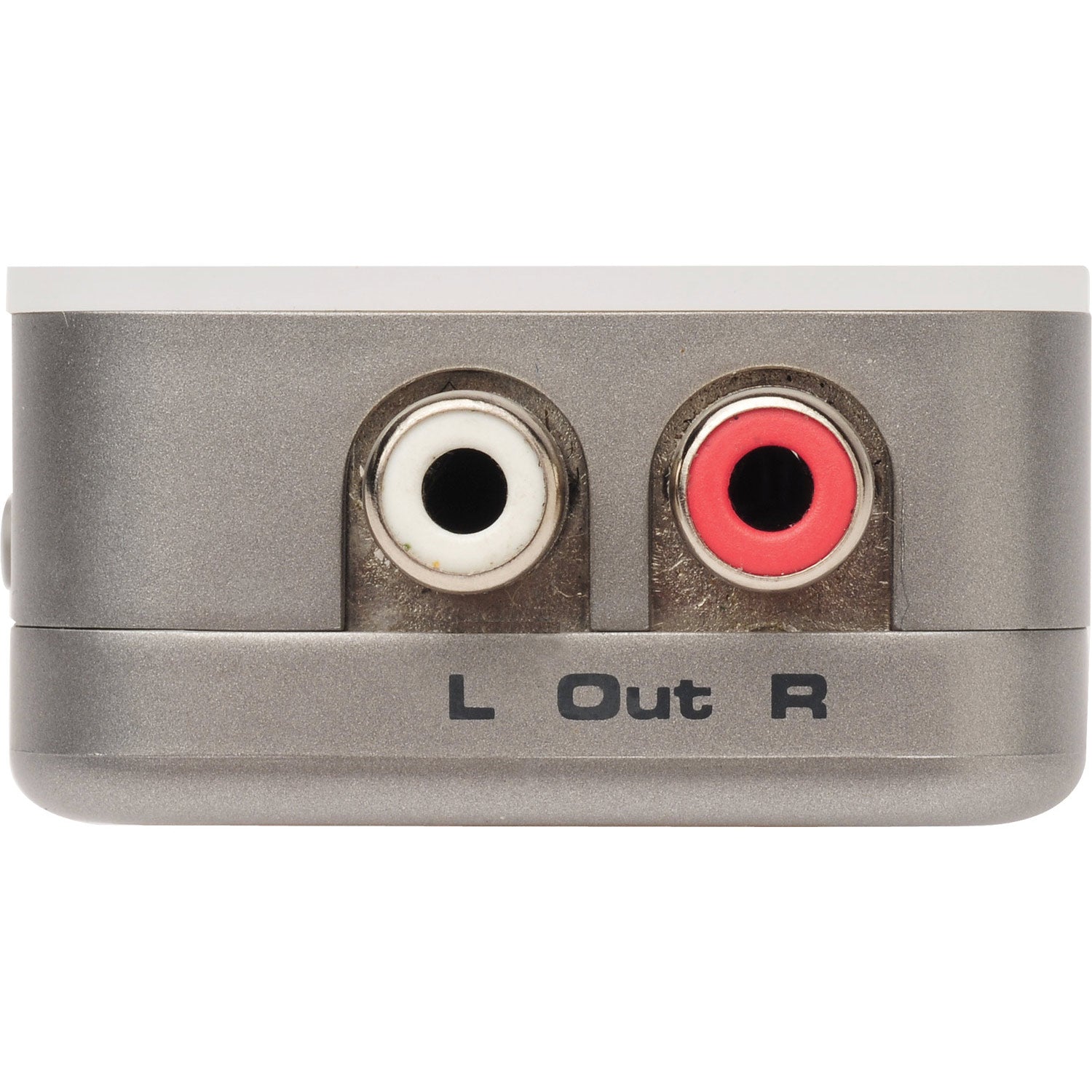

Audio Outputs: Analog L/R, RCA-type connectors
Audio Processing: Digital interpolation filter and digital-to-analog converter (DAC)
Supported Formats: Linear PCM and Dolby Digital (up to 5.1 channels/6 channels)
Sampling Frequencies: Auto-detection at 32, 44.1, 48 kHz
Bit Depth: 24-bit incoming bitstream on left and right channels
Output Impedance: 500 Ohms
Output Voltage: 1.8V RMS @ Max Input (0dBFS)
Frequency Response: <+/-0.5dB
Signal-to-Noise Ratio: >90dB (20Hz - 20kHz A-Weighting)

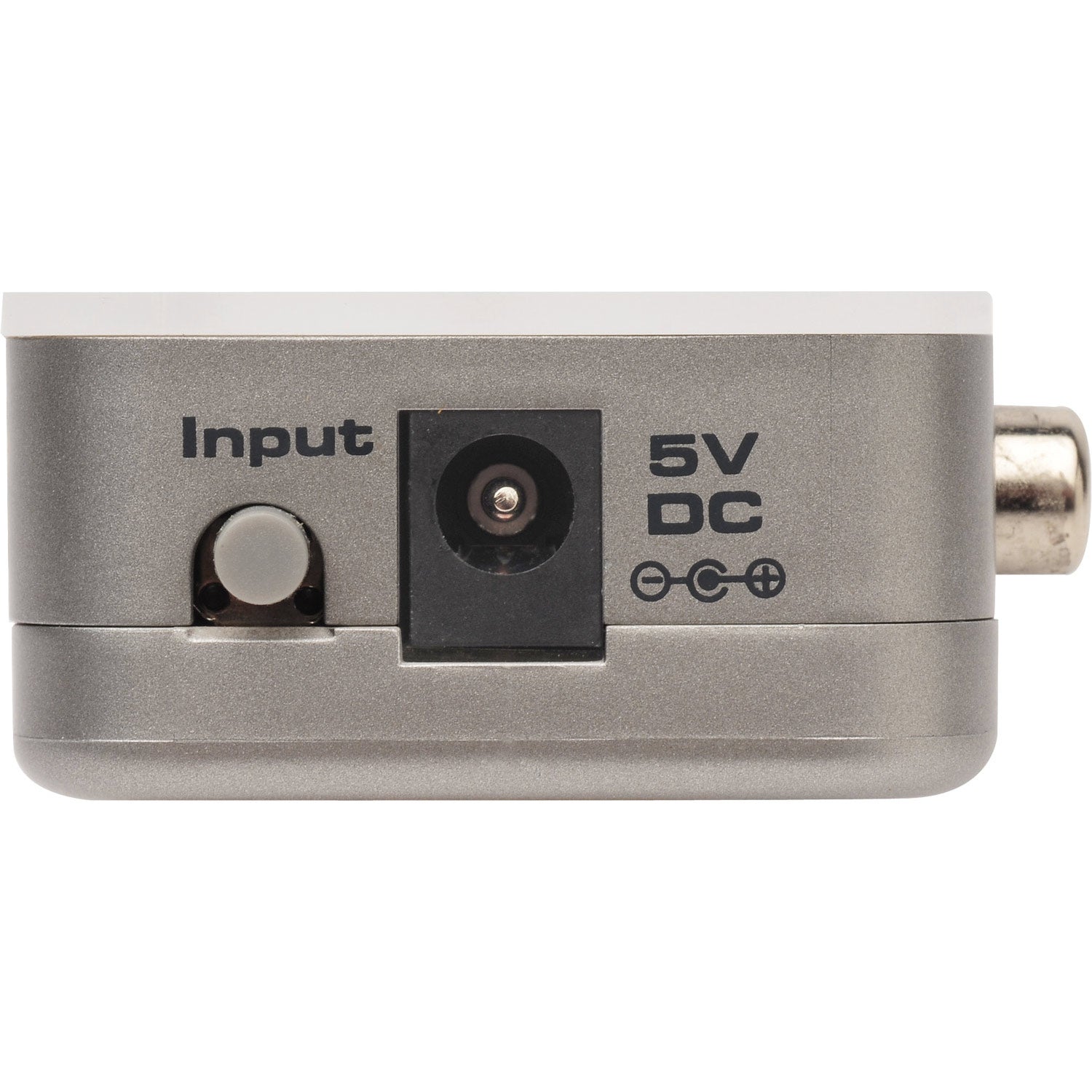

Power Requirements: 5V DC
Power Consumption: 5W maximum
Operating Temperature: 0°C - 70°C (32°F - 158°F)
Dimensions: 1.8" W x 1.8" H x 0.9" D
Weight: 1 lb. shipping weight

UPC: 845344007168

System Requirements

  • Digital audio source with coaxial S/PDIF or TOSLINK optical audio output
  • Powered speakers or amplified audio system with RCA analog inputs
  • AC power outlet for included 5V DC power supply
  • Appropriate audio cables (coaxial, optical, or RCA as needed)
  • Compatible with DVD players, CD players, digital computer audio, and other Dolby Digital sources

What's in the Box

(1) GefenTV Digital Audio Decoder (Model: GTV-DD-2-AA)

(1) 5V DC Power Supply

(1) User Manual

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen GTV-DD-2-AA Datasheet
Gefen GTV-DD-2-AA Manual
Gefen GTV-DD-2-AA Declaration of Conformity
