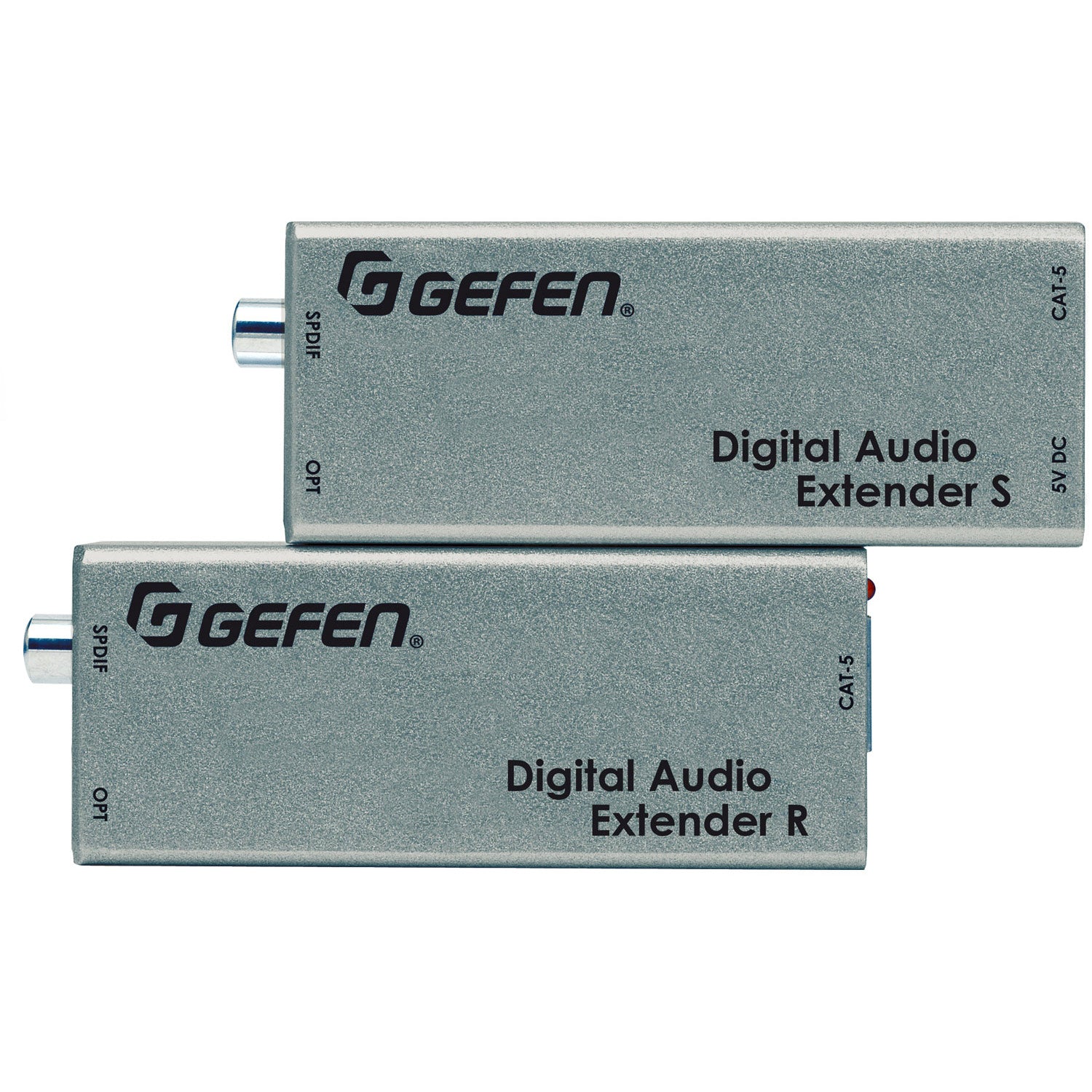

Digital Audio Extender for S/PDIF & TOSLINK over CAT-5e (EXT-DIGAUD-141)

EXT-DIGAUD-141

The Gefen Digital Audio Extender provides reliable, long-distance extension for your digital audio sources. This powerful system transmits both S/PDIF and TOSLINK signals with zero degradation over a single CAT-5e cable, reaching distances up to 330 feet (100 meters). Supporting multichannel formats such as Dolby® Digital 5.1 and DTS, the EXT-DIGAUD-141 is ideal for professional AV installations where source equipment must be located in a remote or secured rack without compromising performance. It delivers pristine, clear digital audio as if directly connected, offering a streamlined and robust solution for any high-performance audio system.
$281.40
Digital Audio Extender for S/PDIF & TOSLINK over CAT - 5e (EXT - DIGAUD - 141) - EXT - DIGAUD - 141 - Gefen
Digital Audio Extender for S/PDIF & TOSLINK over CAT - 5e (EXT - DIGAUD - 141) - EXT - DIGAUD - 141 - Gefen
Digital Audio Extender for S/PDIF & TOSLINK over CAT - 5e (EXT - DIGAUD - 141) - EXT - DIGAUD - 141 - Gefen
Digital Audio Extender for S/PDIF & TOSLINK over CAT - 5e (EXT - DIGAUD - 141) - EXT - DIGAUD - 141 - Gefen
Digital Audio Extender for S/PDIF & TOSLINK over CAT - 5e (EXT - DIGAUD - 141) - EXT - DIGAUD - 141 - Gefen
Digital Audio Extender for S/PDIF & TOSLINK over CAT - 5e (EXT - DIGAUD - 141) - EXT - DIGAUD - 141 - Gefen
Digital Audio Extender for S/PDIF & TOSLINK over CAT - 5e (EXT - DIGAUD - 141) - EXT - DIGAUD - 141 - Gefen
Digital Audio Extender for S/PDIF & TOSLINK over CAT - 5e (EXT - DIGAUD - 141) - EXT - DIGAUD - 141 - Gefen

Key Features

Long-Distance Audio Extension: Extends any S/PDIF and TOSLINK® digital audio device up to 330 feet (100 meters) from the source.



Multichannel Audio Support: Compatible with various multichannel digital audio formats, including Dolby® Digital 5.1, DTS, and Dolby® TrueHD.



Lossless Digital Transmission: Transmits audio digitally to ensure zero signal loss , supplying clear digital audio over long distances as if the components were connected locally.



Simplified Cabling: Uses a single CAT-5e cable for the extension between the sender and receiver units.



Flexible Device Placement: Streamlines audio installations by allowing source devices to be located in off-site or unseen racks.



Secure Power Connection: Equipped with locking power supplies to ensure a stable connection.

How It Works

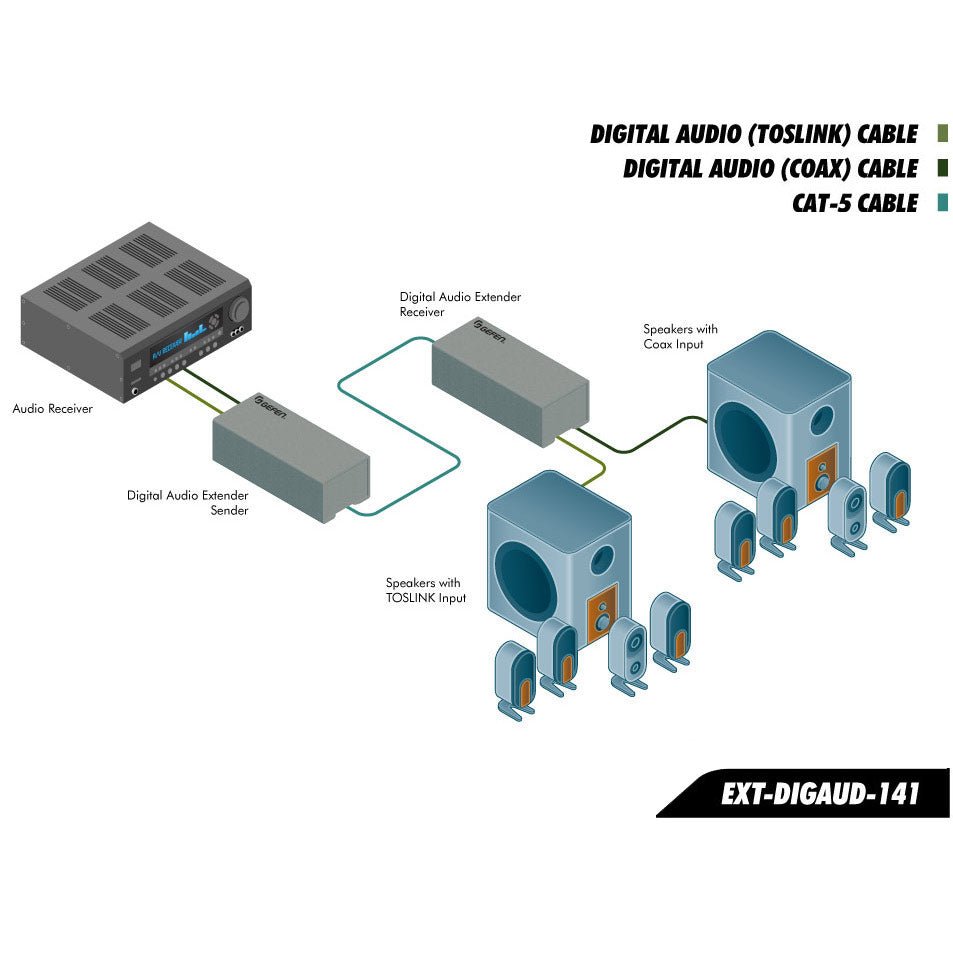

The Gefen Digital Audio Extender operates with two main components: a Sender unit and a Receiver unit. To begin, connect your audio source component to either the S/PDIF or TOSLINK input port on the Sender unit. The Sender unit then connects to the Receiver unit via a single CAT-5e cable that can be up to 330 feet (100 meters) long. Finally, connect the Receiver unit to your extended audio component, such as an AV receiver or amplifier. The incoming audio signal is conveniently output on both the S/PDIF and TOSLINK ports of the Receiver unit simultaneously. Power is only required for the Sender unit, as the Receiver is powered over the CAT-5e cable, simplifying the installation at the remote location.

Additional Information

Specifications

Performance

  • Data Transmission Rate: 12.8 Mb/s
  • S/PDIF Performance: 96 kHz
  • TOSLINK Performance: 192 kHz

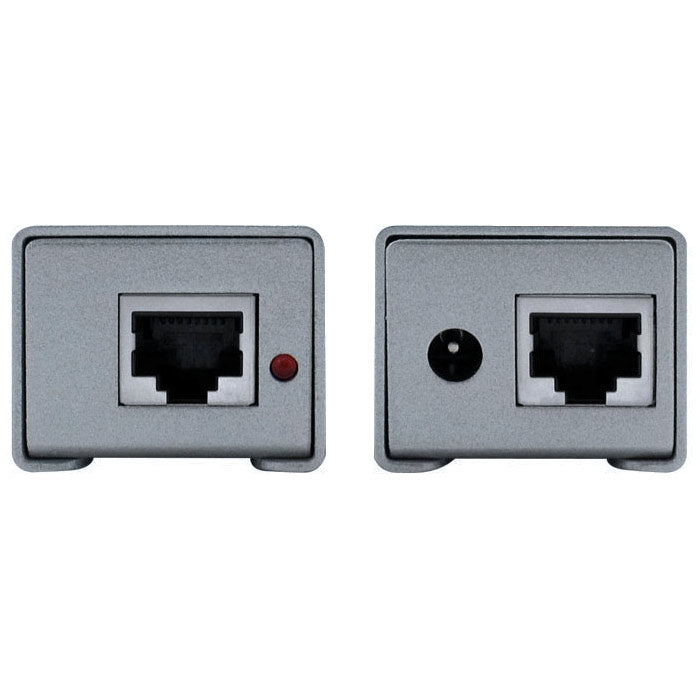

Connectors

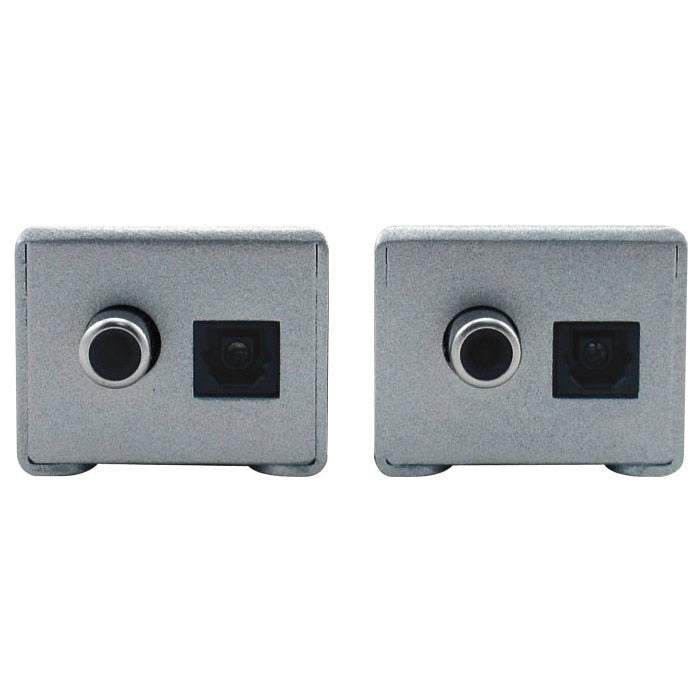

  • Audio Input: 1 x S/PDIF, 1 x TOSLINK®
  • Audio Output: 1 x S/PDIF, 1 x TOSLINK®
  • Link Connector: 1 x RJ-45, Shielded
  • Power Indicator: 1 x red LED

Power

  • Power Supply: 5V DC
  • Power Consumption: 5W (maximum)

Physical

  • Dimensions (W x H x D): 3.8" x 1.2" x 1.4" (96mm x 30mm x 35mm)
  • Shipping Weight: 5 lbs. (2.3 kg)

UPC: 845344001210

System Requirements

CAT-5e or better cable must be used to connect the Sender and Receiver units. The cable length must not exceed

What's in the Box

  • 1 x Digital Audio Extender (Sender unit)
  • 1 x Digital Audio Extender (Receiver unit)
  • 1 x 6 ft. optical cable
  • 1 x 5V DC power supply
  • 1 x Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.
