DisplayPort 1.4 HDBaseT 3.0 Extender 8K/4K with EDID Management & PoC (GF-EXT-DP4-HBT3)

GF-EXT-DP4-HBT3

The Gefen GF-EXT-DP4-HBT3 is a professional-grade DisplayPort 1.4 HDBaseT 3.0 extender, engineered for demanding broadcast, visualization, and control room environments where pixel-perfect fidelity is essential. This solution extends uncompressed 8K at 30Hz or 4K at 120Hz video, audio, and control signals up to 100 meters over a single CAT6a cable, utilizing advanced HDBaseT 3.0 technology and supporting a full 32.4Gbps bandwidth. It features full HDR support (including HDR10, HDR10+, Dolby Vision, and HLG), plus EDID management, RS-232 control, HDCP 2.3 compliance, and bi-directional Power-over-Cable (PoC). Compact, field-upgradable via USB C, and housed in a durable metal enclosure, the GF-EXT-DP4-HBT3 delivers uncompromised performance and effortless integration for evolving AV workflows and future-proof system design.

❗Comes with both Sender and Receiver
$1,482.94
DisplayPort 1.4 HDBaseT 3.0 Extender 8K/4K with EDID Management & PoC (GF - EXT - DP4 - HBT3) - GF-EXT-DP4-HBT3 - Gefen
DisplayPort 1.4 HDBaseT 3.0 Extender 8K/4K with EDID Management & PoC (GF - EXT - DP4 - HBT3) - GF-EXT-DP4-HBT3 - Gefen
DisplayPort 1.4 HDBaseT 3.0 Extender 8K/4K with EDID Management & PoC (GF - EXT - DP4 - HBT3) - GF-EXT-DP4-HBT3 - Gefen
DisplayPort 1.4 HDBaseT 3.0 Extender 8K/4K with EDID Management & PoC (GF - EXT - DP4 - HBT3) - GF-EXT-DP4-HBT3 - Gefen
DisplayPort 1.4 HDBaseT 3.0 Extender 8K/4K with EDID Management & PoC (GF - EXT - DP4 - HBT3) - GF-EXT-DP4-HBT3 - Gefen
DisplayPort 1.4 HDBaseT 3.0 Extender 8K/4K with EDID Management & PoC (GF - EXT - DP4 - HBT3) - GF-EXT-DP4-HBT3 - Gefen

Key Features

Uncompressed 8K/4K Video Extension: Supports DisplayPort 1.4, enabling pristine transmission of 8K at 30Hz or 4K at 120Hz video up to 100 meters over a single CAT6a cable. Maintains true 32.4Gbps bandwidth with zero compression for pixel-perfect fidelity.​



Advanced HDBaseT 3.0 Technology: Utilizes the latest HDBaseT standard, reliably carrying audio, video, control, and PoC (Power-over-Cable) signals, minimizing cable clutter and simplifying integration.​



EDID Management & HDCP 2.3: Offers robust Extended Display Identification Data (EDID) management and selectable HDCP pass/block settings using DIP switches, ensuring compatibility and trouble-free handshake between sources and displays.​



Professional-Grade Build: Compact, surface-mountable metal enclosure with efficient heat dissipation, engineered for operation in demanding control rooms, broadcast suites, and medical environments.​



Bi-Directional PoC & RS-232 Control: Features power and control signal transmission in both directions, plus bi-directional RS-232 for flexible device management and simplified system design.​



HDR Format Support: Compatible with HDR10, HDR10+, Dolby Vision, and HLG, maintaining dynamic color and contrast for the most demanding AV applications.​



Field-Upgradable Firmware: Equipped with a USB-C port for fast, future-proof updates, guaranteeing ongoing compatibility with evolving hardware ecosystems.

How It Works

The GF-EXT-DP4-HBT3 system consists of a sender and receiver pair, interconnected by a single CAT6a cable. The transmitter accepts a native DisplayPort 1.4 video signal and passes it (uncompressed) along with audio, EDID, and RS-232 control data to the receiver up to 100 meters away. By leveraging HDBaseT 3.0 technology, the entire signal chain is preserved across this distance, eliminating the need for signal boosters or additional cabling.



During installation, setup is streamlined through simple DIP switch configuration for EDID management and HDCP, ensuring source devices identify the display’s capabilities correctly and locking in handshake compatibility. Bi-directional Power-over-Cable further reduces clutter by enabling powered operation from either end, and RS-232 control lines allow remote device or matrix command pass-through, perfect for centralized AV control environments.



This robust, professional solution ensures pixel-perfect video with HDR and advanced protection standards, all inside a compact metal chassis ideal for mounting behind monitors, in server racks, or above ceilings. Field-upgradable firmware protects your investment from future compatibility issues, delivering reliability for studios, visualization suites, and high-performance installations.

Additional Information

Specifications

Video Bandwidth

  • 32.4Gbps (uncompressed DisplayPort 1.4 signal)

Video Resolution

  • 8K at 30Hz (7680 x 4320)
  • 4K at 120Hz (3840 x 2160)

Extension Distance

  • Up to 100 meters (330 feet) over single CAT6a cable

Video Connector Type

  • DisplayPort 1.4 Type A, 20-pin female (input & output)

HDBaseT Standard

  • HDBaseT 3.0 – carries video, audio, control, and PoC

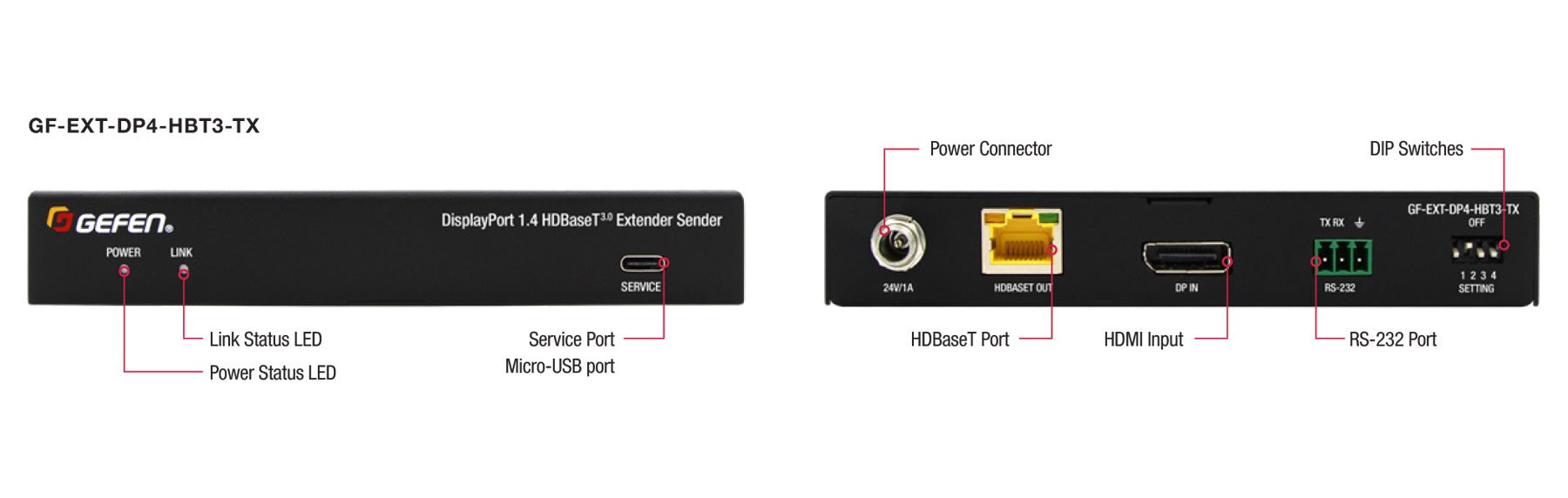

EDID & HDCP Management

  • EDID management (DIP switch-configurable)
  • Selectable HDCP pass/block support (HDCP 2.3)

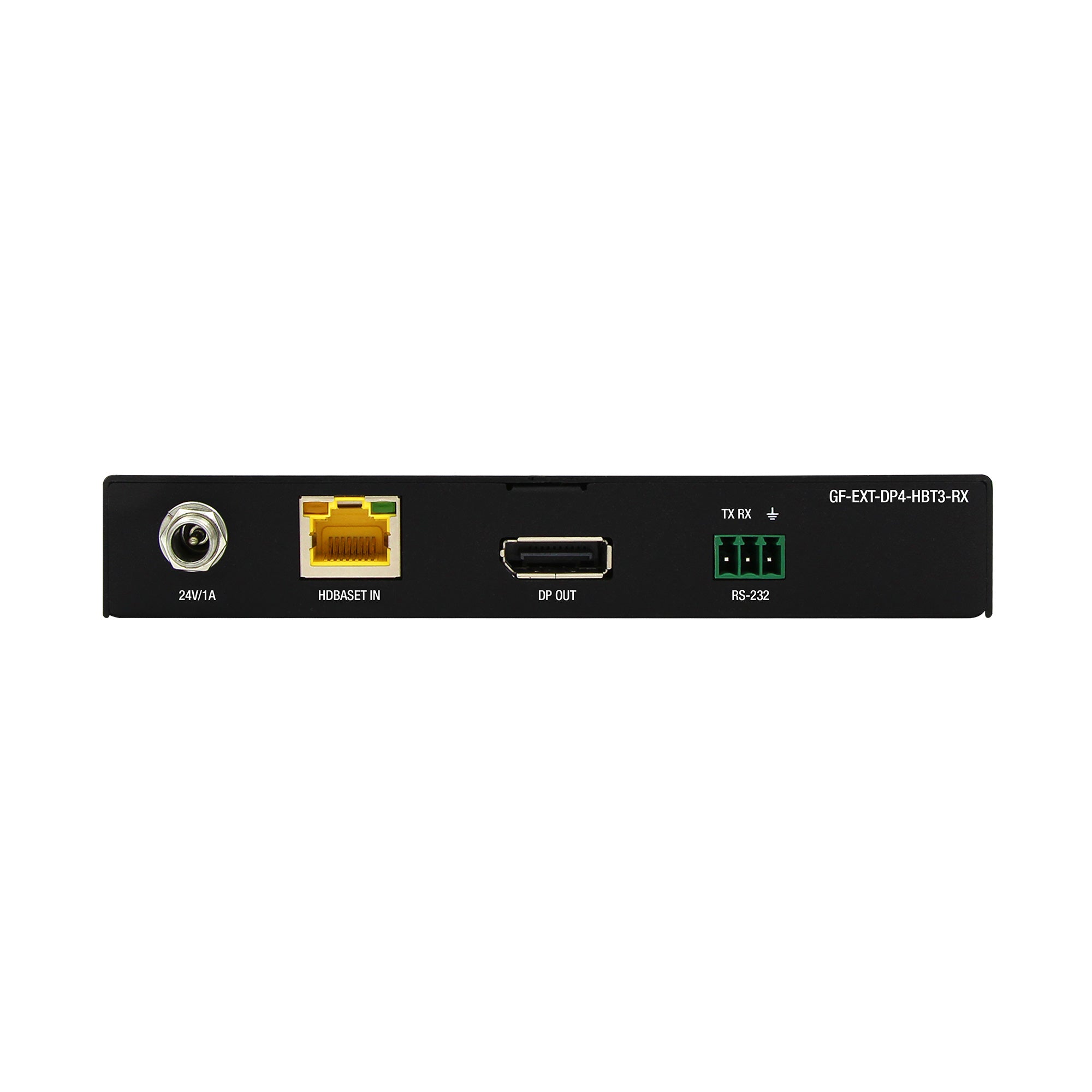

Control Ports

  • RS-232 (3-pin Euroblock, bi-directional)

Power

  • 24V DC, 1A input (locking connector)
  • Bi-directional Power-over-Cable (PoC) support
  • 13W typical consumption

Enclosure & Mounting

  • Metal, surface-mountable design
  • Dimensions: 144mm x 78mm x 23mm (5.67” x 3.07” x 0.91”)

Operating Environment

  • Temperature: 0°C to 50°C (32°F to 122°F)
  • Humidity: 20% to 90% RH, non-condensing

Storage Environment

  • Temperature: -20°C to 60°C (-4°F to 140°F)
  • Humidity: 20% to 90% RH, non-condensing

Firmware Update

  • USB-C port, field-upgradable

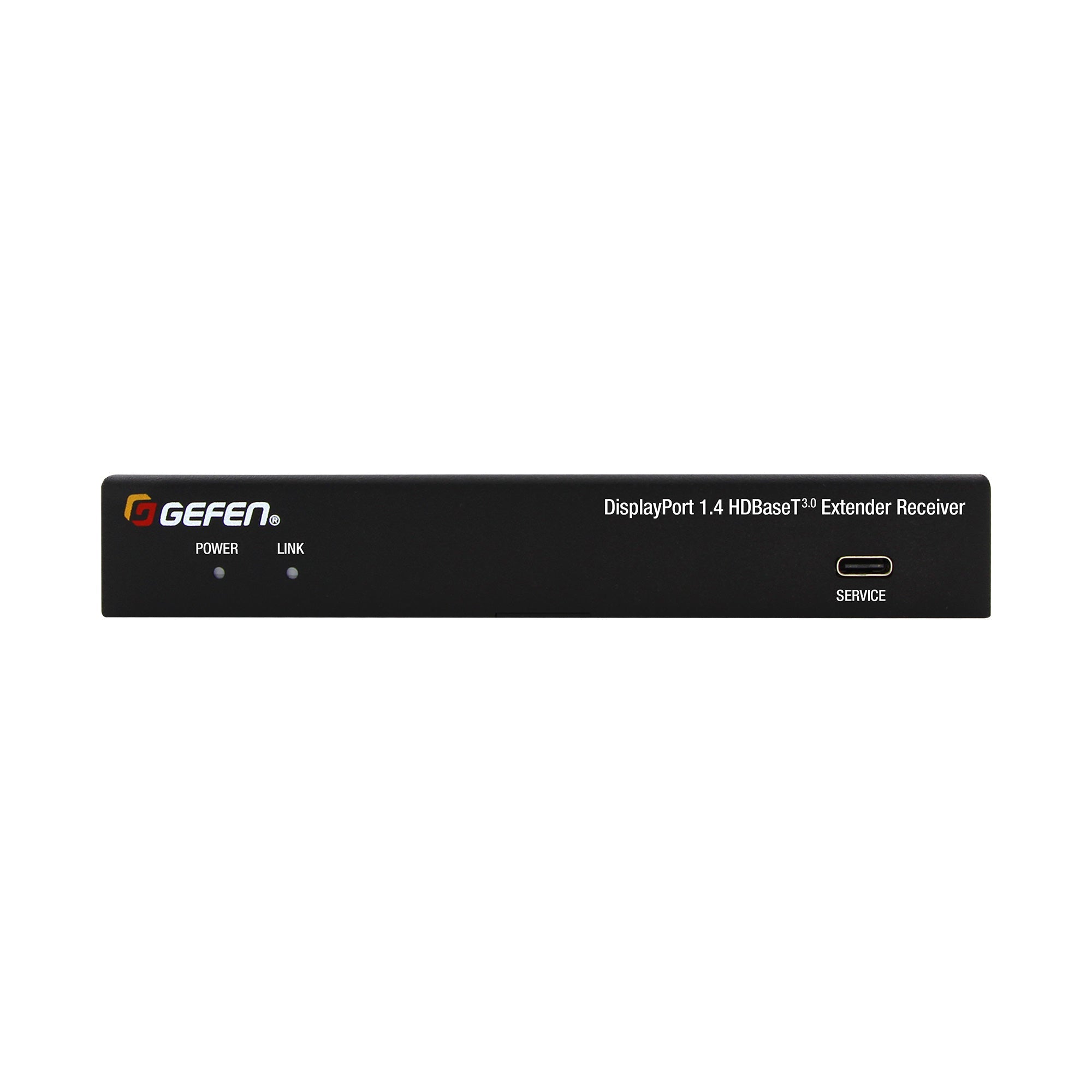

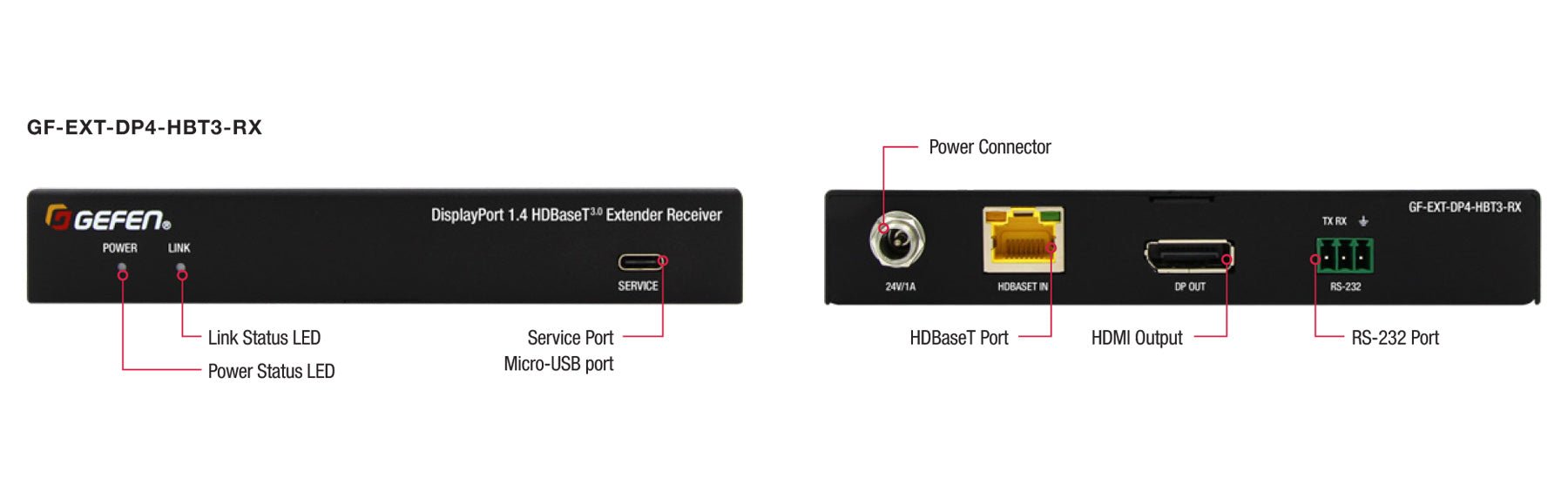

Indicators

  • Power LED (Blue), Link LED (Green)

Reliability

  • MTBF: 50,000 hours

Ideal for...

Broadcast Studios
Delivers uncompressed 8K/4K video, audio, and control over long distances for mission-critical live production and post-production suites.​

Control Rooms / Operations Centers
Enables real-time centralized monitoring and rapid switching between multiple high-resolution displays across expansive facilities.​

Medical Imaging
Preserves crystal-clear video without signal degradation in installations where diagnostic display accuracy is essential.​

Design Visualization / CAD Labs
Supports high-bandwidth graphics for rendering and review stations requiring precise color and resolution fidelity.​

Enterprise AV / Conference Facilities
Simplifies signal extension for boardrooms, auditoriums, and large collaborative spaces demanding robust, flexible AV infrastructure.​

Specific Use Case Examples

  • Extending 8K/4K video from control computers to large display walls up to 100 meters (330 ft) away.​
  • Connecting medical image processors to diagnostic monitors in operating suites with zero compression for uncompromised clarity.​
  • Routing high-resolution CAD workstations to review screens across open office layouts or secure data environments.​
  • Enabling large-format conference displays, ensuring presenters use any device at any room location without signal loss.​

Problems It Solves

  • Eliminates distance and signal degradation issues common to traditional AV cabling solutions, especially in high-resolution applications.​
  • Solves compatibility and handshake failures through advanced EDID management and HDCP selectable controls, ensuring device interoperability.​
  • Reduces cable clutter and installation costs via single-cable PoC and integrated control signal transmission, streamlining complex deployments.​
  • Maintains stable system connectivity (even during display changes) with always-high HPD and re-clocking, preventing disruptions in critical environments.

System Requirements

  • Source device must support DisplayPort 1.4 output
  • Display/monitor must accept DisplayPort 1.4 input
  • CAT6a or better cabling, up to 100 meters (330 feet), required between sender and receiver
  • External 24V DC power supply included (bi-directional Power-over-Cable allows powering from either sender or receiver)
  • RS-232 control support is optional and only needed for remote management functions
  • Installation environment within operating range: 0°C to 50°C (32°F to 122°F) and 20%–90% relative humidity (non-condensing)​

Resources

Gefen GF-EXT-DP4-HBT3 Datasheet

Frequently Asked Questions

What is the Gefen GF-EXT-DP4-HBT3 used for?

It extends uncompressed DisplayPort 1.4 video, audio, and control signals up to 100 meters via a single CAT6a cable, supporting 8K/30Hz and 4K/120Hz resolutions with full HDR support.

How does the GF-EXT-DP4-HBT3 ensure video quality over long distances?

It uses advanced HDBaseT 3.0 technology to maintain zero compression and preserves the full 32.4Gbps bandwidth, delivering pixel-perfect video fidelity without signal degradation.

Does this extender support EDID and HDCP?

Yes, it provides configurable EDID management and selectable HDCP 2.3 pass/block settings via DIP switches to ensure device compatibility and a smooth handshake.

What cables are required for the GF-EXT-DP4-HBT3?

A single CAT6a or better cable is used to transmit video, audio, control, and power signals, supporting distances up to 100 meters (330 feet).

Can I power the extender over the same cable?

Yes, the GF-EXT-DP4-HBT3 supports bi-directional Power-over-Cable (PoC). This feature allows the extender to be powered from either the sender or receiver unit through the single CAT6a cable. As a result, only one external 24V DC power supply is required at either end, simplifying installation and reducing the number of power connections needed. However, PoC does not eliminate the need for an external power source entirely; it just allows power to travel over the CAT6a cable to the opposite unit. This capability helps minimize cable clutter and installation complexity.

Is the firmware of the GF-EXT-DP4-HBT3 upgradable?

Yes, it features a USB-C port for easy, field-upgradable firmware to maintain compatibility with evolving technologies.

What environments are ideal for this extender?

It’s designed for broadcast studios, control rooms, medical imaging, design visualization labs, and enterprise AV spaces requiring uncompromised video and control signal extension.

Does the extender include control signal passthrough?

Yes, bi-directional RS-232 control support allows for remote device management and integration with centralized AV control systems.

What are the power requirements for the GF-EXT-DP4-HBT3?

 It requires an external 24V DC power supply or can operate via Power-over-Cable (PoC) through the HDBaseT connection.

How do I configure EDID and HDCP settings on the extender?

Configuration is done with DIP switches on the units, allowing easy control of EDID management and HDCP modes to optimize compatibility with connected devices.
