DisplayPort EDID Detective with EDID Control & 8K Support (GF-EDD-DP)

GF-EDD-DP

The Gefen DisplayPort EDID Detective (GF-EDD-DP) keeps your workstations and AV systems talking by capturing and storing display EDID information, then maintaining stable communication even when displays are powered off, switched, or routed through complex systems. Fully compliant with DisplayPort 1.4 and HDCP 2.3/2.2/1.x, it maintains reliable communication up to 8K@30Hz and 4K@60Hz with 32.4Gbps bandwidth (HBR3). Supports HDR10, HDR10+, Dolby Vision, and HLG video formats, plus immersive audio including Dolby Atmos and DTS:X. Features five factory-loaded Gefen EDID profiles and three user-programmable memory banks via USB-C for ultimate flexibility. Auxiliary channel re-clocking and active HPD/Link Training eliminate blank screens, mismatched resolutions, and signal loss. Compact metal design (90mm x 72mm x 20mm) ideal for field deployment or rack installations. Write-enable switch protects stored EDIDs from accidental overwriting in critical workflows.
$399.00
DisplayPort EDID Detective with EDID Control & 8K Support (GF - EDD - DP) - GF-EDD-DP - Gefen
DisplayPort EDID Detective with EDID Control & 8K Support (GF - EDD - DP) - GF-EDD-DP - Gefen
DisplayPort EDID Detective with EDID Control & 8K Support (GF - EDD - DP) - GF-EDD-DP - Gefen
DisplayPort EDID Detective with EDID Control & 8K Support (GF - EDD - DP) - GF-EDD-DP - Gefen
DisplayPort EDID Detective with EDID Control & 8K Support (GF - EDD - DP) - GF-EDD-DP - Gefen
DisplayPort EDID Detective with EDID Control & 8K Support (GF - EDD - DP) - GF-EDD-DP - Gefen

Key Features

8K & 4K Resolution Support: Maintains reliable DisplayPort 1.4 communication up to 8K@30Hz and 4K@60Hz with 32.4Gbps bandwidth (HBR3). Fully compliant with HDCP 2.3/2.2/1.x standards, ensuring reliable interoperability across modern displays and sources.



Advanced EDID Management: Includes five factory-loaded Gefen EDID profiles optimized for common display configurations, plus three user-programmable memory banks. Quickly adapt to unique system setups or troubleshooting scenarios without reprogramming every time you switch displays.​



Active Signal Integrity: Auxiliary channel re-clocking and active HPD (Hot Plug Detect)/Link Training maintain proper handshaking even when the display is disconnected, eliminating intermittent signal loss, flicker, or blank screens during system reconfiguration.​



Premium Format Preservation: Supports HDR10, HDR10+, Dolby Vision, and HLG video formats while preserving immersive audio including Dolby Atmos® and DTS:X™. Ensures your high-end content maintains full fidelity through complex routing and switching scenarios.​



USB-C Programmability: Easy EDID programming, firmware updates, and field service access via USB-C port. The USB-C connection enables flexible EDID management and keeps the unit adaptable to evolving AV systems.



Secure Configuration Protection: Two-position write-enable switch protects stored EDIDs from accidental overwriting during operation. Once configured for critical installations, lock settings to ensure reliable, repeatable performance in critical workflows.



Field-Ready Design: Compact metal enclosure (90mm × 72mm × 20mm) with surface-mount capability fits seamlessly into rack installations or field deployments. Bi-color LED indicators provide instant visual confirmation of power, HPD status, and active EDID bank selection.

How It Works

Setup (Plug-and-Play)
Connect the DisplayPort Detective inline between your source device and display using standard DisplayPort cables. Power via included 5V/1A adapter or USB bus power during programming. The unit automatically captures and stores the connected display's EDID information upon first connection.​​



Operation (Automatic Maintenance)
Once programmed, the Detective maintains continuous EDID communication with your source, even when the display is powered off, switched away, or disconnected. Your computer always "sees" the display configuration, eliminating resolution resets, window repositioning, or black screen delays when displays come back online.​​



Customization (Advanced Control): Select from five factory EDID profiles using the 4-position DIP switch for instant compatibility with common display types. For custom requirements, connect via USB-C to program one of three user-programmable memory banks, allowing quick adaptation to unique system configurations. Enable the write-protect switch to lock configurations in production environments.

Additional Information

Specifications

Video Support

  • Maximum Resolution
    • 8K@30Hz (7680 x 4320)
    • 4K@60Hz (3840 x 2160)
  • Video Bandwidth: 32.4Gbps (HBR3)
  • HDR Formats
    • HDR10
    • HDR10+
    • Dolby Vision
    • HLG (Hybrid Log-Gamma)
  • Compliance Standards
    • DisplayPort 1.4
    • HDCP 2.3 / 2.2 / 1.x

Connectivity

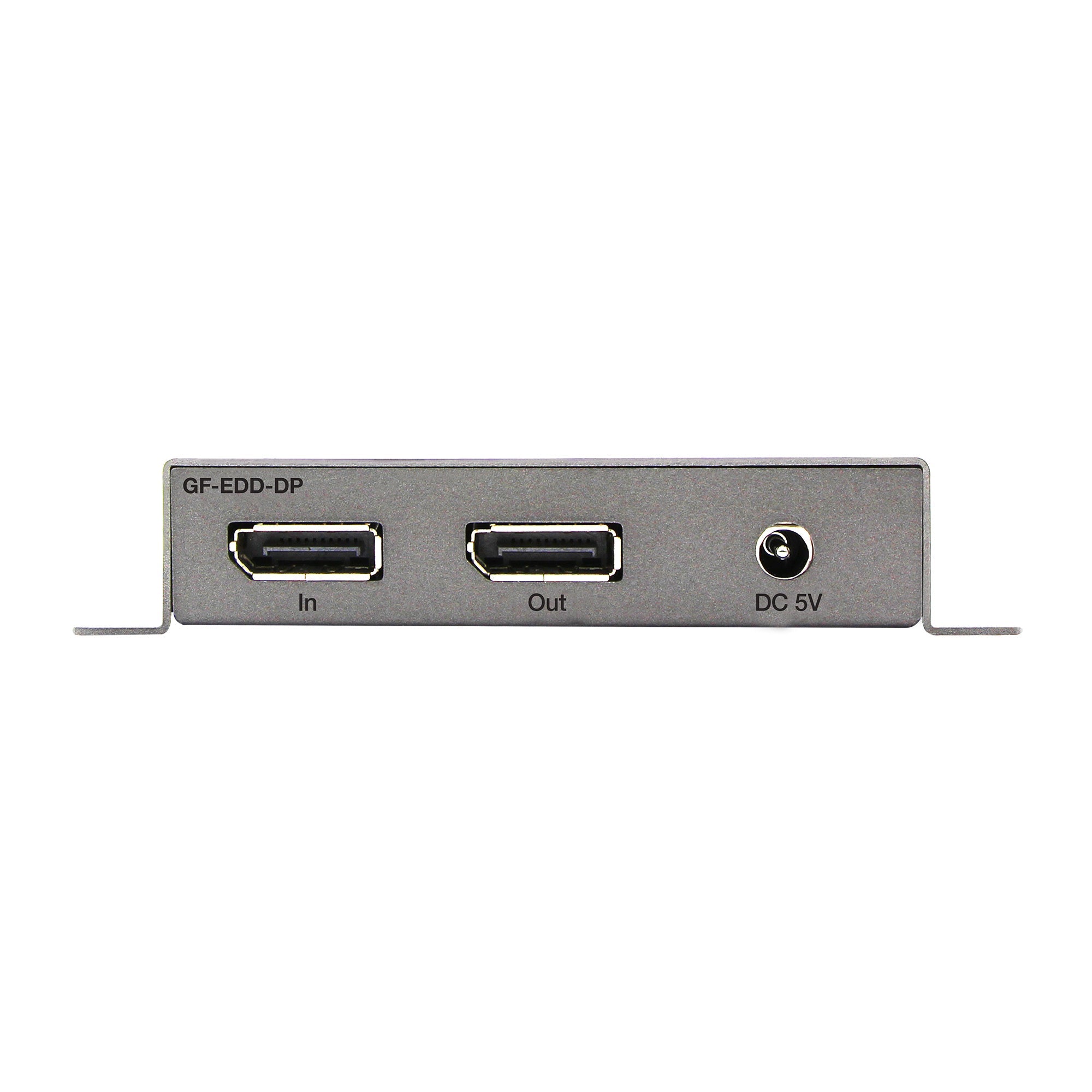

  • Video Input: (1) DisplayPort 20-pin female connector
  • Video Output: (1) DisplayPort 20-pin female connector
  • Control Port: (1) USB-C port for EDID programming and firmware updates
  • Power Input
    • 5V/1A DC input (multi-region supported)
    • USB bus power for EDID programming

Audio Support

  • Immersive Audio Formats
    • Dolby Atmos®
    • DTS:X™

EDID Management

  • Factory EDID Profiles: 5 pre-loaded Gefen EDID profiles
  • User-Programmable Memory: 3 user-programmable memory banks

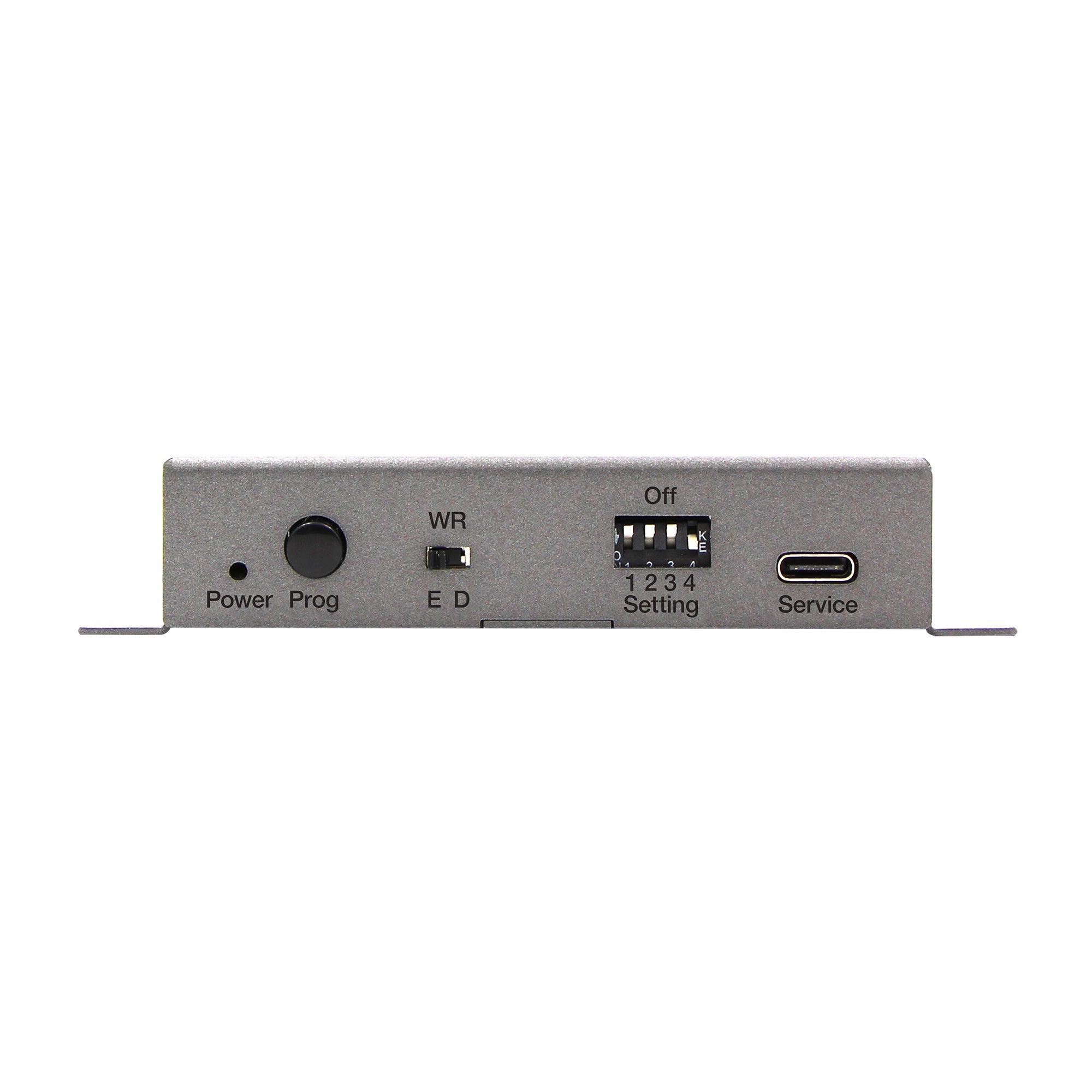

  • Configuration Controls
    • (1) 4-position DIP switch (Settings, recessed)
    • (1) 2-position DIP switch (Write-enable)
    • (1) Tact-type program button

Signal Processing

  • Signal Integrity Features
    • Auxiliary channel re-clocking
    • Active HPD (Hot Plug Detect)
    • Active Link Training maintenance

Indicators

  • LED Status Display
  • Bi-color LED (Green/Red) for power, HPD, and EDID status

Power

  • Power Requirement: 5V/1A DC input
  • Power Consumption: <3W typical

Physical Specifications

  • Dimensions
    • 90mm x 72mm x 20mm (W x H x D)
    • 3.54" x 2.83" x 0.79" (W x H x D)
  • Weight: 0.40 lbs (0.18 kg)
  • Enclosure
    • Metal construction
    • Surface-mountable design

Environmental

  • Operating Temperature
    • 0°C to +50°C
    • +32°F to +122°F
  • Operating Humidity: 20% to 90% RH (non-condensing)

Ideal for...

  • Maintaining reliable display communication in professional workstations and advanced AV systems​
  • Scenarios where displays are often powered off, switched, or routed through complex matrices​
  • Environments requiring consistent, high-resolution video and advanced audio performance up to 8K@30Hz and immersive formats like Dolby Atmos and DTS:X​
  • Quick troubleshooting and adaptation to unique installations via programmable EDID profiles​

Specific Use Case Examples

  • Professional AV systems with frequent switching between sources and displays or routing through complex systems
  • Applications where displays are powered off, switched away, or routed through complex systems, yet sources must always recognize correct display settings
  • Advanced AV environments requiring stable 4K/8K signal delivery and reliable communication regardless of display power state or system reconfiguration
  • Field technicians resolving mismatched resolutions or blank screen issues during device setup or upgrades​

Problems It Solves

  • Prevents blank screens or resolution mismatches by preserving EDID information even when the display is powered off or disconnected​
  • Eliminates inconsistent source-display handshakes, signal loss, or flicker, ensuring smooth AV operation​
  • Enables quick adaptation to unique system configurations or troubleshooting scenarios in complex AV installations
  • Provides secure, repeatable configuration for mission-critical workflows, protecting against accidental EDID overwrite​

System Requirements

  • Source device with a DisplayPort output (must support DisplayPort 1.4 or earlier standards)​
  • Display device with a DisplayPort input (compatibility up to 8K@30Hz and 4K@60Hz, with HDCP 2.3/2.2/1.x support)​
  • USB-C capable host (laptop, workstation, or PC) required only for EDID programming or firmware updates (not for standard AV use)​
  • 5V/1A DC power supply (multi-region adapters supported, only needed for standard operation—USB power suffices for programming)​
  • Operating environment temperature 0°C to +50°C (32°F to 122°F) and non-condensing humidity 20–90%​

Resources

Gefen GF-EDD-DP Datasheet

Frequently Asked Questions

What is a DisplayPort EDID Detective and what does it do?

A DisplayPort EDID Detective is a device used to capture and store a display's EDID (Electronic Display Identification Data), ensuring a source device always recognizes the correct display capabilities and settings, even when the display is powered off or switched away.

Why am I getting a blank screen or wrong resolution when using DisplayPort?

Blank screens or mismatched resolutions often occur when the display's EDID signal is lost; a DisplayPort Detective maintains EDID communication to prevent these common problems.

Can the Gefen DisplayPort Detective fix HDMI or DisplayPort handshake issues?

Yes, it is specifically designed to resolve DisplayPort handshake issues stemming from EDID errors, loss, or interruptions between a source and a display.​

How do I program or update the EDID on this device?

You can program or update the EDID using the built-in USB-C control port, a host computer, and the onboard DIP switches and program button.

Does the device support 4K and 8K video resolutions?

Yes, it fully supports video output up to 8K@30Hz and 4K@60Hz, as well as advanced HDR formats.​

What types of systems are compatible with this EDID Detective?

Any system using DisplayPort outputs (DP 1.4 and below), including professional workstations and AV systems.

Can I use this device for multi-display or matrix switch environments?

Yes, the Detective is ideal for any environment with frequent switching or display power cycles, such as when displays are powered off, switched away, or routed through complex systems.

Do I need additional software or drivers for normal operation?

The device operates as an inline hardware solution for standard video and audio signal passthrough; USB connection is only needed for EDID programming and firmware updates.

Does it support advanced audio formats like Dolby Atmos and DTS:X?

Yes, immersive formats like Dolby Atmos and DTS:X are supported via DisplayPort.

How do I prevent accidental changes to a stored EDID profile?

Activate the write-enable switch to protect programmed EDIDs from accidental overwrite, ensuring consistent system performance.

Why Choose Gefen?

For over two decades, Gefen has been the trusted backbone for the world's most demanding AV installations. Our reputation is built on rock-solid reliability and interoperability. We design and test our products to exceed industry standards, ensuring they work seamlessly right out of the box and continue to perform for years. When AV professionals choose Gefen, they are choosing:

  • Engineered for Durability: Built with a durable metal enclosure, the GF-EDD-DP features a compact, surface-mountable design ideal for field or rack use in professional environments.
  • Simplified Integration: The GF-EDD-DP features programmable EDID management via USB-C for ultimate flexibility, allowing quick adaptation to unique system configurations.

We provide the critical infrastructure that empowers you to build smarter, more resilient AV systems.​

Build Your Next AV System with Confidence

Stop compromising on signal integrity. The GF-EDD-DP maintains reliable communication in professional workstations and AV systems, ensuring stable performance when displays are powered off, switched away, or routed through complex systems.
