Dual-Link DVI Fiber Optic Extender (EXT-DVI-FM2500)

Name: Dual-Link DVI Fiber Optic Extender (EXT-DVI-FM2500)
Brand: Gefen
SKU: EXT-DVI-FM2500
Price: 3051.3 USD
Availability: InStock

EXT-DVI-FM2500

The Gefen EXT-DVI-FM2500 provides a professional solution for extending high-resolution dual-link DVI over extreme distances. Using a two-strand multimode fiber optic cable, this compact extender system transmits flawless video for resolutions up to 3840x2400 up to 3300 feet (1 kilometer), while providing complete galvanic isolation and immunity to electromagnetic interference (EMI). Ideal for professional and industrial applications, the EXT-DVI-FM2500 features Virtual EDID programming to ensure seamless source-to-display compatibility, delivering a clean and reliable installation for your critical AV needs.

⚠️Comes with both Sender and Receiver

$3,051.30

Dual - Link DVI Fiber Optic Extender (EXT - DVI - FM2500) - EXT - DVI - FM2500 - Gefen

Key Features

Extreme Long-Distance Extension: Transmit dual-link DVI signals up to 3300 feet (1 kilometer) over two strands of OM3 multimode fiber optic cable, making it perfect for large-scale installations.

High-Resolution Video Support: Supports dual-link DVI resolutions up to 3840x2400 (WQXGA) and 1080p Full HD at 120Hz, ensuring pristine video quality for the most demanding applications.

Virtual EDID Management: Features Virtual EDID, which allows for copying the EDID information from the display to the source. This ensures seamless integration and maximum compatibility between devices for a fast setup.

Interference-Free Transmission: Utilizes fiber optic signal transmission for complete galvanic isolation and immunity from electromagnetic interference (EMI), delivering a clean and stable signal in any professional or industrial environment.

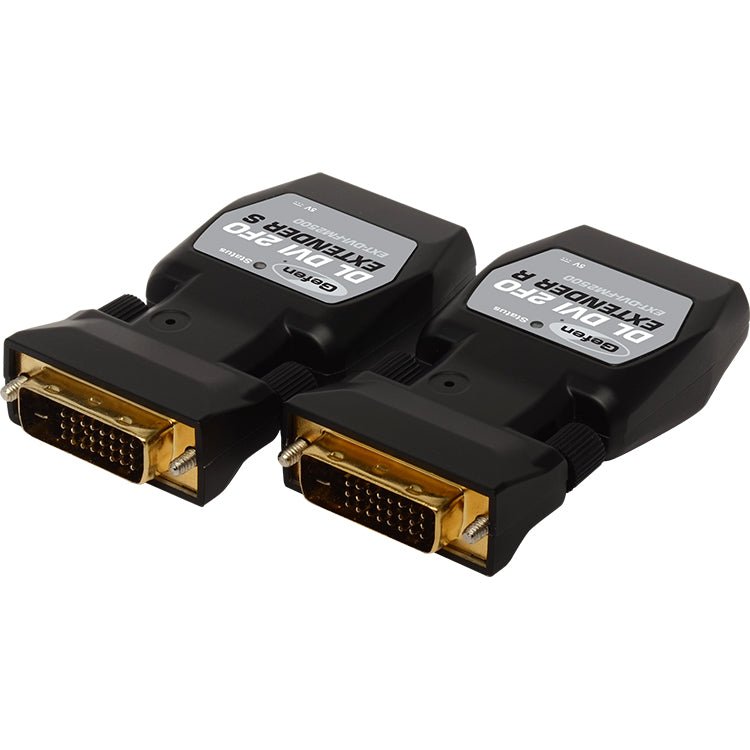

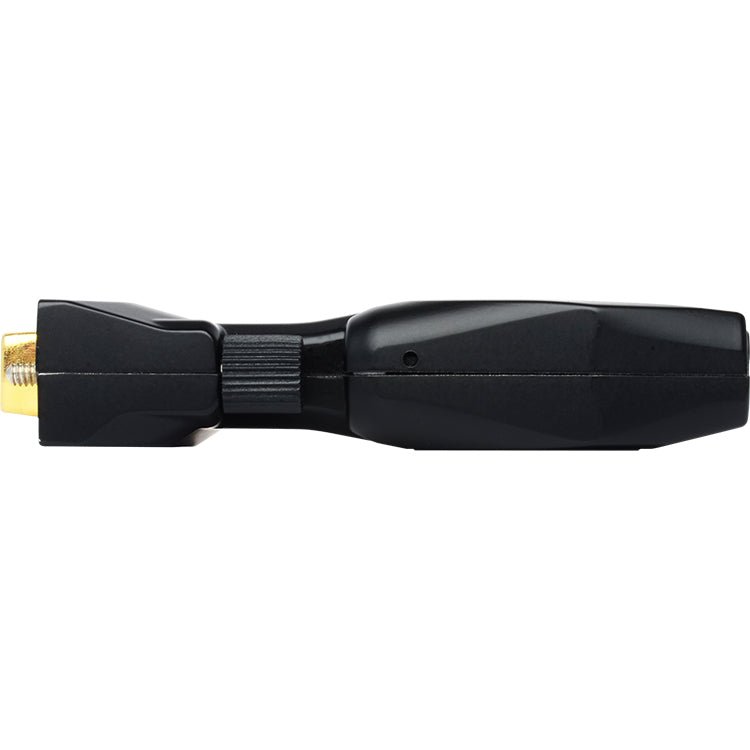

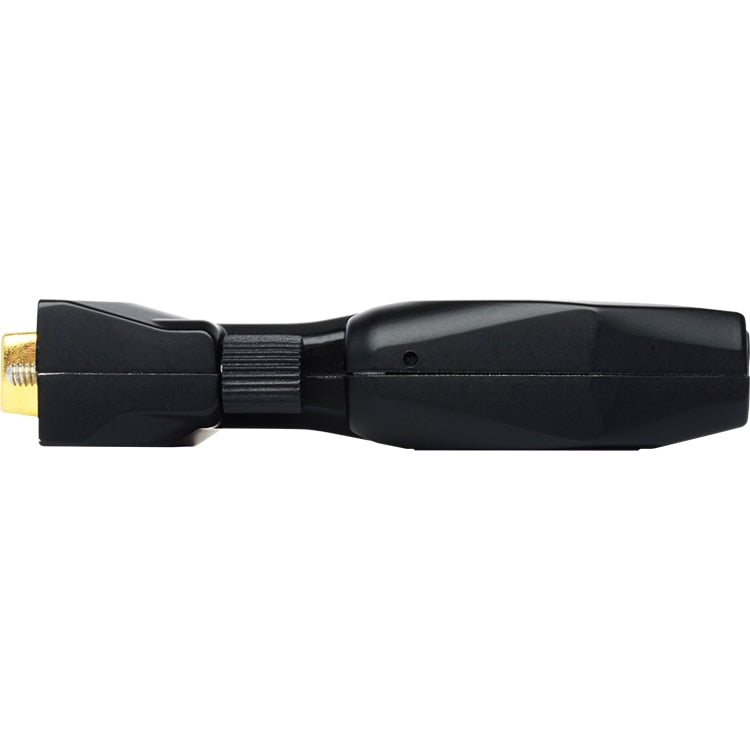

Professional and Compact Design: Features compact Sender and Receiver modules with sturdy, die-cast metal enclosures that provide a clean, easy, and durable installation.

How It Works

The Gefen EXT-DVI-FM2500 system operates with two compact components: a Sender module for your source and a Receiver module for your display. Installation is straightforward: the Sender module plugs directly into the DVI source, and the Receiver module connects to the remote dual-link DVI display. A two-strand, LC-terminated multimode fiber optic cable links the two modules to complete the connection. Finally, connect the included 5V DC power supply to the Receiver module to deliver a pristine, high-resolution picture. In most applications, the Sender module is powered by the DVI source, simplifying the installation by eliminating the need for a second power supply.

Additional Information

Specifications

Maximum Pixel Clock: 2 × 165 MHz

Video Input Connector (Sender): (1) DVI-D 24-pin, male

Video Output Connector (Receiver): (1) DVI-D 24-pin, male

Link Connector (Sender / Receiver): (2) Type LC

Power Supply (Sender): 5V DC (not needed for most applications)

Power Supply (Receiver): 5V DC

Power Consumption (Receiver): 1.5W (max)

Operating Temperature: 0° to +50° C

Storage Temperature: -30° to +70° C

Relative Humidity: 5% to 85%

Dimensions (W × H × D): 1.54" × 0.59" × 2.83" (39.11mm × 14.98mm × 71.88mm)

Shipping Weight: 2 lbs (0.91 kg)
UPC: 845344036076

System Requirements

Source and Display: The system requires a source with a dual-link DVI output and a display with a dual-link DVI input.

Fiber Optic Cabling: A two-strand multimode fiber optic cable with LC-type connectors is required to link the Sender and Receiver modules. The maximum extension distance depends on the cable type used:

OM3 (laser-optimized 50/125µm): Up to 3300 feet (1 kilometer).

OM2 (conventional 50/125µm): Up to 1650 feet (500 meters).

OM1 (62.5/125µm): Up to 1000 feet (300 meters).

Power: The Receiver module requires the included 5V DC power supply for operation. The Sender module is designed to be powered by the DVI source; however, an external 5V DC power supply (included) is required if the source does not provide sufficient power through the DVI connector.

What's in the Box

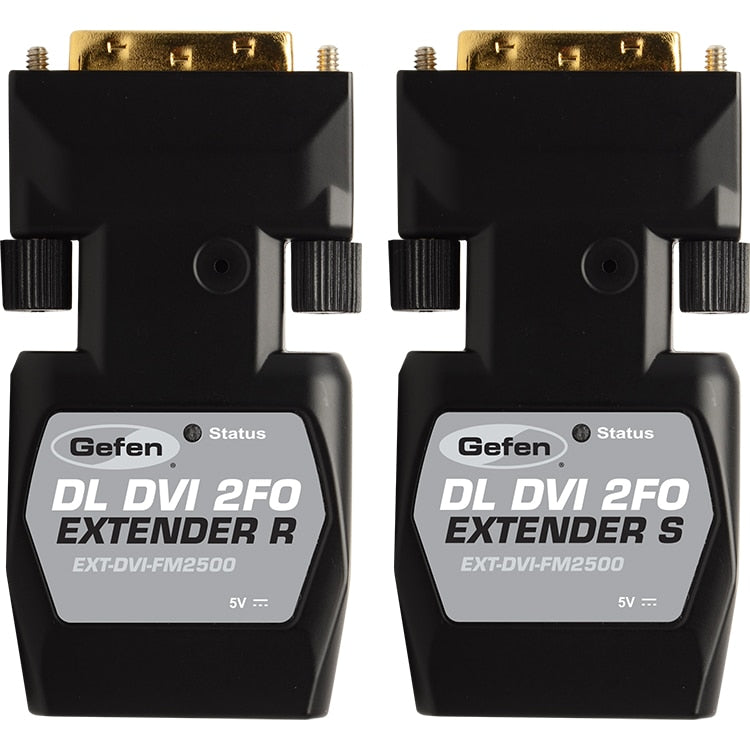

(1) DL DVI 2FO Extender – Sender module

(1) DL DVI 2FO Extender – Receiver module

(2) 5V DC Power Supplies

(1) Quick Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.
