Dual Link DVI to Mini DisplayPort Converter for Apple Cinema Display - Mac PC Compatible (GTV-DVIDL-2-MDP)

GTV-DVIDL-2-MDP

The GefenTV Dual Link DVI to Mini DP Converter provides seamless connectivity between dual link DVI graphics cards and Mini DisplayPort displays, supporting resolutions up to 2560x1600 for crystal-clear visual output. This professional-grade converter works with all Mac and PC computers, featuring advanced EDID management and integrated audio support through a built-in 3.5mm connector. Designed specifically for Apple 24", 27", and 30" LED Cinema Displays, this plug-and-play solution eliminates compatibility issues while delivering reliable performance for professional workstations, creative studios, and high-resolution display applications.
$281.40
Dual Link DVI to Mini DisplayPort Converter for Apple Cinema Display - Mac PC Compatible (GTV - DVIDL - 2 - MDP) - GTV - DVIDL - 2 - MDP - Gefen
Dual Link DVI to Mini DisplayPort Converter for Apple Cinema Display - Mac PC Compatible (GTV - DVIDL - 2 - MDP) - GTV - DVIDL - 2 - MDP - Gefen
Dual Link DVI to Mini DisplayPort Converter for Apple Cinema Display - Mac PC Compatible (GTV - DVIDL - 2 - MDP) - GTV - DVIDL - 2 - MDP - Gefen
Dual Link DVI to Mini DisplayPort Converter for Apple Cinema Display - Mac PC Compatible (GTV - DVIDL - 2 - MDP) - GTV - DVIDL - 2 - MDP - Gefen

Key Features

High-Resolution Video Support: Converts dual link DVI signals to Mini DisplayPort with support for resolutions up to 2560x1600, ensuring crystal-clear visual quality for professional applications.



Apple Display Compatibility: Specifically designed to support Apple 24", 27", and 30" LED Cinema Displays with full compatibility and optimal performance.

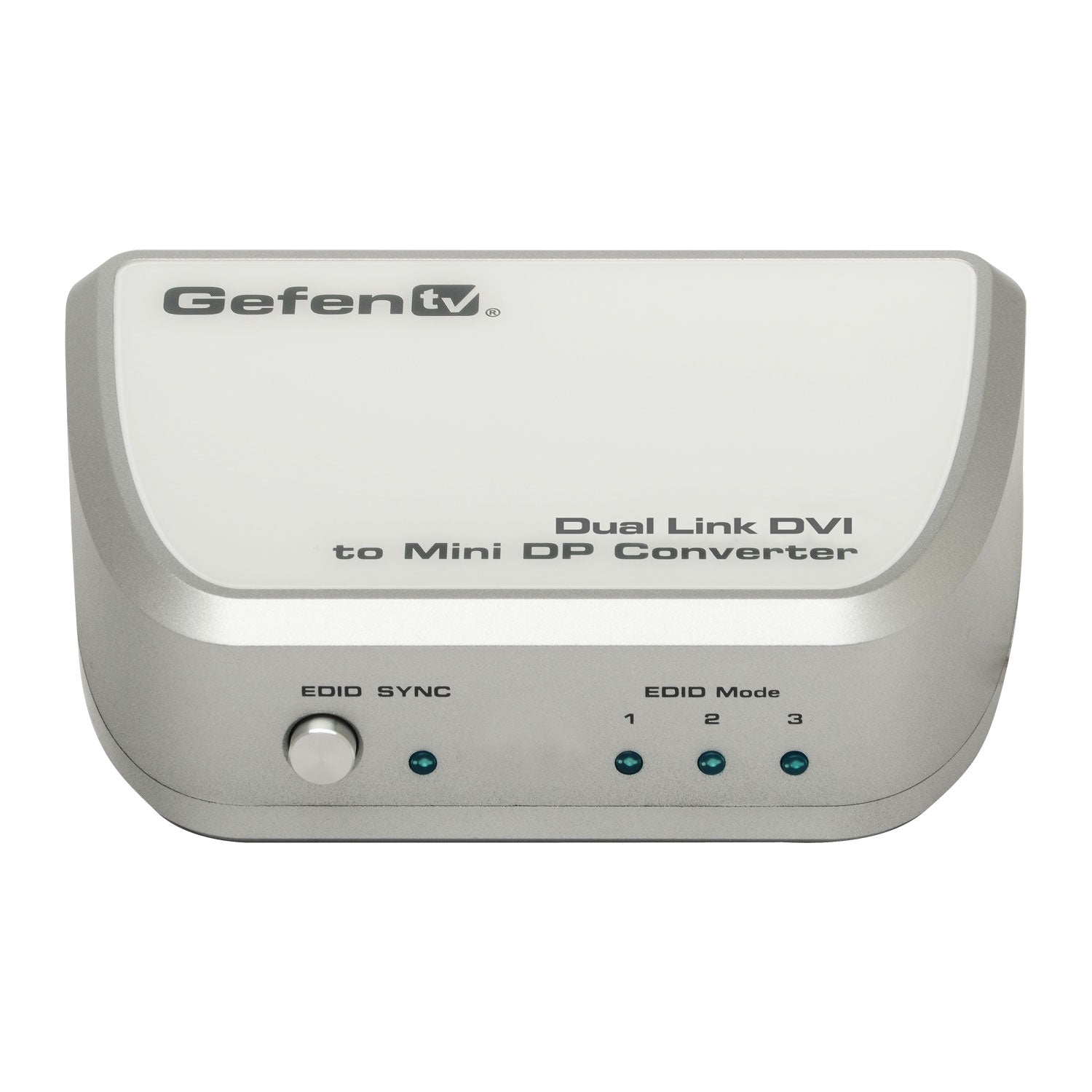

Advanced EDID Management: Features three selectable EDID modes (2560x1600, 2560x1440, and pass-through) with front-panel button control and LED indicators for seamless display compatibility.



Integrated Audio Support: Built-in 3.5mm audio input jack enables audio transmission through the Mini DisplayPort connection, eliminating the need for separate audio cables.



USB Bus-Powered Operation: No external power adapter required - powered directly from your computer's USB port using the included USB cable for clean, clutter-free installations.



Field-Upgradable Firmware: USB-based firmware update capability ensures long-term compatibility and feature enhancements.



Compact Professional Design: Durable, space-efficient form factor (4.75" x 1.75" x 3.25") ideal for professional workstations and desktop setups.

How It Works

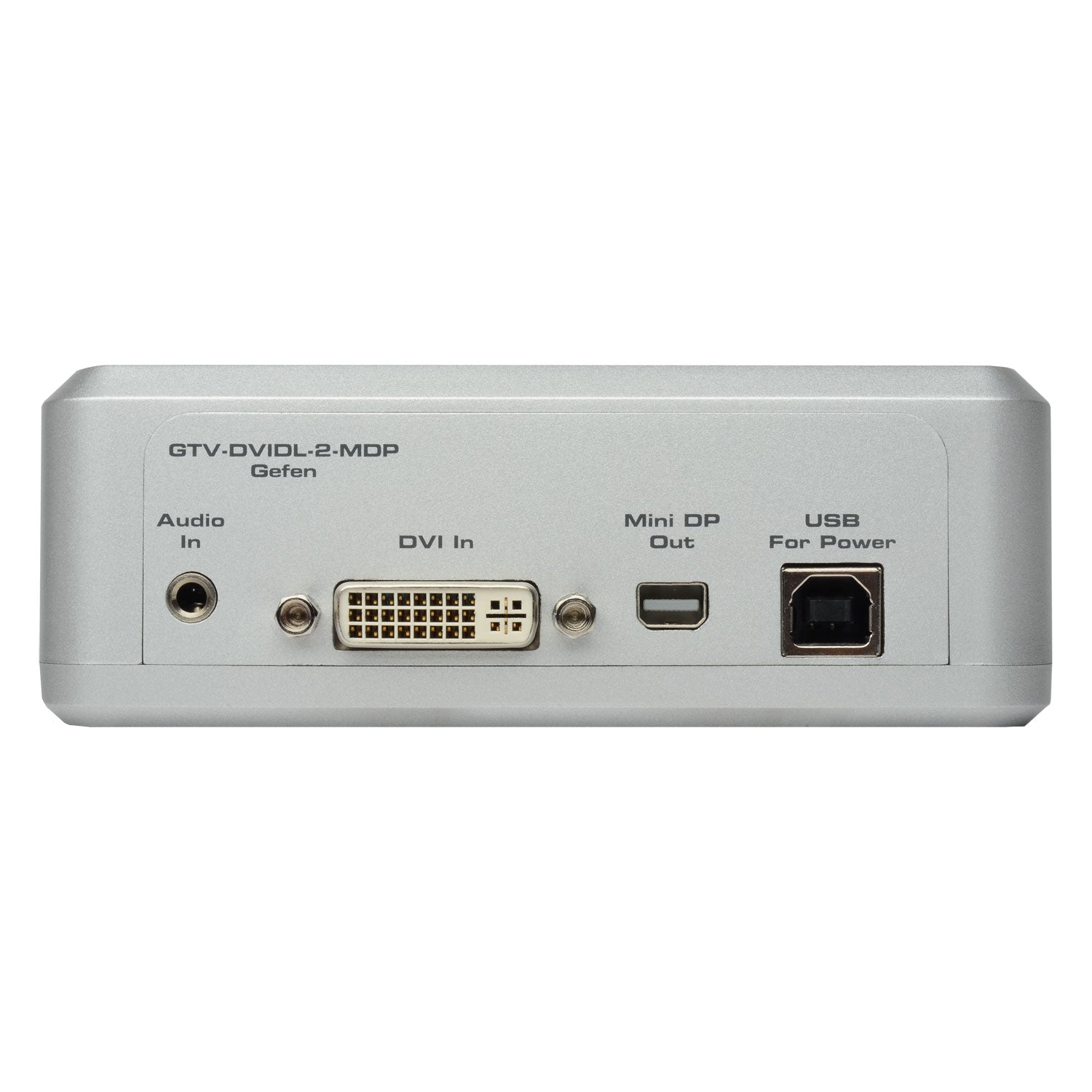

The GefenTV Dual Link DVI to Mini DP Converter operates through a simple four-step connection process. First, connect your computer's dual link DVI output to the converter's DVI-I input using a dual link DVI cable. Next, connect a Mini DisplayPort cable (sold separately) from the converter's Mini DP output to your display's Mini DisplayPort or DisplayPort input. Then, connect the included USB cable from your computer to the converter's USB port for power. Finally, use the front-panel EDID button to select the appropriate display mode (2560x1600, 2560x1440, or pass-through) based on your display's capabilities - the corresponding LED indicator will illuminate to confirm your selection. The converter automatically handles signal conversion and EDID management, providing immediate plug-and-play functionality with your high-resolution display.

Additional Information

Specifications

Video Specifications:

  • Input: Dual Link DVI-I 29-pin female connector
  • Output: Mini DisplayPort connector
  • Maximum Resolution: 2560x1600
  • Supported Apple Displays: 24", 27", and 30" LED Cinema Displays

Audio Specifications:

  • Audio Input: 3.5mm mini-stereo jack
  • Audio Output: Embedded in Mini DisplayPort signal

Control and Indicators:

  • EDID Management: 3-mode selection button (SPDT)
  • LED Indicators: 3 EDID mode indicators plus 1 sync indicator
  • EDID Modes: 2560x1600, 2560x1440, Pass-through

Power and Connectivity:

  • Power Source: USB bus-powered (Type B connector)
  • Power Consumption: Supplied via included USB cable

Physical Specifications:

  • Dimensions: 4.75"W x 1.75"H x 3.25"D (120.7mm x 44.5mm x 82.6mm)
  • Weight: 1 lb. (0.45 kg)

UPC: 845344079875

System Requirements

Source Device Requirements:

  • Computer with dual link DVI graphics output
  • Available USB port for power supply
  • Compatible with Mac and PC systems
  • Dual link DVI graphics card supporting resolutions up to 2560x1600

Display Requirements:

  • Mini DisplayPort input OR DisplayPort input with Mini DisplayPort to DisplayPort adapter
  • Support for resolutions up to 2560x1600
  • Compatible displays include Apple 24", 27", and 30" LED Cinema Displays

Cable Requirements:

  • Dual link DVI cable (must be dual link, not single link)
  • Mini DisplayPort cable (sold separately)
  • USB cable Type A to Type B (included)
  • Optional: 3.5mm stereo audio cable for audio input
  • Optional: Mini DisplayPort to DisplayPort adapter if using standard DisplayPort displays

What's in the Box

(1) GefenTV Dual Link DVI to Mini DP Converter (Model: GTV-DVIDL-2-MDP)

(1) USB Cable (Type A to Type B)

(1) User Manual



Note: Mini DisplayPort cable, dual link DVI cable, and audio cables are sold separately.

Warranty

2 year product warranty
Please see the Gefen warranty page for more details

Resources

Gefen GTV-DVIDL-2-MDP Datasheet
Gefen GTV-DVIDL-2-MDP Manual
Gefen GTV-DVIDL-2-MDP Declaration of Conformity
