DVI Detective N - Professional EDID Management Solution for DVI Displays (EXT-DVI-EDIDN)

EXT-DVI-EDIDN

The Gefen DVI Detective N (EXT-DVI-EDIDN) provides reliable EDID storage and management for professional DVI display installations. This essential device prevents video signal loss by maintaining constant EDID communication between DVI sources and displays, ensuring seamless connectivity even when displays are switched or temporarily disconnected.
$130.20

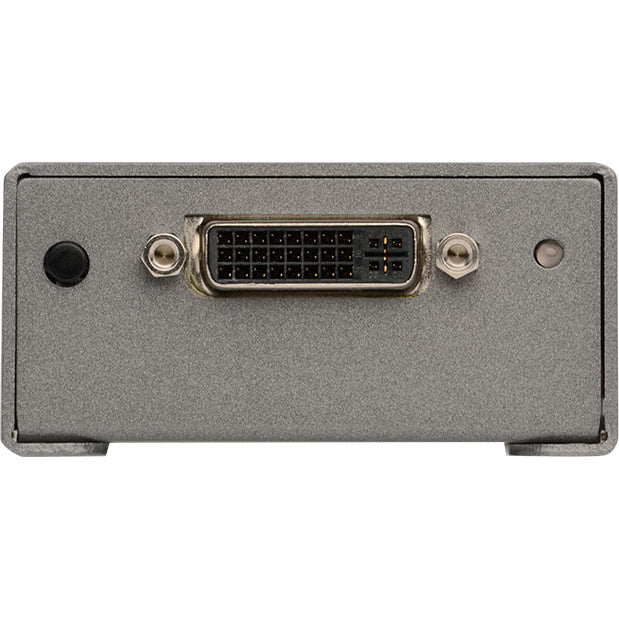

DVI Detective N - Professional EDID Management Solution for DVI Displays (EXT - DVI - EDIDN) - EXT - DVI - EDIDN - Gefen

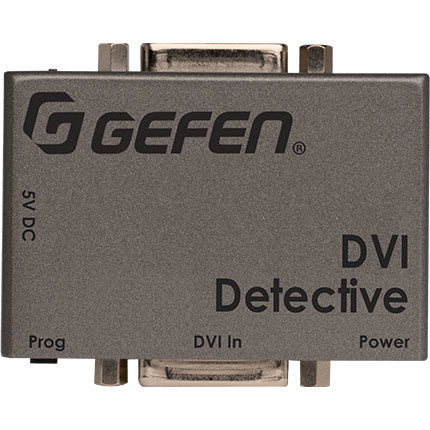

DVI Detective N - Professional EDID Management Solution for DVI Displays (EXT - DVI - EDIDN) - EXT - DVI - EDIDN - Gefen
DVI Detective N - Professional EDID Management Solution for DVI Displays (EXT - DVI - EDIDN) - EXT - DVI - EDIDN - Gefen
DVI Detective N - Professional EDID Management Solution for DVI Displays (EXT - DVI - EDIDN) - EXT - DVI - EDIDN - Gefen

Key Features

External Programming Controls: Features external buttons for EDID programming and write-protection, eliminating the need to power the unit during normal operation after initial setup.



High Resolution Support: Supports resolutions up to 1920x1200, 2K (2048x1080), and 3840x2400 dual-link DVI for crisp, professional-quality video transmission.



Persistent EDID Storage: 256-byte EDID memory maintains display identification data indefinitely, preventing computers from deactivating inactive DVI ports during display switching.



Write Protection Switch: Two-position slide switch prevents accidental EDID erasure, protecting your programmed display settings from unauthorized changes.



Power-Efficient Operation: No external power required after initial programming, making it perfect for permanent installations in professional AV systems.



Professional Connectivity: Dual DVI-I 29-pin female connectors ensure compatibility with both digital and analog DVI signals for maximum flexibility.

How It Works

The DVI Detective N operates through a simple two-phase process that solves common EDID-related display issues. First, connect your target display to the DVI Out port and power the unit using the included 5V DC adapter. Press the programming button to capture and store the display's EDID information in the device's 256-byte memory. Once programmed, disconnect the power supply and insert the DVI Detective N between your video source and extension equipment or switcher. The device now continuously provides stored EDID data to the source, maintaining an active connection status even when the actual display is switched away or temporarily disconnected.

Additional Information

Specifications

Video Support: 3840 x 2400 (Dual-link), 2048 x 1080 (2K), 1920 x 1200 (WUXGA)

Connectors: 2x DVI-I 29-pin female (input/output)

EDID Memory: 256 bytes non-volatile storage

Maximum Pixel Clock: 2 x 165 MHz

Power Input: 5V DC (programming only)

Power Consumption: 5 watts maximum during programming

Operating Temperature: +41 to +113°F (+5 to +45°C)

Dimensions: 2.6" x 1.8" x 1.2" (66mm x 46mm x 30mm)

Weight: 0.18 lbs (0.08 kg)

UPC: 845344032719

System Requirements

  • DVI-equipped video source (computer graphics card, media player, etc.)
  • DVI display or sink device for EDID programming
  • 5V DC power supply (included, required only for initial programming)
  • Standard DVI cable (1-foot dual-link cable included)

What's in the Box

1x DVI Detective N (EXT-DVI-EDIDN)

1x 1-foot Dual-Link DVI Cable (Male-to-Male)

1x 5V DC Power Supply

1x Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-DVI-EDIDN Datasheet
Gefen EXT-DVI-EDIDN Manual
Gefen EXT-DVI-EDIDN Declaration of Conformity
