DVI DL Super Booster Plus Extender for Dual Link DVI (EXT-DVI-141DLBP)

Name: DVI DL Super Booster Plus Extender for Dual Link DVI (EXT-DVI-141DLBP)
Brand: Gefen
SKU: EXT-DVI-141DLBP
Price: 354.9 USD
Availability: InStock

EXT-DVI-141DLBP

The Gefen DVI DL Super Booster Plus is a high-performance signal extender engineered to perfects video sent over long stretches of Dual-Link DVI cables, overcoming standard distance limitations. This powerful unit allows you to extend DVI Dual Link displays up to 200 feet away from your source, supporting massive resolutions up to 3840x2400 @ 60 Hz. By regenerating the digital video signal, the booster eliminates sparkles and other signal degradation, ensuring that remote desktop images are sharp, clear, and bright. Ideal for professional computer applications where pristine image quality is critical, the DVI DL Super Booster Plus offers a reliable, plug-and-play solution for extending your high-resolution video without compromise.

$354.90

DVI DL Super Booster Plus Extender for Dual Link DVI (EXT - DVI - 141DLBP) - EXT - DVI - 141DLBP - Gefen

Key Features

Extended Signal Range: Extends DVI Dual Link displays up to 200 feet away from the source device.

High-Resolution Support: Supports massive resolutions up to 3840x2400 @ 60 Hz.

Pristine Signal Quality: Perfects the video signal sent over long stretches of Dual-Link DVI cables to eliminate degradation and artifacts.

HDCP Compliant: Features HDCP pass-through, allowing for the transmission of protected content.

Enhanced DDC Communication: The DDC signal is amplified for better robustness and more reliable interfacing between the source and the display.

Industry Standard Compliance: Supports DDWG standards for DVI compliant monitors.

How It Works

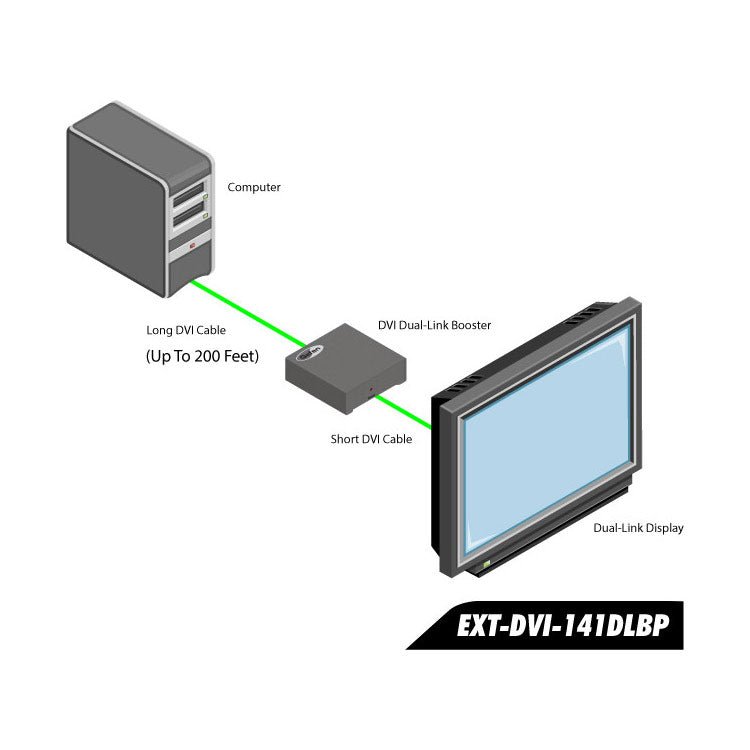

The Gefen DVI DL Super Booster Plus installs in seconds with a simple plug-and-play workflow. The unit is placed at the end of a long DVI cable run, near the display, to regenerate the signal. First, connect the long DVI cable from the source into the booster's "DVI In" port. Next, connect a short DVI cable from the "DVI Out" port on the booster to your display or projector. Finally, connect the 5V DC power supply to the unit and power on your equipment. The DVI DL Super Booster Plus will then actively replicate and perfect the digital video signal, enabling you to view flawless video on your remote display. For even greater distances, multiple boosters and cables can be "daisy chained" together.

Additional Information

Specifications

Video Amplifier Bandwidth: 2 x 165 MHz

Input Video Signal: 1.2 Volts p-p

Input DDC Signal: 5 Volts p-p (TTL)

Maximum Dual Link Range: Up to 3840x2400 @ 60 Hz

DVI Connector: DVI-I (29 pin) female (digital only)

Power Supply: 5V DC

Power Consumption: 5 Watts (max)

Dimensions: 2.2"W x 0.8"H x 2.3"D

Shipping Weight: 1 lb.

UPC: 845344050706

System Requirements

A video source with a DVI output and a DVI-compliant monitor.

Dual-Link DVI cables to connect the source to the booster and the booster to the display.

The included 5V DC Power Supply connected to the unit and a wall outlet.

What's in the Box

(1) DVI DL Super Booster Plus
(1) 5V DC Power Suppy
(1) User's Manual

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-DVI-141DLBP Datasheet
Gefen EXT-DVI-141DLBP Manual
Gefen EXT-DVI-141DLBP Declaration of Conformity
