DVI ELR Lite Extender over Single CAT-5 with HDBaseT Lite (EXT-DVI-1CAT5-SR)

Name: DVI ELR Lite Extender over Single CAT-5 with HDBaseT Lite (EXT-DVI-1CAT5-SR)
Brand: Gefen
SKU: EXT-DVI-1CAT5-SR
Price: 668.85 USD
Availability: InStock

EXT-DVI-1CAT5-SR

The Gefen DVI ELR Lite Extender over one CAT-5 provides a robust solution for extending high-definition DVI signals to a remote monitor or touch screen display over a single network cable. Leveraging Gefen's ELR Lite implementation of HDBaseT® Lite technology , this powerful extender pair transmits DVI video at resolutions up to 1080p Full HD and 1920x1200 (WUXGA) up to 230 feet (70 meters) over one CAT-6A cable. Ideal for professional AV installations where long-distance signal integrity is critical, the system simplifies deployments by using standard network cabling, which reduces cable costs and facilitates easier installation. Advanced features such as EDID management for rapid integration , selectable HDCP and HPD pass-through , and locking power supplies ensure a reliable and professional-grade extension solution for your critical applications.

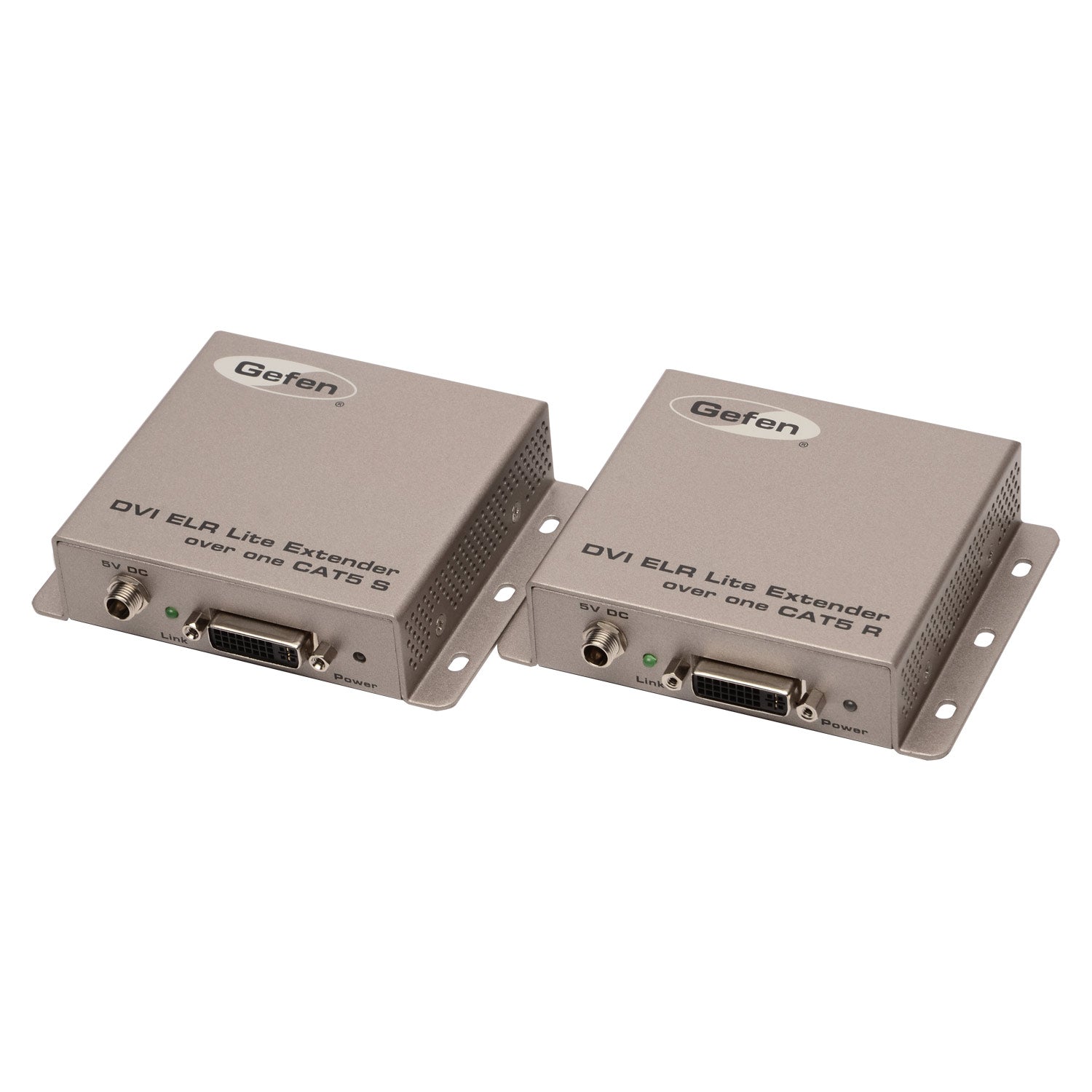

⚠️Comes with both Sender and Receiver

$668.85

DVI ELR Lite Extender over Single CAT - 5 with HDBaseT Lite (EXT - DVI - 1CAT5 - SR) - EXT - DVI - 1CAT5 - SR - Gefen

Key Features

Long-Distance Extension: Extends DVI signals up to 230 feet (70 meters) over a single CAT-6A cable or up to 200 feet (60 meters) over a single CAT-5e cable.

High-Definition Video: Supports resolutions up to 1080p Full HD and 1920x1200 (WUXGA), ensuring clear and detailed image quality.

Simplified Integration: Features EDID management for rapid integration of the source and display, ensuring a quick and seamless setup.

Advanced Signal Management: Provides convenient Enable/Disable switches for both HDCP and HPD pass-through for enhanced troubleshooting and compatibility.

Secure Power Connection: Includes locking power supplies for both the sender and receiver units to prevent accidental disconnection.

Flexible Installation: The compact enclosures are surface-mountable, allowing for secure installation in a variety of professional environments.

How It Works

The DVI ELR Lite Extender system operates with two main components: a Sender unit and a Receiver unit. First, connect your DVI source, such as a computer, to the DVI In port on the Sender unit. Then, connect the Receiver unit's DVI Out port to your remote display using another DVI cable. The Sender and Receiver are then linked together using a single CAT-5e or better network cable. This connection can extend up to 200 feet (60 meters) if using CAT-5e, or up to 230 feet (70 meters) with a CAT-6A cable. To complete the setup, attach the included 5V DC locking power supplies to both the Sender and Receiver units and plug them into available electrical outlets.

Additional Information

Specifications

Video

Resolutions (max.): 1920x1200 (WUXGA) and 1080p Full HD
Maximum Pixel Clock: 165 MHz

Connectors

Input (Sender): 1 x DVI-I, 29-pin, female (digital only)
Output (Receiver): 1 x DVI-I, 29-pin, female (digital only)

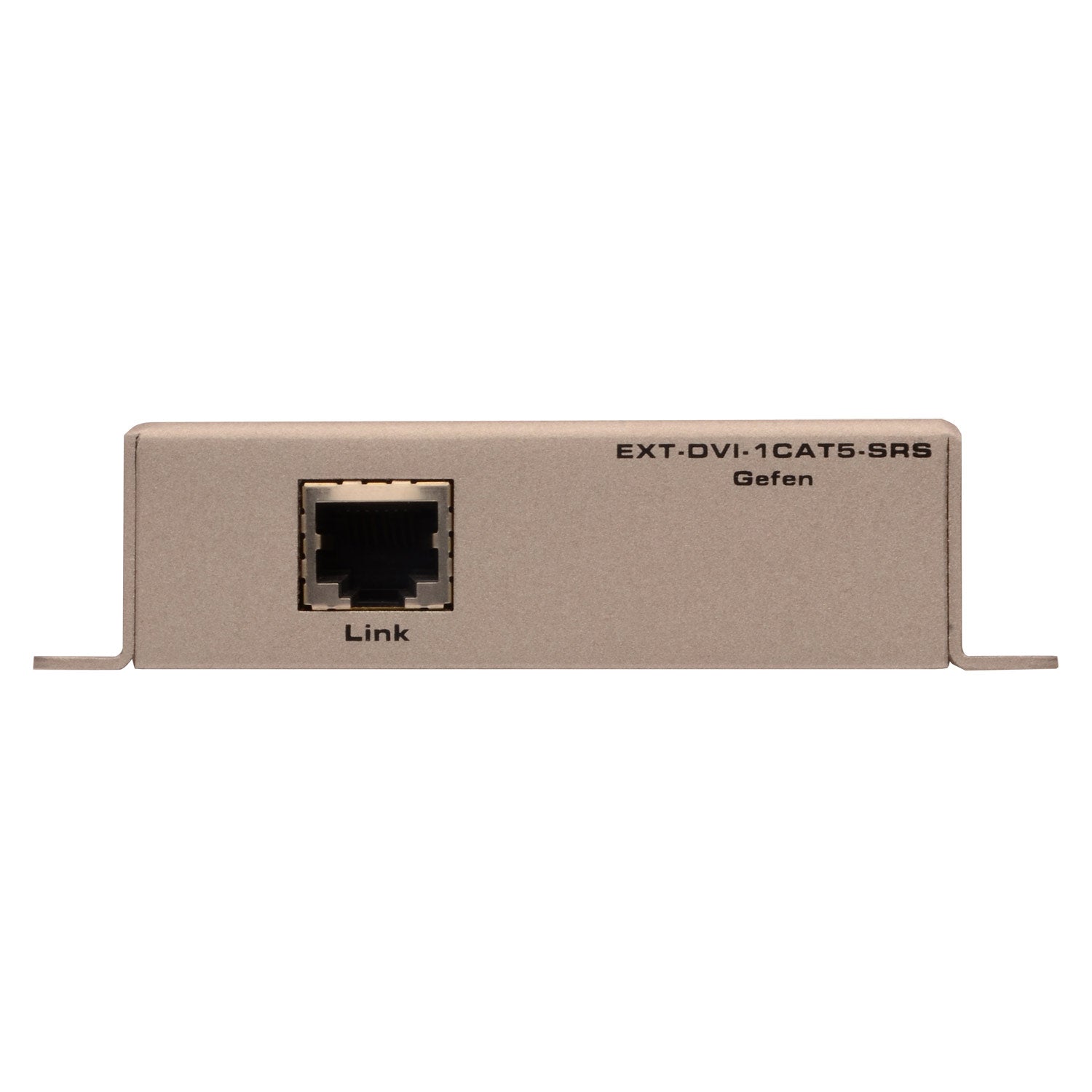

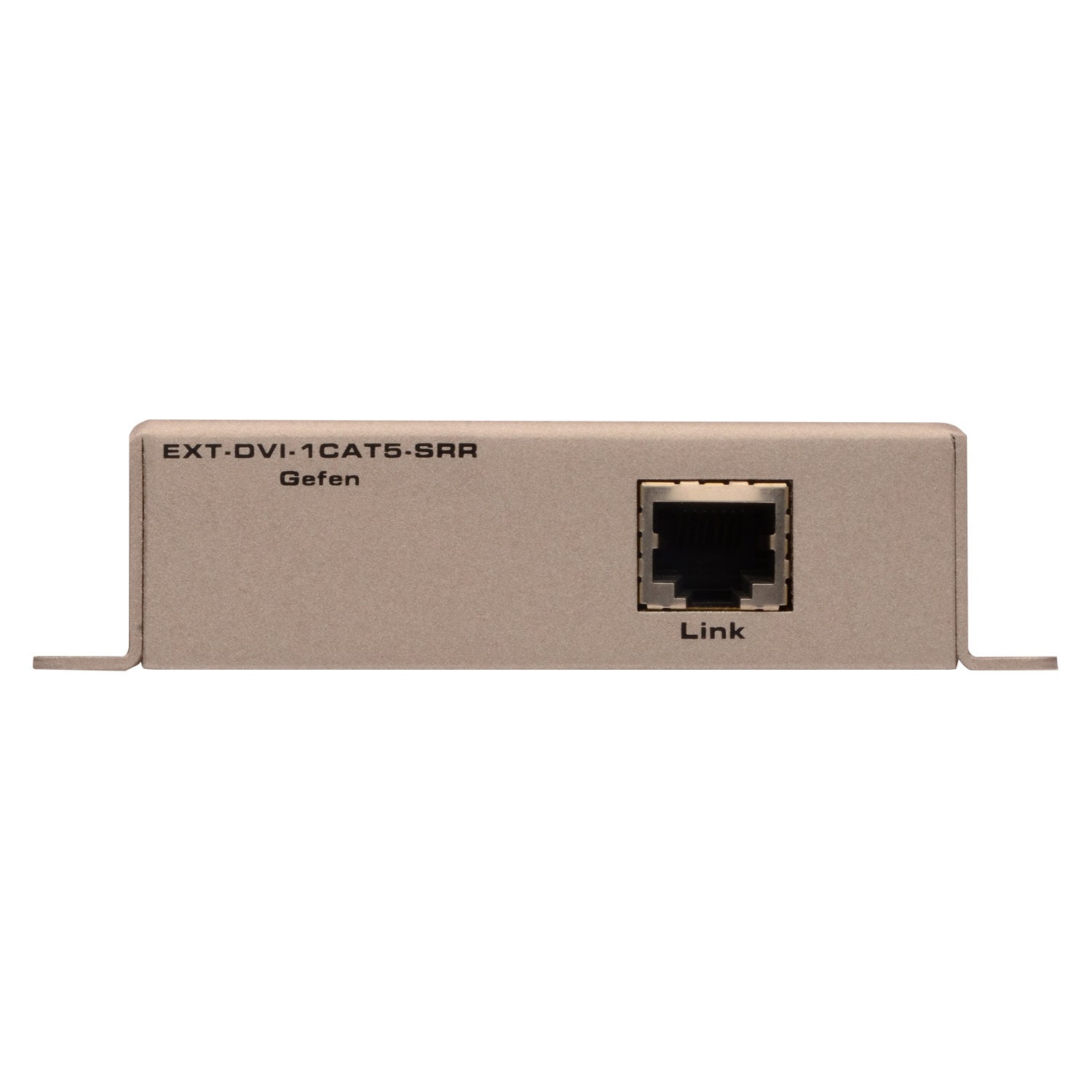

Link (Sender / Receiver): 1 x RJ-45

Control

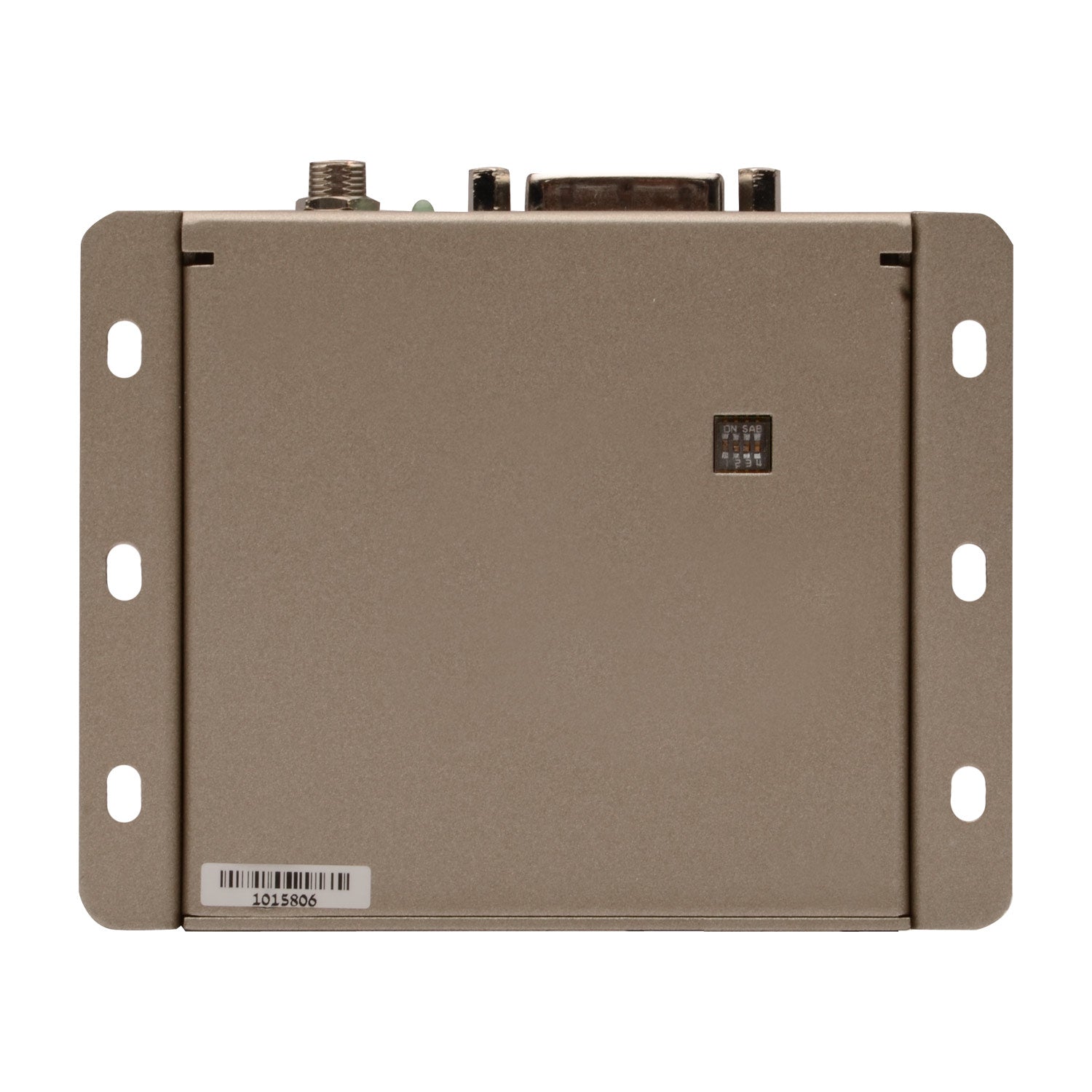

DIP Switches (Sender unit): 4 x DIP switches for EDID management, HPD, and HDCP

Operational

Power Input (Sender / Receiver): 1 x 5V DC
Power Consumption (Sender / Receiver): 10W per unit (max.)
Power Indicator: 1 x LED, blue
Link Indicator: 1 x LED, green
Operating Temperature: +32 to +113°F (0 to +45°C)
Operating Humidity: 0 to 90% RH (non-condensing)

Physical

Dimensions (W x H x D): 4.3" x 1" x 4.3" (110mm x 26mm x 86mm)
Unit Weight (each): 0.36 lbs (0.16 kg)

UPC: 845344038759

System Requirements

A DVI Source: A computer or other device with a DVI output.

A DVI Display: A monitor or other display with a DVI input.

Network Cabling: One CAT-5e or better network cable to connect the Sender and Receiver units.

For distances up to 200 feet (60 meters), a CAT-5e cable is required.
For distances up to 230 feet (70 meters), a CAT-6A cable is required.
Shielded Twisted-Pair (STP) cable is recommended for better immunity to interference, though Un-shielded (UTP) is acceptable.

Power: An available electrical outlet for each of the two included 5V DC power supplies.

What's in the Box

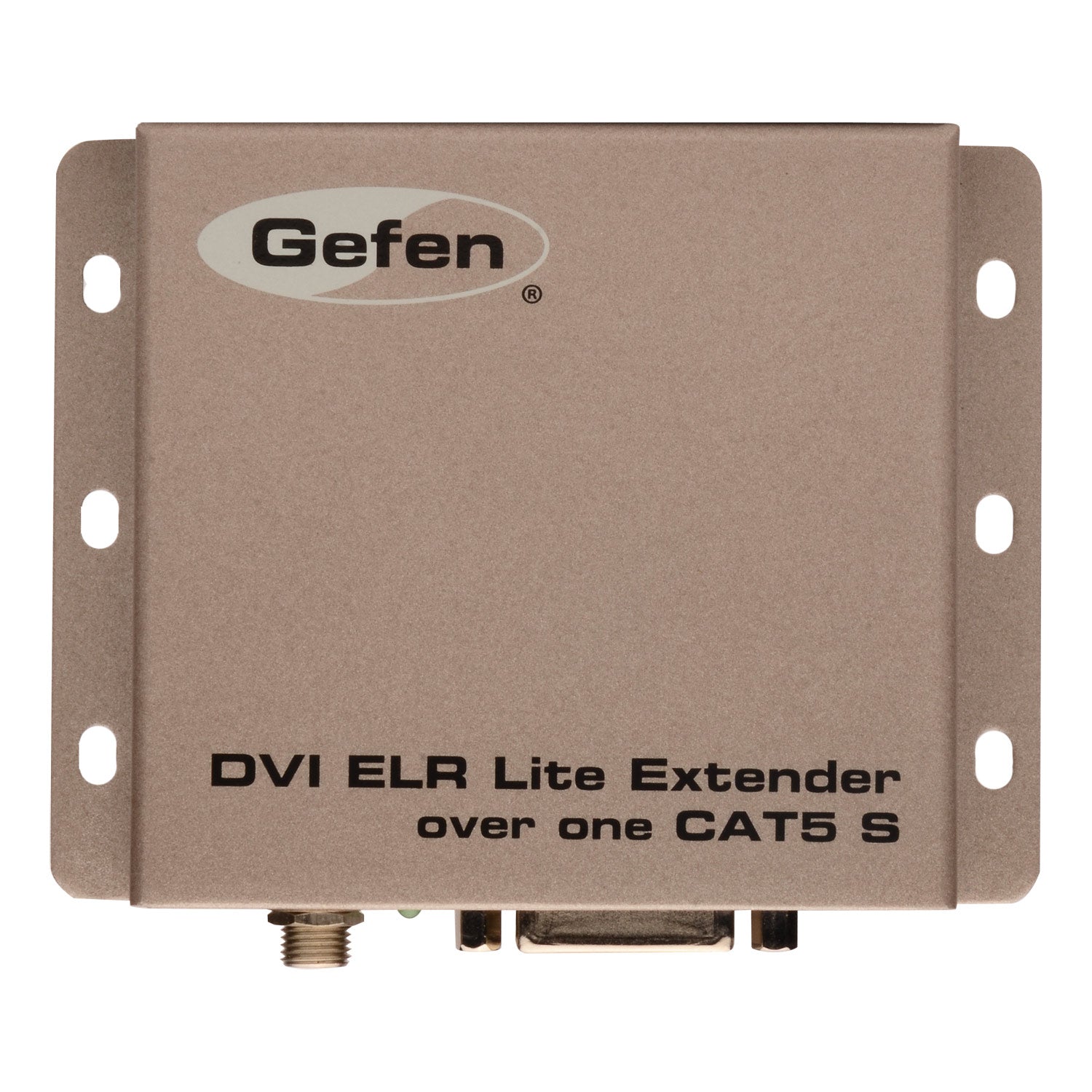

1 x DVI ELR Lite Extender over one CAT-5 (Sender unit)

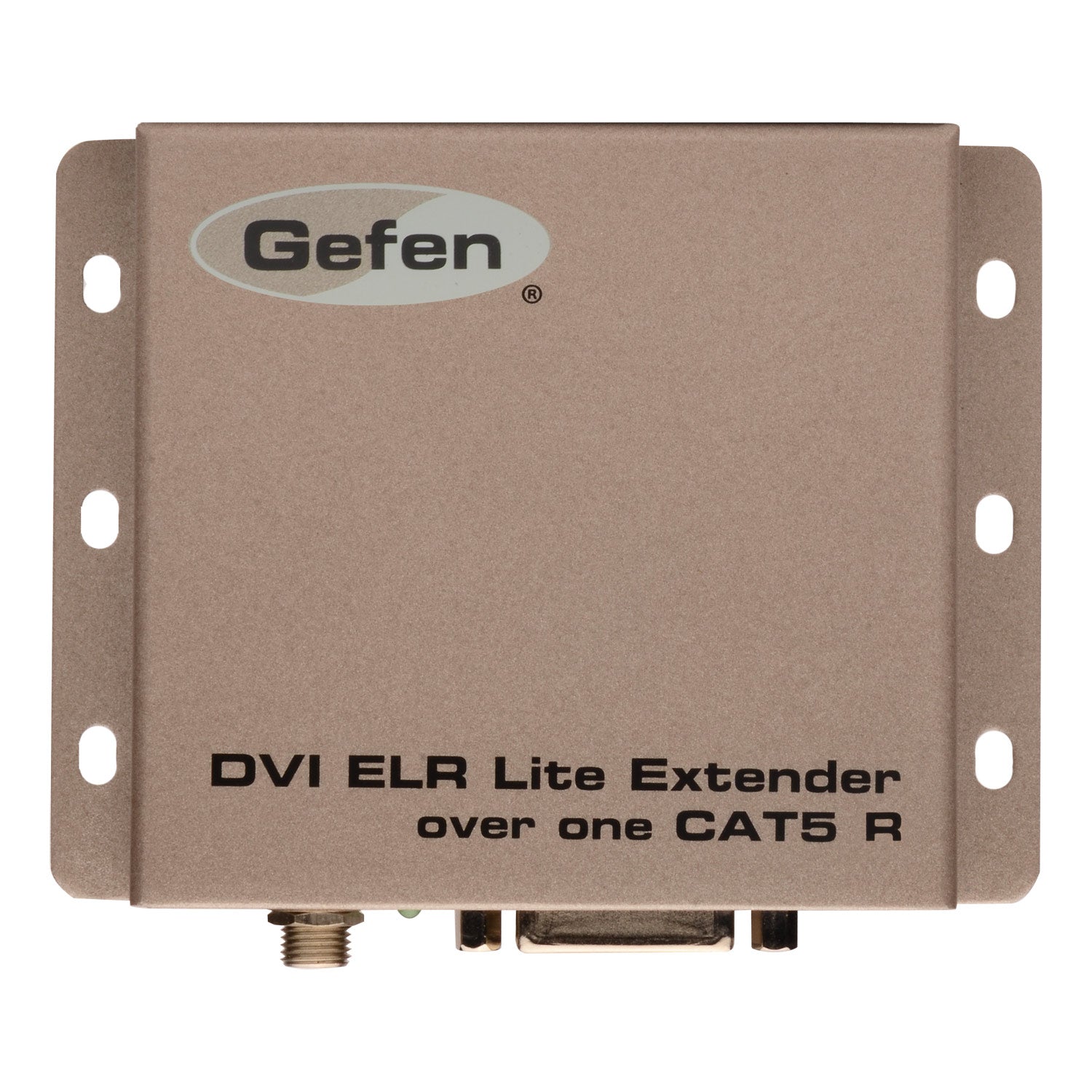

1 x DVI ELR Lite Extender over one CAT-5 (Receiver unit)
1 x 6 ft. dual-link DVI cable (M-M)
2 x 5V/2.6A DC locking power supply
1 x Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-DVI-1CAT5-SR Datasheet
Gefen EXT-DVI-1CAT5-SR Manual
Gefen EXT-DVI-1CAT5-SR Declaration of Conformity
