DVI Fiber Optic Pigtail Extender over Single-Strand SC Fiber, 3300ft / 1000m (EXT-DVI-CP-FM10)

Name: DVI Fiber Optic Pigtail Extender over Single-Strand SC Fiber, 3300ft / 1000m (EXT-DVI-CP-FM10)
Brand: Gefen
SKU: EXT-DVI-CP-FM10
Price: 1809.15 USD
Availability: InStock

EXT-DVI-CP-FM10

The Gefen EXT-DVI-CP-FM10 DVI Fiber Optic Pigtail Module provides a robust solution for extending DVI over long distances with complete signal integrity. This powerful DVI extender transmits flawless WUXGA (1920x1200) video with HDCP pass-through up to 3300 feet (1000 meters) using just a single-strand multimode fiber optic cable. Its unique pigtail design relieves connector stress for a clean, secure installation behind equipment, while the inherent nature of optical transmission ensures complete immunity from electromagnetic interference (EMI). Ideal for professional AV installations requiring pristine, long-haul signal reliability, the EXT-DVI-CP-FM10 delivers a compact and effective DVI extension solution.

$1,809.15

DVI Fiber Optic Pigtail Extender over Single - Strand SC Fiber, 3300ft / 1000m (EXT - DVI - CP - FM10) - EXT - DVI - CP - FM10 - Gefen

Key Features

Long-Distance Extension: Extends DVI signals up to 3300 feet (1000 meters) using a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable. Using 62.5/125µm (OM1) fiber is also possible for a reduced range of up to 1000 feet (300 meters).

High-Resolution Video: Supports resolutions up to 1920x1200 (WUXGA).

EMI Immunity: The use of fiber optic transmission provides immunity to electromagnetic interference (EMI).

Pigtail Module Design: The pigtail design of the sender and receiver modules relieves stress and reduces clutter on the DVI source and display connector panels.

HDCP and DDC Support: Features full HDCP pass-through and bidirectional DDC support.

Compact for Clean Installation: The compact modules are designed to fit neatly behind equipment, allowing for a clean and easy installation.

Regulatory Compliance: The extender is FCC and CE compliant for EMI/RFI emission.

How It Works

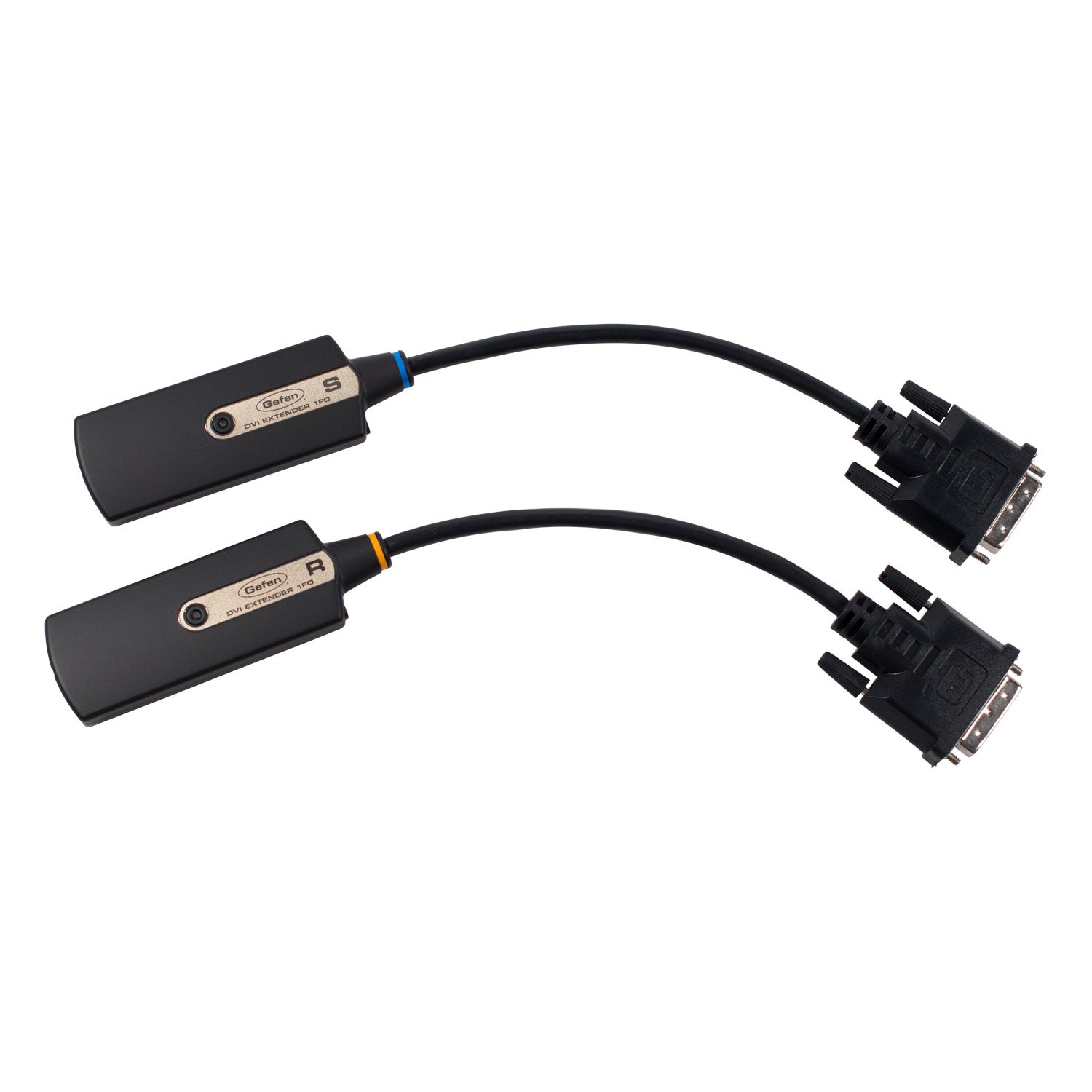

The Gefen EXT-DVI-CP-FM10 system operates with a Sender pigtail module and a Receiver pigtail module. To begin, plug the Sender pigtail end directly into the DVI source and plug the Receiver pigtail end into the display. A single-strand, SC-terminated multimode fiber optic cable connects the Sender and Receiver modules, transmitting the DVI signal over a long distance. The Receiver module must be connected to the included 5V DC power supply to operate. The Sender module is designed to draw power directly from the DVI source and typically does not need its own power supply unless the source device provides insufficient power through the DVI connector. Once all components are connected and the source and display are powered on, a vibrant, high-definition picture will appear on the remote display.

Additional Information

Specifications

Video

Maximum Pixel Clock: 165 MHz
Resolutions: Supports up to 1920x1200 (WUXGA)

Connectors

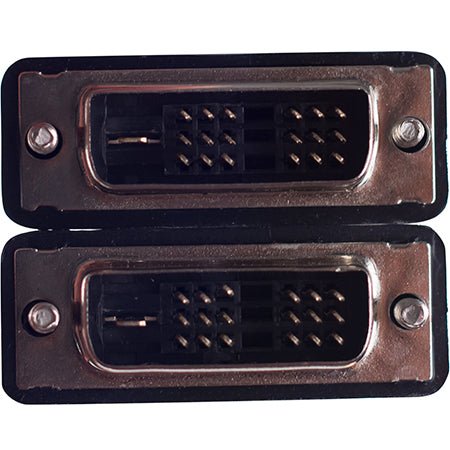

Video Input Connector (Sender): (1) DVI-D, 19-pin, male
Video Output Connector (Receiver): (1) DVI-D, 19-pin, male

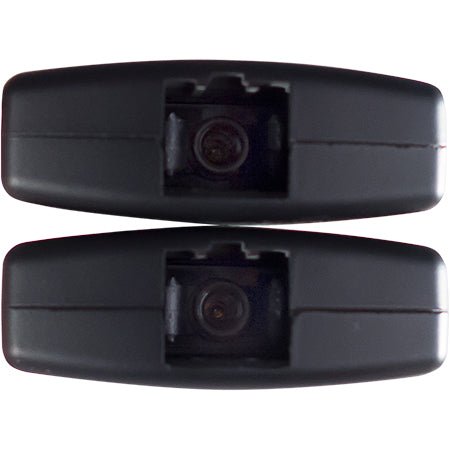

Link Connector (Sender/Receiver): (1) Type SC fiber (50/125µm)

Power

Power Supply (Sender / Receiver): 5V DC
Power Consumption (Receiver): 1.5W (max.)

Environmental

Operating Temperature: 0° to +50° C (0° to +122° F)
Storage Temperature: -20° to +70° C (-4° to +158° F)
Relative Humidity: 10% to 80%
Dimensions & Weight
Dimensions (W x H x D): 1.54" x 0.63" x 11.49" (39.11mm x 16mm x 291.84mm)
Shipping Weight: 1 lb. (0.45 kg)
UPC: 845344090375

System Requirements

Source and Display: A DVI source (e.g., computer) and a DVI display.

Cabling: A single-strand, SC-terminated fiber optic cable is needed to link the Sender and Receiver modules.

For the maximum extension distance of 3300 feet (1000 meters), a 50/125µm multimode (OM2/OM3) fiber cable is required.

Alternatively, a 62.5/125µm (OM1) multimode fiber cable may be used, but the maximum range is reduced to 1000 feet (300 meters).

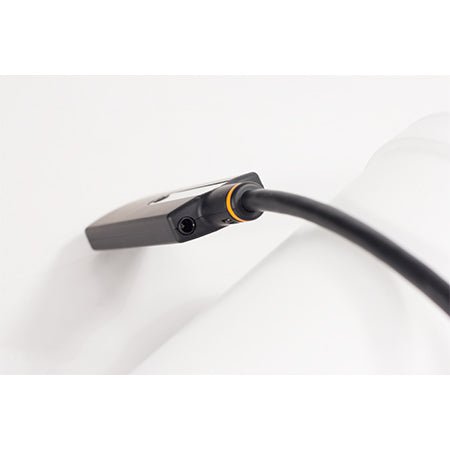

Power: The Receiver module must always be connected to the included 5V DC power supply.

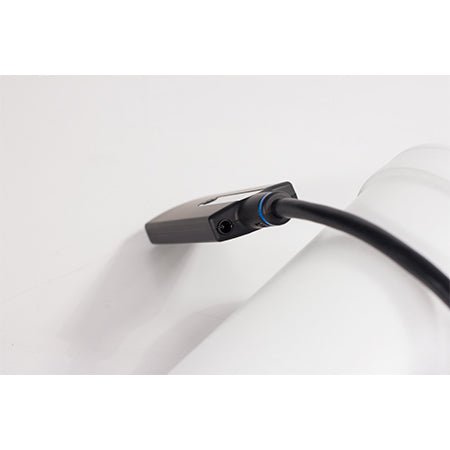

The Sender module is designed to be powered by the DVI source; however, an external 5V DC power supply (one is included with the kit) must be used if the DVI source does not provide sufficient power.

What's in the Box

(1) DVI Fiber Optic Modular Extender with HDCP - Sender Pigtail

(1) DVI Fiber Optic Modular Extender with HDCP - Receiver Pigtail

(1) 5V DC power supply

(1) Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-DVI-CP-FM10 Datasheet
Gefen EXT-DVI-CP-FM10 Manual
Gefen EXT-DVI-CP-FM10 Declaration of Conformity
