DVI KVM HDBaseT 2.0 Extender with USB, RS-232, 2-way Audio, and POH (EXT-DVIKA-HBT2)

Name: DVI KVM HDBaseT 2.0 Extender with USB, RS-232, 2-way Audio, and POH (EXT-DVIKA-HBT2)
Brand: Gefen
SKU: EXT-DVIKA-HBT2
Price: 1500.0 USD
Availability: InStock

EXT-DVIKA-HBT2

The Gefen EXT-DVIKA-HBT2 utilizes the advanced HDBaseT™ 2.0 Colligo platform to extend DVI, USB, RS-232, and bi-directional audio over a single CAT-5e cable up to 495 feet (150 meters). This robust KVM extender supports video resolutions up to 1080p Full HD and 1920x1200 (WUXGA), and can also support 4K Ultra HD video with high-bit-rate digital audio when using DVI-to-HDMI cables. Featuring Power Over HDBaseT (POH), the Receiver unit powers the Sender over the link cable, simplifying installation by requiring only a single power supply. This solution provides a complete and resilient connection for extending a full workstation with keyboard, mouse, and select USB peripherals, making it ideal for professional AV and IT environments requiring long-distance signal management.

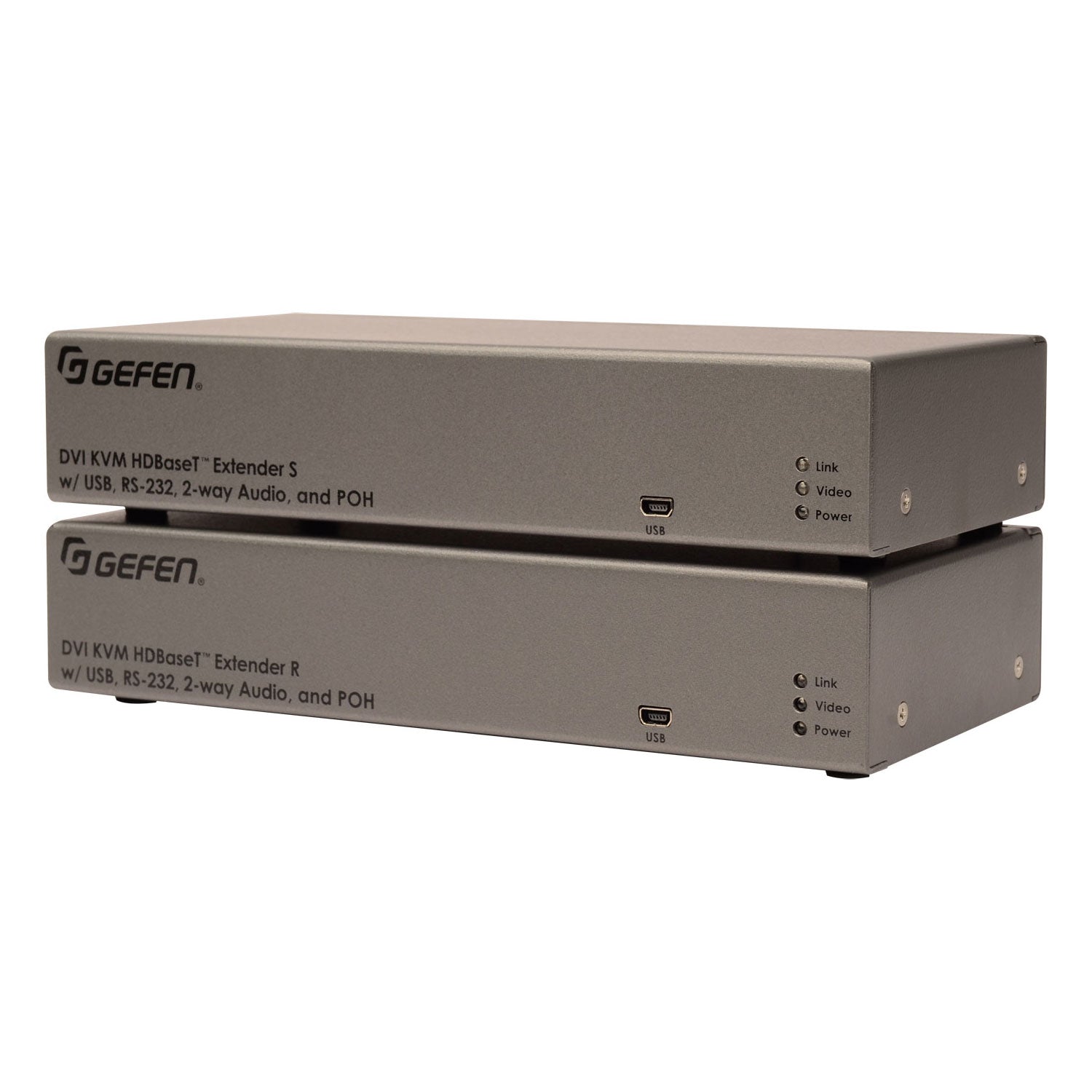

⚠️Comes with both Sender and Receiver

$1,500.00

DVI KVM HDBaseT 2.0 Extender with USB, RS - 232, 2 - way Audio, and POH (EXT - DVIKA - HBT2) - EXT - DVIKA - HBT2 - Gefen

Key Features

Versatile KVM Extension: Extends DVI, USB, RS-232, and 2-way Analog Audio signals over a single CAT-5e cable.

Long-Distance Transmission: Supports 1080p Full HD and WUXGA (1920 x 1200) resolutions up to 495 feet (150 meters) , and 4K DCI/Ultra HD resolutions up to 330 feet (100 meters).

4K HDMI Support: When using DVI-to-HDMI cables, the extender supports HDMI 2.0 (up to 4K 60Hz, 4:2:0) , HDCP 2.2 and 1.4 , 12-bit Deep Color , and 3DTV pass-through.

High-Bit-Rate Audio Pass-through: Supports LPCM 7.1, Dolby Atmos®, Dolby® TrueHD, DTS:X™, and DTS-HD Master Audio™ formats.

Power Over HDBaseT (POH): The Receiver powers the Sender unit over the link cable, requiring only one power supply at the receiver end for a simplified installation.

Bi-Directional Audio: Extends analog L/R stereo audio from Sender to Receiver and from Receiver to Sender. The Receiver's audio input accommodates either a microphone or a line-level source.

Advanced System Management: Features advanced EDID Management , Link Quality Monitoring , and in-field firmware updates via the Gefen Syner-G™ software.

Flexible Installation Options: The 1U tall, half-rack-width enclosures can be surface-mounted , placed on a shelf , or installed in a 19-inch rack using an optional rack tray.

How It Works

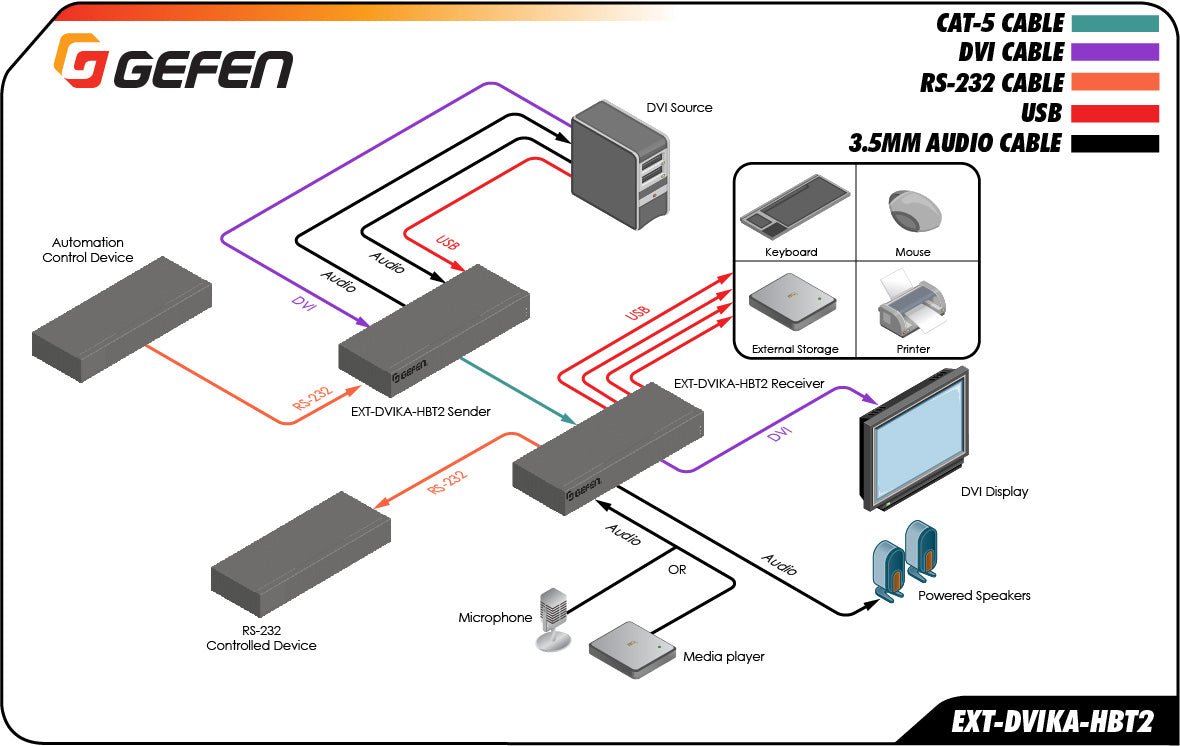

The EXT-DVIKA-HBT2 system operates with two main components: a Sender and a Receiver. First, connect your DVI source, computer USB, and source audio to the corresponding inputs on the Sender unit. Then, connect a single CAT-5e or better cable between the Sender and Receiver to extend all signals up to 495 feet (150 meters). At the remote workstation, connect your DVI display, up to four USB devices (such as a keyboard and mouse), and powered speakers to the appropriate outputs on the Receiver unit. For bi-directional audio, a return channel can be established by connecting a microphone or line-level source to the Receiver's audio input. To power the entire system, simply connect the included 48V DC power supply to the Receiver unit; it will automatically power the Sender over the same link cable using Power Over HDBaseT (POH) technology, simplifying installation by removing the need for a power supply at the source location.

Additional Information

Specifications

Video

Maximum Pixel Clock: 300 MHz

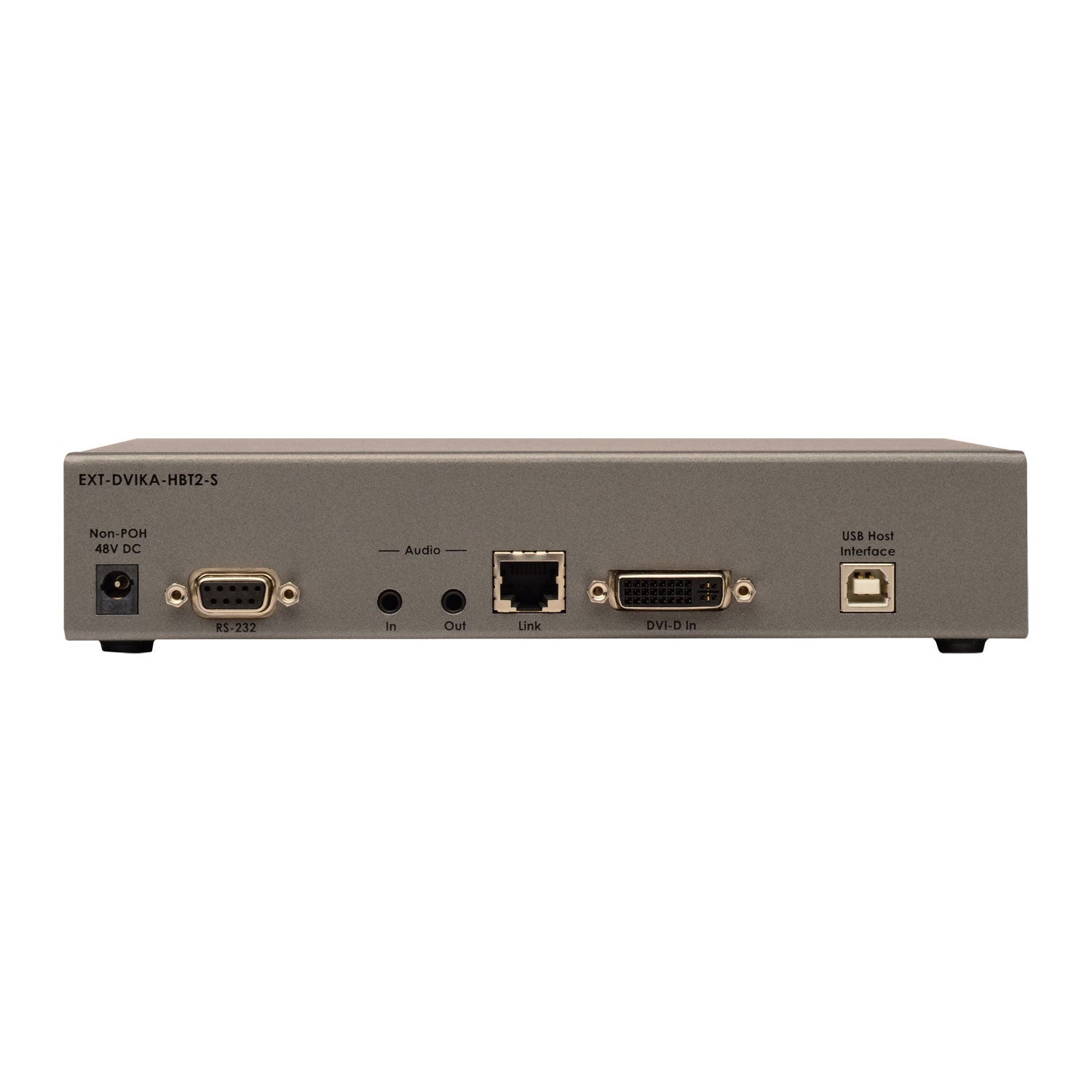

Sender Video Input: (1) DVI 29-pin, female, digital only

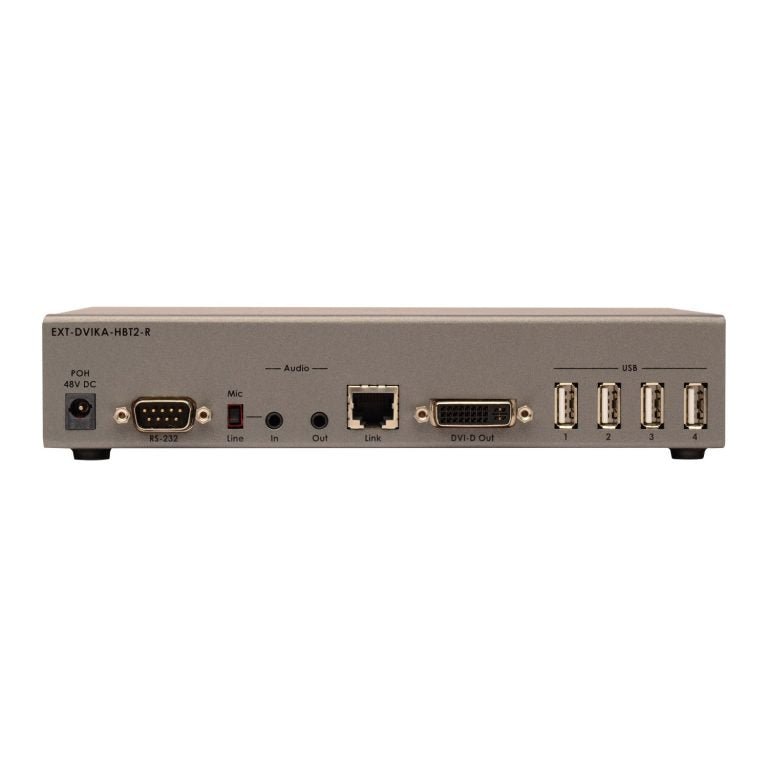

Receiver Video Output: (1) DVI 29-pin, female, digital only

Audio

Sender Audio Input (Line): (1) 3.5mm mini-stereo jack
Receiver Audio Input (Mic/Line): (1) 3.5mm mini-stereo jack
Sender/Receiver Audio Output: (1) 3.5mm mini-stereo jack
Mic/Line Selector Switch (Receiver): (1) slide type

USB

Sender USB Host Port: (1) USB Type B, female
Receiver USB Device Ports: (4) USB Type A, female

Control

Sender RS-232 Port: (1) DB-9, female
Receiver RS-232 Port: (1) DB-9, male
Sender/Receiver Syner-G Port: (1) USB Mini-B

Link

Sender/Receiver Link Connector: (1) RJ-45, shielded, female

Power

Power Supply Connector: (1) 48V DC, locking
Power Consumption (Sender & Receiver): 13W

Environmental

Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing

Physical

Dimensions (W x H x D): 8.4" x 1.7" x 4.3" (214mm x 43mm x 110mm)
Net Weight (per unit): 1.1 lbs (0.47 kg)
Shipping Weight: 5.5 lbs. (2.5 kg)

Reliability

MTBF: 50000 hours

UPC: 888814983609

System Requirements

Cabling: A single shielded (STP) CAT-5e or better cable is required for the link between the Sender and Receiver units.

Management Software: To perform EDID management and firmware updates, the product requires Gefen Syner-G™ software, version 2.1.x or later, running on a Windows PC. A USB-A to Mini-B cable is needed to connect the unit to the computer.

What's in the Box

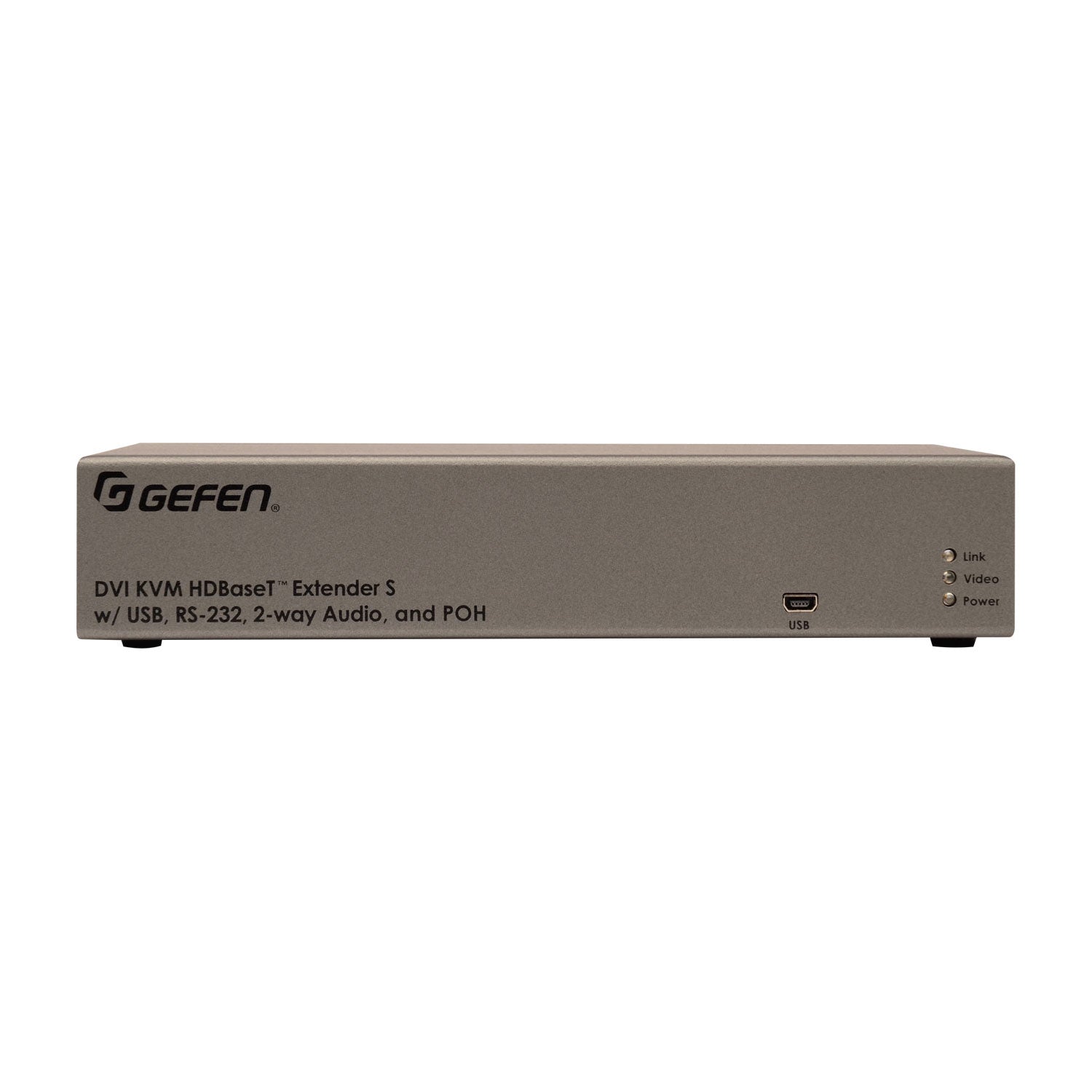

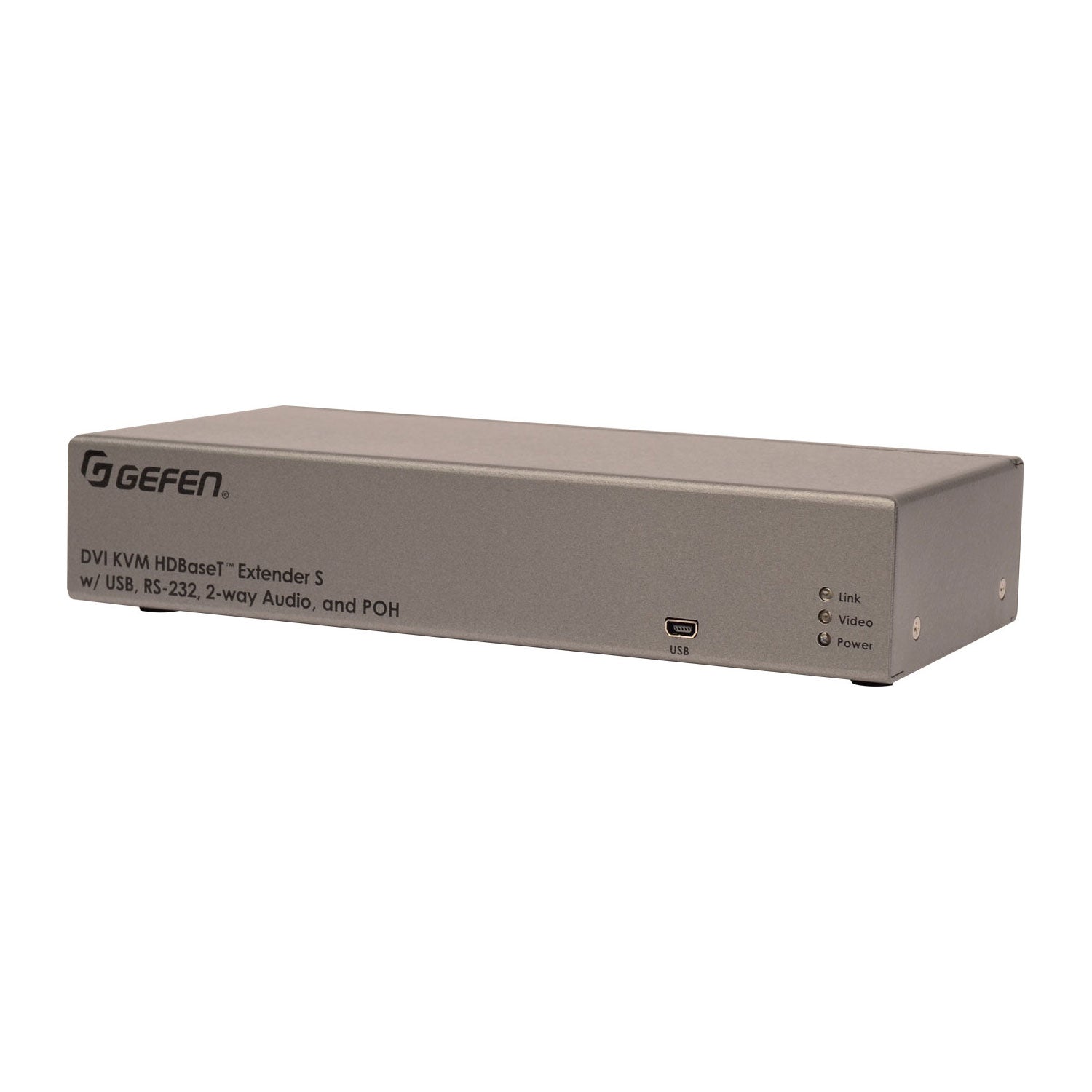

(1) DVI KVM HDBaseT™ Extender - Sender unit

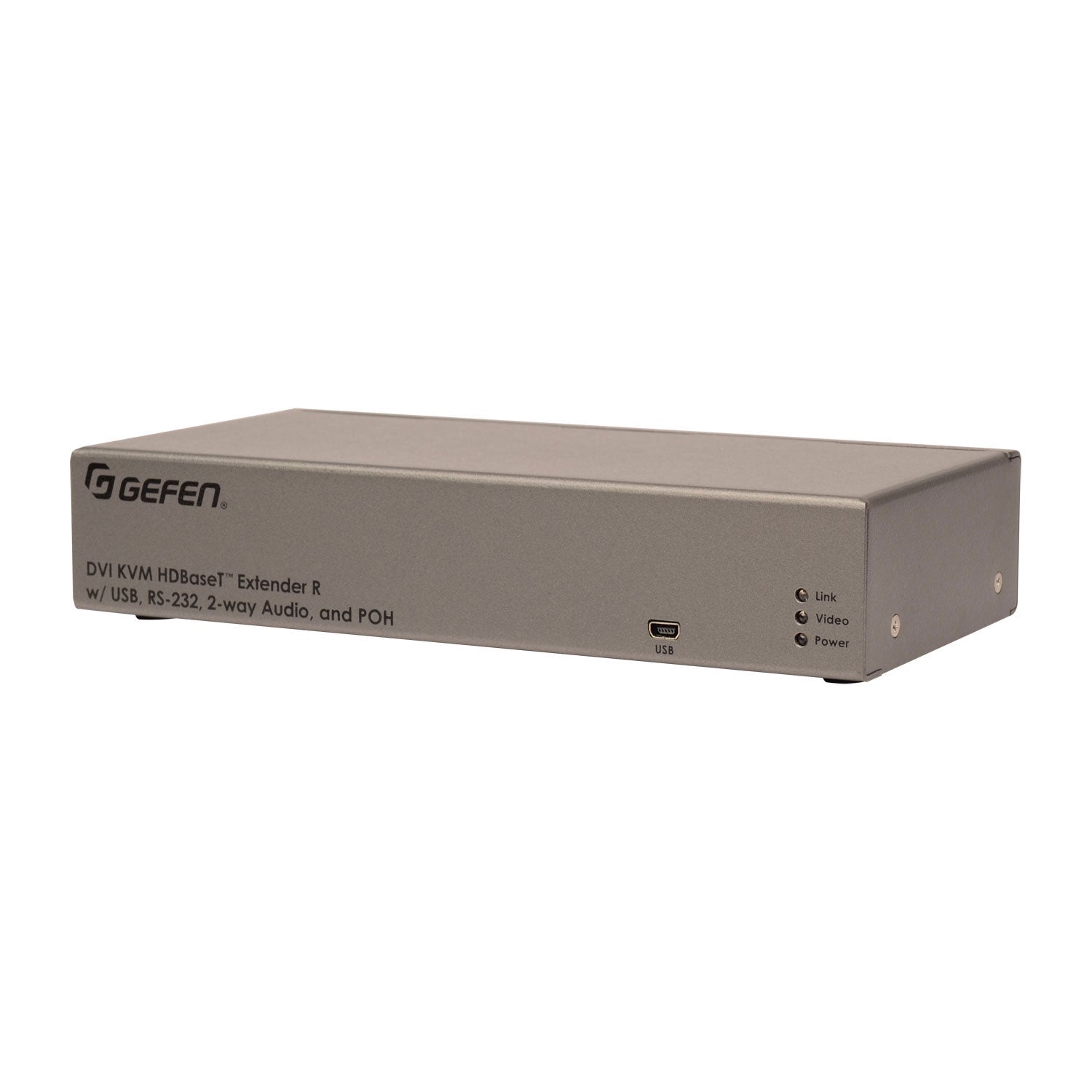

(1) DVI KVM HDBaseT™ Extender - Receiver unit
(1) 6 ft. DVI cable (M-M)
(1) 6 ft. Dual-Link DVI cable (M-M)
(1) 6 ft. USB A-B cable (M-M)
(2) 6 ft. 3.5mm mini-stereo cables (M-M)
(1) 48V/1A DC power supply with locking plug
(1) IEC AC power cord with interchangeable connectors (US, UK, EU, AU)
(4) L-Shaped Surface-Mounting Brackets
(8) Self-Adhesive Rubber Feet
(8) 6mm M3 Phillips flat head machine screws
(4) 5mm 6-32 Phillips flat head machine screws
(1) Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-DVIKA-HBT2 Datasheet
Gefen EXT-DVIKA-HBT2 Manual
