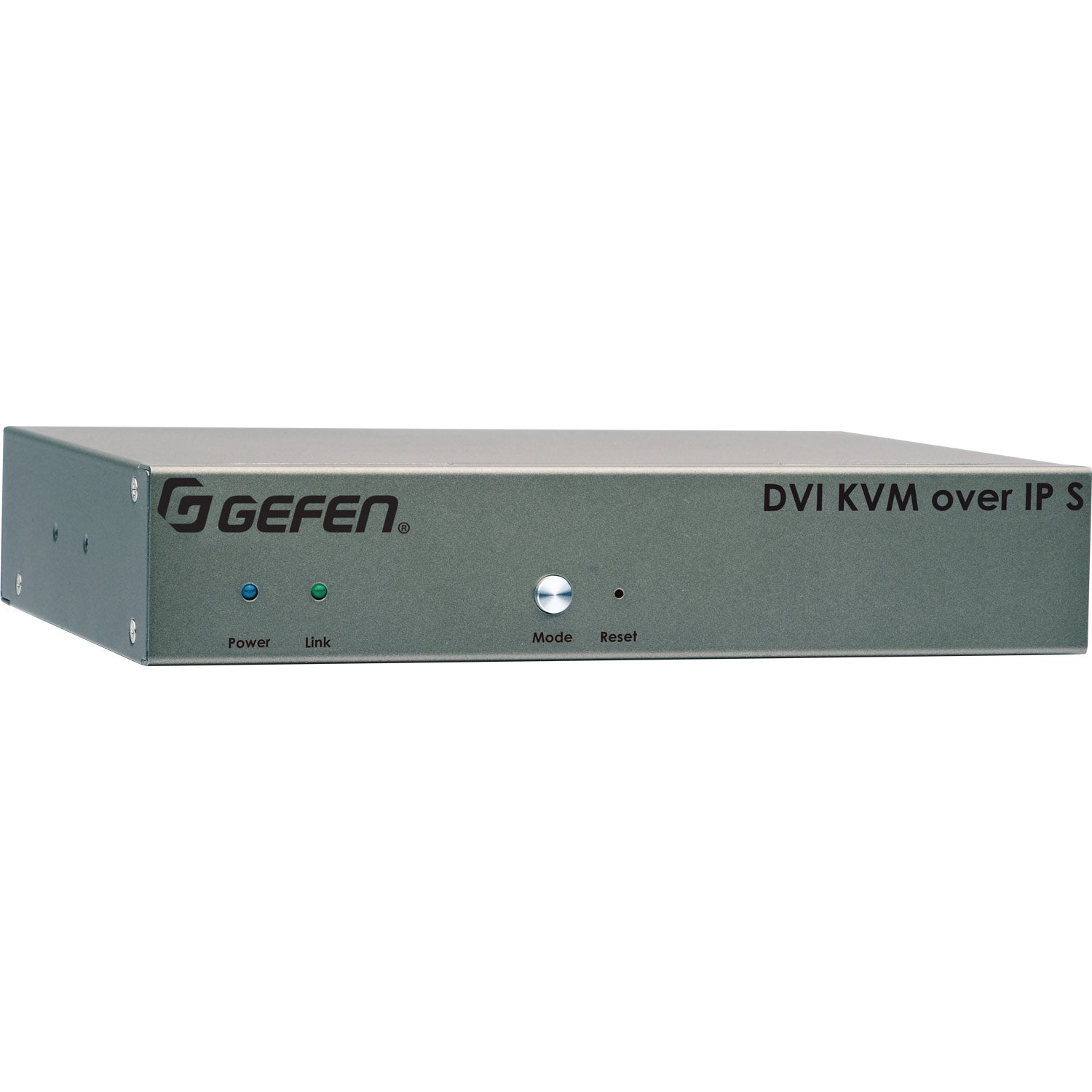

DVI KVM over IP Extender Sender Unit (EXT-DVIKVM-LAN-LTX)

EXT-DVIKVM-LAN-LTX

The Gefen DVI KVM over IP Sender unit is the essential component for building a scalable and powerful remote access system over a local area network (LAN). This sender unit extends high-definition DVI video, USB for keyboard and mouse, RS-232 control, and bi-directional audio signals up to 330 feet (100 meters) to any receiver unit on the network. A key feature is the local DVI output, allowing for simultaneous monitoring at the source location. Ideal for professional AV and IT environments, this solution offers a flexible and robust method for controlling remote computers and workstations from any connected location.

⚠️Requires a Receiver Unit
$500.00
DVI KVM over IP Extender Sender Unit (EXT - DVIKVM - LAN - LTX) - EXT - DVIKVM - LAN - LTX - Gefen
DVI KVM over IP Extender Sender Unit (EXT - DVIKVM - LAN - LTX) - EXT - DVIKVM - LAN - LTX - Gefen

Key Features

High-Resolution Video: Supports resolutions up to 1080p Full HD and 1920x1200 (WUXGA), ensuring sharp and detailed video quality for professional applications.



Versatile KVM Extension: Extends DVI, USB, RS-232, and bi-directional analog audio over a standard Gigabit Local Area Network (LAN).



Local DVI Output: Includes a DVI local output port for connecting a monitor at the sender's location, allowing for convenient local monitoring of the source.



High-Speed USB 2.0: Features two USB 2.0 ports for connecting keyboards, mice, and other USB devices, with data rates up to 480 Mbps.



Flexible Scalability: Create systems ranging from a simple one-to-one extension to a large-scale virtual matrix by adding multiple Sender and Receiver units to the same network.



RS-232 Serial Extension: A DB-9 port allows for the extension of RS-232 control signals for managing remote devices.



Advanced Management: Can be configured and controlled via a built-in web interface, Telnet, and the Gefen Syner-G™ software.

How It Works

The Gefen DVI KVM over IP system operates with two main components: this Sender unit and one or more Receiver units (sold separately). First, connect your DVI source, computer (via USB), and any RS-232 or audio devices to the Sender unit. The Sender then connects to your local area network (LAN) via a standard CAT-5e or better cable. A Receiver unit at the remote location also connects to the LAN and to your display, keyboard, mouse, and other peripherals. This setup allows you to access and control the source from the remote workstation as if it were directly connected. By adding multiple Senders and Receivers to the network, you can create a flexible and massively scalable 'virtual matrix,' allowing any connected workstation to control any source on the network.

Additional Information

Specifications

Video Input Connector (Sender): (1) DVI-I 29-pin, female (digital only)

Video Output Connector (Sender): (1) DVI-I 29-pin, female (digital only)

Link Connector (Sender/Receiver): (1) RJ-45, Shielded

USB Host Port (Sender): (1) USB Type B, female

USB Device Ports (Receiver): (2) USB Type A, female

RS-232 Port (Sender/Receiver): (1) DB-9, female

Audio Input port (Sender): (1) 3.5mm mini-stereo jack

Audio Output port (Receiver): (1) 3.5mm mini-stereo jack

Maximum Video Resolution: 1080p Full HD / 1920x1200 (WUXGA)

USB Data Rate: 480 Mbps

Power Supply (Sender/Receiver): 5V DC

Power Consumption (Sender/Receiver): 10W (max.)

Operating Temperature: +32 to +104 °F (0 to +40 °C)

Dimensions (W x H x D): 4.2" x 1.6" x 4.2" (107mm x 41mm x 107mm)

Shipping Weight: 3 lbs. (1.4 kg)

UPC: 845344077758

System Requirements

  • A Local Area Network (LAN) with a managed Gigabit switch.
  • If a DHCP server is not available in the network, the Sender and Receiver units must be configured with static IP addresses.
  • It is highly recommended to use a dedicated network for the KVM-over-IP system to ensure optimal performance, especially in large-scale installations.

What's in the Box

  • (1) DVI KVM over IP Sender Unit (EXT-DVIKVM-LAN-LTX)
  • (1) 6 ft. DVI Cable (M-M)
  • (1) 6 ft. USB Cable (A-B)
  • (1) 5V DC Power Supply
  • (1) Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-DVIKVM-LAN-LTX Manual
Gefen EXT-DVIKVM-LAN-LTX Declaration of Conformity
