DVI KVM over IP Sender Unit for KVM over IP System (EXT-DVIKA-LANS-TX)

EXT-DVIKA-LANS-TX

The Gefen EXT-DVIKA-LANS-TX is a Gen 2.0 KVM over IP Sender unit that provides a high-performance, scalable, and secure solution for extending and distributing AV over a standard Gigabit Local Area Network. This Sender extends DVI video, USB, RS-232, IR, and 2-way audio up to 330 feet (100 meters) to a network of receiver units. Supporting resolutions up to 1080p Full HD and 1920x1200 (WUXGA), it ensures crisp, clear visuals for demanding applications, while a local DVI output allows for convenient source monitoring. The system is massively scalable, supporting up to 39,900 Senders in a virtual matrix, making it ideal for large-scale KVM, control, and digital signage installations. Independent routing of video, USB, RS-232, IR, and audio offers ultimate flexibility, allowing any workstation to control any source on the network.

⚠️Requires EXT-DVIKA-LANS-RX Receiver Unit
$702.45
DVI KVM over IP Sender Unit for KVM over IP System (EXT - DVIKA - LANS - TX) - EXT - DVIKA - LANS - TX - Gefen
DVI KVM over IP Sender Unit for KVM over IP System (EXT - DVIKA - LANS - TX) - EXT - DVIKA - LANS - TX - Gefen
DVI KVM over IP Sender Unit for KVM over IP System (EXT - DVIKA - LANS - TX) - EXT - DVIKA - LANS - TX - Gefen
DVI KVM over IP Sender Unit for KVM over IP System (EXT - DVIKA - LANS - TX) - EXT - DVIKA - LANS - TX - Gefen
DVI KVM over IP Sender Unit for KVM over IP System (EXT - DVIKA - LANS - TX) - EXT - DVIKA - LANS - TX - Gefen
DVI KVM over IP Sender Unit for KVM over IP System (EXT - DVIKA - LANS - TX) - EXT - DVIKA - LANS - TX - Gefen
DVI KVM over IP Sender Unit for KVM over IP System (EXT - DVIKA - LANS - TX) - EXT - DVIKA - LANS - TX - Gefen
DVI KVM over IP Sender Unit for KVM over IP System (EXT - DVIKA - LANS - TX) - EXT - DVIKA - LANS - TX - Gefen
DVI KVM over IP Sender Unit for KVM over IP System (EXT - DVIKA - LANS - TX) - EXT - DVIKA - LANS - TX - Gefen
DVI KVM over IP Sender Unit for KVM over IP System (EXT - DVIKA - LANS - TX) - EXT - DVIKA - LANS - TX - Gefen

Key Features

Network Signal Extension: Extends DVI, USB, RS-232, 2-way analog audio, and IR over a standard Gigabit Local Area Network.



High-Resolution Video: Supports VESA and CEA input and output resolutions up to WUXGA (1920×1200 at 60 Hz) and 1080p Full HD (1920×1080 at 60 Hz).



Massive Scalability: Supports up to 39,900 Senders and a combination of over 65,000 Sender and Receiver units on one network, depending on bandwidth and switch port availability.



Independent Signal Routing: Allows for independent routing of video, USB, RS-232, IR, and audio streams between any Sender and Receiver units**.



Integrated Video Wall Controller: A powerful built-in video wall controller accommodates any screen configuration with up to 16 rows and 16 columns.



Advanced KM Emulation: Facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations.



Local Video Monitoring: The Sender unit features a DVI output for local monitoring of the source signal.



Power over Ethernet: 802.3af standard Power-over-Ethernet allows both Sender and Receiver units to be powered through a PoE-enabled IP network switch, removing the need for external power supplies.



Built-in Scaler: The Receiver features an integrated scaler to help optimize the image for a variety of displays and different viewing environments.



Versatile USB Hub: The Receiver is equipped with two USB 2.0 ports with data rates up to 480 Mbps and two USB 1.1 ports for Human Interface Devices (H.I.D.) with KM Emulation.



Multiple Control Interfaces: Controllable via a built-in web interface, Telnet, UDP, the Gefen Keyboard Switching Controller software, and an enhanced API for third-party control systems.



System Integration Support: Fully compatible with the Gefen EXT-CU-LAN Matrix Controller for quick configuration, Mass-Firmware-Updates (MFU), and enhanced system security.



Professional Enclosures: Features locking power supply connectors , included L-brackets for surface-mounting , and half-rack width enclosures that can be rack-mounted using the EXT-RACK-1U-GRY rack tray.

How It Works

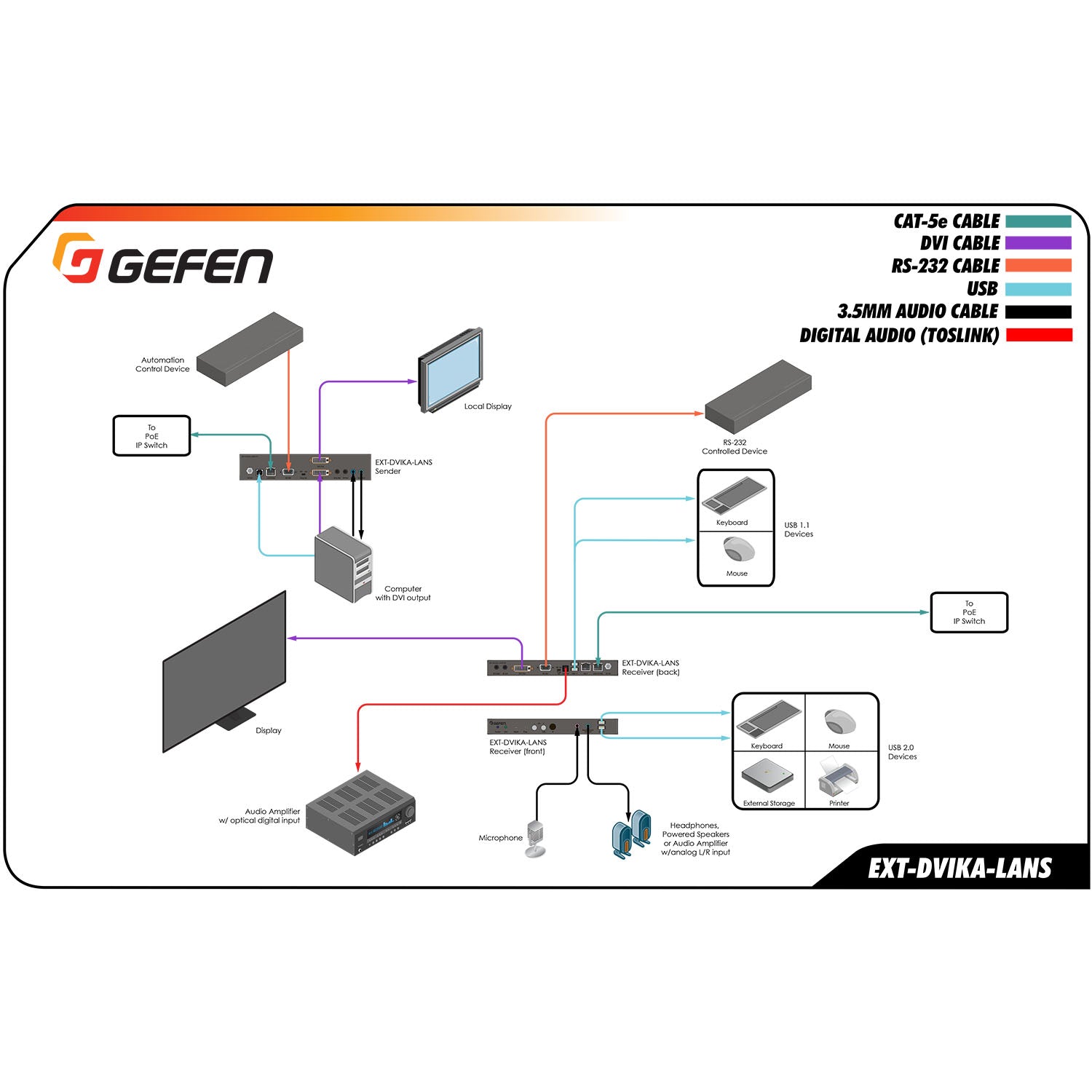

The Gefen DVI KVM over IP system works with two main components: a Sender (TX) and one or more Receiver (RX) units. The DVI source, USB for KVM, RS-232, and audio are all connected to the Sender unit. The corresponding display, keyboard/mouse, and other peripherals are connected to the Receiver unit. For a simple point-to-point extension, the Sender and Receiver can be connected directly using a single CAT-5e or better cable up to 330 feet (100 meters). To create a more advanced and scalable system, connect multiple Senders and Receivers to a standard Gigabit Local Area Network switch. In this network configuration, the system operates as a virtual KVM matrix where any Receiver can be switched to control any Sender on the network, supporting installations with up to 39,900 Senders.

Additional Information

Specifications

Connectors, Indicators, & Controls

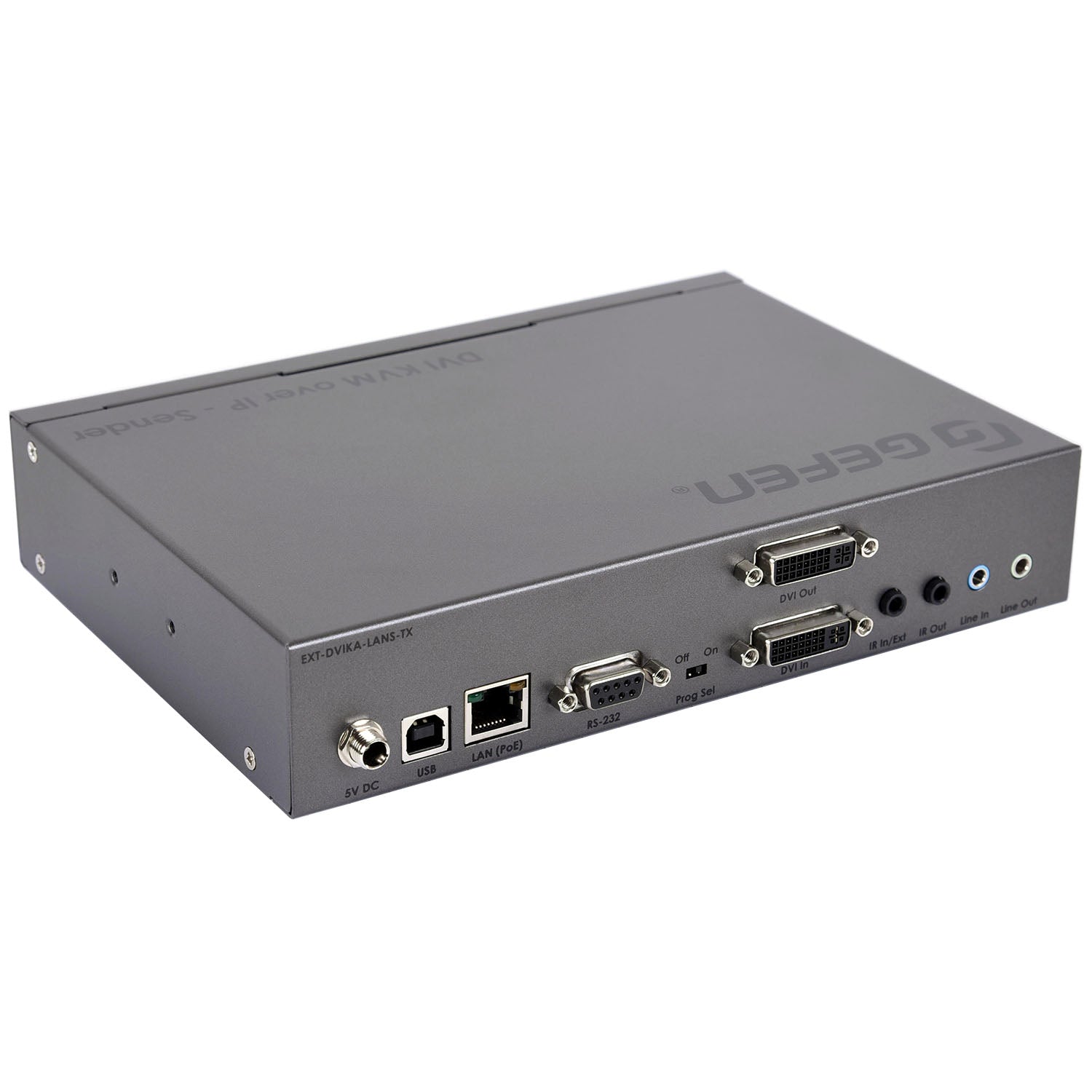

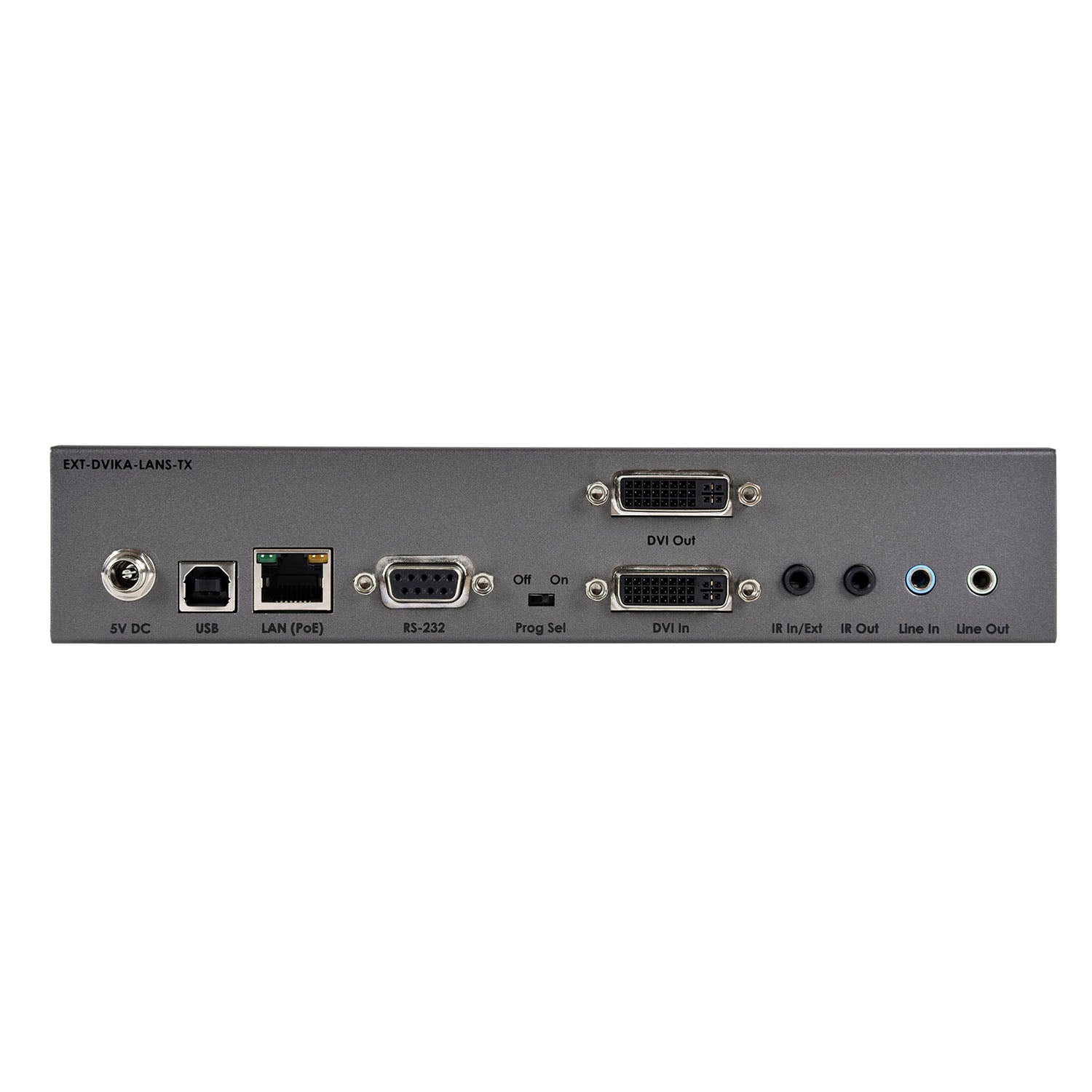

  • Video Input Connector: (1) DVI 29-pin, female, digital only
  • Video Output Connector: (1) DVI 29-pin, female, digital only
  • Line Input: (1) 3.5mm mini-stereo jack
  • Line Output: (1) 3.5mm mini-stereo jack
  • USB Host Interface port: (1) USB Type B, female
  • Ethernet Port: (1) RJ-45, shielded, with PoE
  • RS-232 Port: (1) DB-9, female
  • IR In/Ext Connector: (1) 3.5mm mini-stereo, female
  • IR Out Connector: (1) 3.5mm mini-mono jack

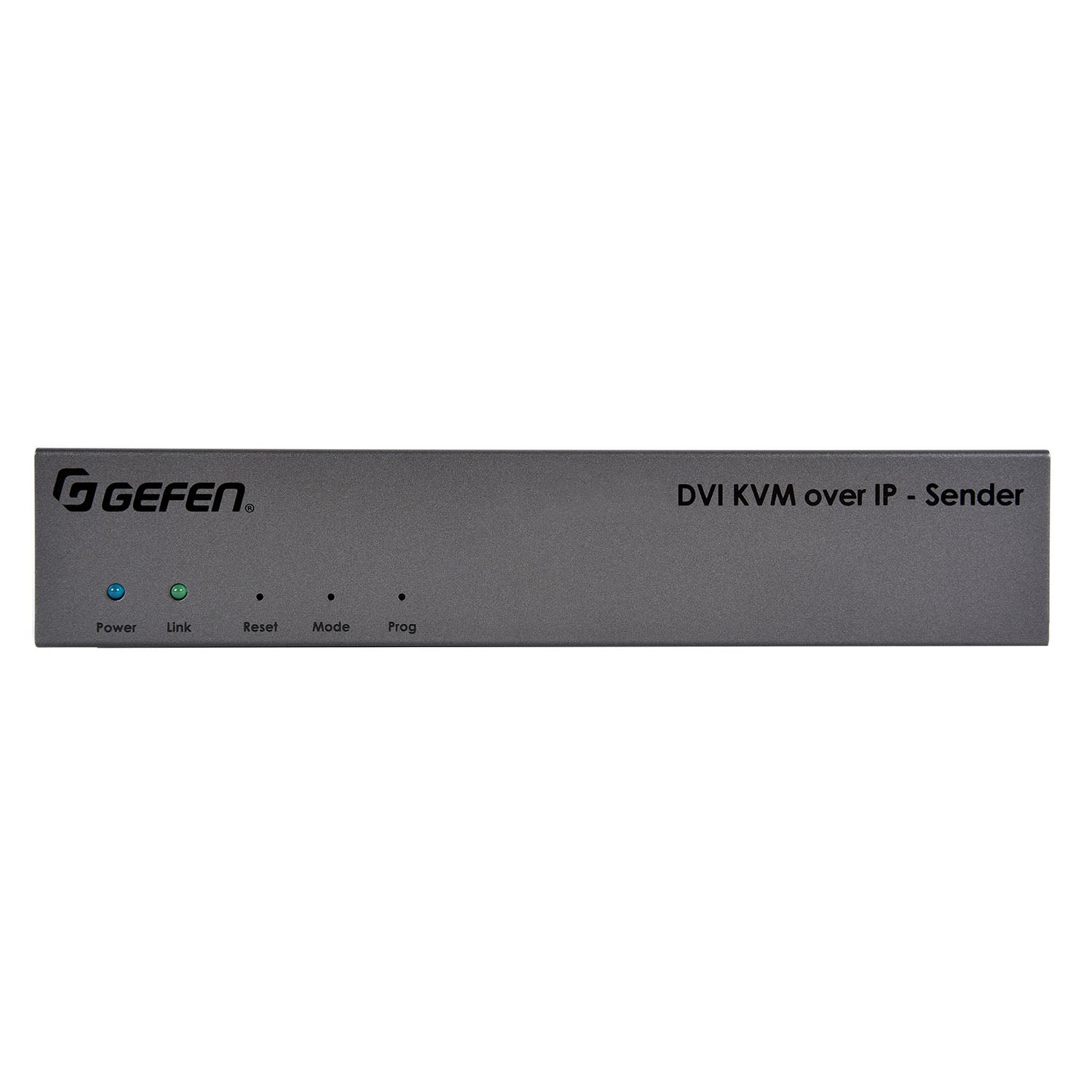

  • Mode button: (1) tact-type, recessed
  • Reset button: (1) tact-type, recessed
  • Program button: (1) tact-type, recessed
  • Program Select switch: (1) slide-type, recessed
  • Link Indicator: (1) LED, green
  • Power Indicator: (1) LED, blue

Power

  • Power Requirement: 5V DC, or PoE (802.3af standard)
  • Power Supply Jack: 5V DC, locking, 5.5mm barrel/2.1mm pin
  • Power Consumption (maximum): 6W

Operational

  • Operating Temperature: +32 to +122°F (0 to +50°C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185°F (-20 to +85°C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 50000 hours

Physical

  • Dimensions (W x H x D, not including connectors): 8.4” x 1.7” x 5.9” (214mm x 43mm x 150mm)
  • Unit Weight: 2.2 lbs. (1 kg)
  • Shipping Weight: 4.2 lbs. (1.9 kg)

UPC: 888814999747

System Requirements

Network Switch: A managed Gigabit switch is required. A dedicated LAN is not required but is highly recommended.



Switch Features: Jumbo Frame Support (8k or greater) and IGMP Snooping must be enabled on the network switch.



Cabling: Shielded CAT-5e (or better) cabling must be used for all network connections.



Cable Length: The network cable run from the Sender unit to the IP switch must not exceed 330 feet (100 meters).



What's in the Box

  • (1) Sender unit
  • (1) 5V 2.6A Power Supply
  • (4) Self-Adhesive Rubber-Feet
  • (2) L-Shaped Mounting Brackets
  • (4) Machine screws for L-Shaped Mounting Brackets
  • (2) Machine screws for EXT-RACK-1U-GRY (sold separately)
  • (1) Quick-Start Guide
