Fiber Optic DisplayPort Extender Pigtail Modules — 2560 x 1600 (WQXGA) up to 3300 ft (1000m) (EXT-DP-CP-FM10)

EXT-DP-CP-FM10

The Gefen DisplayPort Fiber Optic Pigtail Modules (EXT-DP-CP-FM10) provide a robust solution for extending high-resolution video over extremely long distances using a single strand of multimode fiber optic cable. This compact extender system reliably transmits resolutions up to 2560 x 1600 (WQXGA) and supports 1080p Full HD at 120Hz, with HDCP and DPCP compliance, over distances up to 3300 feet (1000 meters) using OM2/OM3 fiber. By utilizing fiber optic transmission, the system provides galvanic isolation and complete immunity to electromagnetic interference (EMI). The unique pigtail design relieves physical stress and reduces clutter on equipment connectors, making the EXT-DP-CP-FM10 an ideal choice for professional installations where signal integrity and reliability are critical. Compliant with the DisplayPort 1.1 standard.
$2,164.34
Fiber Optic HDMI Extender Pigtail Modules, 1080p up to 3300 ft. (1000m) (EXT - DP - CP - FM10) - EXT - DP - CP - FM10 - Gefen
Fiber Optic HDMI Extender Pigtail Modules, 1080p up to 3300 ft. (1000m) (EXT - DP - CP - FM10) - EXT - DP - CP - FM10 - Gefen
Fiber Optic HDMI Extender Pigtail Modules, 1080p up to 3300 ft. (1000m) (EXT - DP - CP - FM10) - EXT - DP - CP - FM10 - Gefen
Fiber Optic HDMI Extender Pigtail Modules, 1080p up to 3300 ft. (1000m) (EXT - DP - CP - FM10) - EXT - DP - CP - FM10 - Gefen
Fiber Optic HDMI Extender Pigtail Modules, 1080p up to 3300 ft. (1000m) (EXT - DP - CP - FM10) - EXT - DP - CP - FM10 - Gefen
Fiber Optic HDMI Extender Pigtail Modules, 1080p up to 3300 ft. (1000m) (EXT - DP - CP - FM10) - EXT - DP - CP - FM10 - Gefen

Key Features

Long-Distance Fiber Optic Extension: Extends DisplayPort signals up to 3300 feet (1000 meters) using a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable. Up to 1000 feet (300 meters) using 62.5/125µm (OM1) fiber.



High-Resolution Support: Supports resolutions up to 2560 x 1600 (WQXGA) and 1080p Full HD at 120Hz.



DisplayPort 1.1 Compliant: Fully compliant with the DisplayPort 1.1 standard.



Interference-Free Transmission: Fiber optic signal transmission provides galvanic isolation and immunity to electromagnetic interference (EMI), ensuring a stable, reliable signal in any environment



Professional Pigtail Design: The compact pigtail form factor of the Sender and Receiver modules relieves stress on equipment connectors and reduces clutter for a clean, professional installation



Comprehensive Format Support: HDCP and DPCP-compliant with DDC bidirectional support

How It Works

Connect the Sender pigtail module directly to your computer's DisplayPort output. Connect the Receiver pigtail module to your DisplayPort display. Link the two modules by connecting a single-strand, SC-terminated multimode fiber optic cable between the fiber optic connectors on each unit. Connect the included 5V DC power supplies to both the Sender and Receiver modules — both must be powered for proper operation. Once powered, a vibrant, high-definition picture will appear on the remote display at resolutions up to 2560 x 1600.



Note: DPCP (DisplayPort Content Protection) is not available when using Apple MDP (Mini DisplayPort) monitors

Additional Information

Specifications

Maximum Resolution: 2560 x 1600 (WQXGA)
Video Bandwidth: 3.5 Gb/s per channel

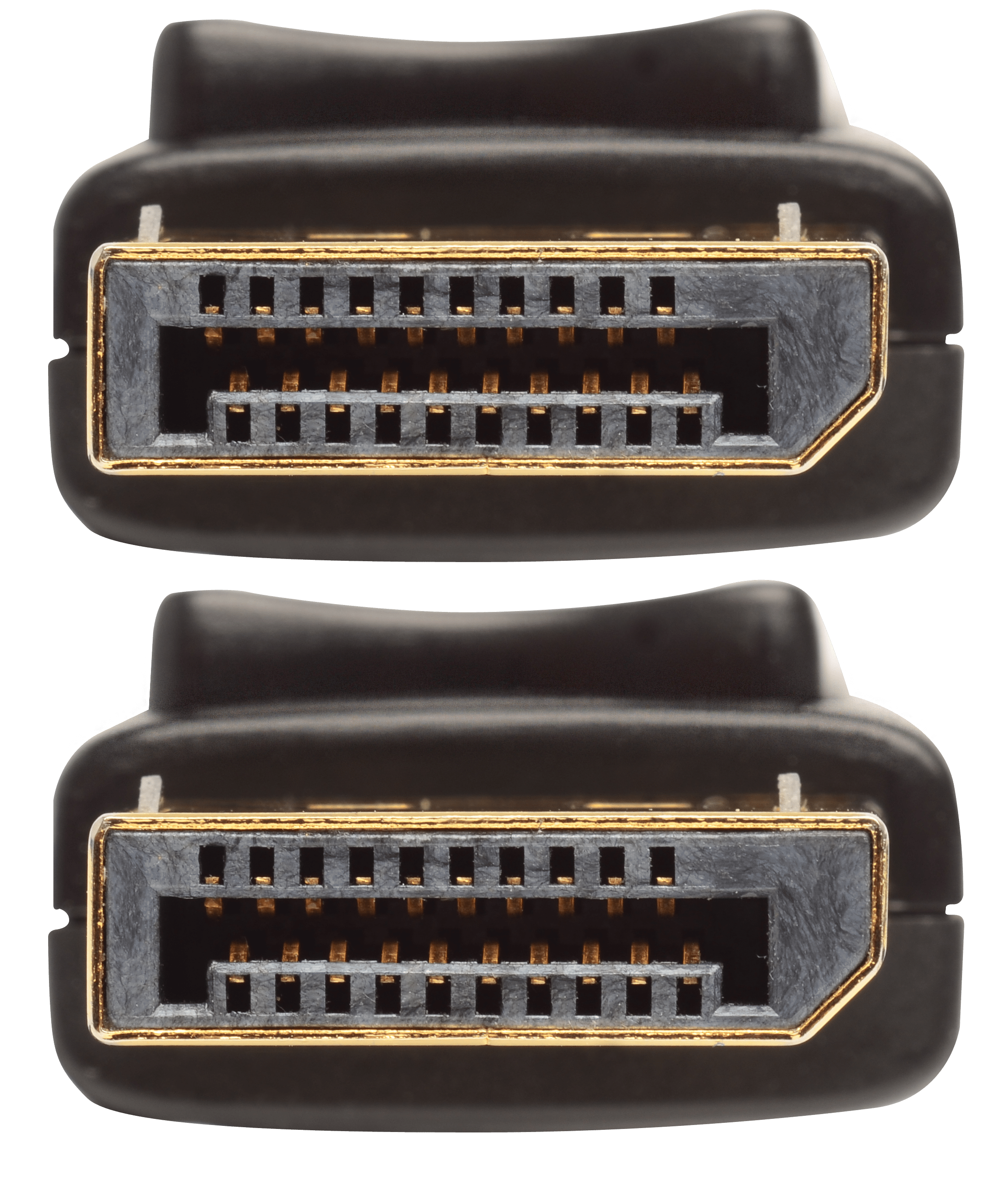

Video Input Connector (Sender): (1) DisplayPort 20-pin, male
Video Output Connector (Receiver): (1) DisplayPort 20-pin, male

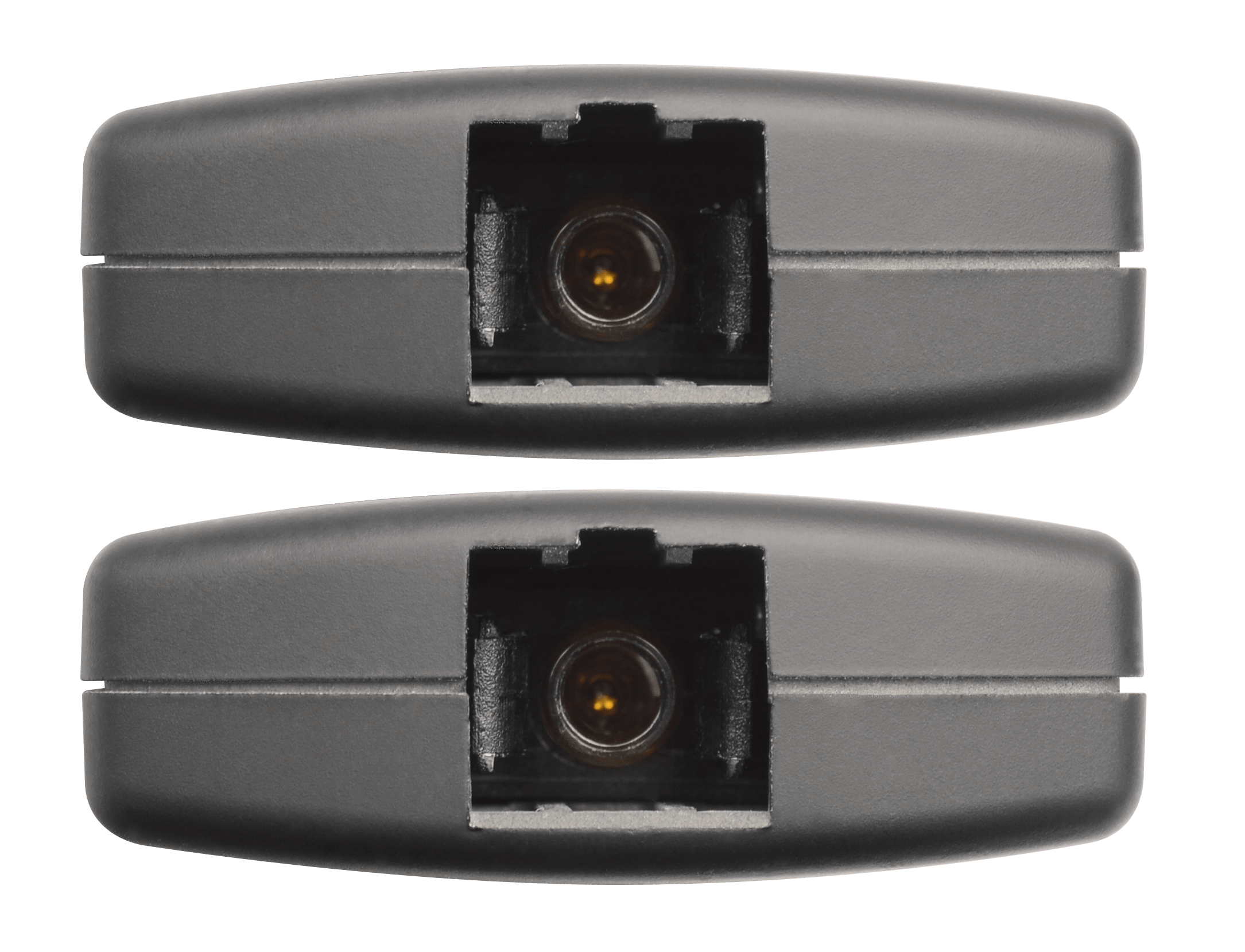

Link Connector (Sender/Receiver): (1) Type SC fiber (50/125µm)

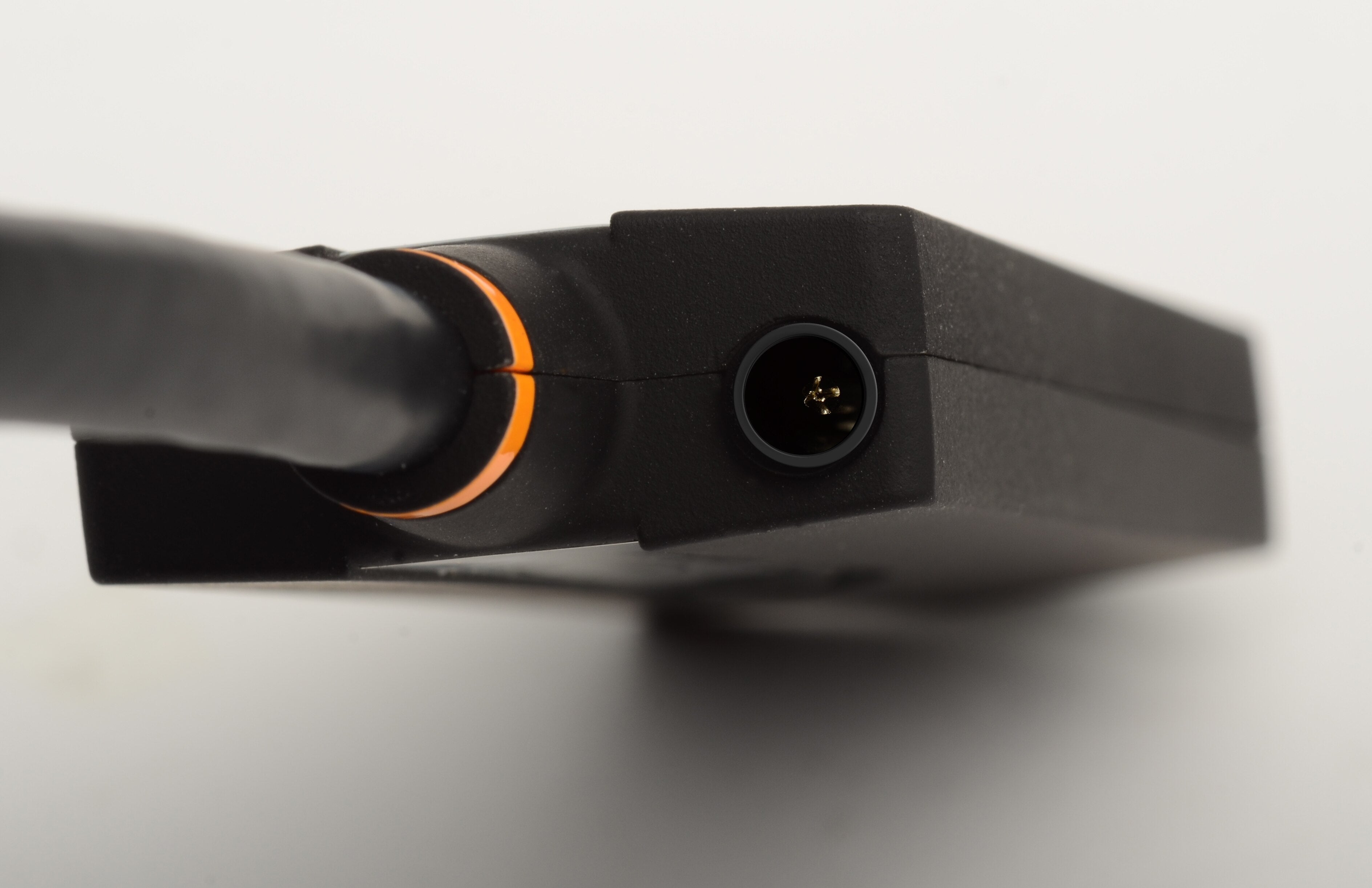

Power Supply (Sender & Receiver): 5V / 2A DC (included — 2 units)
Power Consumption: 1.5W (max.) per module
Operating Temperature: 0° to +50° C (+32° to +122° F)
Storage Temperature: -20° to +70° C (-4° to +158° F)
Relative Humidity: 10% to 80% RH (non-condensing)
Dimensions (W × H × D): 1.50" × 0.47" × 3.51" (38.10mm × 11.93mm × 89.15mm)
Shipping Weight: 1 lb (0.45 kg)

System Requirements

Fiber Optic Cable:

  • For extension up to 3300 feet (1000 meters): Single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable
  • For extension up to 1000 feet (300 meters): Single-strand 62.5/125µm (OM1) SC-terminated fiber optic cable

Power:

  • Both the Sender and Receiver pigtail modules must be connected to the included 5V DC power supplies for proper operation

What's in the Box

  • 1 x DP Extender 1FO — Sender Pigtail module
  • 1 x DP Extender 1FO — Receiver Pigtail module
  • 2 x 5V / 2A DC Power Supplies
  • 1 x Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.
