Fiber Optic HDMI Extender Pigtail Module, 1080p (EXT-HD-CP-FM10)

Name: Fiber Optic HDMI Extender Pigtail Module, 1080p (EXT-HD-CP-FM10)
Brand: Gefen
SKU: EXT-HD-CP-FM10
Price: 1899.61 USD
Availability: InStock

EXT-HD-CP-FM10

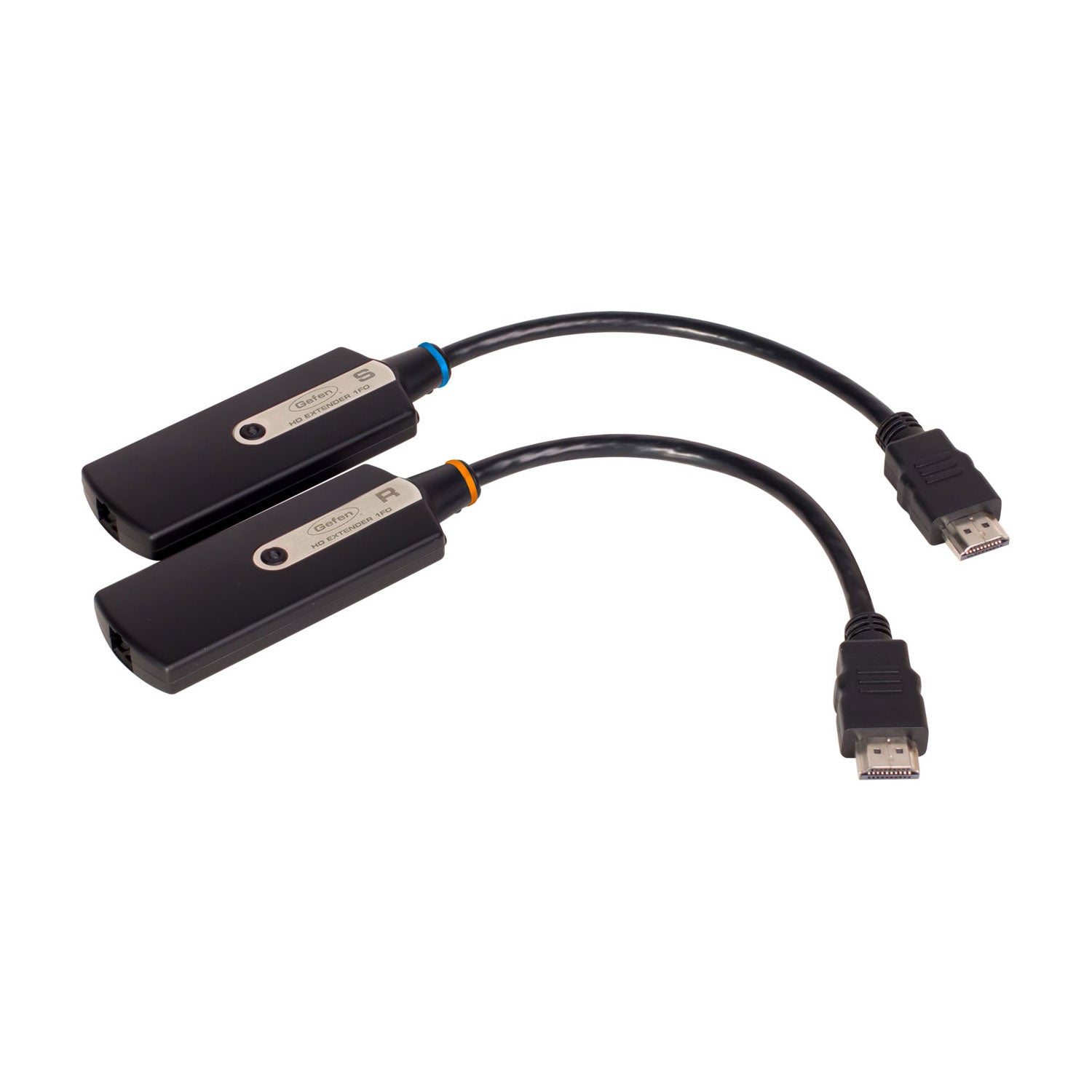

The Gefen EXT-HD-CP-FM10 is a compact and powerful HDMI extender that uses a single-strand fiber optic HDMI cable to send high-definition signals over a long distance. This pigtail module system extends 1080p Full HD video and HD lossless audio up to 3300 feet (1000 meters), far beyond the reach of conventional copper cables. By transmitting the signal optically, it ensures perfect galvanic isolation and complete immunity to electromagnetic interference (EMI), making it ideal for professional installations where signal integrity is critical. The flexible pigtail design relieves physical stress from the HDMI port on both the source and display, while the compact modules allow for a clean, unobtrusive installation behind equipment.

⚠️Comes with both Sender and Receiver

$1,899.61

Fiber Optic HDMI Extender Pigtail Module, 1080p (EXT - HD - CP - FM10) - EXT - HD - CP - FM10 - Gefen

Key Features

Long-Distance Extension: Extends HDMI signals up to 3300 feet (1000 meters) using a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable.

High-Definition Video: Supports resolutions up to 1080p Full HD.

Lossless HD Audio: Supports LCPM 7.1 audio, Dolby® Digital Plus, Dolby® TrueHD, and DTS-HD Master Audio™.

Electromagnetic Interference Immunity: Utilizes fiber optic transmission to eliminate EMI.

Stress-Relief Design: Features a pigtail module design that relieves stress and clutter on the HDMI connectors of the source and display.

3DTV Support: Allows for full 3DTV pass-through.

HDCP and DDC Compliance: Provides full pass-through for HDCP and supports bidirectional DDC.

Deep Color Support: Maintains support for Deep Color video formats.

Clean Installation: The compact Sender and Receiver modules are designed for a clean and easy installation behind equipment.

How It Works

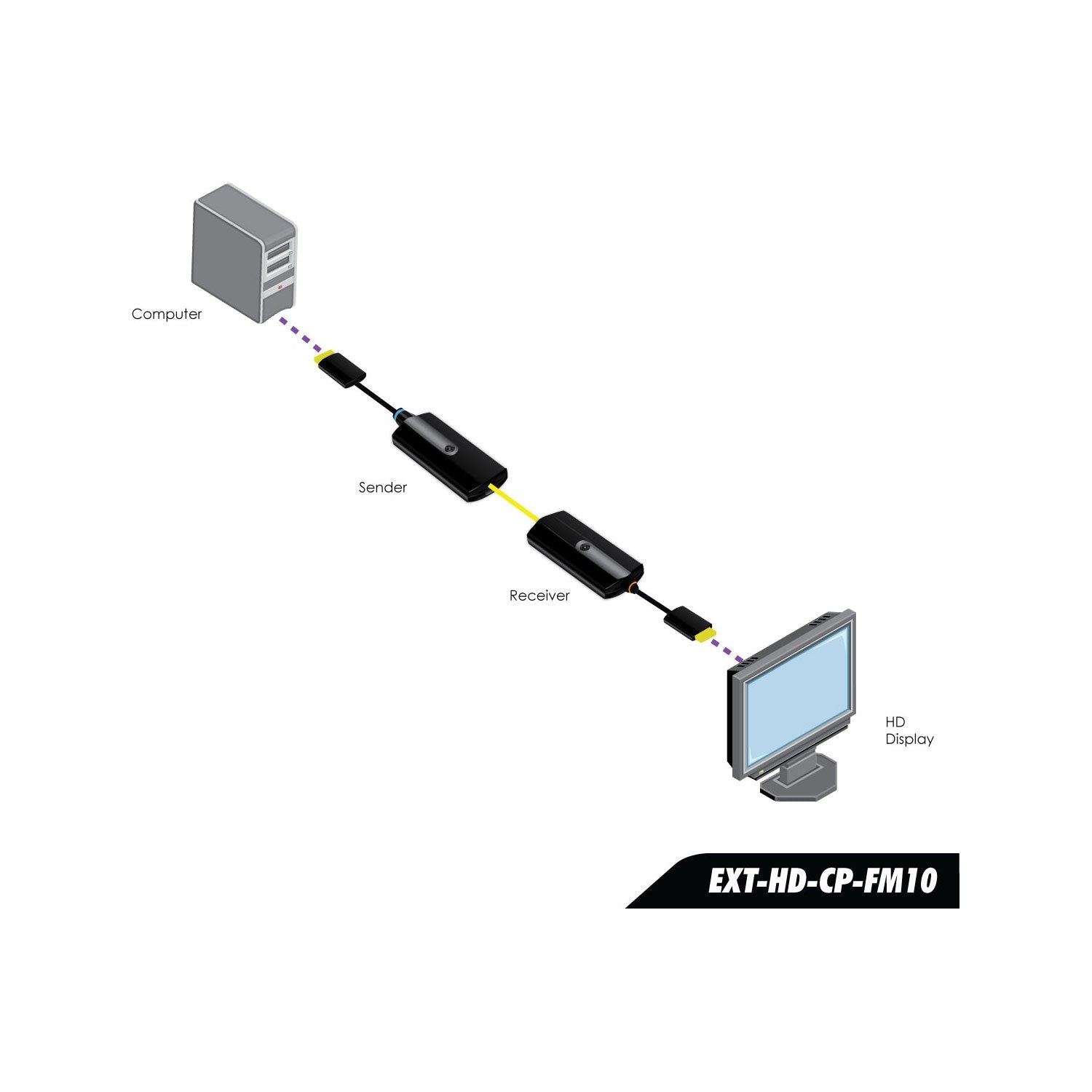

The Gefen Fiber Optic HDMI Pigtail system operates with a Sender and Receiver module. First, connect the Sender pigtail module directly to your HDMI source device. Next, connect the Receiver pigtail module to your HDTV display. Link the Sender and Receiver together using a single-strand, SC-terminated multimode fiber optic cable. Finally, connect the included 5V DC power supply to the Receiver module to deliver a vibrant, high-definition picture to your display. The Sender module is typically powered by the HDMI source itself but has a power input if the source does not supply sufficient power.

Additional Information

Specifications

Maximum Pixel Clock: 225 MHz

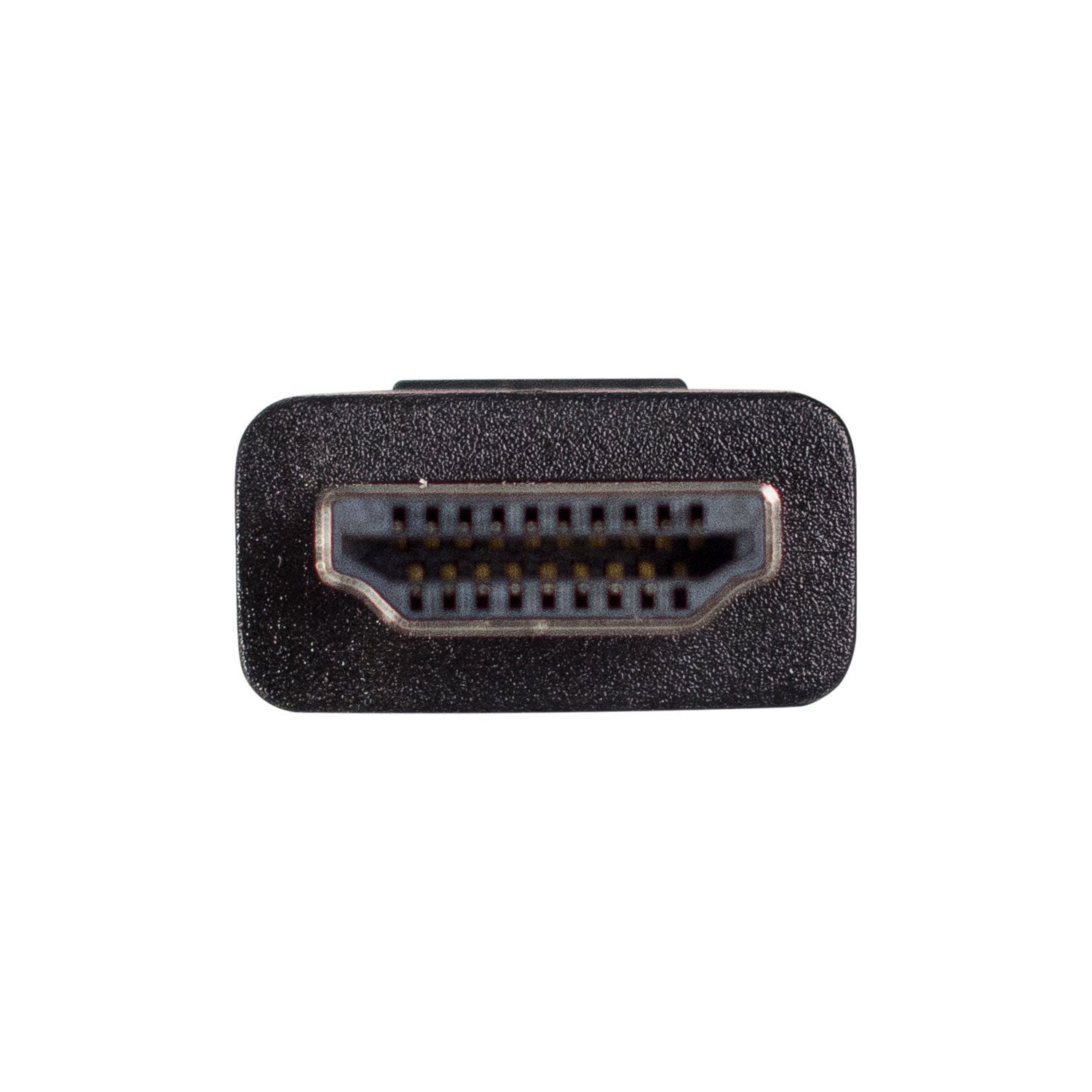

Video Input Connector (Sender): (1) HDMI 19-pin, male

Video Output Connector (Receiver): (1) HDMI 19-pin, male

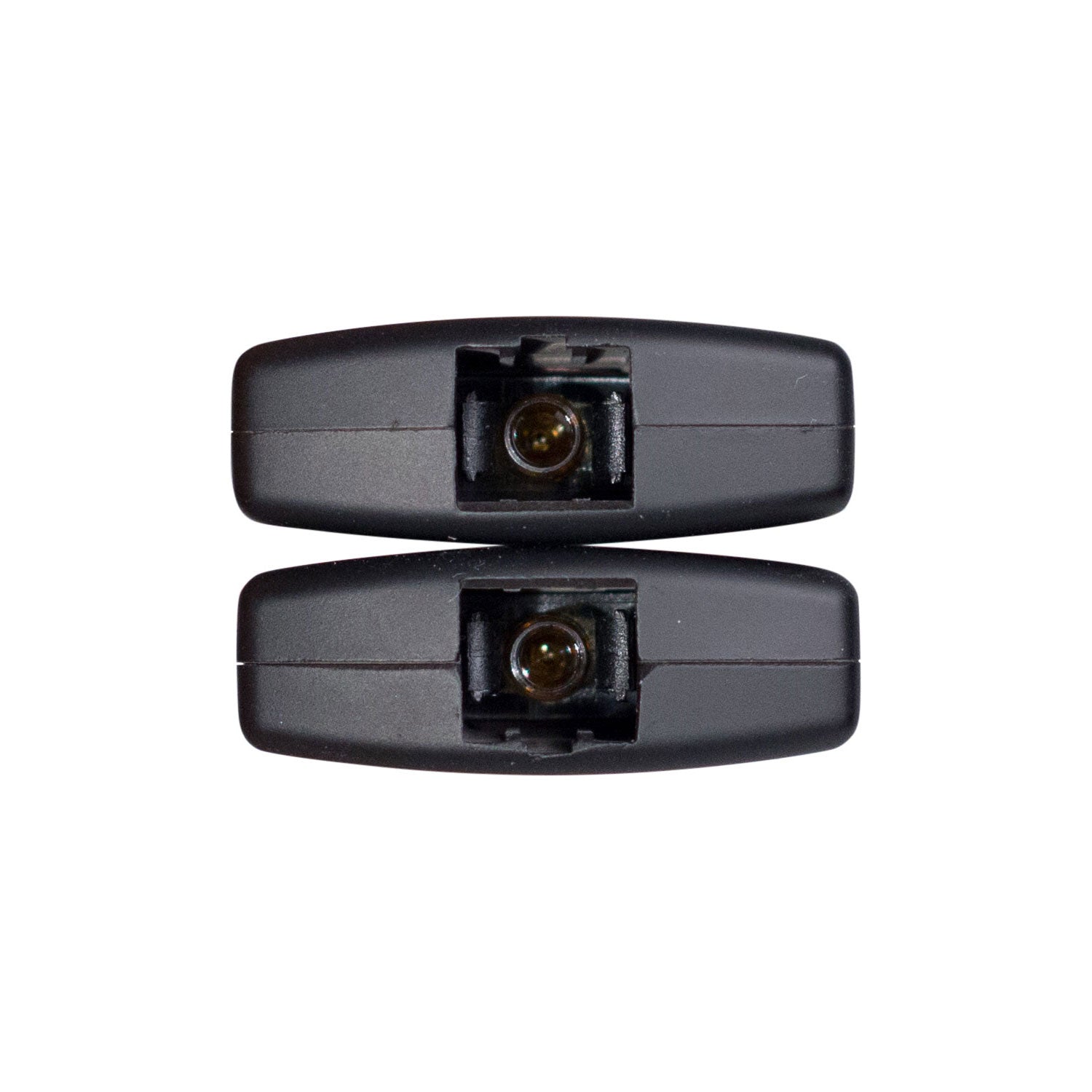

Link Connector (Sender/Receiver): (1) Type SC fiber (50/125µm)

Supported Resolutions: Up to 1080p Full HD

Audio Support: LCPM 7.1, Dolby® Digital Plus, Dolby® TrueHD, DTS-HD® Master Audio™

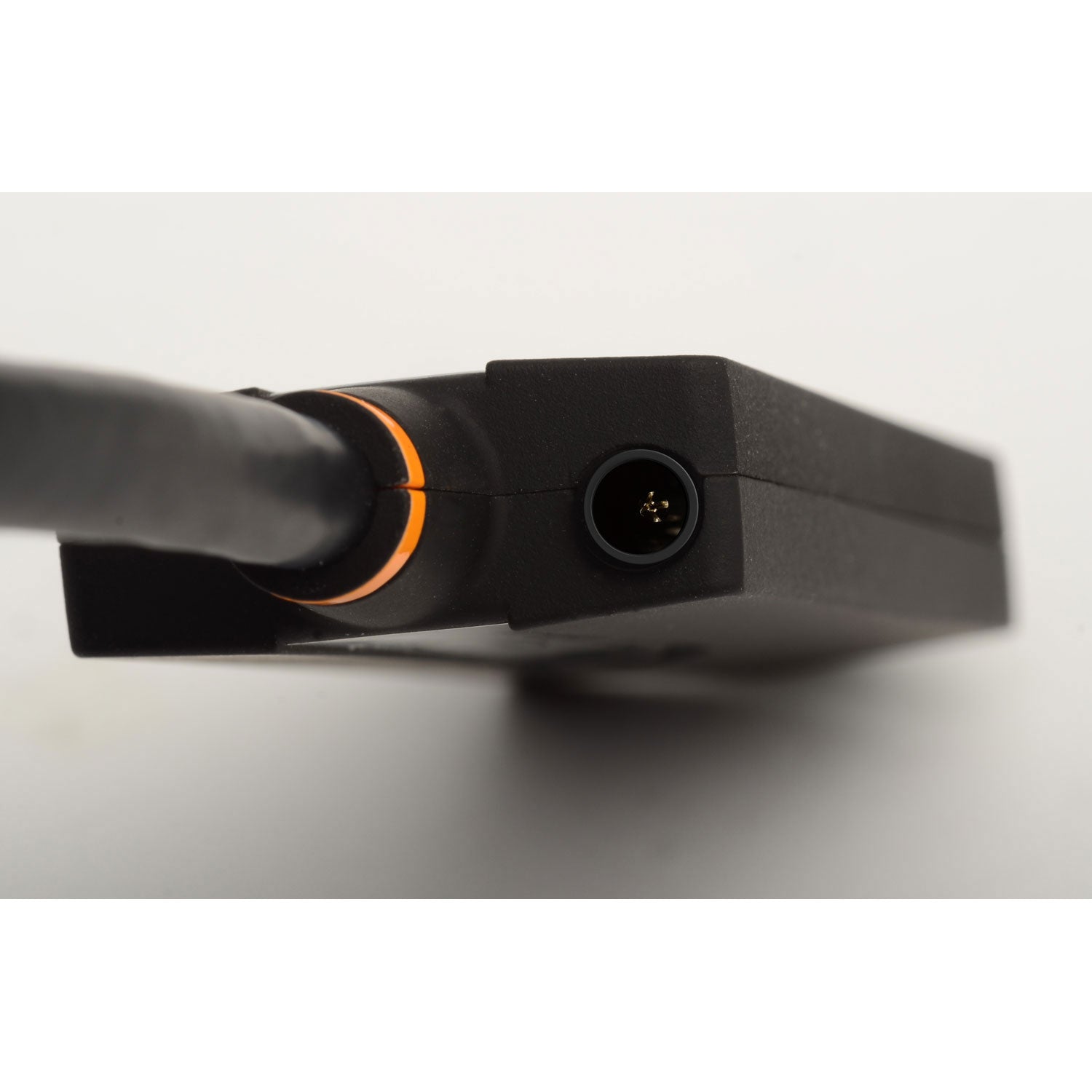

Power Supply (Receiver): 5V DC

Power Supply (Sender): 5V DC (not needed for most applications)

Power Consumption (Receiver): 1.5W (max.)

Operating Temperature: 0° to +50° C

Storage Temperature: -20° to +70° C

Relative Humidity: 10% to 80%

Dimensions (W x H x D): 1.18" x 0.47" x 10.71" (29.97 mm x 11.93 mm x 272.03 mm)

Shipping Weight: 1 lb (0.45 kg)

Compliance: FCC and CE for EMI/RFI emission

UPC: 845344011882

System Requirements

Fiber Optic Cable: Single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable for maximum range (up to 3300 ft / 1000 m).

OM1 (62.5/125µm) fiber can be used for reduced range (up to 1000 ft / 300 m).

HDMI Source Device: Must provide sufficient power through the HDMI connector to operate the Sender; otherwise, an external 5V DC power supply (Gefen part no. EXT-PS52AIP-1.3) is required.

Display Device: HDTV or display with HDMI input.

Power Supply: Included 5V DC adapter required for Receiver module (always).

What's in the Box

1 × HD Extender 1FO – Sender Pigtail Module
1 × HD Extender 1FO – Receiver Pigtail Module
1 × 5V DC Power Supply
1 × Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-HD-CP-FM10 Datasheet
Gefen EXT-HD-CP-FM10 Manual
Gefen EXT-HD-CP-FM10 Declaration of Conformity
