Fiber Optic HDMI Extender Pigtail Modules, 1080p up to 3300 ft. (1000m) (EXT-DP-CP-FM10)

EXT-DP-CP-FM10

The Gefen Fiber Optic Pigtail Module for HDMI provides a robust solution for extending high-definition video and audio over extremely long distances using a single strand of multimode fiber optic cable. This compact extender system reliably transmits resolutions up to 1080p Full HD, HDCP-protected content, and lossless audio formats up to 3300 feet (1000 meters). By utilizing fiber optic transmission, the system ensures complete immunity to electromagnetic interference (EMI), while its unique pigtail design relieves physical stress and reduces clutter on equipment connectors. This makes the EXT-HD-CP-FM10 an ideal choice for professional, clean installations where signal integrity and reliability are critical.
$2,041.83
Fiber Optic HDMI Extender Pigtail Modules, 1080p up to 3300 ft. (1000m) (EXT - DP - CP - FM10) - EXT - DP - CP - FM10 - Gefen
Fiber Optic HDMI Extender Pigtail Modules, 1080p up to 3300 ft. (1000m) (EXT - DP - CP - FM10) - EXT - DP - CP - FM10 - Gefen
Fiber Optic HDMI Extender Pigtail Modules, 1080p up to 3300 ft. (1000m) (EXT - DP - CP - FM10) - EXT - DP - CP - FM10 - Gefen
Fiber Optic HDMI Extender Pigtail Modules, 1080p up to 3300 ft. (1000m) (EXT - DP - CP - FM10) - EXT - DP - CP - FM10 - Gefen
Fiber Optic HDMI Extender Pigtail Modules, 1080p up to 3300 ft. (1000m) (EXT - DP - CP - FM10) - EXT - DP - CP - FM10 - Gefen
Fiber Optic HDMI Extender Pigtail Modules, 1080p up to 3300 ft. (1000m) (EXT - DP - CP - FM10) - EXT - DP - CP - FM10 - Gefen

Key Features

Long-Distance Fiber Optic Extension: Extends HDMI signals up to 3300 feet (1000 meters) using a single-strand of 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable.



Full HD Resolution: Supports video resolutions up to 1080p Full HD, ensuring pristine and high-quality image transmission.



Lossless HD Audio: Delivers immersive sound with support for LCPM 7.1 audio, Dolby® Digital Plus, Dolby® TrueHD, and DTS-HD Master Audio™.



Interference-Free Transmission: Fiber optic signal transmission provides complete immunity to electromagnetic interference (EMI), ensuring a stable and reliable signal in any environment.

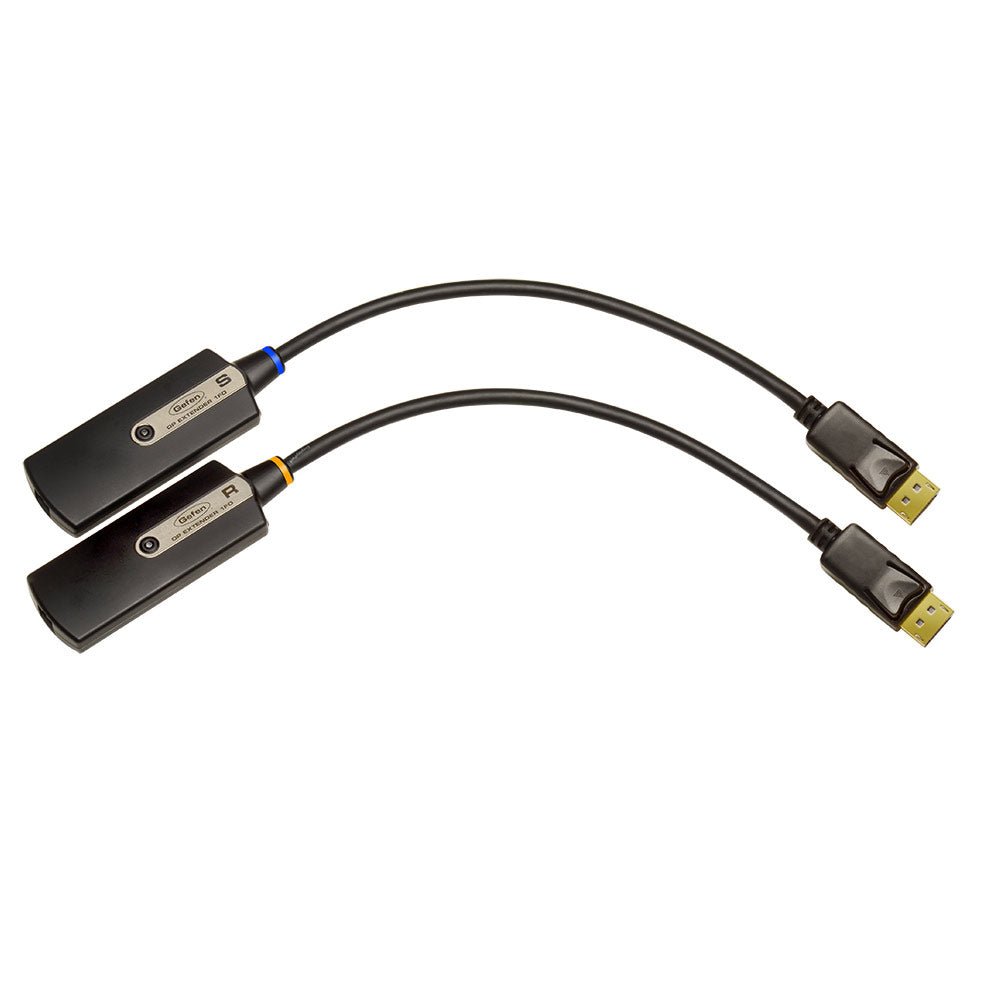

Professional Pigtail Design: The compact pigtail form factor of the sender and receiver modules relieves stress on equipment connectors and reduces clutter for a clean, professional installation.



Comprehensive Format Support: Features full pass-through for HDCP, 3DTV, Deep Color, and bidirectional DDC signals, ensuring wide compatibility with a variety of sources and displays.

How It Works

To operate the Gefen Fiber Optic HDMI Extender system, first, connect the Sender pigtail module directly to the HDMI source and the Receiver pigtail module to the HDTV display. Next, link the two modules by connecting a single-strand, SC-terminated multimode fiber optic cable to the fiber optic connector on each unit. Finally, connect the included 5V DC power supply to the Receiver module to complete the installation. The Sender module is designed to draw power directly from the HDMI source, typically eliminating the need for a second power supply unless the source provides insufficient power. Once powered, a vibrant, high-definition picture will appear on the remote display.

Additional Information

Specifications

Maximum Pixel Clock: 225 MHz

Video Input Connector (Sender): (1) HDMI-19-pin, male

Video Output Connector (Receiver): (1) HDMI 19-pin, male

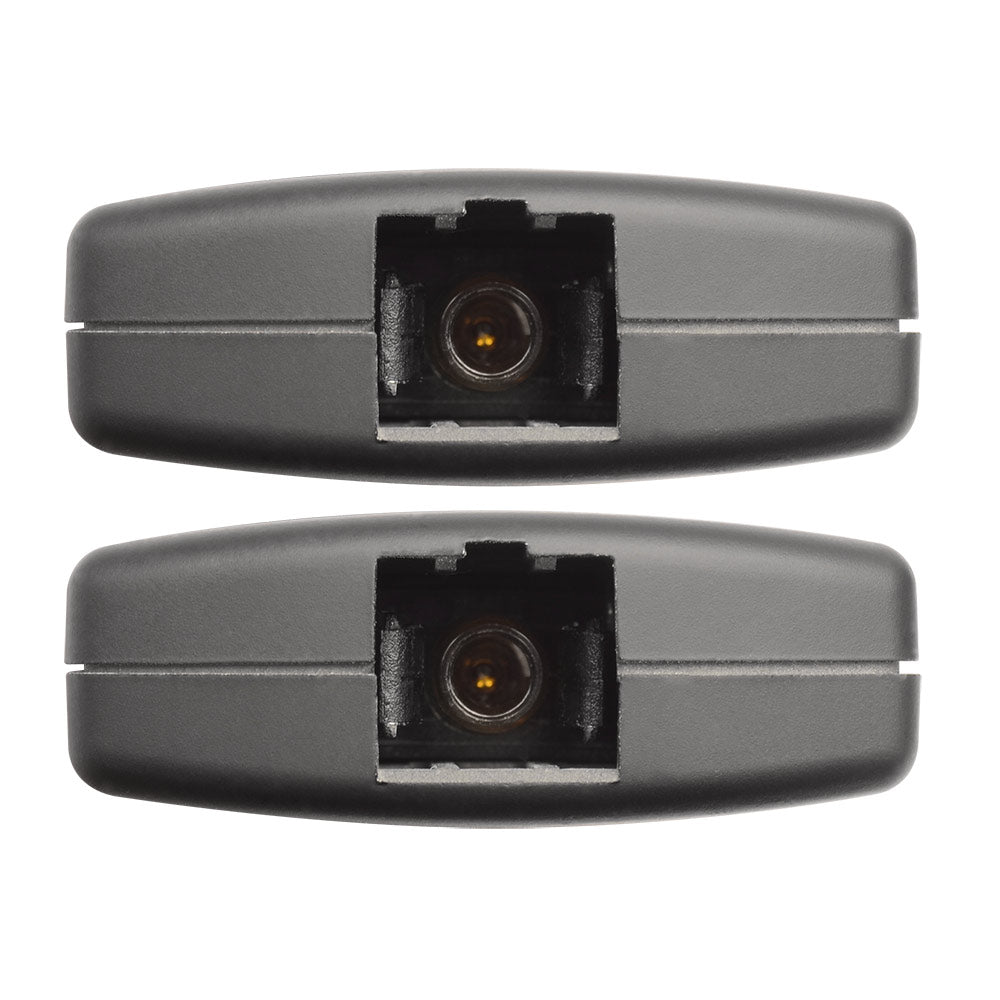

Link Connector (Sender/Receiver): (1) Type SC fiber (50/125µm)

Power Supply (Receiver): 5V DC

Power Consumption (Receiver): 1.5W (max.)

Operating Temperature: 0∘ to $+50^{\circ}$C

Storage Temperature: −20∘ to $+70^{\circ}$C

Relative Humidity: 10% to 80%

Dimensions (W x H x D): 1.18′′×0.47′′×10.71′′ (29.97 mm×11.93mm×272.03mm)

Shipping Weight: 1 lb (0.45 kg)

UPC: 845344038391

System Requirements

Fiber Optic Cable:

For extension up to 3300 feet (1000 meters), a single-strand 50/125µm multimode (OM2/OM3) SC-terminated fiber optic cable is required.



For extension up to 1000 feet (300 meters), a single-strand 62.5/125µm (OM1) SC-terminated fiber optic cable may be used.



Power:

The Receiver pigtail module must be connected to the included 5V DC power supply.



If the source device does not supply enough power to the Sender pigtail module through the HDMI connector, a specific Gefen 5V DC power supply (part no. EXT-PS52AIP-1.3) must be used.

What's in the Box

  • 1 x HD Extender 1FO - Sender Pigtail module
  • 1 x HD Extender 1FO - Receiver Pigtail module
  • 1 x 5V DC power supply
  • 1 x Quick-Start Guide

Warranty

2 Year Product Warranty
