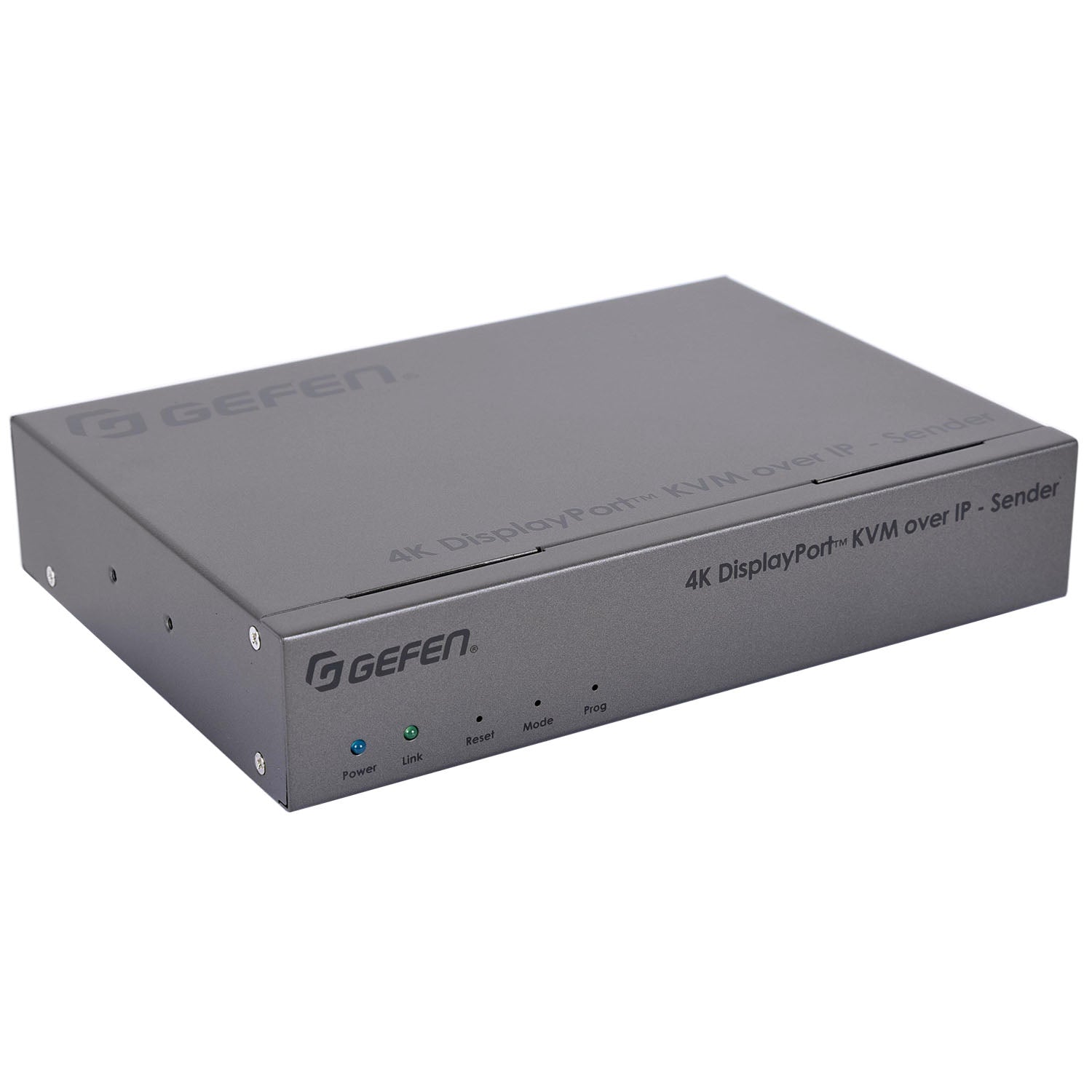

Gen 2.0 4K DisplayPort KVM over IP Sender (EXT-DPKA-LANS-TX)

Name: Gen 2.0 4K DisplayPort KVM over IP Sender (EXT-DPKA-LANS-TX)
Brand: Gefen
SKU: EXT-DPKA-LANS-TX
Price: 893.55 USD
Availability: InStock

EXT-DPKA-LANS-TX

The Gefen Gen 2.0 DisplayPort KVM over IP Sender provides high-performance, scalable, and secure AV routing and distribution over a standard Gigabit Local Area Network. This powerful sender unit extends a DisplayPort™ source with input resolution up to 4K 60 Hz 4:2:0 , along with USB, RS-232, IR, and 2-way analog audio, to any receiver on the network up to 330 feet (100 meters) away. Ideal for high-performance AV and digital signage systems in board rooms, command centers, auditoriums, and retail establishments , the Gen 2.0 KVM over IP system can be used for simple one-to-one extension or a virtual matrix of up to 39,900 Senders, offering a flexible and expandable solution for professional AV and IT needs.

⚠️Requires EXT-DPKA-LANS-RX Receiver Unit

$893.55

Gen 2.0 4K DisplayPort KVM over IP Sender (EXT - DPKA - LANS - TX) - EXT - DPKA - LANS - TX - Gefen

Key Features

4K DisplayPort Extension: Extends DisplayPort™ video, USB, RS-232, IR, and 2-way analog audio over a standard Gigabit Local Area Network.

High-Resolution Video: Supports input resolutions up to 4K 60Hz 4:2:0 and works with receivers to support output resolutions up to 4K 30Hz 4:4:4.

Content Protection: Supports HDCP 2.2 and 1.4 to pass protected content from the source.

Massive Scalability: Create a virtual matrix of up to 39,900 Senders in a single system, with a combination of over 65,000 total units, depending on network bandwidth.

Power over Ethernet (PoE): The Sender can be powered through a standard 802.3af PoE-enabled IP network switch, eliminating the need for the included external power supply.

Independent Signal Routing: Allows for independent routing of video, USB, RS-232, IR, and audio signals between any Sender and Receiver on the network (pending a future firmware update).

Advanced KVM Control: Features KM Emulation for real-time, simultaneous Keyboard and Mouse control of a single source from multiple connected workstations.

Integrated System Management: Works with the optional EXT-CU-LAN Matrix Controller for quick, automated configuration and Mass-Firmware-Updates (MFU). It is also designed for use with the Gefen Syner-G™ software suite.

Flexible Control Options: Controllable via a built-in web interface, Telnet, UDP, and the Gefen Keyboard Switching Controller software.

Optimized Image Quality: A mode switch on the Sender allows for image optimization based on sharpness for graphics or motion for video.

Built-in Video Wall Controller: When paired with a receiver, the system can drive video walls in configurations up to 16x16.

Versatile Mounting: The half-rack width Sender enclosure can be rack-mounted using the EXT-RACK-1U-GRY tray or surface-mounted using the included L-brackets.

How It Works

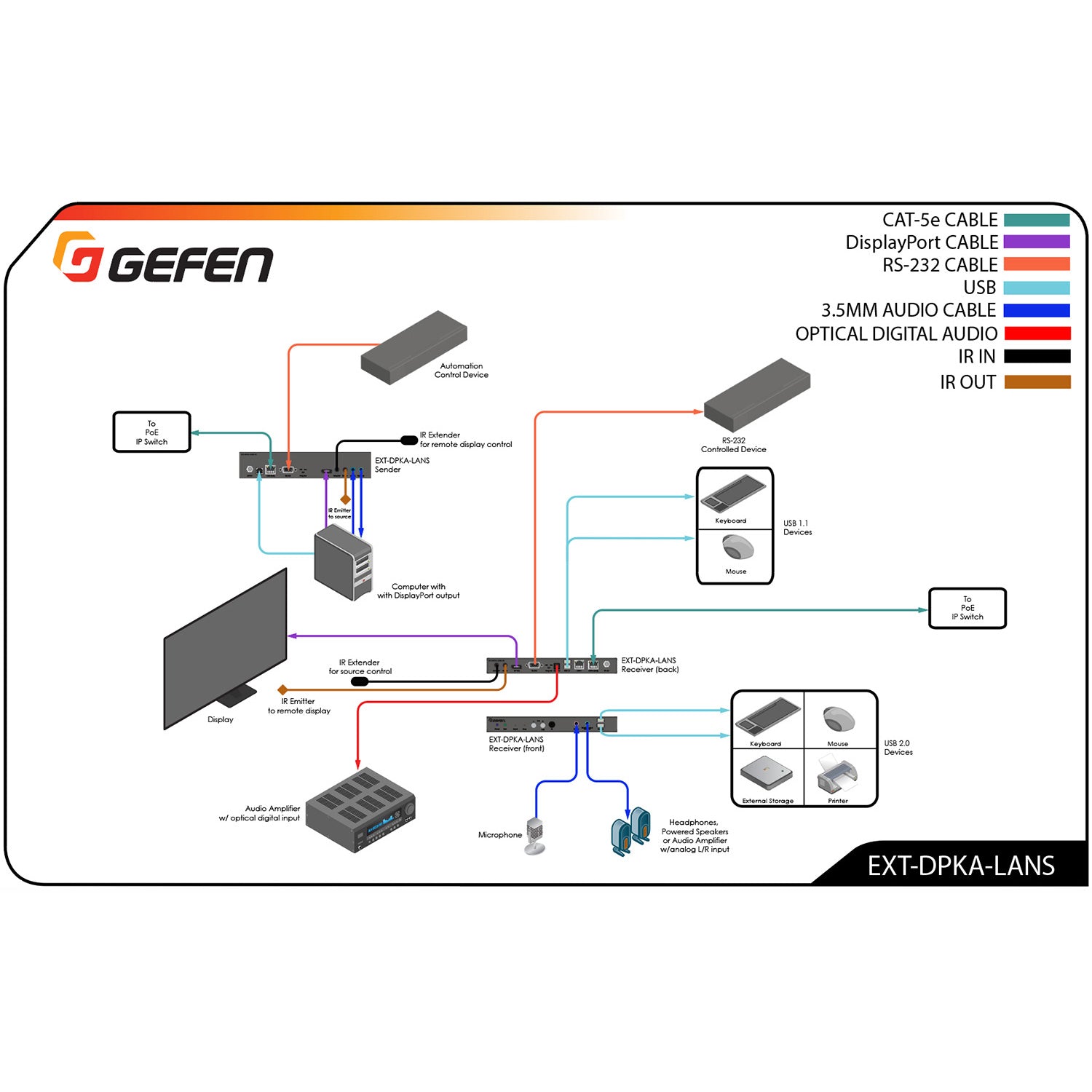

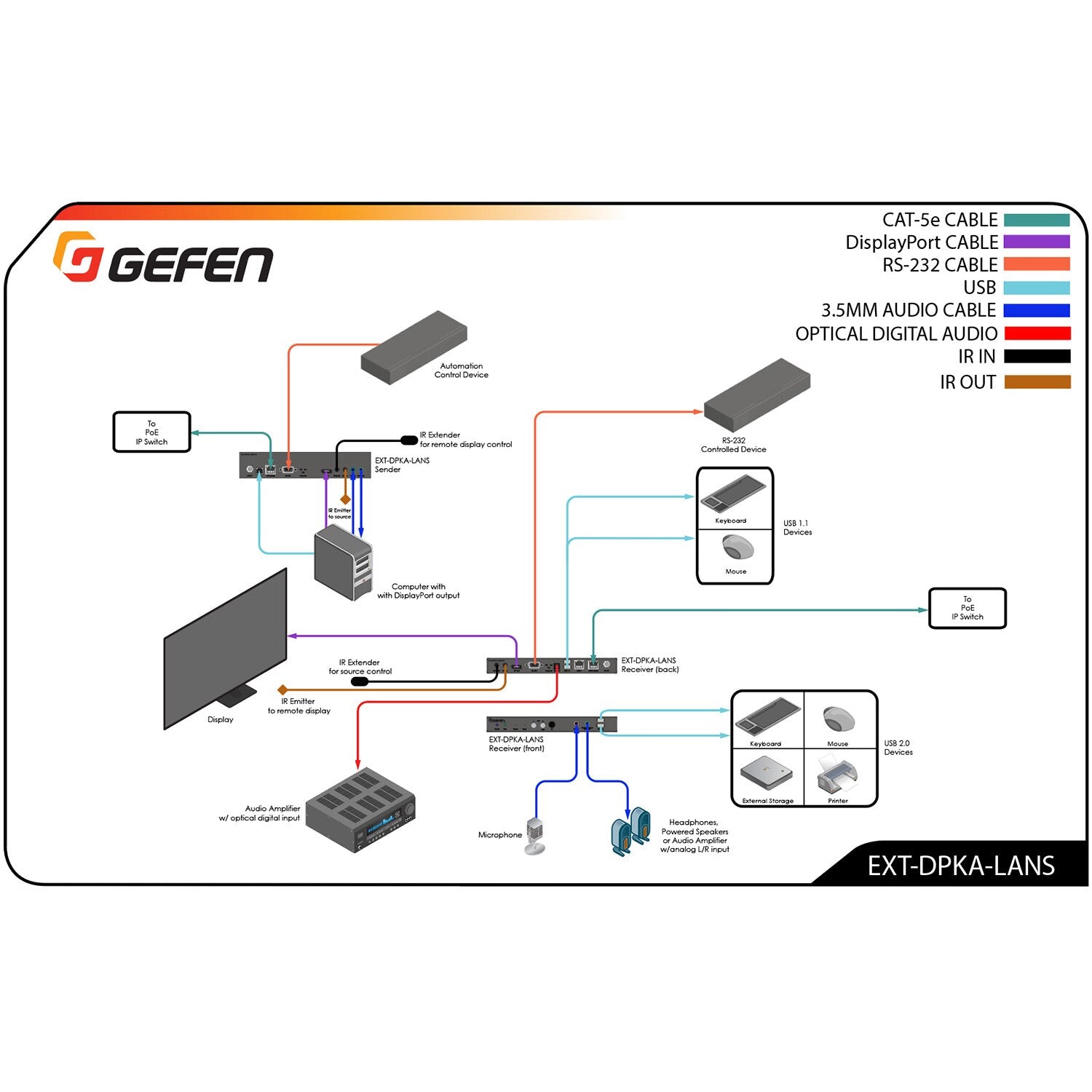

The Gefen Gen 2.0 KVM over IP system operates with two main components: a Sender unit and one or more Receiver units. First, connect your DisplayPort source and the computer's USB port to the Sender unit. The Sender is then connected via a single CAT-5e or better cable, up to 330 feet (100 meters), to a standard Gigabit Local Area Network switch. The Sender unit transmits the video, audio, USB, and control signals over the IP network to any compatible Receiver unit on the same LAN. By adding multiple Senders and Receivers to the network, you can create a flexible and massively scalable 'virtual matrix,' allowing any connected workstation to access any source on the network.

Additional Information

Specifications

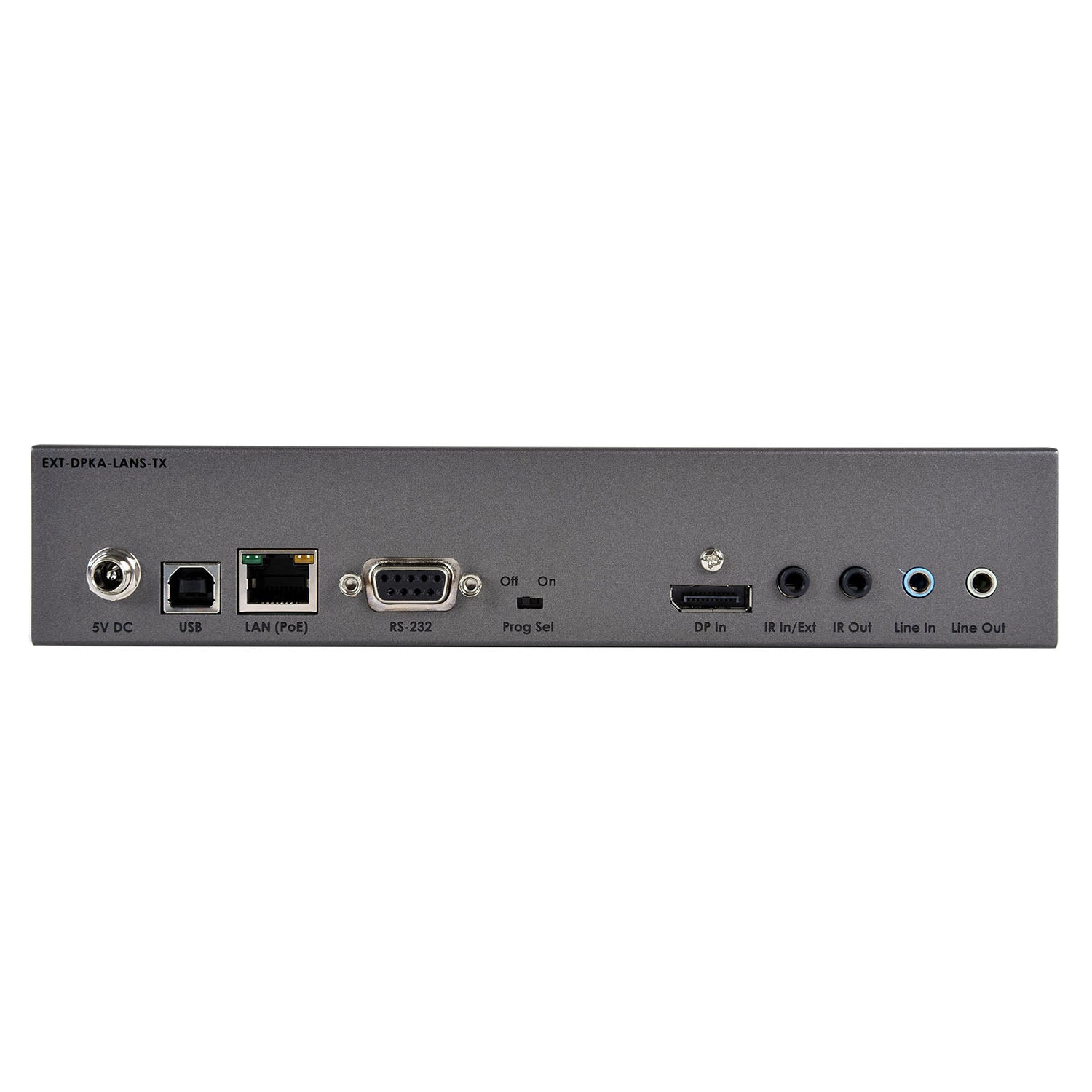

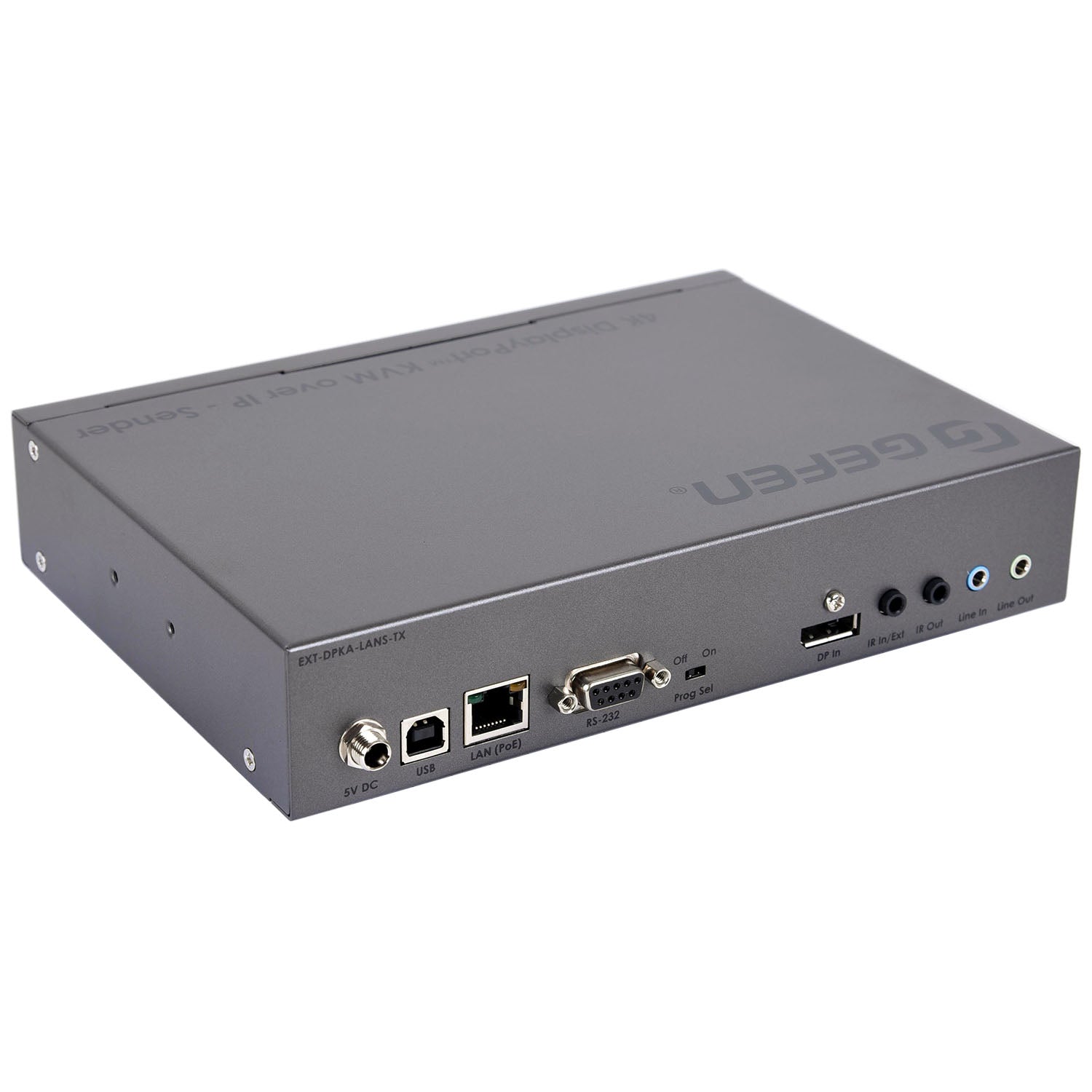

Connectors & Indicators

Video Input Connector: (1) DisplayPort 20-pin, female
Line Input Connector: (1) 3.5mm mini-stereo jack
Line Output Connector: (1) 3.5mm mini-stereo jack
USB Host Interface Port: (1) USB Type B, female
Ethernet Port: (1) RJ-45, shielded, with PoE
RS-232 Port: (1) DB-9, female
IR In/Ext Connector: (1) 3.5mm mini-stereo jack
IR Out Connector: (1) 3.5mm mini-mono jack

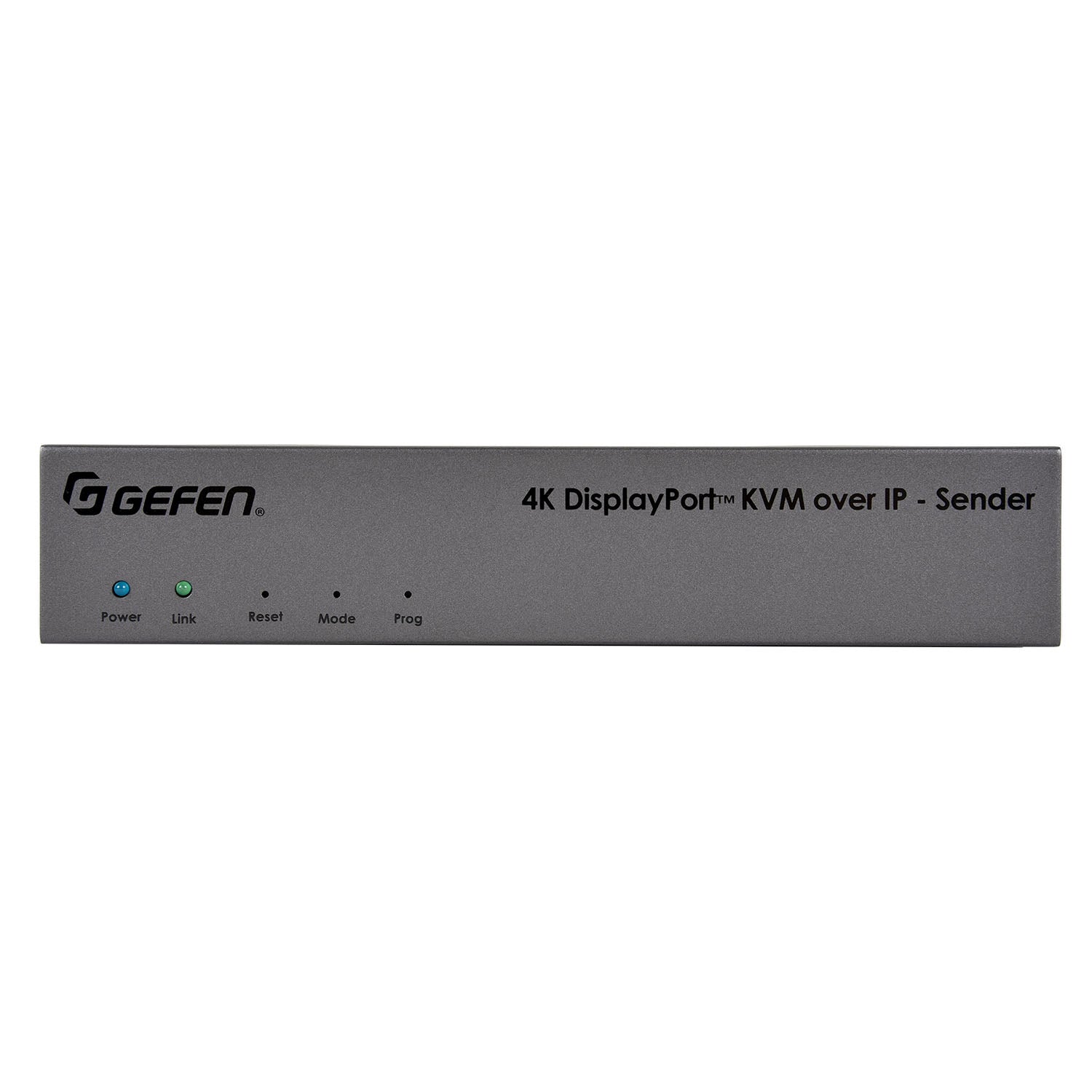

Mode Button: (1) tact-type, recessed
Reset Button: (1) tact-type, recessed
Power Indicator: (1) LED, blue
Link Indicator: (1) LED, green

Power

Power Requirement: 5V DC, or PoE (802.3af standard)
Power Supply Connector: 5V DC, locking, 2.5mm pin and 5.5mm barrel
Power Consumption: 6W

Operational

Operating Temperature: +32 to +122°F (0 to +50°C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185°F (-20 to +85°C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours

Physical

Dimensions (W x H x D): 8.4” x 1.7” x 5.9” (214mm x 43mm x 150mm)
Unit Weight: 2.2 lbs. (1 kg)
Shipping Weight: 4.2 lbs. (1.9 kg)

UPC: 888814999808

System Requirements

Network Switch: A managed gigabit switch is required for network connection.

Switch Configuration: The network switch must have Jumbo Frame Support (set to 8k or greater) and IGMP Snooping must be enabled.

Cabling: Shielded CAT-5e (or better) cabling is required. Individual cable runs between units or to the network switch must not exceed 330 feet (100 meters).

Network (Recommended): A dedicated Local Area Network (LAN) is not required but is highly recommended.

Controller (Recommended): Gefen highly recommends the EXT-CU-LAN Matrix Controller for setting up and controlling the AV-over-IP network.

What's in the Box

(1) Sender unit
(1) 5V 2.6A Power Supply
(4) Self-Adhesive Rubber-Feet
(2) L-Shaped Mounting Brackets
(4) Machine screws for L-Shaped Mounting Brackets
(2) Machine screws for EXT-RACK-1U-GRY (sold separately)
(1) Quick-Start Guide

Warranty

3 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-DPKA-LANS-TX Manual
Gefen EXT-DPKA-LANS-TX Datasheet
Gefen EXT-DPKA-LANS-TX Declaration of Conformity
