Gen 2.0 4K Ultra HD HDMI over IP Sender with HDR, RS-232, IR, and Audio (EXT-UHD-LANS-TX)

EXT-UHD-LANS-TX

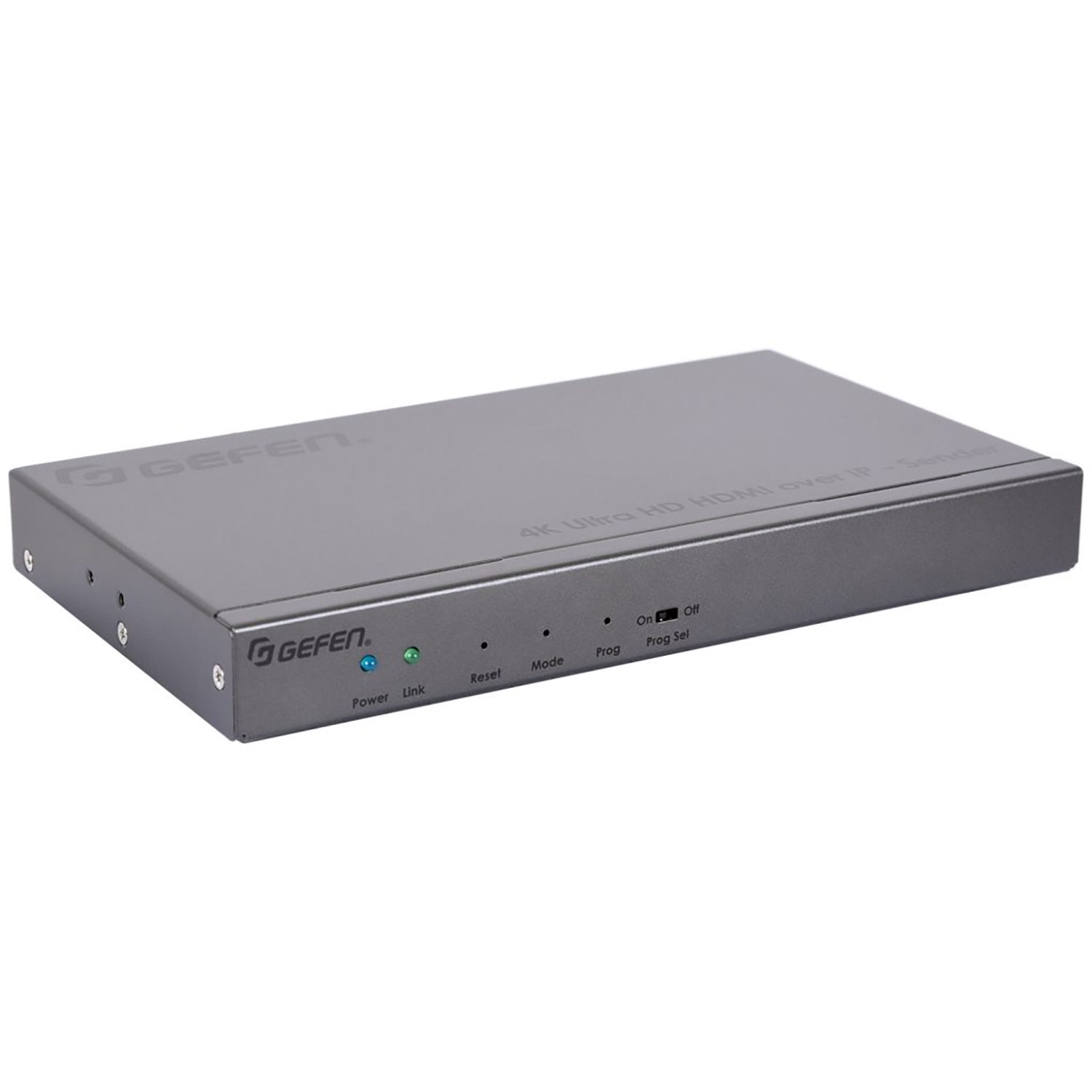

The Gefen EXT-UHD-LANS-TX Sender is a high-performance AV over IP solution that extends and distributes 4K HDMI with HDR, RS-232, IR, and audio over a standard Gigabit Local Area Network. This powerful sender unit transmits signals up to 330 feet (100 meters) from the source to any receiver on the network. Supporting input resolutions up to 4K 60Hz 4:2:0 and featuring Power-over-Ethernet (PoE), the EXT-UHD-LANS-TX is ideal for creating massively scalable virtual matrix systems in a wide range of professional AV applications, including digital signage.

⚠️Requires EXT-UHD-LANS-RX Receiver Unit
$821.10
Gen 2.0 4K Ultra HD HDMI over IP Sender with HDR, RS - 232, IR, and Audio (EXT - UHD - LANS - TX) - EXT - UHD - LANS - TX - Gefen
Gen 2.0 4K Ultra HD HDMI over IP Sender with HDR, RS - 232, IR, and Audio (EXT - UHD - LANS - TX) - EXT - UHD - LANS - TX - Gefen
Gen 2.0 4K Ultra HD HDMI over IP Sender with HDR, RS - 232, IR, and Audio (EXT - UHD - LANS - TX) - EXT - UHD - LANS - TX - Gefen
Gen 2.0 4K Ultra HD HDMI over IP Sender with HDR, RS - 232, IR, and Audio (EXT - UHD - LANS - TX) - EXT - UHD - LANS - TX - Gefen
Gen 2.0 4K Ultra HD HDMI over IP Sender with HDR, RS - 232, IR, and Audio (EXT - UHD - LANS - TX) - EXT - UHD - LANS - TX - Gefen
Gen 2.0 4K Ultra HD HDMI over IP Sender with HDR, RS - 232, IR, and Audio (EXT - UHD - LANS - TX) - EXT - UHD - LANS - TX - Gefen
Gen 2.0 4K Ultra HD HDMI over IP Sender with HDR, RS - 232, IR, and Audio (EXT - UHD - LANS - TX) - EXT - UHD - LANS - TX - Gefen
Gen 2.0 4K Ultra HD HDMI over IP Sender with HDR, RS - 232, IR, and Audio (EXT - UHD - LANS - TX) - EXT - UHD - LANS - TX - Gefen
Gen 2.0 4K Ultra HD HDMI over IP Sender with HDR, RS - 232, IR, and Audio (EXT - UHD - LANS - TX) - EXT - UHD - LANS - TX - Gefen
Gen 2.0 4K Ultra HD HDMI over IP Sender with HDR, RS - 232, IR, and Audio (EXT - UHD - LANS - TX) - EXT - UHD - LANS - TX - Gefen

Key Features

4K Ultra HD and HDR Support: Supports input resolutions up to 4K 60Hz 4:2:0 and High Dynamic Range (HDR), ensuring vibrant and detailed video transmission over the network.



Comprehensive Signal Extension: Extends HDMI, RS-232, bi-directional IR, and analog audio signals up to 330 feet (100 meters) over a single CAT-5e cable.



Massively Scalable Architecture: Can be used as a point-to-point extender or as a node in a virtual matrix of up to 39,900 Senders and over 65,000 total units, depending on network bandwidth.



Power-over-Ethernet (PoE): Conforms to the 802.3af PoE standard, allowing the unit to be powered by a compatible network switch and eliminating the need for the external power supply.



Independent Signal Routing: Allows for the independent routing of Video, RS-232, IR, and audio signals, enabling end-users to control any source from any display location within the network.



Selectable Picture Quality Modes: Features a recessed mode button to toggle between optimizing the image for sharpness (Graphic mode) or for fluid motion (Video mode).



Analog Audio Embedding: A 3.5mm line-in port allows an external analog audio source to be connected, which takes priority and replaces the audio from the HDMI input.



Backward-Compatibility: Ensures seamless integration with first-generation Gefen AV over IP products, protecting existing infrastructure investments.

How It Works

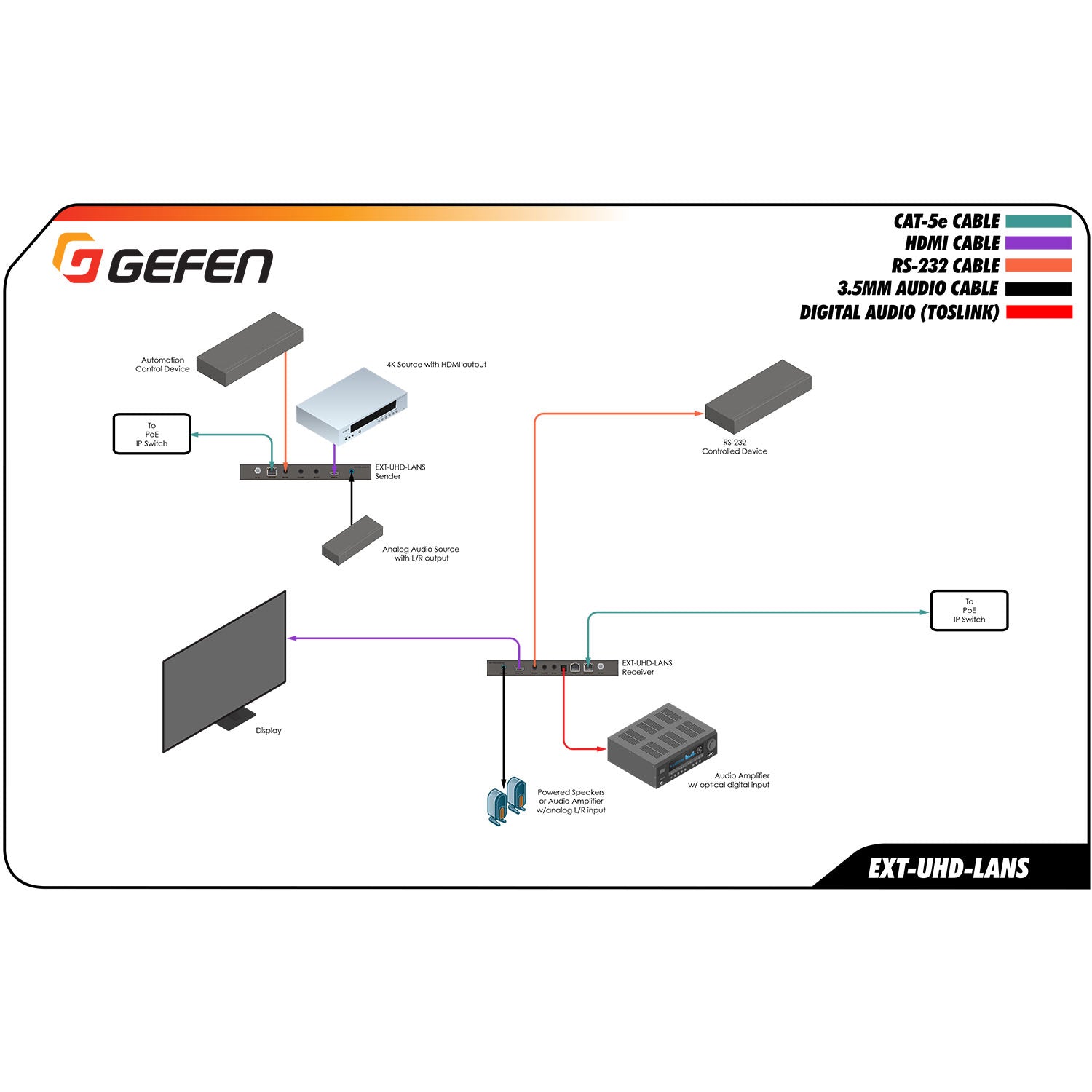

The Gefen AV over IP system operates with two main components: an EXT-UHD-LANS-TX Sender unit and one or more Receiver units. First, connect your 4K HDMI source, as well as any separate analog audio, RS-232, and IR control signals, to the corresponding inputs on the Sender unit. The Sender unit then connects to a standard Gigabit LAN switch using a single CAT-5e cable, extending the signals up to 330 feet (100 meters). A Receiver, set to the same channel as the Sender, decodes the signal for a connected display. By adding multiple Senders and Receivers to the network, you create a flexible and massively scalable 'virtual matrix,' allowing any source to be routed to any or all displays on the network.

Additional Information

Specifications

Connectors, Controls & Indicators

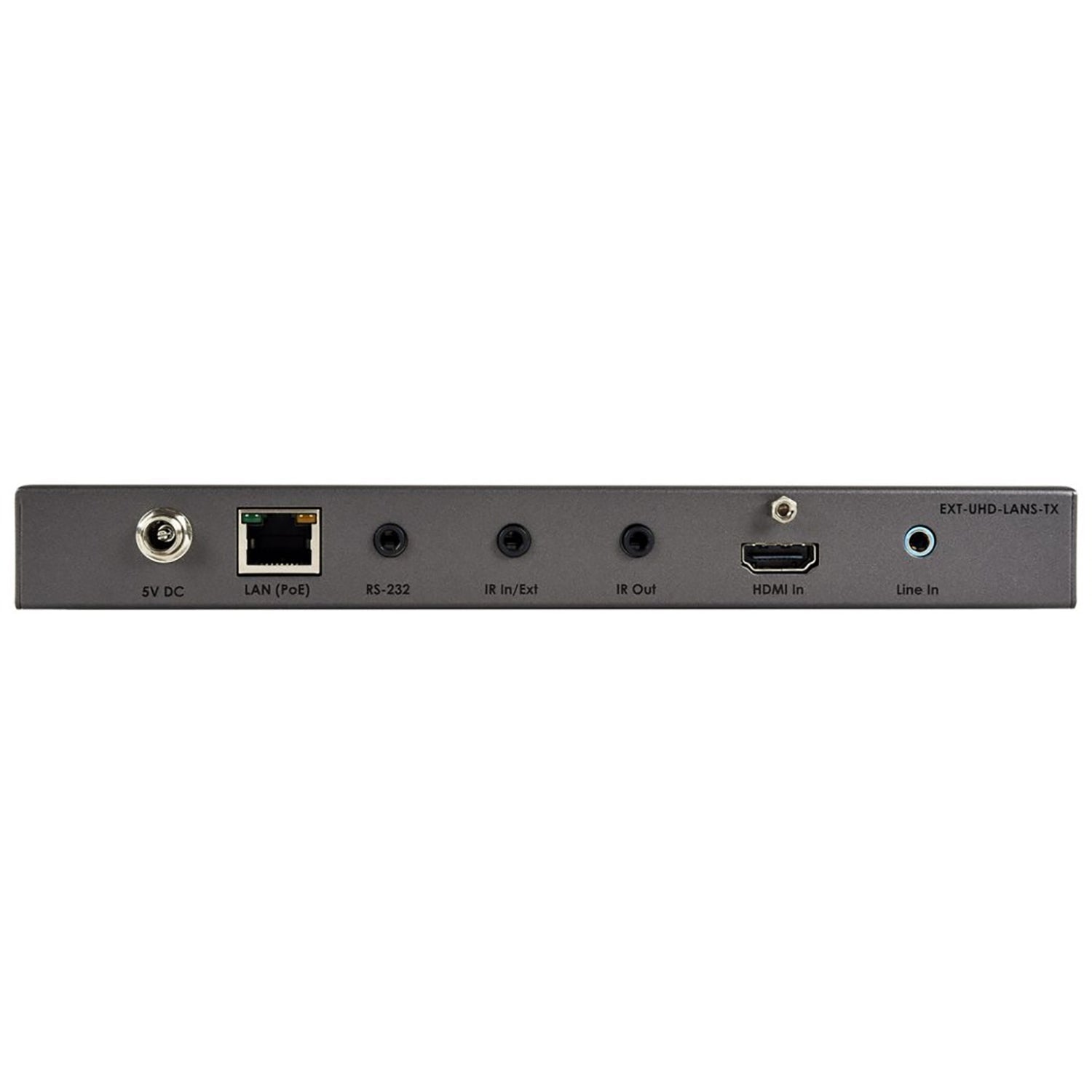

  • Video Input Connector: (1) HDMI Type A 19-pin, female, locking
  • Line Input: (1) 3.5mm mini-stereo jack
  • RS-232 Port: (1) 3.5mm stereo jack, female
  • IR In/Ext: (1) 3.5mm mini-stereo jack
  • IR Out: (1) 3.5mm mini-mono jack
  • Ethernet Port: (1) RJ-45, shielded, PoE

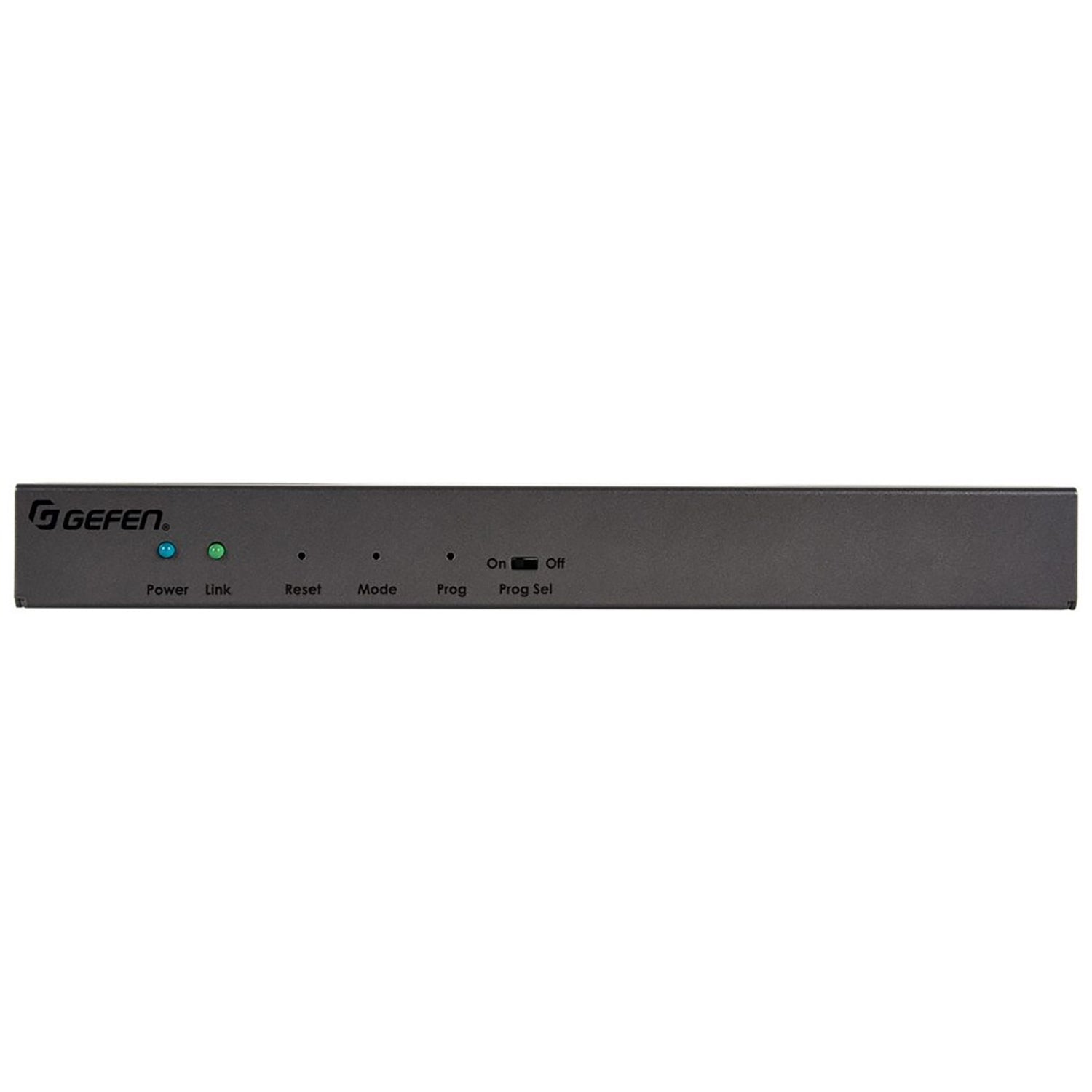

  • Mode Button: (1) tact-type, recessed
  • Reset Button: (1) tact-type, recessed
  • Program Button: (1) tact-type, recessed
  • Program Select Switch: (1) slide-type, recessed
  • Link Indicator: (1) LED, green
  • Power Indicator: (1) LED, blue
  • Power Supply Jack: 5V DC, 2.5mm pin and 5.5mm barrel, locking

Power

  • Power Requirement: 5V DC, or PoE (802.3af standard)
  • Power Consumption (Maximum): 6.1W

Operational

  • Operating Temperature: +32 to +122 °F (0 to +50 °C)
  • Operating Humidity: 5% to 90% RH, non-condensing
  • Storage Temperature: -4 to +185 °F (-20 to +85 °C)
  • Storage Humidity: 0% to 95% RH, non-condensing
  • MTBF: 50000 hours

Physical

  • Dimensions (W x H x D, without connectors or feet): 8.4" x 1.0" x 4.9" (214mm x 25mm x 123mm)
  • Unit Weight: 1.6 lbs. (0.72 kg)
  • Shipping Weight: 3.8 lbs. (1.7 kg)

UPC: 888814999709

System Requirements

Network Switch: A managed gigabit switch is required when connecting through a Local Area Network.



Switch Features: The network switch must have Jumbo Frame Support (8k or greater) and IGMP Snooping enabled.



Cabling: Shielded CAT-5e or better cabling is required for connections between the Sender and the network switch.



Cable Length: Each cable run from the Sender to the network switch must not exceed 330 feet (100 meters).



Network Configuration: While not required, a dedicated LAN is highly recommended.



Management Software: The product is designed for use with the Gefen Syner-G™ software for simplified initial IP configuration.



Control System (Recommended): For automated configuration, Mass-Firmware-Updates (MFU), and enhanced security, the use of the Gefen EXT-CU-LAN Matrix Controller is highly recommended.

What's in the Box

  • (1) EXT-UHD-LANS-TX Sender unit
  • (1) 5V 2.6A Power Supply
  • (1) 3.5mm-to-DB-9 Adaptor, M-F
  • (1) IR Emitter (EXT-IREMIT)
  • (4) Self-Adhesive Rubber-Feet
  • (2) L-Shaped Mounting Brackets
  • (4) Machine screws for L-Shaped Mounting Brackets
  • (2) Machine screws for EXT-RACK-1U-GRY (sold separately)
  • (1) Quick-Start Guide

Warranty

3Year Product Warranty

Please see the Gefen Warranty Page for more details.
