Gen 2.0 AV over IP Receiver with 4K, HDR, RS-232, IR, and Audio (EXT-UHD-LANS-RX)

Name: Gen 2.0 AV over IP Receiver with 4K, HDR, RS-232, IR, and Audio (EXT-UHD-LANS-RX)
Brand: Gefen
SKU: EXT-UHD-LANS-RX
Price: 821.1 USD
Availability: OutOfStock

EXT-UHD-LANS-RX

The Gefen EXT-UHD-LANS-RX Gen 2.0 AV over IP Receiver provides high-performance, scalable distribution of 4K video over a standard Gigabit Local Area Network. This powerful receiver unit is equipped with a built-in scaler to optimize the image for a variety of displays, a versatile video wall controller for configurations up to 16x16, and digital and analog audio de-embedding for use with separate audio systems. It receives HDMI with HDR, RS-232, IR, and audio signals from any Sender on the network up to 330 feet (100 meters) away. Ideal for complex digital signage and high-performance AV systems, the receiver's built-in 2-port switch allows for daisy-chaining additional units, making it a flexible and massively scalable solution for any professional AV/IT environment.

⚠️Requires EXT-UHD-LANS-TX Sender Unit

$821.10

Gen 2.0 AV over IP Receiver with 4K, HDR, RS - 232, IR, and Audio (EXT - UHD - LANS - RX) - EXT - UHD - LANS - RX - Gefen

Key Features

Advanced Scaler: Features a built-in scaler to optimize images for a variety of displays, ensuring maximum compatibility and the best possible viewing experience.

Powerful Video Wall Controller: Includes a versatile video wall controller that can accommodate any screen configuration up to 16x16.

Audio De-Embedding: A built-in audio de-embedder separates 2-channel analog, 2-channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI signal for use with external amplifiers and audio systems.

High-Resolution Output: Supports output resolutions up to 4K 30Hz 4:4:4 for stunning video quality.

Integrated Gigabit Switch: A built-in 2-port Gigabit switch allows for the daisy-chaining of additional Receivers, extending signal range and simplifying installation for large-scale applications.

Power over Ethernet (PoE): Can be powered through a standard PoE-enabled IP network switch, eliminating the need for an external power supply.

Flexible Control Options: Controllable via front-panel buttons, a built-in web interface, Telnet, and UDP.

Discreet Installation: The low-profile enclosure features an IR extender port, allowing the unit to be hidden behind a display for a clean installation.

How It Works

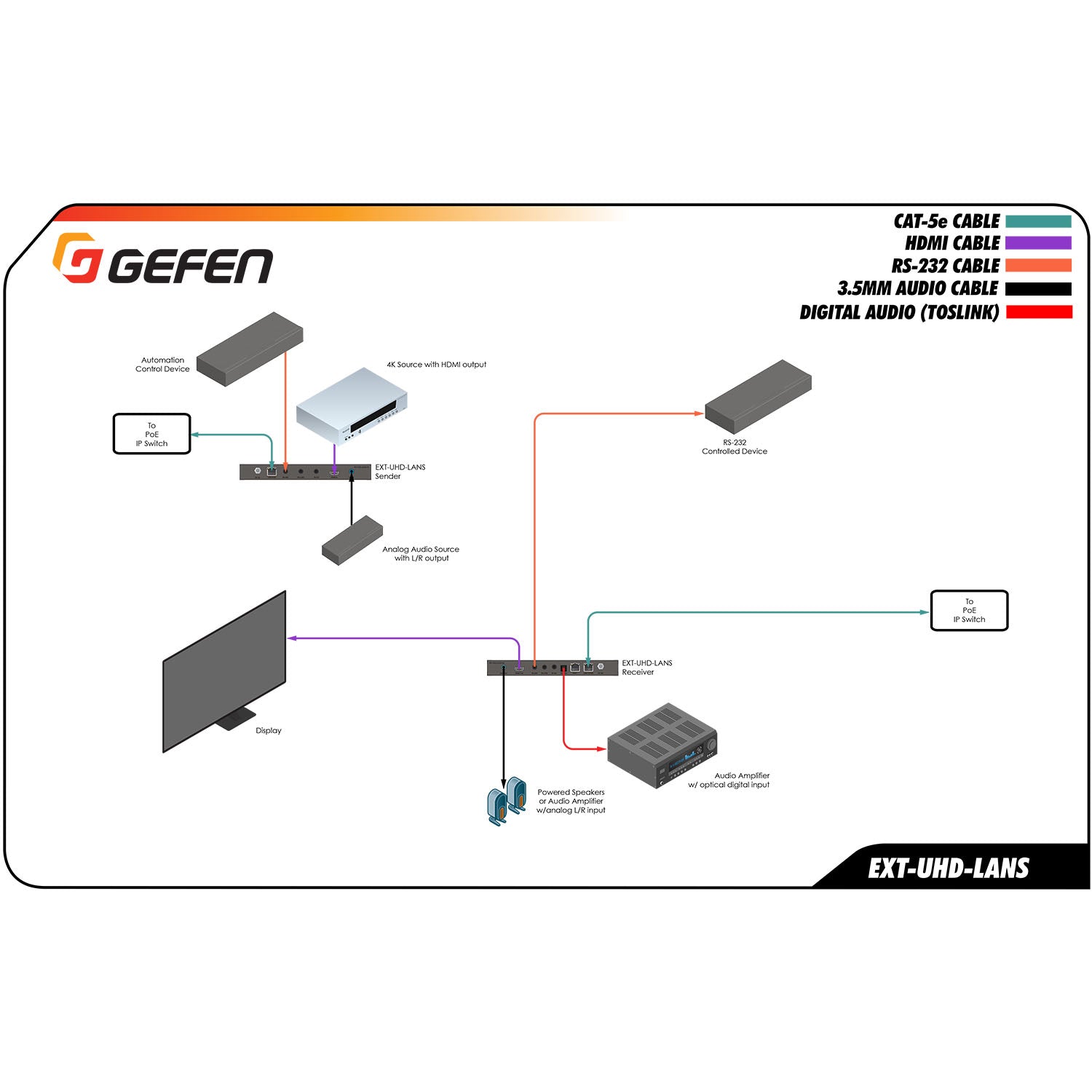

The Gefen EXT-UHD-LANS-RX Receiver operates with one or more Sender units over a standard Gigabit Local Area Network. Connect an HDMI display to the Receiver's video output , and for greater impact, use the digital and analog audio outputs to send de-embedded audio to a separate sound system. The Receiver connects to your network switch via a cable up to 330 feet (100 meters) long and can be powered directly from the switch using Power-over-Ethernet (PoE). Once connected, the Receiver can be routed to any Sender on the network to receive 4K video with HDR, audio, RS-232, and IR signals. For multi-display applications like digital signage, the built-in 2-port Gigabit switch allows for daisy-chaining additional Receivers, creating a flexible and massively scalable virtual matrix system.

Additional Information

Specifications

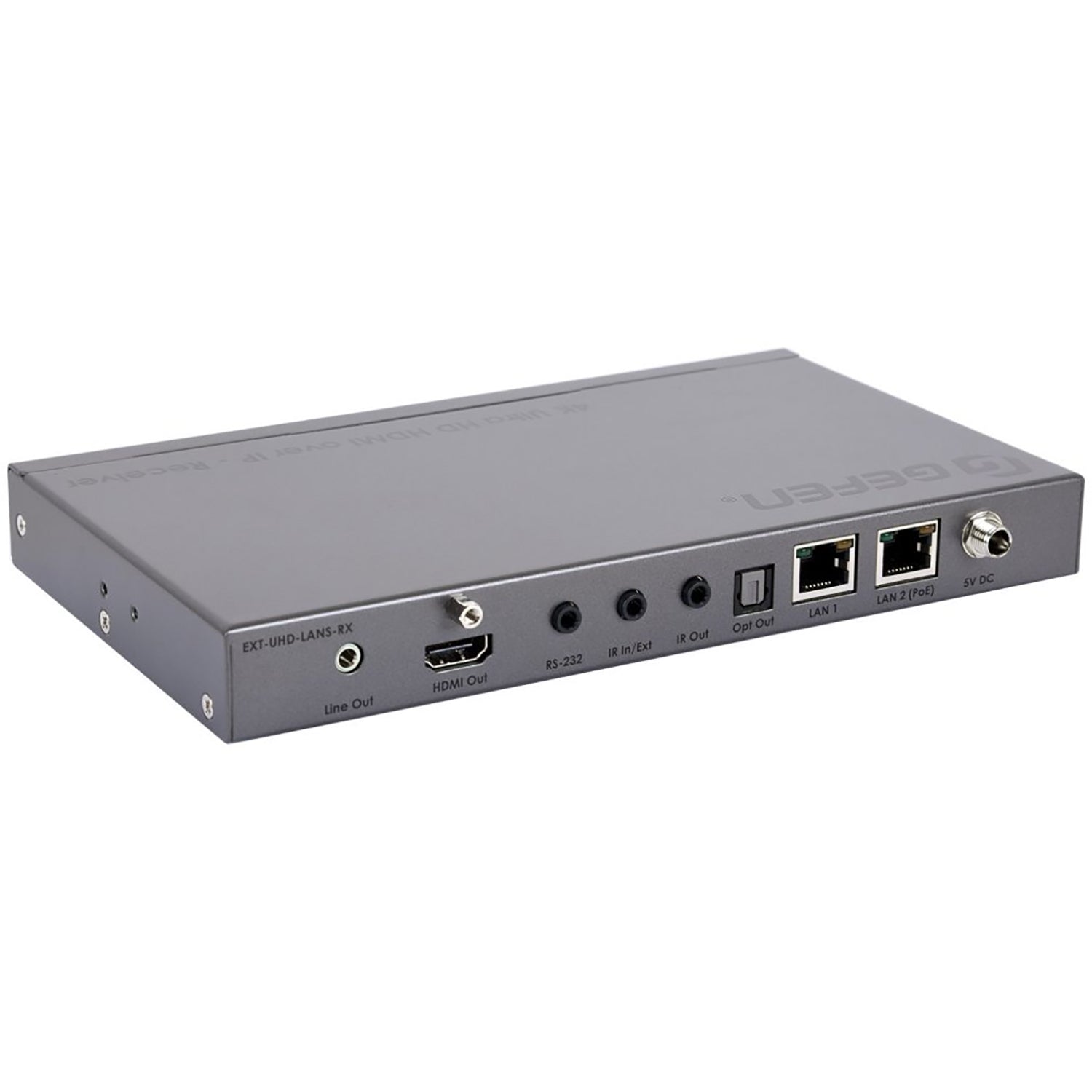

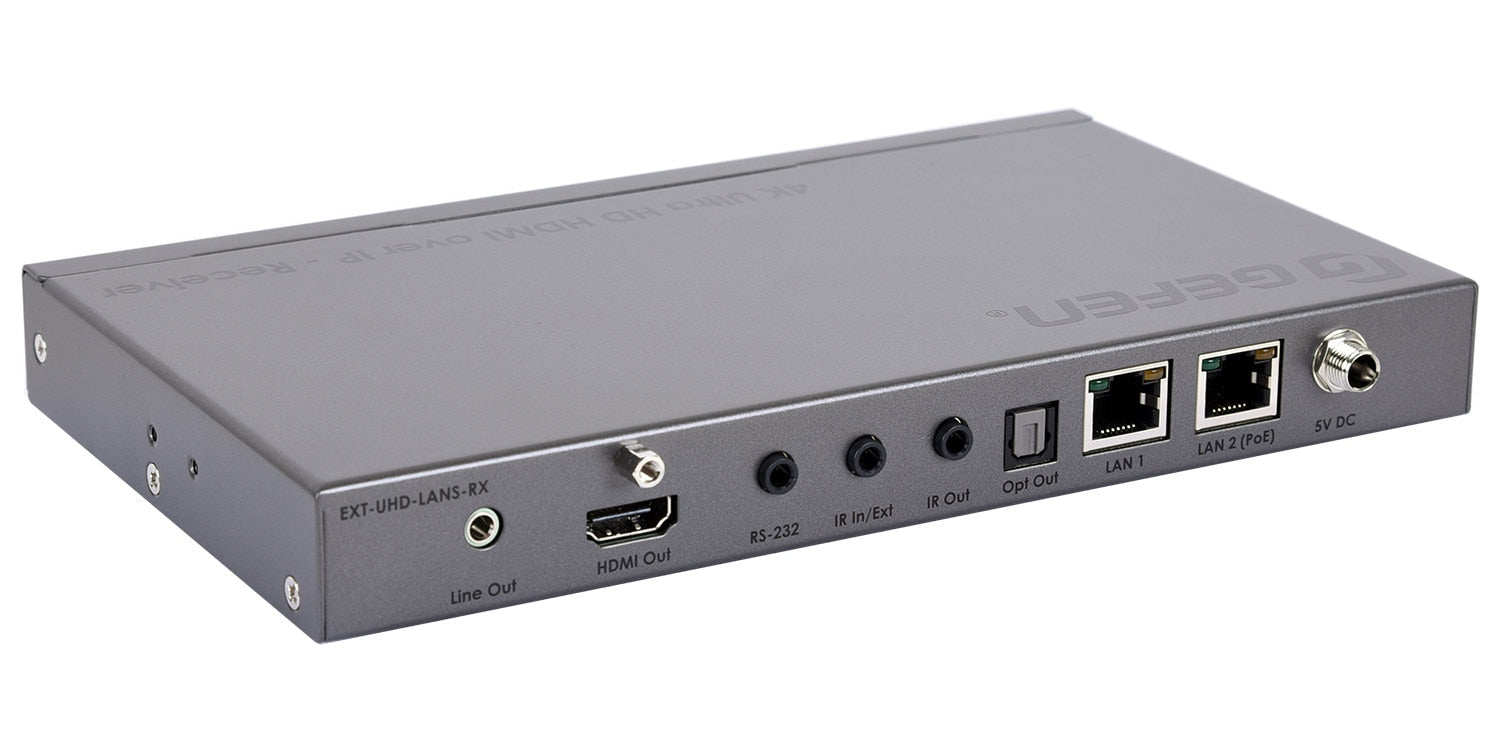

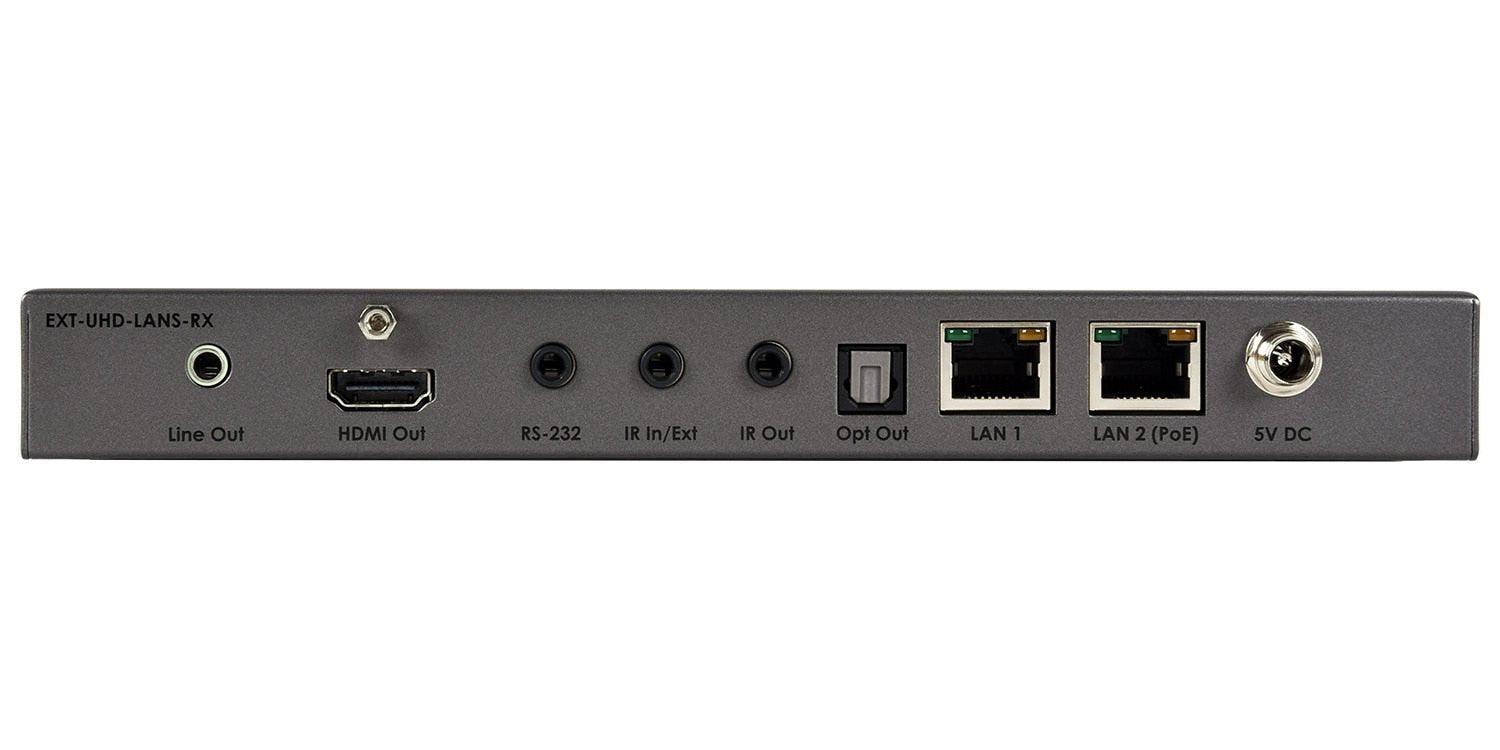

Connectors (Receiver)

Video Output: (1) HDMI Type A 19-pin, female, locking
Line Output: (1) 3.5mm mini-stereo jack
Optical Digital Audio Output: (1) TOSLINK®
Ethernet Ports: (2) RJ-45, shielded, one with PoE
RS-232 Port: (1) 3.5mm stereo jack, female
IR In/Ext: (1) 3.5mm mini-stereo jack
IR Out: (1) 3.5mm mini-mono jack
Power Supply Jack: 5V DC, locking

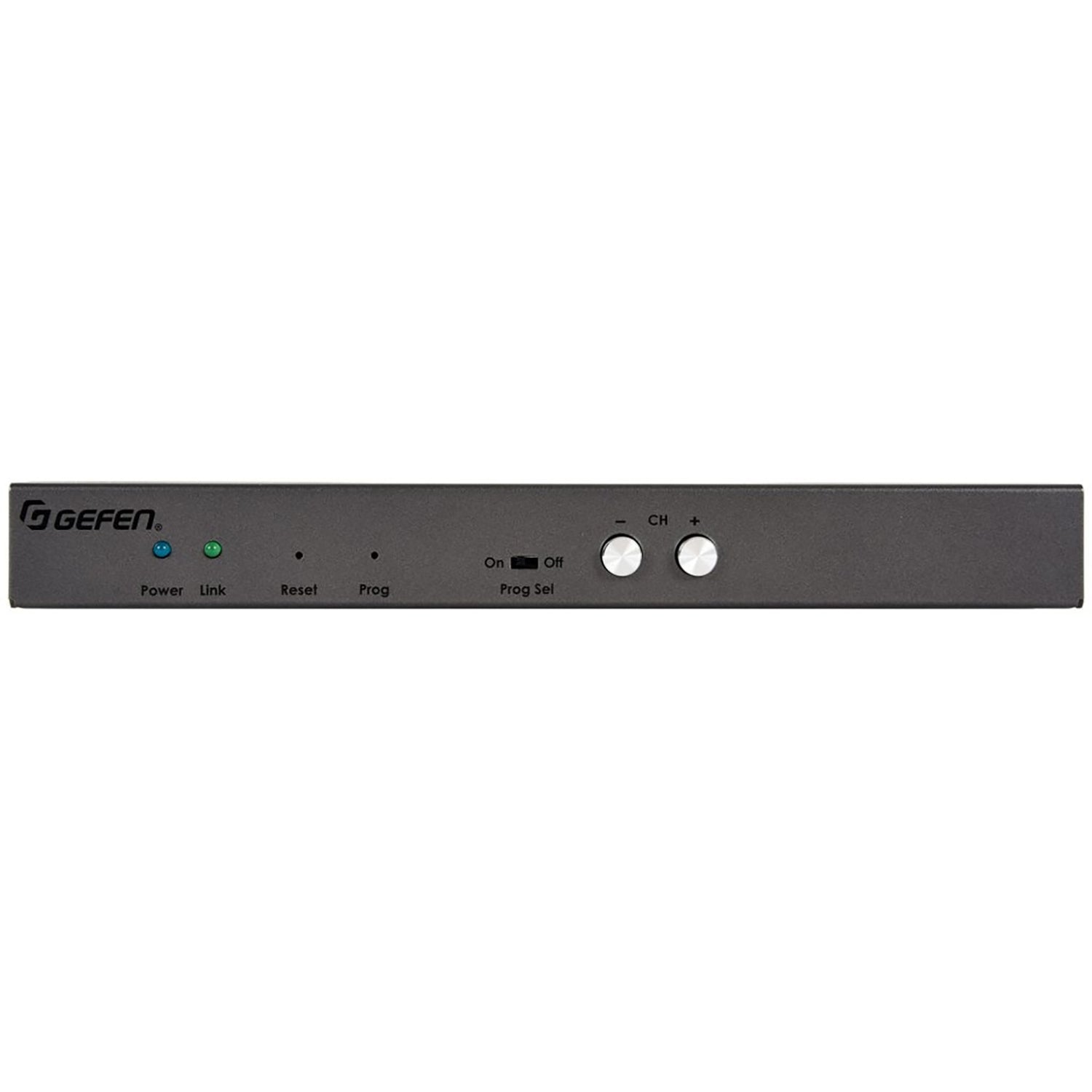

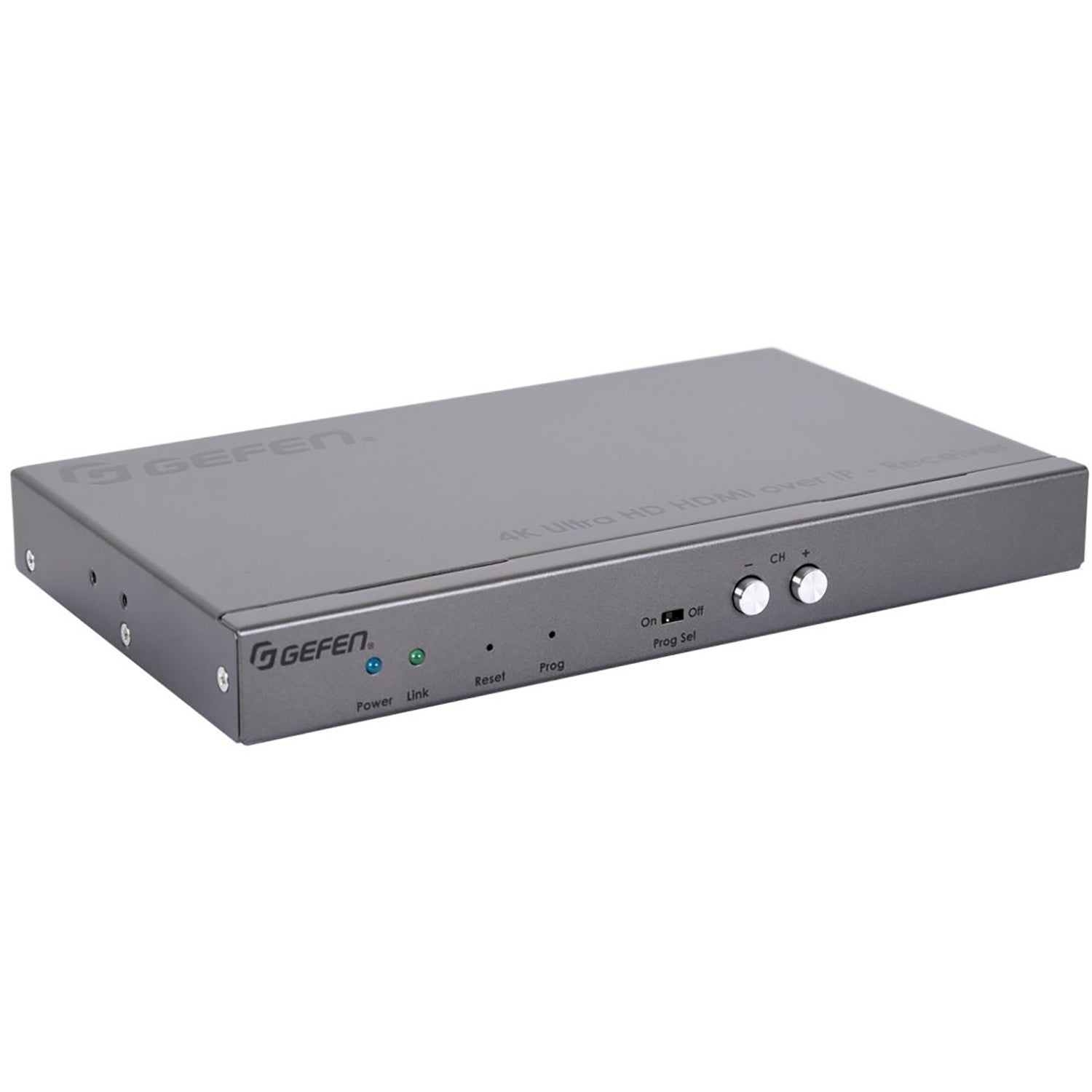

Controls (Receiver)
Channel Up Button: (1) tact-type
Channel Down Button: (1) tact-type
Reset Button: (1) tact-type, recessed
Program Button: (1) tact-type, recessed
Program Select Switch: (1) slide-type, recessed
Indicators (Receiver)
Link Indicator: (1) LED, green
Power Indicator: (1) LED, blue

Power

Power Requirement: 5V DC, or PoE (802.3af standard)
Power Consumption (Maximum): 6.8W
Operational
MTBF: 50000 hours
Operating Temperature: +32 to +122°F (0 to +50°C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185°F (-20 to +85°C)
Storage Humidity: 0% to 95% RH, non-condensing

Physical

Dimensions (W x H x D): 8.4" x 1.0" x 4.9" (214mm x 25mm x 123mm)
Unit Weight: 1.6 lbs. (0.72 kg)
Shipping Weight: 3.8 lbs. (1.7 kg)

UPC: 888814999716

System Requirements

Network: The system requires a standard Gigabit Local Area Network for signal distribution. A PoE-enabled IP network switch is required to power the unit via Power-over-Ethernet.

Hardware: At least one Sender (EXT-UHD-LANS-TX) unit is required to transmit the source signal to the Receiver.

Software (Optional but Recommended): The Gefen Syner-G™ software is designed for use with the system to simplify initial IP configuration.

Controller (Optional but Recommended): For automated and quick system configuration, Mass-Firmware-Updates (MFU), and enhanced network security, use in conjunction with the EXT-CU-LAN Matrix Controller is recommended.

Warranty

3Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-UHD-LANS-RX Manual
Gefen EXT-UHD-LANS-RX Datasheet
Gefen EXT-UHD-LANS-RX Declaration of Conformity
