Gen 2.0 Digital and Analog Audio over IP Sender (EXT-ADA-LAN-TX)

Name: Gen 2.0 Digital and Analog Audio over IP Sender (EXT-ADA-LAN-TX)
Brand: Gefen
SKU: EXT-ADA-LAN-TX
Price: 702.45 USD
Availability: InStock

EXT-ADA-LAN-TX

The Gefen Gen 2.0 Digital and Analog Audio over IP Sender is a high-performance unit designed to transmit multiple audio and control signal types over a standard Gigabit Local Area Network (LAN). This versatile sender unit accepts analog L/R, coaxial digital, and optical digital audio inputs, along with RS-232 and bi-directional IR signals, extending them up to 330 feet (100 meters) to any configured receiver on the network. By allowing for independent routing of audio and control signals, the system offers a flexible and massively scalable solution for professional audio distribution and multi-zone routing. Installation is simplified with support for standard 802.3af Power-over-Ethernet (PoE), allowing the unit to be powered directly from a PoE-enabled network switch and eliminating the need for an external power supply.

⚠️Requires EXT-ADA-LAN-RX Receiver Unit

$702.45

Gen 2.0 Digital and Analog Audio over IP Sender (EXT - ADA - LAN - TX) - EXT - ADA - LAN - TX - Gefen

Key Features

Flexible Signal Extension: Extends digital and analog audio, RS-232, and IR signals up to 330 feet (100 meters) over a Gigabit Local Area Network.

Versatile Audio Inputs: Features dedicated inputs for Analog L/R, Coaxial Digital, and Optical Digital audio, supporting formats from 2-channel PCM up to 5.1 channels of Bitstream.

Power over Ethernet (PoE): Support for the 802.3af PoE standard allows the unit to be powered by a compatible network switch, eliminating the need for the included external power supply.

Massive Scalability: Supports systems with up to 39,900 senders and a total of over 65,000 combined units on a single network, depending on bandwidth and switch capacity.

Independent Routing: Allows for the independent routing of audio, RS-232, and IR streams, providing enhanced flexibility for complex system designs.

Integrated Management: Features a built-in web interface, Telnet, and UDP for configuration and control , and is compatible with the Gefen Syner-G™ Software Suite for discovery and setup.

Professional Mounting Options: The low-profile, half-rack width enclosure can be surface-mounted with the included L-brackets or installed in a rack using the optional EXT-RACK-1U-GRY shelf.

How It Works

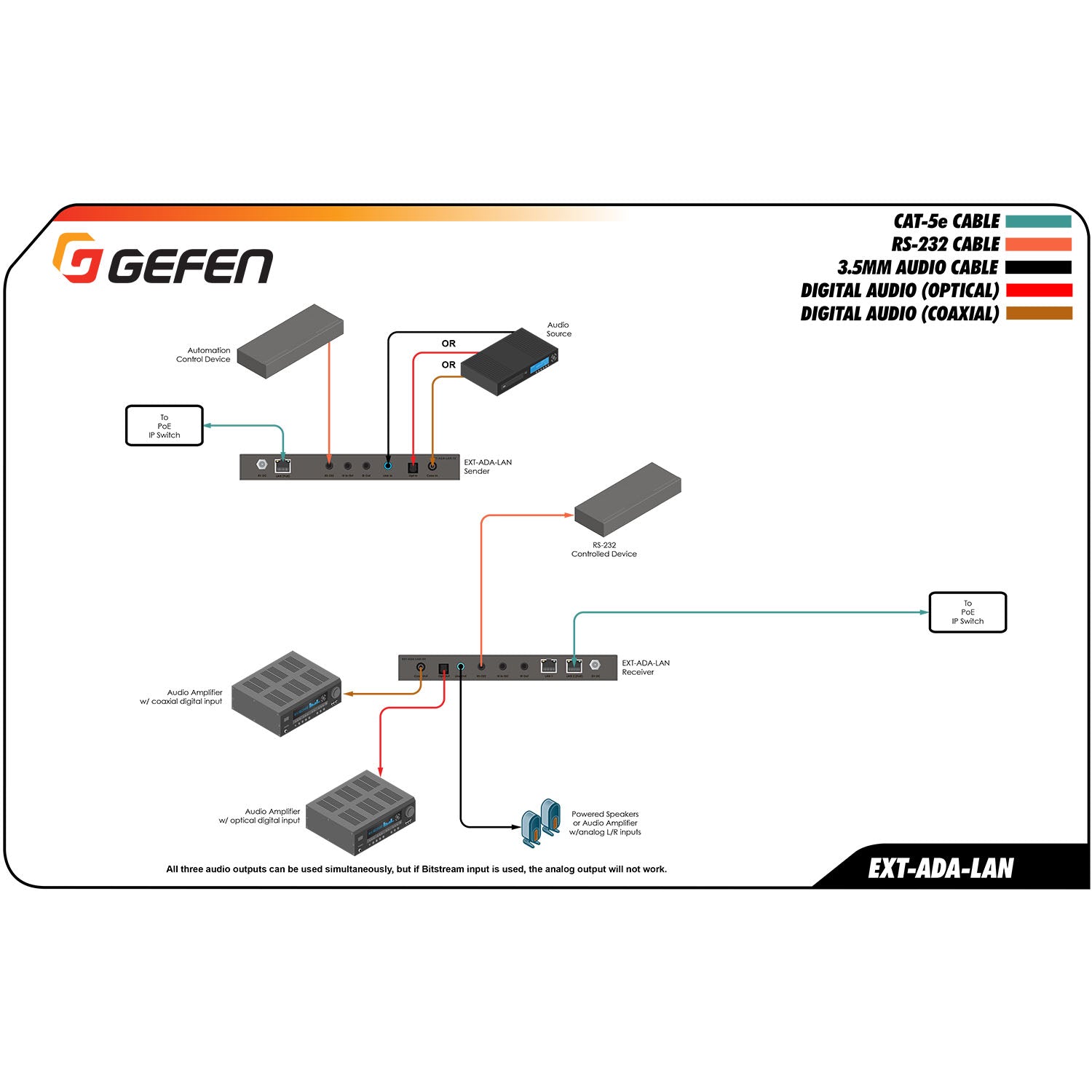

The Gefen Digital and Analog Audio over IP system operates with two main components: a Sender (TX) unit and one or more Receiver (RX) units. First, connect your audio source to one of the Sender's analog, optical, or coaxial inputs and attach any necessary RS-232 or IR control devices. The Sender unit then connects via a single CAT-5e (or better) cable to a port on a managed Gigabit LAN switch, drawing power directly from the network if a PoE-compliant switch is used. Each Sender is assigned a unique channel number through the web interface, and a Receiver unit tunes to that specific channel to receive the corresponding audio and control stream. By adding multiple Senders and Receivers to the network, you can create a flexible and massively scalable 'virtual audio matrix,' allowing any Receiver to be routed to any Sender on the network simply by changing its channel.

Additional Information

Specifications

Supported Audio Formats

Audio: Analog L/R Stereo, 2-Channel PCM, and up to 5.1 channels of Bitstream

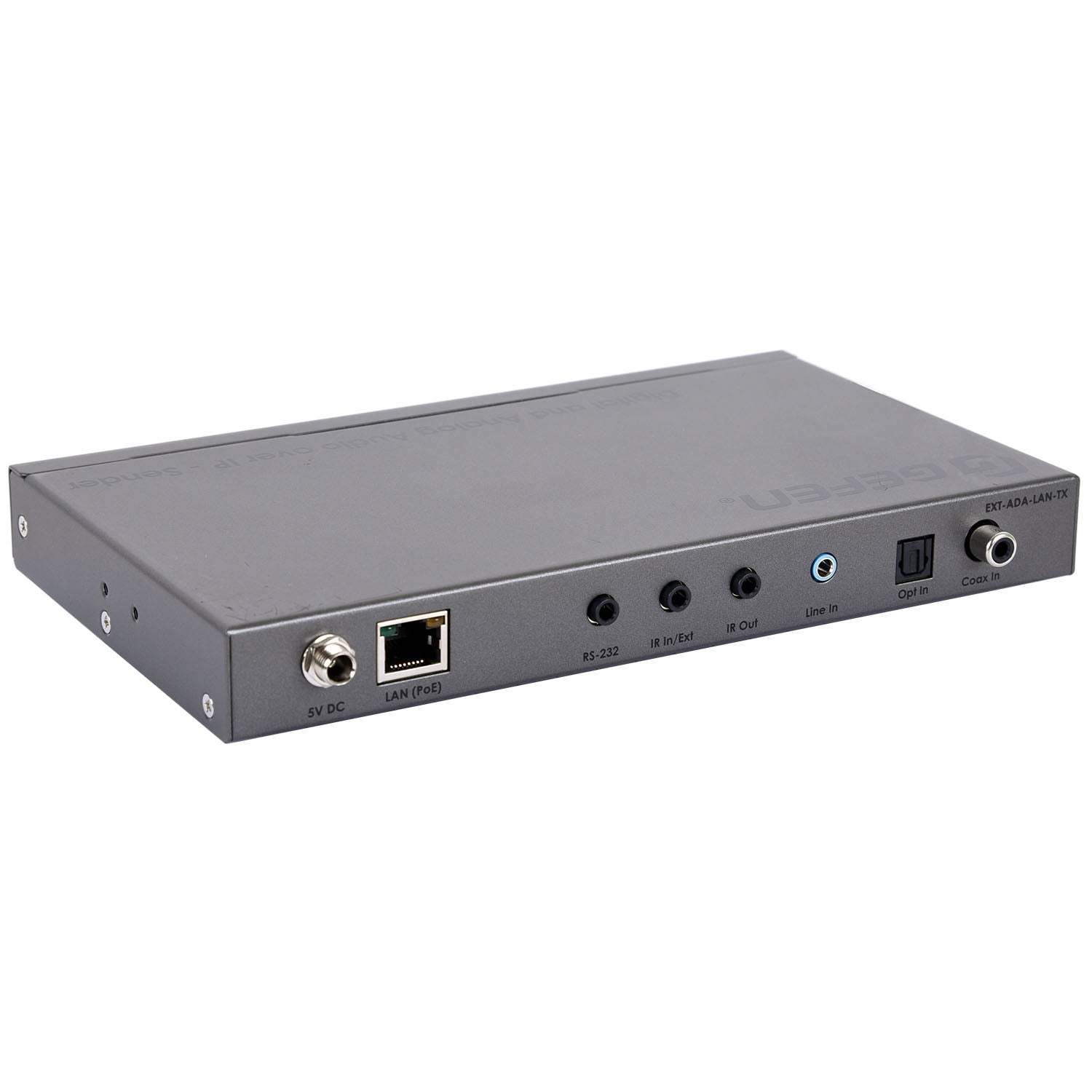

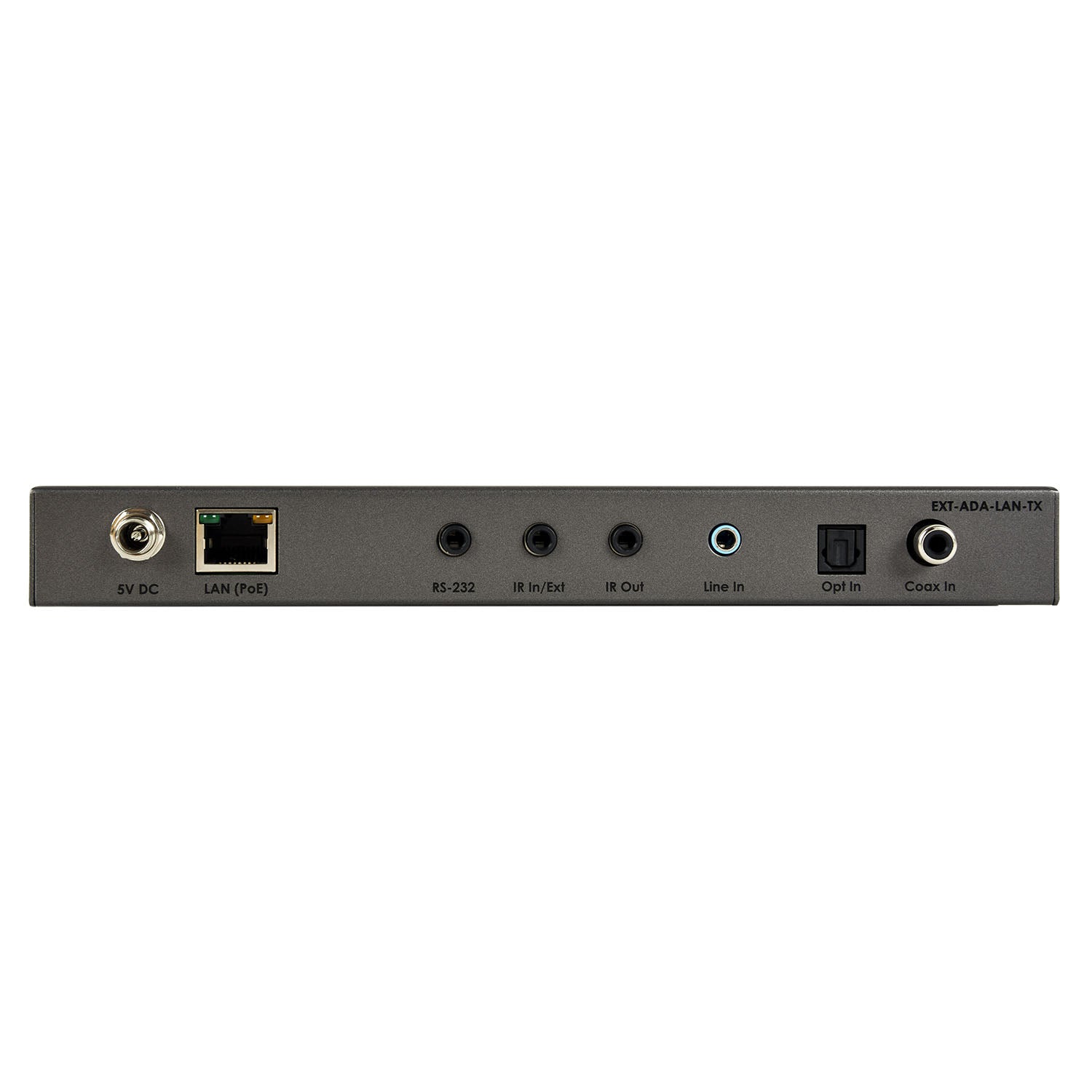

Connectors & Indicators (Sender Unit)

Audio In Connector: 1 x 3.5mm mini-stereo, female
Opt In Connector: 1 x TOSLINK®
Coax In Connector: 1 x RCA-type, female
Link PoE Connector: 1 x RJ-45, shielded
RS-232 Connector: 1 x 3.5mm mini-stereo, female
IR In/Ext Connector: 1 x 3.5mm mini-stereo, female
IR Out Connector: 1 x 3.5mm mini-stereo, female
Power Connector: 1 x 5V DC, locking, 5.5mm barrel/2.1mm pin

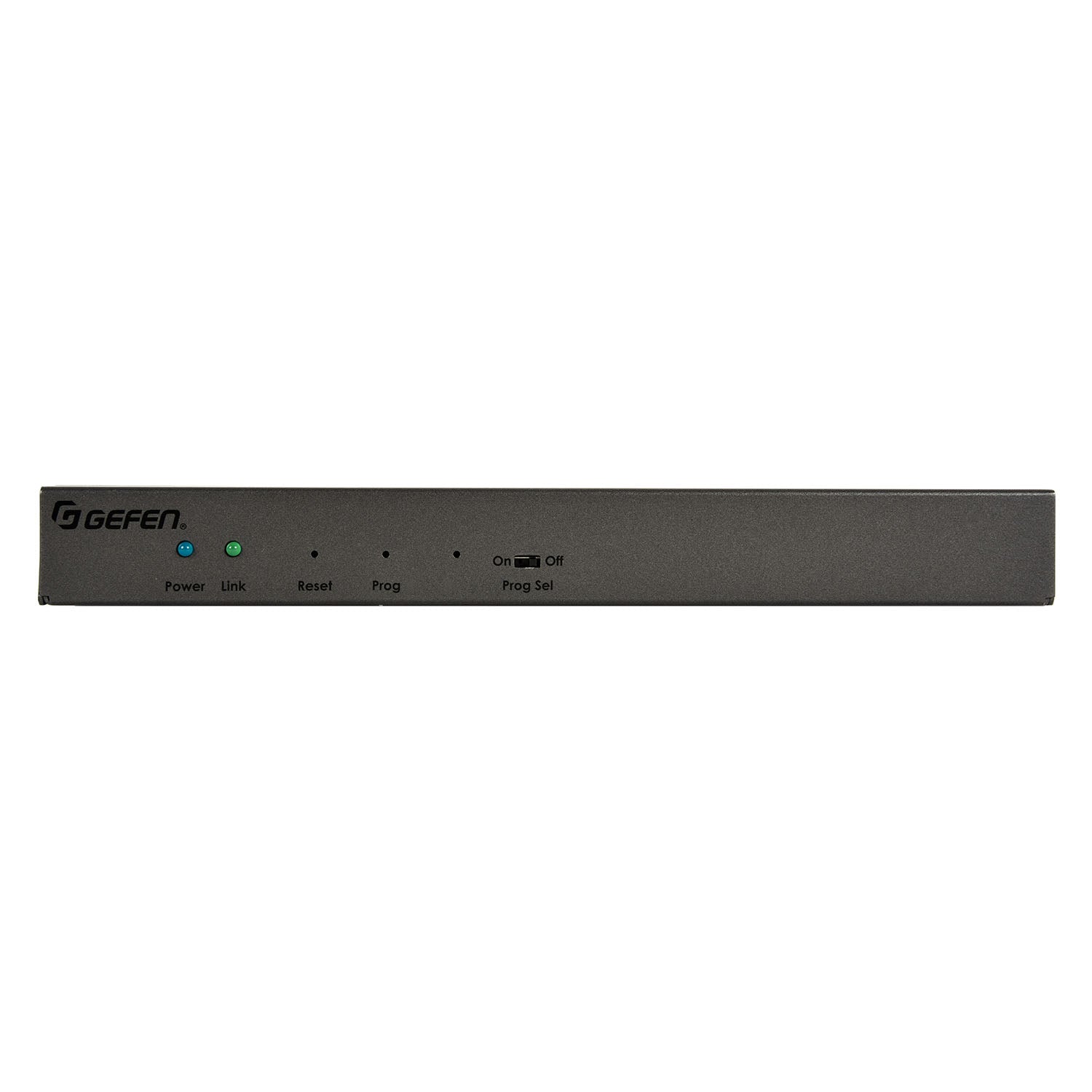

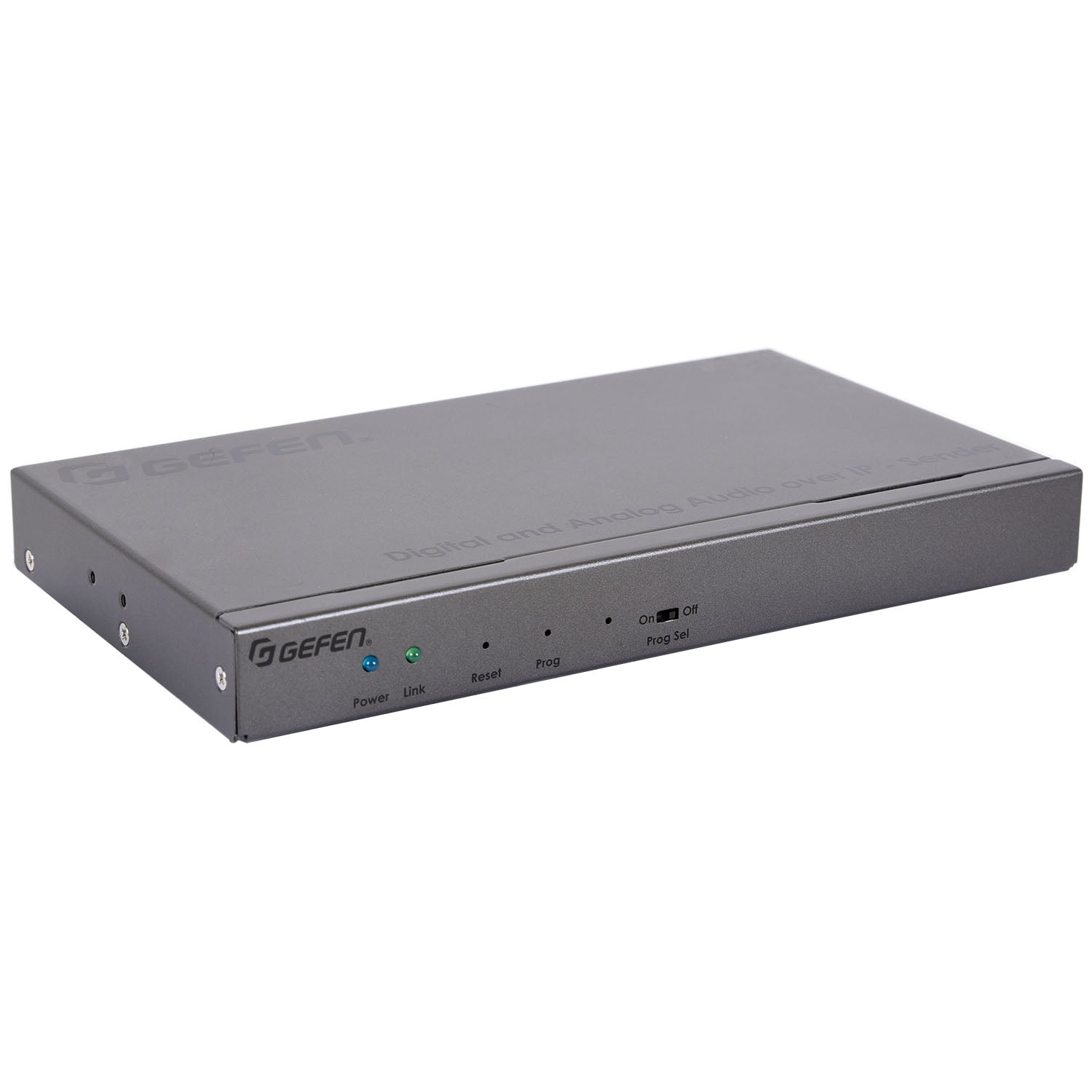

Power Indicator: 1 x LED, blue
Link Indicator: 1 x LED, green

Operational

Power Consumption (Sender, maximum): 3W
Operating Temperature: +32 to +122°F (0 to +50°C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185°F (-20 to +85°C)
Storage Humidity (RH): 0% to 95% RH, non-condensing
MTBF: 50000 hours

Physical

Dimensions (W x H x D): 8.4” x 1.0” x 4.9” (214mm x 25mm x 123mm)
Net Weight: 1.6 lbs. (0.72 kg)

UPC: 888814999785

System Requirements

Network Switch

A managed gigabit switch is required when connecting through a Local Area Network.
Jumbo Frame Support (8k or greater) must be enabled on the switch.
IGMP Snooping must be enabled on the switch.
A dedicated LAN is not required but is highly recommended.

Cabling

Shielded CAT-5e (or better) cabling must be used for all network connections.
Network cables between the Sender unit and the IP switch must not exceed 330 feet (100 meters).
Field-terminated network cables must adhere to the TIA/EIA-568-B specification.

What's in the Box

(1) Sender unit (EXT-ADA-LAN-TX)
(1) 5V 2.6A Power Supply
(1) 3.5mm-to-DB-9 Adaptor, M-F (ADA-MP-2-DB9-MF-AB)
(1) IR Emitter (EXT-IREMIT)
(4) Self-Adhesive Rubber Feet
(2) L-Shaped Mounting Brackets
(4) Machine screws for L-Shaped Mounting Brackets
(2) Machine screws for EXT-RACK-1U-GRY (sold separately)
(1) Quick-Start Guide

Warranty

3 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-ADA-LAN Manual
