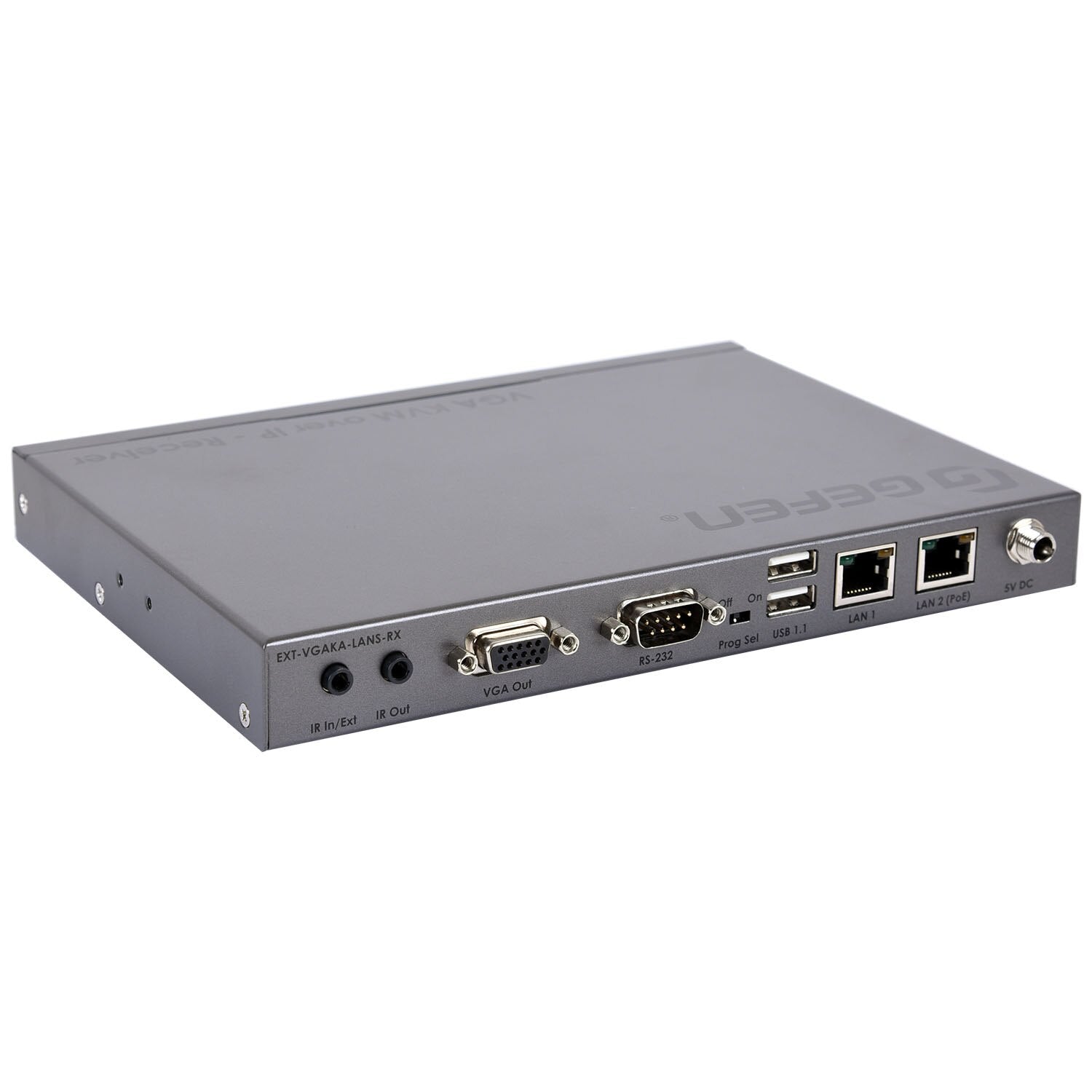

Gen 2.0 VGA KVM over IP Receiver (EXT-VGAKA-LANS-RX)

Name: Gen 2.0 VGA KVM over IP Receiver (EXT-VGAKA-LANS-RX)
Brand: Gefen
SKU: EXT-VGAKA-LANS-RX
Price: 702.45 USD
Availability: InStock

EXT-VGAKA-LANS-RX

The Gefen Gen 2.0 VGA KVM over IP Receiver provides remote access to your VGA-based computer systems and sources over a local area network (LAN). This powerful receiver unit allows you to extend VGA video up to 1920x1200 (WUXGA), USB, RS-232, bi-directional analog audio, and IR signals up to 330 feet (100 meters) from any sender unit on the network. Featuring an integrated scaler for maximum compatibility and a built-in video wall controller that accommodates up to a 16x16 array, the system offers a flexible and massively scalable solution for your professional AV and IT integration needs.

⚠️Requires EXT-VGAKA-LANS-TX Sender Unit

$702.45

Gen 2.0 VGA KVM over IP Receiver (EXT - VGAKA - LANS - RX) - EXT - VGAKA - LANS - RX - Gefen

Key Features

High-Resolution Video: Supports input and output resolutions up to 1080p Full HD and 1920x1200 (WUXGA), ensuring clear and detailed video quality.

Flexible Signal Extension: Extends VGA, USB, RS-232, bi-directional analog audio, and IR over a single CAT-5e (or better) cable up to 330 feet (100 meters).

Versatile USB Hub: Features two USB 2.0 ports for high-speed devices and two dedicated USB 1.1 ports with KM Emulation for seamless, real-time keyboard and mouse control.

Integrated Video Wall Controller: Creates and manages video walls with any number of rows and columns up to a 16x16 configuration.

Massively Scalable Architecture: Supports systems with up to 39,900 Senders and a combination of over 65,000 total units, allowing for large-scale virtual matrix switching.

Power Over Ethernet (PoE): Conforms to the 802.3af standard, allowing the receiver to be powered by a PoE-enabled network switch and eliminating the need for an external power supply.

Built-in Gigabit Switch: A two-port Gigabit Ethernet switch is built into the receiver unit, allowing for daisy-chaining to other devices.

Integrated Scaler: A built-in scaler ensures maximum compatibility and the best possible viewing experience when working with different displays and content sources.

Advanced Control Options: Controllable via its built-in web interface, Telnet, UDP, and the Gefen Syner-G™ Software Suite.

How It Works

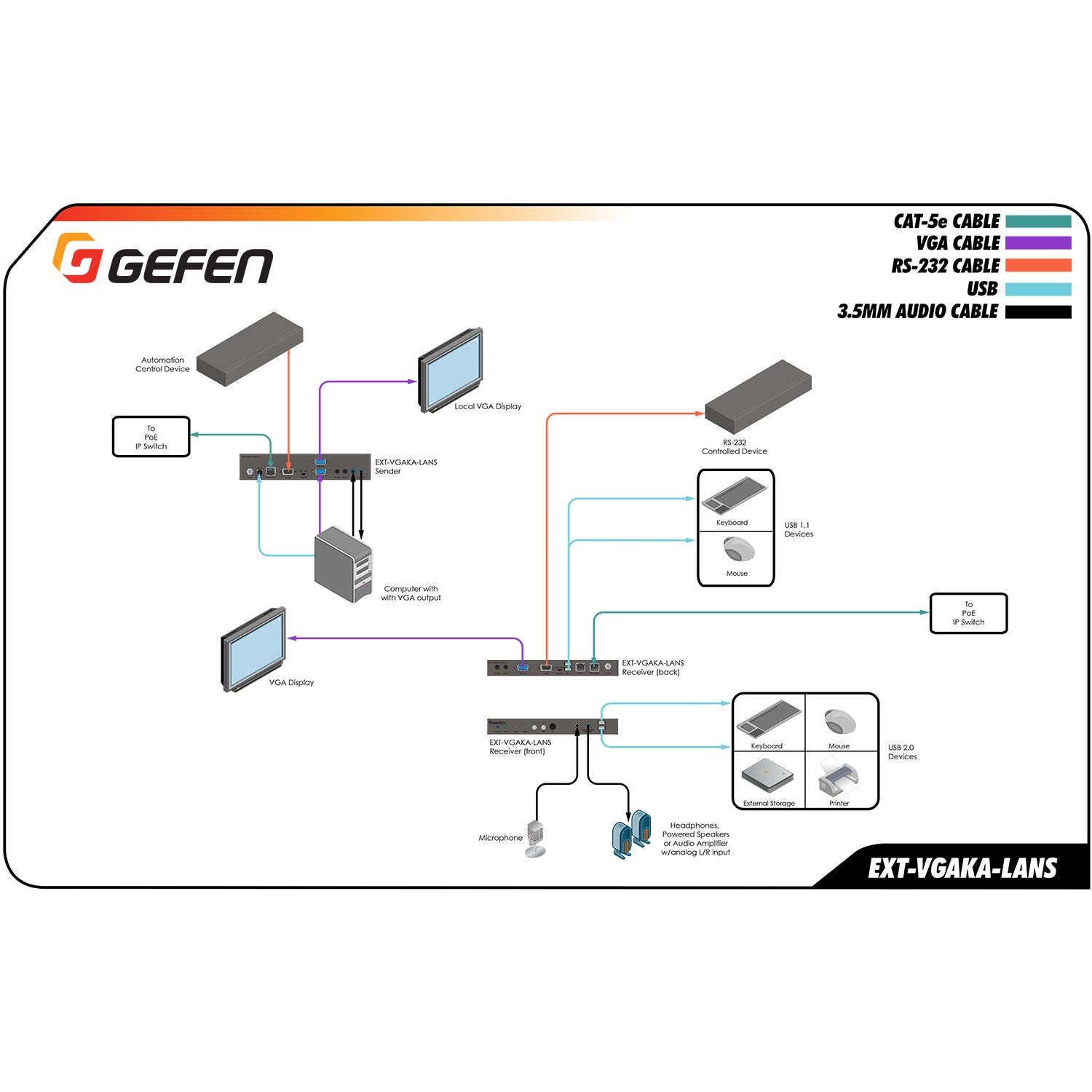

To operate the Gefen VGA KVM over IP system, connect a computer source to a Sender unit and your peripherals (display, keyboard, mouse, etc.) to a Receiver unit. Both the Sender and Receiver units connect to a standard Gigabit Local Area Network switch via a CAT-5e cable, which can be up to 330 feet (100 meters) long. The Receiver must be set to the same channel number as the Sender you wish to control, which can be done via the front panel buttons or the built-in web interface. By adding multiple Senders and Receivers to the network and setting them to multicast mode, you can create a flexible and massively scalable 'virtual matrix,' allowing any connected workstation to control any source on the network with the proper configuration.

Additional Information

Specifications

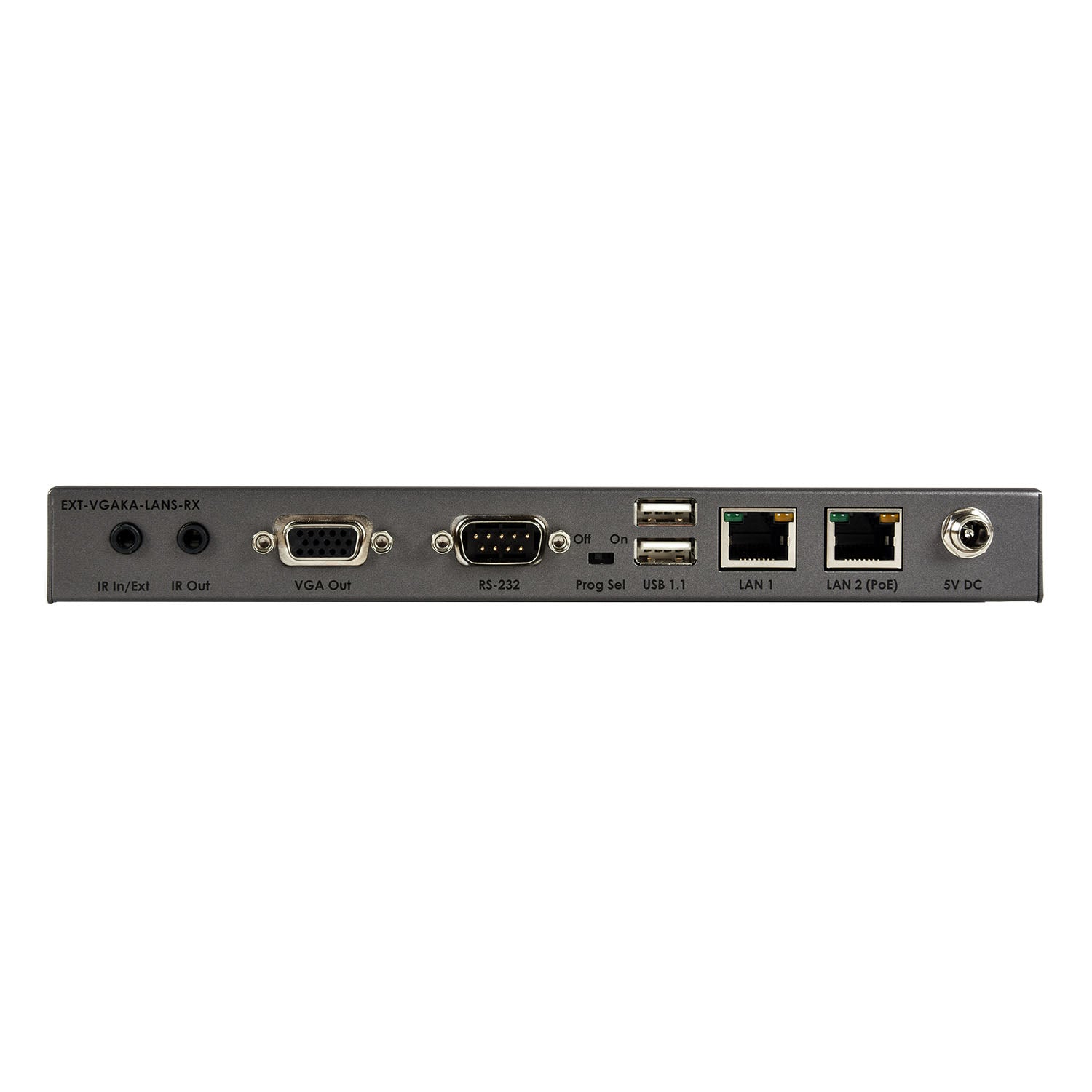

Connectors & Indicators

Video Out Connector: 1 x VGA
Mic In Connector: 1 x 3.5mm mini-stereo, female
Headphones/Line Out Connector: 1 x 3.5mm mini-stereo, female
Opt Out Connector: Not available on VGA model
USB Device Ports: 2 x USB 2.0, Type-A and 2x USB 1.1, Type-A
LAN Connectors: 2 x RJ-45, shielded, 1 with PoE
RS-232 Connector: 1 x DB-9, male
IR Sensor: 1, located on front panel
IR In/Ext Connector: 1 x 3.5mm mini-stereo, female
IR Out Connector: 1 x 3.5mm mini-stereo, female
Power Requirement: 5V DC, or PoE (802.3af standard)
Power Connector: 1 x 5V DC, locking, 5.5mm barrel/2.1mm pin
Power Indicator: 1 x LED, blue
Link Indicator: 1 x LED, green

Operational

Operating Temperature: +32 to +122°F (0 to +50°C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185°F (-20 to +85°C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours

Physical

Dimensions (W x H x D, not including connectors): 8.4” x 1.0” x 5.9” (214mm x 25mm x 150mm)

UPC: 888814999778

System Requirements

A managed gigabit switch is required for network connections.

The network switch must have Jumbo Frame Support set to 8k or greater.

IGMP Snooping must be enabled on the network switch.

Shielded CAT-5e or better cable is required for network links, not to exceed 330 feet (100 meters).

A dedicated LAN is highly recommended.

What's in the Box

(1) Receiver unit
(1) 5V 4A Power Supply
(1) AC Power Cord
(4) Self-Adhesive Rubber-Feet
(2) L-Shaped Mounting Brackets
(4) Machine screws for L-Shaped Mounting Brackets
(2) Machine screws for EXT-RACK-1U-GRY (sold separately)
(1) Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-VGAKA-LANS-RX Manual
Gefen EXT-VGAKA-LANS Datasheet
