HD Test Pattern Generator for HDMI, DVI, and VGA (GTB-HD-SIGGEN)

Name: HD Test Pattern Generator for HDMI, DVI, and VGA (GTB-HD-SIGGEN)
Brand: Gefen
SKU: GTB-HD-SIGGEN
Price: 1393.35 USD
Availability: InStock

GTB-HD-SIGGEN

The Gefen Toolbox HD Pattern Signal Generator is an advanced testing device designed to help you evaluate, calibrate, and test digital video equipment. It offers a comprehensive suite of 39 built-in timings, 41 patterns, and 4 data analysis patterns, providing over a thousand testing combinations for professional AV installers and calibrators working with analog and digital devices. This versatile generator supports HDMI, and with adapters, DVI and Component Video, making it an essential tool for troubleshooting, HDCP verification, and EDID management. Its portable, wall-mountable design and multiple control options—including front-panel buttons, IR, and RS-232 software—deliver flexibility for both field and test bench applications.

$1,393.35

HD Test Pattern Generator for HDMI, DVI, and VGA (GTB - HD - SIGGEN) - GTB - HD - SIGGEN - Gefen

Key Features

Versatile Video Output: Supports a wide range of SD and HD video formats up to 1080p and PC resolutions up to WUXGA (1920times1200) for comprehensive display testing.

Extensive Test Patterns: Provides 39 timings, 41 patterns, and 4 data analysis patterns to cover a vast array of testing and calibration scenarios.

Advanced Color Space Support: Natively supports RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 color spaces, along with Deep Color up to 12-bit for precise color evaluation.

EDID Management: Features robust EDID analysis tools, including the ability to read and copy EDID data from any connected display (sink) for troubleshooting compatibility issues.

HDCP Compliance Verification: Includes a dedicated HDCP pattern to test the integrity of high-bandwidth digital content protection between sources and displays.

Multi-Channel Audio Testing: Equipped with a built-in LPCM sine wave generator for 2 CH, 5.1 CH, and 7.1 CH audio, allowing for complete AV system verification.

Flexible Control Options: Controllable via front panel buttons, the included IR remote, or an RS-232 connection using downloadable software for maximum user convenience.

How It Works

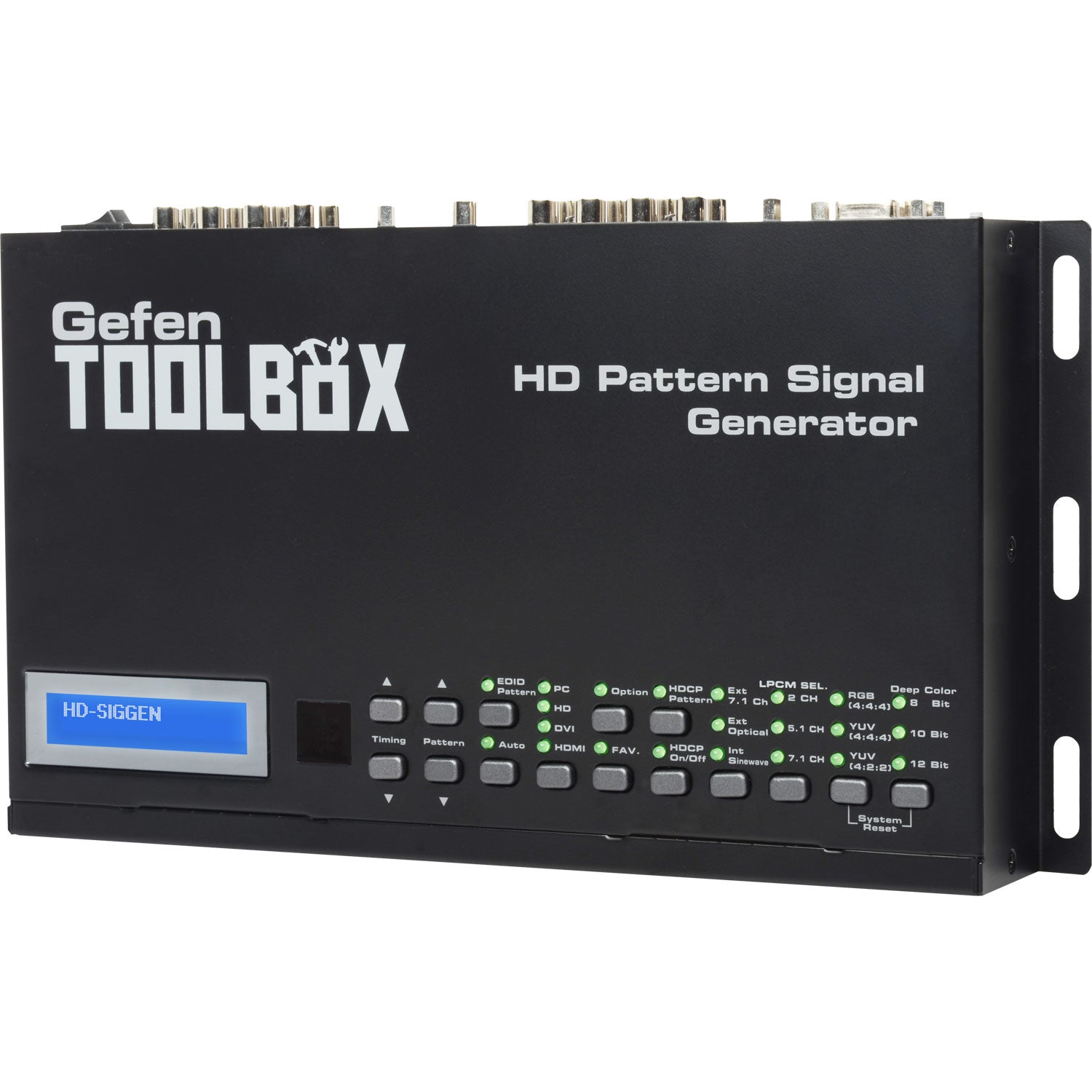

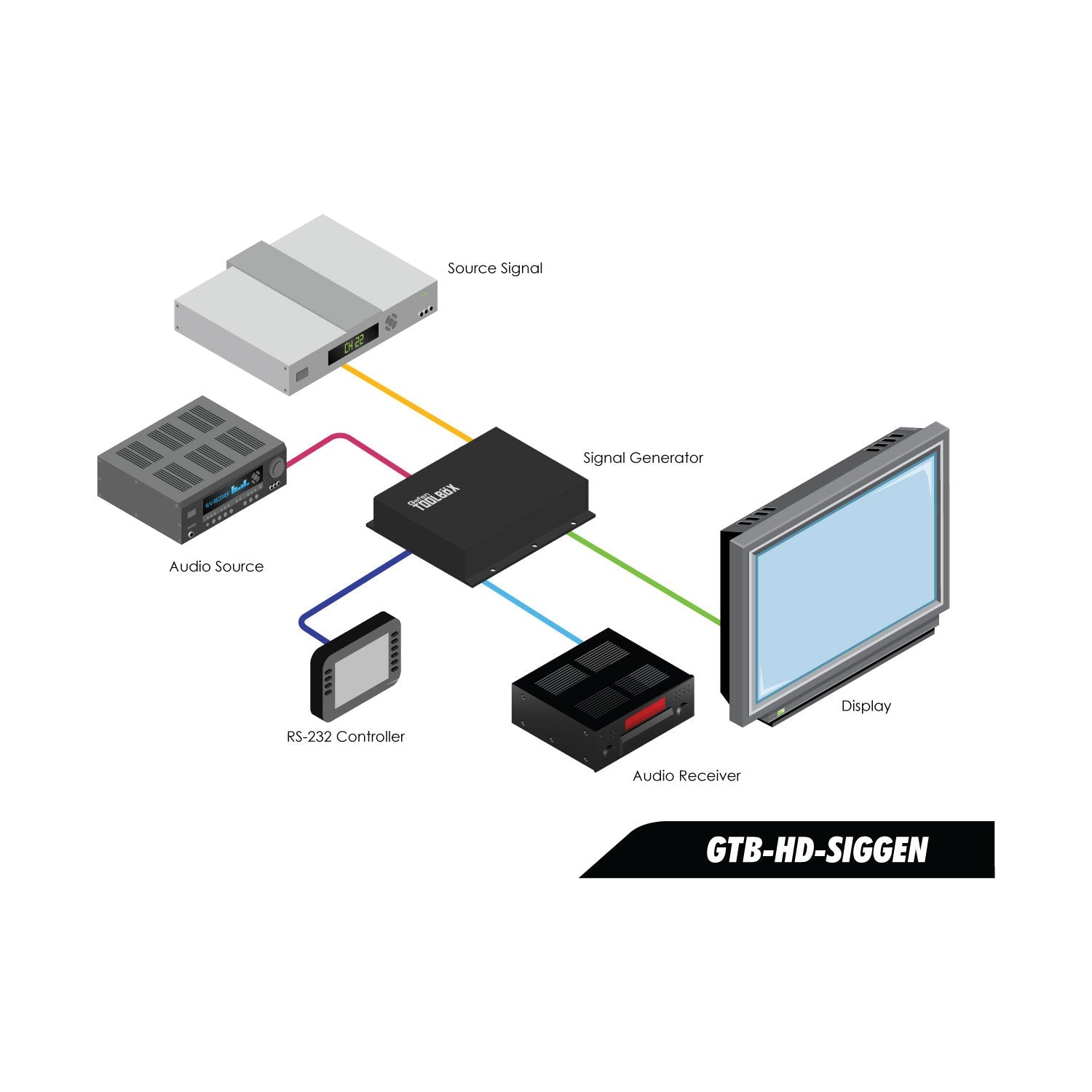

To operate the Gefen Toolbox HD Pattern Signal Generator, connect the HDMI or VGA output port directly to an HDTV display or monitor. For connecting to DVI displays, use an HDMI-to-DVI adapter. Once all equipment is powered on, the front panel LCD screen will display the active timing and pattern information. You can then cycle through the various timings and patterns using the front panel buttons or the included IR remote to send test signals to the connected display. For audio testing, you can input a digital or analog audio source or use the generator's internal sine wave test tone, which is output through the HDMI, TOSLINK, or S/PDIF connections.

Additional Information

Specifications

Maximum Pixel Clock: 225 MHz (Datasheet), 165 MHz (Manual)

Input Video Signal: 1.2V p-p

Input DDC Signal: 5V p-p (TTL)

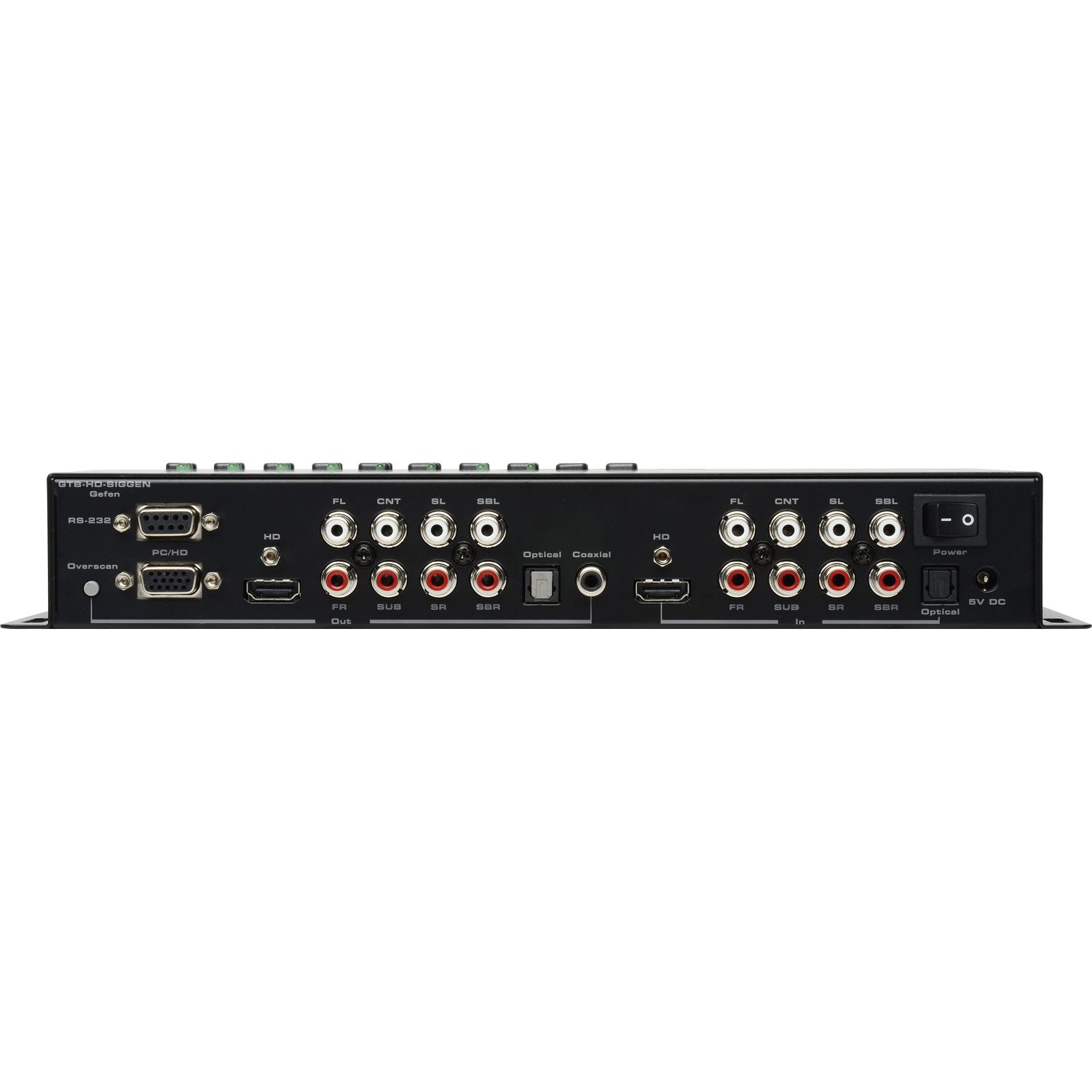

Video Input: (1) HDMI Type A, 19-pin, female

Digital Video Outputs: (1) HDMI Type A, 19-pin, female (supports DVI with adapter)

Analog Video Outputs: (1) HD-15, female VGA/PC/HD (supports Component Video with adapter)

Analog Audio Inputs: FL, FR, C, LFE, SL, SR, SSL, SSR (RCA type)

Analog Audio Outputs: FL, FR, C, LFE, SL, SR, SSL, SSR (RCA type)

Digital Audio Input: (1) TOSLink

Digital Audio Outputs: (1) TOSLink, (1) S/PDIF

RS-232 Serial Port: DB-9, female

Power Supply: 5V DC

Power Consumption: 10W (max.)

Dimensions: 12.0" W x 1.75" H x 6.5" D

Shipping Weight: 6 lbs.

UPC: 845344005102

System Requirements

A PC running Windows is required to use the HD-SIGGEN software for RS-232 control.

What's in the Box

(1) Gefen ToolBox HD Pattern Signal Generator
(1) 6 ft. HDMI cable (M-M)
(1) IR Remote
(1) 5V DC Power Supply
(1) User Manual

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen GTB-HD-SIGGEN Datasheet
Gefen GTB-HD-SIGGEN Manual
