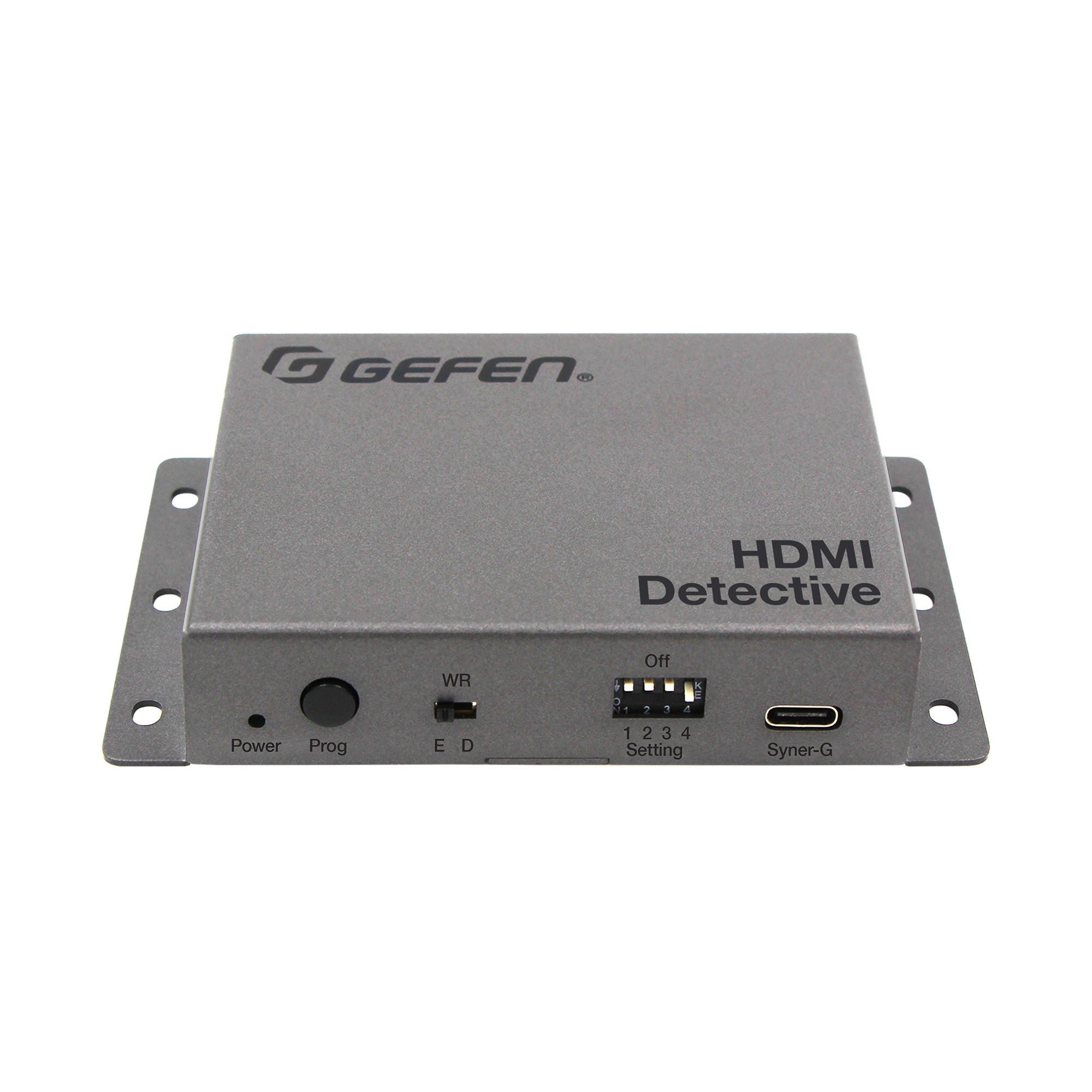

HDMI EDID Detective with EDID Control & 8K Support (GF-EDD-HD)

GF-EDD-HD

The Gefen GF-EDD-HD HDMI EDID Detective eliminates display communication disruptions by storing and emulating your display's EDID (Electronic Display Identification Data), ensuring consistent signal handshakes even when displays are powered off or switched. This professional HDMI EDID emulator maintains reliable communication up to 8K@60Hz and 4K@120Hz with full HDMI 2.1 compliance and 48Gbps bandwidth. Supports HDR10, HDR10+, Dolby Vision, and HLG formats while preserving immersive audio including Dolby Atmos and DTS:X. Programmable EDID management via USB-C enables flexible setup for studios, control rooms, and digital signage networks. HDCP 2.3/2.2 compatible with compact metal construction for reliable AV signal management in mission-critical installations.
$422.94
HDMI EDID Detective with EDID Control & 8K Support (GF - EDD - HD) - GF-EDD-HD - Gefen
HDMI EDID Detective with EDID Control & 8K Support (GF - EDD - HD) - GF-EDD-HD - Gefen
HDMI EDID Detective with EDID Control & 8K Support (GF - EDD - HD) - GF-EDD-HD - Gefen
HDMI EDID Detective with EDID Control & 8K Support (GF - EDD - HD) - GF-EDD-HD - Gefen
HDMI EDID Detective with EDID Control & 8K Support (GF - EDD - HD) - GF-EDD-HD - Gefen
HDMI EDID Detective with EDID Control & 8K Support (GF - EDD - HD) - GF-EDD-HD - Gefen

Key Features

Supports High Resolutions and HDR: Handles resolutions up to 8K@60Hz and 4K@120Hz with full HDMI 2.1 compliance and 48Gbps bandwidth, including HDR10, HDR10+, Dolby Vision, and HLG formats, for stunning video quality and future-proof performance.​



Immersive Audio Support: Preserves high-quality audio formats like Dolby Atmos® and DTS:X™, ensuring a complete audio-visual experience for professional and home theater applications.​



Advanced EDID Management: Features five factory-loaded EDID profiles and three user-programmable banks for maximum flexibility in any AV setup. Features recessed DIP switches for settings configuration and write-enable control, designed for field installations and system integrators.



Signal Stability: Employs DDC re-clocking and active HPD (Hot Plug Detect) management to maintain a stable connection and prevent signal interruptions, even when displays are powered off, disconnected, or switched to another input.​



Field-Upgradable: A USB-C port allows for easy firmware updates and EDID management from any workstation, future-proofing your investment. Write-protect switch locks stored EDIDs to prevent accidental changes during operation.​



Robust and Compact Design: The durable metal enclosure is ideal for both rack-mounted and field applications, ensuring reliable performance anywhere. Low power consumption (<3W) and 50,000-hour MTBF deliver long-term dependability with 3-year warranty coverage.​

How It Works

The Gefen GF-EDD-HD HDMI Detective is a plug-and-play solution that ensures reliable communication between your video source and display. Simply connect it between your source (like a computer or media player) and your HDMI cable that runs to the display. The device will then learn and store the display's EDID information, ensuring that the source always receives the correct display parameters, even if the display is powered off, disconnected, or switched to another input. For custom setups, the device can be programmed via its USB-C port, allowing you to load and manage different EDID profiles using factory presets or your own custom configurations. The built-in DIP switches allow for settings configuration and write-protection control directly on the unit, making it perfect for permanent installations where reliability is critical.

Additional Information

Specifications

Video Support

  • Maximum Resolution: 8K@60Hz, 4K@120Hz
  • Video Bandwidth: 48Gbps
  • HDMI Standard: HDMI 2.1 compliant
  • HDCP Support: HDCP 2.3, HDCP 2.2
  • HDR Formats: HDR10, HDR10+, Dolby Vision, HLG (Hybrid Log-Gamma)

Audio Support

  • Audio Formats: Dolby Atmos® and DTS:X™

EDID Management

  • EDID Profiles:
    • 5 factory-loaded presets
    • 3 user-programmable banks
  • EDID Selection: 4-position recessed DIP switch for settings configuration
  • EDID Copy: One-button EDID learning from connected display
  • Write Protection: 2-position DIP switch for EDID lock/unlock
  • Signal Processing: DDC (Display Data Channel) re-clocking
  • HPD Management: Active Hot Plug Detect control

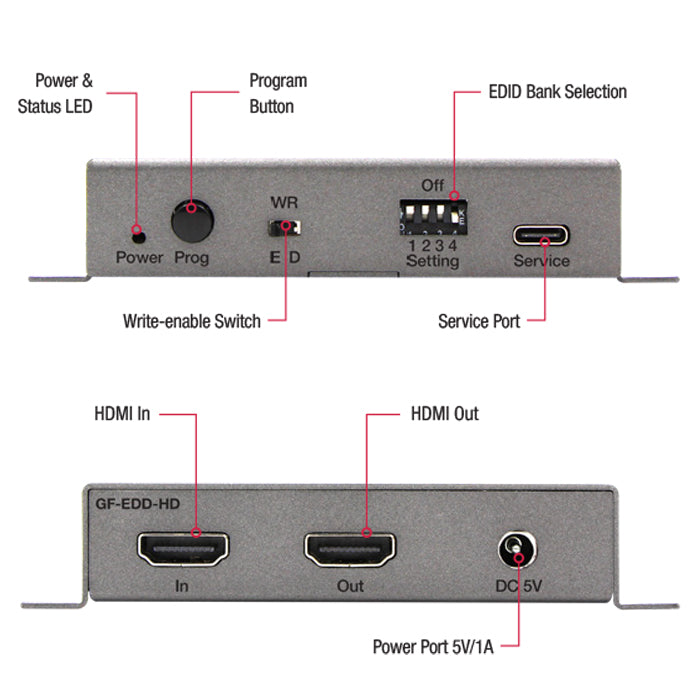

Connectivity

  • HDMI Input: (1) HDMI Type A, 19-pin female connector
  • HDMI Output: (1) HDMI Type A, 19-pin female connector
  • Programming Port: (1) USB Type-C port (EDID management and firmware updates)
  • Control Interface: Tact-type program button for EDID recording

Power Specifications

  • Power Input: 5V DC / 1A
  • USB Power: USB bus-powered for EDID programming mode
  • Power Consumption: <3W typical operation
  • Power Indicator: LED status light

Physical Specifications

  • Dimensions:
    • 90mm x 72mm x 20mm (W x H x D)
    • 3.54" x 2.83" x 0.79" (W x H x D)
  • Weight: 0.40 lbs (0.18 kg)
  • Enclosure: Durable metal construction, surface-mountable
  • Mounting: Field or rack installation; metal surface-mountable enclosure

Environmental Specifications

  • Operating Temperature: 0°C to +50°C (+32°F to +122°F)
  • Storage Temperature: -20°C to +60°C (-4°F to +140°F)
  • Operating Humidity: 20% to 90% RH (non-condensing)
  • Storage Humidity: 20% to 90% RH (non-condensing)
  • MTBF: 50,000 hours

Certifications & Compliance

  • Standards: HDMI 2.1, HDCP 2.3/2.2, USB Type-C
  • Warranty: 3-year manufacturer's warranty
  • MTBF Rating: 50,000 hours (calculated reliability)

Ideal for...

Broadcast Studios & Post-Production
Maintains stable EDID communication in multi-monitor workstations where displays are frequently powered on/off or switched between sources. Ensures editors and colorists never lose display settings during critical projects, with 8K@60Hz support for ultra-high-resolution content creation and HDR grading workflows.​



Control Rooms & Command Centers
Delivers reliable 24/7 signal management for mission-critical video walls and operator stations where displays must maintain consistent resolution across shifts and power cycles. Recessed DIP switch enables EDID bank selection, ideal for control room environments such as security, traffic management, and network operations centers.



Digital Signage Networks
Eliminates boot delays and resolution errors in distributed display systems where screens are powered on schedules or switched via matrix switchers. Programmable EDID profiles accommodate mixed display types across locations such as retail stores, airports, and corporate campuses.​



Corporate Conference Rooms
Prevents presentation disruptions caused by projectors warming up or displays switching inputs during meetings. Users experience instant laptop connectivity with correct resolution every time, while IT teams can remotely update EDID profiles via USB-C to accommodate new display installations.​



Education & Training Facilities
Ensures consistent display performance in classrooms and lecture halls where equipment is powered down between sessions. Faculty and instructors avoid troubleshooting display issues, allowing seamless transitions between lesson content with support for interactive whiteboards and 4K presentation systems.​



Problems Solved

  • Blank Screens on Startup: Eliminates video source confusion when displays are powered off or disconnected by maintaining constant EDID presence​
  • Resolution Mismatches: Prevents sources from defaulting to incorrect resolutions when EDID handshake is lost during display power cycling​
  • Signal Interruptions: Stops workflow disruptions in production environments where displays are switched or routed through complex matrix systems​
  • EDID Negotiation Failures: Eliminates disruptions caused by source devices attempting EDID handshake with powered-off or switched displays
  • Multi-Display Inconsistency: Ensures uniform resolution and refresh rate across workstations with multiple monitors that power on/off independently​

System Requirements

  • HDMI Standards: HDMI 2.1 compliant with HDCP 2.3/2.2 support

  • Video Signals: Up to 8K@60Hz and 4K@120Hz with 48Gbps bandwidth

  • HDR Formats: HDR10, HDR10+, Dolby Vision, and HLG

  • Audio Formats: Dolby Atmos® and DTS:X™

  • Management: USB Type-C port for EDID programming and firmware updates

Resources

Gefen GF-EDD-HD Datasheet

Frequently Asked Questions

What does the Gefen GF-EDD-HD HDMI Detective do?

The Gefen GF-EDD-HD HDMI Detective stores and emulates your display's EDID information, allowing video sources to maintain consistent 8K@60Hz or 4K@120Hz resolution settings even when displays are disconnected or powered off. With 5 factory presets plus 3 programmable EDID banks and DIP switch selection, the GF-EDD-HD prevents blank screens, resolution changes, and connection errors in complex AV installations.

Do I need the GF-EDD-HD for my setup?

You need the GF-EDD-HD if you experience monitors going blank when displays power off, resolution changes during display switching, or inconsistent settings in multi-monitor workstations. The GF-EDD-HD is essential for broadcast studios requiring 8K workflow support, control rooms with 24/7 video walls, digital signage networks with mixed display types, and corporate conference rooms where presentation reliability is critical.

How does the GF-EDD-HD's EDID management work?

The GF-EDD-HD features 5 factory-loaded EDID profiles plus 3 user-programmable banks accessible via 4-position DIP switches. Simply press the program button to copy your display's EDID, or connect via USB-C to load custom profiles and update firmware. The built-in write-protect switch prevents accidental changes during operation, while DDC re-clocking and active HPD management maintain stable connections even when displays are switched or powered off.

How do I set up the Gefen GF-EDD-HD?

Setting up the GF-EDD-HD is plug-and-play: connect it inline between your video source and display or distribution equipment. The device stores the connected display's EDID information. For custom configurations, use the DIP switches to select from 8 available EDID profiles, or connect via USB-C to program your own EDID settings. Multi-region power support enables worldwide deployment.

What resolutions does the GF-EDD-HD support?

The GF-EDD-HD supports resolutions up to 8K@60Hz and 4K@120Hz with full HDMI 2.1 compliance and 48Gbps bandwidth. It handles HDR10, HDR10+, Dolby Vision, and HLG formats while preserving Dolby Atmos and DTS:X audio. The device is HDCP 2.3 and HDCP 2.2 compliant for protected content compatibility.

Can the GF-EDD-HD fix my HDMI handshake problems?

Yes, the GF-EDD-HD is specifically designed to resolve HDMI handshake issues through its DDC re-clocking and active HPD (Hot Plug Detect) management features. These technologies provide stable, consistent EDID information to source devices, eliminating blank screens, resolution mismatches, and connection disruptions. The GF-EDD-HD is effective in systems where displays are frequently powered on and off or routed through complex AV installations.

Can I update the GF-EDD-HD's firmware?

Yes, the GF-EDD-HD features a USB Type-C port that allows firmware updates and EDID profile management from any workstation. The GF-EDD-HD comes with a 3-year warranty and 50,000-hour MTBF rating, ensuring long-term reliability.

Why Choose Gefen?

For over two decades, Gefen has been the trusted backbone for the world's most demanding AV installations. Our reputation is built on rock-solid reliability and interoperability. We design and test our products to exceed industry standards, ensuring they work seamlessly right out of the box and continue to perform for years. When AV professionals choose Gefen, they are choosing:​

  • Engineered for Durability: Built with high-quality components and a rugged metal enclosure, the GF-EDD-HD is designed for continuous, 24/7 operation in any environment.​
  • Simplified Integration: With advanced features like programmable EDID banks, a simple USB-C management port, and multiple factory presets, the GF-EDD-HD is easy to integrate into any new or existing AV system, reducing complexity and deployment time.​

We provide the critical infrastructure that empowers you to build smarter, more resilient AV systems.​

Build Your Next AV System with Confidence

Stop compromising on signal integrity. Whether you are designing a campus-wide distribution network or a mission-critical control room, Gefen has the technology and expertise to ensure your project's success. Let our specialists help you select the right solution to maintain flawless HDMI communication in any scenario.
