HDMI Extender over IP with RS-232 and Bi-Directional IR (EXT-HD2IRS-LAN-TX)

Name: HDMI Extender over IP with RS-232 and Bi-Directional IR (EXT-HD2IRS-LAN-TX)
Brand: Gefen
SKU: EXT-HD2IRS-LAN-TX
Price: 539.7 USD
Availability: InStock

EXT-HD2IRS-LAN-TX

The Gefen HDMI Extender over IP provides a robust AV over IP solution for distributing high-definition video and control signals across a local area network (LAN). This professional system extends 1080p Full HD HDMI, RS-232, and bi-directional IR up to 330 feet (100 meters) over a single CAT-5e cable, offering a flexible HDMI over ethernet configuration. By deploying multiple Sender and Receiver units on a Gigabit network, you can create a massively scalable virtual matrix, routing any source to any display. This powerful capability makes the HDMI extender over IP the perfect solution for large-scale remote content access and demanding digital signage applications.

⚠️Requires EXT-HD2IRS-LAN-RX Receiver (Sold Separately)

$539.70

HDMI Extender over IP with RS - 232 and Bi - Directional IR (EXT - HD2IRS - LAN - TX) - EXT - HD2IRS - LAN - TX - Gefen

Key Features

Flexible AV over IP Extension: Extends HDMI, RS-232, and bi-directional IR signals over a Gigabit Local Area Network , providing a powerful HDMI over ethernet solution for distances up to 330 feet (100 meters).

High-Definition Video Support: Supports resolutions up to 1080p Full HD and 1920x1200 (WUXGA), ensuring crystal-clear, uncompromised video quality.

Massively Scalable Virtual HDMI Matrix: Create a flexible virtual HDMI matrix by connecting over 65,000 Sender and Receiver units on the same AV network, allowing any source to be routed to any display.

Comprehensive HDMI Audio/Video Compliance: Supports HDCP , Deep Color , Lip-Sync pass-through , and 7.1 channel high bit-rate digital audio formats like Dolby® TrueHD and DTS-HD Master Audio™.

Bi-Directional Control Pass-through: Transmit RS-232 serial commands and extend IR control from the Sender to Receiver and from Receiver to Sender for complete remote operation of sources and displays.

Intuitive Web Interface: Features a built-in web server that facilitates simple and intuitive setup, configuration, and operation from a computer or mobile device on the network.

Professional-Grade Hardware: Engineered for reliability with features including locking power supply connectors , surface-mountable enclosures, and field-upgradable firmware via the web interface.

How It Works

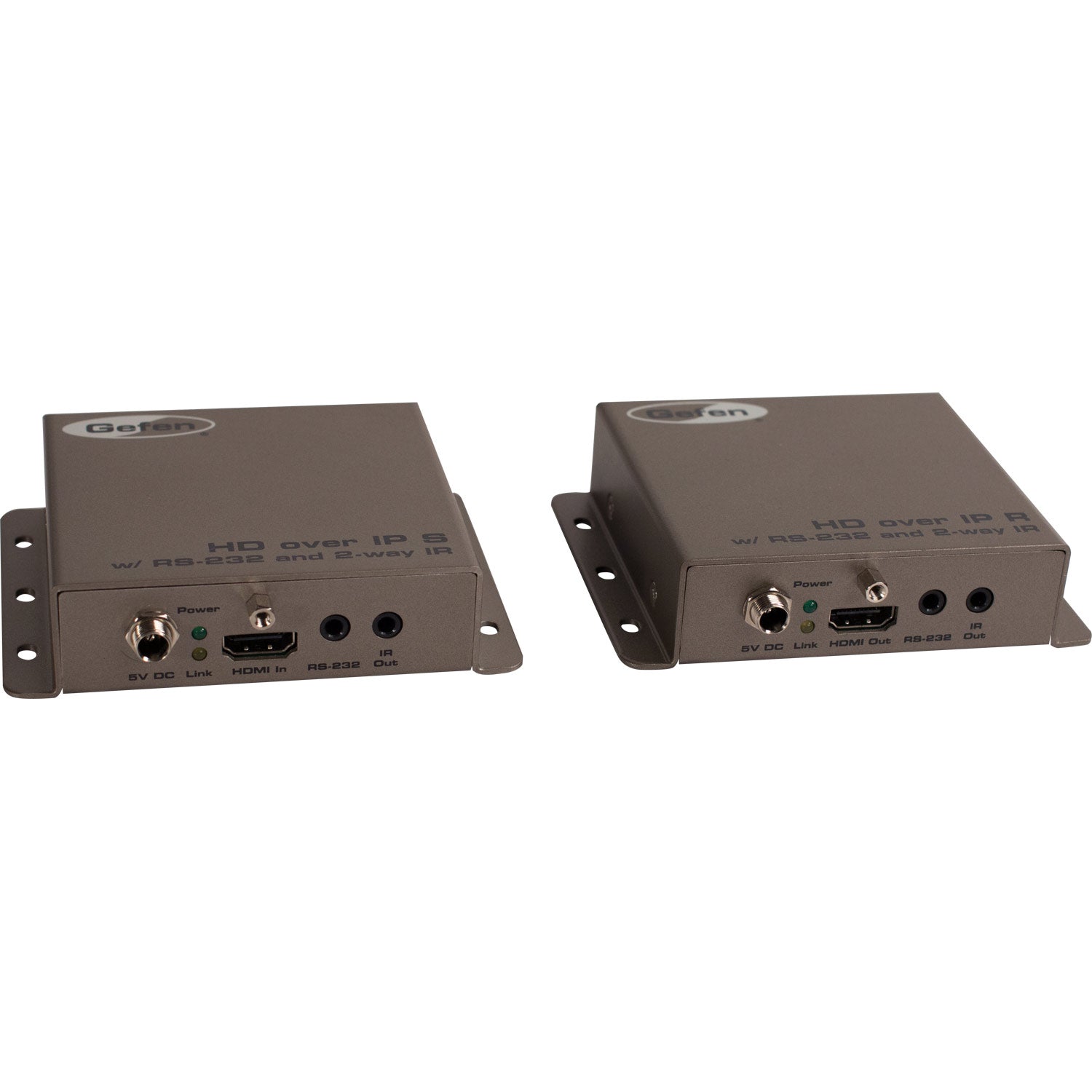

The Gefen AV over IP system operates with two core components: a Sender unit (encoder) and one or more Receiver units (decoder). To begin, connect your high-definition source to the Sender's HDMI input, and your display to the Receiver's HDMI output. The Sender and Receiver units are then linked over a standard Gigabit LAN using a single CAT-5e cable, functioning as a point-to-point HDMI extender for distances up to 330 feet (100 meters). By adding multiple Senders and Receivers to the AV network, the system transforms into a massively scalable virtual HDMI matrix. This allows any Receiver on the network to access any Sender via a simple web browser interface, providing a flexible and powerful solution for routing video and control signals.

Additional Information

Specifications

Video & Audio

Maximum Pixel Clock: 165 MHz
Maximum TMDS Clock: 225 MHz
Maximum Resolution: 1080p Full HD & 1920 x 1200 (WUXGA)
HDMI Compliance: Supports HDCP, Deep Color, LPCM 7.1 audio, Dolby® TrueHD, and DTS-HD Master Audio™

Connectors, Controls, and Indicators

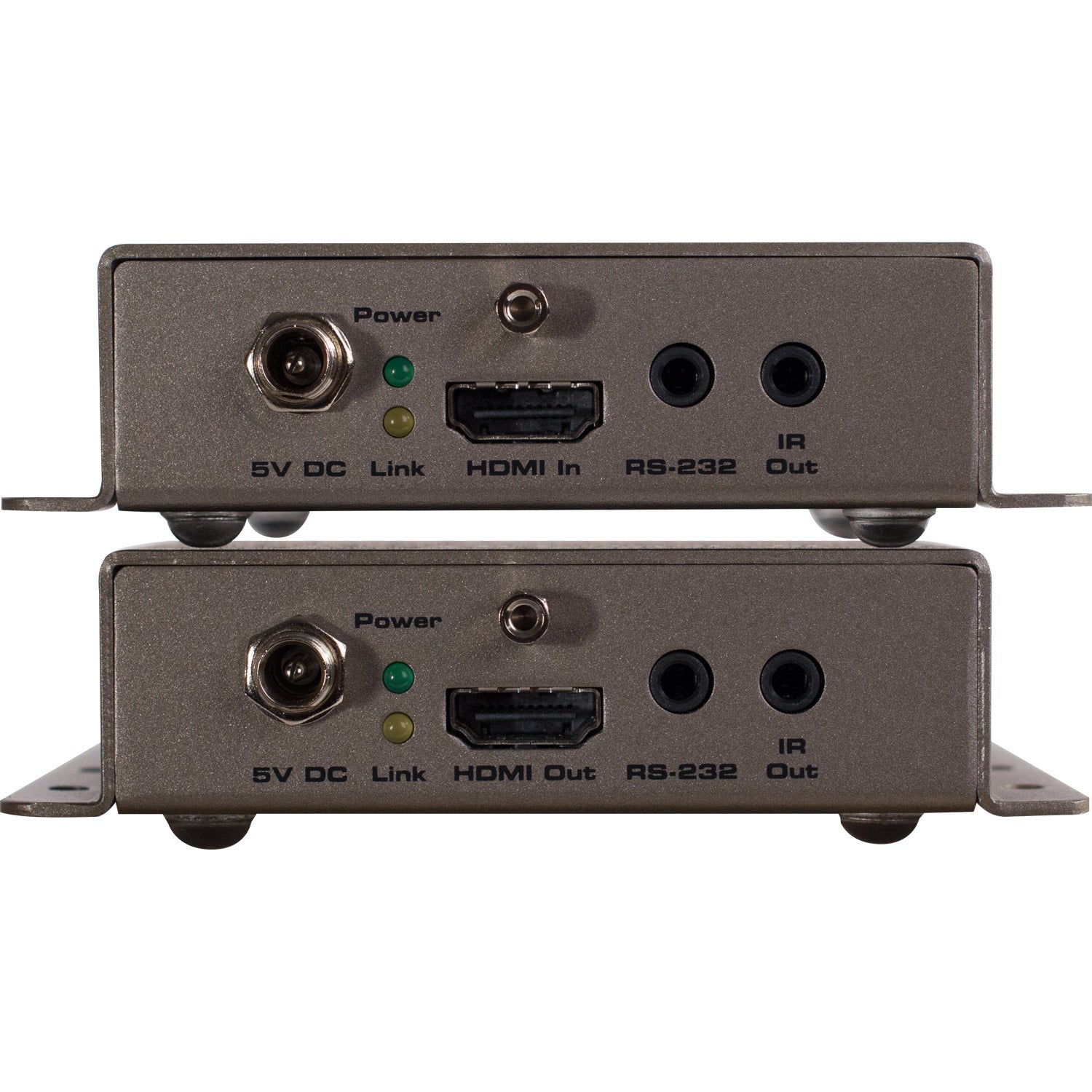

Video Input Connector: (1) HDMI Type A 19-pin, female, locking
Ethernet Connector: (1) RJ-45, shielded
RS-232 Port: (1) 3.5mm mini-stereo jack
IR Emitter Port: (1) 3.5mm mini-mono jack

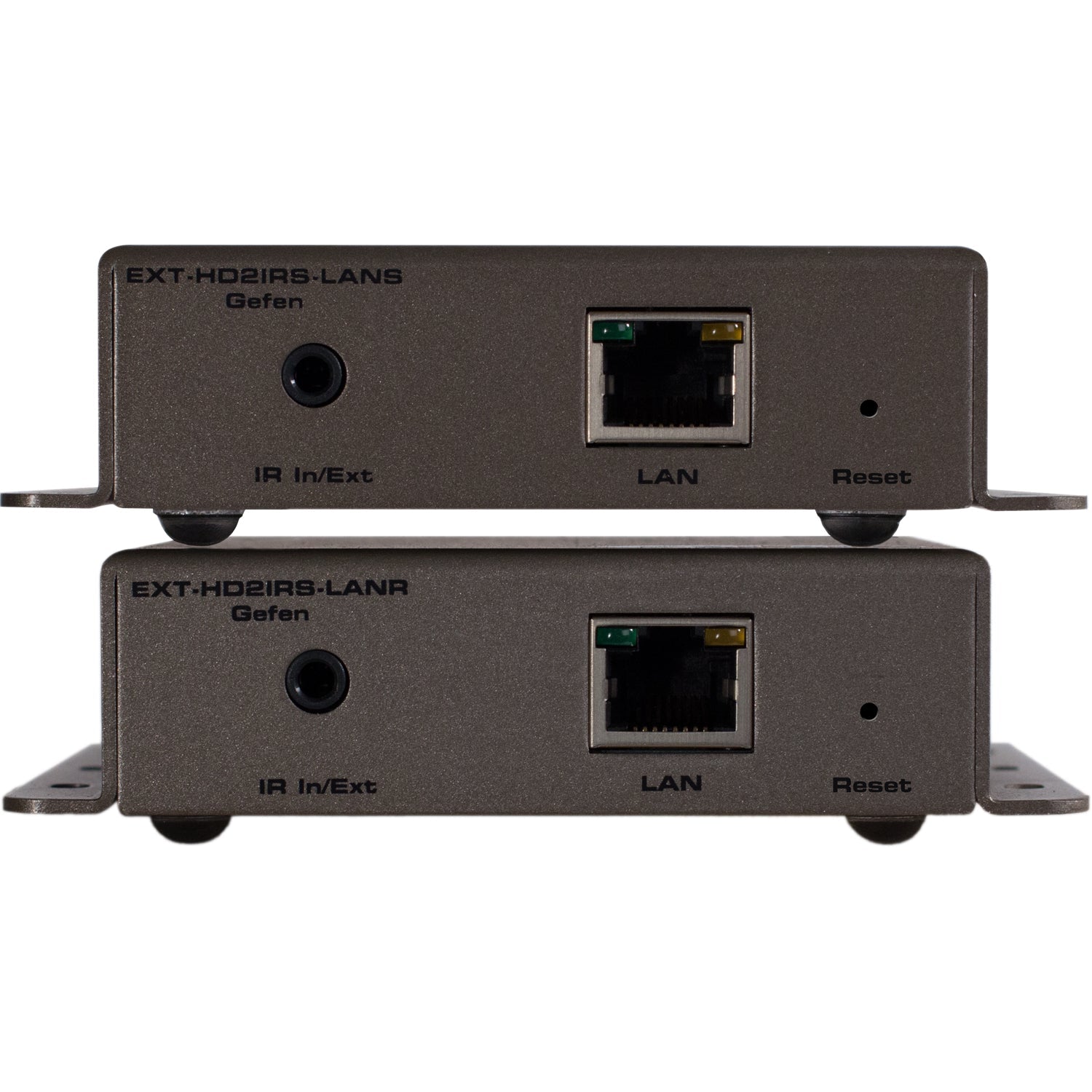

IR In/Extender Port: (1) 3.5mm mini-stereo jack
Reset Button: (1) tact-type, recessed
Link Indicator: (1) LED, amber
Power Indicator: (1) LED, green

Power

Power Supply: 5V DC, locking
Power Consumption: 6W maximum

Environmental & Physical

Operating Temperature: 0 to +50 °C
Operating Humidity: +10 to +90%, Relative Humidity, non-condensing
Storage Temperature: -20 to +85 °C
Storage Humidity: 0 to +95%, Relative Humidity, non-condensing
MTBF: 50000 hours
Dimensions (W x H x D): 4.3" x 1" x 3.2" (110mm x 26mm x 80mm)
Unit Weight: 0.4 lbs. (0.2 kg)
Shipping Weight: 1.9 lbs. (0.9 kg)

UPC: 845344070322

System Requirements

Gigabit Network Switch: A Gigabit switch is mandatory for operation. For multicast configurations, this switch must support 8k jumbo frame packets.

Managed Switch Recommendation: If the LAN is not exclusively dedicated to Gefen AV over IP products, a managed switch is highly recommended to ensure network stability and performance.

Network Cabling: Shielded CAT-5e or better cabling is required for the network connection between the Sender and the switch or Receiver. Each cable run should not exceed 330 feet (100 meters).

What's in the Box

1 × HD over IP w/ RS-232 and 2-way IR Sender unit

1 × 6 ft. HDMI cable (M-M)

1 × 3.5mm-to-DB-9 adapter (M-F)

1 × IR emitter

1 × 5V DC power supply

1 × Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-HD2IRS-LAN Datasheet
Gefen EXT-HD2IRS-LAN-TX Manual
Gefen EXT-HD2IRS-LAN-TX Declaration of Conformity
