HDMI to 3G-SDI Converter – 1080p, 3G-SDI A/B, LPCM 7.1 (EXT-HD-3G-C)

Name: HDMI to 3G-SDI Converter – 1080p, 3G-SDI A/B, LPCM 7.1 (EXT-HD-3G-C)
Brand: Gefen
SKU: EXT-HD-3G-C
Price: 422.1 USD
Availability: InStock

EXT-HD-3G-C

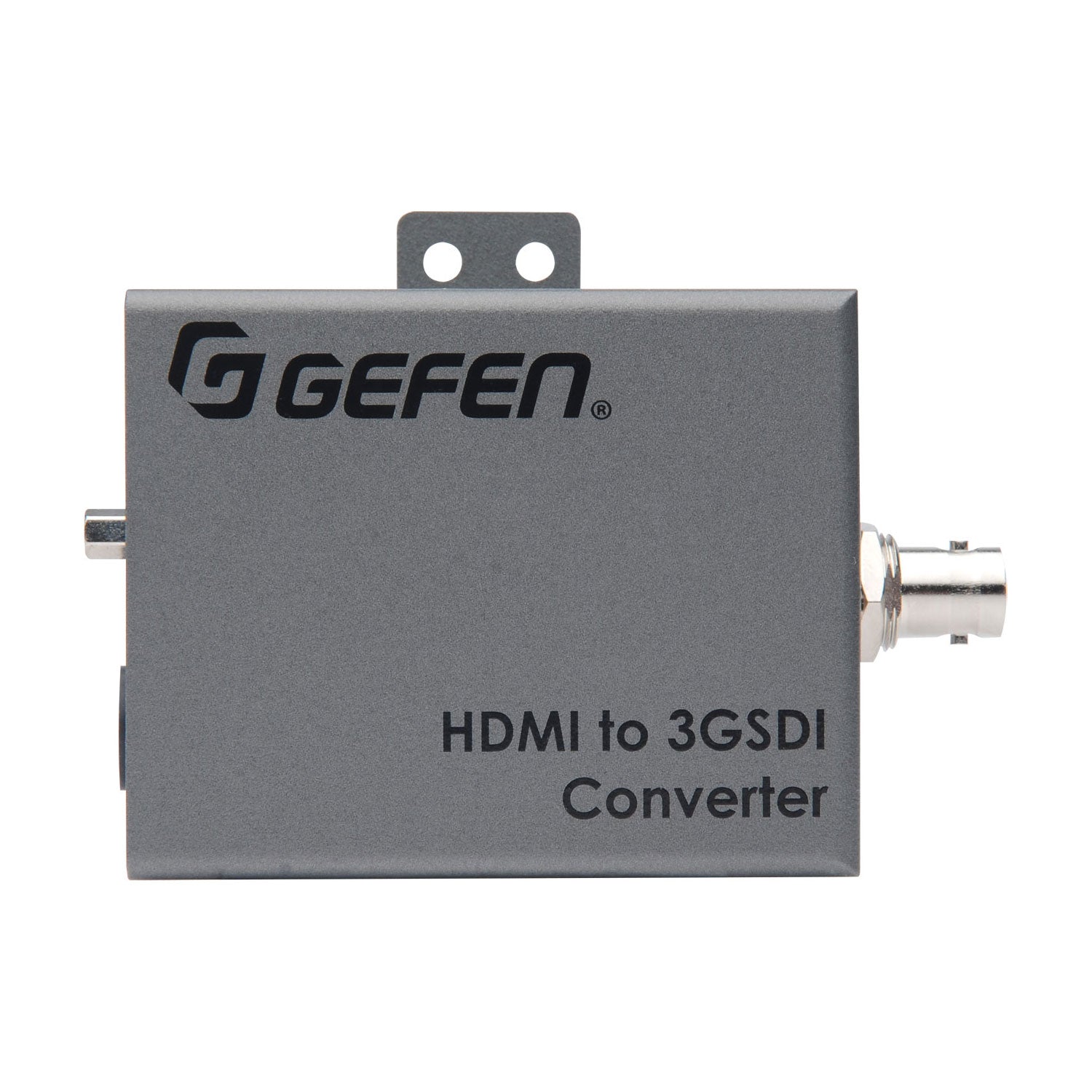

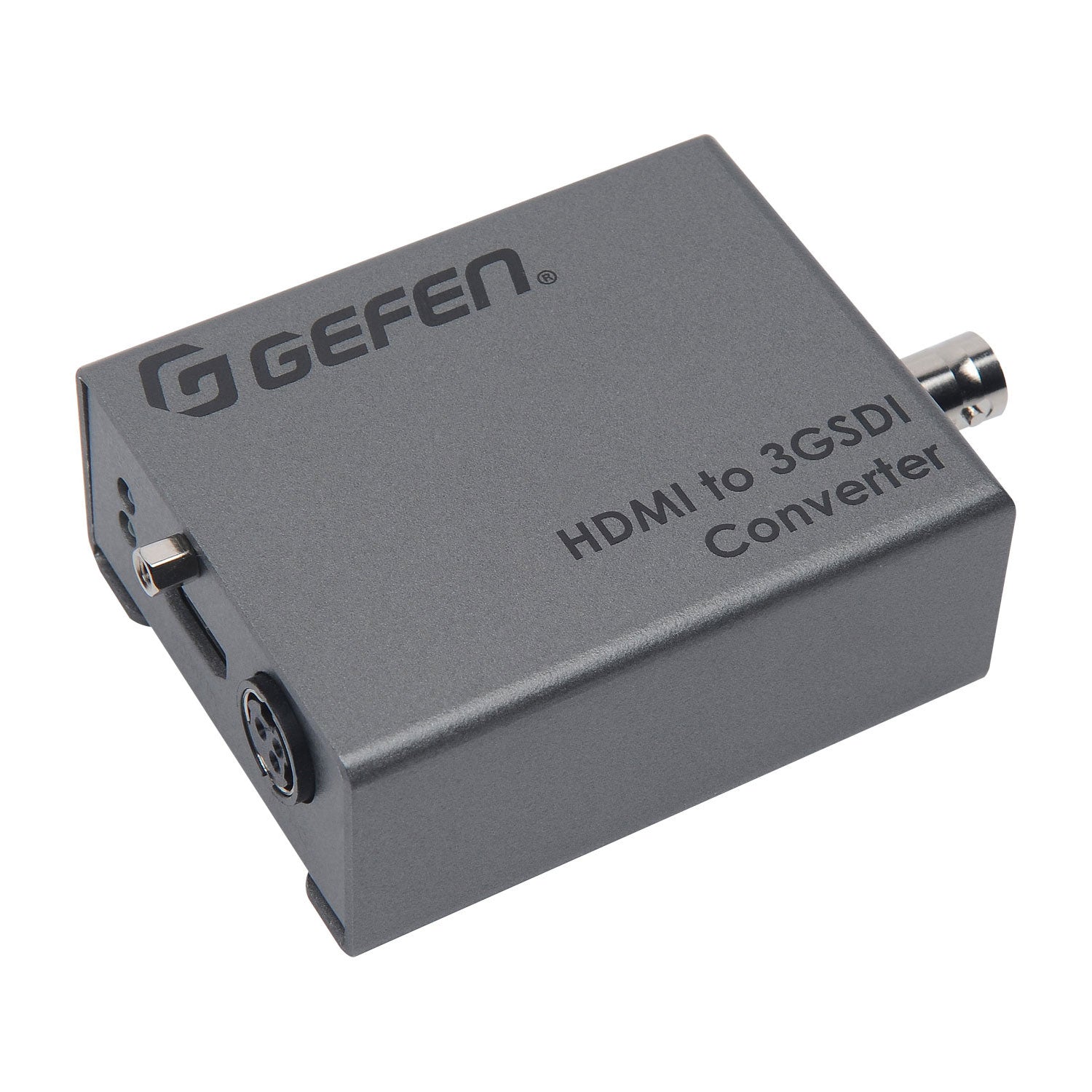

The Gefen EXT-HD-3G-C HDMI to 3G-SDI Converter delivers high-quality audio and video conversion from HDMI sources to professional 3G-SDI or HD-SDI outputs. Supporting resolutions up to 1080p Full HD, 12-bit HDMI color, and 10-bit SDI color, it ensures precise signal integrity for broadcast and AV applications. With support for LPCM 7.1 audio, multiple color spaces, and 3G-SDI Levels A and B, this compact, surface-mountable unit offers flexible installation options, wide-range DC power input, and compatibility with the Gefen Syner-G™ software for easy EDID management and firmware updates.

$422.10

HDMI to 3G - SDI Converter – 1080p, 3G - SDI A/B, LPCM 7.1 (EXT - HD - 3G - C) - EXT - HD - 3G - C - Gefen

Key Features

High-Definition Video Conversion: Seamlessly converts HDMI to 3G-SDI and single-link HD-SDI, supporting input resolutions up to 1080p Full HD and 1920x1200 (WUXGA).

Broadcast-Grade Signal Quality: Maintains pristine video integrity by supporting HDMI 12-bit and SDI 10-bit color , along with 4:4:4 and 4:2:2 color spaces.

Advanced SDI Compatibility: Ensures broad compatibility with professional SDI equipment by supporting both 3G-SDI Level A and Level B outputs.

Multi-Channel Audio Support: Embeds the incoming HDMI audio stream, with support for up to 8 channels of LPCM 7.1 uncompressed digital audio.

Flexible Field Configuration: Allows for easy in-field adjustments via physical DIP switches or the advanced Gefen Syner-G™ software suite for EDID management and firmware updates.

Robust and Secure Power: Features a locking power supply connector and a wide 6V to 24V DC operating range, ensuring stable power in mission-critical applications.

Versatile Mounting Options: Includes a detachable surface-mounting bracket and features an industry-standard 1/4-20 attachment thread for secure installation on camera gear or any flat surface.

How It Works

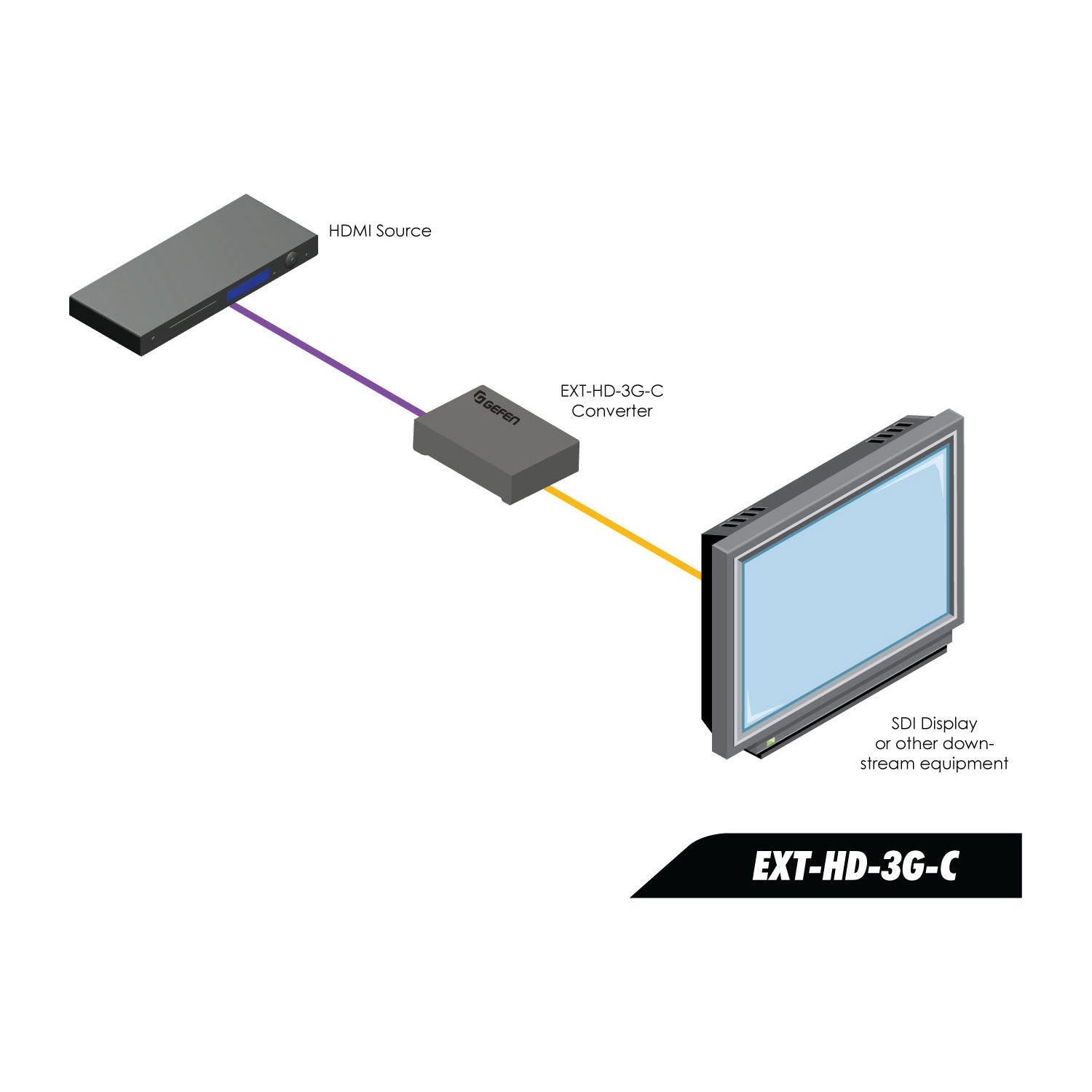

The Gefen HDMI to 3G-SDI Converter is engineered for a straightforward setup in any professional environment. First, connect your HDMI source to the converter’s input using the provided locking HDMI cable to ensure a secure link. Next, run an SDI cable from the unit's BNC output to your SDI display, switcher, or other downstream equipment. Use the external DIP switches for basic field configuration of audio modes and 3G-SDI levels. Finally, connect the locking 12V DC power supply to power the unit; status LEDs will confirm that the device is powered on and an active HDMI source is present. For advanced EDID management and firmware updates, the converter's mini-USB port allows for a direct connection to a computer running the Gefen Syner-G™ software suite.

Additional Information

Specifications

Operational

Maximum Pixel Clock: 150 MH
Maximum TMDS Clock: 225 MHz
Power Supply: 12V DC, nominal (6V to 24V DC, operating range)
Power Consumption: 3W, maximum
Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours

Connectors, Controls, and Indicators

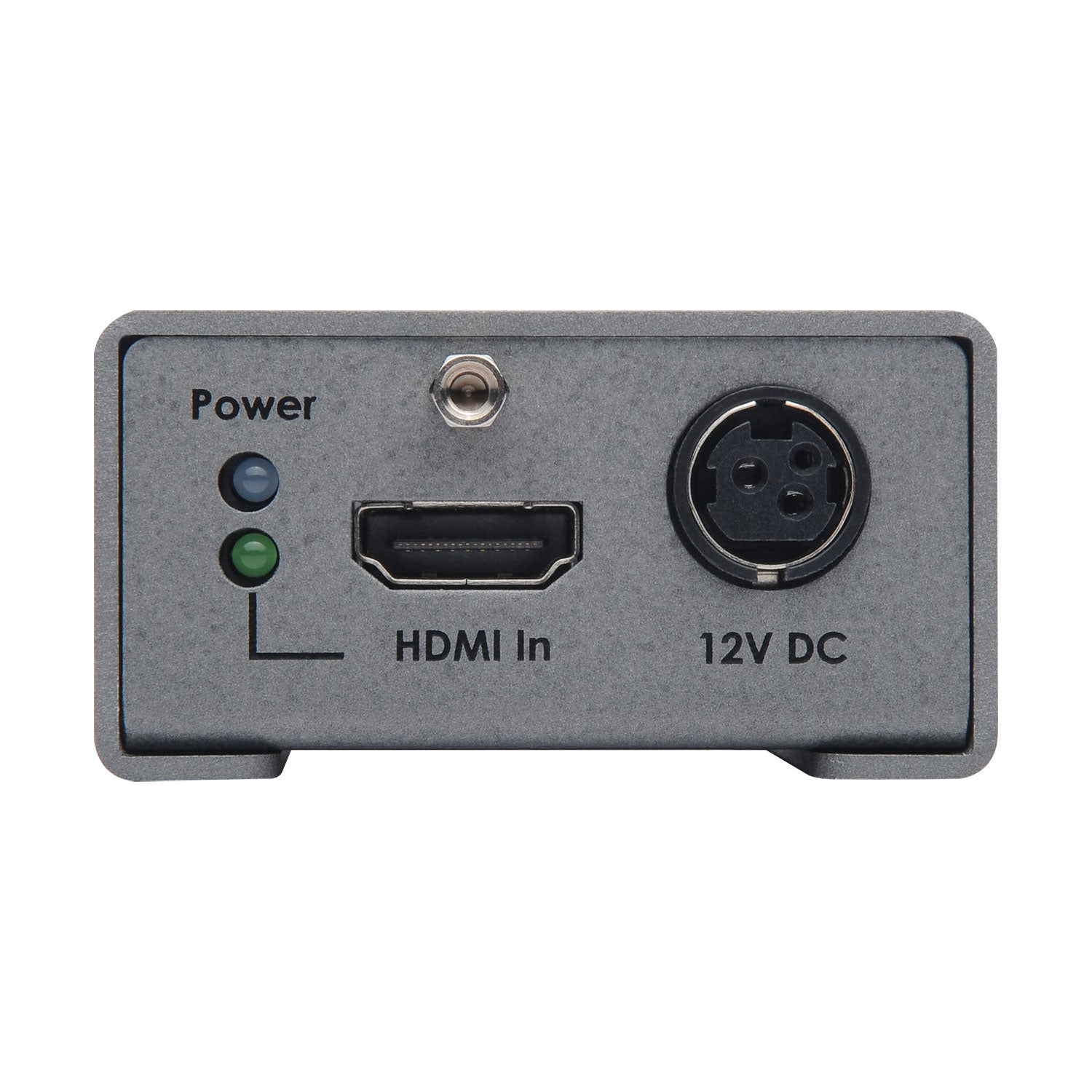

Video Input: (1) HDMI Type A 19-pin, female, locking

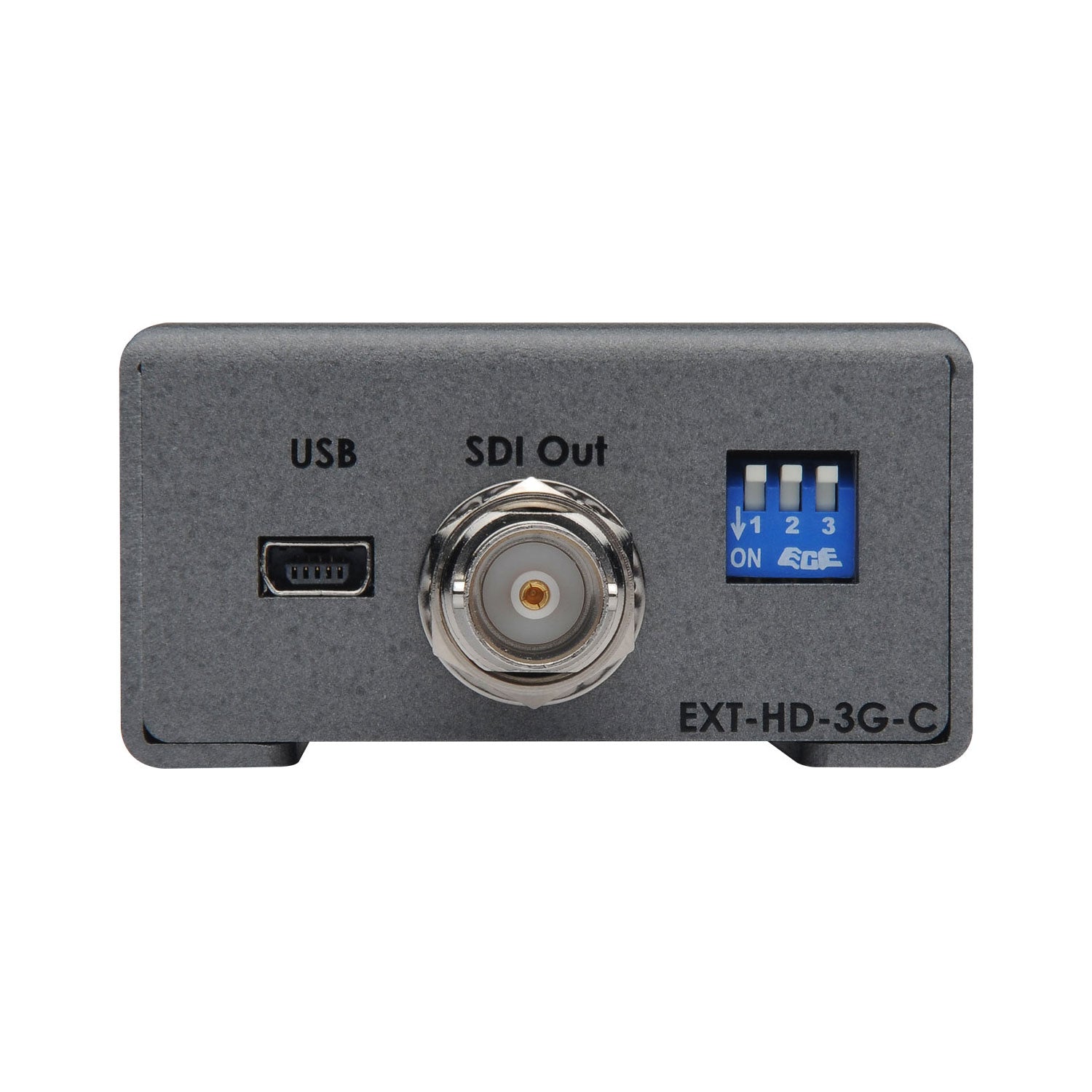

Video Output: (1) SDI BNC-type, female
USB: (1) Mini-B
Configuration Switches: (3) DIP-type
HDMI Indicator: (1) LED, green
Power Indicator: (1) LED, blue
Power Receptacle: (1) 3-pin, locking

Physical

Dimensions (W x H x D): 2.9" x 1.2" x 2.3" (74mm x 30mm x 59mm)
Unit Weight: 0.3 lbs (0.15 kg)

UPC: 888814797275

System Requirements

Source Device: An HDMI source is required. The source content must not be HDCP-encoded, as the converter is not compatible with it and will not produce an SDI output if the signal is protected.

Display Device: An SDI display or other downstream equipment with a BNC-type input is required.

Power: An available electrical outlet is needed for the included 12V DC power supply.

Software Configuration (Optional): For firmware updates and advanced EDID management, a computer running the Gefen Syner-G™ software suite is required. The computer must have an available USB port and a USB-A to mini-USB cable (not included) is needed to connect to the converter.

What's in the Box

1 × HDMI to 3GSDI Converter (EXT-HD-3G-C)
1 × 6 ft. Locking HDMI Cable
1 × Surface Mounting Bracket
1 × 12 V Power Supply
1 × Quick-Start Guide

Warranty

3 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-HD-3G-C Datasheet
Gefen EXT-HD-3G-C Manual
Gefen EXT-HD-3G-C Declaration of Conformity
