HDMI & VGA to 1080p 3G-SDI Scaler/Converter (EXT-HDVGA-3G-SC)

Name: HDMI & VGA to 1080p 3G-SDI Scaler/Converter (EXT-HDVGA-3G-SC)
Brand: Gefen
SKU: EXT-HDVGA-3G-SC
Price: 635.25 USD
Availability: InStock

EXT-HDVGA-3G-SC

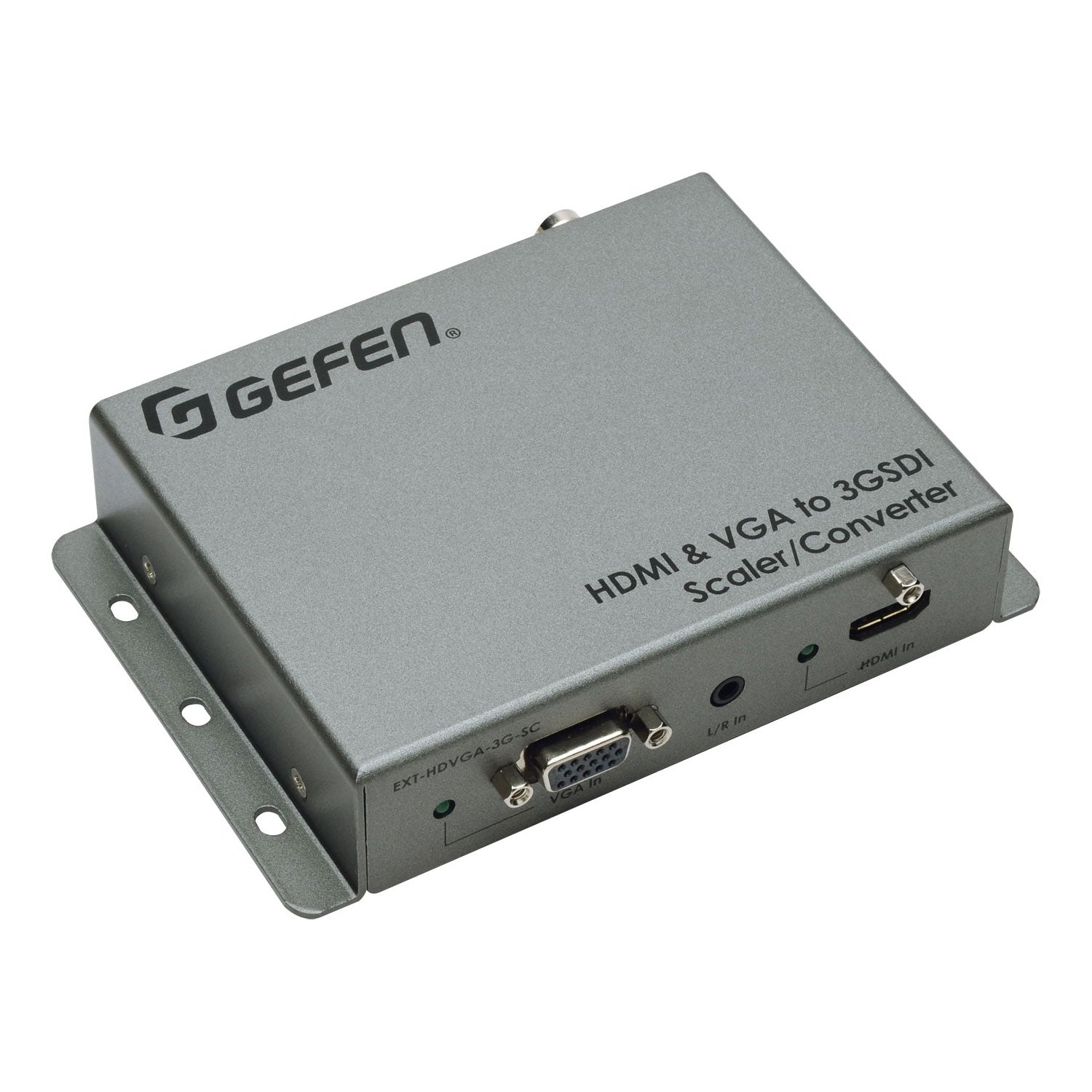

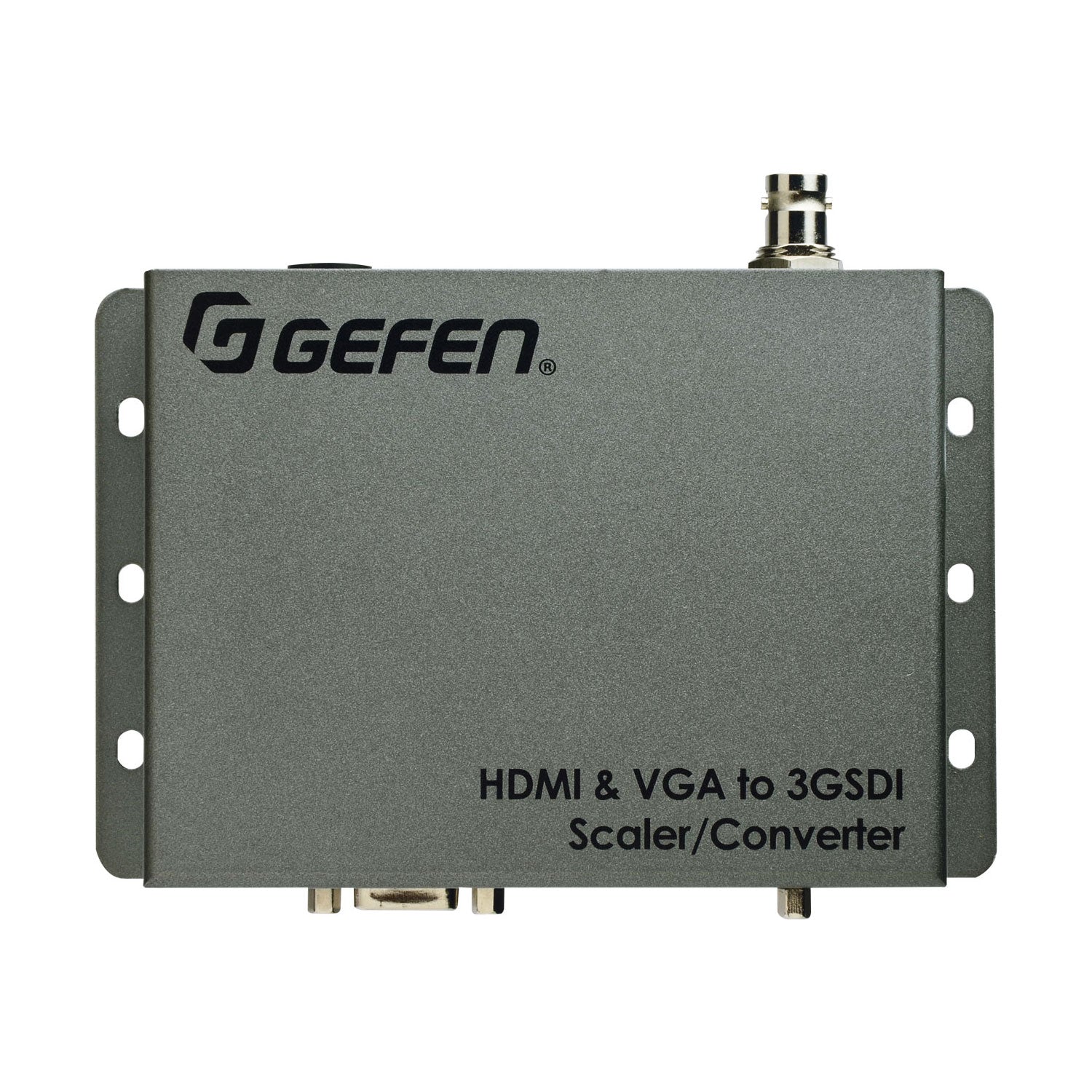

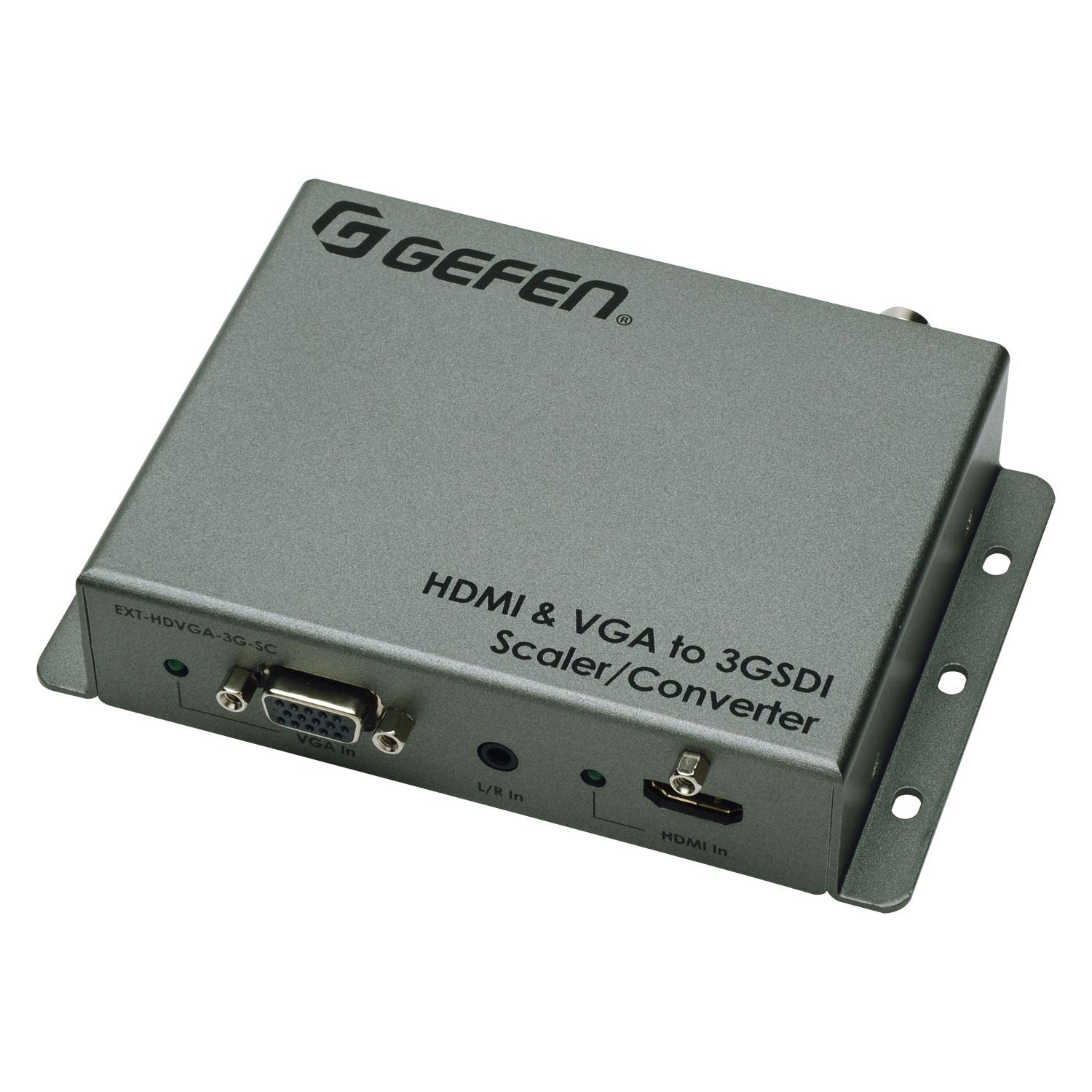

The Gefen EXT-HDVGA-3G-SC is a versatile HDMI & VGA to 3G-SDI Scaler/Converter designed to seamlessly switch and convert video from HDMI and VGA sources for use with SDI equipment. This powerful unit scales incoming video up to 1080p Full HD and outputs it to 3G-SDI and single link HD-SDI formats. It provides exceptional flexibility by embedding either multi-channel audio from the HDMI input or 2-channel analog L/R audio into the SDI stream. An intuitive on-screen display (OSD) allows for easy setup and control of features like aspect ratio and test patterns, while the Gefen Syner-G™ software suite enables advanced configuration and in-field firmware updates. Ideal for integrating computer and consumer-level sources into professional broadcast and production workflows, the EXT-HDVGA-3G-SC offers a robust and user-friendly solution for complex signal conversion challenges.

$635.25

HDMI & VGA to 1080p 3G - SDI Scaler/Converter (EXT - HDVGA - 3G - SC) - EXT - HDVGA - 3G - SC - Gefen

Key Features

Flexible Video Conversion and Scaling: Converts and scales both HDMI and VGA sources to a professional 3G-SDI format, providing a versatile solution for integrating various inputs into a broadcast environment.

High-Resolution Video Support: Supports a wide range of input resolutions up to 1920x1200 (WUXGA) and 1080p60, with high-quality scaling to SDI output resolutions up to 1080p60 Full HD.

Comprehensive Audio Embedding: Embeds up to LPCM 7.1 audio from the HDMI input or 2-channel analog stereo audio when using the VGA input, ensuring audio follows the video source into the SDI stream.

Advanced On-Screen Control: Features an intuitive On-Screen Display (OSD) menu for easy setup, control of aspect ratio, and use of a built-in Test Pattern Generator for quick system configuration and calibration.

Gefen Syner-G™ Integration: Simplifies in-field firmware updates and allows for advanced EDID management, including the configuration of custom input timings, via the Gefen Syner-G™ software suite and the dedicated USB port.

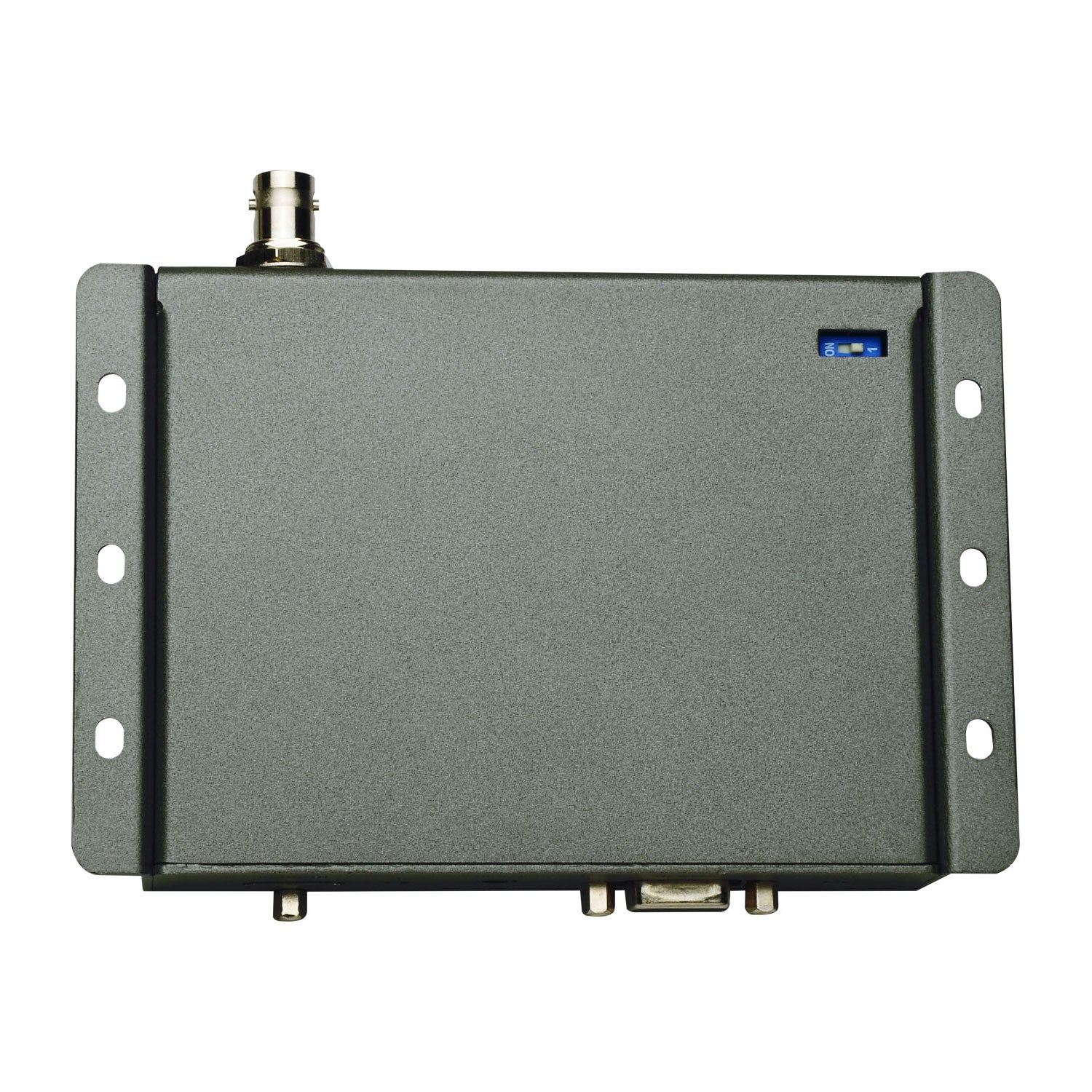

Professional Installation Features: Engineered for reliability with a wide power supply operating range (6V to 24V DC), a locking power connector, and a compact, surface-mountable enclosure for secure installation in any environment.

How It Works

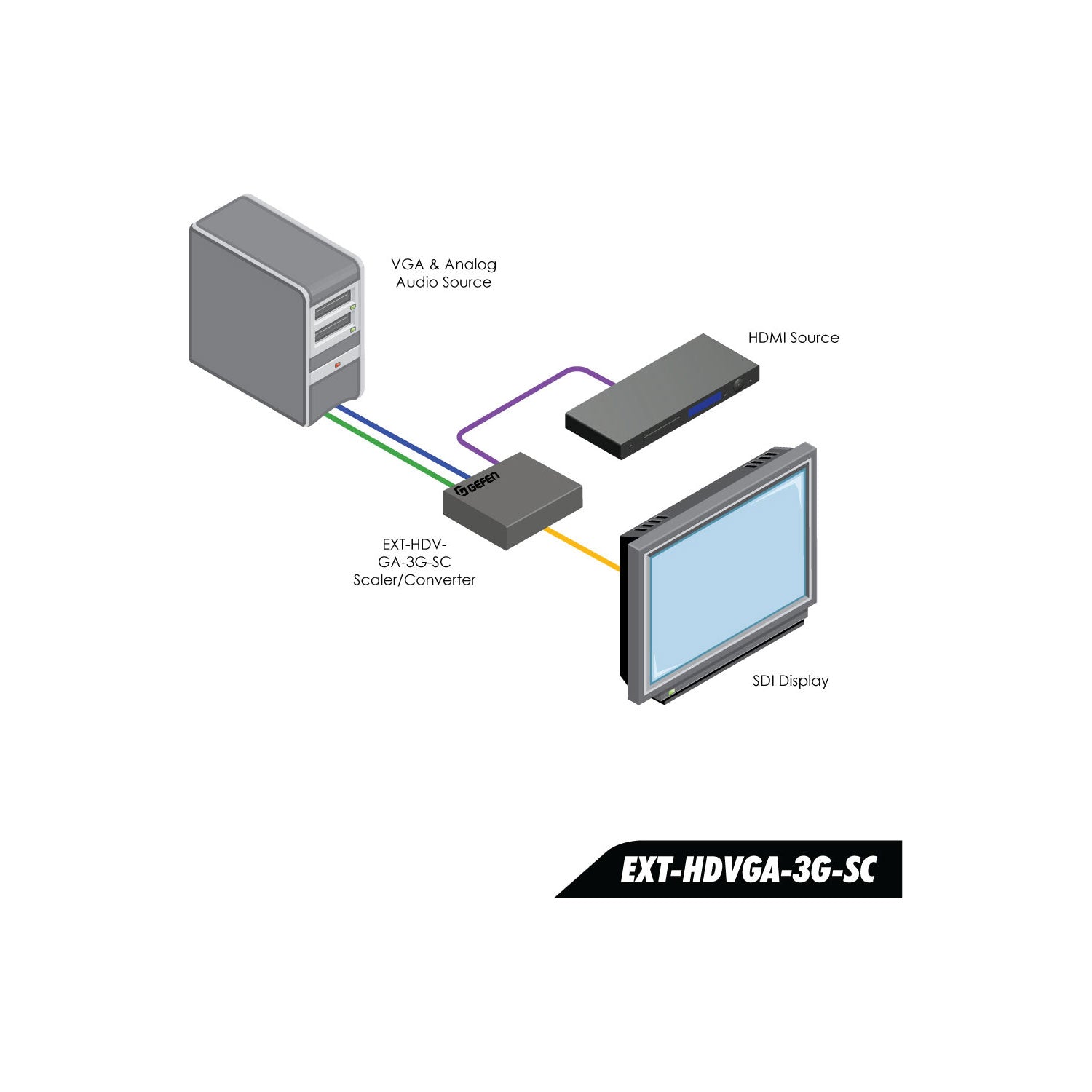

Operation of the Gefen HDMI & VGA to 3G-SDI Scaler/Converter is a streamlined process designed for professional efficiency. First, connect your video sources to the unit using the appropriate cables for the HDMI and VGA inputs. To embed audio with a VGA source, connect the audio output of the source to the L/R analog audio input on the converter. Next, connect the SDI output to your display or downstream equipment using a BNC cable. Once the included locking power supply is connected, simply use the input select buttons on the front panel to switch between the active HDMI or VGA source. The unit automatically scales the selected video to your desired output resolution and embeds the corresponding audio, delivering a single, unified 3G-SDI stream. All advanced settings, such as output resolution and picture adjustments, are easily configured using the intuitive On-Screen Display (OSD) menu.

Additional Information

Specifications

Connectors, Controls, and Indicators

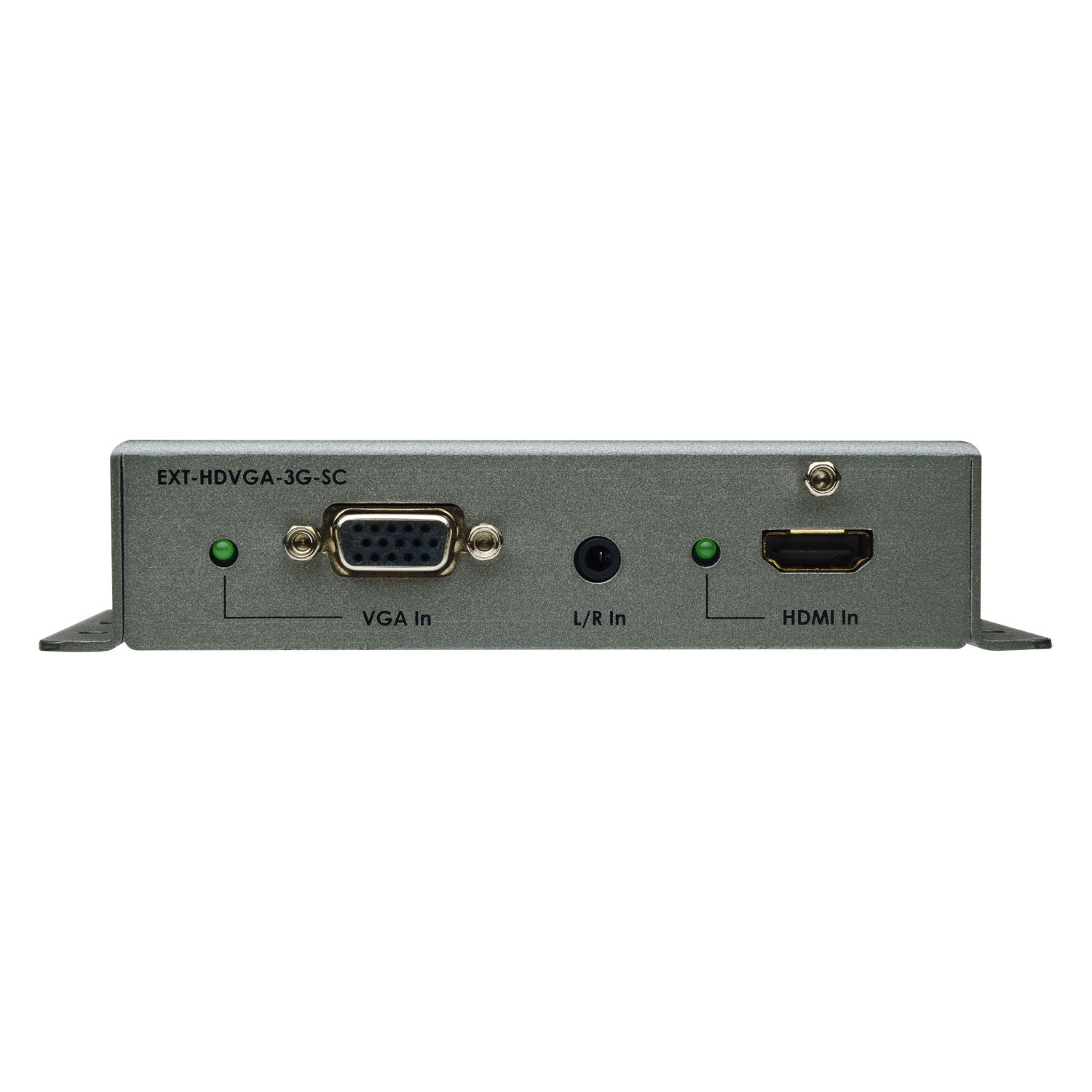

Video Input Connectors:
- (1) HDMI: Type A 19-pin, female, locking
- (1) VGA: HD-15, female
Audio Input Connector: (1) 3.5mm mini-stereo jack

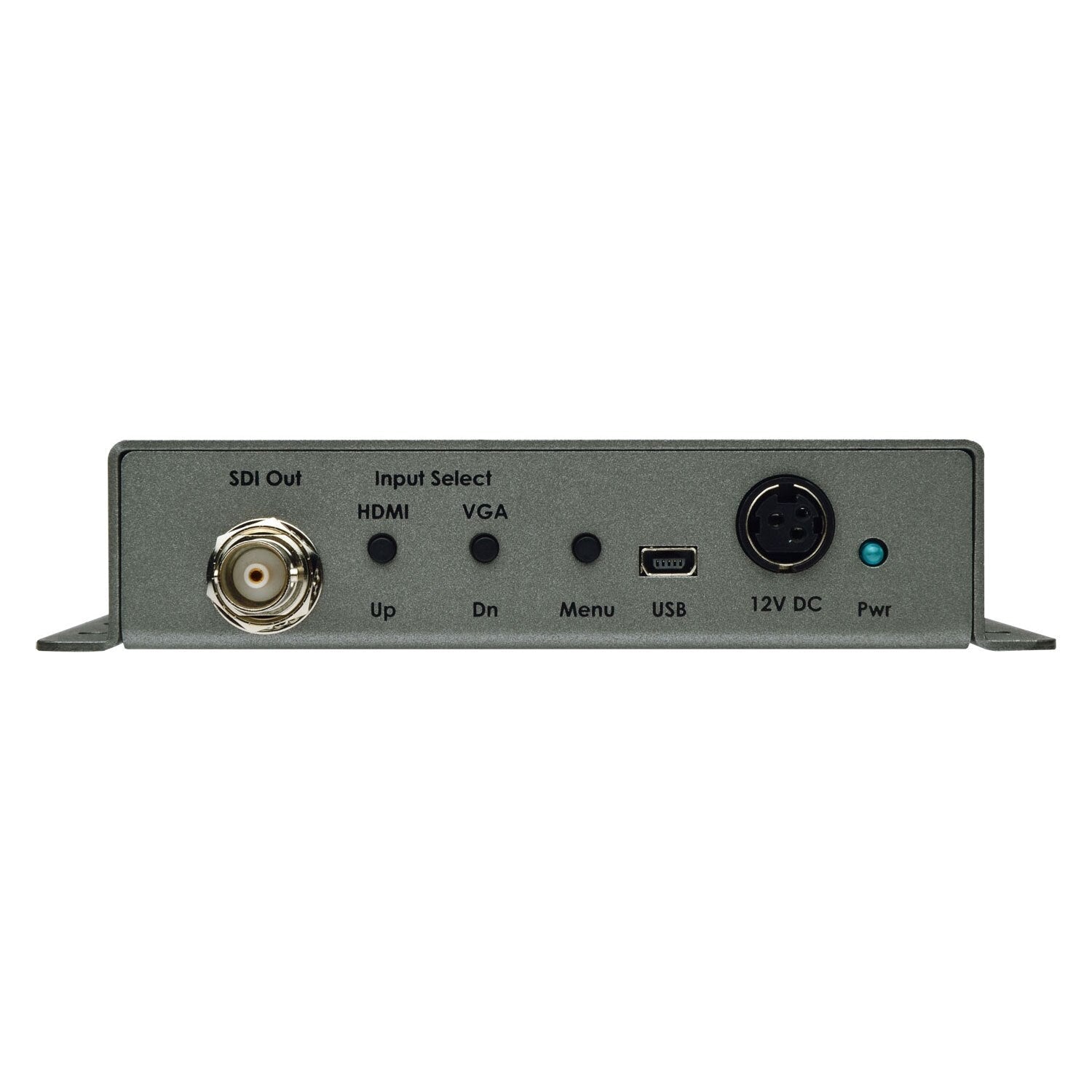

Video Output Connector: (1) SDI, BNC-type, female
USB Connector: (1) Mini-B, female
Input Select/Menu Switches: (3) tact-type
Power Supply Connector: (1) 3-pin, locking
Indicators:
- (1) Power LED, blue
- (1) HDMI LED, green
- (1) VGA LED, green

Operational

Maximum Pixel Clock - HDMI and VGA Inputs: 165 MHz
Maximum Pixel Clock - SDI Output: 150 MHz
Maximum TMDS Clock: 225 MHz
Power Supply: 12V DC nominal (6V to 24V DC operating range)
Power Consumption: 5W maximum
Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours

Physical

Dimensions (W x H x D): 5.6" x 1.2" x 3.7" (141 mm x 30 mm x 93 mm)
Net Unit Weight: 0.5 lbs (0.23 kg)

UPC: 888814180831

System Requirements

Source Devices: A video source with an HDMI output and/or a source with a VGA output is required. For embedding audio with a VGA source, a separate audio source with a 3.5mm mini-stereo output is necessary.

Display and Cables: An SDI display or other downstream equipment with an SDI input and a BNC-type cable are required. The unit includes one 6 ft. HDMI cable, one 6 ft. VGA cable, and one 6 ft. 3.5mm mini-stereo cable.

Power: An available electrical outlet is needed to connect the included 12V DC power supply.

For Software Management (Optional): To manage the unit with software or perform firmware updates, you will need a computer with an available USB port, the Gefen Syner-G™ Software Suite installed, and a mini-USB to USB cable (not included).

What's in the Box

HDMI & VGA to 3G-SDI Scaler/Converter (EXT-HDVGA-3G-SC)
6 ft VGA cable (M-M)
6 ft HDMI cable (M-M)
6 ft 3.5 mm mini-stereo cable
12 V power supply
Quick-Start Guide.

Warranty

3 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-HDVGA-3G-SC Datasheet
Gefen EXT-HDVGA-3G-SC Manual
Gefen EXT-HDVGA-3G-SC Declaration of Conformity
