Long Range USB 2.0 Extender over CAT5/CAT6 (EXT-USB2.0-LR)

Name: Long Range USB 2.0 Extender over CAT5/CAT6 (EXT-USB2.0-LR)
Brand: Gefen
SKU: EXT-USB2.0-LR
Price: 802.62 USD
Availability: InStock

EXT-USB2.0-LR

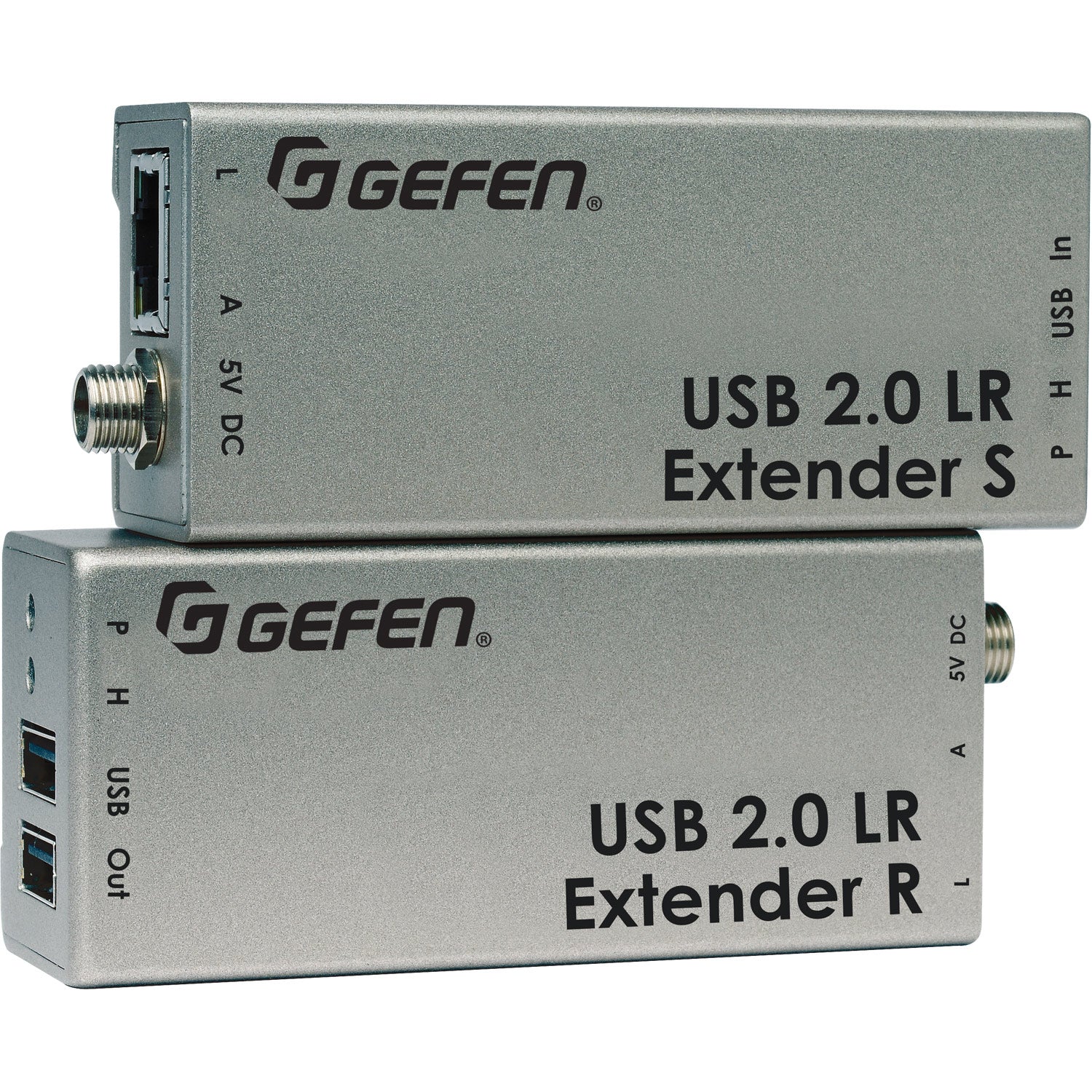

The Gefen USB 2.0 LR Extender provides a simple and reliable solution for extending high-speed USB devices far beyond the desktop. This powerful sender and receiver system allows you to extend USB 2.0 signals at speeds up to 480 Mbps to a remote location up to 330 feet (100 meters) away, all over a single, industry-standard CAT-5/6 cable. Ideal for professional applications such as digital signage, security, and industrial control, the two-port receiver hub provides robust, remote access to peripherals like scanners, printers, external hard drives, and web cameras, offering a flexible and economical solution for overcoming standard USB cable length limitations.

⚠️Comes with both Sender and Receiver

$802.62

Long Range USB 2.0 Extender over CAT5/CAT6 (EXT - USB2.0 - LR) - EXT - USB2.0 - LR - Gefen

Key Features

Long-Range USB Extension: Operate USB 2.0 peripherals at a distance of up to 330 feet (100m) from the host computer.

High-Speed Performance: Supports both low and high-speed USB versions, operating at the full 480 Mbps data rate in USB 2.0 mode.

Flexible Cabling Options: Utilizes a single, industry-standard CAT-5, CAT-5e, or CAT-6 cable for reliable and economical signal transmission.

Cross-Platform Compatibility: Fully supports all major operating systems, including Windows, MacOS, and Linux, for seamless integration into any environment.

True Plug-and-Play: Offers a 100% hardware-based solution that requires no software drivers for a fast and simple installation.

Integrated 2-Port Hub: The receiver unit features two USB ports, each capable of supplying up to 500 mA of power to connected devices.

How It Works

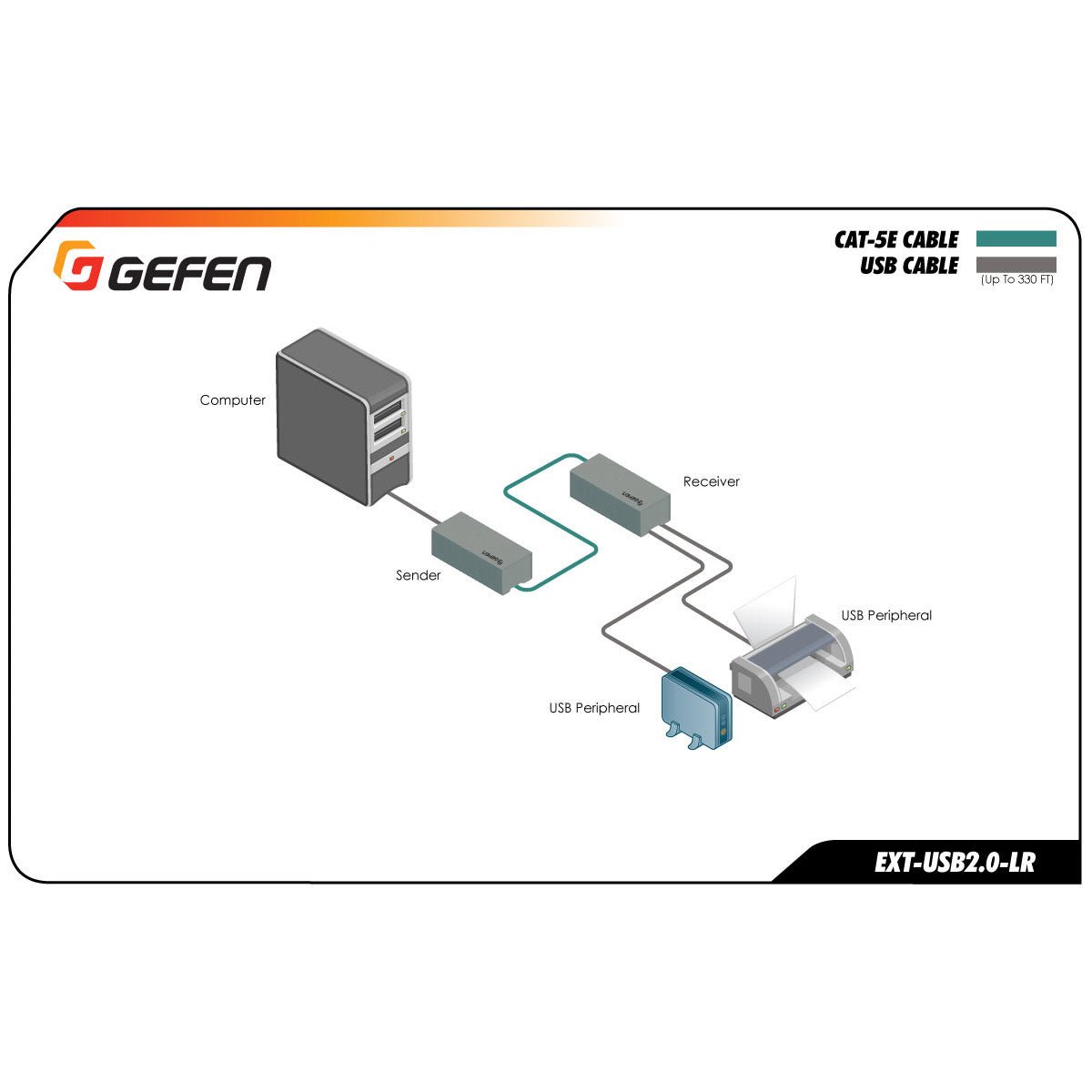

The Gefen USB 2.0 LR Extender system operates with two main components: a Sender unit and a Receiver unit. First, connect the Sender unit to the host computer using the supplied USB cable. Next, connect up to two USB peripherals to the two-port Receiver unit at the desired remote location. The Sender and Receiver units are then linked together using a single, user-supplied CAT-5, CAT-5e, or CAT-6 cable up to 330 feet (100 meters) in length. Finally, connect the included 5V DC power supplies to both the Sender and Receiver units and plug them into an available electrical outlet. As a true plug-and-play hardware solution, no software drivers are required; the host system automatically recognizes the connected USB devices as if they were attached locally.

Additional Information

Specifications

USB 2.0 Speed: 480 Mbps

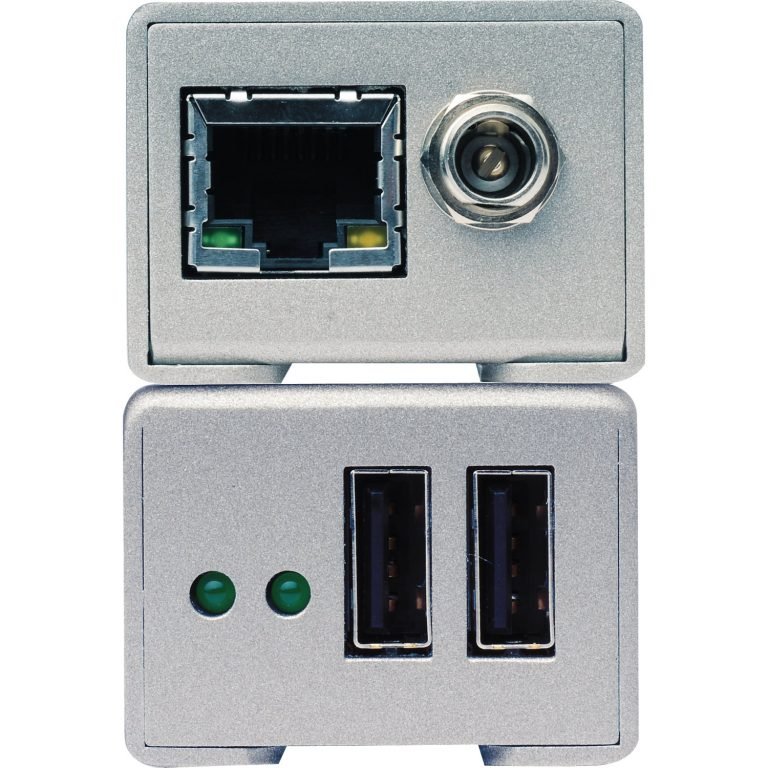

Link Connector (Sender/Receiver): RJ-45 Shielded

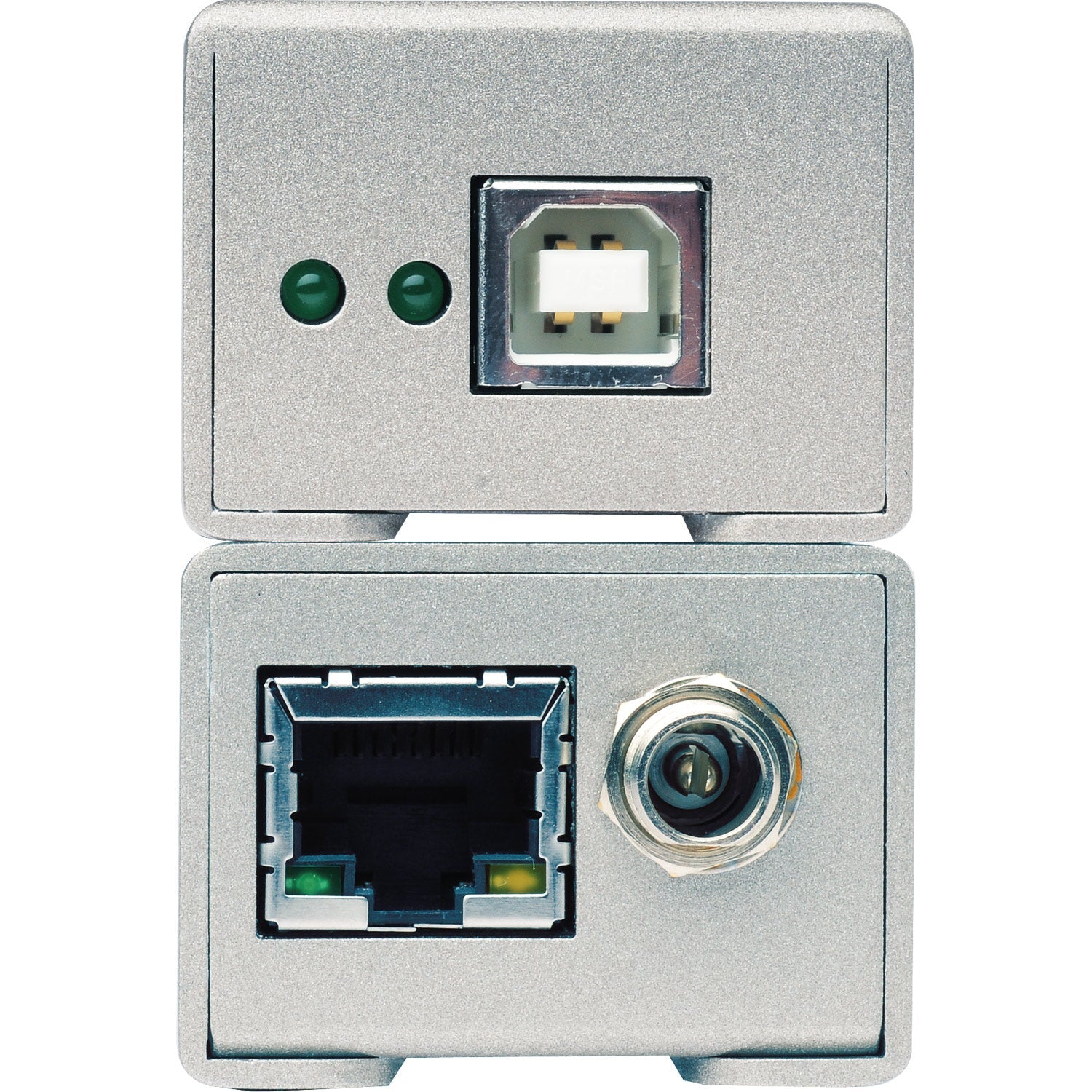

USB Connector (Sender): (1) USB type B

USB Connectors (Receiver): (2) USB type A

Receiver Port Power: Two 500 mA DC powered USB ports

Power Supply (Sender/Receiver): 5V DC, locking

Power Consumption (Sender/Receiver): 2.5W / 10W (maximum)

Dimensions (W x H x D): 3.7" x 1.4" x 1.8" (94mm x 36mm x 46mm)

Operating Temperature: +32°F to +122°F (0°C to +50°C)

Storage Temperature: -4°F to 158°F (-20°C to 70°C)

Operating Humidity: 20% to 80% relative humidity, non-condensing

Storage Humidity: 10% to 90% relative humidity, non-condensing

Shipping Weight: 2 lbs (0.9 kg)
UPC: 845344094328

System Requirements

Supported Operating Systems: The extender supports all major operating systems, including Windows, MacOS, and Linux. It is a 100% hardware solution that does not require any software drivers.

Required Cabling:

A single, user-supplied CAT-5, CAT-5e, or CAT-6 cable with a maximum length of 330 feet (100m) is needed to connect the Sender and Receiver units. Gefen recommends using solid core cabling for best performance.
User-supplied USB cables are required to connect your peripheral devices to the Receiver unit.

Hardware and Power:

A host computer with an available USB port to connect to the Sender unit.
One or more USB peripheral devices (such as printers, scanners, or hard drives) to connect to the Receiver unit.
Available electrical outlets to connect the two included 5V DC power supplies.

What's in the Box

(1) Gefen USB 2.0 Extender over CAT5 LR Sender

(1) Gefen USB 2.0 Extender over CAT5 LR Receiver

(2) 5V DC Power Supplies

(1) 6 ft. USB Cable

(1) Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-USB2.0 LR Datasheet
Gefen EXT-USB2.0-LR Manual
Gefen EXT-USB2.0-LR Declaration of Conformity
