RS232 Serial Extender - RS232 over CAT5 Cable up to 1000 Feet with Power Supply (EXT-RS232)

Name: RS232 Serial Extender - RS232 over CAT5 Cable up to 1000 Feet with Power Supply (EXT-RS232)
Brand: Gefen
SKU: EXT-RS232
Price: 269.85 USD
Availability: OutOfStock

EXT-RS232

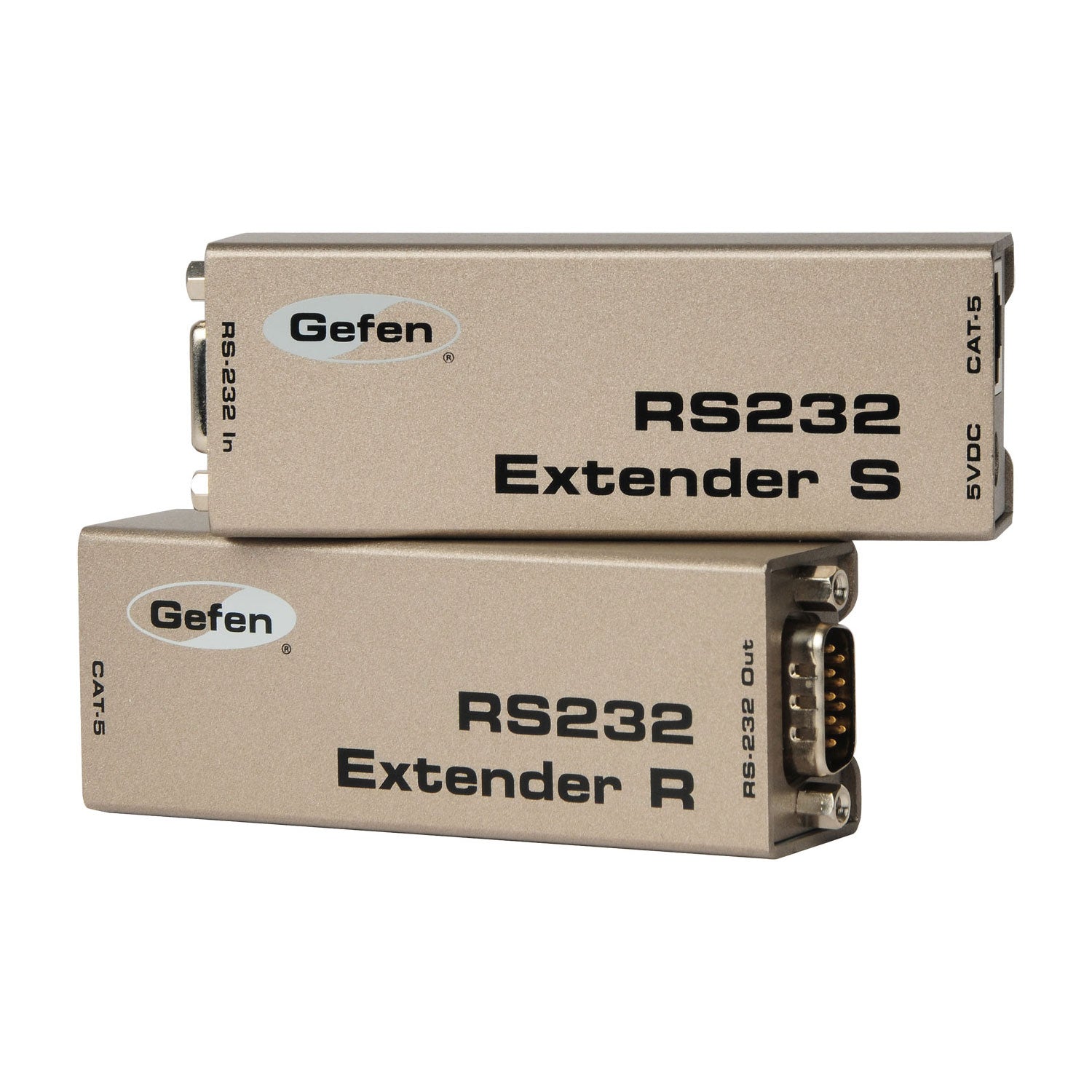

The Gefen EXT-RS232 serial extender provides reliable RS232 device extension up to 1000 feet (300 meters) over a single CAT-5 cable connection. This professional-grade RS232 extender allows you to relocate computers, control systems, and peripheral devices to secure, remote locations while maintaining full 9-pin RS-232 communication standards at data rates up to 115,200 baud. Perfect for digital signage applications, industrial automation, and remote device control, the EXT-RS232 extender includes both sender and receiver units with integrated power supply, delivering a complete plug-and-play solution for extending serial communication over standard Ethernet cabling infrastructure.

$269.85

RS232 Serial Extender - RS232 over CAT5 Cable up to 1000 Feet with Power Supply (EXT - RS232) - EXT - RS232 - Gefen

Key Features

Extended Range Communication: Extends any RS232 compliant device up to 1000 feet (300 meters) from the computer using standard CAT-5e cabling infrastructure.

Complete RS-232 Standard Support: Supports the full 9-pin RS-232 communications standard with maximum data transmission rates up to 115,200 baud for reliable serial device connectivity.

Single Cable Solution: Only one CAT-5e cable needed for extension, simplifying installation and reducing cable management requirements.

Digital Signage Ready: Perfect for digital signage applications, allowing remote placement of display controllers and media players while maintaining reliable RS-232 control.

Power Over Cable: 5V DC power supply on sender unit provides power to both sender and receiver units through the CAT-5 connection cable.

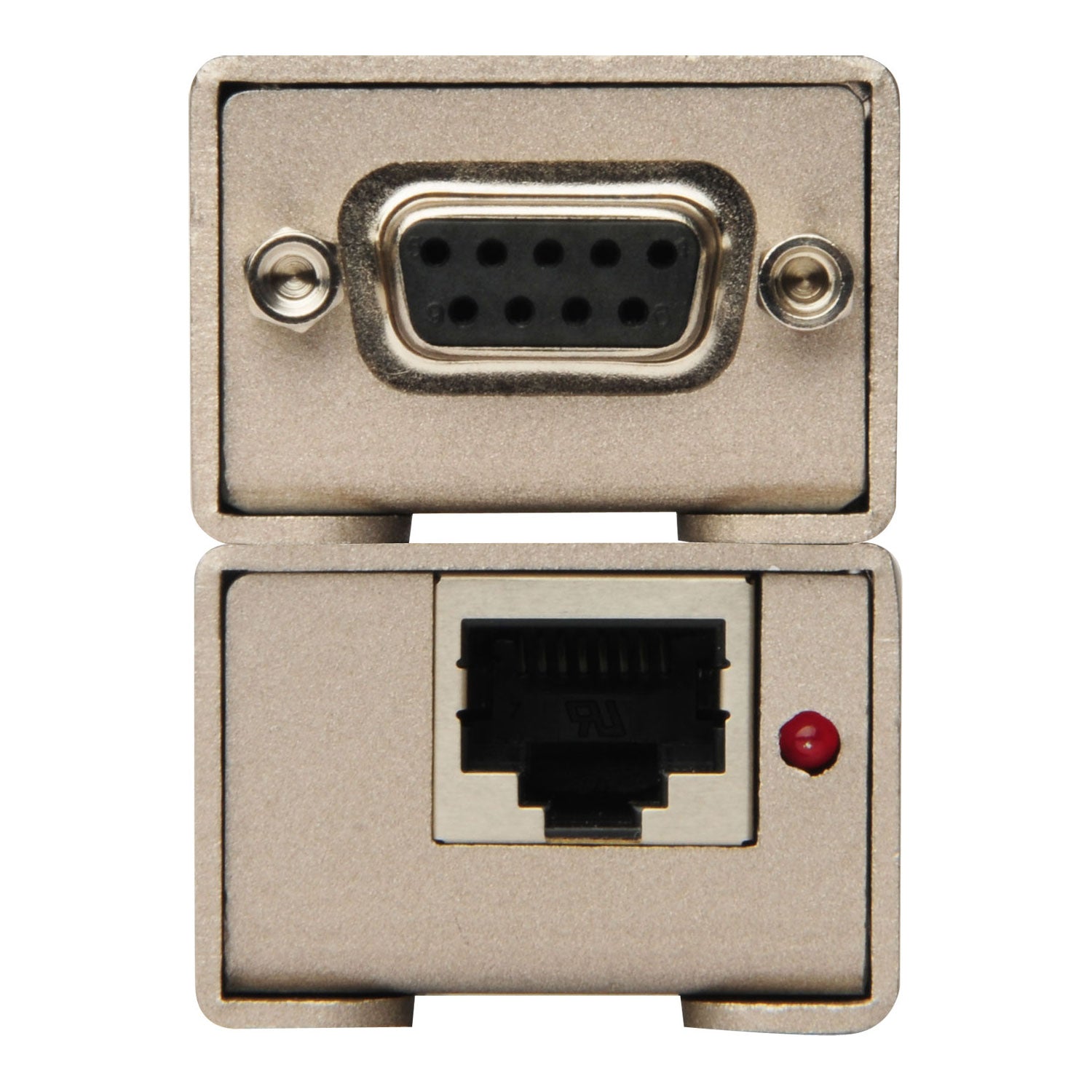

Status LED Indicator: Red LED on receiver unit lights up to indicate successful transmission of power and RS-232 signals between sender and receiver units.

How It Works

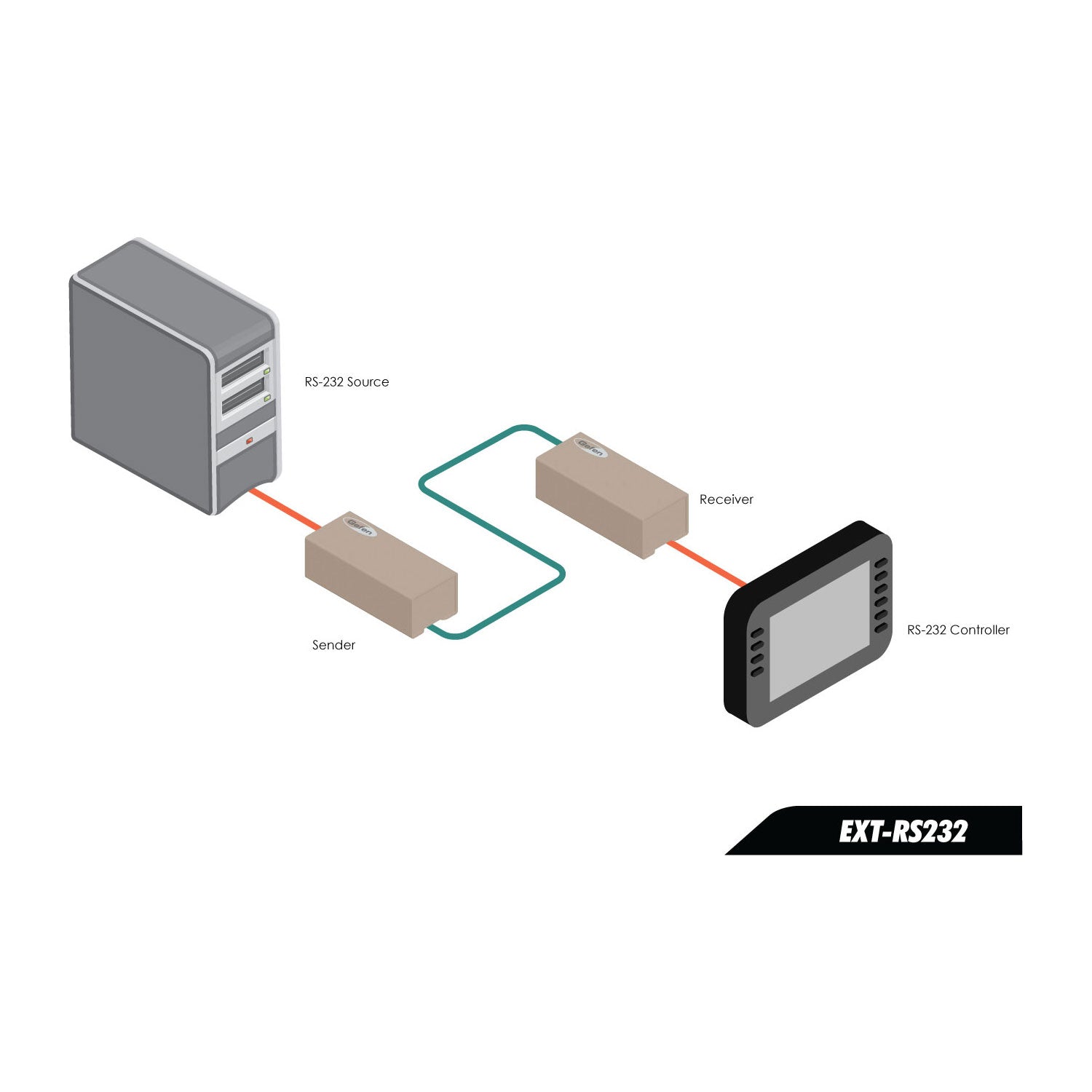

The Gefen EXT-RS232 serial extender operates using a two-unit sender-receiver architecture for reliable RS232 extension over CAT-5 cabling. First, connect your computer or source device to the RS-232 input port on the sender unit using the supplied DB9 serial cable. Next, run a standard CAT-5, CAT-5e, or CAT-6 cable from the sender unit's RJ-45 port to the receiver unit's corresponding port - up to 1000 feet away. Then connect your RS-232 peripheral device (such as a graphics tablet, industrial controller, or digital signage player) to the receiver unit's RS-232 output port. Finally, plug the included 5V power supply into the sender unit, which automatically powers both units through the CAT-5 cable connection. The system instantly establishes a transparent serial communication link, with the receiver's LED indicator confirming successful signal transmission and power delivery between both units.

Additional Information

Specifications

Connectivity:

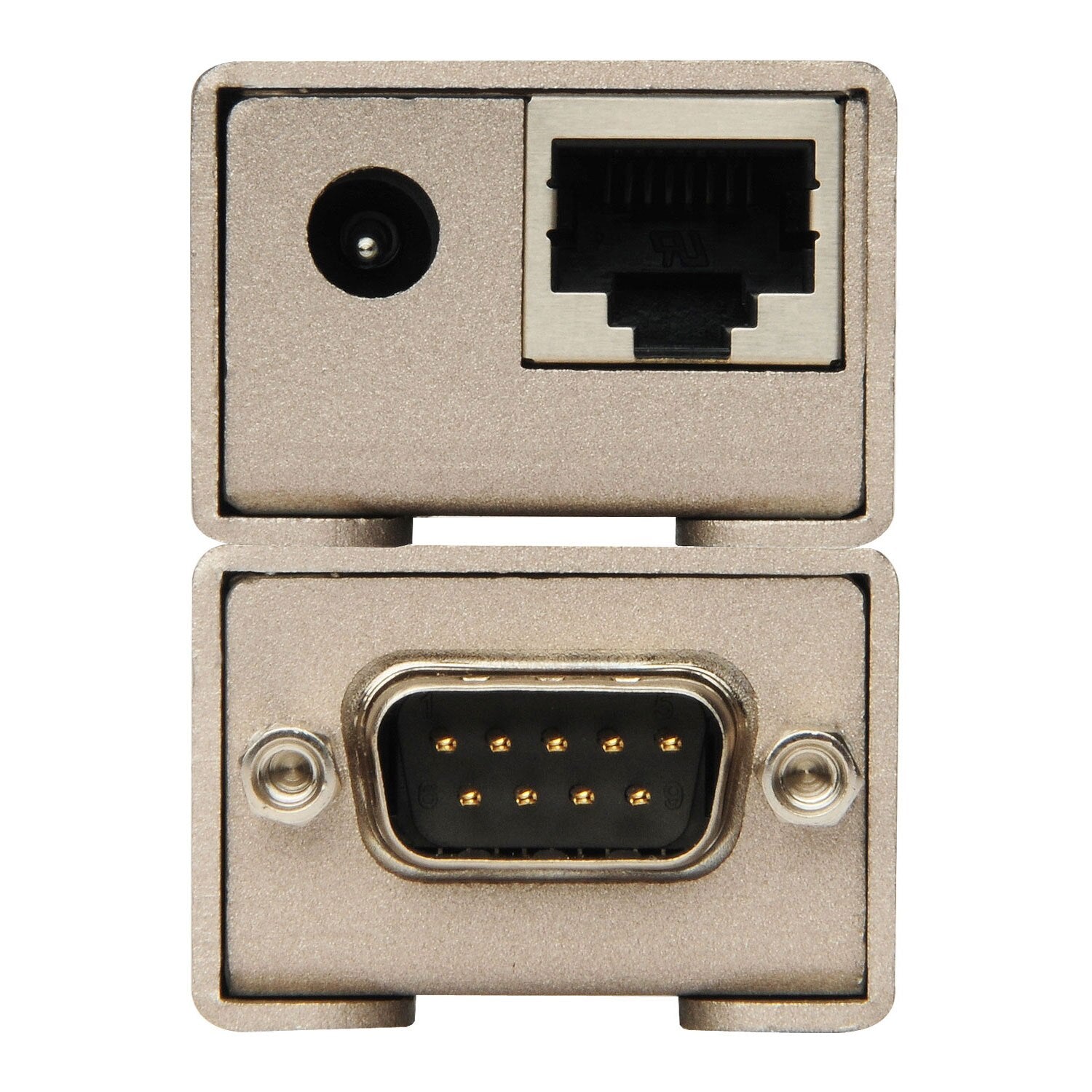

RS232 Input Connector: DB-9 female
RS232 Output Connector: DB-9 male
Link Connector: RJ-45 Shielded

Performance:

Maximum Extension Distance: 1000 feet (300 meters)
Supported Standards: RS-232 9-pin communications standard
Maximum Data Transmission Rate: 115,200 baud
Cable Type: CAT-5, CAT-5e, or CAT-6

Power Requirements:

Power Supply: 5V DC @ 1A (max)
Power Consumption: 5 Watts (maximum)
Power Delivery: Power over CAT-5 cable to receiver unit

Physical Specifications:

Dimensions: 1.2" W x 3.8" D x 1.2" H (each unit)
Shipping Weight: 1 lbs (complete system)

Environmental:

Operating Temperature Range: +5 to +45°C
Operating Humidity Range: 5 to 65% RH, non-condensing
Storage Temperature Range: -20 to +70°C
Storage Humidity Range: 5 to 95% RH, non-condensing

UPC: 845344000015

System Requirements

Required Equipment:

Computer or device with available DB-9 RS-232 serial port
RS-232 compatible peripheral device with DB-9 connector
CAT-5, CAT-5e, or CAT-6 Ethernet cable (not included, up to 1000 feet)
Standard AC power outlet for 5V DC power supply

Compatibility:

Supports any RS-232 compliant device with 9-pin configuration
Compatible with graphics tablets, industrial controllers, POS systems, and digital signage equipment
Works with all operating systems supporting RS-232 communication

Installation Requirements:

No drivers or software installation required
Plug-and-play operation
Access to both ends of cable run for unit placement

What's in the Box

(1) RS232 Extender Sender Unit
(1) RS232 Extender Receiver Unit
(1) 6-foot DB9 serial cable (Male to Female)
(1) 5V external power supply with AC adapter
User manual and documentation

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen EXT-RS232 Datasheet
Gefen EXT-RS232 Manual
Gefen EXT-RS232 Declaration of Conformity
