ToolBox 4K Ultra HD 4x4 HDMI Matrix Switch for HDMI (GTB-HD4K2K-444-BLK)

Name: ToolBox 4K Ultra HD 4x4 HDMI Matrix Switch for HDMI (GTB-HD4K2K-444-BLK)
Brand: Gefen
SKU: GTB-HD4K2K-444-BLK
Price: 1253.7 USD
Availability: InStock

GTB-HD4K2K-444-BLK

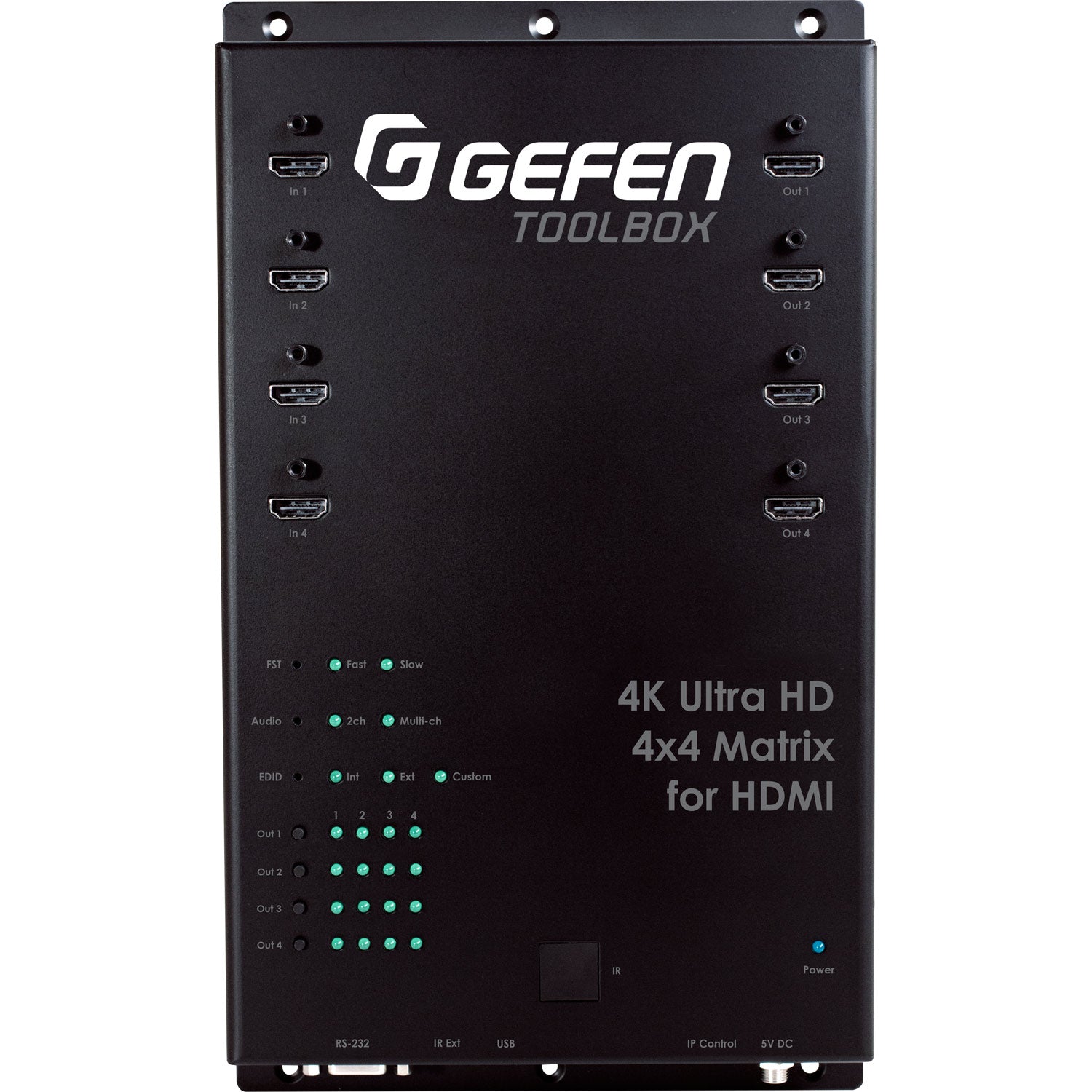

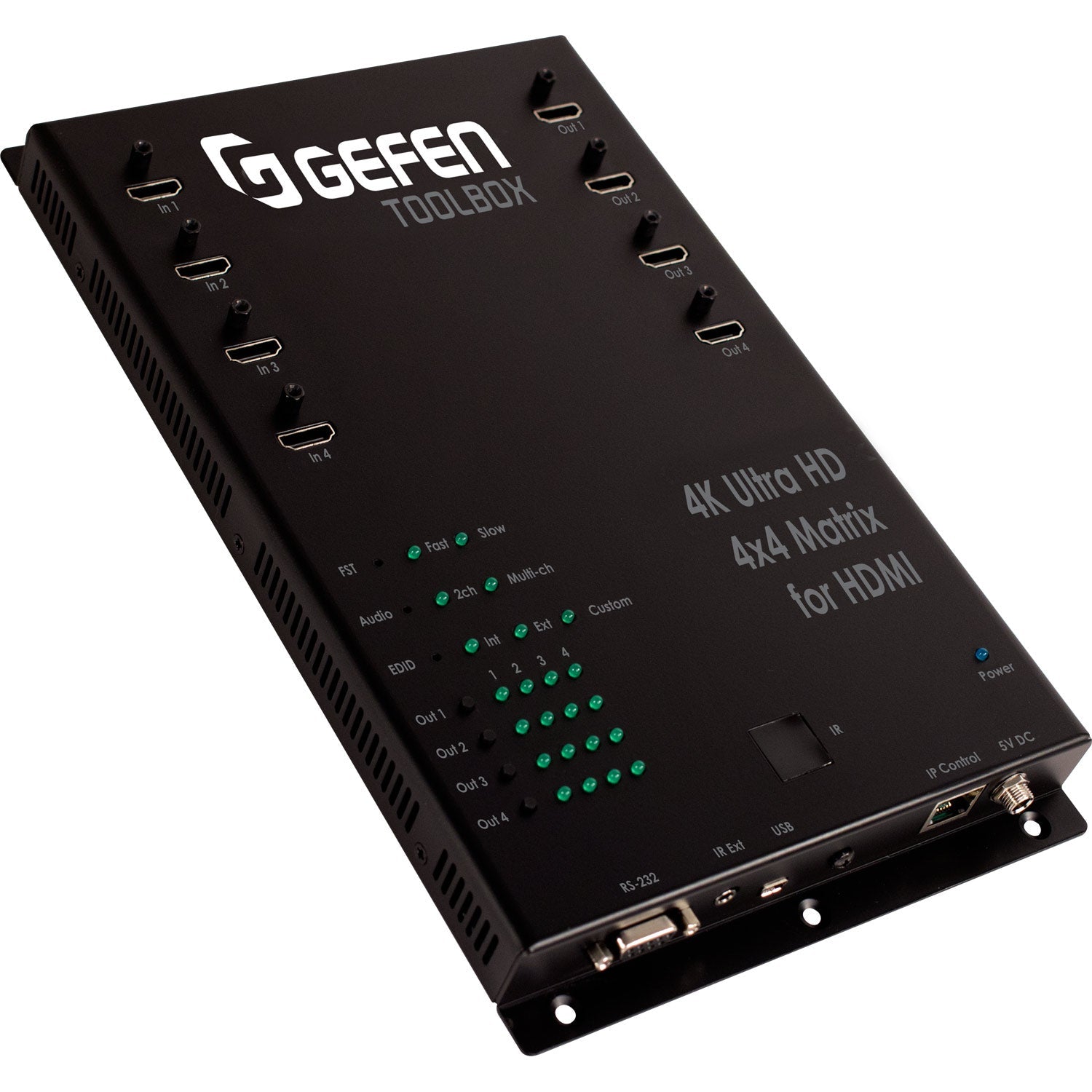

The Gefen ToolBox 4x4 Matrix for HDMI 4K x 2K provides a compact and powerful solution for routing high-definition video and audio. This versatile 4x4 matrix switch allows up to four Ultra High Definition 4K sources to be sent to any combination of four Ultra HD displays. It supports resolutions up to 4K Cinema (DCI) at 4096x2160 and is fully compliant with Deep Color, 3DTV pass-through, and lossless audio formats like Dolby® TrueHD, and DTS-HD Master Audio. Control your sources seamlessly via front panel push-buttons, the included IR remote, an RS-232 serial interface, or IP control, making it an ideal choice for professional AV installations and sophisticated home theater systems.

$1,253.70

ToolBox 4K Ultra HD 4x4 HDMI Matrix Switch for HDMI (GTB - HD4K2K - 444 - BLK) - GTB - HD4K2K - 444 - BLK - Gefen

Key Features

Ultra High-Definition Routing: Routes any four Ultra Hi-Def sources to any four Ultra HD displays.

High-Resolution Video: Supports resolutions up to Ultra HD 4K (3840x2160 @ 60Hz 4:2:0 or 30Hz 4:4:4) and 1080p Full HD.

Advanced Color Support: Supports 12-bit Deep Color for vibrant, rich video quality.

Immersive 3D: Features full 3DTV pass-through for a complete cinematic experience.

Fast Switching Technology: Gefen's FST technology speeds up the HDCP authentication process, ensuring quicker source switching.

Advanced EDID Management: Provides rapid integration of sources and displays for a seamless setup process.

Lossless High-Definition Audio: Supports LPCM 7.1, Dolby® TrueHD, Dolby® Digital Plus, and DTS-HD Master Audio™ formats.

Flexible Control Options: Control the matrix via front-panel push buttons, IR remote, RS-232 serial interface, or IP control using Telnet, UDP, and the built-in web server.

DVI Compatibility: Supports the use of DVI sources and displays with HDMI-to-DVI adapters (not included).

Firmware Upgradeable: The firmware is field-upgradeable via the Mini-USB and IP ports, ensuring long-term reliability.

How It Works

The Gefen ToolBox 4K Ultra HD 4x4 Matrix for HDMI operates by centralizing your AV signals for flexible distribution. Connect up to four HDMI source devices, such as Blu-ray players or gaming consoles, to the matrix's input ports using standard HDMI cables. Then, connect up to four HDMI displays to the output ports. Once connected, you can use the front-panel selection buttons, the included IR remote, or an integrated control system via RS-232 or IP to route any source to any display, allowing for dynamic and independent control over your video and audio distribution. For more advanced configurations, the matrix can be connected to a Local Area Network (LAN) for IP control.

Additional Information

Specifications

Maximum Pixel Clock: 300 MHz

Video Input Connectors: 4 x HDMI Type A 19-pin, female, locking

Video Output Connectors: 4 x HDMI Type A 19-pin, female, locking

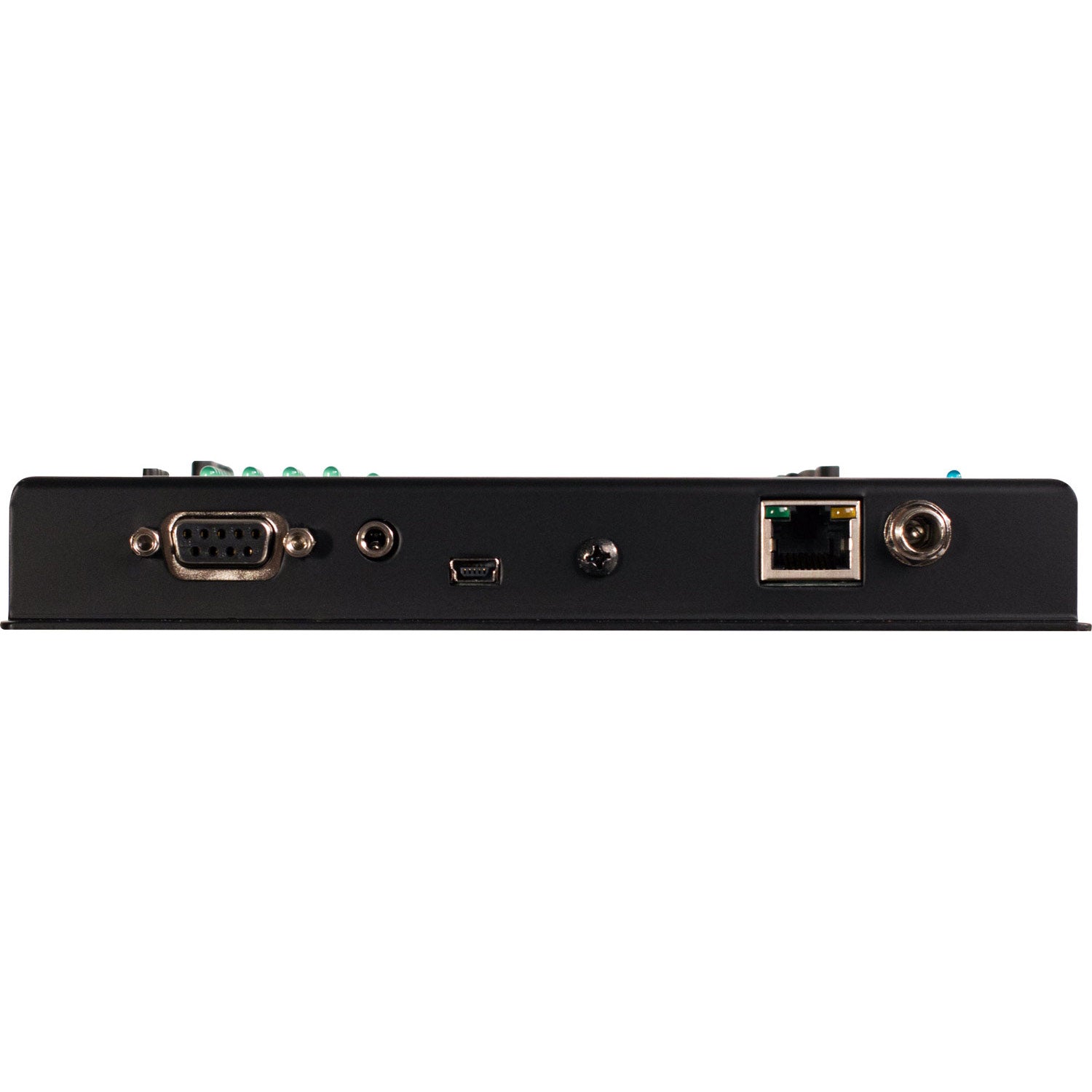

USB Port: 1 x Mini-B

RS-232 Serial Port: 1 x DB-9, female

Ethernet (IP Control) Port: 1 x RJ-45

IR Extender Port: 1 x 3.5mm mini-stereo jack

Power Supply: 5V DC

Power Consumption: 13W (max.)

Operating Temperature: +32 to 104 °F (0 to +40 °C)

Dimensions (W x H x D): 6.9" x 11.9" x 1.0" (175mm x 302mm x 26mm)

UPC: 845344081410

What's in the Box

1 x 4K Ultra HD 4x4 Matrix for HDMI

1 x DB-9 Cable

1 x IR Remote

1 x 5V DC Power Supply

1 x AC Power Cord

1 x Quick-Start Guide

Warranty

2 Year Product Warranty

Please see the Gefen Warranty Page for more details.

Resources

Gefen GTB-HD4K2K-444 Datasheet
Gefen GTB-HD4K2K-444-BLK Manual
